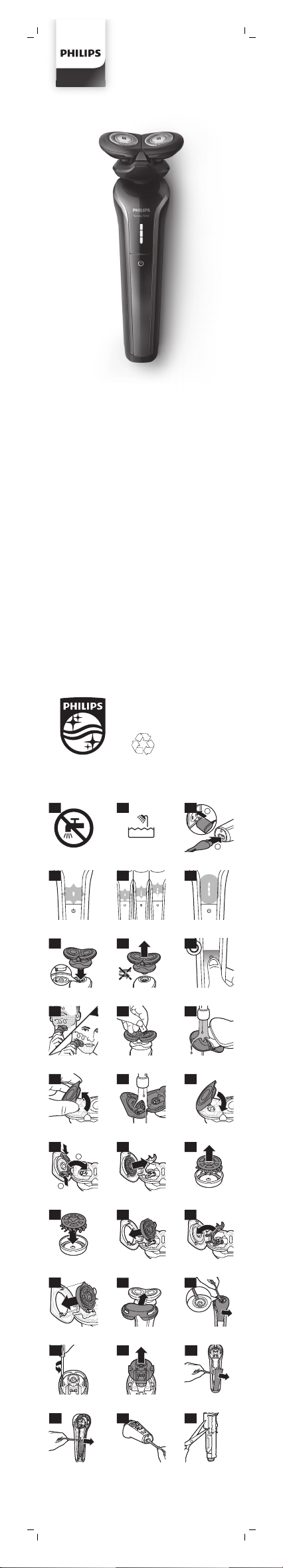

S588, S5 86
© 2018 Koninklijke Philips N.V.
2
3
1
2
45678910111213141516
2
1
1
171819
20
21
22
23
24
25
262728
29
30
31
All rights reserved
保留所有权利
3000.016.8085.2 (27/12/2018)
> 75% 循环再造纸
保留备用
>75 % recycled paper
>75 % papier recyclé
English
1
2
3
4
5
6
7
8
9
10
11
12
13
1
Congratulations on your purchase
and welcome to Philips! To fully
benefit from the support that
Philips offers, register your product
at www.philips.com/welcome.
General description (Fig.
1)
1 Protection cap
2 Shaving head holder
3 Shaving unit connector
4 Handle
5 Battery charge indicator
6 On/off button
7 Socket for small plug
8 Cutter
9 Guard
10 Retaining frame
11 Supply unit
12 Small plug
13 Pouch (S588 only)
Not shown: cleaning brush
Important safety information
Read this important information
carefully before you use the
appliance and its accessories and
save it for future reference. The
accessories supplied may vary for
different products.
Danger
- Keep the supply unit dry (Fig. 2).
Warning
- To charge the battery, only use
the detachable supply unit
(HQ8505) provided with the
appliance.
- The supply unit contains a
transformer. Do not cut off the
supply unit to replace it with
another plug, as this causes a
hazardous situation.
- This appliance can be used by
children aged from 8 years and
above and persons with
reduced physical, sensory or
mental capabilities or lack of
experience and knowledge if
they have been given
supervision or instruction
concerning use of the appliance
in a safe way and understand
the hazards involved. Children
shall not play with the appliance.
Cleaning and user maintenance
shall not be made by children
without supervision.
- Always unplug the shaver before
you clean it under the tap.
- Always check the appliance
before you use it. Do not use the
appliance if it is damaged, as
this may cause injury. Always
replace a damaged part with
one of the original type.
- Do not open the appliance to
Caution
- Never use water hotter than
- Only use this appliance for its
- For hygienic reasons, the
- Never use compressed air,
replace the rechargeable
battery.
60°C to rinse the shaver.
intended purpose as shown in
the user manual.
appliance should only be used
by one person.
scouring pads, abrasive cleaning
agents or aggressive liquids such
as petrol or acetone to clean the
appliance.
- Water may drip from the bottom
of the shaver when you rinse it.
This is normal and not
dangerous because all
electronics are enclosed in a
sealed power unit inside the
shaver.
- Do not use the supply unit in or
near wall sockets that contain
an electric air freshener to
prevent irreparable damage to
the supply unit.
Electromagnetic fields (EMF)
This Philips appliance complies
with all applicable standards and
regulations regarding exposure to
electromagnetic fields.
General
- This shaver is waterproof (Fig. 3).
It is suitable for use in the bath
or shower and for cleaning
under the tap. For safety
reasons, the shaver can
therefore only be used without
cord.
- The supply unit is suitable for
mains voltages ranging from 100
to 240 volts.
- The supply unit transforms
100-240 volts to a safe low
voltage of less than 24 volts.
Charging
Note: This appliance can only be
used without cord.
Fully charge the appliance before
first use and when the display
indicates that the battery is almost
empty.
Charging takes approx. 1 hour. A
fully charged shaver provides up to
45 minutes of shaving time.
Charging with the supply unit
1 Make sure the shaver is
switched off.
2 Put the small plug in the shaver
and put the supply unit in the
wall socket.
The display of the shaver
indicates that the shaver is
charging.
3 After charging, remove the
supply unit from the wall socket
and pull the small plug out of
the appliance.
Charge indications
Battery low
When the battery is almost empty,
the bottom light of the battery
charge indicator flashes orange (Fig.
5).
Battery charging
When the appliance is charging, the
bottom light of the battery charge
indicator first flashes and then
lights up continuously (Fig. 6). After
this the second light flashes and
then lights up continuously, and so
on until the appliance is fully
charged.
Battery full
When the battery is fully charged,
all lights of the battery charge
indicator light up white
continuously (Fig. 7).
Note: This appliance can only be
used without cord.
'Unplug before use' reminder
All lights of the battery charge
indicator flash 3 times to remind
you to unplug the shaver first.
Using the appliance
Removing or attaching the click-on attachments
1 Make sure the appliance is
switched off.
2 Insert the lug of the attachment
into the slot in the top of the
appliance. Then press down the
attachment to attach it to the
appliance (‘click’) (Fig. 8).
3 Pull the attachment straight off
the appliance (Fig. 9).
Note: Do not twist the
attachment while you pull it off
the appliance.
Switching the appliance on and off
1 To switch the appliance on or
off, press the on/off button once
(Fig. 10).
Note: This appliance can only be
used without cord.
Shaving
Skin adaptation period
Your first shaves may not bring you
the result you expect and your skin
may even become slightly irritated.
This is normal. Your skin and beard
need time to adapt to any new
shaving system. To allow your skin
to adapt to this new appliance, we
advise you to shave regularly (at
least 3 times a week) and
exclusively with this appliance for a
period of 3 weeks.
Dry shaving
1 Switch on the appliance.
2 Move the shaving heads over
your skin in circular movements
to catch all hairs growing in
different directions (Fig. 11). Make
sure each shaving head is fully in
contact with the skin. Exert
gentle pressure for a close,
comfortable shave.
Note: Do not press too hard, as
this can cause skin irritation.
3 Clean the appliance after use
(see 'Cleaning and
maintenance').
Wet shaving
For a more comfortable shave, you
can also use this appliance on a
wet face with shaving foam or
shaving gel.
To shave with shaving foam or
shaving gel, follow the steps below:
1 Apply some water to your skin.
2 Apply shaving foam or shaving
gel to your skin.
3 Rinse the shaving unit under the
tap to ensure that the shaving
unit glides smoothly over your
skin.
4 Switch on the appliance.
5 Move the shaving heads over
your skin in circular movements
to catch all hairs growing in
different directions (Fig. 11). Make
sure each shaving head is fully in
contact with the skin. Exert
gentle pressure for a close,
comfortable shave.
Note: Do not press too hard, this
can cause skin irritation.
Note: Rinse the shaving unit
regularly to ensure that it
continues to glide smoothly over
your skin.
6 Dry your face.
7 Clean the appliance after use
(see 'Cleaning and
maintenance').
Note: Make sure you rinse all
foam or shaving gel off the
appliance.
Cleaning and maintenance
Cleaning the shaver under the tap
Clean the shaver after every use for
optimal performance (see 'Cleaning
and maintenance'). Always unplug
and switch off the shaver before
you clean it.
Never use compressed air, scouring
pads, abrasive cleaning agents or
aggressive liquids such as petrol or
acetone to clean the appliance.
Be careful with hot water. Always
check if the water is not too hot, to
prevent burning your hands.
Never dry the shaving unit with a
towel or tissue, as this may
damage the shaving heads.
1 Rinse the shaving unit under a
warm tap.
Note: You can also clean the
shaving unit with the cleaning
brush supplied (Fig. 12).
2 Turn the shaver up side down
and rinse the openings in the
bottom of the shaving head
holders. Switch on the shaver
briefly during rinsing (Fig. 13).
3 Open both shaving head holders
(Fig. 14).
4 Rinse the hair chambers and
shaving head holders under the
tap (Fig. 15).
5 Carefully shake off excess water
and let air dry completely.
6 Close the shaving head holders
(Fig. 16).
Thorough cleaning
The shaving unit consists of two
shaving heads. Clean one shaving
head at a time by following the
steps below.
1 Open the shaving head holder
(Fig. 14).
2 To unlock the retaining frame,
gently squeeze both sides of the
retaining frame and flip open
the frame (Fig. 17).
3 Remove the shaving head. Each
shaving head consists of a cutter
and a guard (Fig. 18).
Note: Do not clean more than
one cutter and guard at a time,
since they are all matching sets.
If you accidentally mix up the
cutters and guards, it may take
