Philips S5670, S5371, S5361 User Manual

S5670, S5620,
S5420,S5400,
S5380,S5371,
S5361,S5230
16
19
18
13
4
3
5
6
8
7
9
2
12
11
1
10
15
14
empty page before TOC
English 6 Français (Canada) 33
English
6

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.
Please read this user manual, as it contains information about the features of this shaver as well as some tips to make shaving easier and more enjoyable.

General description

1 Protection cap for shaving unit (S5420, S5400,
S5380, S5230, S5361, S5371 only) 2 Click-on shaving unit 3 On/off button 4 Turbo button (S5670, S5620, S5380, S5371,
S5361 only) 5 Handle 6 Socket for small plug 7 Battery charge indicator with 1 light (S5420,
S5400, S5230 only) 8 Battery charge indicator with 3 lights (S5670,
S5620, S5380, S5371, S5361 only) 9 Unplug for use symbol 10 Travel lock symbol 11 Replacement reminder 12 Cleaning reminder 13 Click-on trimmer attachment (S5670, S5420,
S5400, S5380, S5371, S5361, ,S5230 only) 14 Click-on beard styler attachment (S5620 only) 15 Comb for beard styler attachment (S5620 only) 16 Adapter 17 Small plug 18 Pouch (S5670, S5620 only)
English
English

Important safety information

Read this important information carefully before you use the appliance and its accessories and save it for future reference. The accessories supplied may vary for different products.

Danger

- Keep the adapter dry.

Warning

- The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
7
English
8
- Always unplug the shaver before you clean it under the tap.
- Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

Caution

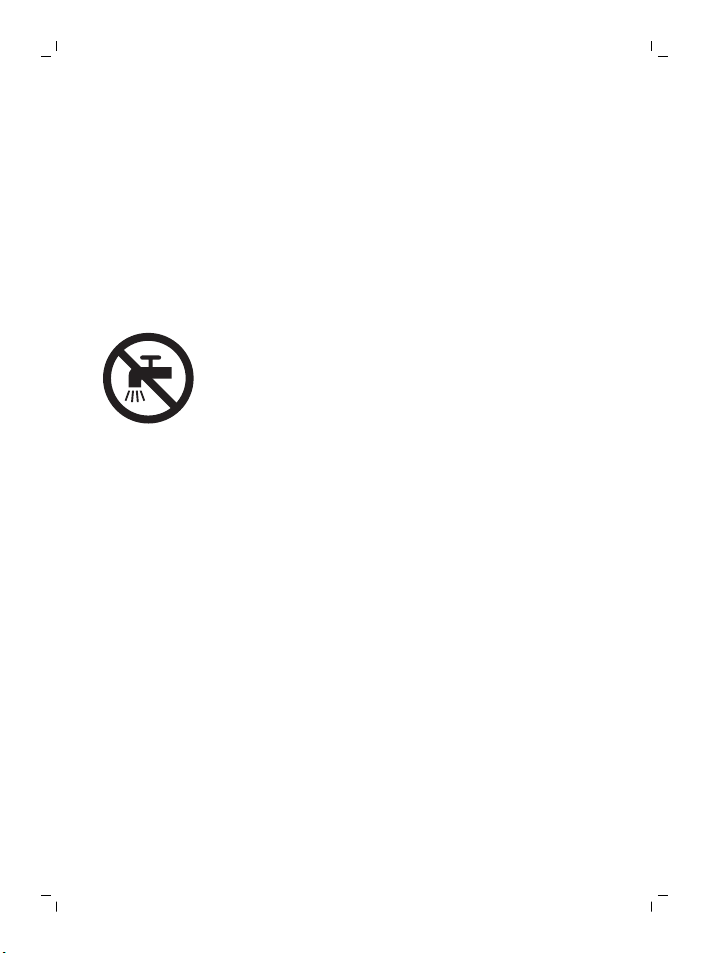

- Never immerse the adapter in water nor rinse it under the tap.
- Never use water hotter than 60°C to rinse the shaver.
- Only use this appliance for its intended purpose as shown in the user manual.
- For hygienic reasons, the appliance should only be used by one person.
- Do not use the adapter in or near wall sockets that contain or have contained an electric air freshener to prevent irreparable damage to the adapter.
- Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
English
- Water may drip from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

General

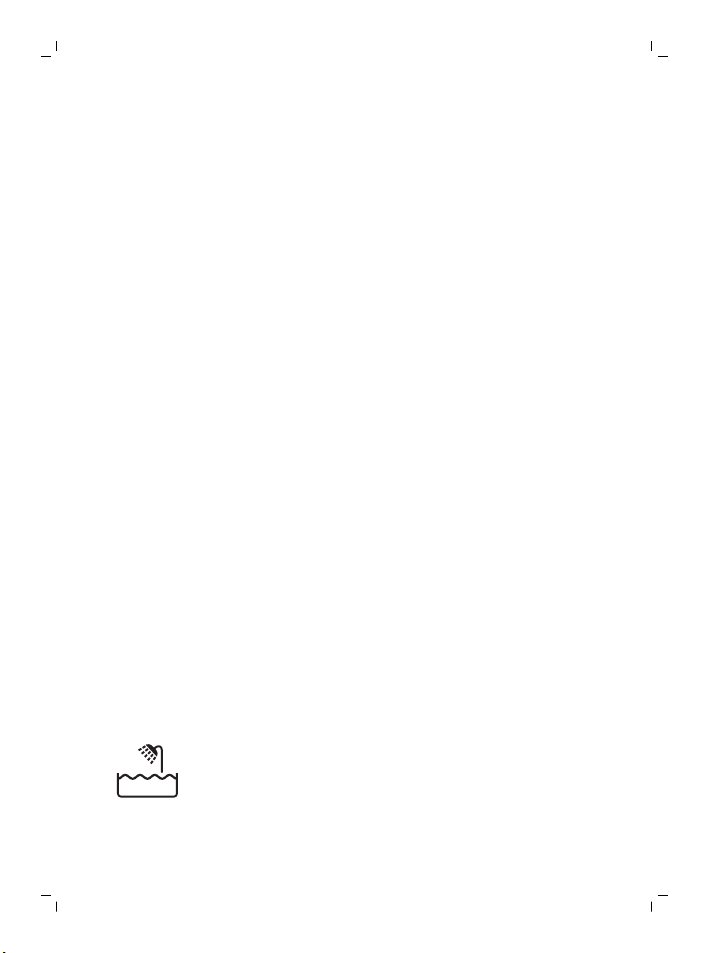

- This shaver is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used without cord.
- The appliance is suitable for voltages ranging from 100 to 240 volts.
- The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.

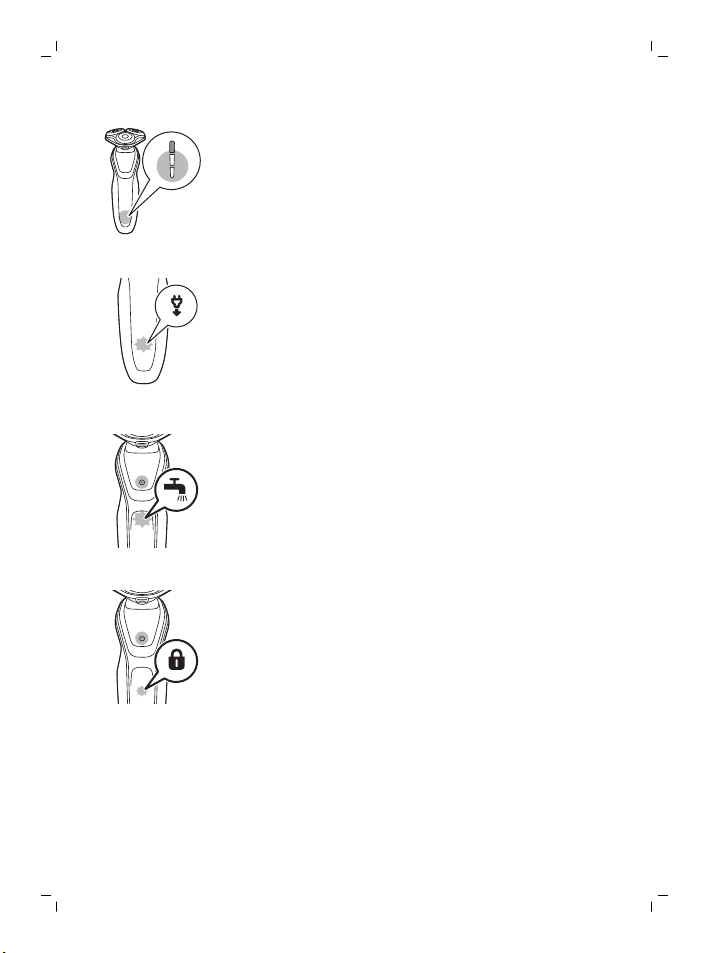

The display

Charging

Battery charge indicator with 3 lights (specific types only)

Quick charge: When you connect the shaver to the wall socket, the lights of the battery charge indicator light up one after the other repeatedly. When the appliance contains enough energy for one shave, the bottom light of the battery charge indicator starts to flash slowly.
While the shaver continues to charge, first the bottom light of the battery charge indicator flashes and then lights up continuously. Then the second
9
English
10
light flashes and lights up continuously, and so on until the shaver is fully charged.

Battery charge indicator with 1 light (specific types only)

Quick charge: When the appliance does not contain enough energy for one shave, the battery charge indicator flashes quickly. When the battery charge indicator starts flashing slowly, the appliance contains enough energy for one shave .
While the appliance continues to charge, the battery charge indicator flashes slowly until the appliance is fully charged.

Battery fully charged

Note: This appliance can only be used without cord.
Note: When the battery is full, the display switches off automatically after 30 minutes.
Note: If you press the on/off button during charging, the 'unplug for use' symbol flashes white to remind you that you have to disconnect the appliance from the power outlet.
When the battery is full, all lights of the battery charge indicator light up continuously.
- Battery charge indicator with 3 lights (specific types only)
- Battery charge indicator with 1 light (specific types only)
Battery low Remaining battery charge

Battery charge indicator with 3 lights

The remaining battery charge is shown by the lights of the battery charge indicator that light up continuously.

’Unplug for use’ reminder

The ‘unplug for use’ symbol flashes to remind you that you have to disconnect the appliance from the wall socket before you can switch it on.

Cleaning reminder

Clean the shaver after every shave for optimal performance. When you switch off the appliance, the cleaning reminder flashes to remind you to clean the appliance.
English
11
3 sec.
English
12

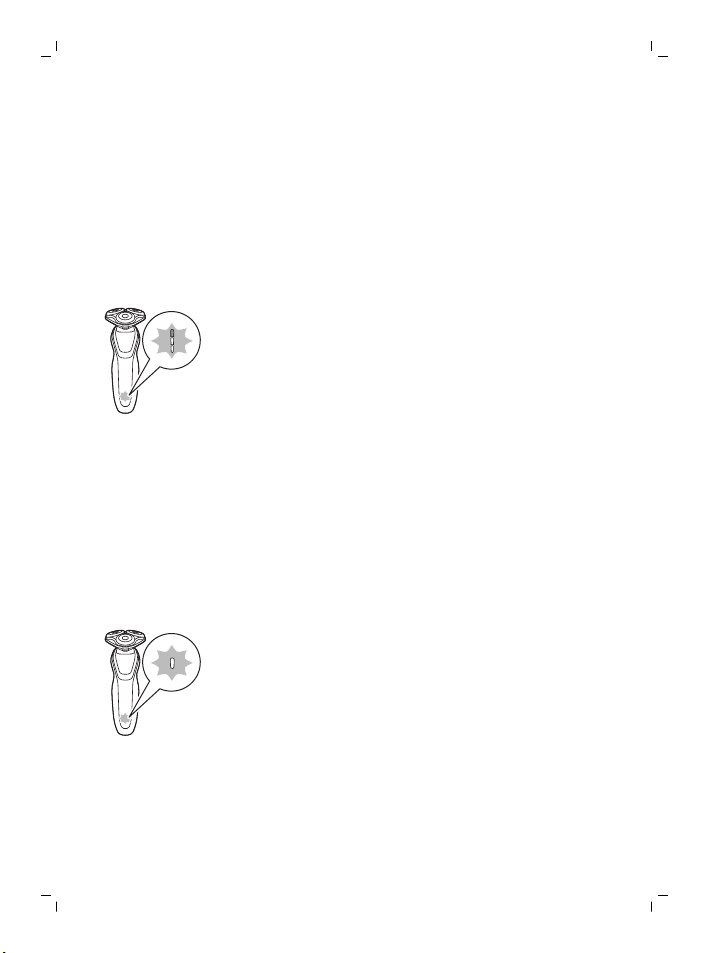

Travel lock

You can lock the appliance when you are going to travel. The travel lock prevents the appliance from being switched on by accident.

Activating the travel lock

1 Press the on/off button for 3 seconds to enter
the travel lock mode.
-
While you activate the travel lock, the travel lock symbol lights up continuously. When the travel lock is activated, the travel lock symbol flashes.

Deactivating the travel lock

1 Press the on/off button for 3 seconds.
-
The travel lock symbol flashes and then lights up continuously. The appliance is now ready for use again.

Replacement reminder

For maximum shaving performance, replace the shaving heads every two years.
The appliance is equipped with a replacement reminder which reminds you to replace the shaving heads. The replacement reminder lights up continuously.
Note: After replacing the shaving heads, you need to reset the replacement reminder by pressing the on/off button for 7 seconds.

Turbo setting (specific types only)

The appliance is equipped with a Turbo or Turbo+ setting. This setting is intended for quicker and more intense shaving and makes hard-to-reach areas easier to shave.

Charging

Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty.
Charging takes approx. 1 hour. Note:You cannot use the appliance while it is
charging.

Charging with the supply unit

1 Make sure the appliance is switched off. 2 Put the small plug in the appliance and put the
supply unit in the wall socket. The display of the shaver indicates that the
shaver is charging.
3 After charging, remove the supply unit from the
wall socket and pull the small plug out of the appliance.
English
13
English
14

Using the appliance

Switching the appliance on and off

1 To switch on the appliance, press the on/off
button once.
2 To switch off the appliance, press the on/off
button once.
Battery charge indicator with 3 lights (specific types only): the display lights up for a few seconds to show the remaining battery status.

Shaving

Skin adaptation period

Your first shaves may not bring you the result you expect and your skin may even become slightly irritated. This is normal. Your skin and beard need time to adapt to any new shaving system. To allow your skin to adapt to this new appliance, we advise you to shave regularly (at least 3 times a week) and exclusively with this appliance for a period of 3 weeks.
Note: This appliance can only be used without cord.
Dry shaving
1 Switch on the appliance. 2 Move the shaving heads over your skin in
circular movements to catch all hairs growing in different directions. Make sure each shaving head is fully in contact with the skin. Exert gentle pressure for a close, comfortable shave.
Note: Do not press too hard, this can cause skin irritation.
3 Switch off and clean the appliance after each
use (see 'Cleaning and maintenance').
English

Wet shaving

For a more comfortable shave, you can also use this appliance on a wet face with shaving foam or shaving gel.
To shave with shaving foam or shaving gel, follow the steps below:
1 Apply some water to your skin.
2 Apply shaving foam or shaving gel to your skin.
3 Rinse the shaving unit under the tap to ensure
that the shaving unit glides smoothly over your skin.
4 Switch on the appliance.
5 Move the shaving heads over your skin in
circular movements to catch all hairs growing in different directions. Make sure each shaving head is fully in contact with the skin. Exert gentle pressure for a close, comfortable shave.
Note: Do not press too hard, this can cause skin irritation.
Note: Rinse the shaving unit regularly to ensure that it continues to glide smoothly over your skin.
6 Dry your face.
15
English
16
7 Switch off the appliance and clean it after each
use.
Note: Make sure you rinse all foam or shaving gel off the appliance.

Turbo setting (specific types only)

The appliance is equipped with a Turbo or Turbo+ setting. This allows you to shave hard-to-reach areas more quickly.
1 Switch on the appliance. 2 To activate the Turbo setting, press the Turbo
button once when the appliance is switched on.
3 Move the shaving heads over your skin in
circular movements to catch all hairs growing in different directions. Make sure each shaving head is fully in contact with the skin. Exert gentle pressure for a close, comfortable shave.
Note: Circular movements provide better shaving results than straight movements.
4 To deactivate the Turbo setting, press the Turbo
button once.

Using the click-on attachments

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your product.

Removing or attaching the click-on attachments

1 Make sure the appliance is switched off.
English
2 Pull the attachment straight off the appliance.
Note: Do not twist the attachment while you pull it off the appliance.
3 Insert the lug of the attachment into the slot in
the top of the appliance. Then press down the attachment to attach it to the appliance (‘click’).

Using the trimmer attachment (specific types only)

You can use the trimmer attachment to groom your sideburns and moustache.
1 Make sure the appliance is switched off. 2 Remove the shaving unit from the appliance.
3 Insert the lug of the trimmer attachment into
the slot in the top of the appliance.
4 Switch on the appliance.
5 You can now start trimming. 6 Clean the attachment after use (see 'Cleaning
and maintenance').

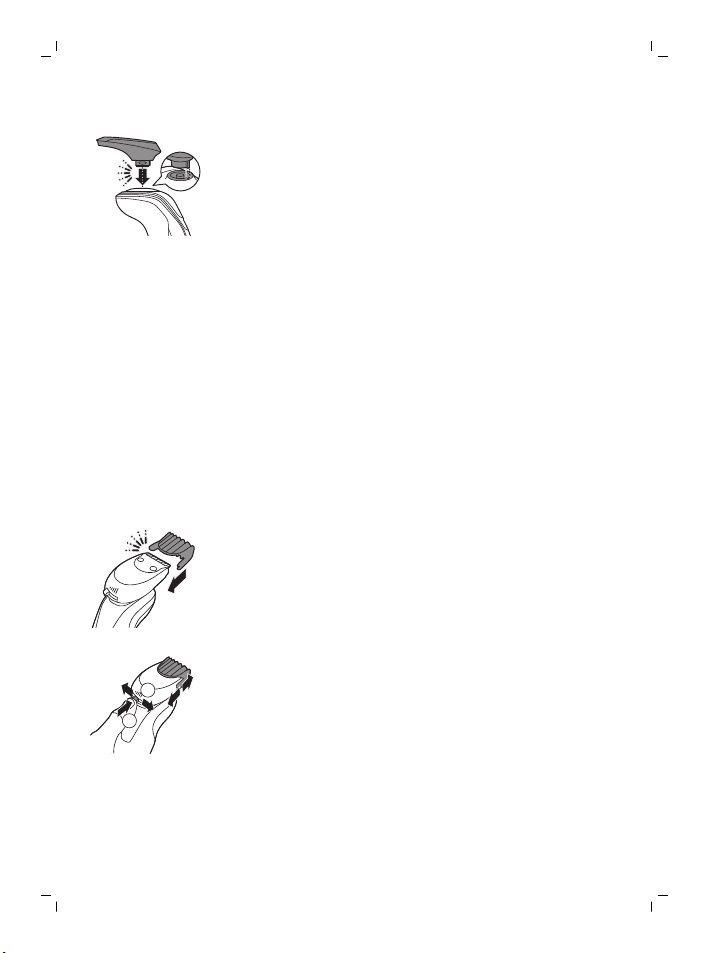

Using the beard styler attachment (specific types only)

1 Make sure the appliance is switched off. 2 Insert the lug of the beard styler attachment
into the slot in the top of the appliance. Then press down the beard styler attachment to attach it to the appliance (‘click’).
17
1
2
18
English
Using the beard styler attachment with comb
You can use the beard styler attachment with the comb attached to style your beard at one fixed setting, but also at different length settings. You can use it also to pre-trim any long hairs before shaving to have a more comfortable shave.
The hair length settings on the beard styler attachment correspond to the remaining hair length after cutting and range from 1 to 5mm.
1 Slide the comb straight into the guiding grooves
on both sides of the attachment (‘click’).
2 Press the length selector and then push it to
the left or right to select the desired hair length setting.
3 Switch on the appliance.
4 You can now start styling your beard by moving
the attachment upwards with gentle pressure making sure the front of the comb is in full contact with the skin.
5 Clean the attachment after use (see 'Cleaning
and maintenance').
Using the beard styler attachment without comb
You can use the beard styler attachment without the comb to contour your beard, moustache, sideburns or neckline to a length of 0.5mm.
1 Pull the comb off the beard styler.
Note: Grab the comb in the center to pull it off the beard styler. Do not pull at the sides of the comb.
2 Switch on the appliance.
3 You can now start contouring your beard,
moustache, sideburns or neckline by moving the styler downwards with gentle pressure while holding it perpendicular to the skin.
4 Clean the attachment after use (see 'Cleaning
and maintenance').

Cleaning and maintenance

Note: The accessories supplied may vary for different products. The box shows the accessories that have been supplied with your product.

Cleaning the shaver under the tap

Clean the shaver after every shave for optimal performance.
Be careful with hot water. Always check if the water is not too hot, to prevent burning your hands.
Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.
While rinsing the shaving unit, water may drip out of the base of the shaver. This is a normal occurrence.
1 Switch on the appliance.
English
19
20
English
2 Rinse the shaving unit under a warm tap.
3 Switch off the appliance. Press the release
button to open the shaving unit.
4 Rinse the hair chamber under the tap.
5 Rinse the shaving head holder under a warm
tap.
6 Carefully shake off excess water and let the
shaving head holder air-dry completely.
7 Close the shaving head holder ('click').

Thorough cleaning method

1 Switch off the appliance.
