series S5000
Introduction
Congratulations on your purchase and welcome to
Philips!To fully benefit from the support that Philips offers, register your product at www.philips.com/ welcome.

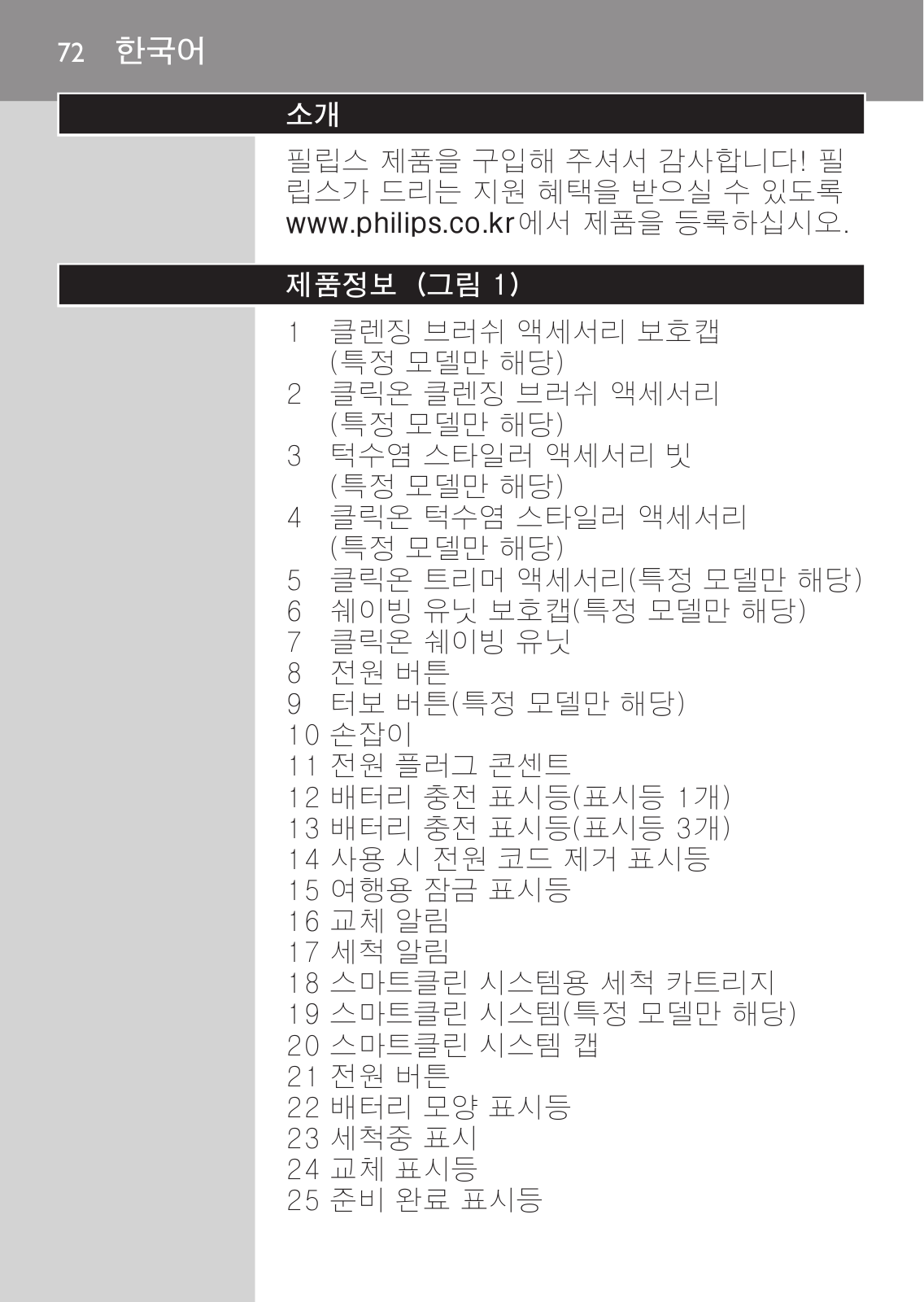

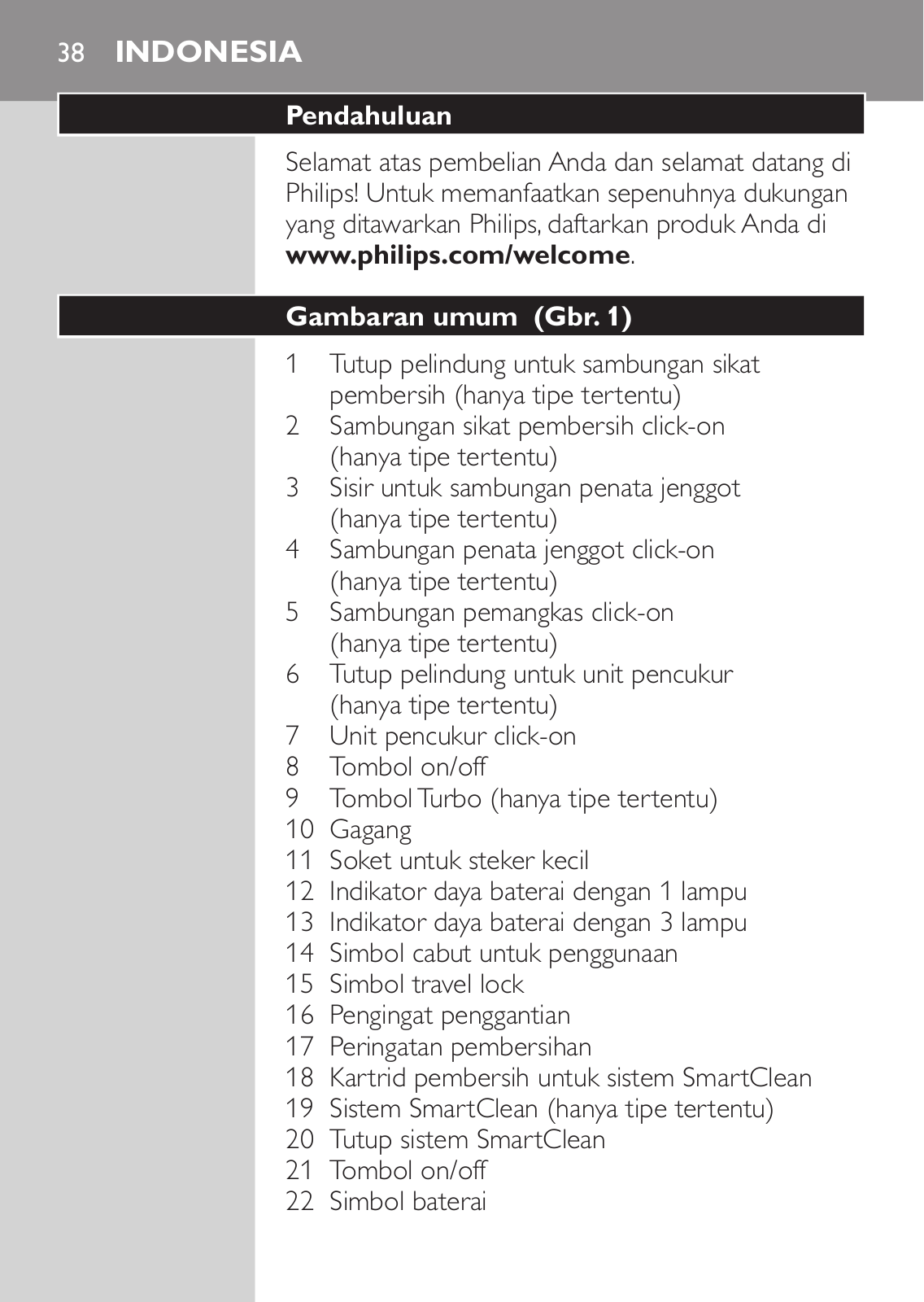

General description (Fig. 1)
1Protection cap for cleansing brush attachment
(specific types only)
2Click-on cleansing brush attachment
(specific types only)
3Comb for beard styler attachment
(specific types only)
4Click-on beard styler attachment
(specific types only)
5Click-on trimmer attachment
(specific types only)
6Protection cap for shaving unit
(specific types only)
7Click-on shaving unit
8On/off button
9 Turbo button (specific types only)
10Handle
11Socket for small plug
12Battery charge indicator with 1 light
13Battery charge indicator with 3 lights
14Unplug for use symbol
15Travel lock symbol
16Replacement reminder
17Cleaning reminder
18Cleaning cartridge for SmartClean system
19SmartClean system (specific types only)
20Cap of SmartClean system
21On/off button
22Battery symbol
ENGLISH 5
23Cleaning symbol
24Replacement symbol
25Ready symbol
26Adapter
27Small plug
28Pouch (specific types only)
Note:The accessories supplied may vary for different products.The box shows the accessories that have been supplied with your appliance.

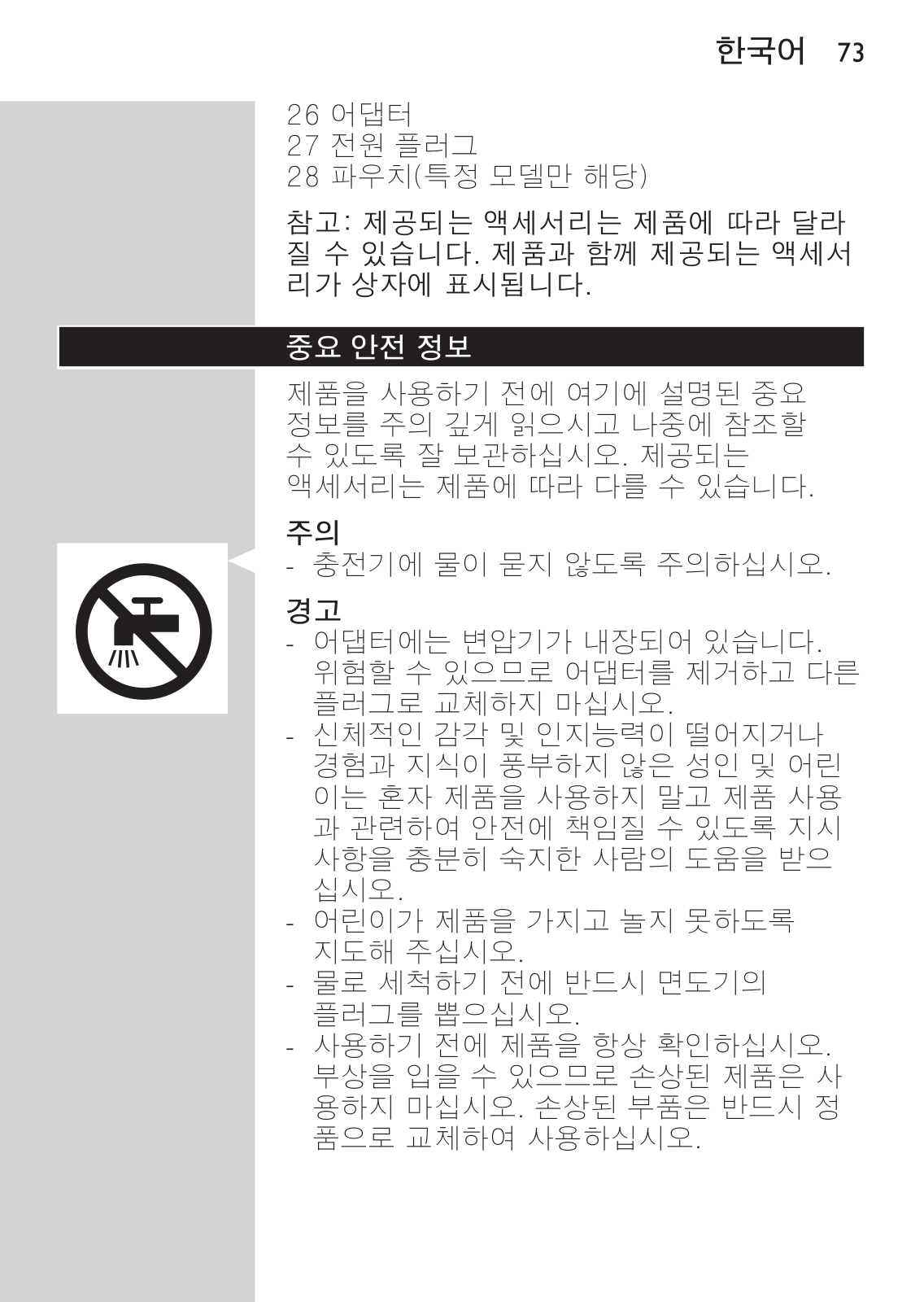

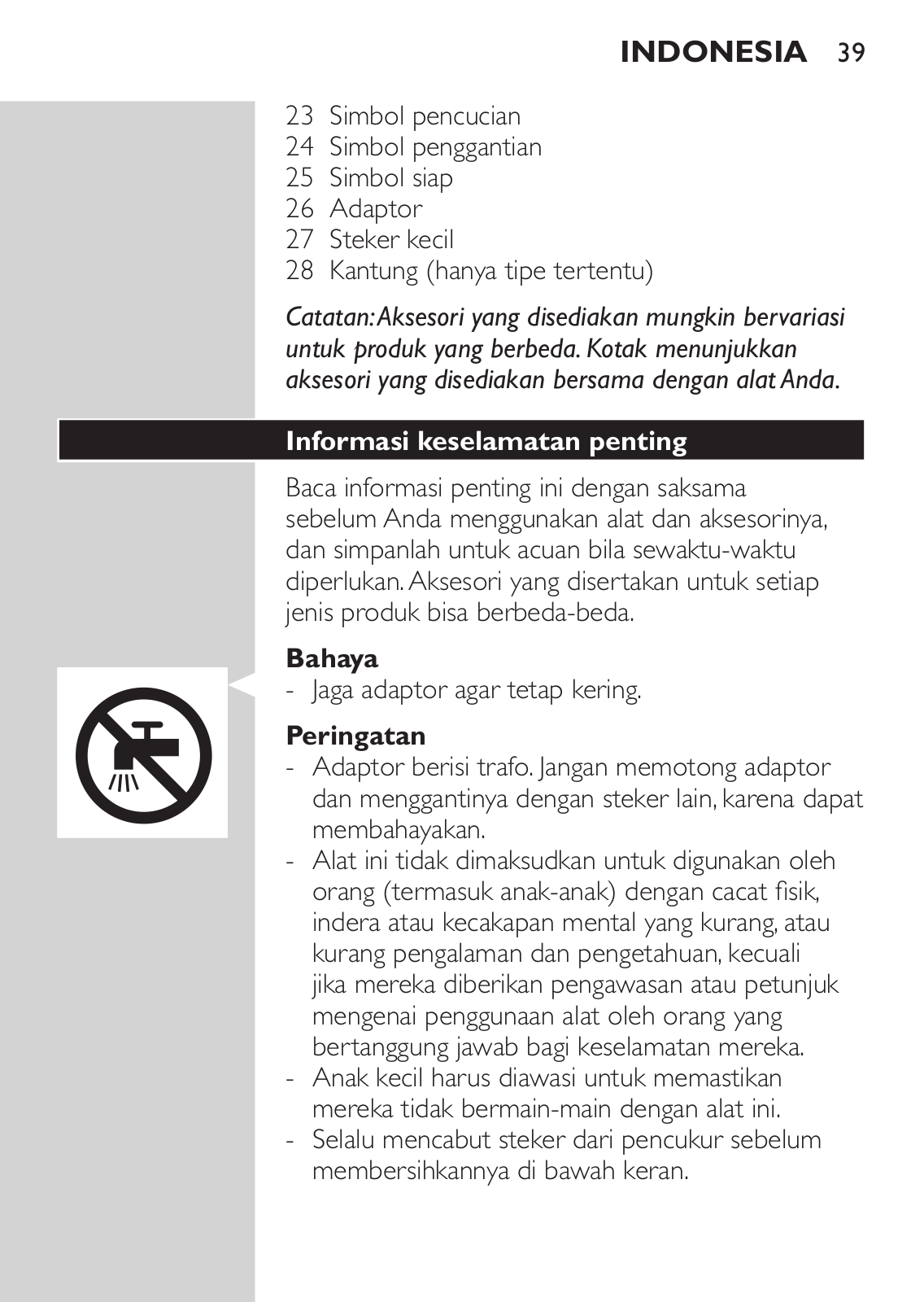

Important safety information
Read this important information carefully before you use the appliance and its accessories and save it for future reference.The accessories supplied may vary for different products.
Danger
-- Keep the adapter dry.
Warning
-- The adapter contains a transformer. Do not cut off the adapter to replace it with another plug, as this causes a hazardous situation.
-- This appliance is not intended for use by persons
(including children) with reduced physical, sensory or mental capabilities, or lack of experience
and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
-- Children should be supervised to ensure that they do not play with the appliance.
-- Always unplug the shaver before you clean it under the tap.
-- Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.
6 ENGLISH

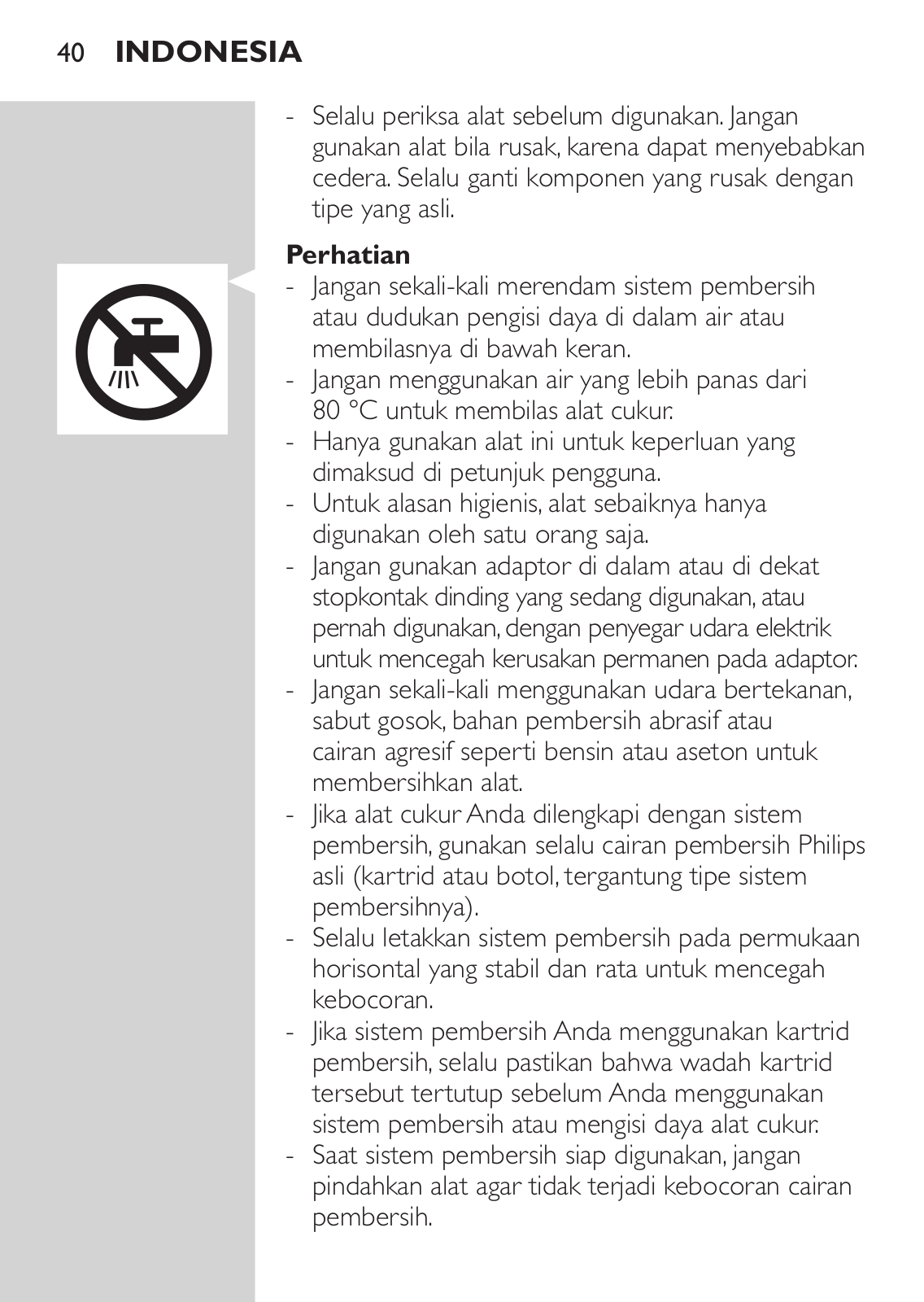

Caution
-- Never immerse the cleaning system or the charging stand in water and do not rinse it under the tap.
-- Never use water hotter than 80°C to rinse the shaver.
-- Only use this appliance for its intended purpose as shown in the user manual.
-- For hygienic reasons, the appliance should only be used by one person.
-- Do not use the adapter in or near wall sockets that contain or have contained an electric air freshener to prevent irreparable damage to the adapter.
-- Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.
-- If your shaver comes with a cleaning system, always use the original Philips cleaning fluid
(cartridge or bottle, depending on the type of cleaning system).
-- Always place the cleaning system on a stable, level and horizontal surface to prevent leakage.
-- If your cleaning system uses a cleaning cartridge, always make sure that the cartridge compartment is closed before you use the cleaning system to clean or charge the shaver.
-- When the cleaning system is ready for use, do not move it to prevent leakage of cleaning fluid.
-- Water may drip from the socket at the bottom of the shaver when you rinse it.This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.
Electromagnetic fields (EMF)
-- This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.
ENGLISH 7

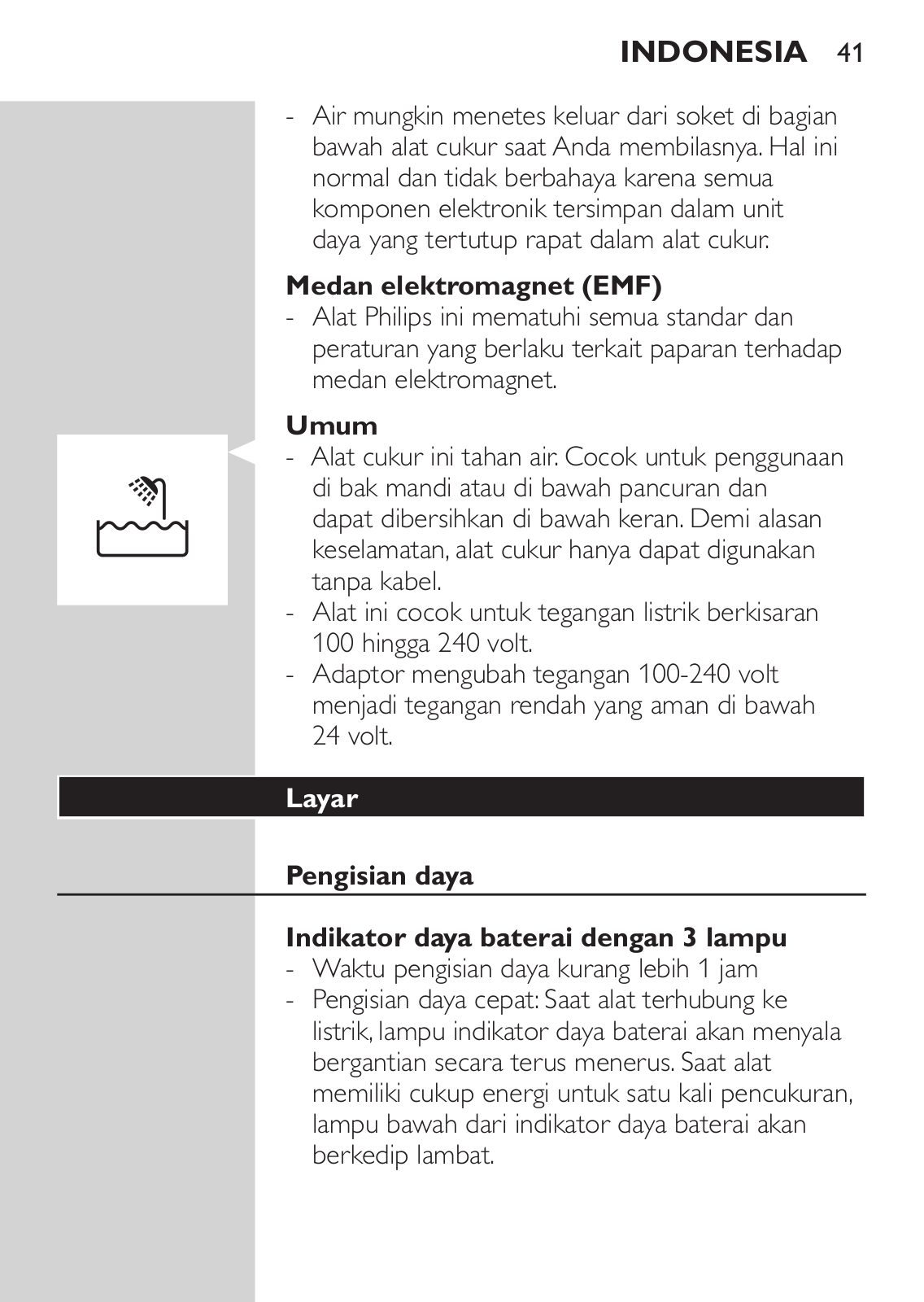

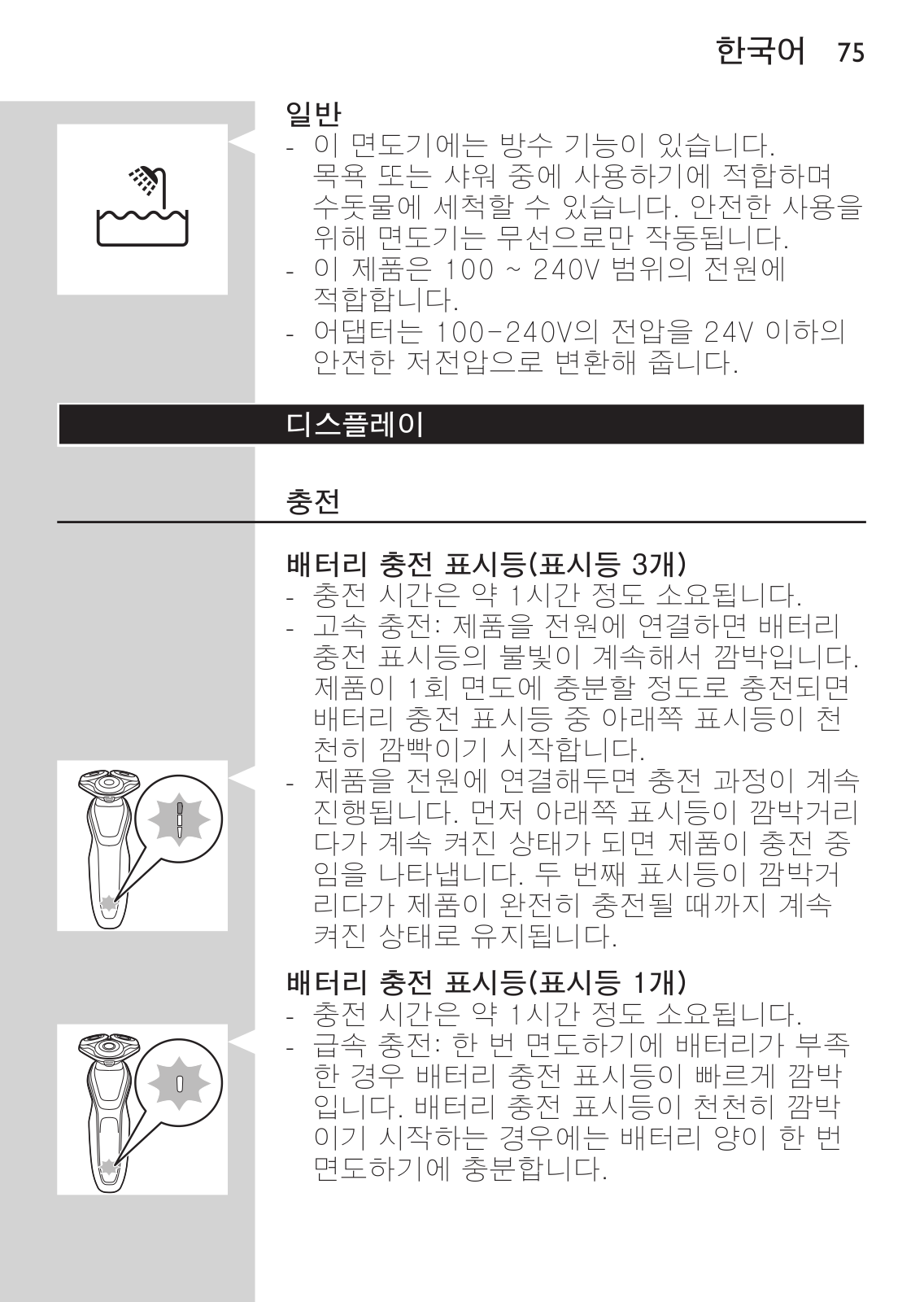

General
-- This shaver is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used without cord.
-- The appliance is suitable for mains voltages ranging from 100 to 240 volts.
-- The adapter transforms 100-240 volts to a safe low voltage of less than 24 volts.
The display
Charging
Battery charge indicator with 3 lights
-- Charging takes approx. 1 hour
-- Quick charge:When the appliance is connected to the mains, the lights of the battery charge indicator light up one after the other continuously. When the appliance contains enough energy for one shave, the bottom light of the battery charge indicator flashes slowly.
-- If you leave the appliance connected to the mains, the charging process continues.To indicate that the appliance is charging, first the bottom light flashes and then lights up continuously. Then the second light flashes and then lights up continuously, and so on until the appliance is fully charged.

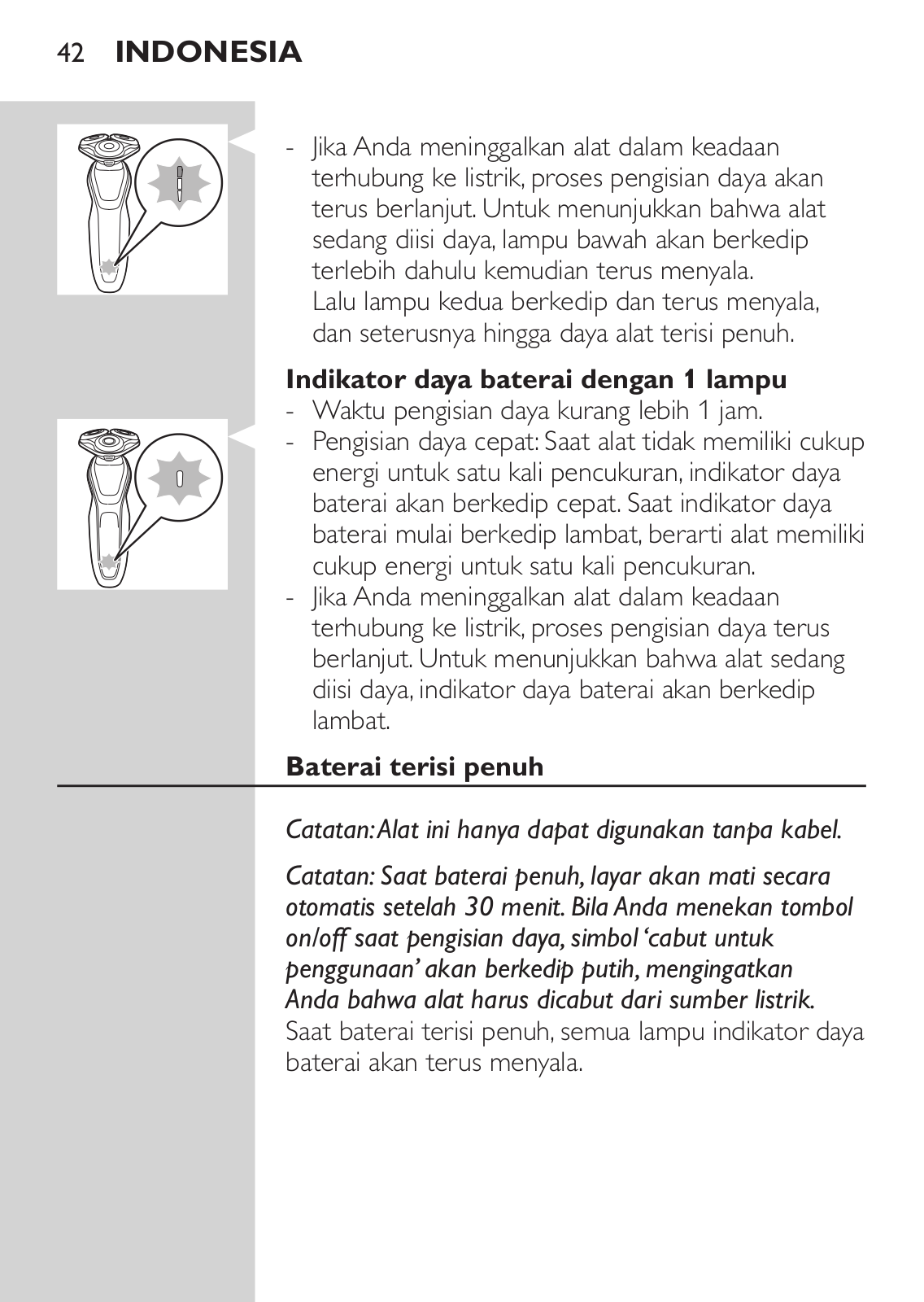

Battery charge indicator with 1 light
-- Charging takes approx. 1 hour.
8 ENGLISH
-- Quick charge:When the appliance does not contain enough energy for one shave, the battery charge indicator flashes quickly.When the battery charge indicator starts flashing slowly, the appliance contains enough energy for one shave.
-- If you leave the appliance connected to the mains, the charging process continues.To indicate that the appliance is charging, the battery charge indicator flashes slowly.

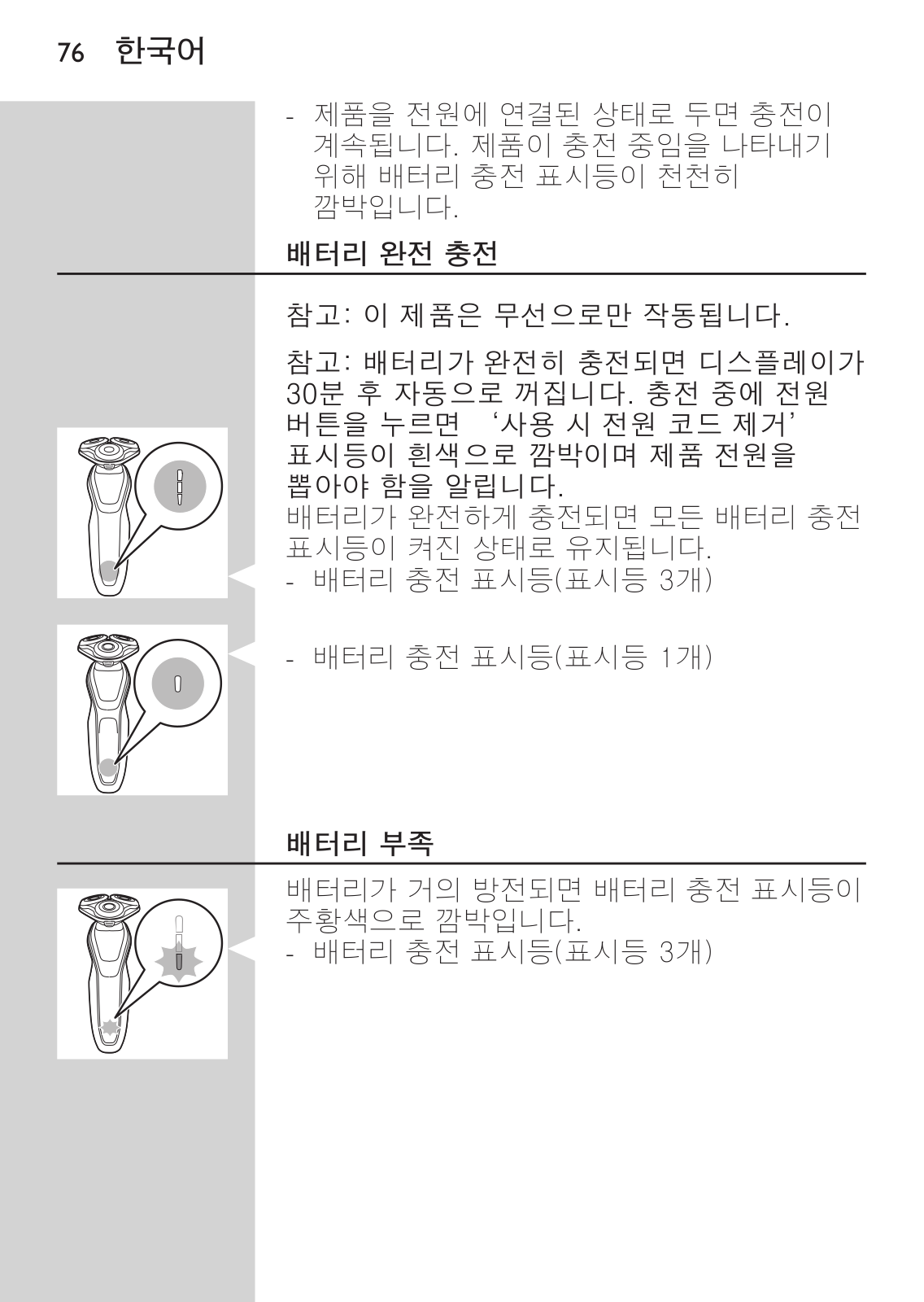

Battery fully charged
Note:This appliance can only be used without cord.
Note:When the battery is full, the display switches off automatically after 30 minutes. If you press the on/off button during charging, the ‘unplug for use’ symbol flashes white to remind you that you have to disconnect the appliance from the mains.

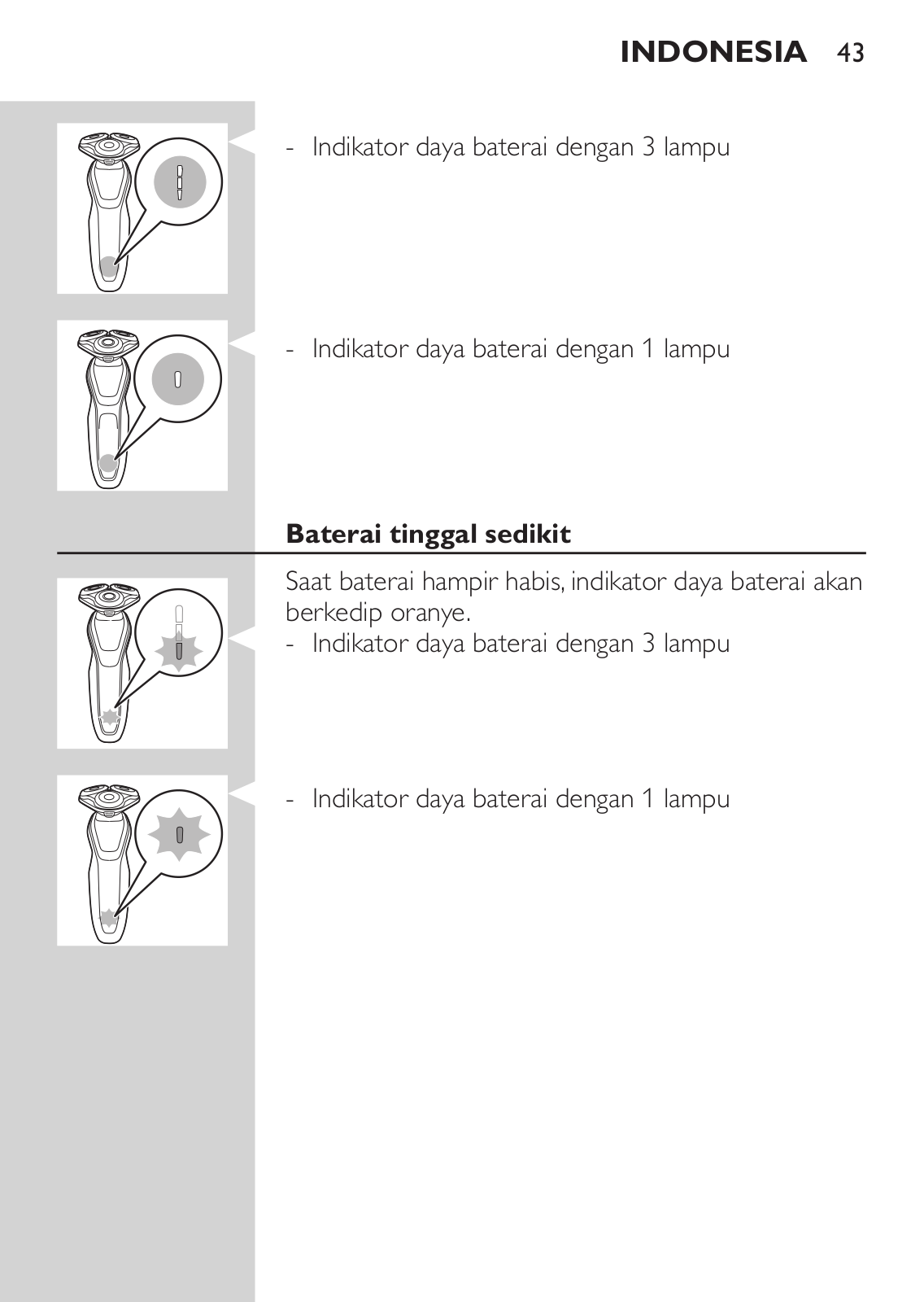

When the battery is fully charged, all lights of the battery charge indicator light up continuously.
-- Battery charge indicator with 3 lights
-- Battery charge indicator with 1 light
ENGLISH 9

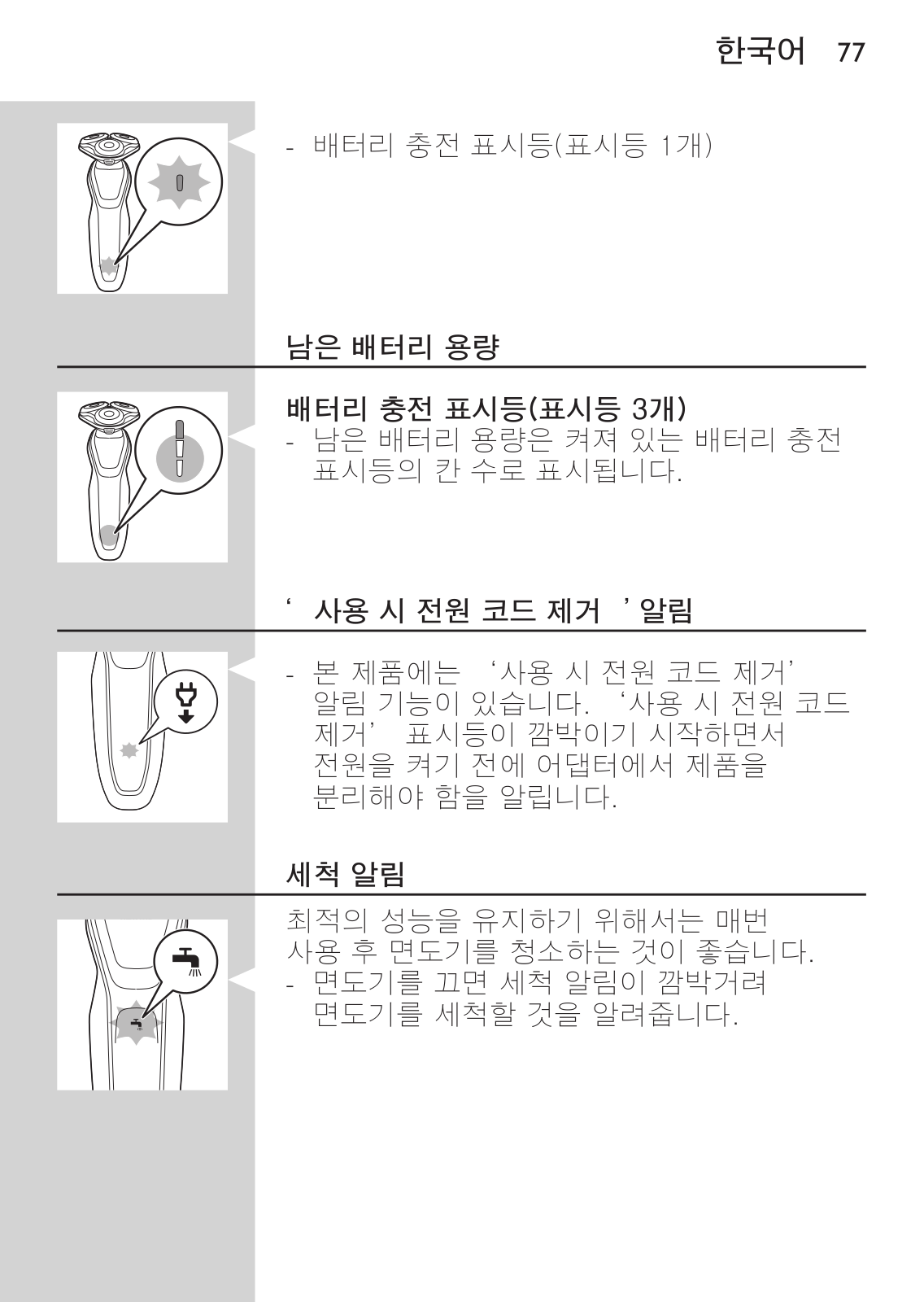

Battery low
When the battery is almost empty, the battery charge indicator flashes orange.
-- Battery charge indicator with 3 lights
-- Battery charge indicator with 1 light

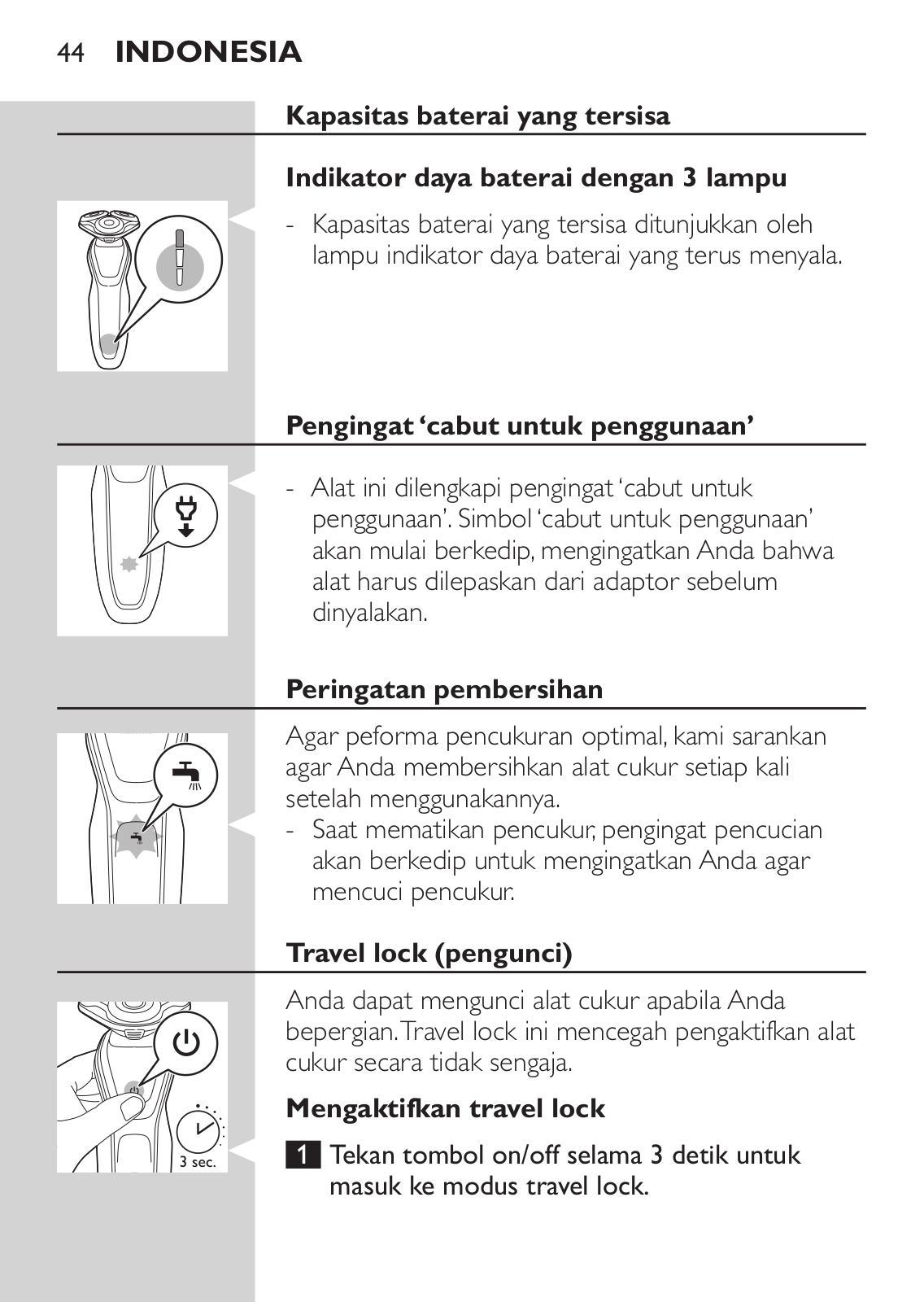

Remaining battery capacity
Battery charge indicator with 3 lights
-- The remaining battery capacity is indicated by the lights of the battery charge indicator that light up continuously.
‘Unplug for use’ reminder
-- The appliance is equipped with an ‘unplug for use’ reminder.The ‘unplug for use’ symbol starts to flash to remind you that you have to disconnect the appliance from the adapter before you can switch it on.
10 ENGLISH
Cleaning reminder
For optimal shaving performance, we advise you to clean the shaver after every use.
-- When you switch off the shaver, the cleaning reminder flashes to remind you to clean the shaver.

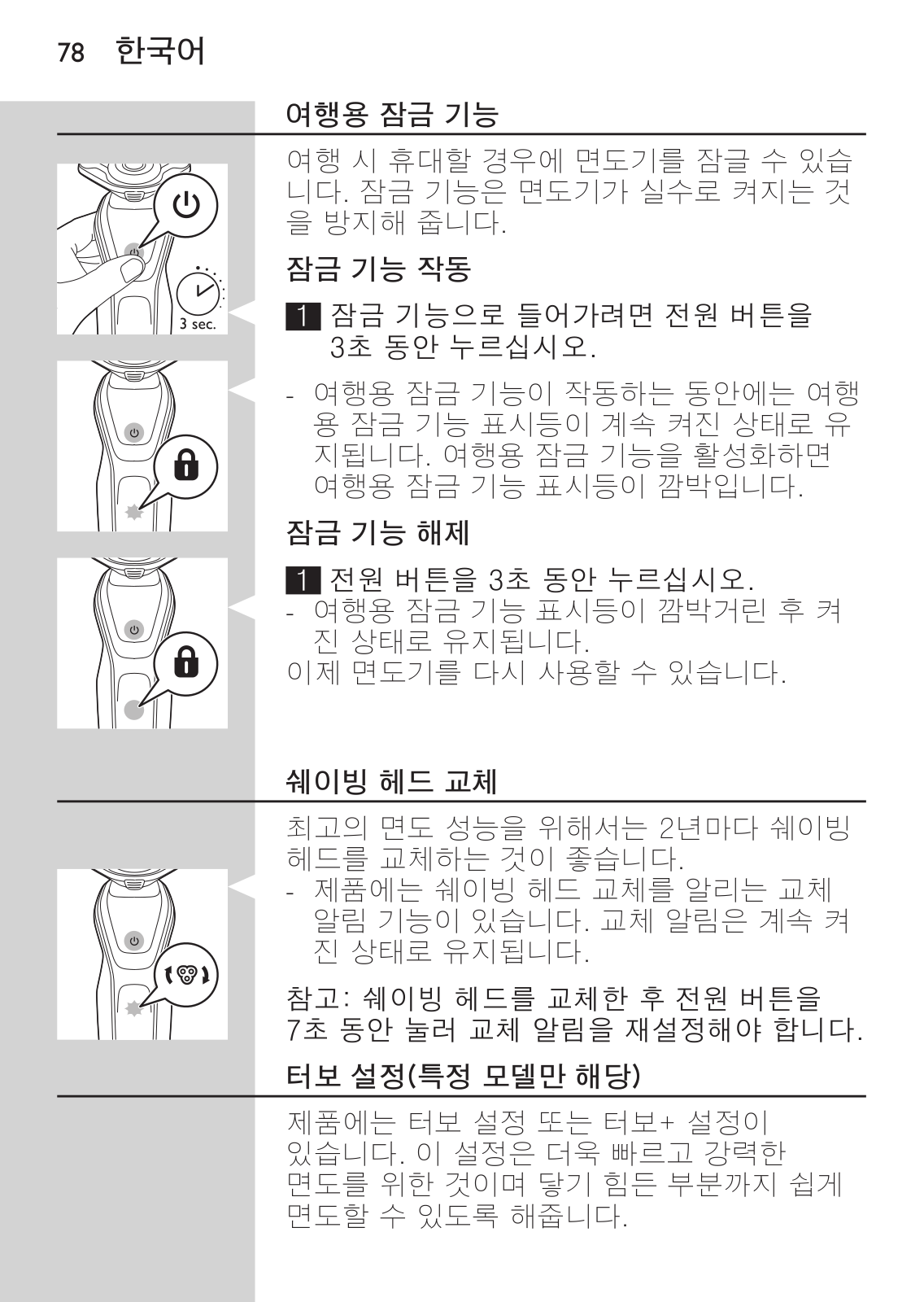

Travel lock
You can lock the shaver when you are going to travel.The travel lock prevents the shaver from being switched on by accident.
Activating the travel lock
1 Press the on/off button for 3 seconds to enter the travel lock mode.
-- While you activate the travel lock, the travel lock symbol lights up continuously.When the travel lock is activated, the travel lock symbol flashes.

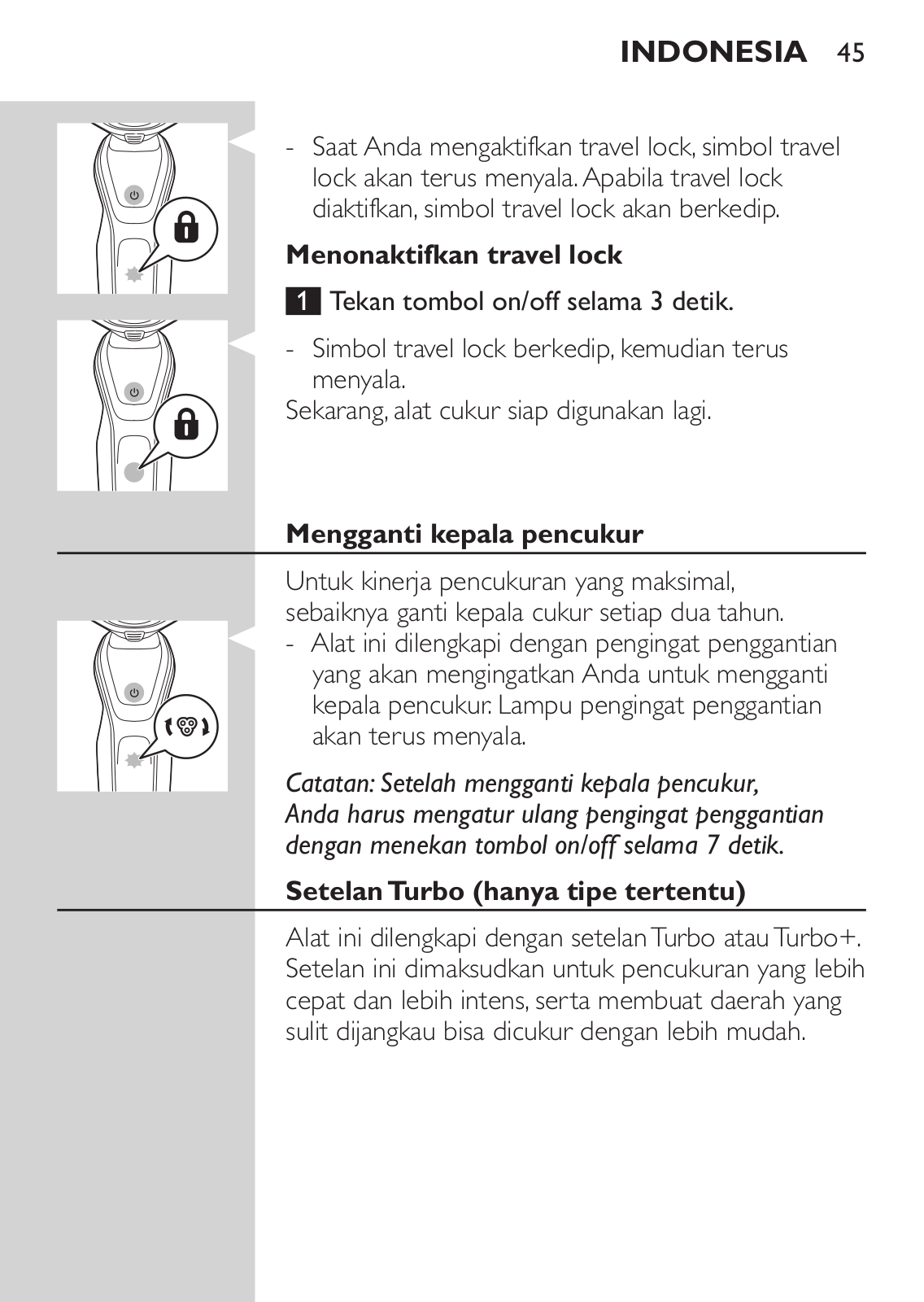

Deactivating the travel lock
1 Press the on/off button for 3 seconds.
-- The travel lock symbol flashes and then lights up continuously.
The shaver is now ready for use again.
ENGLISH 11

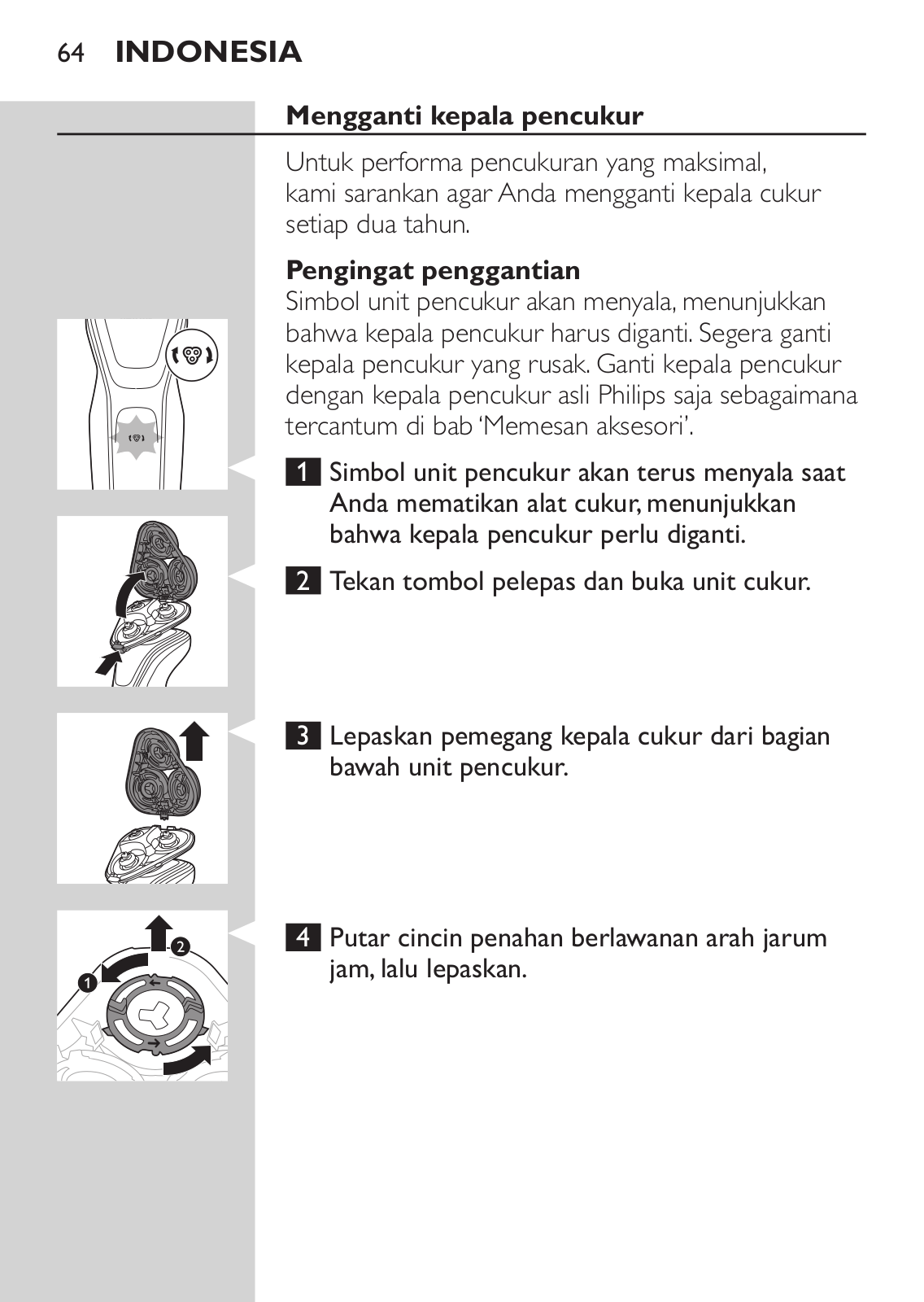

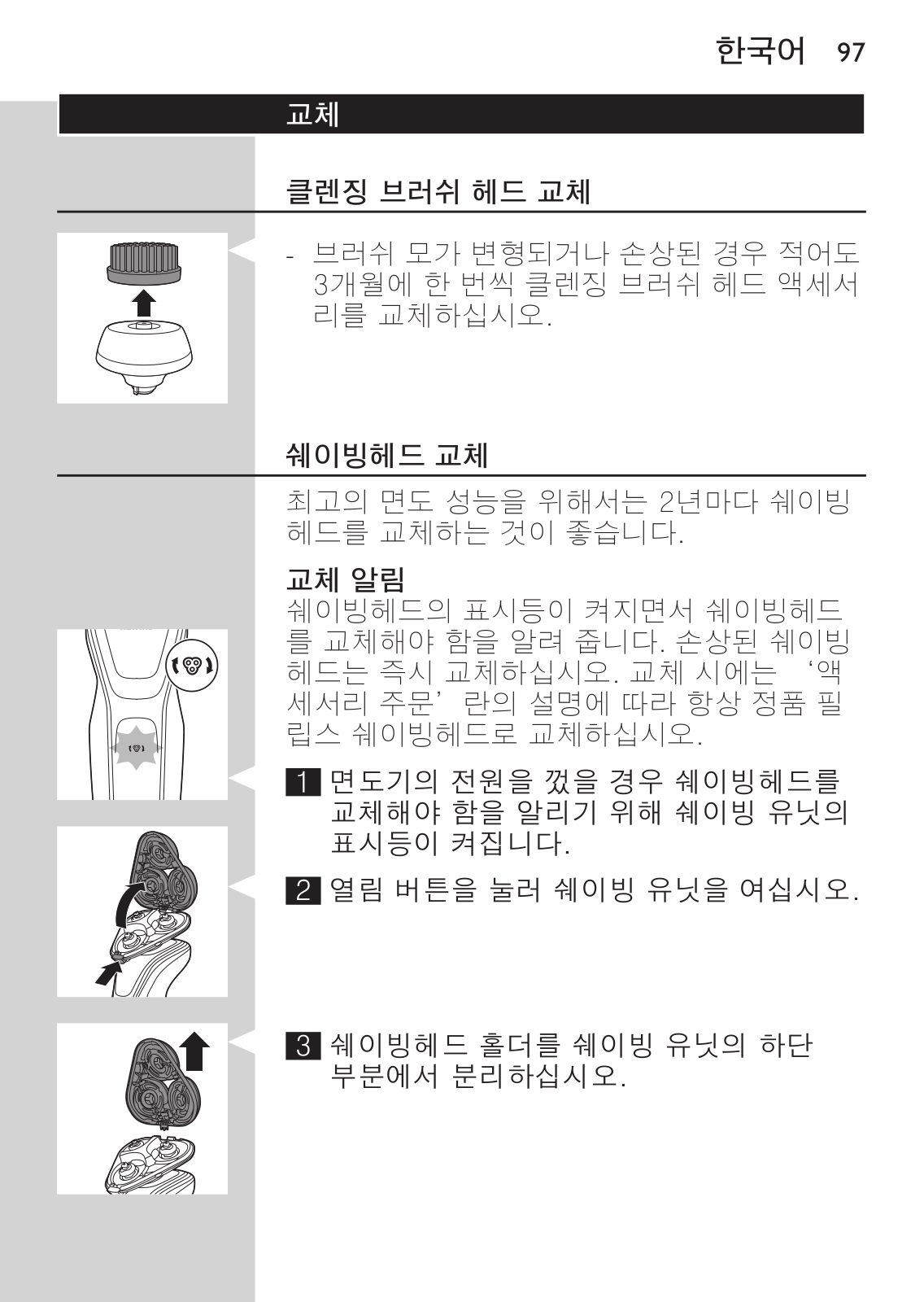

Replacing shaving heads
For maximum shaving performance, we advise you to replace the shaving heads every two years.
-- The appliance is equipped with a replacement reminder which reminds you to replace the shaving heads.The replacement reminder lights up continuously.
Note:After replacing the shaving heads, you need to reset the replacement reminder by pressing the on/off button for 7 seconds.
Turbo setting (specific types only)
The appliance is equipped with a Turbo or Turbo+ setting.This setting is intended for quicker and more intense shaving and makes hard-to-reach areas easier to shave.

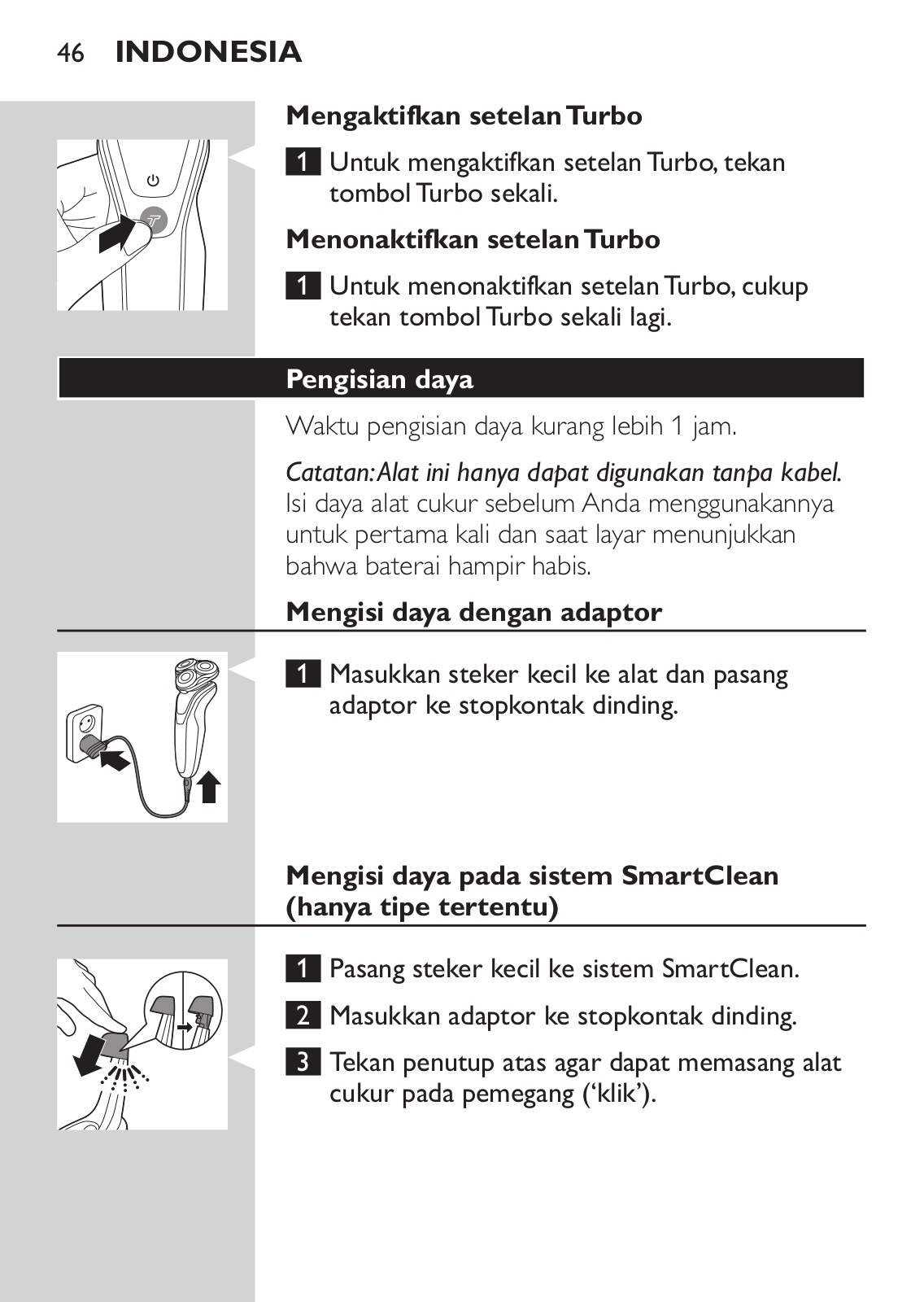

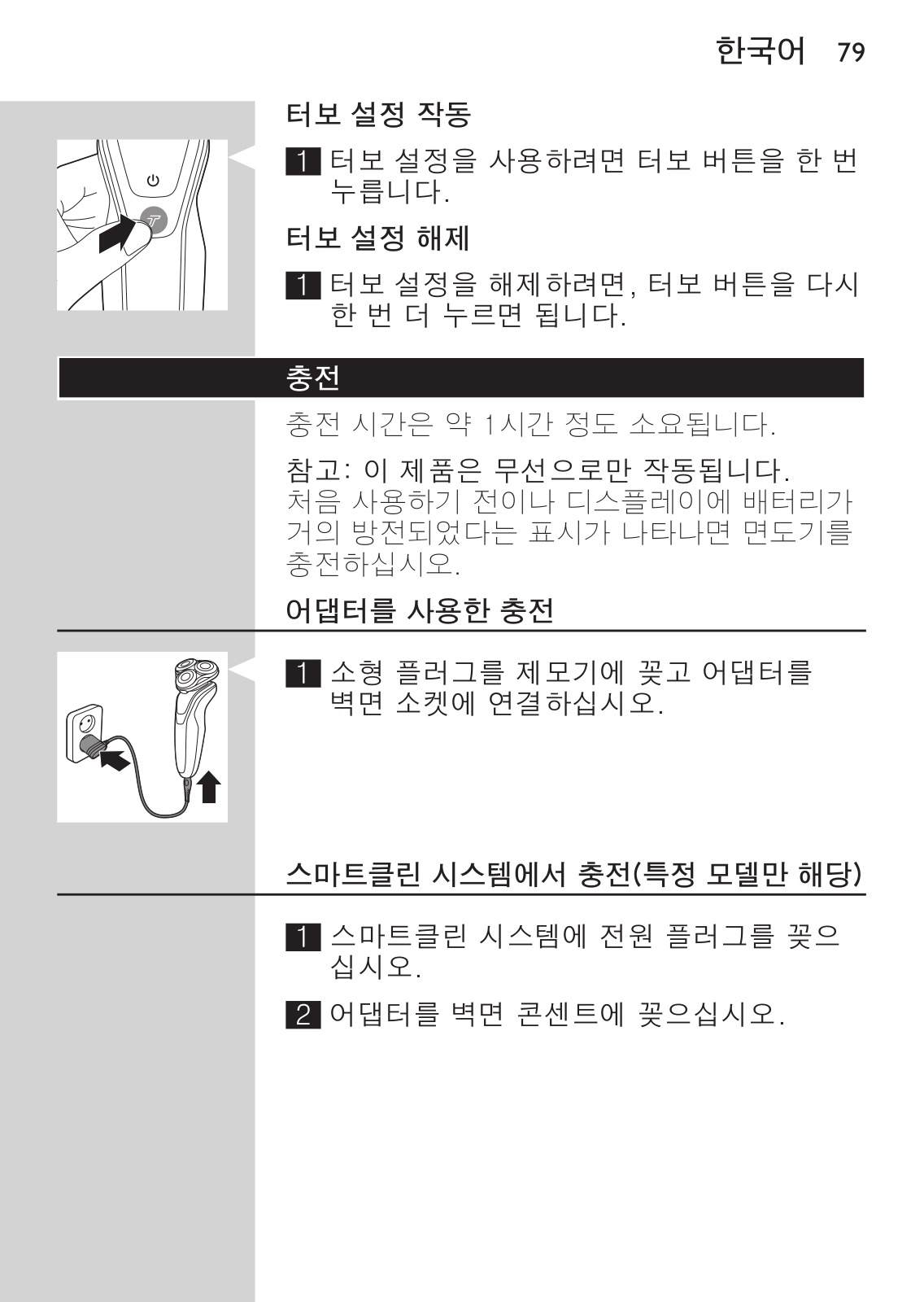

Activating theTurbo setting
1To activate the Turbo setting, press the Turbo button once.
Deactivating theTurbo setting
1To deactivate the Turbo setting, simply press the Turbo button once again.
Charging
Charging takes approx. 1 hour.
Note:This appliance can only be used without cord.
Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty.
12 ENGLISH
Charging with the adapter
1Insert the small plug into the appliance and put the adapter in the wall socket.

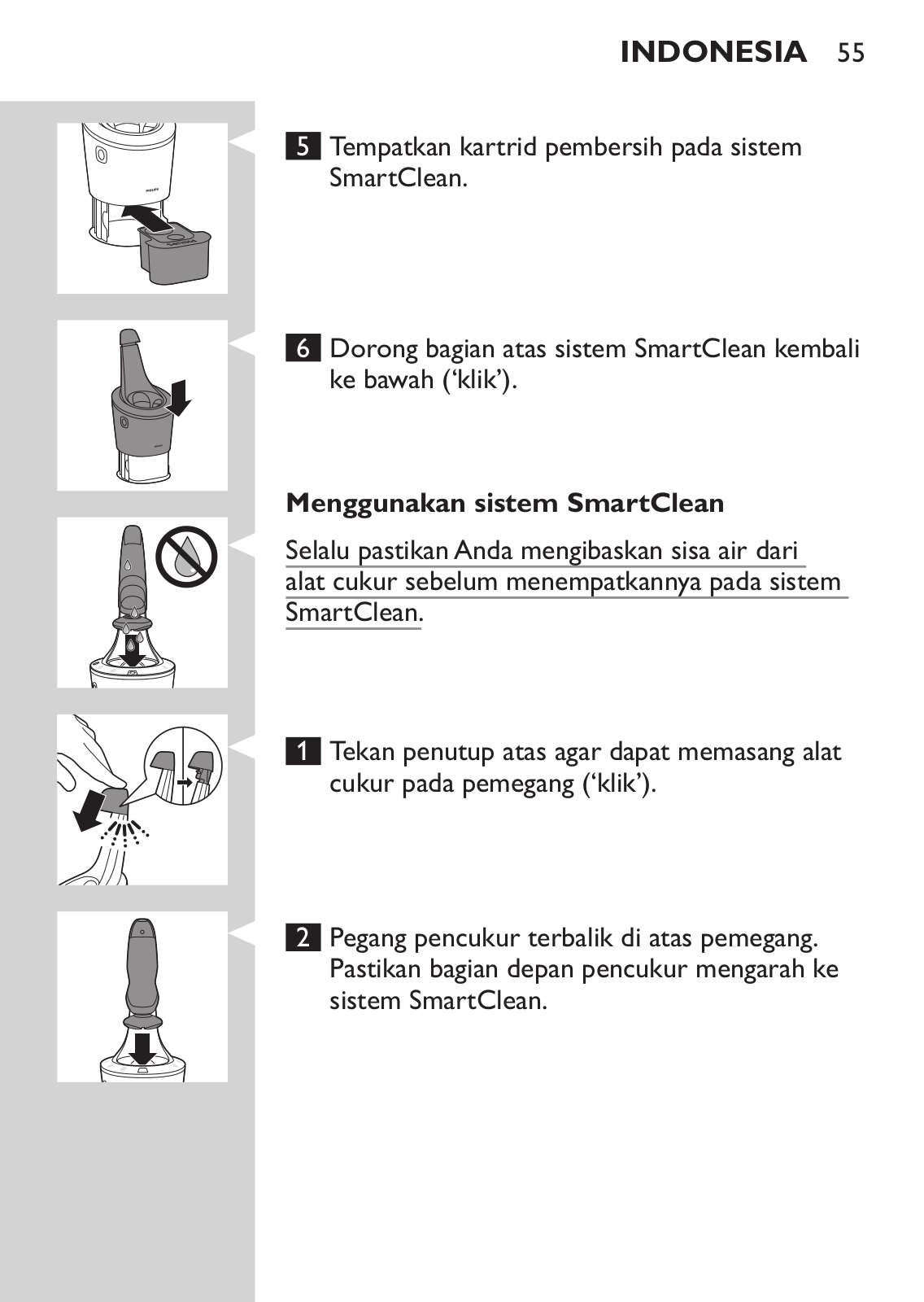

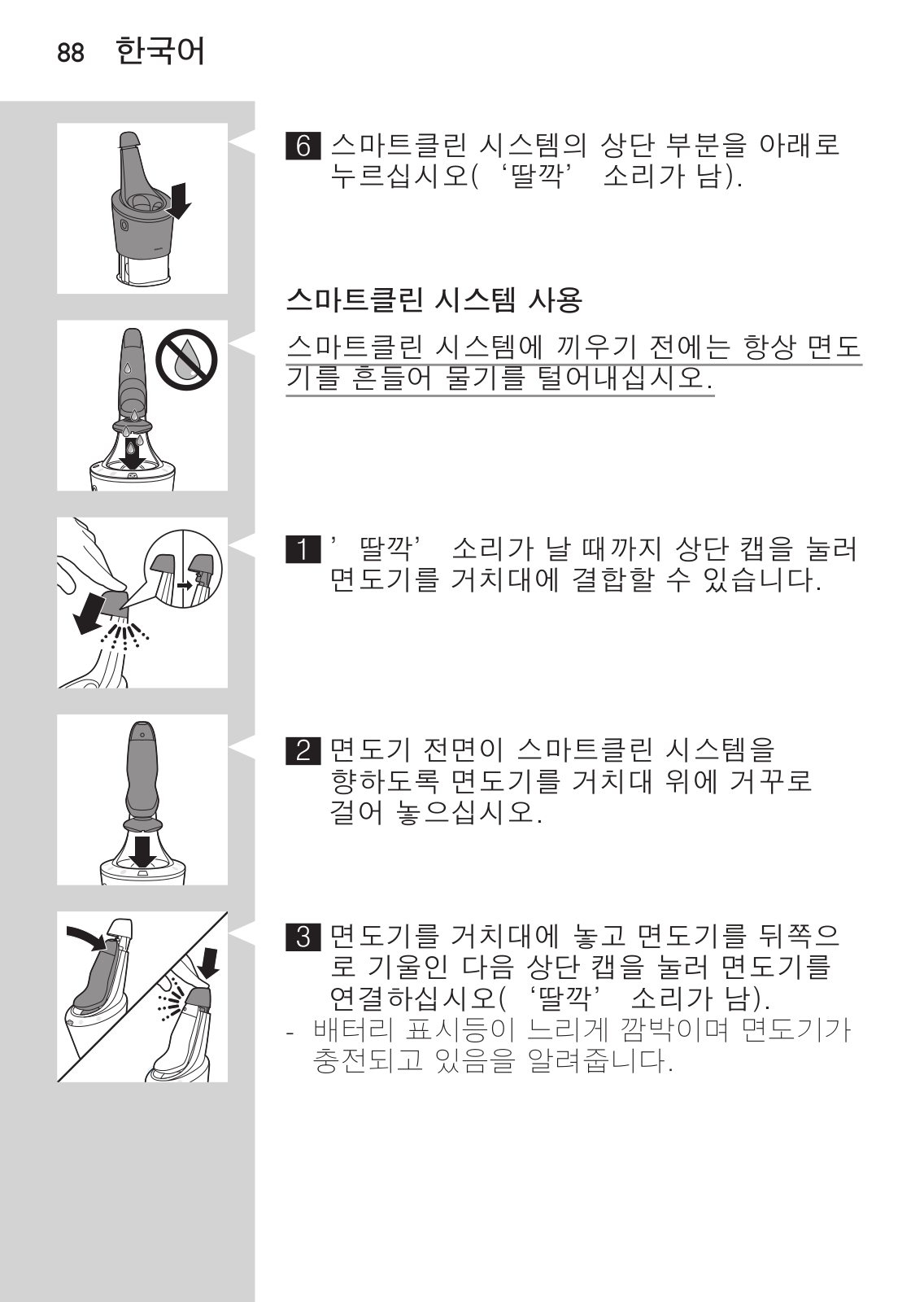

Charging in the SmartClean system
(specific types only)
1 Put the small plug in the SmartClean system.
2 Put the adapter in the wall socket.

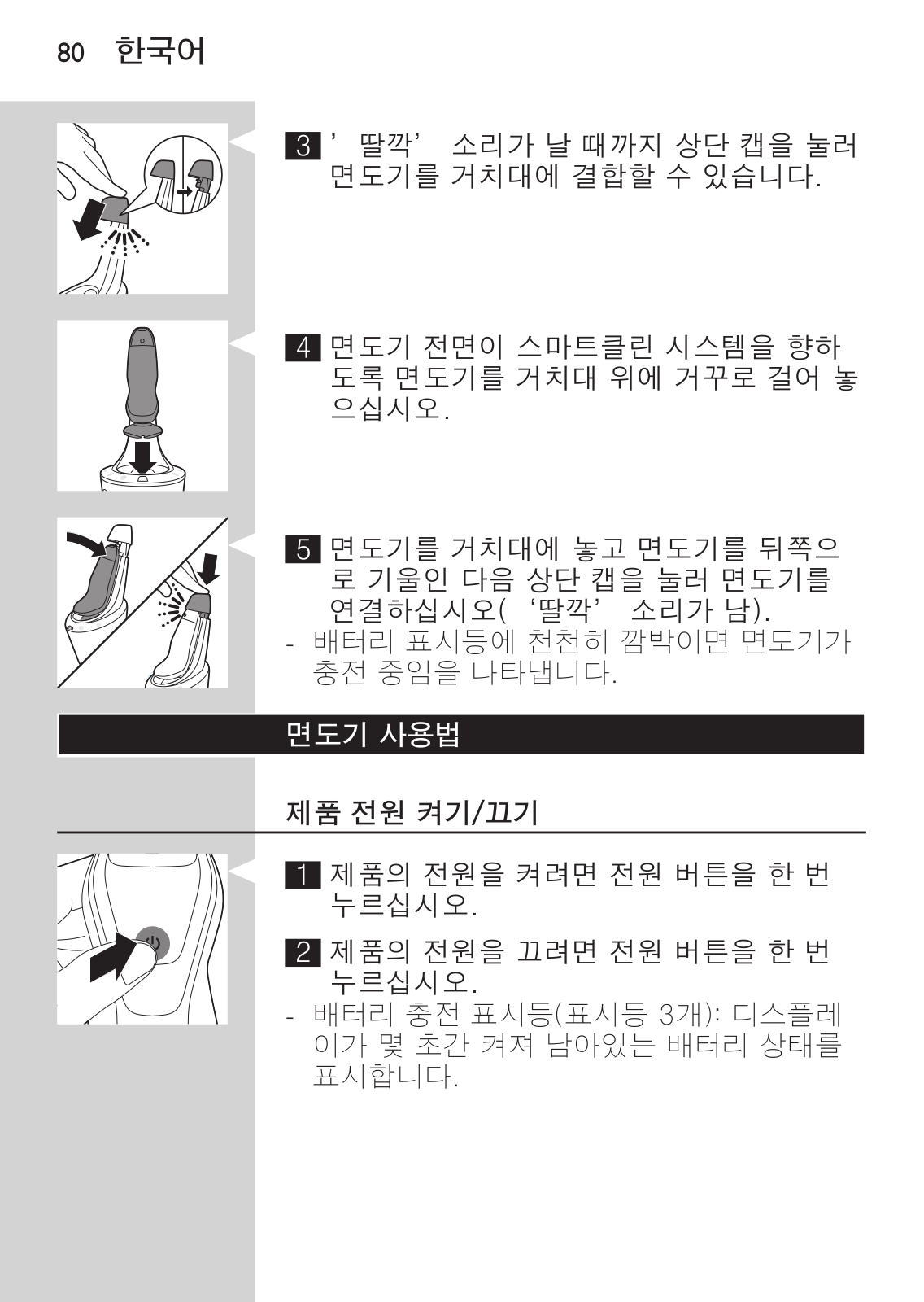

3 Press down the top cap to be able to place the shaver in the holder (‘click’).

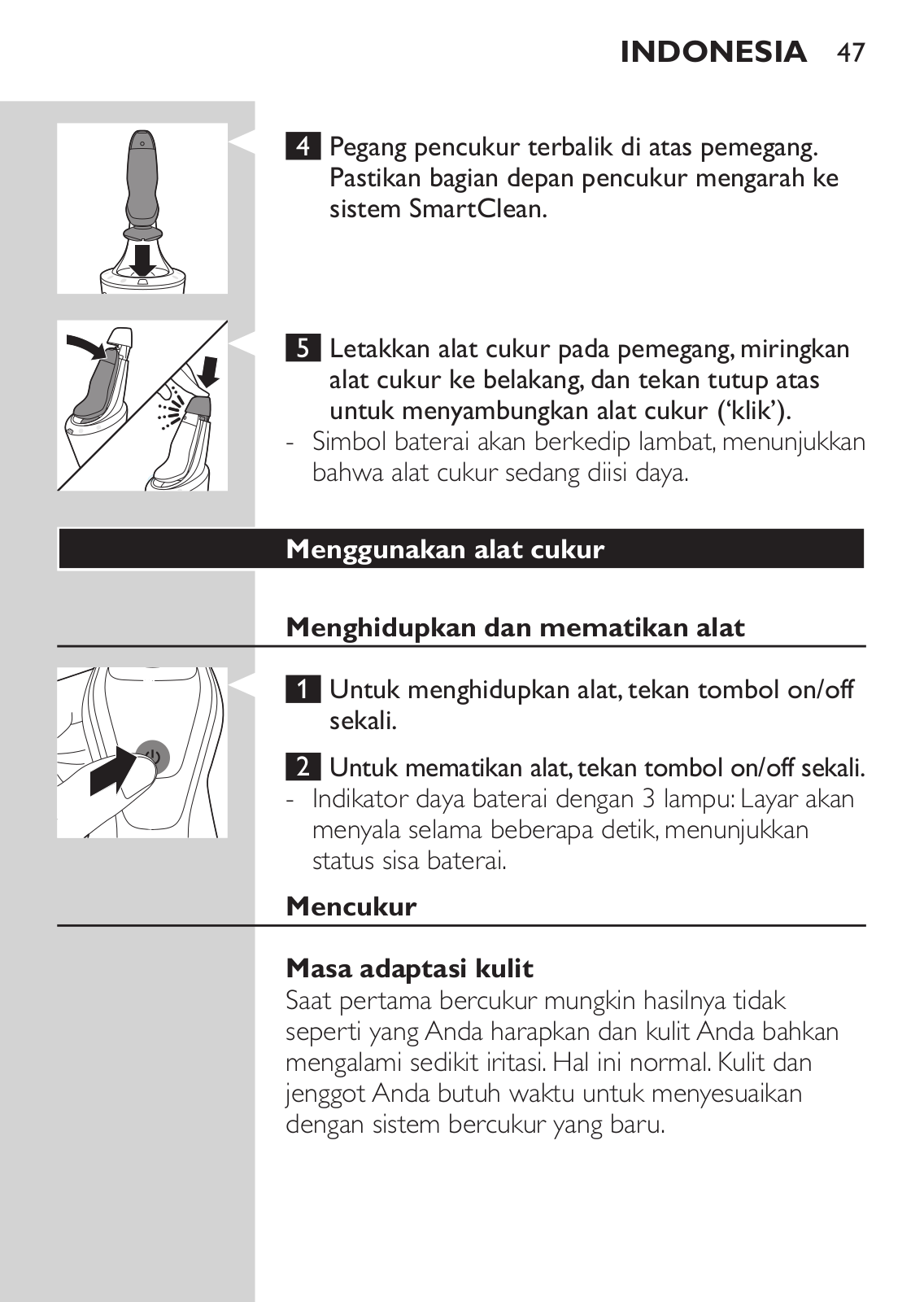

4Hold the shaver upside down above the holder. Make sure the front of the shaver points
towards the SmartClean system.

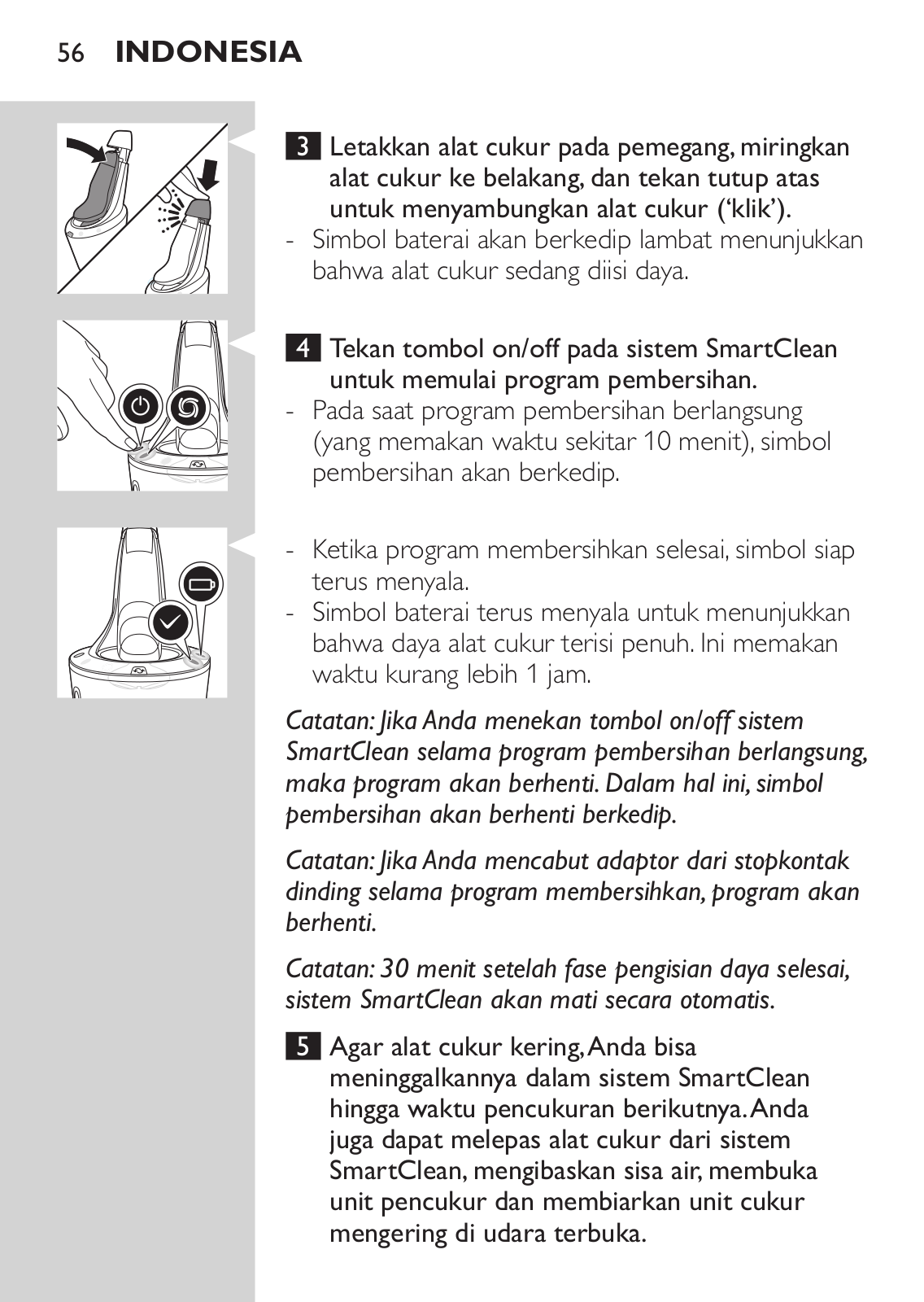

5 Place the shaver in the holder, tilt the shaver backwards and press down the top cap to connect the shaver (‘click’).
-- The battery symbol flashes slowly to indicate the shaver is charging.
ENGLISH 13
Using the shaver
Switching the appliance on and off
1To switch on the appliance, press the on/off button once.
2To switch off the appliance, press the on/off
button once.
-- Battery charge indicator with 3 lights:The display lights up for a few seconds to show the remaining battery status.

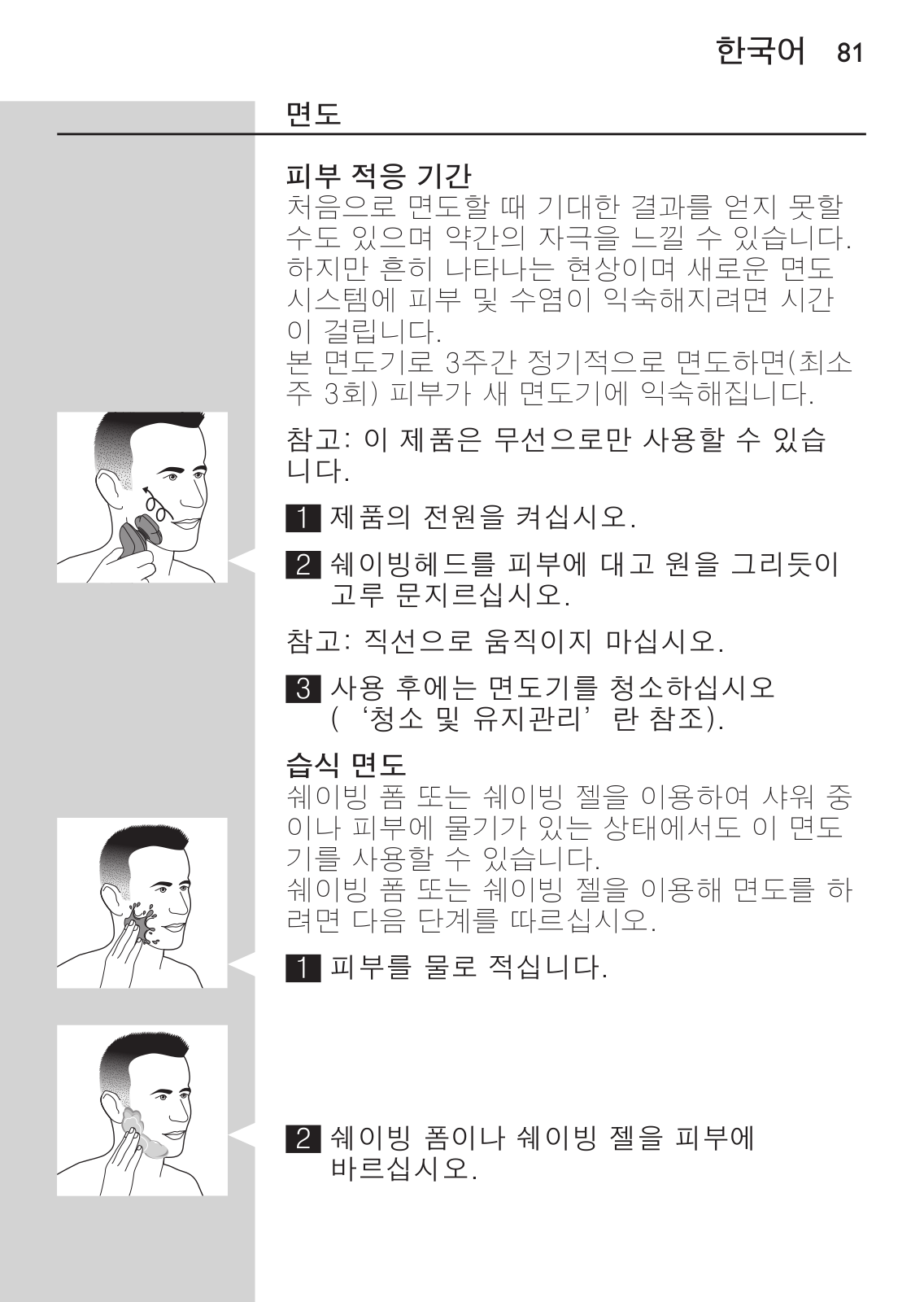

Shaving

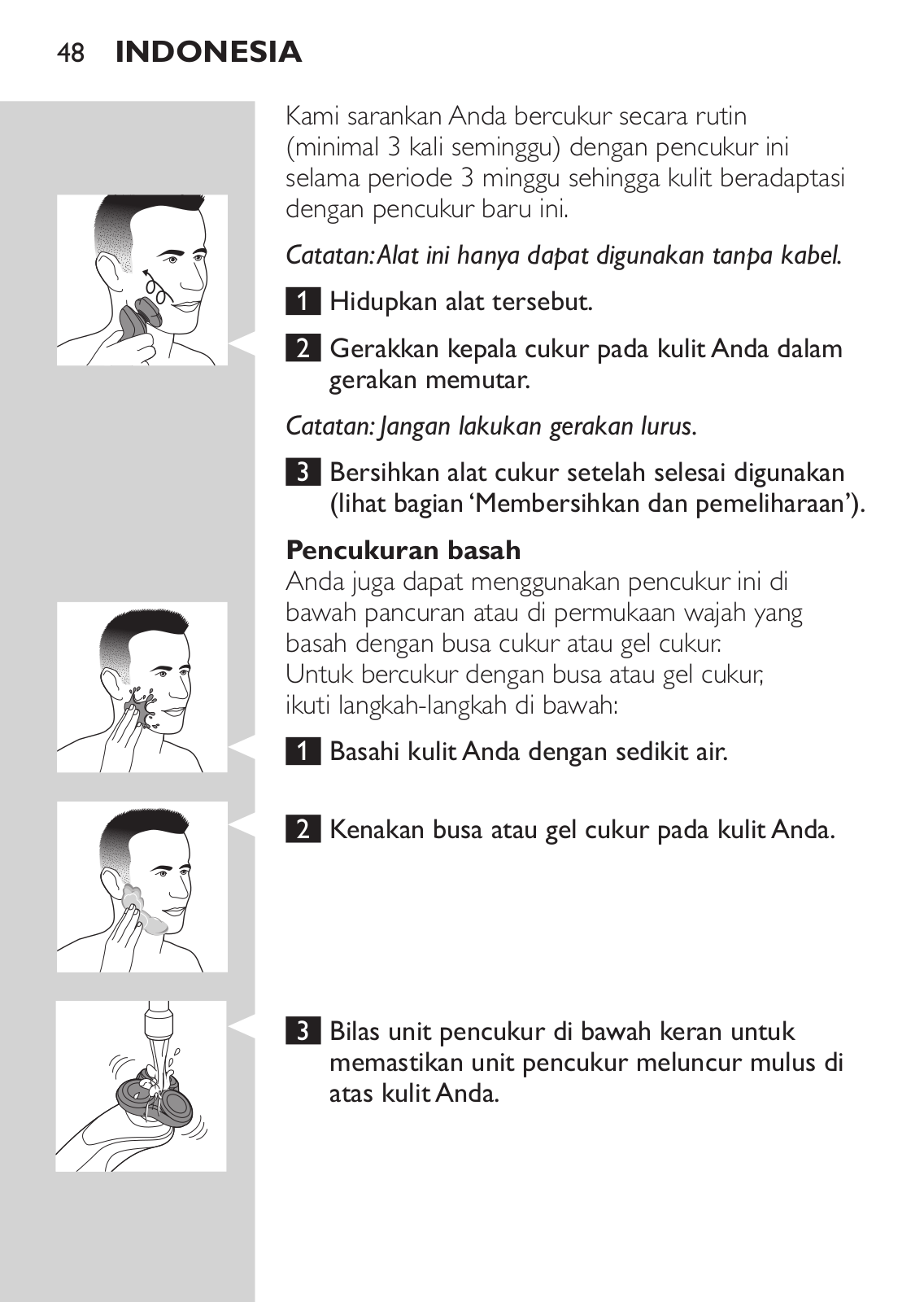

Skin adaptation period
Your first shaves may not bring you the result you expect and your skin may even become slightly irritated.This is normal.Your skin and beard need time to adapt to any new shaving system.
We advise you to shave regularly (at least 3 times a week) with this shaver for a period of 3 weeks to allow your skin to adapt to the new shaver.
Note:This appliance can only be used without a cord.
1Switch on the appliance.
2Move the shaving heads over your skin in circular movements.
Note: Do not make straight movements.
3Clean the shaver after use (see chapter ‘Cleaning and maintenance’).
14 ENGLISH
Wet shaving
You can also use this shaver in the shower or on a wet face with shaving foam or shaving gel.
To shave with shaving foam or shaving gel, follow the steps below:
1
2
3
4
5
Apply some water to your skin.
Apply shaving foam or shaving gel to your skin.

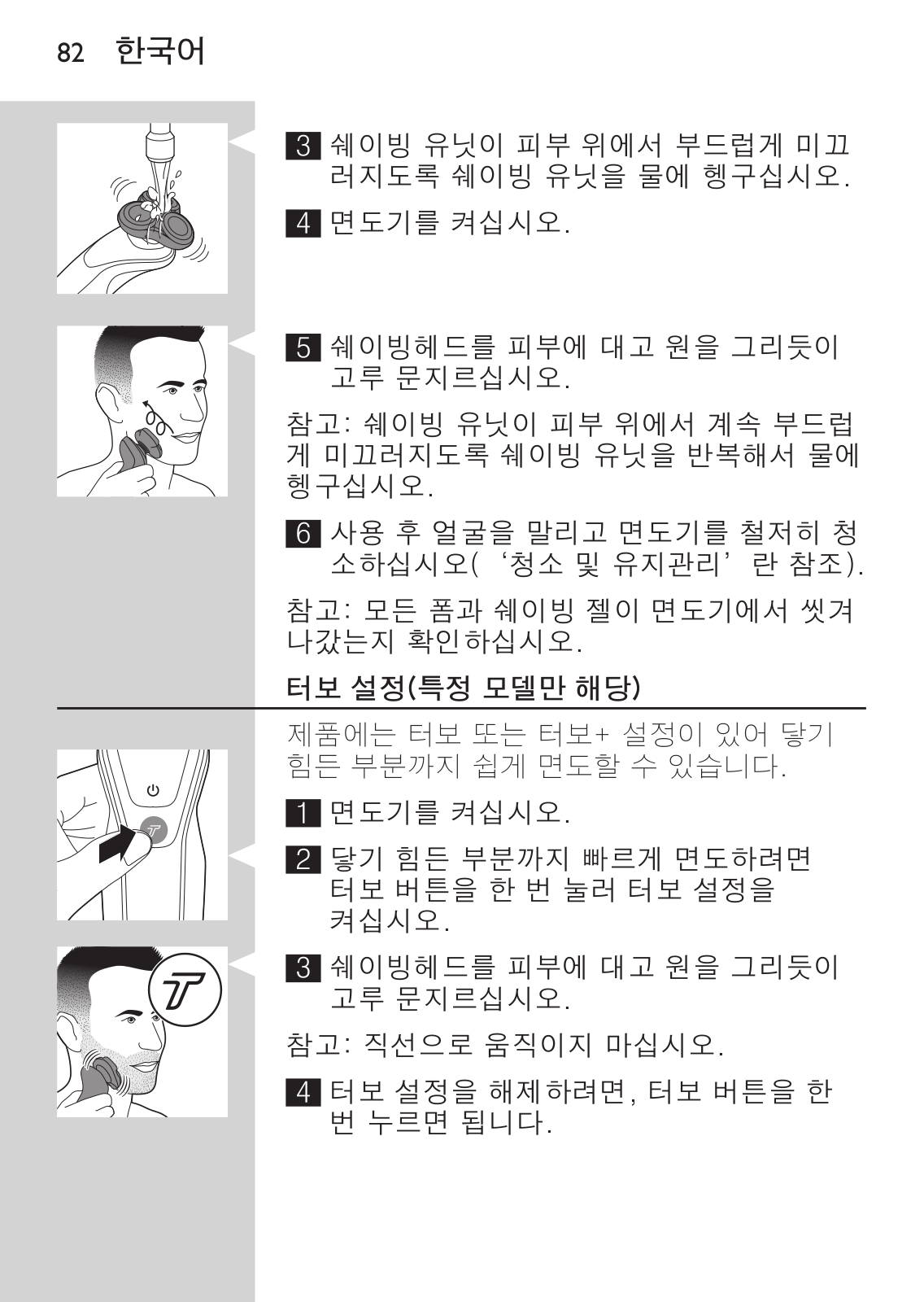

Rinse the shaving unit under the tap to ensure that the shaving unit glides smoothly over your skin.

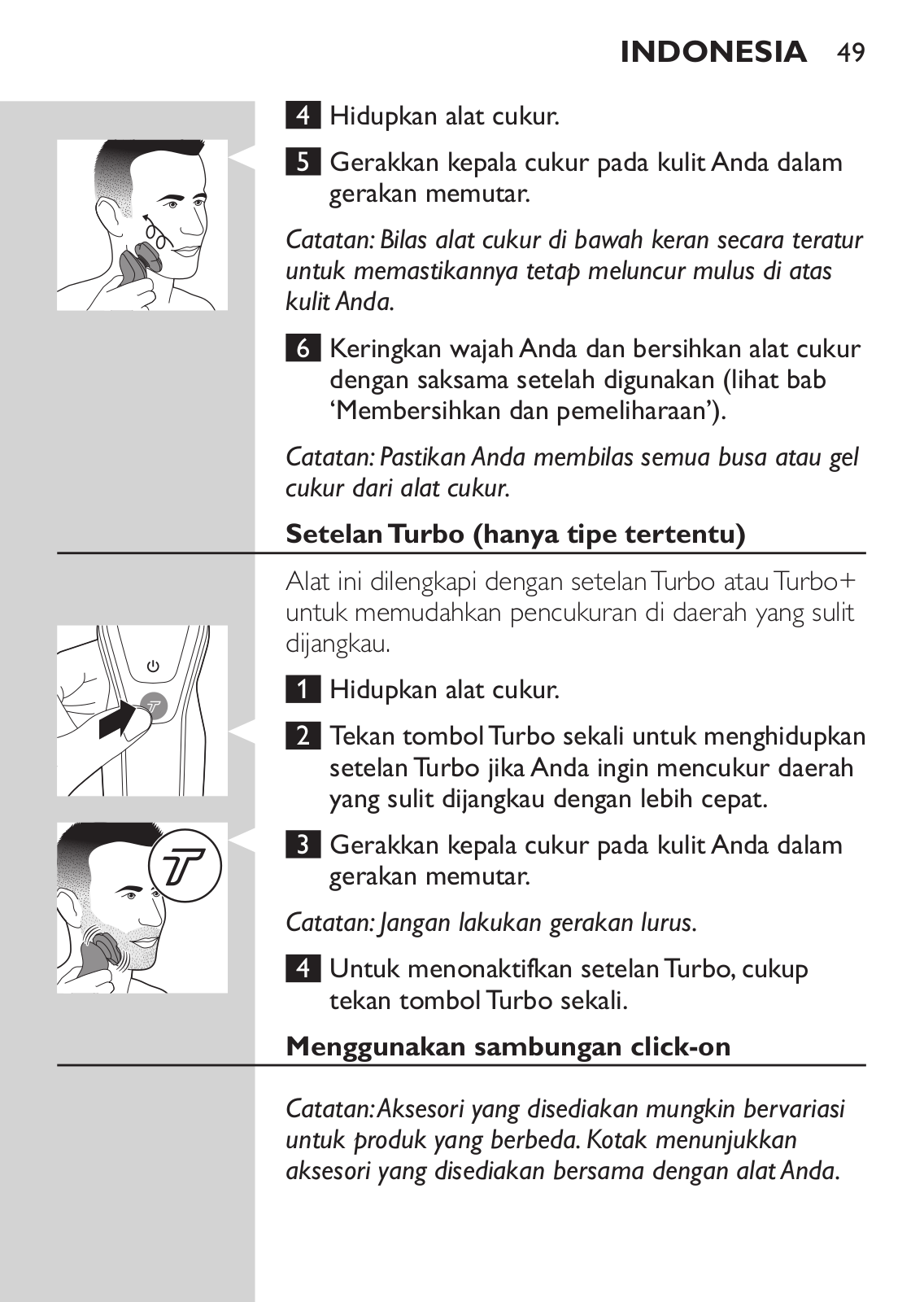

Switch on the shaver.
Move the shaving heads over your skin in circular movements.
Note: Rinse the shaver under the tap regularly to ensure that it continues to glide smoothly over your skin.
6Dry your face and thoroughly clean the shaver after use (see chapter ‘Cleaning and maintenance’).
Note: Make sure you rinse all foam or shaving gel off the shaver.
ENGLISH 15
Turbo setting (specific types only)
The appliance is equipped with a Turbo or Turbo+ setting for easy shaving of hard-to reach areas.
1Switch on the shaver.
2Press the Turbo button once to switch on the Turbo setting if you want to shave hard-to- reach areas more quickly.
3Move the shaving heads over your skin in circular movements.
Note: Do not make straight movements.
4To deactivate the Turbo setting simply press the Turbo button once.

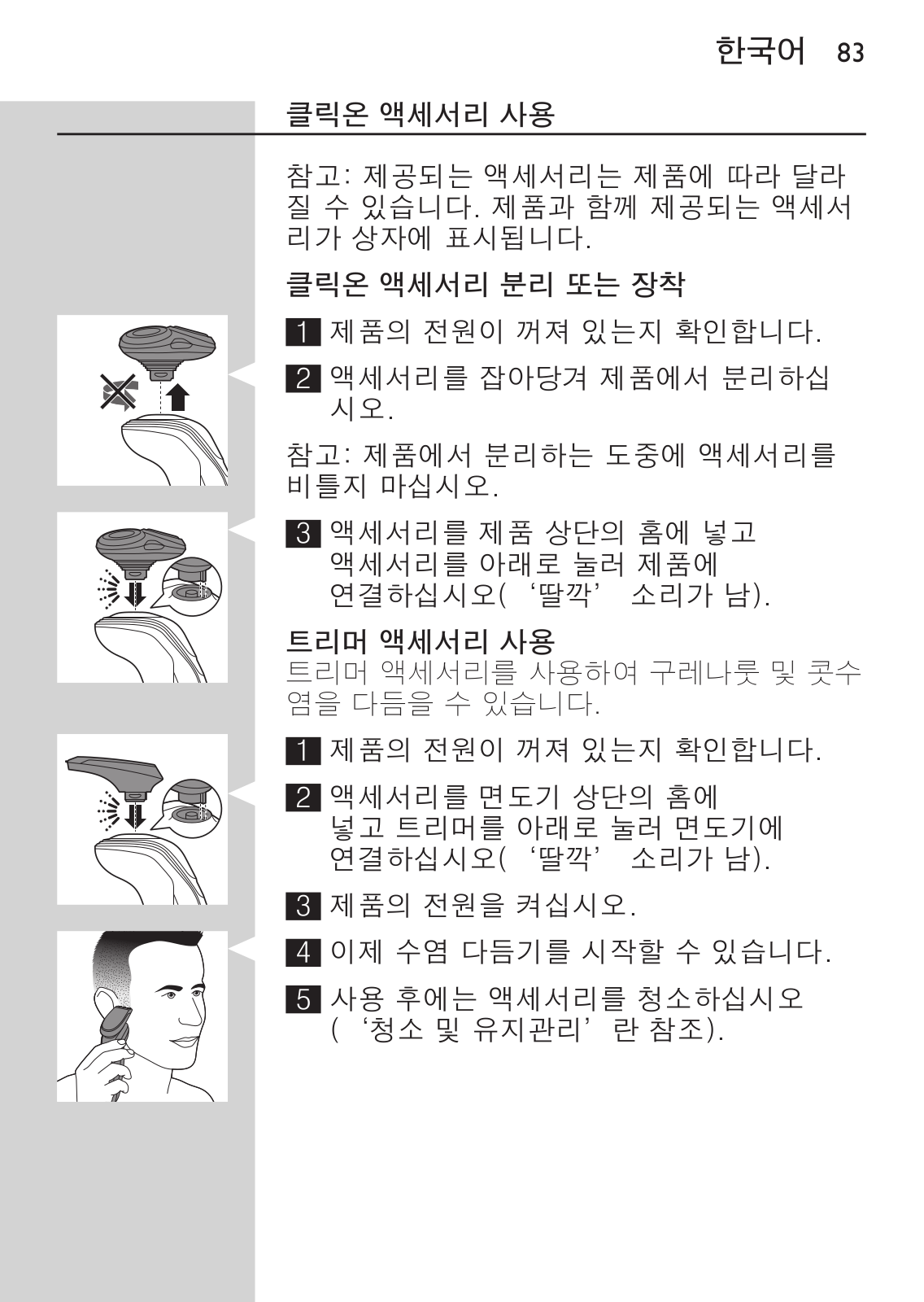

Using the click-on attachments
Note:The accessories supplied may vary for different products.The box shows the accessories that have been supplied with your appliance.

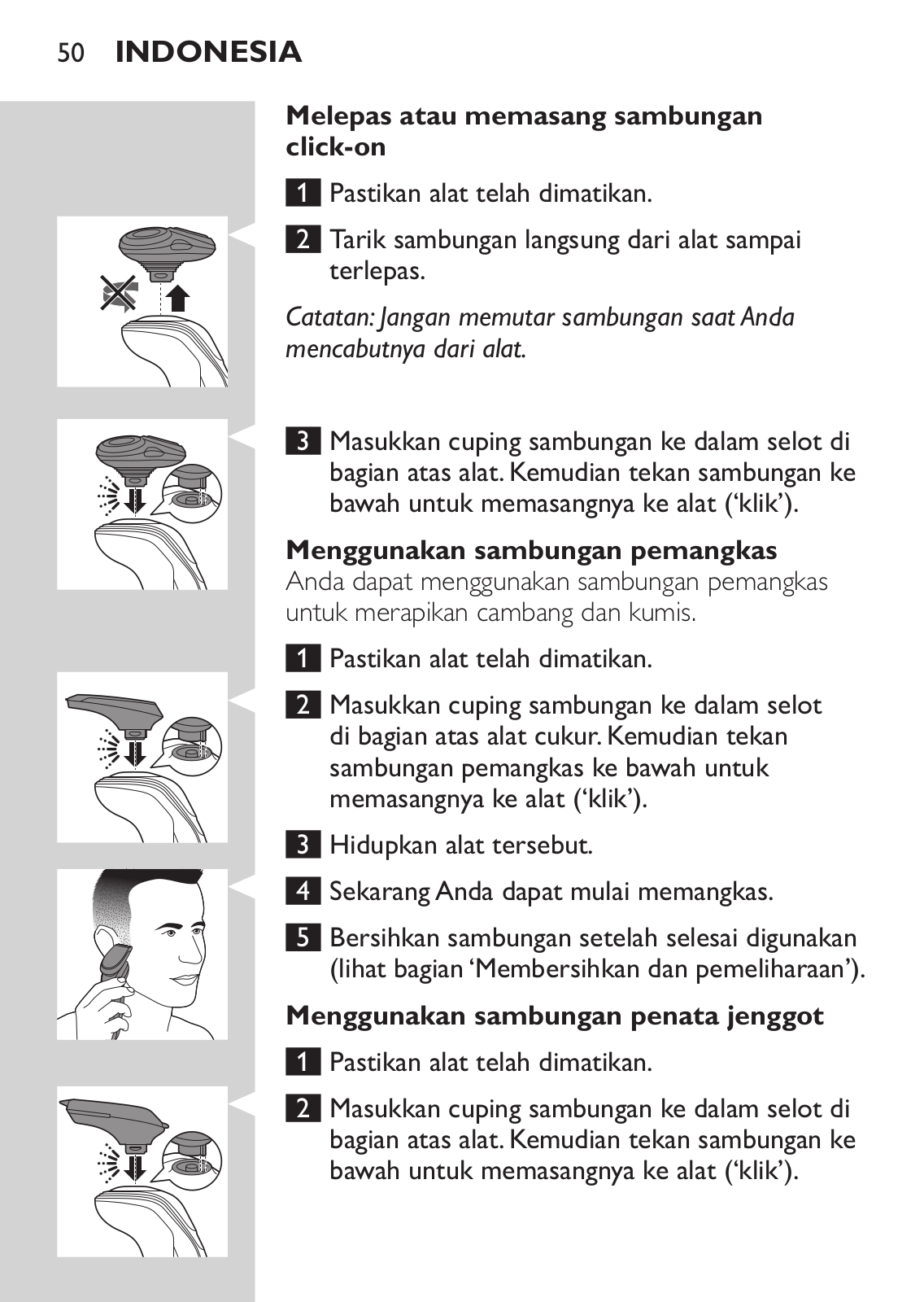

Removing or attaching the click-on attachments
1Make sure the appliance is switched off.
2Pull the attachment straight off the appliance.
Note: Do not twist the attachment while you pull it off the appliance.
3Insert the lug of the attachment into the slot in the top of the appliance.Then press down the attachment to attach it to the appliance (‘click’).
16 ENGLISH
Using the trimmer attachment
You can use the trimmer attachment to groom your sideburns and moustache.
1
2
3
4
5
Make sure the appliance is switched off.
Insert the lug of the attachment into the slot in the top of the shaver.Then press down the trimmer attachment to attach it to the appliance (‘click’).
Switch on the appliance.
You can now start trimming.
Clean the attachment after use (see chapter ‘Cleaning and maintenance’).

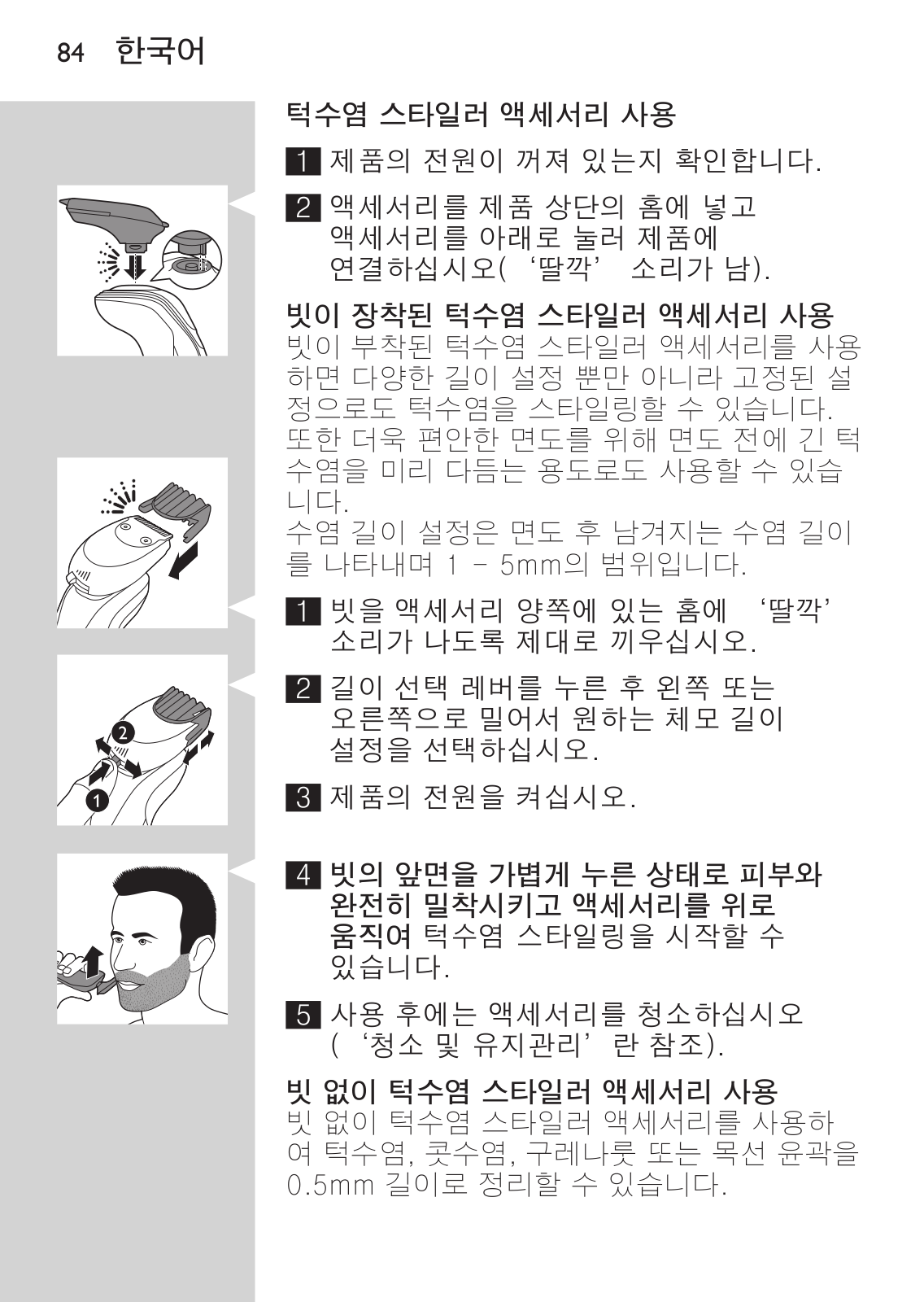

Using the beard styler attachment
1Make sure the appliance is switched off.
2Insert the lug of the attachment into the slot in the top of the appliance.Then press down the attachment to attach it to the appliance (‘click’).

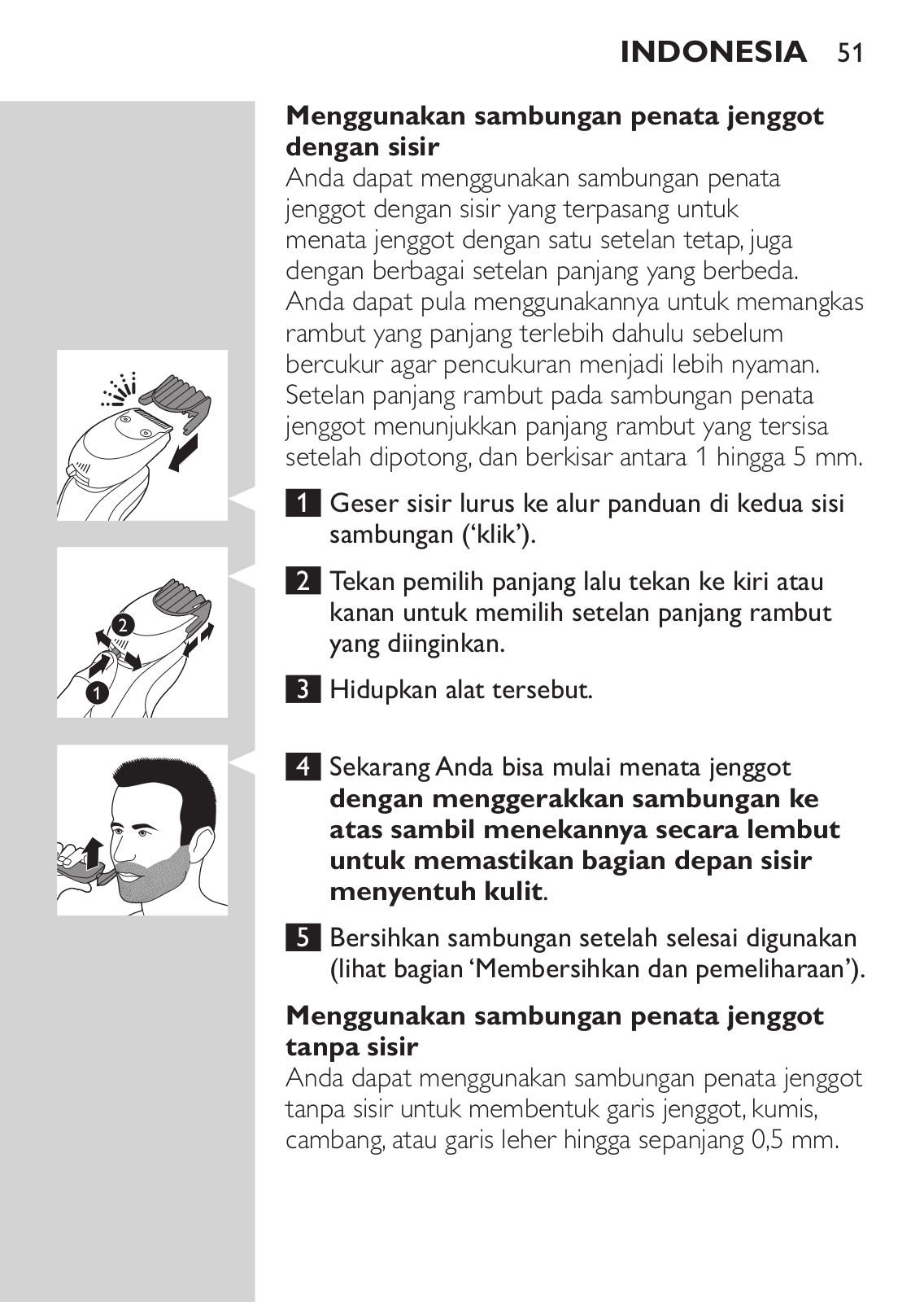

Using the beard styler attachment with comb
You can use the beard styler attachment with the comb attached to style your beard at one fixed setting, but also at different length settings.You can use it also to pre-trim any long hairs before shaving to have a more comfortable shave.
The hair length settings on the beard styler attachment correspond to the remaining hair length after cutting and range from 1 to 5mm.
1Slide the comb straight into the guiding grooves on both sides of the attachment (‘click’).
ENGLISH 17
2Press the length selector and then push it to the left or right to select the desired hair length setting.
3Switch on the appliance.
4You can now start styling your beard by moving the attachment upwards with gentle pressure making sure the front of the comb is in full contact with the skin.
5Clean the attachment after use (see chapter ‘Cleaning and maintenance’).

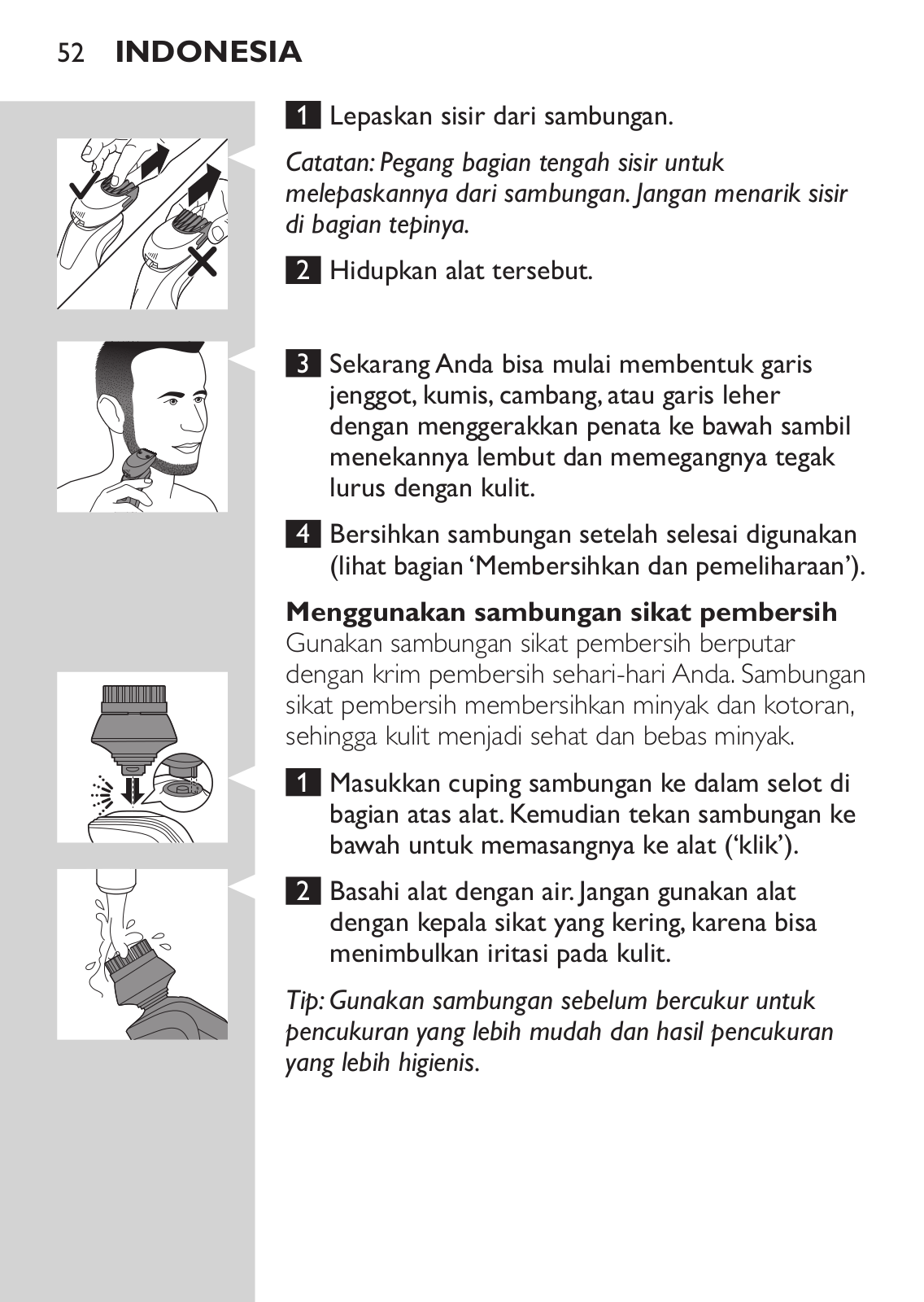

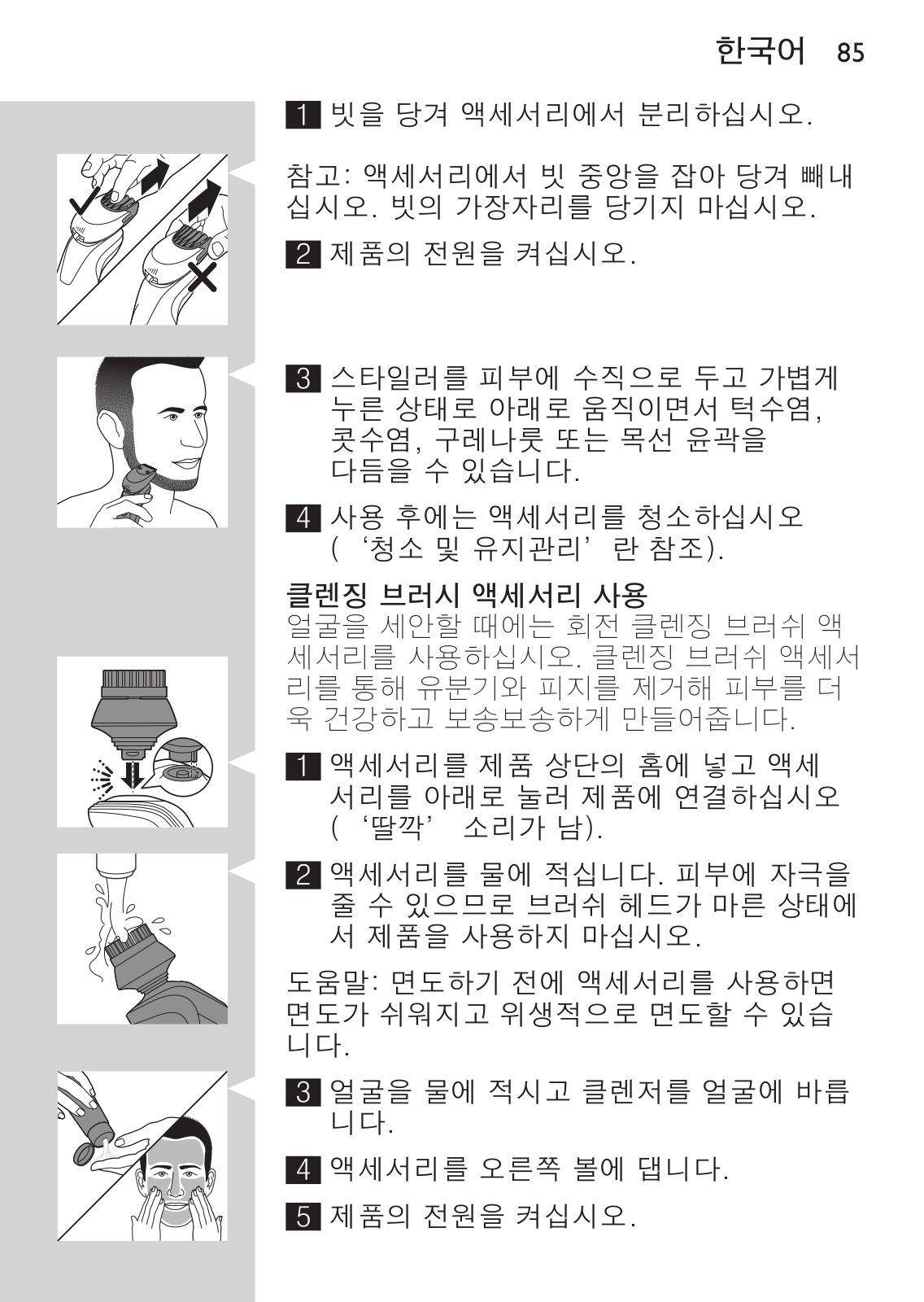

Using the beard styler attachment without comb
You can use the beard styler attachment without the comb to contour your beard, moustache, sideburns or neckline to a length of 0.5mm.
1 Pull the comb off the attachment.
Note: Grab the comb in the centre to pull it off the attachment. Do not pull at the sides of the comb.
2Switch on the appliance.
3You can now start contouring your beard, moustache, sideburns or neckline by moving the styler downwards with gentle pressure while holding it perpendicular to the skin.
4Clean the attachment after use (see chapter ‘Cleaning and maintenance’).
18 ENGLISH
Using the cleansing brush attachment
Use the rotating cleansing brush attachment with your daily cleansing cream.The cleansing brush attachment removes oil and dirt, contributing to a healthy and oil-free skin.
1Insert the lug of the attachment into the slot in the top of the appliance.Then press down
the attachment to attach it to the appliance (‘click’).
2 Moisten the attachment with water. Do not use the appliance with a dry brush head, as this can irritate the skin.
Tip: Use the attachment before shaving for easier shaving and a more hygienic shaving result.
3 Moisten your face with water and apply a cleanser to your face.
4 Place the attachment on your right cheek.
5 Switch on the appliance.

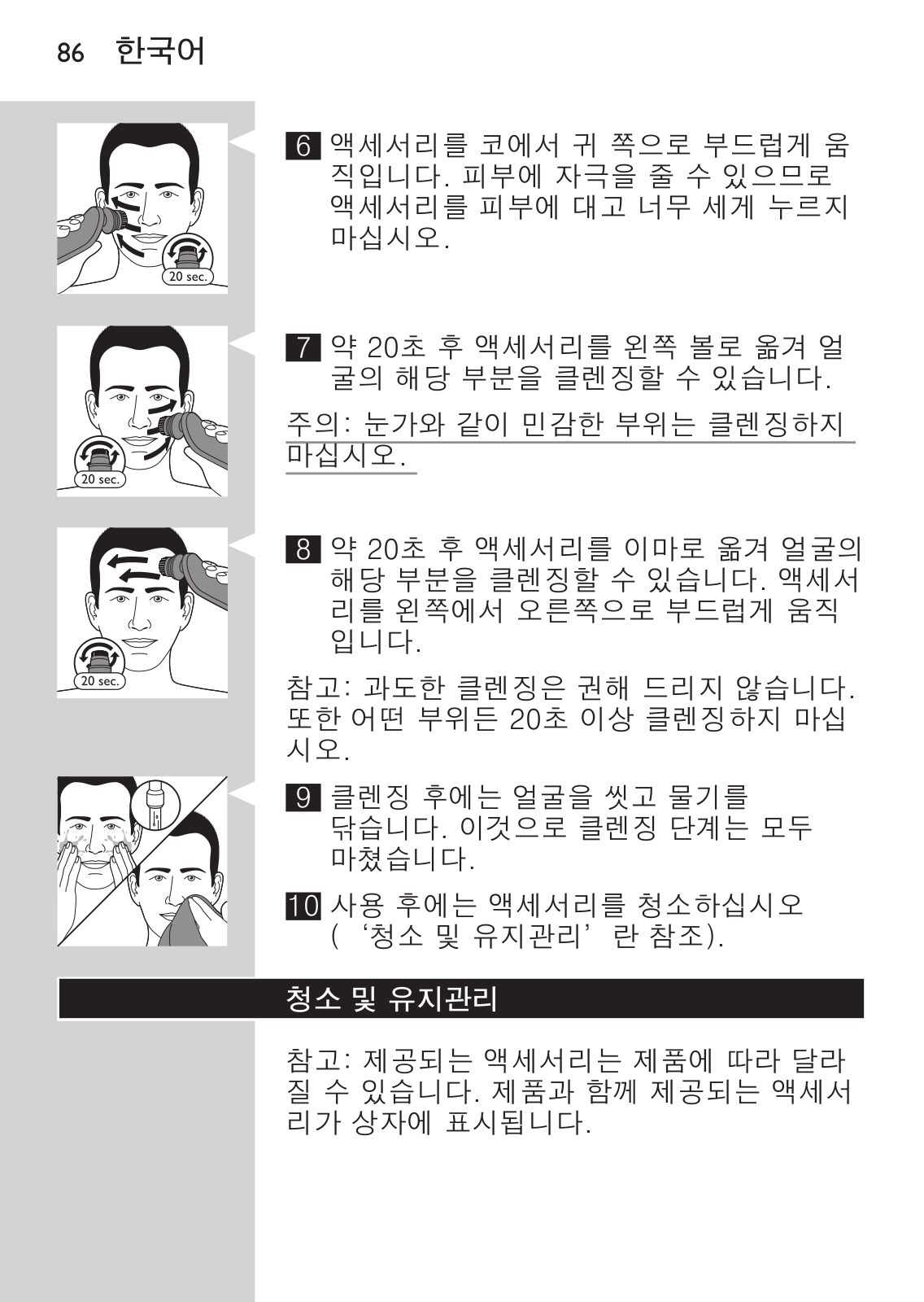

6 Gently move the attachment across your skin from the nose towards the ear. Do not push the attachment too hard onto the skin to make sure the treatment remains comfortable.
7After approx. 20 seconds you can move the attachment to your left cheek and start
cleansing this part of your face.
Caution: Do not clean the sensitive area around your eyes.
ENGLISH 19
8After approx. 20 seconds you can move the attachment to your forehead and start
cleansing this part of your face. Gently move the attachment from left to right.
Note:We advise you to not overdo the cleansing and to not cleanse any zone longer than 20 seconds.
9After the treatment, rinse and dry your face. Your face is now ready for the next step of your daily skincare routine.
10Clean the attachment after use (see chapter ‘Cleaning and maintenance’).

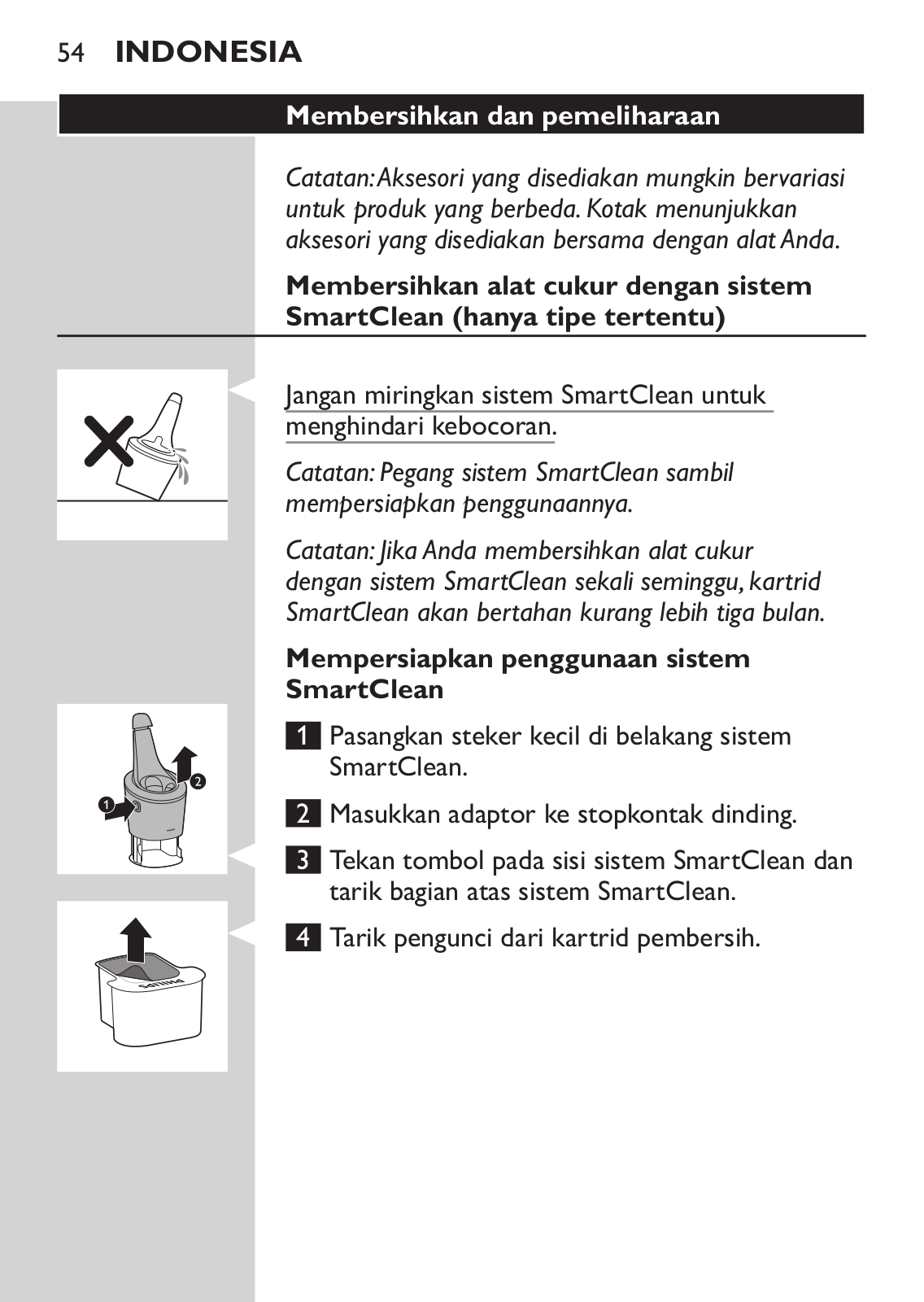

Cleaning and maintenance
Note:The accessories supplied may vary for different products.The box shows the accessories that have been supplied with your appliance.
Cleaning the shaver in the SmartClean system (specific types only)
Do not tilt the SmartClean system to prevent leakage.
Note: Hold the SmartClean system while you prepare it for use.
Note: If you clean the shaver in the SmartClean system once a week, the SmartClean cartridge will last approximately three months.
20 ENGLISH
Preparing the SmartClean system for use
1Put the small plug in the back of the SmartClean system.
2Put the adapter in the wall socket.
3Press the button on the side of the SmartClean
system and lift the top part of the SmartClean system.
4 Pull the seal off the cleaning cartridge.
5 Place the cleaning cartridge in the SmartClean system.
6 Push the top part of the SmartClean system back down (‘click’).
Using the SmartClean system
Always make sure to shake excess water off the shaver before you place it in the SmartClean system.
ENGLISH 21
1Press down the top cap to be able to place the shaver in the holder (‘click’).
2Hold the shaver upside down above the holder. Make sure the front of the shaver points towards the SmartClean system.
3Place the shaver in the holder, tilt the shaver backwards and press down the top cap to
connect the shaver (‘click’).
-- The battery symbol flashes slowly to indicate that the shaver is charging.

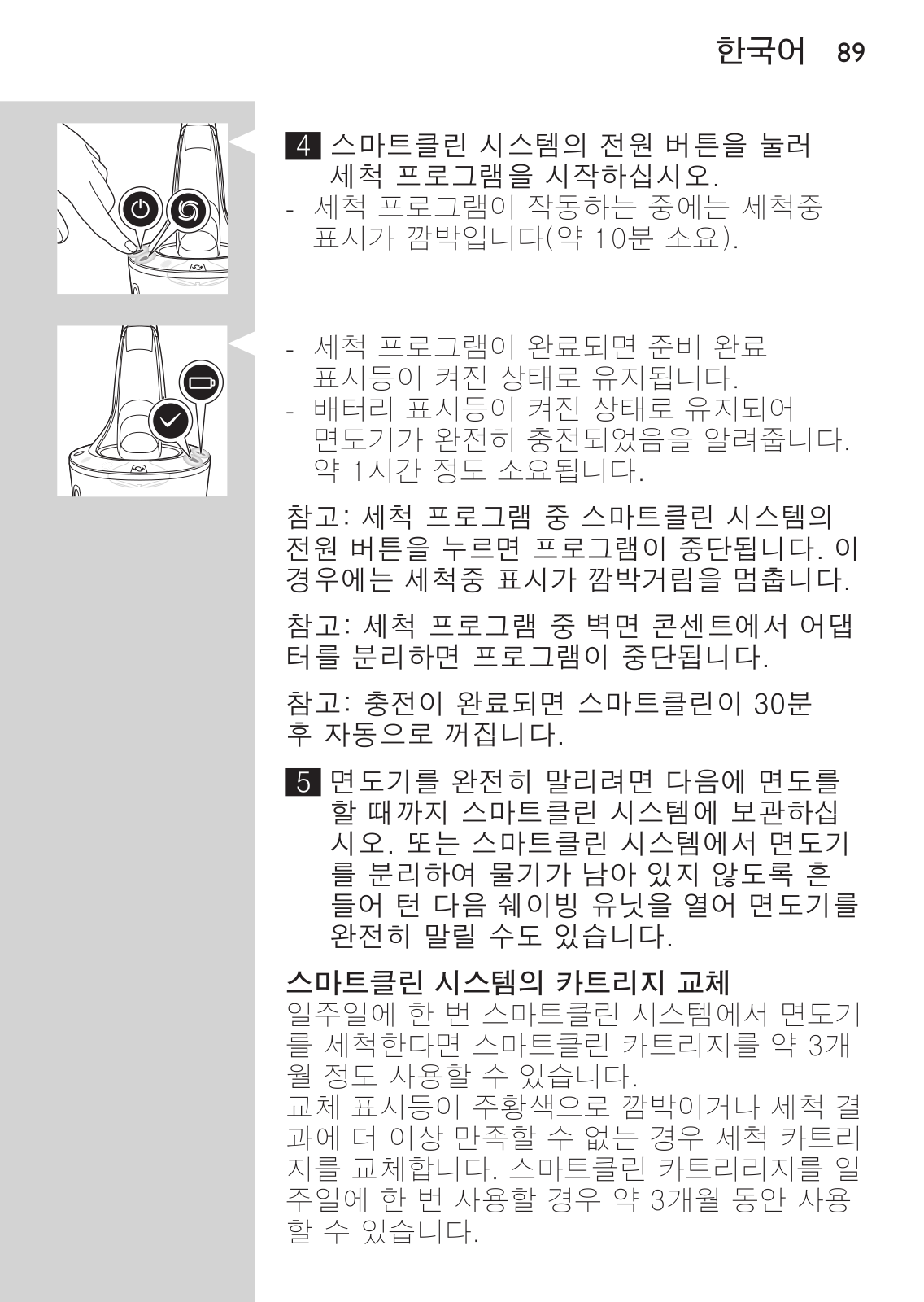

4Press the on/off button on the SmartClean system to start the cleaning program.
-- During the cleaning program (which takes approx.
10 minutes), the cleaning symbol flashes.
-- When the cleaning program has been completed, the ready symbol lights up continuously.
-- The battery symbol lights up continuously to indicate that the shaver is fully charged. This takes approx. 1 hour.
Note: If you press the on/off button of the SmartClean system during the cleaning program, the program aborts.
In this case,the cleaning symbol stops flashing.
22 ENGLISH
Note: If you remove the adapter from the wall socket during the cleaning program, the program aborts.
Note: 30 minutes after the charging phase has been completed, the SmartClean system switches off automatically.
5To let the shaver dry, you can leave it in the SmartClean system until your next shave. You can also remove the shaver from the SmartClean system, shake off excess water,
open the shaving unit and let the shaver air dry.

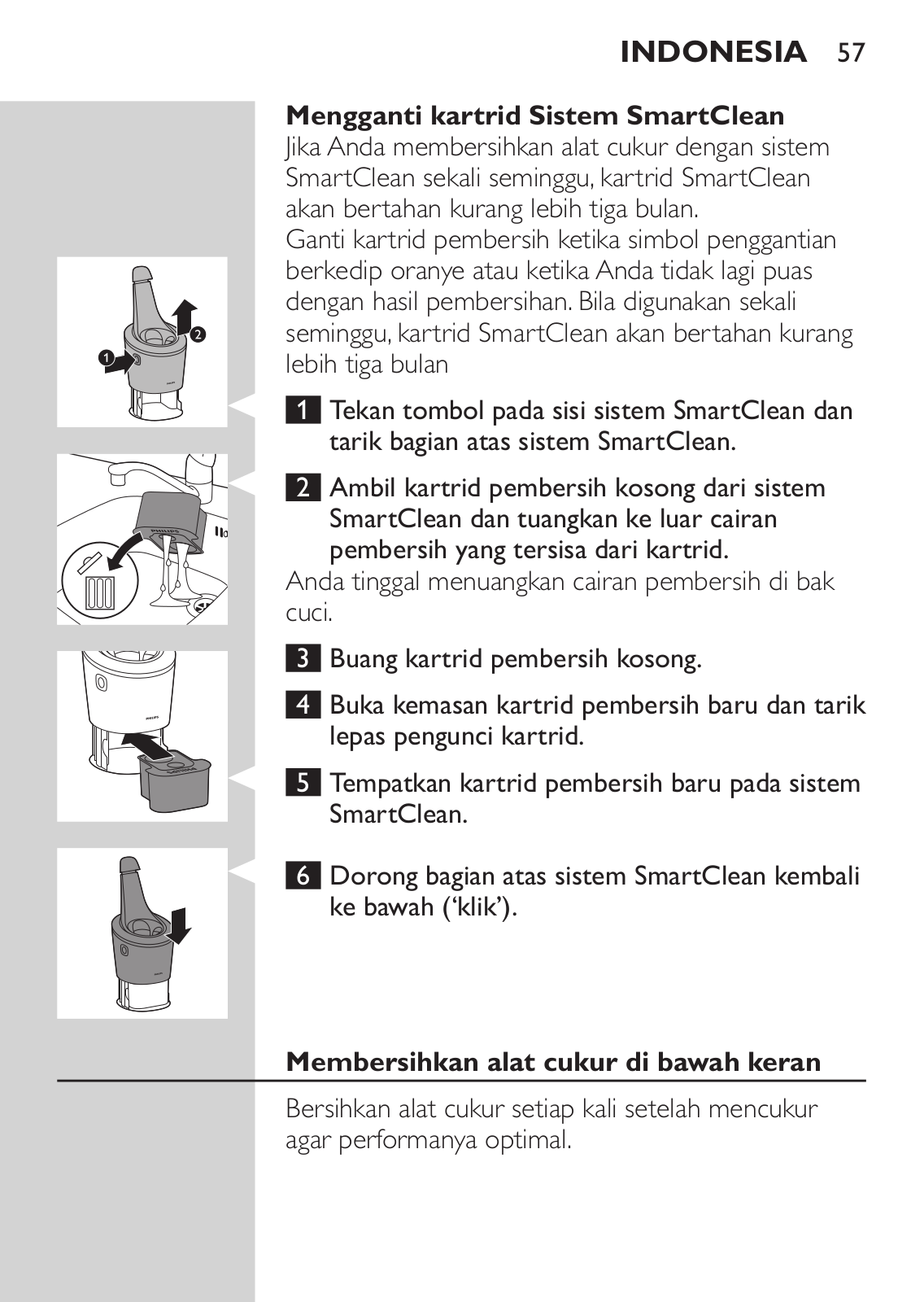

Replacing the cartridge of the SmartClean System
If you clean the shaver in the SmartClean system once a week, the SmartClean cartridge will last approximately three months.
Replace the cleaning cartridge when the replacement symbol flashes orange or when you are no longer satisfied with the cleaning result. If used once a week, the SmartClean cartridge will last for approximately three months
1 Press the button on the side of the SmartClean system and lift the top part of the SmartClean system.
2 Take the empty cleaning cartridge from the SmartClean system and pour any remaining cleaning fluid out of the cleaning cartridge.
You can simply pour the cleaning fluid down the sink.
3 Throw away the empty cleaning cartridge.
4Unpack the new cleaning cartridge and pull the seal off the cartridge.
ENGLISH 23
5Place the new cleaning cartridge in the SmartClean system.
6Push the top part of the SmartClean system back down (‘click’).

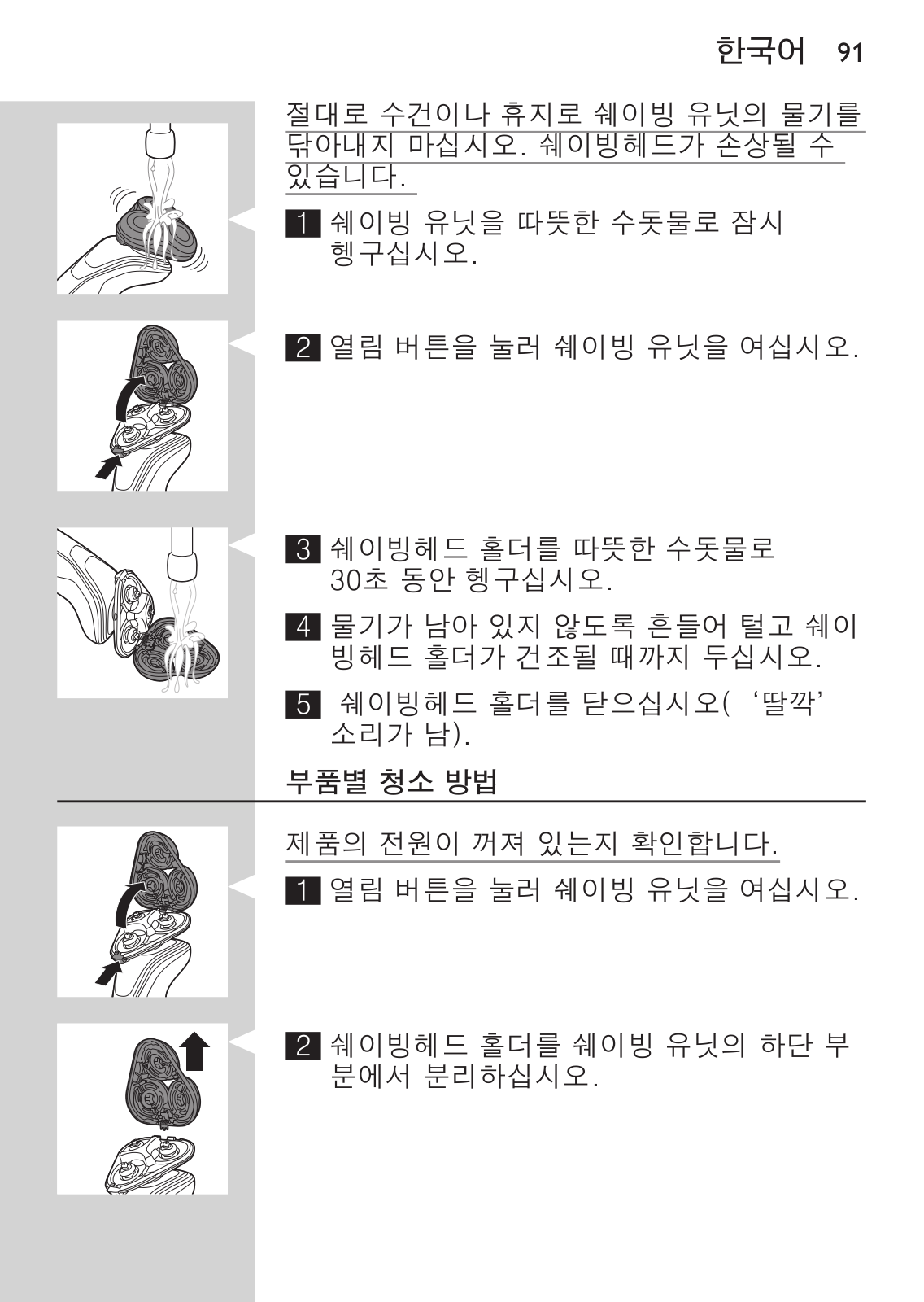

Cleaning the shaver under the tap
Clean the shaver after every shave for optimal shaving performance.
Be careful with hot water.Always check if the water is not too hot, to prevent your hands from getting burnt.
Never dry the shaving unit with a towel or tissue, as this may damage the shaving heads.
1Rinse the shaving unit under a warm tap for some time.
2Press the release button and open the shaving unit.
24 ENGLISH
3 Rinse the shaving head holder under a warm tap for 30 seconds.
4 Carefully shake off excess water and let the shaving head holder dry.
5 Close the shaving head holder (‘click’).
Thorough cleaning method
Make sure the appliance is switched off.
1
2
3
4
Press the release button and open the shaving unit.
Pull the shaving head holder off the bottom part of the shaving unit.

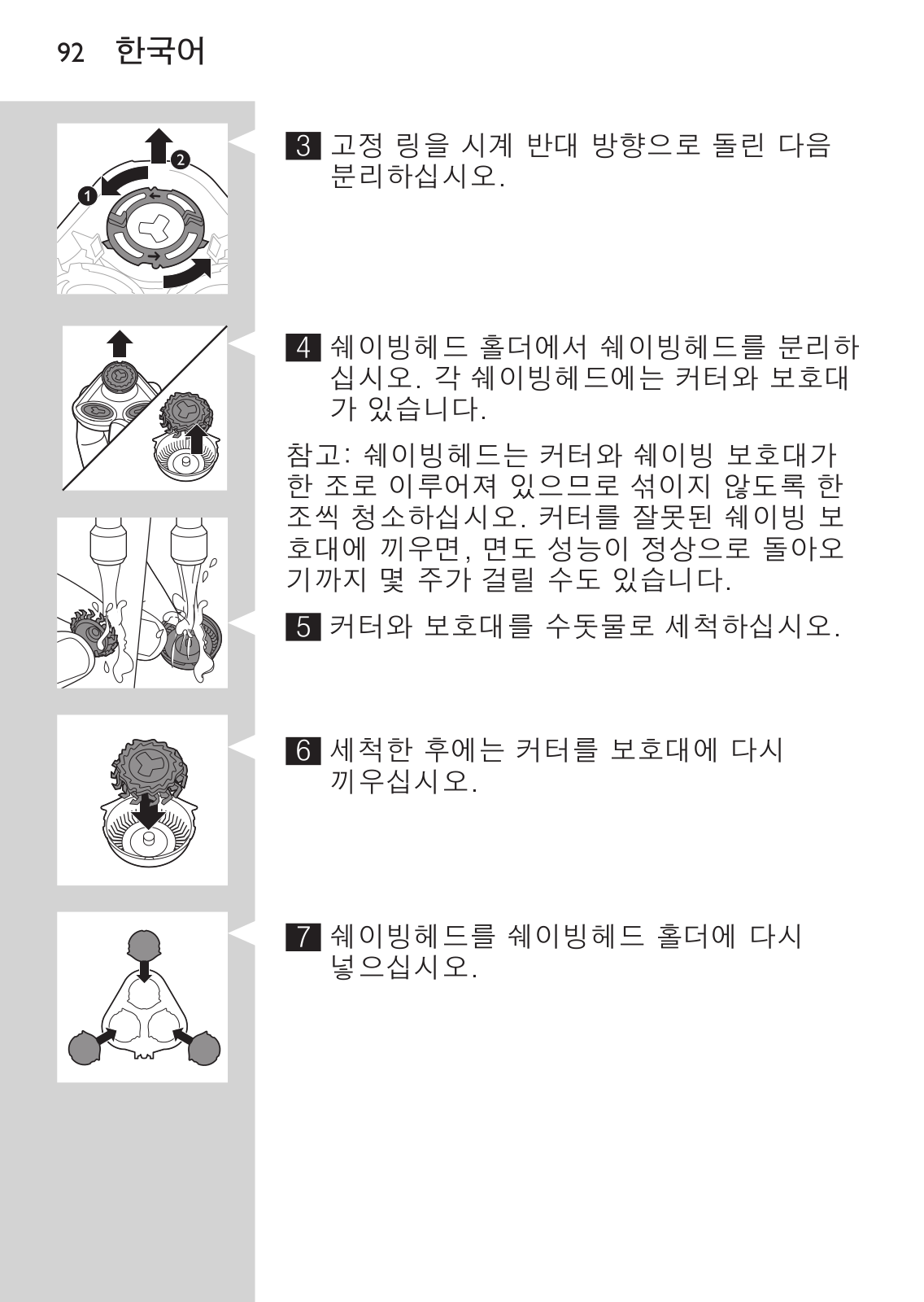

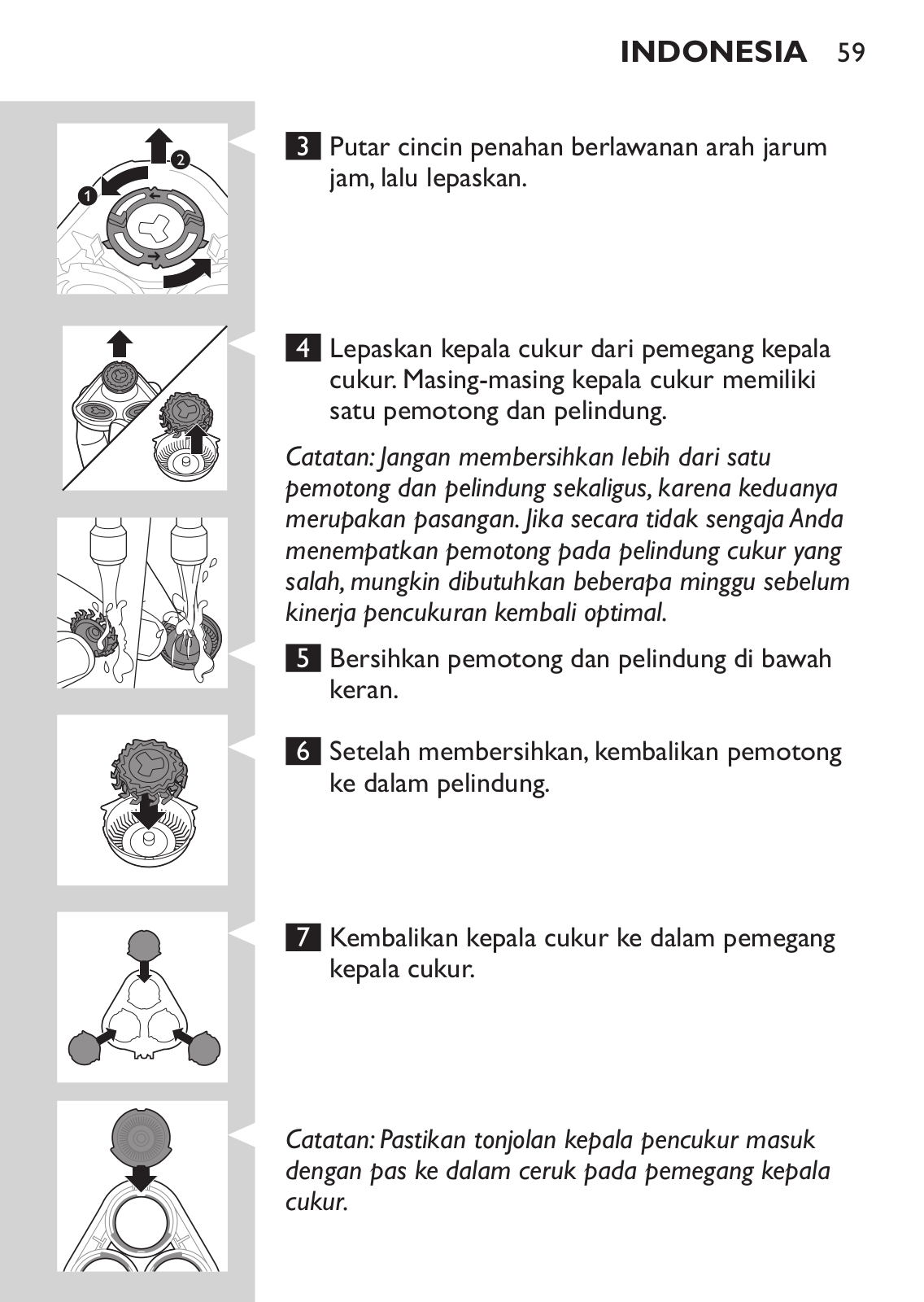

Turn the retaining rings anticlockwise and remove them.
Remove the shaving heads from the shaving head holder. Each shaving head consists of a cutter and guard.
Note: Do not clean more than one cutter and guard at a time, since they are all matching sets. If you accidentally put a cutter in the wrong shaving guard, it may take several weeks before optimal shaving performance is restored.
ENGLISH 25
5Clean the cutter and guard under the tap.
6After cleaning, place the cutter back into the guard.
7Put the shaving heads back into the shaving head holder.

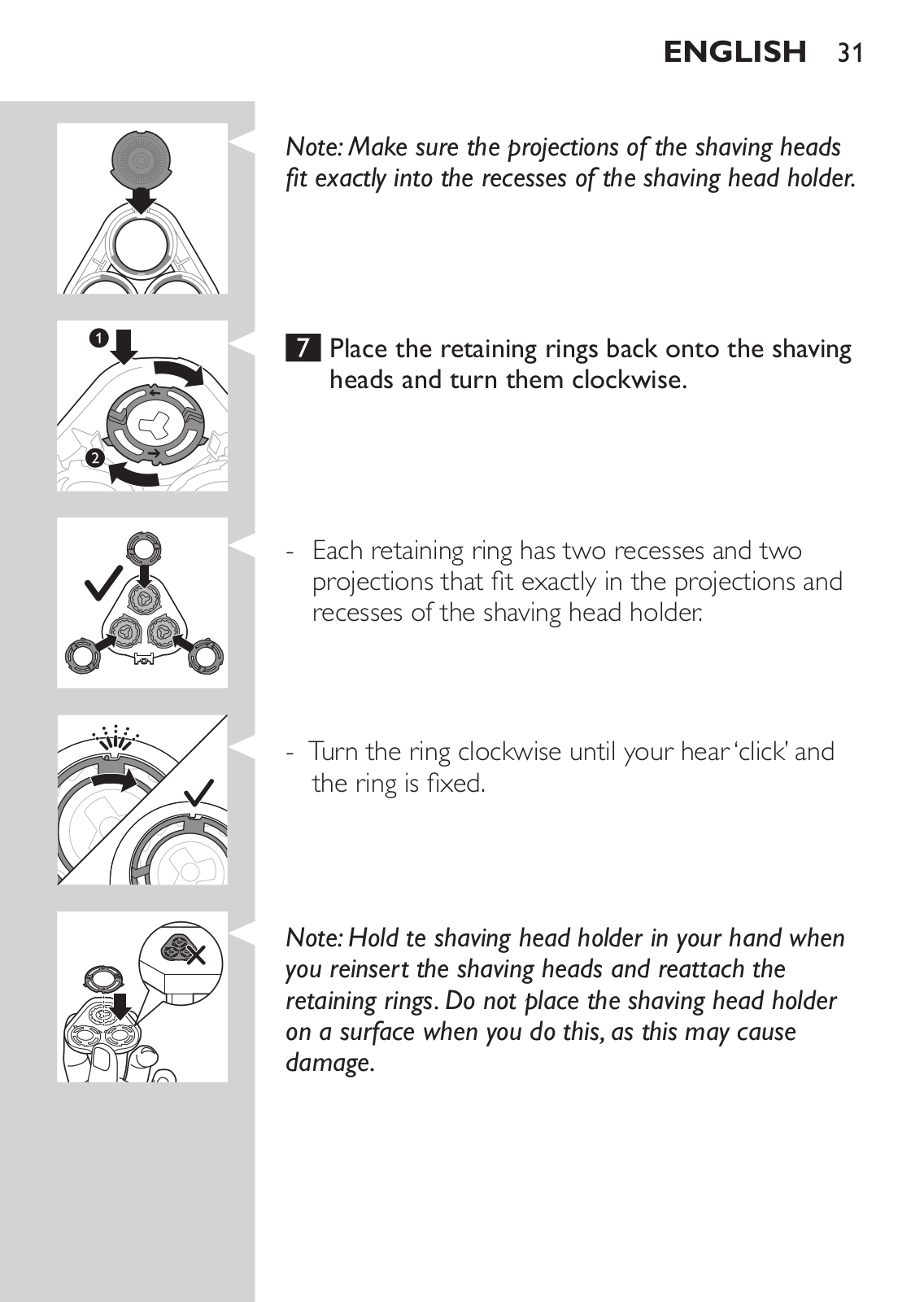

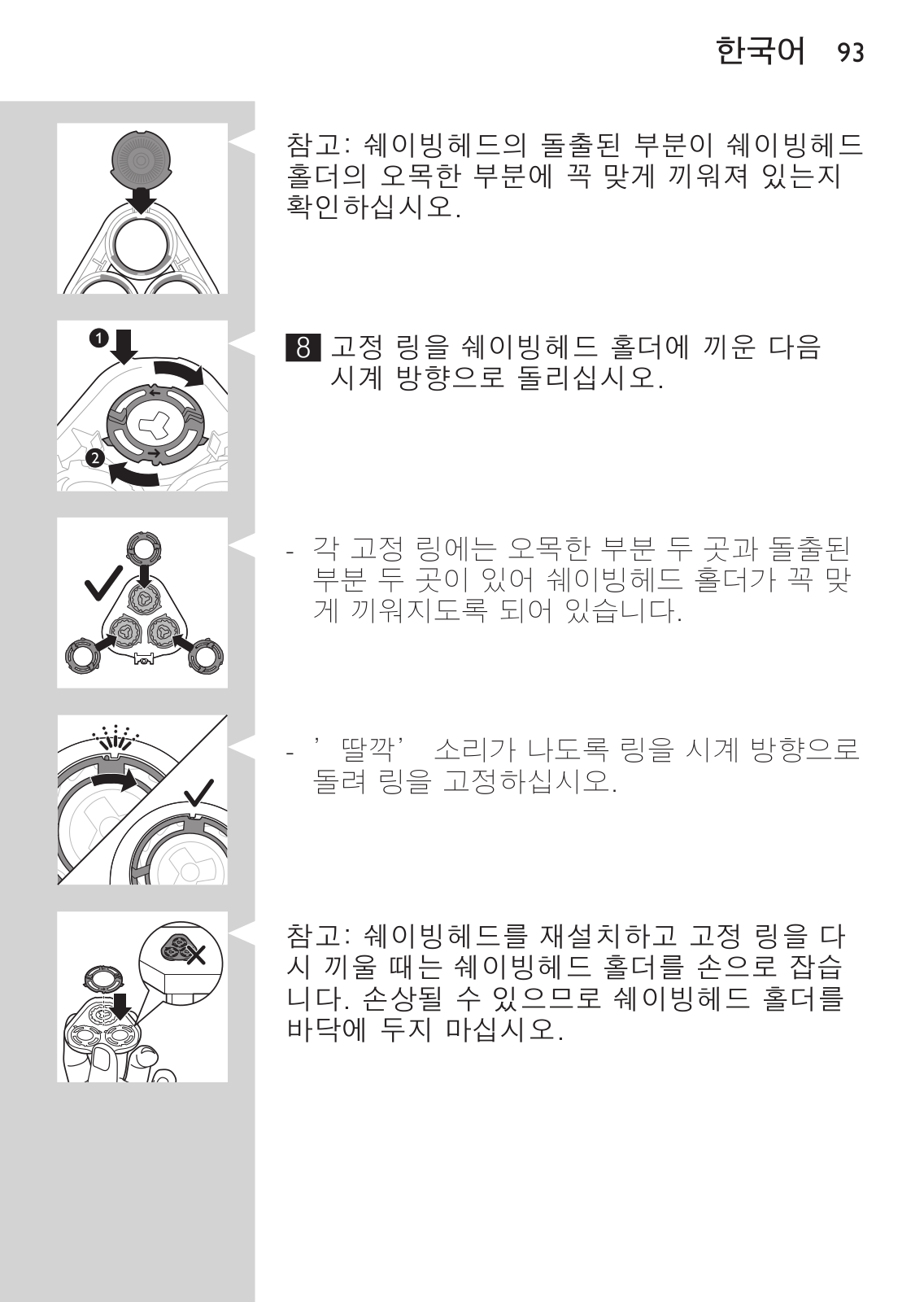

Note: Make sure the projections of the shaving heads fit exactly into the recesses of the shaving-head holder.

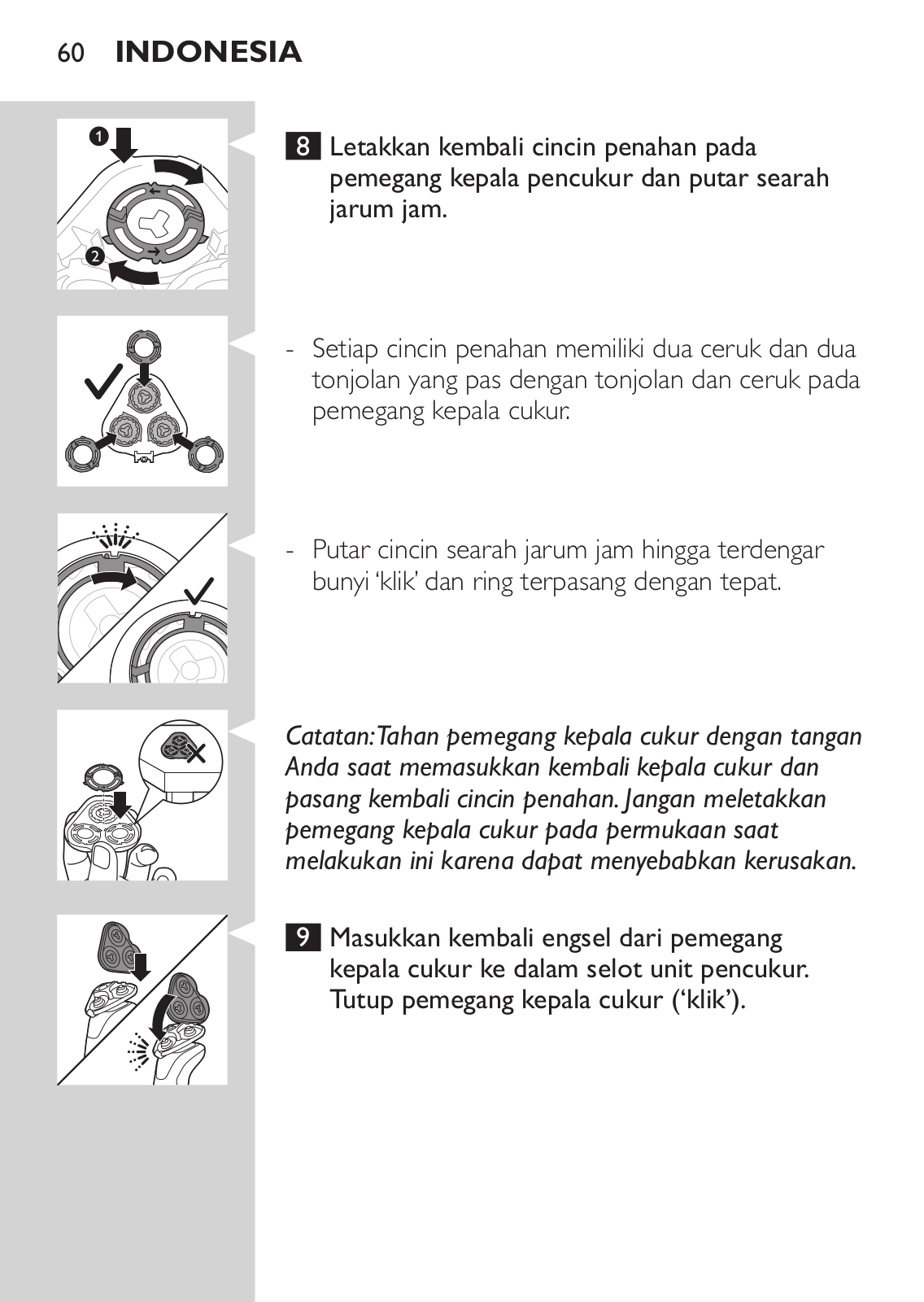

8Place the retaining rings back onto the shaving head holder and turn them clockwise.
26 ENGLISH

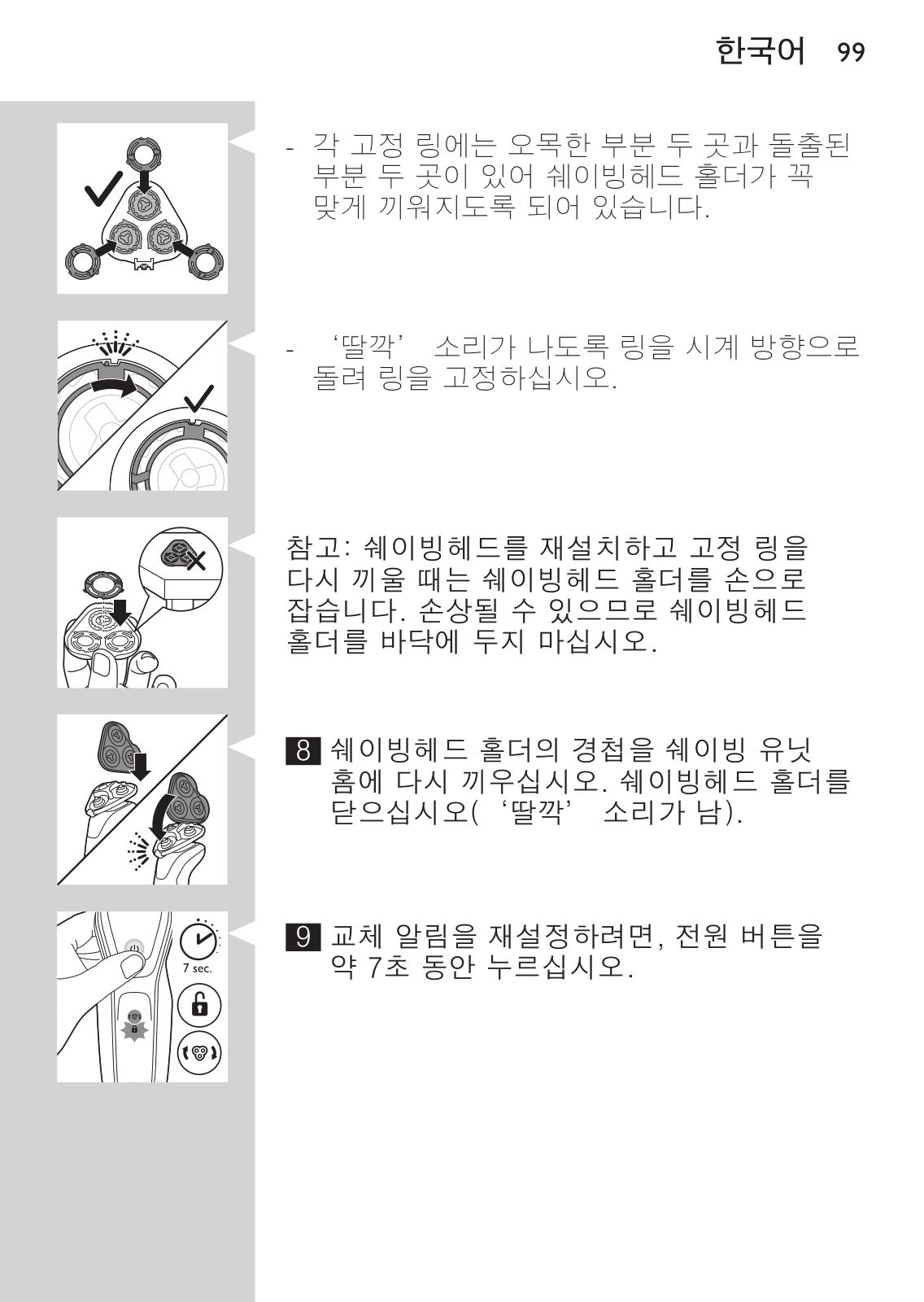

-- Each retaining ring has two recesses and two projections that fit exactly in the projections and recesses of the shaving head holder.
-- Turn the ring clockwise until your hear ‘click’ and the ring is fixed.
Note: Hold the shaving head holder in your hand when you reinsert the shaving heads and reattach the retaining rings. Do not place the shaving head holder on a surface when you do this, as this may cause damage.

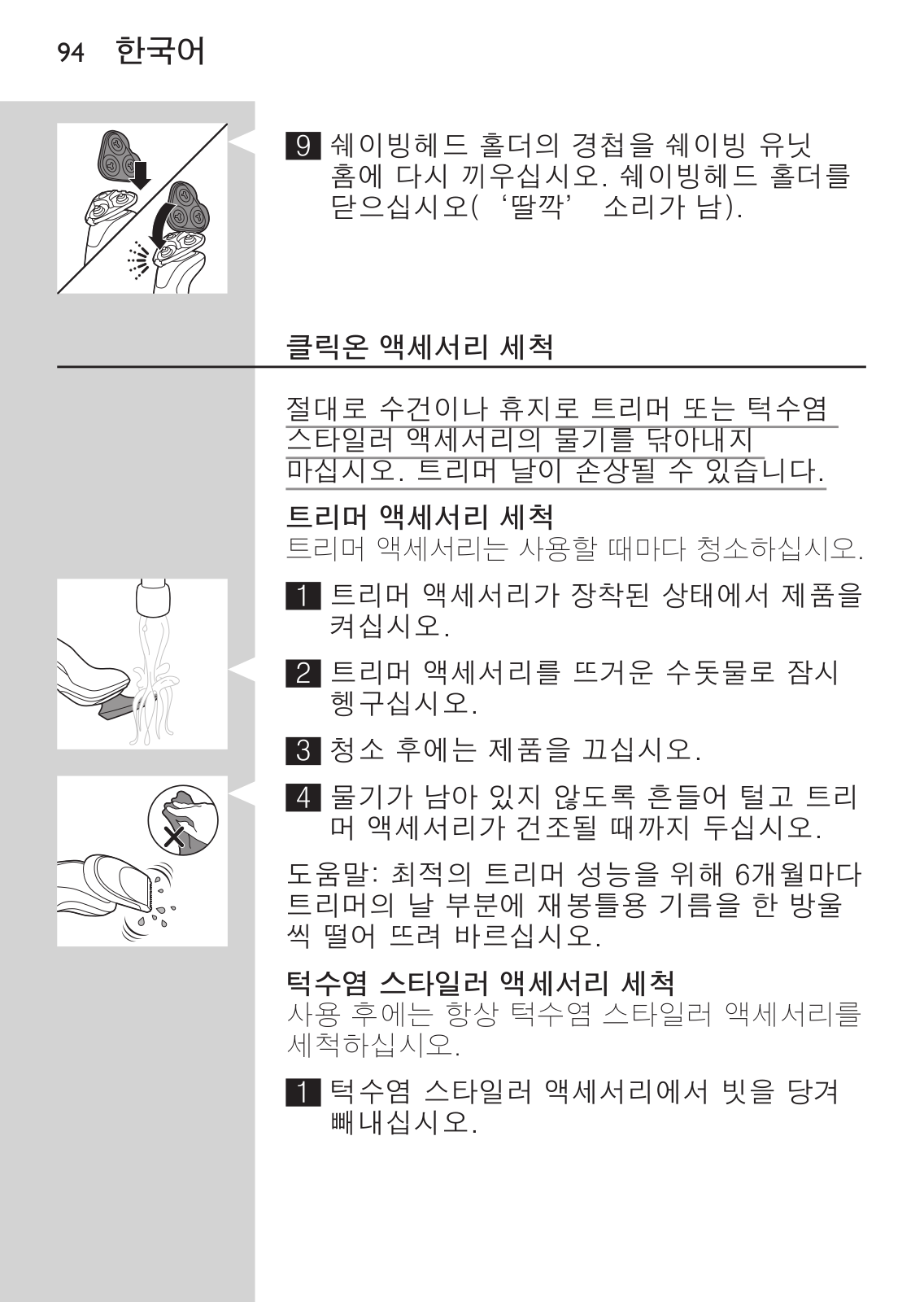

9 Reinsert the hinge of the shaving head holder into the slot of the shaving unit. Close the shaving head holder (‘click’).

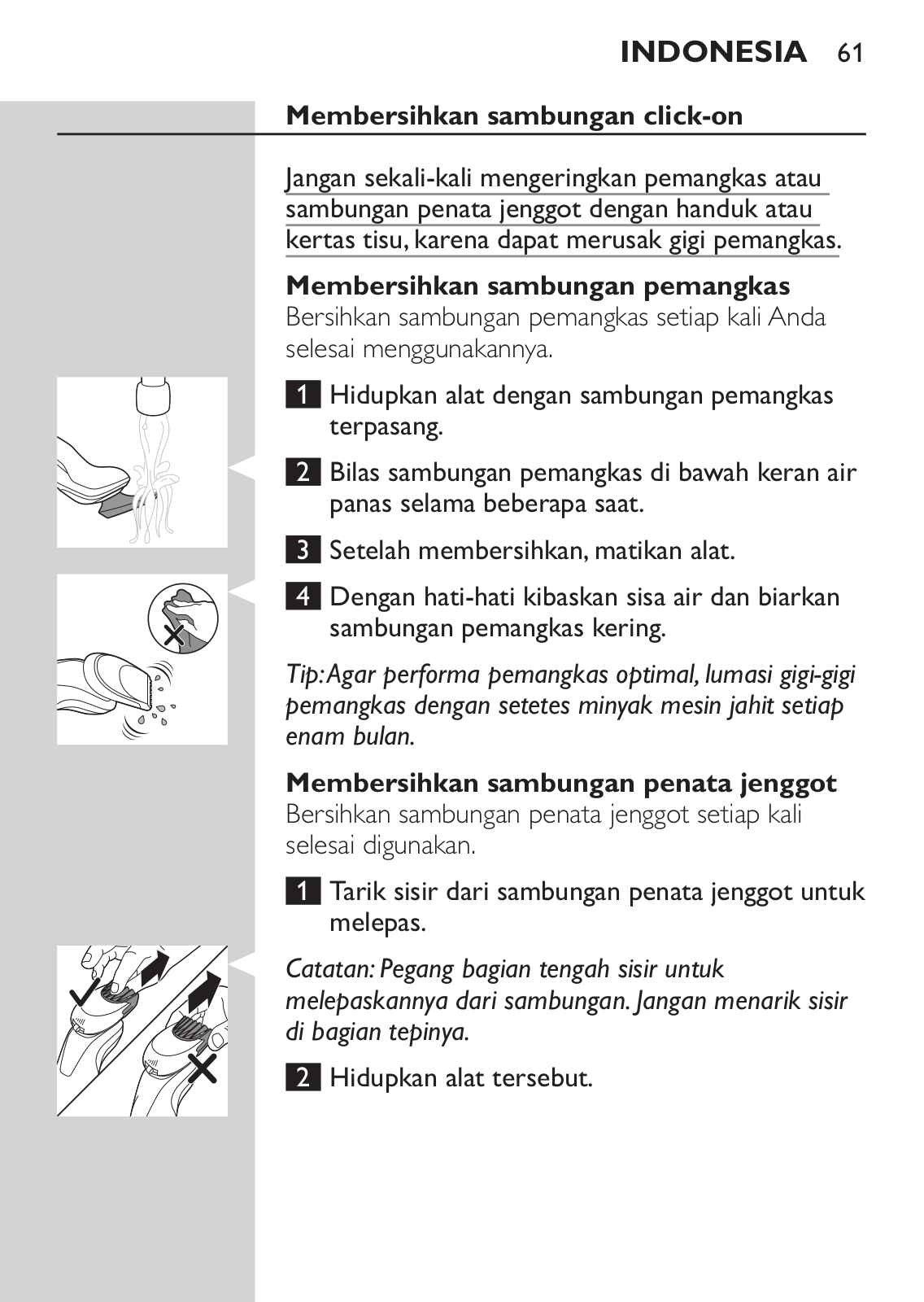

Cleaning the click-on attachments
Never dry the trimmer or beard styler attachments with a towel or tissue, as this may damage the trimming teeth.
ENGLISH 27
Cleaning the trimmer attachment
Clean the trimmer attachment every time you have used it.
1Switch on the appliance with the trimmer attachment attached.
2Rinse the trimmer attachment under a hot tap for some time.
3After cleaning, switch off the appliance.
4Carefully shake off excess water and let the trimmer attachment dry.
Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.
Cleaning the beard styler attachment
Clean the beard styler attachment every time you have used it.
1 Pull the comb off the beard styler attachment.
Note: Grab the comb in the centre to pull it off the attachment. Do not pull at the sides of the comb.
2Switch on the appliance.

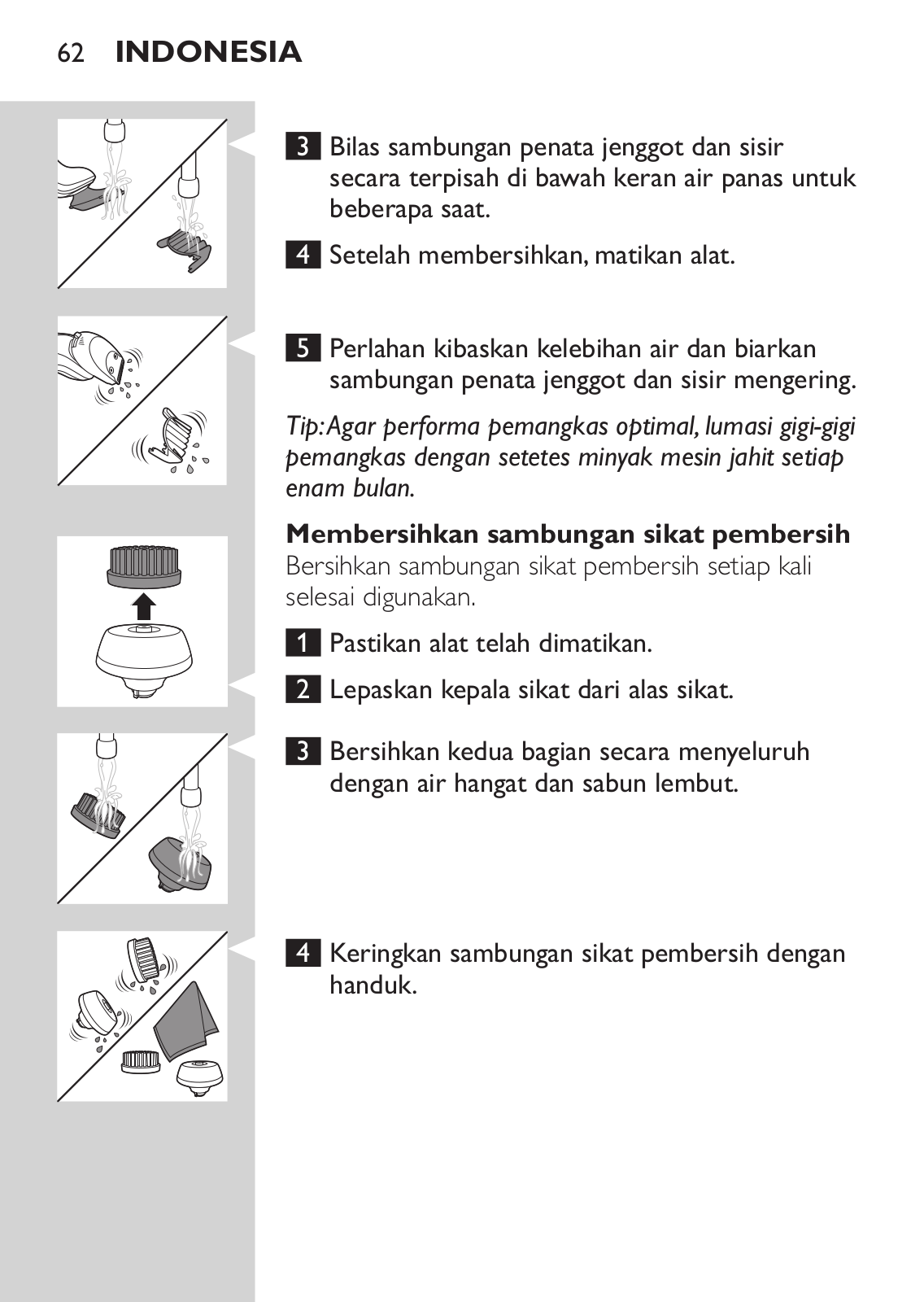

3Rinse the beard styler attachment and the comb separately under a hot tap for some time.
4After cleaning, switch off the appliance.
5Carefully shake off excess water and let the beard styler attachment and comb dry.
Tip: For optimal trimmer performance, lubricate the trimmer teeth with a drop of sewing machine oil every six months.
28 ENGLISH
Cleaning the cleansing brush attachment
Clean the cleansing brush attachment every time you have used it.
1 Make sure the appliance is switched off.
2 Detach the brush head from the brush base.
3 Clean both parts thoroughly with warm water and mild soap.

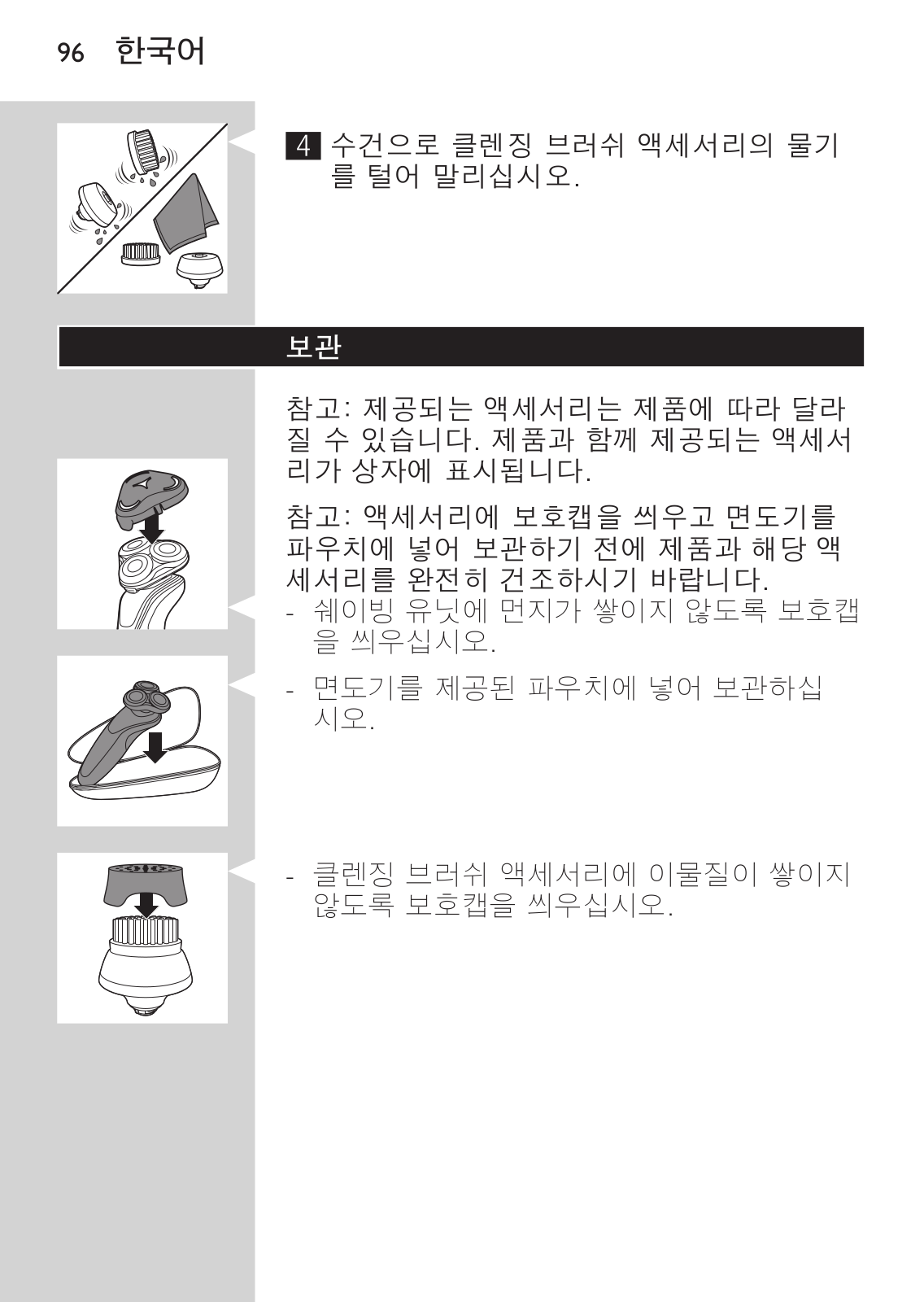

4 Dry the cleansing brush attachment with a towel.

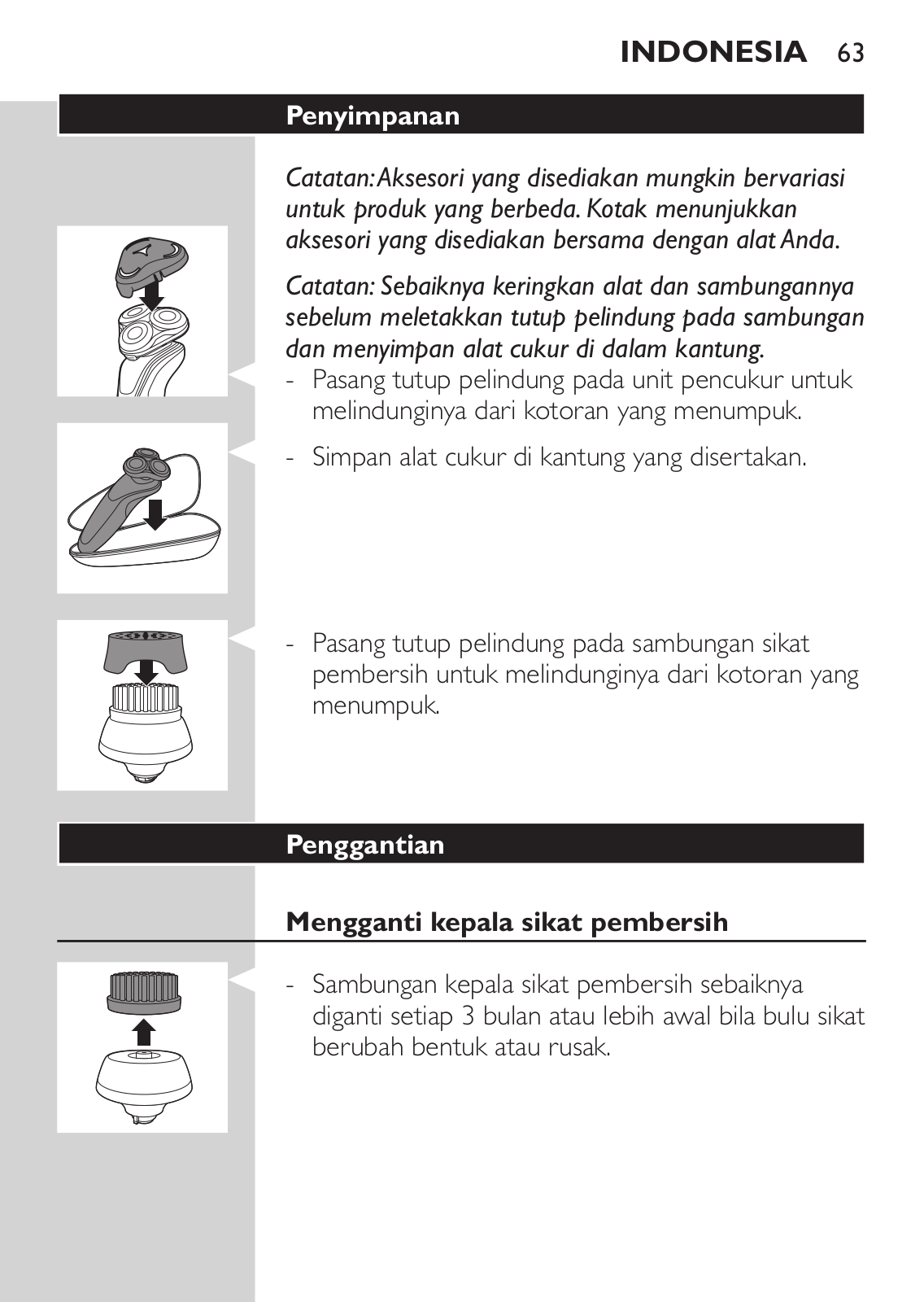

Storage
Note:The accessories supplied may vary for different products.The box shows the accessories that have been supplied with your appliance.
Note:We advise you to let the appliance and its attachments dry before you put the protection caps on the attachments and store the shaver in the pouch.
-- Put the protection cap on the shaving unit to protect it from dirt accumulation.
-- Store the shaver in the pouch supplied.
ENGLISH 29
-- Put the protection cap on the cleansing brush attachment to protect it from dirt accumulation.
Replacement
Replacing the cleansing brush head
-- The cleansing brush head attachment should be replaced every 3 months or earlier if the filaments are deformed or damaged.
Replacing the shaving heads
For maximum shaving performance, we advise you to replace the shaving heads every two years.
Replacement reminder
The shaving unit symbol will light up to indicate that the shaving heads need to be replaced. Replace damaged shaving heads immediately. Only replace the shaving heads with original Philips shaving heads as specified in chapter‘Ordering accessories’.
1The shaving unit symbol lights up continuously when you switch off the shaver to indicate that the shaving heads need to be replaced.
30 ENGLISH
2Press the release button and open the shaving unit.
3Pull the shaving head holder off the bottom part of the shaving unit.
4 Turn the retaining rings anticlockwise and remove them.
5 Remove the shavings heads from the shaving head holder and throw them away.
6 Place new shaving heads in the holder.
