Philips S3134/57 User Manual

S3000 SERIES

1	9

10

2

11

3

4

12

5 6

7

13

8

empty page before TOC

English 6

Français (Canada) 25

6 English

Contents

General description (Fig. 1)_______________________________________	6
Introduction_______________________________________________________	7
Important safety information_____________________________________	7
The display________________________________________________________	9
Charging___________________________________________________________	10
Using the appliance______________________________________________	12
Shaving____________________________________________________________	13
Trimming__________________________________________________________	15
Cleaning and maintenance_______________________________________	15
Replacement______________________________________________________	19
Storage____________________________________________________________	21
Ordering accessories_____________________________________________	21
Recycling__________________________________________________________	21
Removing the rechargeable shaver battery_____________________	22
Warranty and support____________________________________________	24

General description (Fig. 1)

1Protection cap

2Shaving unit

3Shaving unit release button

4On/off button

51-Level battery status indicator (S3133,

S3134 only)

63-Level battery status indicator (S3233, S3332,

S3333 only)

7Socket for small plug

8Charging stand (S3332, S3333 only)

9Pop-up trimmer

10Trimmer release slide

11Supply unit

12Small plug

13Storage pouch (S3232, S3332, S3333 only)

English

English 7

Introduction

Congratulations on your purchase and welcome to Philips! To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.

Important safety information

Read this important information carefully before you use the appliance and save it for future reference.

Danger

- Keep the supply unit dry.

Warning

-To charge the battery, only use the detachable supply unit (type HQ8505) provided with the appliance.

-The supply unit contains a transformer. Do not cut off the supply unit to replace it with another plug, as this causes a hazardous situation.

-This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

8 English

-Always unplug the shaver before you clean it under the tap.

-Always check the appliance before you use it. Do not use the appliance if it is damaged, as this may cause injury. Always replace a damaged part with one of the original type.

-Do not open the appliance to replace the rechargeable battery.

Caution

-This appliance contains batteries that are nonreplaceable.

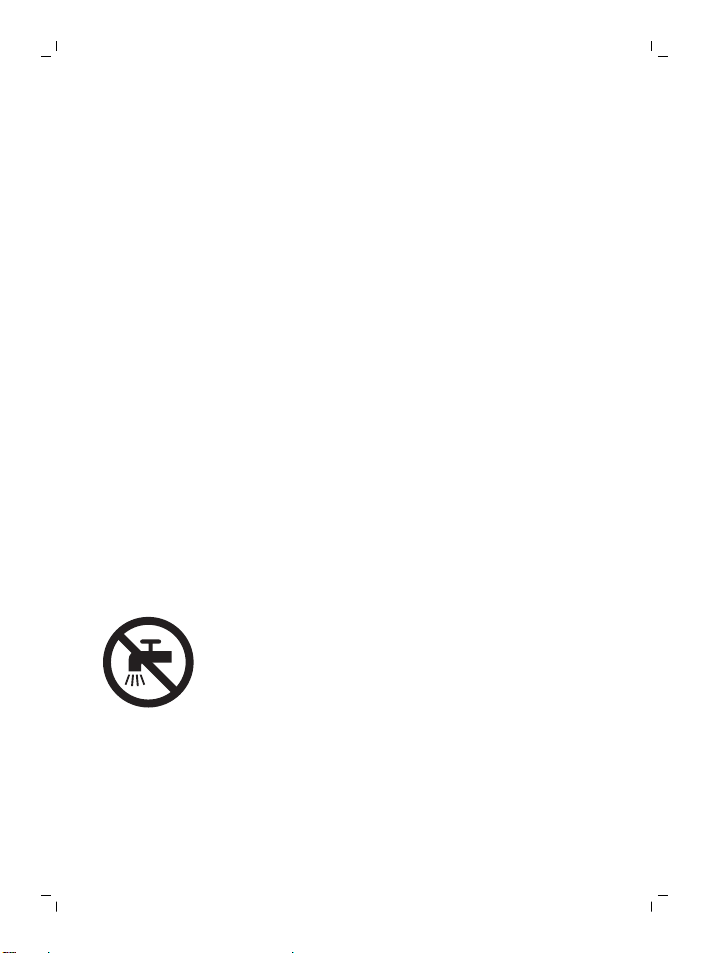

-Never immerse the charging stand in water and do not rinse it under the tap.

-Never use water hotter than 60°C to rinse the shaver.

-Only use this appliance for its intended purpose as shown in the user manual.

-For hygienic reasons, the appliance should only be used by one person.

-Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

-Water may drip from the socket at the bottom of the shaver when you rinse it. This is normal and not dangerous because all electronics are enclosed in a sealed power unit inside the shaver.

-Do not use the supply unit in or near wall sockets that contain an electric air freshener to prevent irreparable damage to the supply unit.

Electromagnetic fields (EMF)

This Philips appliance complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

English 9

General

The display

S3133, S3134

=

-This shaver is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, the shaver can therefore only be used without cord.

-The supply unit is suitable for mains voltages ranging from 100 to 240 volts.

-The supply unit transforms 100-240 volts to a safe low voltage of less than 24 volts.

Battery fully charged

When the battery is fully charged, the charging light lights up white continuously.

Note: After approx. 30 minutes, the charging light goes out to save energy.

Battery low

When the battery is almost empty, the charging light flashes orange.

When you switch off the appliance, the charging light continues to flash orange for a few seconds.

Charging

When the shaver is charging, the charging light flashes white.

10 English

S3232, S3332, S3333

Battery fully charged

When the battery is fully charged, all charging

lights light up white continuously.

Note: After approx. 30 minutes, the charging lights go out to save energy.

Battery low

When the battery is almost empty, the bottom charging light flashes orange.

=	When you switch off the appliance, the bottom
	charging light continues to flash orange for a few
	seconds.

Charging

When the shaver is charging, first the bottom light of the battery charge indicator flashes, then the second light, and so on until the shaver is fully charged.

When the appliance is charging, first the bottom light flashes, then the middle light, and so on until the appliance is fully charged.

Charging

Charge the shaver before you use it for the first time and when the display indicates that the battery is almost empty.

English 11

Charging takes approx. 1 hour. A fully charged shaver has a shaving time of up to 60 minutes.

This shaver is suitable for use in the bath or shower. For safety reasons, it is therefore not possible to use the shaver while it is connected to the power outlet for charging.

Note: Depending on your shaving/styling behavior and beard type, the operating time may vary over time.

Charging with the supply unit

1 Put the small plug in the appliance.

2 Put the supply unit in the wall socket.

- The charging light shows the charging status of

the appliance.

3 After charging, remove the supply unit from the wall socket and pull the small plug out of the appliance.

Charging with charging stand (S3332, S3333 only)

1Connect the small plug of the cord into the charging stand. Connect the supply unit into any 100V to 240V outlet. Use only the power cord provided.

2 Place the shaver in the stand in an upright position making sure charging contacts in the bottom of stand fit into recess in bottom of the shaver.

-The display on the shaver will indicate the shaver is charging.

3After charging, remove the shaver from the stand by lifting straight up. Do not tilt the shaver.

12 English

Quick charge

When you start charging the empty battery, the charging light flashes white quickly. After approx. 5 minutes the charging light flashes white slowly. The shaver now contains enough energy for a 5-minute shave.

Using the appliance

Note: This appliance is waterproof. It is suitable for use in the bath or shower and for cleaning under the tap. For safety reasons, this appliance can therefore only be used without cord.

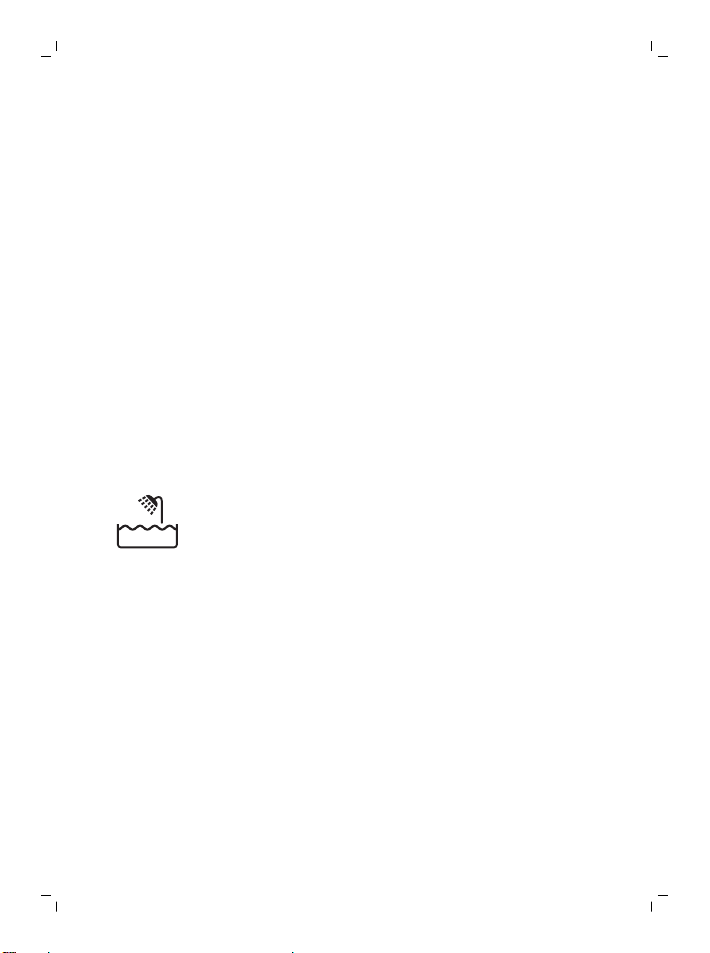

This symbol indicates that the shaver can be used in the bath or shower.

Shaving tips and tricks

-Make circular movements during use. Circular movements provide better shaving results than straight movements.

-Your skin may need 2 or 3 weeks to get accustomed to the Philips shaving system.

Switching the appliance on and off

To switch the appliance on or off, press the on/off button once.

English 13

Shaving

Dry shaving

Note: For the best results on skin comfort, pretrim your beard if you have not shaved for 3 days or longer.

1Switch on the appliance.

2Move the shaving heads over your skin in circular movements to catch all hairs growing in

different directions.

3 Stretch your skin with your free hand so the blades can lift and cut hair. Gently press the shaver onto you skin so the floating heads can follow the contours of your face.

Note: Do not press too hard as too much pressure can cause shaving heads to pinch the skin.

4Switch off and clean the appliance after each use.

5Put the protective cap on the appliance to protect the shaving heads during storage and travel.

Wet shaving

For a more comfortable shave, you can also use this appliance on a wet face with shaving foam or shaving gel.

14 English

1Apply some water to your skin.

2Apply shaving foam or gel to your skin.

3 Rinse the shaving unit under the tap to ensure that it glides smoothly over your skin.

4 Switch on the appliance.

5 Move the shaving heads over your skin in circular movements to catch all hairs growing in different directions. Make sure each shaving head is fully in contact with the skin. Exert gentle pressure for a close, comfortable shave.

Note: Do not press too hard, this can cause skin irritation.

Note: Rinse the shaving unit regularly to ensure that it continues to glide smoothly over your skin.

6Switch off and clean the appliance after each use.

7Dry your face.

Note: Make sure that you rinse all foam or shaving gel off the appliance with warm water.

English 15

8Put the protective cap on the appliance to protect the shaving heads during storage and travel.

Trimming

You can use the trimmer to groom your sideburns and moustache.

1 Push the trimmer release slide downwards to open the trimmer.

2 Switch on the appliance.

3Hold the trimmer perpendicular to the skin and move the appliance downwards while you exert

gentle pressure.

4 Switch off and clean the trimmer after each use.

5 Close the pop-up trimmer (‘click’).

Cleaning and maintenance

Cleaning the shaver

Caution: Never use compressed air, scouring pads, abrasive cleaning agents or aggressive liquids such as petrol or acetone to clean the appliance.

Clean the shaver after every use for optimal performance (see 'Cleaning and maintenance').
