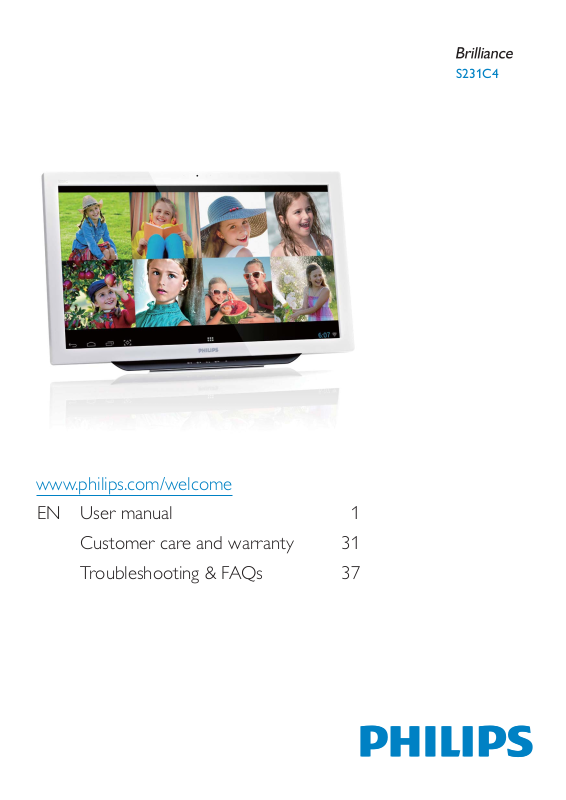

Philips S231C4AFD, S231C4 User Manual

S231C4

www.philips.com/welcome

EN User manual 1 Customer care and warranty 31 Troubleshooting & FAQs 37

Table of Contents

1. For Your Safety .......................................1

1.1 Precautions.........................................................1

1.2 Cleaning ...............................................................2

1.3 Special notes on SMART All-in-One ..2

1.4 Disposal of product and packing

material ................................................................3

2. Setting up the monitor .........................4

2.1 Installation ...........................................................4

2.2 Operating the monitor ...............................6

2.3 Detach the hinge for VESA .......................8

2.4 SMART All-in-One Operation ............10

3. Image Optimization .............................16

3.1 SmartImage .....................................................16

 7HFKQLFDO6SHFLÀFDWLRQV ......................18

4.1 Resolution & Preset PC Modes ..........20

5. Regulatory Information .....................21

6. Customer care and warranty ...........31

6.1 Philips’ Flat Panel Monitors Pixel

Defect Policy ..................................................31

6.2 Customer Care & Warranty .................34

7. Troubleshooting & FAQs ..................37

7.1 Troubleshooting ...........................................37

7.2 General FAQs ...............................................38

7.3 SMART All-in-One FAQs .......................40

. For your safet

1. For Your Safety

Before operating the SMART All-in-One, please read this manual thoroughly. This manual should be retained for future reference.

FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS)

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an experienced radio/TV technician for help.

NOTICE:

1. The changes or modiÀcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

3. The manufacturer is not responsible for any radio or TV interference caused by unauthori]ed modiÀcation to this equipment. It is the responsibilities of the user to correct such interference.

WARNING:

To prevent Àre or shock ha]ard, do not expose the monitor to rain or moisture. Dangerously high voltages are present inside the monitor. Do not open the cabinet. Refer servicing to qualiÀed personnel only.

1.1 Precautions

 Do not use the SMART All-in-One near

water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.

 Do not place the SMART All-in-One

on an unstable cart, stand, or table. If the SMART All-in-One falls, it can injure a person and cause serious damage to the appliance. Use only a cart or stand recommended by the manufacturer or sold with the SMART All-in-One.

 Slots and openings in the back and

bottom of the cabinet are provided for ventilation. To ensure reliable operation of the SMART All-in-One and to protect it from overheating, be sure these openings are not blocked or covered. Do not place the SMART All-in-One on a bed, sofa, rug, or similar surface. Do not place the SMART All-in-One near or over a radiator or heat register. Do not place the SMART All-in-One in a bookcase or cabinet unless proper ventilation is provided.

 The SMART All-in-One should be

operated only from the type of power source indicated on the label. If you are not sure of the type of power supplied to your home, consult your dealer or local power company.

. For your safet

 The SMART All-in-One is equipped with

a three-pronged grounded plug, a plug with a third (grounding) pin. This plug will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the three-wire plug, have an electrician install the correct outlet, or use an adapter to ground the appliance safely. Do not defeat the safety purpose of the grounded plug.

 Unplug the unit during a lightening

storm or when it will not be used for long period of time. This will protect the SMART All-in-One from damage due to power surges.

 Do not overload power strips and

extension cords. Overloading can result in fire or electric shock.

 Never push any object into the slot

on the SMART All-in-One cabinet. It could short circuit parts causing a fire or electric shock. Never spill liquids on the SMART All-in-One.

 Do not attempt to service the

SMART All-in-One by yourself; opening or removing covers can expose you to dangerous voltages and other hazards. Please refer all servicing to qualified service personnel.

 To ensure satisfactory operation, use

the SMART All-in-One only with UL listed computers which have appropriate configured receptacles marked between 100 - 240V AC, Min. 5A.

 The wall socket shall be installed near the

equipment and shall be easily accessible.

 For use only with the attached power

adapter (Output 19V DC) which have UL, CSA listed licensed (only for monitor with power adapter).

Model: ADPC1965 Manufacturer: TPV ELECTRONICS

(FUJIAN) CO., LTD.

Model: ADS-65LSI-19-1 19065G

Manufacturer: SHENZHZEN HONOR

ELECTRONIC CO., LTD.

1.2 Cleaning

 Clean the cabinet regularly with cloth. You

can use soft-detergent to wipe out the stain, instead of strong-detergent which will cauterize the product cabinet.

 When cleaning, make sure no detergent is

leaked into the product. The cleaning cloth should not be too rough as it will scratch the screen surface.

 Please disconnect the power cord before

cleaning the product.

1.3 Special notes on

SMART All-in-One

The following symptoms are normal with SMART All-in-One and do not indicate a problem.

Note

 Due to the nature of the fluorescent light,

the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears.

 You may find slightly uneven brightness

on the screen depending on the desktop pattern you use.

 The LCD screen has effective pixels of

99.99% or more. It may include blemishes of 0.01% or less such as a missing pixel or a pixel lit all of the time.

 Due to the nature of the LCD screen, an

afterimage of the previous screen may remain after switching the image when the same image has been displayed for a long time. The SMART All-in-One will slowly recover from this.

 When the screen becomes black or

flashing, or cannot illuminate any more, contact your dealer or service center to replace parts. Don’t repair the screen by yourself!

. For your safet

1.4 Disposal of product and packing material

Waste Electrical and Electronic EquipmentWEEE

This marking on the product or on its packaging illustrates that, under European Directive 2012/19/EU governing used electrical and electronic appliances, this product may not be disposed of with normal household waste. You are responsible for disposal of this equipment through a designated waste electrical and electronic equipment collection. To determine the locations for dropping off such waste electrical and electronic, contact your local government ofÀce, the waste disposal organization that serves your household or the store at which you purchased the product.

Taking back/Recycling Information for Customers

Philips establishes technically and economically viable objectives to optimize the environmental performance of the organization's product, service and activities.

From the planning, design and production stages, Philips emphasizes the important of making products that can easily be recycled. At Philips, end-of-life management primarily entails participation in national take-back initiatives and recycling programs whenever possible, preferably in cooperation with competitors, which recycle all materials (products and related packaging material) in accordance with all Environmental Laws and taking back program with the contractor company.

Your display is manufactured with high quality materials and components which can be recycled and reused.

To learn more about our recycling program please visit: http://www.philips. com/sites/philipsglobal/about/sustainability/ ourenvironment/productrecyclingservices.page.

Your new monitor contains materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount to be disposed of.

All redundant packing material has been omitted. We have done our utmost to make the packaging easily separable into mono materials.

Please Ànd out about the local regulations on how to dispose of your old monitor and packing from your sales representative.

2. Setting up the monito

2. Setting up the monitor

2.1 Installation

Package contents

SMART All-in-One

使用前请阅读使用说明

AC/DC Adapter

保留备用

User’s Manual Monitor drivers SmartControl software

Philips and the Philips’ Shield Emblem are registered trademarks of

Koninklijke Philips N.V. and are used under license from Koninklijke

Philips N.V.

 To keep the SMART All-in-One looking

new, periodically clean it with a soft cloth. Stubborn stains may be removed with a cloth lightly dampened with a mild detergent solution. Never use strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage

S231C4

the cabinet. As a safety precaution, always unplug the SMART All-in-One before cleaning it.

 Do not scratch the screen with hard things,

it may cause permanent damage.

 Don’t leak liquid into monitor which will

result in the damage of component.

VGA Cable (Optional)Audio Cable (Optional)

Note

 Use only the AC/DC adapter provided by

Philips.

 Do not install the SMART All-in-One in a

location near heat sources such as radiators or air ducts, or in a place subject to direct sunlight, or excessive dust or mechanical vibration or shock.

 Save the original shipping carton and

packing materials, as they will come in handy if you ever have to ship your monitor.

 For maximum protection, repackage your

monitor as it was originally packed at the factory.

2. Setting up the monito

Connection

10 8 7

VGA Input (D-Sub)

HDMI Input

DC Power Input

SDHC Card Slot

USB Upstream (Type-B)

LAN Port (RJ-45)

Earphone Output (3.5 mm Stereo)

Audio Input (3.5 mm Stereo)

6 5 4

2 1

Insert your SD card

1. Disconnect the power cord.

2. Insert your SDHC card to the card slot.

Connect for VGA/HDMI input

1. Connect with VGA or HDMI cable from your PC or AV device to SMART All-in-One.

2. Connect power cord to SMART All-in-One Àrmly and press the power button on.

3. The SMART All-in-One turns on and enters the previous source input selected.

4. Press the input button

to select VGA or

HDMI source.

Connect to either WiFi or Ethernet for SMART All-in-One input

1. Connect RJ-45 LAN cable to your LAN port for wired connection.

2. Connect power cord to SMART All-in-One Àrmly and press the power button on.

3. The SMART All-in-One turns on and enters the previous source input selected.

4. Press the input button

to select

Android source.

USB Downstream (Type-A)

Micro-USB (Mini-A)

Kensington Anti-theft Lock

5. Turn on the WiFi or Ethernet function in the Android system settings screen.

2. Setting up the monito

Adjusting viewing angle

For optimal viewing, it is recommended to look at the full face of the SMART All-in-One, then adjust the SMART All-in-One’s angle to your own preference.

The SMART All-in-One's tilted angle is adjustable from 12° to 57.5°.

12° 57.5°

Note

2.2 Operating the monitor

SMART All-in-One allows you to either use it as a stand-alone SMART All-in-One in Android system without any PC connection required, or as a normal PC monitor when connecting with PC.

Front control

91011

 Do not touch the LCD screen when you

adjust the angle. It may cause damage or break the LCD screen.

 Careful attention is required not to catch

your fingers or hands when you adjust the angle.

 It is recommended to stabilize with a fixed

point in order to lock the stand if the tilted angle is equal to or over 12°.

 Do not adjust the tilt angle less than 12°.

The monitor may fall caused by instability.

 For displays with glossy bezels the user

should consider the placement of the display as the bezel may cause disturbing reflections from surrounding light and bright surfaces.

56 2 1378

2. Setting up the monito

$XGLR

&RORU

3LFWXUH

$QGURLG

/DQJXDJH

Power indicator Press to turn

SMART All-in-One’s power ON

or OFF Press to access the OSD menu

for VGA and HDMI input.

In the OSD menu, press to conÀrm the OSD adjustment.

In the OSD menu, adjust the OSD menu.

otkey for

volume control.

Press to select the input source: VGA, HDMI, or Android.

In the OSD menu, return to previous OSD layer.

otkey for

selection.

1.0 Megapixel Webcam

internal speakers

SmartImage

Description of the On Screen Display

What is On-Screen Display (OSD)?

On-Screen Display (OSD) is a feature in all Philips SMART All-in-One. It allows user to adjust screen performance or to select functions of the monitor directly through an on-screen instruction window.

To enter OSD menu

1. Press the hotkey

on the front bezel.

2. Press buttons to select the menu

options.

3. Press button to conÀrm the OSD selection

4. Press button to return to previous OSD layer

5. Press button several times to exit the OSD menu

A user-friendly OSD menu is shown below:

Webcam activity light

Microphone

,QSXW

9*$

+/+'0,

2. Setting up the monito

The OSD menu tree

Here is an overall view of the OSD structure for your reference to work your way around the different adjustments.

Main menu Sub menu

Input


Audio

Color

Language

OSD Settings

Setup

VGA

MHL-HDMI

Android

Picture Format

Brightness

Contrast

SmartKolor

SmartTxt

SmartResponse

SmartContrast

Gamma

Pixel Orbiting

Over Scan

Volume

Mute

Audio Source

Color Temperature

sRGB

User Define

English, Deutsch, Español, Ελληνική, Français, Italiano,

Maryar, Nederlands, Português, Português do Brazil, Polski, Русский, Svenska, Suomi, Türkçe, Čeština, Українська, ৿࿒፩ၭ, 繁體中文, ᣣᧄ⺆, 㷼ᄙⱥ

Horizontal

Vertical

Transparency

OSD Time Out

Auto

H.Position

V.Position

Phase

Clock

Resolution Notification

S.Power on sync

Reset

Information

Wide Screen, 4:3

0~100

On, Off

Off, Fast, Faster, Fastest

On, Off

1.8, 2.0, 2.2, 2.4, 2.6

On, Off

0~100

On, Off

Audio In, HDMI In

5000K, 6500K, 7500K,

8200K,9300K,11500K

Red: 0~100

Green: 0~100

Blue: 0~100

0~100

Off, 1, 2, 3, 4

5s, 10s, 20s, 30s, 60s

0~100

On, Off

Yes, No

2.3 Detach the hinge for VESA

Before you start detaching the hinge, please follow the instructions below to avoid any possible damage or injury.

1. Place the monitor face down on a smooth surface. Pay attention not to scratch or damage the screen.

2. Use your Àngers to squeeze the hinge cover gently till the hook slip out of the slot.

3. Use a screwdriver to loosen 4 screws.

 5HVROXWLRQQRWLÀFDWLRQ

This monitor is designed for optimal performance at its native resolution, 1920×1080@60Hz.

Display of the native resolution alert can be switched off from Setup in the OSD menu.

4. Remove the stand from the monitor body.

2. Setting up the monito

Note This monitor accepts a 75mm x 75mm VESACompliant mounting interface.

75mm

2. Setting up the monito

2.4 SMART All-in-One Operation

Philips SMART All-in-One bundles with Android system which applies touch panel technology for users to use it as a stand-along PC. It does not require any PC connections and can be controlled with Àgures ² touching the panel for selection and conÀrmation.To enter the Android Home screen, press the hotkey

on the front bezel, and select Android as the input source.

2.4-1 Home screen

The Home screen is composed of Àve screen panels. By tapping and sliding on the screen, you can move left or right across the central Home screen, and look for more widgets, shortcuts, or other items located on each screen panel.

You can also add shortcuts, widgets or change the desktop wallpaper on each screen panel.

32 4 5 76

No. Icon Descriptions

1 Short cut for Google Search

Back to previous page

Back to Android Home Screen

Display recently used application

Snap for screen shot

Application Gallery

NotiÀcation / Local Time / Settings

2. Setting up the monito

2.4-2 Customizing your Home Screen

Adding application icons, shortcuts, or widgets to the home screen as your preference. You can also change the wallpaper.

Add an item to the Home Screen:

1. Tap on the icon in the ststem bar to enetr the APPS gallery screen.

2. Select [APPS] or [WIDGETS].

3. Tap and hold the item until it enlarged. Drag the item to the place you preferred on the Home

Screen.

Move an item on the Home Screen:

1. tap and hold the item until it enlarged.

2. Drag the item to the place you preferred on the Home Screen.

Remove an item from the Home Screen:

1. Tap and hold the item until it enlarged. The Trash Can icon displayed.

2. Drag the item to the Trash Can icon to remove the item from the Home Screen.

Change the wallpaper:

1. Make a long tap (click and hold) on an empty space on the Home Screen.

2. A [Choose wallpaper from] conÀguration screen will appear.

3. Click one of the wallpaper sources among [Gallery], [Live Wallpapers], [Select], or [Wallpapers].

4. In the selected wallpaper source screen, select one and click [Set wallpaper] to change the

wallpaper. Or right-click to exit the wallpaper source screen and go back to Home screen.

5. Some wallpapers allow changing the wallpaper color, such as [Magic Smoke]. If a [Settings…]

prompt displays on screen, tap on it, a [Tap to change] prompt displays on the top of screen. Tap on the screen to conÀgure and cycle through the different colors.

6. You can click the

Note  All five Home Screen panels share the same background. You cannot set different wallpapers for

each of them.

button to go back previous screen without renewing any changed settings.

2. Setting up the monito

2.4-3 Google Search

1. Click on the icon in the Home screen. The on-screen keyboard displayed.

2. Type a keyword or text in the URL box. As you type, the search results that fully or partially match

the text being typed appear.

3. Scroll the listed search results and clcik the desired result.

4. The matching application or the browser with matching web links opens.

5. Click the desired link if you want to view a web page.

Note  The serch engine may differ depanding on countries.

+ 31 hidden pages
