MAGNETIC PRODUCTS
DATA SH EET
RM6R
RM cores and accessories
Product specification
Supersedes data of 1997 Nov 21
File under Magnetic Products, MA01
1999 Jan 18
Philips Components Product specification
,
RM cores and accessories RM6R
CORE SETS
Effective core parameters
SYMBOL PARAMETER VALUE UNIT
Σ(I/A) core factor (C1) 0.810 mm
V
e
I
e
A
e
A
min
effective volume 810 mm
effective length 25.6 mm
effective area 32.0 mm
minimum area 23.8 mm
m mass of set ≈4.5 g
−1
3
2
2
handbook, halfpage
0
7.4
−0.4
10.35
±0.2
Dimensions in mm.
2.9
∅6.4
2.3
0
−0.2
M1.7
17.9
∅12.4
0
−0.7
+0.5
0
∅3
14.7
+0.1
0
0
−0.6
8
+0.4
0
CBW128
Fig.1 RM6R core set.
Core sets for filter applications
Clamping force 40 ±20 N.
GRADE
A
L
(nH)
µ
e
AIR GAP
(µm)
TYPE NUMBER
(WITH NUT)
TYPE NUMBER
(WITHOUT NUT)
4C6 25 ±3% ≈16 ≈2500 RM6R-4C6-E25/N RM6R-4C6-E25
40 ±3% ≈26 ≈1000 RM6R-4C6-E40/N RM6R-4C6-E40
63 ±3% ≈41 ≈400 RM6R-4C6-E63/N RM6R-4C6-E63
150 ±25% ≈97 ≈0 − RM6R-4C6
3D3 40 ±3% ≈26 ≈1200 RM6R-3D3-E40/N RM6R-3D3-E40
63 ±3% ≈41 ≈700 RM6R-3D3-E63/N RM6R-3D3-E63
100 ±3% ≈65 ≈400 RM6R-3D3-E100/N RM6R-3D3-E100
160 ±3% ≈103 ≈200 RM6R-3D3-A160/N RM6R-3D3-A160
1000 ±25% ≈650 ≈0 − RM6R-3D3
3H3 160 ±3% ≈103 ≈230 RM6R-3H3-A160/N RM6R-3H3-A160
250 ±3% ≈161 ≈110 RM6R-3H3-A250/N RM6R-3H3-A250
315 ±3% ≈203 ≈90 RM6R-3H3-A315/N RM6R-3H3-A315
400 ±3% ≈258 ≈70 RM6R-3H3-A400/N RM6R-3H3-A400
2200 ±25% ≈1420 ≈0 − RM6R-3H3
12.4
±0.1
1999 Jan 18 2
Philips Components Product specification
RM cores and accessories RM6R
A
GRADE
3H1 160 ±3% ≈103 ≈230 RM6R-3H1-A160/N RM6R-3H1-A160
3B7 100 ±3% ≈63 ≈490 RM6R-3B7-E100/N RM6R-3B7-E100
L
(nH)
250 ±3% ≈161 ≈110 RM6R-3H1-A250/N RM6R-3H1-A250
315 ±3% ≈203 ≈90 RM6R-3H1-A315/N RM6R-3H1-A315
400 ±3% ≈258 ≈70 RM6R-3H1-A400/N RM6R-3H1-A400
630 ±5% ≈406 ≈50 RM6R-3H1-A630/N RM6R-3H1-A630
1000 ±10% ≈650 ≈25 RM6R-3H1-A1000/N RM6R-3H1-A1000
1250 ±10% ≈805 ≈20 RM6R-3H1-A1250/N RM6R-3H1-A1250
2450 ±25% ≈1580 ≈0 − RM6R-3H1
160 ±3% ≈103 ≈230 RM6R-3B7-A160/N RM6R-3B7-A160
250 ±3% ≈161 ≈110 RM6R-3B7-A250/N RM6R-3B7-A250
315 ±3% ≈203 ≈90 RM6R-3B7-A315/N RM6R-3B7-A315
400 ±3% ≈258 ≈70 RM6R-3B7-A400/N RM6R-3B7-A400
2700 ±25% ≈1740 ≈0 − RM6R-3B7
µ
e
AIR GAP
(µm)
TYPE NUMBER
(WITH NUT)
TYPE NUMBER
(WITHOUT NUT)
1999 Jan 18 3
Philips Components Product specification
RM cores and accessories RM6R
INDUCTANCE ADJUSTER
General data
PARAMETER SPECIFICATION
Material of head
and thread
Maximum operating
temperature
polypropylene (PP),
glass fibre reinforced
125 °C
handbook, halfpage
9.5
4.05
M 1.7
0.07
3.13O
0
0.7
Dimensions in mm.
2.4
min
MGC079
Fig.2 RM6R inductance adjuster.
Inductance adjuster selection chart
GRADE
3H1; 3H3;
3B7
A
L
(nH)
TYPES FOR LOW
ADJUSTMENT
∆L/L
%
(1)
TYPES FOR MEDIUM
ADJUSTMENT
40 −−−−ADJ-RM6-GREEN 20
63 −−ADJ-RM6-GREEN 14 ADJ-RM6-RED 22
∆L/L
%
(1)
TYPES FOR HIGH
ADJUSTMENT
∆L/L
100 ADJ-RM6-GREEN 10 ADJ-RM6-RED 16 −−
160 ADJ-RM6-GREEN 6 ADJ-RM6-RED 10 ADJ-RM6-WHITE 19
200 ADJ-RM6-RED 8 ADJ-RM6-WHITE 15 ADJ-RM6-VIOLET 18
250 ADJ-RM6-WHITE 12 ADJ-RM6-VIOLET 14 ADJ-RM6-BROWN 20
315 ADJ-RM6-WHITE 9 ADJ-RM6-BROWN 15 ADJ-RM6-BLACK 22
400 ADJ-RM6-VIOLET 8 ADJ-RM6-BLACK 16 ADJ-RM6-GREY 30
630 ADJ-RM6-BLACK 9 ADJ-RM6-GREY 15 −−
1000 ADJ-RM6-BLACK 5 ADJ-RM6-GREY 8 −−
1250 −−ADJ-RM6-GREY 5 −−
3D3 40 −−−−ADJ-RM6-GREEN 20
63 −−ADJ-RM6-GREEN 14 ADJ-RM6-RED 23
100 ADJ-RM6-GREEN 9 ADJ-RM6-RED 16 ADJ-RM6-WHITE 28
160 ADJ-RM6-RED 10 ADJ-RM6-WHITE 17 −−
4C6 25 −−−−ADJ-RM6-GREEN 20
40 −−ADJ-RM6-GREEN 14 ADJ-RM6-RED 20
63 ADJ-RM6-GREEN 8 ADJ-RM6-RED 12 −−
(1)
%
Note
1. Maximum adjustment range.
1999 Jan 18 4
Philips Components Product specification
RM cores and accessories RM6R

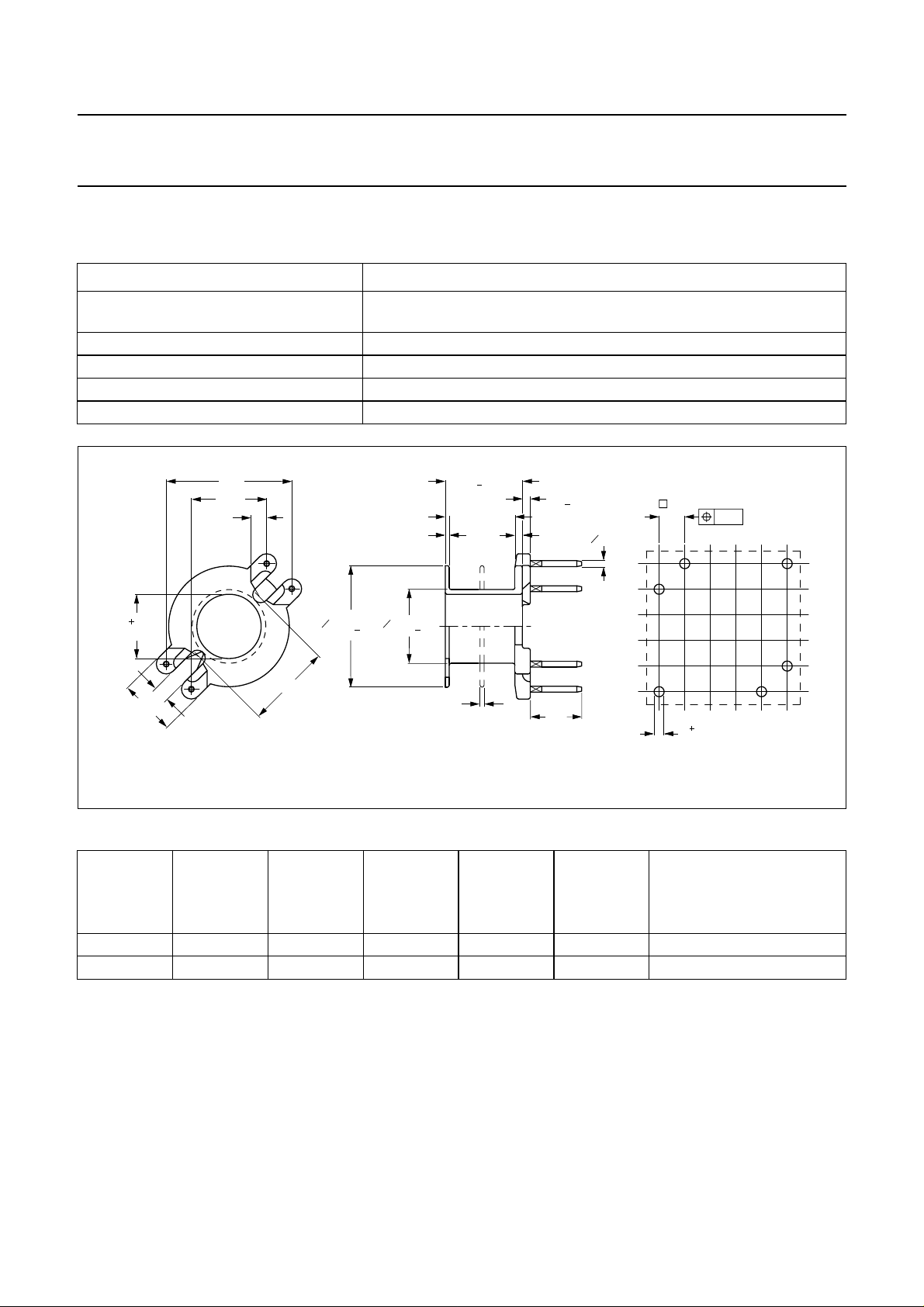

COIL FORMERS
General data
PARAMETER SPECIFICATION
Coil former material phenolformaldehyde (PF), glass-reinforced, flame retardant
in accordance with
“UL 94V-0”
Pin material copper-tin alloy (CuSn), tin-lead alloy (SnPb) plated
Maximum operating temperature 180 °C,
Resistance to soldering heat
Solderability
handbook, full pagewidth
12.7
7.62
1.6
2
“IEC 60068-2-20”
‘‘IEC 60068-2-20”
“IEC 60085”
7.8
(6.4 min)
0.4
class H
, Part 2, Test Tb, method 1B, 350 °C, 3.5 s
, Part 2, Test Ta, method 1
0
0.15
; UL file number E167521(M)
0
0.8
0.75
0.1
0.6O
2.54
0.05
3
0.15
6.5
0
1
5.7
max
Dimensions in mm.
1.4
min
0
12.3O
0.2
4
8.6
0
7.45O
0.2
0.4
5.2
1
Fig.3 RM6R coil former; 4-pins.
Winding data for 4-pins RM6R coil former
NUMBER
OF
SECTIONS
NUMBER
OF
PINS
PIN
POSITIONS
USED
AVERAGE
LENGTH OF
TURN
(mm)
WINDING
AREA
2
(mm
)
WINDING
WIDTH
(mm)
1 4 all 30 15 6.4 CSV-RM6S/R-1S-4P
2 4 all 30 2 × 7.0 2 × 3.0 CSV-RM6S/R-2S-4P
0.15
0
MGC080
TYPE NUMBER
1999 Jan 18 5
Philips Components Product specification
RM cores and accessories RM6R
0
handbook, full pagewidth
1.6
12.7
7.62
0.7 min
3
4
5
0.4
7.8
0.15
(6.4 min)
0.8
0.75
0
0.1
2.54
0.05
0.6
O
0.15
6.5
0
2
1
5.7
max
Dimensions in mm.
0
12.3
0.2
6
8.6
0
7.45O
0.2
0.4
5.2
Fig.4 RM6R coil former; 6-pins.
Winding data for 6-pins RM6R coil former
NUMBER
OF
SECTIONS
NUMBER
OF
PINS
PIN
POSITIONS
USED
AVERAGE
LENGTH OF
TURN
(mm)
WINDING
AREA
(mm2)
WINDING
WIDTH
(mm)
1 6 all 30 15 6.4 CSV-RM6R-1S-6P
2 6 all 30 2 × 7.0 2 × 3.0 CSV-RM6R-2S-6P
MOUNTING PARTS
General data
handbook, halfpage
2.3
1.6
ITEM SPECIFICATION
Clamping force ≈20 N
Clip material steel
Clip plating silver (Ag)
Solderability
“IEC 60068-2-20”
,
12
Part 2, Test Ta, method 1
Type number CLI/P-RM6
0.15
1
0
MGC081
TYPE NUMBER
9.8
1999 Jan 18 6
Dimensions in mm.
Fig.5 Mounting clip for RM6R.
0.7
4.5
MGC082
Philips Components Product specification
RM cores and accessories RM6R
DEFINITIONS
Data sheet status
Objective specification This data sheet contains target or goal specifications for product development.
Preliminary specification This data sheet contains preliminary data; supplementary data may be published later.
Product specification This data sheet contains final product specifications.
Application information
Where application information is given, it is advisory and does not form part of the specification.
LIFE SUPPORT APPLICATIONS
These products are not designed for use in life support appliances, devices, or systems where malfunction of these
products can reasonably be expected to result in personal injury. Philips customers using or selling these products for
use in such applications do so at their own risk and agree to fully indemnify Philips for any damages resulting from such
improper use or sale.
PRODUCT STATUS DEFINITIONS
STATUS INDICATION DEFINITION
Prototype
Design-in These products are recommended for new designs.
Preferred
Support
These are products that have been made as development samples for the purposes of
technical evaluation only . The data for these types is provisional and is subject to change.
These products are recommended for use in current designs and are available via our
sales channels.
These products are not recommended for new designs and may not be available through
all of our sales channels. Customers are advised to check for availability.
1999 Jan 18 7
Philips Components – a worldwide company
Australia: Philips Components Pty Ltd., NORTH RYDE,
Tel. +61 2 9805 4455, Fax. +61 2 9805 4466
Austria: Österreichische Philips Industrie GmbH, WIEN,
Tel. +43 1 60 101 12 41, Fax. +43 1 60 101 12 11
Belarus: Philips Office Belarus, MINSK,
Tel. +375 172 200 924/733, Fax. +375 172 200 773
Benelux: Philips Nederland B.V., EINDHOVEN, NL,
Tel. +31 40 2783 749, Fax. +31 40 2788 399
Brazil: Philips Components, SÃO PAULO,
Tel. +55 11 821 2333, Fax. +55 11 829 1849
Canada: Philips Electronics Ltd., SCARBOROUGH,
Tel. +1 416 292 5161, Fax. +1 416 754 6248
China: Philips Company, SHANGHAI,
Tel. +86 21 6354 1088, Fax. +86 21 6354 1060
Denmark: Philips Components A/S, COPENHAGEN V,
Tel. +45 33293333, Fax. +45 3329 3905
Finland: Philips Components, ESPOO,
Tel. +358 9 615 800, Fax. +358 9 615 80510
France: Philips Composants, SURESNES,
Tel. +33 1 4099 6161, Fax. +33 1 4099 6493
Germany: Philips Components GmbH, HAMBURG,
Tel. +49 40 2489-0, Fax. +49 40 2489 1400
Greece: Philips Hellas S.A., TAVROS,
Tel. +30 1 4894 339/+30 1 4894 239, Fax. +30 1 4814 240
Hong Kong: Philips Hong Kong, KOWLOON,
Tel. +852 2784 3000, Fax. +852 2784 3003
India: Philips India Ltd., MUMBAI,
Tel. +91 22 4930 311, Fax. +91 22 4930 966/4950 304
Indonesia: P.T. Philips Development Corp., JAKARTA,
Tel. +62 21 794 0040, Fax. +62 21 794 0080
Ireland: Philips Electronics (Ireland) Ltd., DUBLIN,
Tel. +353 1 7640 203, Fax. +353 1 7640 210
Israel: Rapac Electronics Ltd., TEL AVIV,
Tel. +972 3 6450 444, Fax. +972 3 6491 007
Italy: Philips Components S.r.l., MILANO,
Tel. +39 2 6752 2531, Fax. +39 2 6752 2557
Japan: Philips Japan Ltd., TOKYO,
Tel. +81 3 3740 5135, Fax. +81 3 3740 5035
Korea (Republic of): Philips Electronics (Korea) Ltd., SEOUL,
Tel. +82 2 709 1472, Fax. +82 2 709 1480
Malaysia: Philips Malaysia SDN Berhad,
Components Division, PULAU PINANG,
Tel. +60 3 750 5213, Fax. +60 3 757 4880
Mexico: Philips Components, EL PASO, U.S.A.,
Tel. +52 915 772 4020, Fax. +52 915 772 4332
New Zealand: Philips New Zealand Ltd., AUCKLAND,
Tel. +64 9 815 4000, Fax. +64 9 849 7811
Norway: Norsk A/S Philips, OSLO,
Tel. +47 22 74 8000, Fax. +47 22 74 8341
Pakistan: Philips Electrical Industries of Pakistan Ltd., KARACHI,
Tel. +92 21 587 4641-49, Fax. +92 21 577 035/+92 21 587 4546
Philippines: Philips Semiconductors Philippines Inc.,
METRO MANILA, Tel. +63 2 816 6345, Fax. +63 2 817 3474
Poland: Philips Poland Sp. z.o.o., WARSZAWA,
Tel. +48 22 612 2594, Fax. +48 22 612 2327
Portugal: Philips Portuguesa S.A.,
Philips Components: LINDA-A-VELHA,
Tel. +351 1 416 3160/416 3333, Fax. +351 1 416 3174/416 3366
Russia: Philips Russia, MOSCOW,
Tel. +7 95 755 6918, Fax. +7 95 755 6919
Singapore: Philips Singapore Pte Ltd., SINGAPORE,
Tel. +65 350 2000, Fax. +65 355 1758
South Africa: S.A. Philips Pty Ltd., JOHANNESBURG,
Tel. +27 11 470 5911, Fax. +27 11 470 5494
Spain: Philips Components, BARCELONA,
Tel. +34 93 301 63 12, Fax. +34 93 301 42 43
Sweden: Philips Components AB, STOCKHOLM,
Tel. +46 8 5985 2000, Fax. +46 8 5985 2745
Switzerland: Philips Components AG, ZÜRICH,
Tel. +41 1 488 22 11, Fax. +41 1 481 7730
Taiwan: Philips Taiwan Ltd., TAIPEI,
Tel. +886 2 2134 2900, Fax. +886 2 2134 2929
Thailand: Philips Electronics (Thailand) Ltd., BANGKOK,
Tel. +66 2 745 4090, Fax. +66 2 398 0793
Turkey: Türk Philips Ticaret A.S., GÜLTEPE/ISTANBUL,
Tel. +90 212 279 2770, Fax. +90 212 282 6707
United Kingdom: Philips Components Ltd., DORKING,
Tel. +44 1306 512 000, Fax. +44 1306 512 345
United States:
• Display Components, ANN ARBOR, MI,
Tel. +1 734 996 9400, Fax. +1 734 761 2776
• Magnetic Products, SAUGERTIES, NY,
Tel. +1 914 246 2811, Fax. +1 914 246 0487
• Passive Components, SAN JOSE, CA,
Tel. +1 408 570 5600, Fax. +1 408 570 5700
Yugoslavia (Federal Republic of): Philips Components, BELGRADE,
Tel. +381 11 625 344/373,Fax. +381 11 635 777
Internet:
• Display Components: www.dc.comp.philips.com
• Passive Components
For all other countries apply to:
Philips Components, Building BF-1, P.O. Box 218, 5600 MD EINDHOVEN,
The Netherlands, Fax. +31-40-27 23 903.
COD21 © Philips Electronics N.V. 1999
All rights are reserved. Reproduction in whole or in part is prohibited without the
prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or
contract, is believed to be accurate and reliable and may be changed without notice.
No liability will be accepted by the publisher for any consequence of its use. Publication
thereof does not convey nor imply any license under patent- or other industrial or
intellectual property rights.
Printed in The Netherlands
: www.passives.comp.philips.com
Loading...
