Philips RL5180CK User Manual

Instructions for use

SMARTLOADER

Clon99-BK

3135 015 14061

2

Table of Contents..................................................................2

Safety/Precautions.................................................................2

Introduction ...........................................................................2

Getting Started......................................................................3

Battery Installation................................................................3

Connecting the Clon99-BK Box...........................................4

Erasing Memory ...................................................................5

Reading Memory ..................................................................6

Programming (Writing) Memory to a TV............................7

Running a System Test .........................................................8

Exiting the Menu System .....................................................9

Programming with the On-Set Keyboard...........................10

On-Screen Displays for Non-Global TV using the

Transmitter..........................................................................11

On-Screen Displays for Non-Global TV using the On-Set

Keyboard .............................................................................12

Index ...................................................................................12

TABLE OF CONTENTS

Optimum Performance of

the Clon99-BK SmartLoader

box is obtained by plugging it

into an ITV set that is

already turned on.

For Customer Use:

Enter below the Serial No. which is located on
the product. Retain this information for future ref­erence.

Model No
Serial No.

t This “bolt of lightning” indicates uninsulated material
within your unit which may cause an electrical shock. For
the safety of everyone in your household, please do not
remove product covering.

s The “exclamation point” calls attention to features for
which you should read the enclosed literature closely to
prevent operating and maintenance problems.

WARNING: TO PREVENT FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS EQUIPMENT TO RAIN OR
MOISTURE.

CAUTION: To prevent electric shock, match wide blade of
plug to wide slot, and fully insert.

ATTENTION: Pour éviter les chocs électrques, introduire
la lame la plus large de la fiche dams la borne correspon­dante de la prise et pousser jussssqu'au fond.

t

s

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

KNOW THESE SAFETY SYMBOLS

Assembling and operating your Philips Clon99-BK SmartLoader is designed to be an easy process. The purpose is to allow you to
more easily program a number of televisions using just a few simple steps.

The Clon99-BK SmartLoader replaces the RL-5180CK model. The Clon99-BK SmartLoader is compatible with all Philips
SmartPort and ClonPort TV sets including Global 1999 models from the PL9XXX, PC9XXX, and PA9XXX series.

Please be sure that you have the following material before beginning any procedures with the Clon99-BK SmartLoader box.

• A television capable of sending and receiving Clon99-BK SmartLoader information on TV settings.

• One 9-volt battery (for the Clon99-BK SmartLoader).

• Remote Control RG4172BK (T374AH).

• Three AA batteries for the remote control.

• Cable (6-conductor included with the Clon99-BK SmartLoader)
Please thoroughly read all the procedures listed within this booklet before starting any process.
Clon99™, SmartCard™, SmartLoader™, SmartPort™ ClonPort™ are registered trademarks of the Philips Consumer Electronics

Company. © 1999 Philips Consumer Electronics Company.

INTRODUCTION

3

1

2

3

GETTING STARTED

Remember. Always be sure

to check the polarity of the bat­teries before inserting them in the
Clon99-BK SmartLoader or the
RG4172BK (T374AH) Remote
Control.

SMART HELP

BEGIN

CAUTION:
Failure to follow these instructions
may result in product damage. Please
read all instructions before beginning.

Battery installation
Clon99-BK SmartLoader

Before operating the Clon99-BK
SmartLoader, load a 9-volt battery
into the compartment in the bottom
of the Clon99-BK SmartLoader.

Slide the compartment lid in the

direction indicated by the triangle.

Plug the battery into the battery

cable, then place the battery in the

compartment.

Replace the compartment lid.

Battery installation
RG4172BK (T374AH)
Remote Control

Before operating the Remote
Control, please load the three AA
batteries into the compartment in the
bottom of the Remote Control.

Press the tab on the battery lid

and lift off the remote.

Following the diagrams inside the

Remote Control, load the batteries.

Then replace the battery lid. Point
the Remote Control at the TV and
see if it turns on the TV. If it does
not, repeat this step.

BEGIN

Clon99-BK SmartLoader Battery Installation

Slide the Battery Cover off the bottom
of the Clon99-BK SmartLoader

Attach and insert a 9 volt battery

Replace the Battery Cover

RG4172BK (T374AH) Remote Control Battery Installation

Press the tab on the Battery
Cover and lift it off.

Load 3 “AA” volt batteries

Replace the Battery Cover

4

SMART

PLUG

75Ω
ANT/

CABLE

POWER

1

2

4

EXTERNAL
SPEAKER

3

SMART
PLUG

75Ω
ANT/

CABLE

EXTERNAL
SPEAKER

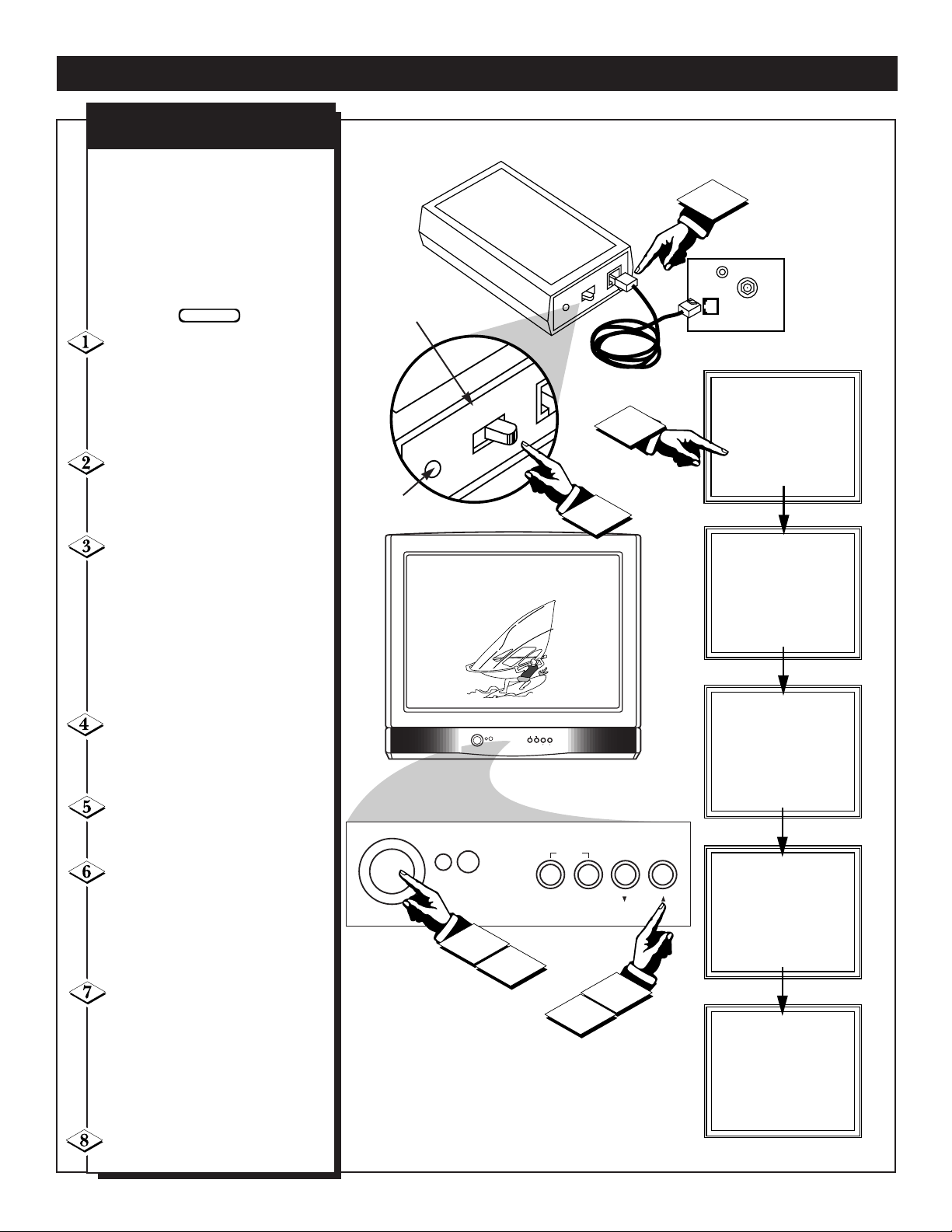

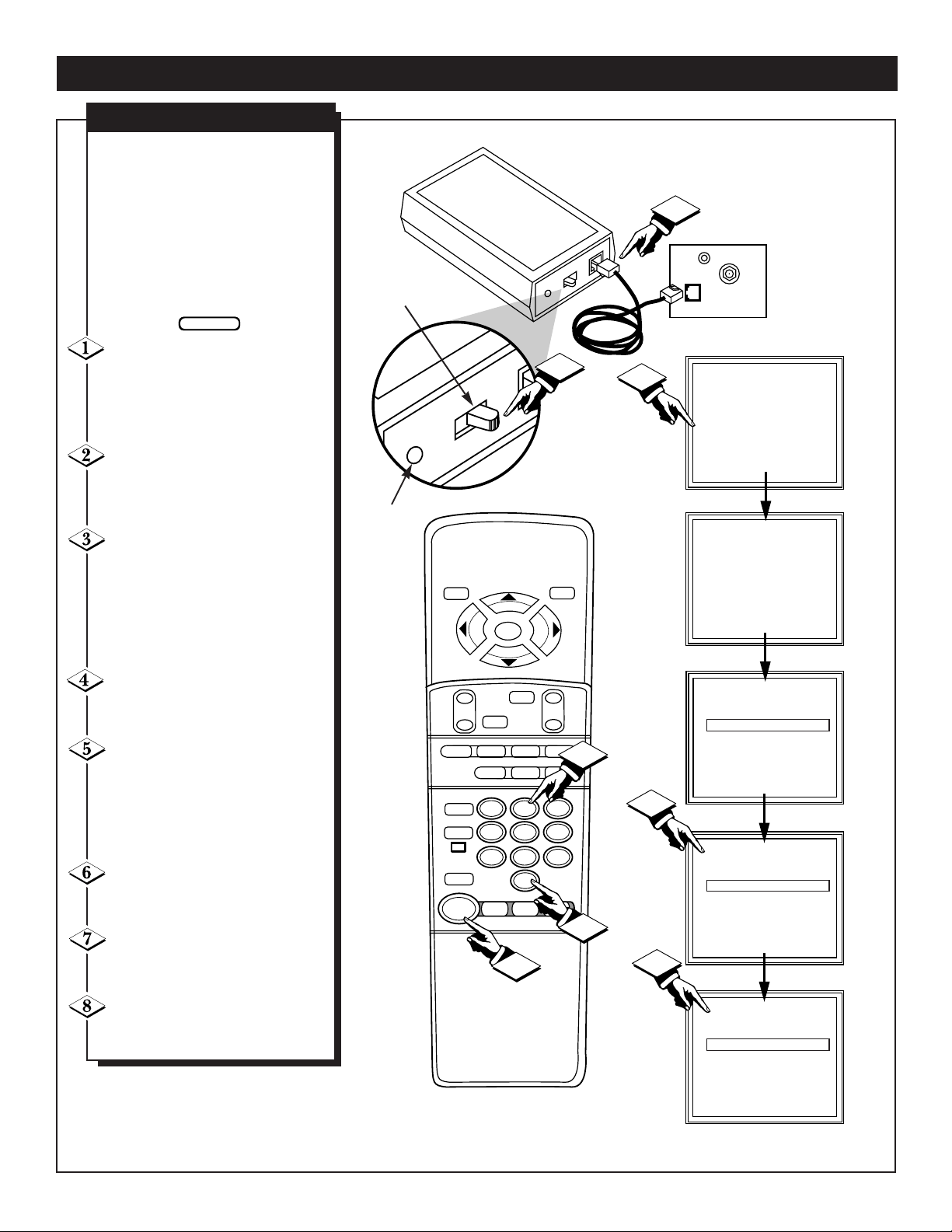

CONNECTING THE CLON99-BK SMARTLOADER

Optimum Performance of the
Clon99-BK SmartLoader box
is obtained by plugging it into
an ITV set that is already
turned on.

Press the POWER button to turn

the ITV ON.

Plug one end of the cable into the

jack provided on the Clon99-BK

SmartLoader.

Plug the other end into the jack
provided on the back of the TV. The
TV’s jack is next to the Antenna
Input terminal and may be labeled
various ways such as; Smart Port,
Clone Port, etc.

Push the Slide Switch to the ON
position. The red LED should light.
(If the TV is turned off, it should
turn on within 15 seconds.)

Within 20 seconds, the Clon99-

BK SmartLoader on-screen display
should appear. If the display does not
appear, check the connections and
push the Slide Switch to the ON
position again. If there is still no
response from the SmartLoader,
replace its 9-volt battery.

Once the Clon99-BK

SmartLoader on-screen display
appears, press the POWER button on
the RG4172BK (T374AH) Remote
Control. The SmartLoader Setup
Menu should appear.

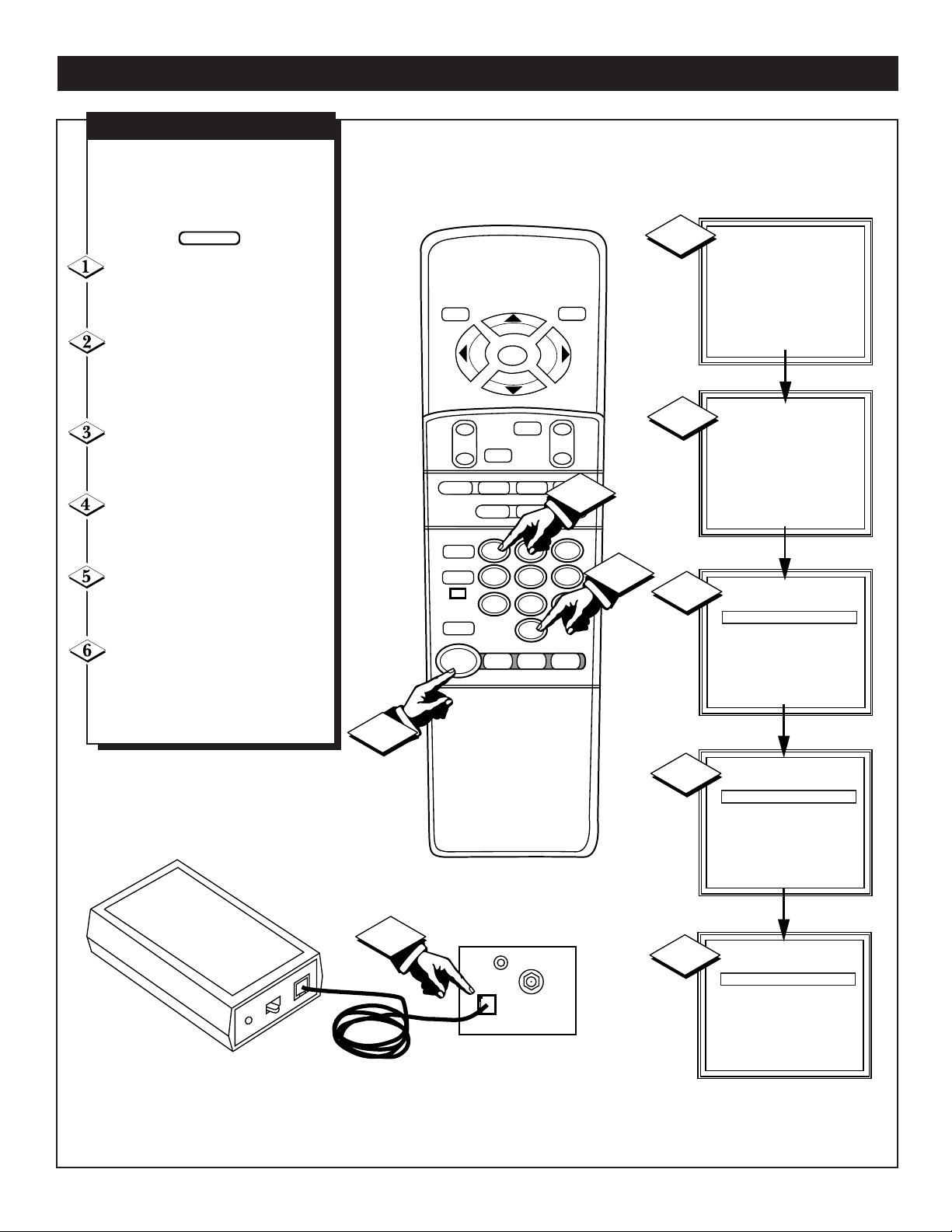

Clon99-BK SmartLoader Connection

Power button on the front of an ITV.

BEGIN

Clon99-BK
SmartLoader

Cable

Rear jack panel
of ITV

Clon99-BK SmartLoader
ON/OFF slider switch

LED

PHILIPS

SMARTLOADER 99

Copyright PCEC 1999

System Version D.0
PN 3135 019 01681

PRESS POWER TO BEGIN

5

6

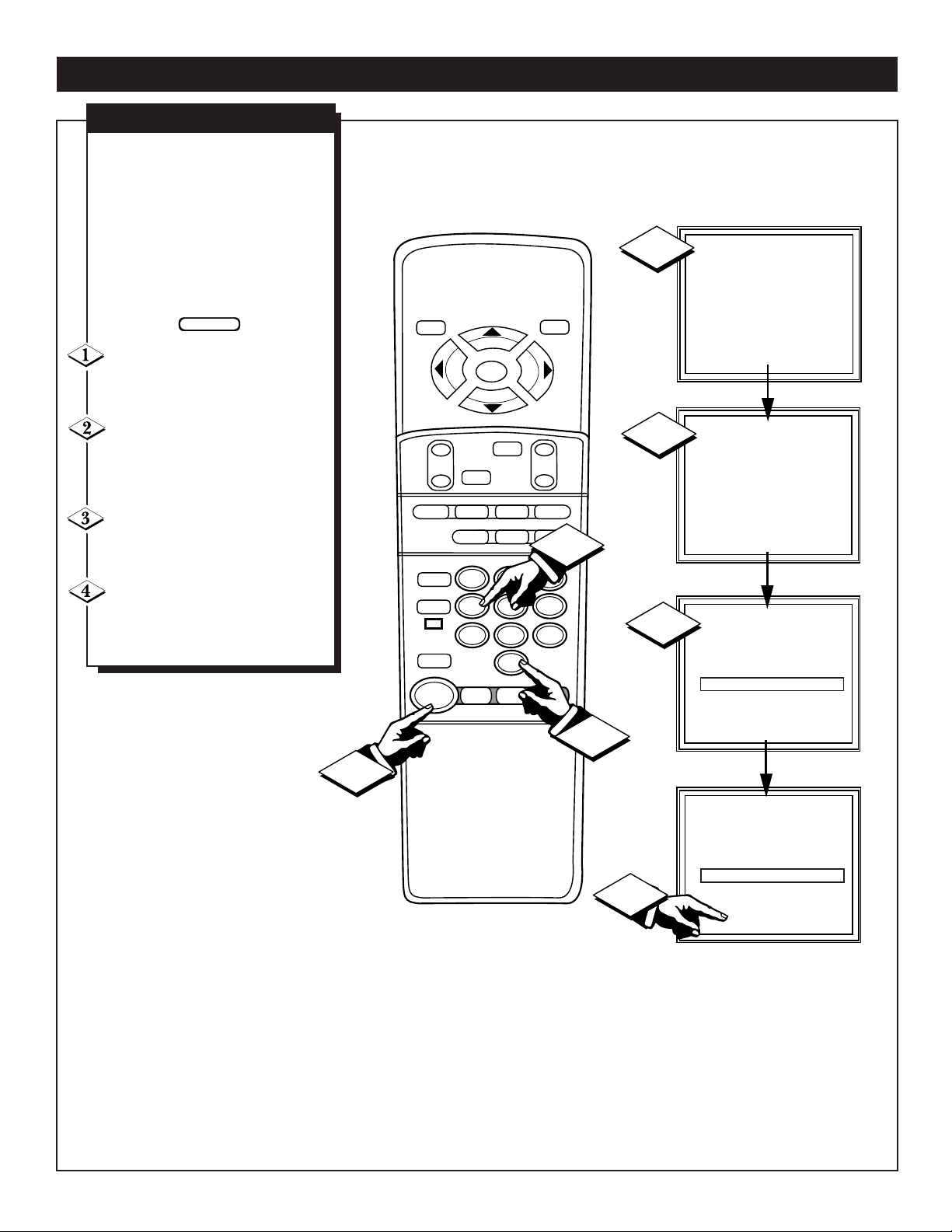

Philips SmartLoader 99

System Version D.0

1 - Read TV
2 - Write TV With Settings
3 - Write TV Without Settings
4 - Erase SmartLoader Memory
5 - System Test
6 - Exit SmartLoader

Stored Memory Type 01, 04

LIGHT

SLEEP

CH

RECALL

POWER

SELECT

1

2

3

4

5

6

7

8

9
0

POWER

GUEST

SETUP

SETUP

VOL

M

~

!

A/CH

MUTE

CC

RESET

CD GD E

TV

TV

DCM

F

E

G

C

B

D

A

6

Press the POWER button
on the remote control.

Clon99-BK SmartLoader
On-Screen Display

Clon99-BK SmartLoader
Setup Menu
