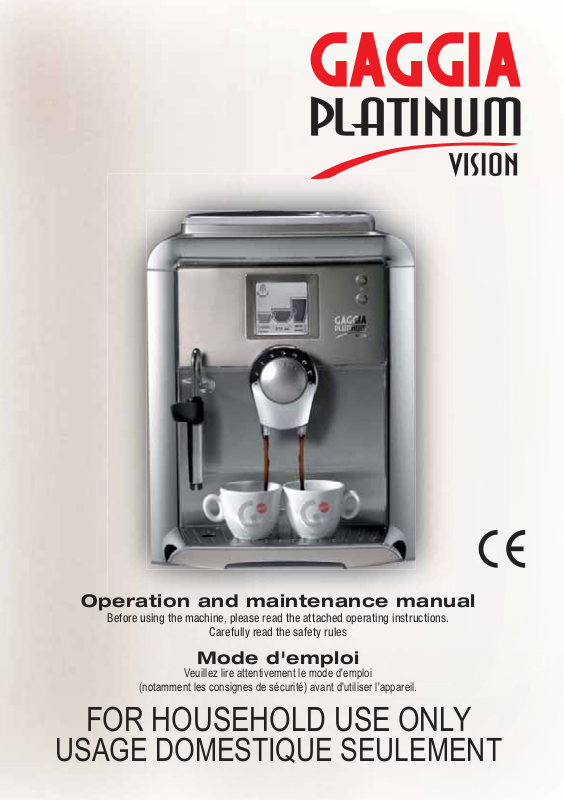

PHILIPS RI-8177 User Manual
Operation and maintenance manual
Before using the machine, please read the attached operating instructions.
Carefully read the safety rules
Mode d'emploi
(notamment les consignes de sécurité) avant d'utiliser l'appareil.
Veuillez lire attentivement le mode d'emploi
FOR HOUSEHOLD USE ONLY
USAGE DOMESTIQUE SEULEMENT
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should always
be followed, including the following:
1. Read all instructions.
2. Do not touch hot surfaces. Use handles or knobs.
3. To protect against fire, electric shock and injury to persons do not
immerse cord, plugs, or appliance in water or other liquid.
4. Close supervision is necessary when the appliance is used by or near
children.
5. Unplug from outlet when not in use and before cleaning. Allow to
cool before putting on or taking off parts, and before cleaning the
appliance.
6. Do not operate any appliance with a damaged cord or plug or after the
appliance malfunctions, or has been damaged in any manner. Return
appliance to the nearest authorized service facility for examination,
repair or adjustment.
7. The use of accessory attachments not recommended by the appliance
manufacturer may result in fire, electric shock or injury to persons.
8. Do not use outdoors.
9. Do not let cord hang over edge of table or counter, or touch hot
surfaces.
10.Do not place on or near a hot gas or electric burner, or in a heated
oven.
11.Always attach plug to appliance first, then plug cord into wall outlet.
To disconnect, turn any control to “off”, then remove plug from wall
outlet.
12.Do not use appliance for other than intended use.
13.Save these instructions.
SAVE THESE INSTRUCTIONS
CAUTION
This appliance is for household use only. Any servicing, other than cleaning
and user maintenance, should be performed by an authorized service centre.
Do not immerse machine in water. To reduce the risk of fire or electric
shock, do not disassemble the machine. There are no user serviceable
parts inside the machine serviceable by the user. Repair should be done by
authorized service personnel only.
1 Check voltage to be sure that the voltage indicated on the nameplate
corresponds with your voltage.
2 Never use warm or hot water to fill the water tank. Use cold water only.
3 Keep your hands and the cord away from hot parts of the appliance
during operation.
4 Never clean with scrubbing powders or harsh cleaners. Simply use a soft
cloth dampened with water.
5 For optimal taste of your coffee, use purified or bottled water. Periodic
descaling is still recommended every 2-3 months.
6 Do not use flavored or caramelized coffee.
INSTRUCTIONS FOR THE POWER
SUPPLY CORD
A A short power-supply cord is provided to reduce risks of tangling or
tripping over a longer cord.
B Longer extension cords are available and may be used if care is exercised in
their use.
C If a long extension cord is used:
1 the marked electrical rating of the extension cord should be at least as
great as the electrical rating of the appliance.
2 if the appliance is of the grounded type, the extension cord should be
a grounding type
3 the cord should not hang from the table to avoid the risk of tangling
or tripping.
2
CONTENTS
GENERAL INFORMATION ................................................................................................................... 3
APPLIANCE ......................................................................................................................................... 4
ACCESSORIES ......................................................................................................................................................4
INSTALLATION .................................................................................................................................... 5
STARTING THE MACHINE ......................................................................................................................................... 5
SETTING THE LANGUAGE.........................................................................................................................................6
«AQUA PRIMA» WATER FILTER .................................................................................................................................7
DISPLAY .............................................................................................................................................. 8
(OPTI-DOSE) INDICATES THE INDICATES THE COFFEE DOSE PER CUP ................................................................................. 8
ADJUSTMENTS ................................................................................................................................... 9
COFFEE INTENSITY ................................................................................................................................................ 9
ADJUSTING THE HEIGHT OF THE DRIP TRAY ................................................................................................................. 9
COFFEE GRINDER ADJUSTMENT ................................................................................................................................9
BEVERAGE DISPENSING ................................................................................................................. 10
ESPRESSO / COFFEE / LONG COFFEE ...................................................................................................................... 10
DISPENSING BEVERAGES WITH PRE-GROUND COFFEE .................................................................................................. 11
HOT WATER DISPENSING .............................................................................................................................. ......... 12
STEAM DISPENSING ............................................................................................................................................. 13
CAPPUCCINO .....................................................................................................................................................14
MILK ISLAND (OPTIONAL) ...................................................................................................................................... 15
BEVERAGE PROGRAMMING ............................................................................................................16
BEVERAGE PROGRAMMING MENU ............................................................................................................................ 16
ESPRESSO / COFFEE / LONG COFFEE PROGRAMMING ..................................................................................................17
PROGRAMMING THE MACHINE ....................................................................................................... 18
<LANGUAGE & DISPLAY> «LANGUAGE» MENU ........................................................................................................... 19
<LANGUAGE & DISPLAY> «CONTRAST» MENU ........................................................................................................... 19
<ALERTS AND ACOUSTIC SETTINGS> «READY MACHINE» MENU ..................................................................................... 20
<ALERTS AND ACOUSTIC SETTINGS> «KEY TONE» MENU ............................................................................................. 20
«CUP-WARMING SURFACE» MENU ........................................................................................................................... 20
<WATER SETTINGS> «RINSE» ............................................................................................................................... 21
<WATER SETTINGS> «WATER FILTER» MENU ............................................................................................................. 21
<WATER SETTINGS> «WATER HARDNESS» MENU........................................................................................................ 22
BEVERAGE SETTINGS ..................................................................................................................... 23
«PREBREWING» ADJUSTMENT ................................................................................................................................ 23
COFFEE TEMPERATURE ADJUSTMENT ....................................................................................................................... 24
«OPTI-DOSE» ADJUSTMENT FOR COFFEE BREWING ..................................................................................................... 24
WATER QUANTITY ADJUSTMENT FOR COFFEE BREWING ................................................................................................ 24
TIME/DATE SETTINGS ...................................................................................................................... 25
SET CLOCK........................................................................................................................................................ 25
DATE SETTINGS .................................................................................................................................................. 26
STAND-BY SETTINGS ............................................................................................................................................ 27
MACHINE ON/OFF ................................................................................................................................................28
MAINTENANCE SETTINGS ............................................................................................................... 30
«PRODUCT COUNT.» MENU ................................................................................................................................... 30
«CLEANING CYCLE» MENU .................................................................................................................................... 31
«BOILER DESCALING CYCLE» MENU ........................................................................................................................ 32
«LOCK DISPLAY» MENU ........................................................................................................................................ 34
SPECIAL FUNCTIONS ....................................................................................................................... 35
FACTORY SETTINGS ............................................................................................................................................. 35
CLEANING AND MAINTENANCE ...................................................................................................... 36
MAINTENANCE DURING OPERATION .......................................................................................................................... 36
GENERAL MACHINE CLEANING ................................................................................................................................36
CLEANING THE BREW GROUP. ................................................................................................................................ 37
ERROR CODES ................................................................................................................................. 38
TECHNICAL DATA ............................................................................................................................. 39
SAFETY RULES ................................................................................................................................. 40
3
GENERAL INFORMATION
The coffee machine is suitable for preparing espresso coffee using coffee beans, and it is equipped with a
device to dispense steam and hot water.
The machine is designed for domestic use only, and is not suitable for heavy or professional use.
Warning: no liability is assumed for any damage caused by:
• incorrect use not in accordance with the intended uses;
• repairs not carried out by authorized customer service centres;
• tampering with the power cable;
• tampering with any part of the machine;
• the use of non-original spare parts and accessories;
• failure to descale the machine or use at temperatures below 0°C (32°F)
IN THESE CASES, THE WARRANTY IS NOT VALID.
THE WARNING TRIANGLE INDICATES ALL IMPORTANT INSTRUCTIONS
FOR THE USER’S SAFETY. PLEASE FOLLOW THESE INSTRUCTIONS
CAREFULLY TO PREVENT SERIOUS INJURIES!
HOW TO USE THESE OPERATING INSTRUCTIONS.
Keep these operating instructions in a safe place and make them available to anyone else who may use the coffee
machine. For further information or in case of problems, please refer to any authorized service centre.
4
APPLIANCE
Cup warming surface
TOUCH-SCREEN Display
Button for raising/lowering
the drip tray + grill
E-Plus System
Dispensing head
Hot water / steam knob
Coffee bean hopper
Drip tray + grill
Hot water / steam spout
Coffee bean hopper cover
Compartment for preground coffee
Power button
Service door
Coffee grounds drawer
Brew Group
“Milk Island” connection
Water tank
Socket for power cable
ACCESSORIES
“Aqua Prima” water fi lter Ground coffee measuring scoop Water hardness tester
Grinder adjustment key Power cable
Lubricant for the brew group
Drip tray
INSTALLATION
STARTING THE MACHINE
Make sure that the main power button is not pressed in the “ON” position.
1 2 3
5
Remove the coffee bean hopper
cover.
Fill the hopper with coffee beans.
4
Fill the tank with fresh drinking
water. Do not exceed the “max”
level indicated on the water tank.
Once fi lled place the tank back into
the machine.
7
Close the cover pushing it down
completely.
5
Attach the female end of the power
cord to the machine. Insert the
male end into the power outlet
(see data tag).
When the right temperature is reached, the machine performs a priming and
a rinse cycle of the internal circuits. A small quantity of water is dispensed.
Wait for this cycle to be completed automatically.
See page 21 to enable/disable the rinse function.
The screen for beverage dispensing appears on the display; see page 8.
Remove the water tank. We
recommend installing the “Aqua
Prima” water fi lter (see page 7).
6
Place a container beneath the hot
water spout.
Press the main power button to the
“ON” position.
TO ASSESS WATER HARDNESS, SEE “WATER
HARDNESS MENU” ON PAGE 22.
6
INSTALLATION
SETTING THE LANGUAGE
These settings allow you to regulate the machine’s parameters to dispense coffee according to the
typical parameters of the country where it is used. For this reason, the languages are also differentiated
by location.
1 2 3
1.2.1.1.1 language
1.2.1.1.1 language 1.2.1.1.1 language
English
Italiano (ch) Deutsch
italiano (it)
If necessary, press the key to
display the desired language.
4
warming up
Wait until the machine completes
the heating stage.
7
English
Italiano (ch)
italiano (it)
Deutsch
Select the language.
5 6
rinse
When the right temperature is
reached, the machine performs a
rinse cycle of the internal circuits.
English
Italiano (ch)
italiano (it)
Deutsch
Press .
rinse
A small quantity of water is
dispensed. Wait for this cycle to be
completed automatically. See page
21 to enable/disable the function.
show
text
8:30 am
15/06/0 6
go to
menu
The screen for product
dispensing appears on the
display.
Set the clock and the calendar of the machine as shown on page 25.
«AQUA PRIMA» WATER FILTER
To improve the quality of the water you use, and extend the life of your machine at the same time, it is
recommended that you install the “Aqua Prima” water fi lter. After installation, go to the water fi lter
initialization program (see programming). By using this program, the machine advises the user when the
water fi lter must be replaced.
7
1
Remove the Aqua Prima water
fi lter from its packaging. Enter the
date of the current month.
4
Place a container beneath the hot
water spout.
7
1.2.4.2. water fi lter
on
off
Insert the water fi lter in its place
within the empty tank (see
fi gure);
Press down until it clicks into
place.
5
1.2 machine settings
surface
aler ts and acoustic
settings
water
settings
language & display
cup-warming
Access programming (see page
18 and 19). Press “water settings”.
8
Have you replaced the old water
fi lter with a new one?
32
Fill the tank with fresh drinking
water. Let the water fi lter soak in
the full tank for 30 minutes for
correct initialization.
6
1.2.4 water settings
rinse
on
water
hardness
3/4
water fi lter
off
Press “water fi lter”.
9
reload w ater
fi lter
Press “reload water fi lter”.
Press the
activation of the new water fi lter.
key to confi rm the
Turn the knob until the
position is reached. Water
dispensing begins.
Once fi nished, the “close steam knob” message appears on the display. Turn the knob back to the rest position ( ).
Fill the water tank if necessary.
The machine is now ready for use and the “Aqua Prima” water fi lter control is active (see page 21).
8
DISPLAY
It is possible to change the type of display and choose between “icon format” and “text format”
ICON FORMAT
show
Go to the “text
format” menu
text
Enter the clock
menu
8:30 am
15/06/06
go to
menu
Enter the
programming menu
• To get the desired coffee, press the corresponding symbol on the display.
The machine automatically performs all the necessary operations.
• Press the icon twice to make 2 cups.
press twice
(OPTI-DOSE) INDICATES THE COFFEE DOSE PER CUP
TEXT FORMAT
steam
espresso
mild
show
text
Go to the “icon
format” menu
coffee
medium
8:30 am
15/06/06
long
coffee
strong
go to
menu
The color intensity of the icon indicates the quantity of coffee to be
ground for preparing each beverage.
The greater the quantity of coffee ground, the stronger the coffee
will be.
light medium strong
When the machine is programmed to use pre-ground coffee or
when a beverage is customized, the icon is displayed in a different
way and/or accompanied by an asterisk (see the paragraphs about
programming beverages).
pre-ground customization
The Gaggia coffee machine allows using all types of coffee beans available on the market (except
caramelized ones).
However, coffee is a natural product and its features may change according to its origin and blend.
With some coffee blends it could happen that, after choosing the coffee, it is not brewed and the machine
returns to the initial status.
In such cases, reduce the quantity of coffee to be ground (e.g.: from “strong” to “medium”), using this
function.
ADJUSTMENTS
COFFEE INTENSITY
The E-Plus System has been carefully designed to give your coffee the intense taste you desire. Simply
turn the knob and you will notice that the coffee goes from mild intensity to strong intensity.
9
E-PLUS SYSTEM - ESPRESSO PLUS SYSTEM
To adjust the intensity of the brewed coffee.
The coffee may even be adjusted while
brewing. This adjustment has an immediate
effect on the selected type of brewing.
MILD
COFFEE
MEDIUM
COFFEE
STRONG
COFFEE
ADJUSTING THE HEIGHT OF THE DRIP TRAY
Adjust the drip tray before dispensing any products so as to use any kind of cup.
To raise the drip tray, slightly press on the upper key. To
lower the drip tray, slightly press on the lower key.
When the desired height is reached, release the key.
Note: empty and clean the drip tray daily.
COFFEE GRINDER ADJUSTMENT
The machine lets you make slight adjustments to the coffee grinder to adapt it to the kind of coffee used.
The adjustment must be performed by pressing the pin
located inside the coffee hopper. This must be pressed and
turned by means of the supplied key only. Press and turn
the pin one notch at a time and brew 2-3 cups of coffee; the
grinder adjustment can only be noticed in this way.
The references located inside the container indicate the
grind setting.
FINE GRINDMEDIUM GRINDCOARSE GRIND
BEVERAGE DISPENSING
10
COFFEE BREWING CAN BE STOPPED AT ANY TIME BY PRESSING “STOP
COFFEE”.
THE STEAM SPOUT MAY REACH HIGH TEMPERATURES: DANGER OF SCALDING.
DO NOT TOUCH IT WITH BARE HANDS.
To brew 2 cups, the machine dispenses half of the entered quantity and briefl y interrupts dispensing in order
to grind the second coffee dose. Coffee dispensing is then restarted and completed.
ESPRESSO / COFFEE / LONG COFFEE
This procedure shows how to dispense an espresso. To dispense another type of coffee, press the appropriate
icon. Use appropriate espresso or coffee cups so that the coffee does not overfl ow.
1 2
Position 1-2 cup(s) to dispense an
espresso
Position 1-2 cup(s) to dispense a
coffee or a long coffee
3
show
text
8:30 am
15/06/0 6
go to
menu
Choose a beverage and press the
corresponding icon on the display:
once for 1 cup or twice for 2 cups.
4 5
show
text
8:30 am
15/06/0 6
go to
menu
The machine begins grinding the
set quantity of coffee.
espresso
stop
coffee
The machine begins dispensing
the selected beverage.
The machine ends dispensing automatically on the basis of the quantity determined by the manufacturer. It is
possible to customize this quantity. See page 16.
11
DISPENSING BEVERAGES WITH PRE-GROUND COFFEE
The machine allows you to use pre-ground and decaffeinated coffee.Pre-ground coffee must be poured into
the appropriate compartment positioned next to the coffee bean hopper. Only use coffee ground for espresso
machines and never coffee beans or instant coffee. (see the “Beverage programming” section on page 16)
WARNING: PUT PRE-GROUND COFFEE INTO THE COMPARTMENT ONLY WHEN
YOU WISH TO DISPENSE THIS TYPE OF BEVERAGE.
INSERT ONLY ONE SCOOP OF GROUND COFFEE AT A TIME. TWO CUPS OF
COFFEE CANNOT BE DISPENSED AT THE SAME TIME.
The preparation of a coffee with pre-ground coffee is shown in the example given below. The pre-ground
coffee option is shown with an asterisk on the selected beverage.
Place 1 cup to brew one coffee.
21 3
show
text
8:30 am
15/06/0 6
go to
menu
Press the appropriate key. The
display will show:
coffee
add pre-ground
start!
coffee!
coffee
stop
A message reminds the user to
pour pre-ground coffee into the
appropriate compartment.
4
Pour pre-ground coffee in the
appropriate compartment using the
coffee
add pre-ground
start!
coffee!
stop
coffee
Press “start!” to begin brewing.
65
coffee
stop
coffee
The machine begins dispensing
the selected beverage.
measuring scoop provided.
Note:
• If brewing does not start within 30 seconds from the appearance of the message (3), the machine will return
to the main menu and discharge any inserted coffee into the coffee grounds drawer;
• If no pre-ground coffee is poured into the compartment, only water will be dispensed;
• If the dose is excessive or if 2 or more scoops of coffee are added, the machine will not dispense the
beverage and the coffee in the compartment will be discharged into the coffee grounds drawer.
12
BEVERAGE DISPENSING
HOT WATER DISPENSING
DISPENSING MAY BE PRECEDED BY SHORT SPURTS OF HOT WATER AND SCALDING IS
POSSIBLE. THE HOT WATER/STEAM SPOUT MAY REACH HIGH TEMPERATURES: DO NOT
TOUCH IT WITH BARE HANDS. USE THE APPROPRIATE HANDLE ONLY.
1
Place a container beneath the
steam/hot water spout.
4
Turn the knob until the
position is reached.
7
To dispense another cup
of hot water, repeat these
operations.
2 3
show
text
8:30 am
15/06/0 6
go to
menu
Press the icon.
5
Wait until the machine has
dispensed the desired quantity of
water.
8 9
hot water
steam
hot
water
Press to return to the main
menu.
hot water
steam
hot
water
Select hot water dispensing.
6
When the machine has dispensed
the desired quantity, turn the knob
until it is in the rest position (
show
8:30 am
text
15/06/0 6
go to
menu
).
Note: if the display shows the hot water icon , hot water may be dispensed by simply turning the knob as shown
at step 4.
STEAM DISPENSING
DISPENSING MAY BE PRECEDED BY SHORT SPURTS OF HOT WATER AND SCALDING IS
POSSIBLE. THE HOT WATER/STEAM SPOUT MAY REACH HIGH TEMPERATURES: DO NOT
TOUCH IT WITH BARE HANDS. USE THE APPROPRIATE HANDLE ONLY.
13
1
Place a container with the
beverage to be warmed up
beneath the steam spout.
4
Turn the knob until the
position is reached.
7
2 3
show
text
8:30 am
15/06/0 6
go to
menu
steam
steam
water
Press the icon. Select steam dispensing.
5
Heat the beverage; move the
container while heating.
8 9
steam
steam
6
When you have fi nished, turn the
knob until it is in the rest
position (
).
hot
Repeat the operations to
heat another beverage.
hot
water
Press to return to the main
menu.
After dispensing, clean the steam spout as described on page 36.
Note: if the display shows the steam icon
, steam may be dispensed by simply turning the knob as shown at
step 4.
show
text
8:30 am
15/06/0 6
go to
menu
14
BEVERAGE DISPENSING
CAPPUCCINO
DISPENSING MAY BE PRECEDED BY SHORT SPURTS OF HOT WATER AND SCALDING IS
POSSIBLE. THE HOT WATER/STEAM SPOUT MAY REACH HIGH TEMPERATURES: DO NOT
TOUCH IT WITH BARE HANDS. USE THE APPROPRIATE HANDLE ONLY.
1
Fill 1/3 of the cup with cold milk.
2
steam
steam
hot
water
Select steam dispensing (see steps 2
and 3 on page 13).
4 5 6
Turn the knob until the
position is reached.
7 9
steam
steam
Froth the milk: move the cup
during heating.
8
3
Immerse the steam spout in the
milk.
When you have fi nished, turn the
knob until it is in the rest
position (
).
hot
water
show
8:30 am
text
15/06/0 6
Press to return to the main
menu.
Place the cup beneath the
dispensing head.
Press the key once to brew coffee.
After dispensing, clean the steam spout as described on page 36.
To dispense 2 cappuccinos:
• froth two cups of milk by following steps 1 to 6;
• dispense two coffees by following steps 7 to 9 (then press the icon of the desired coffee twice).
go to
menu
MILK ISLAND (OPTIONAL)
This device, which may be purchased separately, enables you to easily and comfortably prepare delicious
cappuccinos.
Warning: before using the Milk Island, read the manual and all precautions carefully for
correct use.
Important note: the quantity of milk in the carafe must never be below the “MIN” minimum
level nor exceed the “MAX” maximum level. Thoroughly clean all the Milk Island components
after use.
To guarantee best results when preparing cappuccino, we recommend using cold
(0-8°C / 32-45°F), partially skimmed milk.
15
1 2
Fill the milk carafe with the quantity of
milk desired (between the MIN and
MAX levels indicated).
4 5
Wait for the milk to be frothed.
6
Place the milk carafe onto the base
of the Milk Island. Check that the
light on the base is green.
The machine will stop
automatically after dispensing
steam continuously for 2
minutes.
To dispense more steam turn the
knob to the (
back to the
7 8
) position and then
position.
3
Turn the knob to the
position.
When the desired milk froth has
been reached, turn the knob until
it is in the rest position ( ).
Remove the carafe using the
handle.
Gently swirl the carafe and pour
the milk into the cup.
Position the cup with frothed
milk under the dispensing head.
Dispense coffee into the cup.
BEVERAGE PROGRAMMING
16
BEVERAGE PROGRAMMING MENU
Every beverage can be programmed according to your individual tastes. This is shown by an asterisk on the
customized beverage.
show
Once a beverage has been customized, the machine will use these settings when
brewing that particular beverage. To modify the quantity of coffee, you must reset
the customization.
To program the desired beverage:
show
Hold down the beverage key for two
seconds
text
text
8:30 am
15/06/06
8:30 am
15/06/06
go to
menu
go to
menu
ESPRESSO / COFFEE / LONG COFFEE PROGRAMMING
In this phase you can:
1 2
show
text
8:30 am
15/06/0 6
go to
menu
Enter the menu of the coffee to be
customized (press the corresponding
icon for two seconds).
coffee
save settings return to the previous
17
select the quantity of
coffee to be ground
(opti-dose)
select the use of preground coffee
window
3 4
coffee
After pressing “start!”, the
start!
machine will perform a
brewing cycle.
By pressing start! the machine
prepares to brew coffee.
5
coffee
custom
coffee dose
stop
coffee
To brew a different amount of coffee
than the one preset by the
manufacturer, press “custom coffee
dose” before the end of the brewing
cycle in progress. When the desired
quantity is reached, press “stop
coffee”.
6 7
coffee
If is not pressed the
machine returns to the main
menu and the customized
settings will not be saved.
coffee
custom
coffee dose
stop
coffee
standard
coffee
dose
The machine will automatically start
and fi nish a brewing cycle according to
the standard settings.
The brewing cycle may be
interrupted only by pressing
“stop coffee”.
If the key is not pressed the
coffee may overflow.
coffee
saved!
Once brewing is completed, you
must press
within fi ve
seconds.
The display shows the confi rmation
of the saved settings, and the
machine automatically returns to the
main menu.
PROGRAMMING THE MACHINE
18
MACHINE SETTINGS
Some of the machine’s functions
may be programmed according
to your custom settings.
beverage programming
(see page 23)
setting (see page 25):
- current date and time;
- stand-by mode;
- turn on/off times over the span
of a day (energy saving).
activate stand-by mode
special functions
(see page 35)
show
text
8:30 am
15/06/06
go to
menu
Press “go to menu”.
The main programming menu will appear.
1. main menu
beverage
settings
time/date
settings
special
settings
2. main menu
machine
settings
maintenance
settings
Next page
Exit
programming the machine
operations (see page 19.)
cleaning cycles
(see page 30)
Previous page
After having set each of the following menus, press
to return to the previous screen WITHOUT saving the new settings;
to save;
to return to the main menu WITHOUT saving the new settings.
-
Exit
MACHINE SETTINGS
When the machine settings are selected the following screen appears. Here you may:
19
the menu language
set:
the display contrast
the operation of the
cup-warming surface
language &
display
cup-warming
surface
alerts and
acoustic
settings
water
settings
activate/deactivate the
acoustic alarms
set the functions for the water
treatment
<LANGUAGE & DISPLAY> «LANGUAGE» MENU
To change the display language of the messages. Press “language & display” and “language”.
1.2 machine settings
language &
display
language
English
1.2.1.1.1 language
English
italiano (ch)
italiano (it)
Deutsch
This function was described at the
beginning of the manual. This
setting is of fundamental
importance for correctly adjusting
the parameters of the machine
according to the country where the
machine is used.
To display the other available
languages.
<LANGUAGE & DISPLAY> «CONTRAST» MENU
To set the correct contrast of the display. Press “language & display” and “contrast”.
language &
display
contrast
10 / 15
In this menu you can:
1.2.1.2. contrast
10
Adjust the contrast by
pressing + or –
PROGRAMMING THE MACHINE
20
<ALERTS AND ACOUSTIC SETTINGS> «MACHINE READY» MENU
This function activates/deactivates a tone every time the machine is ready. Press “alerts and acoustic settings”
and “machine ready”.
alerts and
acoustic
settings
machine
ready
on
activate the tone deactivate the tone
In this menu you can:
1.2.2.1. machine ready
on
off
<ALERTS AND ACOUSTIC SETTINGS> «KEY TONE» MENU
This function activates/deactivates a tone every time a key is pressed. Press “alerts and acoustic settings” and
“key tone”.
alerts and
acoustic
settings
key tone
on
activate the key tone deactivate the key
In this menu you can:
1.2.2.2. key tone
on
off
tone
«CUP-WARMING SURFACE» MENU
To set the operation of the cup-warming surface located on the upper part of the machine.
Press “cup-warming surface”
In this menu you can:
cup-warming
surface
keep the cup-warming
surface always on.
keep the cup-warming
surface off when the machine
is in stand-by mode
1.2.3. cup-warming surface
always on
off while in
stand-by
always off
keep the cup-warming
surface always off.
21
<WATER SETTINGS> «RINSE»
To clean the internal circuits in order to guarantee that the beverages are only made with fresh water. The
function is enabled as default by the manufacturer. Note: this rinse cycle is performed every time the machine
is turned on after the warming phase.
Press “water settings” and “rinse”.
water
settings
rinse
on
activate the rinse
cycle
<WATER SETTINGS> «WATER FILTER» MENU
To activate/deactivate the warning to replace the “Aqua Prima” water filter. The machine informs the user
when the “Aqua Prima” water filter needs to be replaced.
Press “water settings” and “water filter”.
In this menu you can:
1.2.4.1. rinse
on
off
deactivate the rinse cycle
In this menu you can:
1.2.4.2. water fi lter
on
reload water
fi lter
off
water
settings
water fi lter
off
activate the control deactivate the control
proceed with the initialization
(cleaning) of the water fi lter.
Important note.
This setting automatically adjusts the parameters which allow the user to perform correct machine maintenance.
Select:
on: only when the “Aqua Prima” water fi lter is installed in the water tank as shown on page 7.
This function is automatically activated after selecting “reload water fi lter”.
off: when there is no “Aqua Prima” water fi lter in the water tank.
reload water fi lter: when a new “Aqua Prima” water fi lter is installed in the water tank.
22
PROGRAMMING THE MACHINE
<WATER SETTINGS> «WATER HARDNESS» MENU
With the “Water hardness” function you can adapt your machine to the hardness degree of the water you use.
This way, the machine will require descaling at the appropriate time.
Hardness is expressed on a scale from 1 to 4. The appliance is preset at value 3.
Press “water settings” and “water hardness”.
1
Immerse the water hardness tester provided
with the machine in water for 1 second.
water
settings
water
hardness
3/4
2
1234
Check the value.
The tester may be used only for
one measurement.
In this menu you can:
1.2.4.3. water hardness
3
Set the water hardness obtained
from the test on the machine by
pressing + or –.
BEVERAGE SETTINGS
To adjust the general brew parameters of the various types of coffee. Press “beverage settings” on the
main menu.
1.1. beverage settings
23
espresso
long coffee
coffee
By selecting each beverage, you can adjust:
1.1.2. coffee settings
coffee prebrewing
the quantity of coffee to be ground
(opti-dose) or the use of pre-
ground coffee
prebrewing
strong
aroma
medium
temperature
medium
coffee
volume
the coffee’s brew
temperature
the length of the coffee
The current status is indicated below each setting.
«PREBREWING» ADJUSTMENT
To set the prebrewing function: the coffee is slightly dampened before brewing to bring out the full aroma of
the coffee which acquires an excellent taste. Press “prebrewing”.
prebrewing
strong
normal
prebrewing
deactivate
prebrewing
In this menu you can select:
1.1.2.1. coffee prebrewing
medium
off
strong
strong (longer)
prebrewing
24
PROGRAMMING THE MACHINE
COFFEE TEMPERATURE ADJUSTMENT
To set the temperature for preparing coffee. Press “temperature” and select the desired temperature.
In this menu you can select:
temperature
medium
Low
temperature
1.1.2.2. coffee temperature
low
medium
Medium
temperature
High
temperature
high
«OPTI-DOSE» ADJUSTMENT FOR COFFEE BREWING
To set the coffee quantity to be ground and to set the use of pre-ground coffee.
You can adjust your beverage according to the quantity of coffee used, or you may choose to prepare it with
decaffeinated coffee using the “pre-ground” function. Press “coffee aroma”.
In this menu you can select:
aroma
medium
mild aroma
strong aroma
1.1.2.3. coffee aroma
mild
strong
medium
pre-ground
medium aroma
the use of pre-ground coffee
WATER QUANTITY ADJUSTMENT FOR COFFEE BREWING
To set the water quantity to be used for preparing coffee. Press “coffee volume”.
In this menu you can select:
coffee
volume
1.1.2.4. coffee water dose
Adjust the quantity according to
the cups you wish to use.
200
Adjust the quantity by
pressing + or –
25
TIME/DATE SETTINGS
To set the current time, the stand-by timer and the energy saving function. Press “time/date settings” from the
main menu.
In this menu you can:
1.3 time/date settings
set the current time
set the parameters for
stand-by after the last
dispensing
set clock
stand-by
settings
after 3 hours
date settings
machine
on/off
set the date
set the intervals (three
intervals that can be activated
separately) for turning the
machine on and off (energy
saving).
SET CLOCK
It is important to correctly set the clock for turning the machine on and off (energy saving mode).
Press “set clock”.
set clock
In this menu you can:
1.3.1. set clock
set the current time
current time
08:00
time format
24 hr
set the time view mode
(in 24 hour or am/pm format).
Current time
To set the current time on the machine. Press “current time”.
current time
08:00
1.3.1.1. current time
08 h
00 min
Adjust the hour by
pressing + or –
Adjust the minutes
by pressing + or –
Loading...
