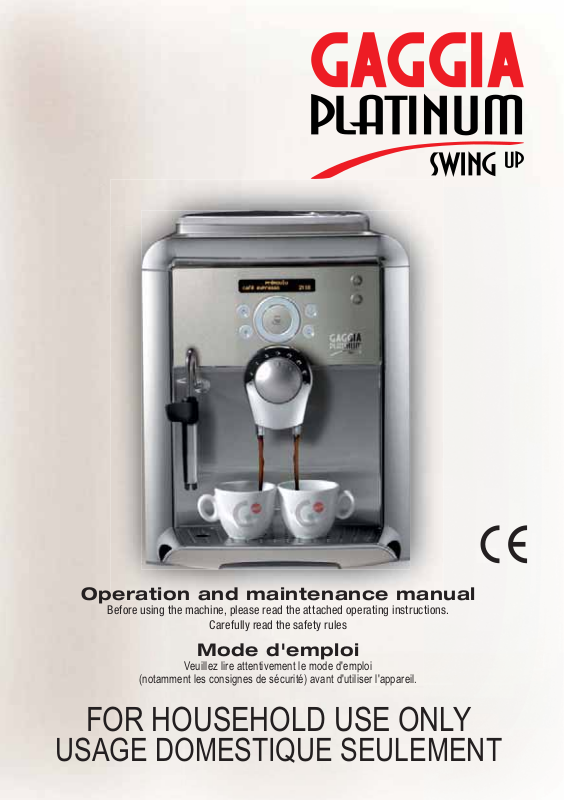

Operation and maintenance manual

Before using the machine, please read the attached operating instructions.

Carefully read the safety rules

Mode d'emploi

(notamment les consignes de sécurité) avant d'utiliser l'appareil.

Veuillez lire attentivement le mode d'emploi

FOR HOUSEHOLD USE ONLY

USAGE DOMESTIQUE SEULEMENT

IMPORTANT SAFEGUARDS

When using electrical appliances, basic safety precautions should always be followed, including the following:

1. Read all instructions.

2. Do not touch hot surfaces. Use handles or knobs.

3. To protect against fire, electric shock and injury to persons do not

immerse cord, plugs, or appliance in water or other liquid.

4. Close supervision is necessary when the appliance is used by or near children.

5. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning the appliance.

6. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions, or has been damaged in any manner. Return appliance to the nearest authorized service facility for examination, repair or adjustment.

7. The use of accessory attachments not recommended by the appliance manufacturer may result in fire, electric shock or injury to persons.

8. Do not use outdoors.

9. Do not let cord hang over edge of table or counter, or touch hot

surfaces.

10.Do not place on or near a hot gas or electric burner, or in a heated oven.

11.Always attach plug to appliance first, then plug cord into wall outlet. To disconnect, turn any control to “off”, then remove plug from wall outlet.

12.Do not use appliance for other than intended use.

13.Save these instructions.

SAVE THESE INSTRUCTIONS

CAUTION

This appliance is for household use only. Any servicing, other than cleaning and user maintenance, should be performed by an authorized service centre. Do not immerse machine in water. To reduce the risk of fire or electric shock, do not disassemble the machine. There are no user serviceable parts inside the machine serviceable by the user. Repair should be done by authorized service personnel only.

1 Check voltage to be sure that the voltage indicated on the nameplate

corresponds with your voltage.

2 Never use warm or hot water to fill the water tank. Use cold water only. 3 Keep your hands and the cord away from hot parts of the appliance

during operation.

4 Never clean with scrubbing powders or harsh cleaners. Simply use a soft

cloth dampened with water.

5 For optimal taste of your coffee, use purified or bottled water. Periodic

descaling is still recommended every 2-3 months.

6 Do not use flavored or caramelized coffee.

INSTRUCTIONS FOR THE POWER

SUPPLY CORD

A A short power-supply cord is provided to reduce risks of tangling or

tripping over a longer cord.

B Longer extension cords are available and may be used if care is exercised in

their use.

C If a long extension cord is used:

1 the marked electrical rating of the extension cord should be at least as

great as the electrical rating of the appliance.

2 if the appliance is of the grounded type, the extension cord should be

a grounding type

3 the cord should not hang from the table to avoid the risk of tangling

or tripping.

CONTENTS

GENERAL INFORMATION ................................................................................................................... 3

APPLIANCE ......................................................................................................................................... 4

ACCESSORIES ......................................................................................................................................................4

INSTALLATION .................................................................................................................................... 5

STARTING THE MACHINE ......................................................................................................................................... 5

SETTING THE LANGUAGE.........................................................................................................................................6

“AQUA PRIMA” WATER FILTER ...................................................................................................................................7

DISPLAY .............................................................................................................................................. 8

(OPTI-DOSE) INDICATES THE COFFEE DOSE PER CUP .................................................................................................... 8

ADJUSTMENTS ................................................................................................................................... 9

COFFEE INTENSITY ................................................................................................................................................ 9

ADJUSTING THE HEIGHT OF THE DRIP TRAY ................................................................................................................. 9

COFFEE GRINDER ADJUSTMENT ................................................................................................................................9

BEVERAGE DISPENSING ................................................................................................................. 10

ESPRESSO / COFFEE / LONG COFFEE ...................................................................................................................... 10

DISPENSING BEVERAGES WITH GROUND COFFEE ........................................................................................................ 11

HOT WATER DISPENSING .............................................................................................................................. ......... 12

DISPENSING STEAM ............................................................................................................................................. 13

MAKING CAPPUCCINO ........................................................................................................................................... 14

MILK ISLAND (OPTIONAL) ...................................................................................................................................... 15

BEVERAGE PROGRAMMING ............................................................................................................16

1. PROGRAMMING FOR SELF-LEARNING .................................................................................................................... 16

2. PROGRAMMING FROM THE “BEVERAGE SETTINGS” MENU .......................................................................................... 16

PROGRAMMING THE MACHINE ....................................................................................................... 18

MACHINE SETTINGS ............................................................................................................................................. 19

“LANGUAGE” MENU.............................................................................................................................................. 19

“WATER HARDNESS” MENU .................................................................................................................................... 20

“ACOUSTIC ALARM” MENU ..................................................................................................................................... 20

“FILTER ALARM” MENU .........................................................................................................................................21

“RINSE” MENU .................................................................................................................................................... 21

“CUP WARMING SURFACE” MENU ............................................................................................................................ 21

“CLOCK SETTING” MENU ....................................................................................................................................... 22

MAINTENANCE ................................................................................................................................. 25

“WATER FILTER” MENU ......................................................................................................................................... 25

“DESCALING” MENU ............................................................................................................................................. 27

BREW GROUP WASHING ........................................................................................................................................30

PROGRAMMING THE MACHINE ....................................................................................................... 31

ENERGY SAVING ................................................................................................................................................. 31

TURN OFF DELAY ................................................................................................................................................ 31

TIMER SETTING .................................................................................................................................................. 31

“MONDAY” TIMER SETTING ....................................................................................................................................32

SPECIAL FUNCTIONS ....................................................................................................................... 33

RESTORE SETTINGS ............................................................................................................................................. 33

CLEANING AND MAINTENANCE ...................................................................................................... 34

MAINTENANCE DURING OPERATION .......................................................................................................................... 34

GENERAL MACHINE CLEANING ................................................................................................................................34

CLEANING THE BREW GROUP. ................................................................................................................................ 35

ERROR CODES ................................................................................................................................. 36

TROUBLESHOOTING ........................................................................................................................ 37

SAFETY RULES ................................................................................................................................. 38

TECHNICAL DATA ............................................................................................................................. 40

GENERAL INFORMATION

The coffee machine is suitable for preparing espresso coffee using coffee beans, and it is equipped with a device to dispense steam and hot water. The machine is designed for domestic use only, and is not suitable for heavy or professional use.

Warning: no liability is assumed for any damage caused by:

• incorrect use not in accordance with the intended uses;

• repairs not carried out by authorized customer service centres;

• tampering with the power cable;

• tampering with any part of the machine;

• the use of non-original spare parts and accessories;

• failure to descale the machine or use at temperatures below 0°C (32°F)

IN THESE CASES, THE WARRANTY IS NOT VALID.

THE WARNING TRIANGLE INDICATES ALL IMPORTANT INSTRUCTIONS FOR THE USER’S SAFETY. PLEASE FOLLOW THESE INSTRUCTIONS CAREFULLY TO PREVENT SERIOUS INJURIES!

HOW TO USE THESE OPERATING INSTRUCTIONS.

Keep these operating instructions in a safe place and make them available to anyone else who may use the coffee machine. For further information or in case of problems, please refer to any authorized service centre.

APPLIANCE

Cup warming surface

Button for raising/lowering

E-Plus System

Dispensing head

Hot water / steam knob

Control panel

the drip tray

Coffee bean hopper

Drip tray + grill

Hot water / steam spout

Coffee bean hopper cover

Compartment for preground coffee

Power button

Service door

Coffee grounds drawer

Brew Group

“Milk Island” connection

Water tank

Socket for power cable

Drip tray

ACCESSORIES

“Aqua Prima” water ﬁ lter Ground coffee measuring scoop Water hardness tester

Grinder adjustment key

Lubricant for the

Brew Group

Power cable

INSTALLATION

STARTING THE MACHINE

Make sure that the main power button is not pressed in the “ON” position.

1 2 3

Remove the coffee bean hopper cover. Fill the hopper with coffee beans.

Fill the tank with fresh drinking water. Do not exceed the “max” level indicated on the water tank. Once ﬁ lled place the tank back into the machine.

Close the cover pushing it down completely.

Attach the female end of the power cord to the machine. Insert the male end into the power outlet (see data tag).

The machine automatically primes the water circuit.

The machine is now ready for use.

Remove the water tank. We recommend installing the “Aqua Prima” water ﬁ lter (see page 7).

Place a container beneath the hot water spout.

Water may not be dispensed into the container.

This should not be considered a malfunction.

Press the main power button to the “ON” position.

TO ASSESS WATER HARDNESS, SEE “WATER HARDNESS MENU” ON PAGE 20.

INSTALLATION

SETTING THE LANGUAGE

When the machine is switched-on for the ﬁ rst time, it requires the selection of the desired language. This allows you to adjust the parameters of the beverages to the typical parameters of the country where the machine is used. This is why some languages are differentiated also by country.

1 2 3

2.1 language English

self-diagnosis

The machine starts and displays all the messages in the selected language.

rinse cycle please wait

A small quantity of water is dispensed. Wait for this cycle to be completed automatically. See page 21 to enable/disable the function.

Select the desired language by navigating the click wheel with your ﬁ nger.

warming up

- +

Wait until the machine completes the heating stage.

medium aroma

espresso coffee 08:33

The screen for product dispensing appears on the display.

When the desired language is displayed, press

rinse cycle please wait

When the right temperature is reached, the machine performs a rinse cycle of the internal circuits.

“AQUA PRIMA” WATER FILTER

To improve the quality of the water you use, and guarantee longer machine life at the same time, it is recommended that you install the “Aqua Prima” water ﬁ lter. After installation, go to the ﬁ lter initialization program (see programming). In this way, the machine advises the user when the ﬁ lter must be replaced.

Remove the “Aqua Prima” water ﬁ lter from its packaging. Enter the date of the current month.

Place a container beneath the

Insert the ﬁ lter in its place within the empty tank (see ﬁ gure); Press down until it clicks into place.

5 6

1 beverage settings 3 maintenance

Press

steam/hot water spout.

7 8 9

3.1 water filter 3.1.3 activate filter execute now

Fill the tank with fresh drinking water. Let the ﬁ lter soak in the full tank for 30 minutes for correct initialization.

Select “maintenance” and press the

button.

Press

again.

Select “activate ﬁ lter” and press the

button.

Turn the knob to the position. Water dispensing begins.

When the machine has ﬁ nished, turn the knob until it is in the rest position ( ). Press a few times until the “exit” message is displayed. Then press

. The machine is now ready for use.

DISPLAY

Accessing the

programming menu

Click wheel

Select the coffee bean dose or the quantity of

pre-ground coffee

• Press the button twice to make 2 cups. This operation can be performed up until the grinding of the ﬁ rst cup is complete.

selected

espresso coffee

• To brew 2 cups, the machine dispenses half of the entered quantity and brieﬂ y interrupts dispensing in order to grind the second serving of coffee.

Coffee dispensing is then restarted and completed.

strong aroma

espresso coffee 08:33

Press twice

Steam button

Conﬁ rmation button

Hot water button

selected

double espresso

(OPTI-DOSE) INDICATES THE GROUND COFFEE QUANTITY

It is possible to choose three options (strong, medium and mild) by pressing the These indicate the quantity of coffee the machine grinds for each beverage. This button is also used to select the pre-ground coffee function.

button.

strong aroma

espresso coffee 08:33

medium aroma

espresso coffee 08:33

SELECT THE AMOUNT OF COFFEE TO

espresso coffee 08:33

BE GROUND BEFORE DISPENSING THE BEVERAGE.

The Gaggia coffee machine allows using all types of coffee beans available on the market (except caramelized ones). However, coffee is a natural product and its features may change according to its origin and blend. With some coffee blends it could happen that, after choosing the coffee, it is not brewed and the machine returns to the initial status. In such cases, reduce the quantity of coffee to be ground (e.g.: from “strong” to “medium”), using this function.

espresso coffee 08:33

mild aroma

pre-ground

ADJUSTMENTS

COFFEE INTENSITY

The E-Plus System has been carefully designed to give your coffee the intense taste you desire. Simply turn the knob and you will notice that the coffee goes from mild intensity to strong intensity.

E-PLUS SYSTEM - ESPRESSO PLUS SYSTEM

To adjust the intensity of the brewed coffee. The coffee may even be adjusted while brewing. This adjustment has an immediate effect on the selected type of brewing.

MILD

COFFEE

MEDIUM COFFEE

STRONG COFFEE

ADJUSTING THE HEIGHT OF THE DRIP TRAY

Adjust the drip tray before dispensing any products so as to use any kind of cup.

To raise the drip tray, slightly press on the upper key. To lower the drip tray, slightly press on the lower key. When the desired height is reached, release the key.

Note: empty and clean the drip tray daily.

COFFEE GRINDER ADJUSTMENT

The machine enables a slight adjustment of the coffee grinder. Coffee may be ground according to your own tastes.

The adjustment must be performed by means of the pin located inside the coffee bean hopper. This must be pressed and turned using the supplied key only. Press and turn the pin one notch at a time. You must brew 2-3 coffees before you will taste a change.

The references located inside the container indicate the grind setting.

FINE GRINDMEDIUM GRINDCOARSE GRIND

BEVERAGE DISPENSING

COFFEE BREWING CAN BE STOPPED AT ANY TIME BY PRESSING THE BUTTON AGAIN.

THE STEAM SPOUT MAY REACH HIGH TEMPERATURES: DANGER OF SCALDING. DO NOT TOUCH IT WITH BARE HANDS.

Check that all the containers are clean. To carry out this operation, follow the instructions in the “Cleaning and Maintenance” section (see page 34).

To brew 2 cups, the machine dispenses the ﬁ rst coffee and brieﬂ y stops dispensing in order to grind the second serving of coffee. Coffee dispensing is then restarted and completed.

ESPRESSO / COFFEE / LONG COFFEE

This procedure shows how to dispense an espresso. To dispense another type of coffee, select it by navigating the click wheel with your ﬁ nger. Use appropriate espresso or coffee cups so that the coffee will not overﬂ ow.

1 2

Position 1 - 2 cup(s) to dispense an espresso

Position 1 - 2 cup(s) to dispense a regular coffee or a long coffee

strong aroma

espresso coffee 08:33

Select the desired beverages by navigating the click wheel with your ﬁ nger.

4 5

strong aroma

espresso coffee 08:33

If desired, select the quantity of coffee to be ground by pressing the

button one or more times.

Press the cup and twice for 2 cups. The machine begins dispensing the

strong aroma

espresso coffee 08:33

button: once for 1

selected beverage.

The machine ends dispensing automatically on the basis of the quantity determined by the manufacturer. It is possible to customize this quantity (see page 16).

DISPENSING BEVERAGES WITH GROUND COFFEE

The machine allows you to use pre-ground and decaffeinated coffee. Pre-ground coffee must be poured into the appropriate compartment positioned next to the coffee bean hopper. Only use coffee ground for espresso machines and never coffee beans or instant coffee.

WARNING: ONLY PUT PRE-GROUND COFFEE INTO THE COMPARTMENT WHEN YOU WISH TO DISPENSE THIS TYPE OF BEVERAGE.

ONLY INSERT ONE SCOOP OF GROUND COFFEE AT A TIME. TWO CUPS OF COFFEE CANNOT BE DISPENSED AT THE SAME TIME.

The preparation of an espresso using pre-ground coffee is shown in the example given below. The customized choice of using pre-ground coffee is shown on the display.

1 2

strong aroma

espresso coffee 08:33

pre-ground

espresso coffee 08:33

insert ground coffee

and press ok

Select the desired beverage by navigating the click wheel with your ﬁ nger.

Pour one scoop of ground coffee into the appropriate compartment using the measuring scoop provided.

Select the function by pressing the

button until the preground option appears. Press the

button to conﬁ rm.

brewing in progress

please wait

Press the button to start brewing.

A message reminds the user to pour ground coffee into the appropriate compartment.

Note:

• If brewing does not start within 30 seconds from the appearance of the message (3), the machine will return to the main menu and discharge any inserted coffee into the coffee grounds drawer;

• If no pre-ground coffee is poured into the compartment, only water will be dispensed;

• If the dose is excessive or if 2 or more scoops of coffee are added, the machine will not dispense the beverage and the coffee in the compartment will be discharged into the grounds drawer.

BEVERAGE DISPENSING

HOT WATER DISPENSING

DISPENSING MAY BE PRECEDED BY SHORT SPURTS OF HOT WATER AND SCALDING IS POSSIBLE. THE HOT WATER/STEAM SPOUT MAY REACH HIGH TEMPERATURES: DO NOT TOUCH IT WITH BARE HANDS. USE THE APPROPRIATE HANDLE ONLY.

1 2 3

selected

hot water

Place a container beneath the steam/hot water spout.

brewing in progress

hot water

The display shows “brewing in progress... hot water”

Press the button.

Wait until the machine has dispensed the desired quantity of water.

Turn the knob to the position.

When the machine has dispensed the desired quantity, turn the knob until it is in the rest position ( ).

To dispense another cup of hot water, repeat this operation.

DISPENSING STEAM

1 2 3

selected

steam

Place a container with the beverage to be warmed up

Press the button.

beneath the steam spout.

brewing in progress

steam

The display shows “brewing in progress... steam”

5 6

Heat the beverage; move the container while heating.

Turn the knob to the position.

When you have ﬁ nished, turn the knob until it is in the rest position (

Repeat the operation to heat another beverage.

After dispensing, clean the steam spout as described on page 34.

BEVERAGE DISPENSING

MAKING CAPPUCCINO

selected

steam

Fill 1/3 of the cup with cold milk.

Press the button.

4 5 6

Turn the knob to the position.

Froth the milk by gently swirling the cup.

strong aroma

espresso coffee 08:33

Immerse the steam spout in the milk.

When you have ﬁ nished, turn the knob until it is in the rest position (

Place the cup beneath the dispensing head.

Press the dispensing begins.

button once: coffee

After dispensing, clean the steam spout as described on page 34. To dispense 2 cappuccinos:

• froth two cups of milk by following step 1 to 6;

• dispense two coffees by following steps 7 and 8 (in this case, press the

button twice).

MILK ISLAND (OPTIONAL)

This device, which may be purchased separately, enables you to easily and comfortably prepare delicious cappuccinos.

Warning: before using the Milk Island, read the manual and all precautions carefully for correct use.

Important note: the quantity of milk in the carafe must never be below the “MIN” minimum level nor exceed the “MAX” maximum level. Thoroughly clean all the Milk Island components

after use.

To guarantee best results when preparing cappuccino, we recommend using cold (0-8°C / 32-45°F), partially skimmed milk.

1 2 3

Fill the milk carafe with the quantity of milk desired (between the MIN and MAX levels indicated).

Wait for the milk to be frothed.

6 7 8

Remove the carafe using the handle.

Place the milk carafe onto the base of the Milk Island. Check that the light on the base is green.

The machine will stop automatically after dispensing steam continuously for 2 minutes. To dispense more steam turn the knob to the ( back to the

Gently swirl the carafe and pour the milk into the cup.

) position and then

position.

Turn the knob to the position.

When the desired emulsion has been reached, turn the knob until it is in the rest position ( ).

Position the cup with frothed milk under the dispensing head. Dispense coffee into the cup.

BEVERAGE PROGRAMMING

Every beverage can be programmed according to your individual tastes.

1. PROGRAMMING FOR SELF-LEARNING

You can program the quantity of coffee and/or milk you wish to be dispensed into the cups when you press the button for any beverage. Select the type of beverage you want to program, then press and hold the (for example):

The machine dispenses coffee. When the required amount is reached, press the The display shows:

The dispensed quantity of coffee and/or milk is memorized and replaces any previous settings.

programming

espresso coffee

saved

espresso coffee

button again.

button until the display shows

2. PROGRAMMING FROM THE “BEVERAGE SETTINGS” MENU

To adjust the settings for preparing beverages: press the button and select “beverage settings” by navigating the click wheel with your ﬁ nger.

In this phase you can:

exit the programming mode.

(see page 18)

by navigating the click wheel with

your ﬁ nger you can change the

settings for:

- the quantity of coffee to be brewed;

- the coffee temperature;

- prebrewing the coffee.

- select the quantity of coffee to be ground (opti-dose)

The following page describes how to program coffee beverages; the settings to program each beverage may differ depending on the type of beverage.

1 beverage settings

select the function to set:

- the coffee temperature;

- coffee prebrewing.

restore factory settings

save the new settings.

1 2 3

strong aroma

espresso coffee 08:33

1 beverage settings

Check that the water and coffee bean container are full; place the cup under

Press the

button.

Select “beverage settings”. Press the

button to conﬁ rm.

the dispensing head.

4 5

1.1 espresso coffee medium aroma

When the settings are changed, the message on the display starts ﬂ ashing. When the changes are stored the message stops ﬂ ashing.

espresso coffee

Select the beverage to program. Press the

button to conﬁ rm.

Press the button adjust the quantity of coffee to be ground or select the use of preground coffee. Press the button to save.

- + espresso coffe

temperature: medium

espresso coffee

temperature: medium

espresso coffee

Change the coffee quantity by navigating the click wheel with your ﬁ nger; conﬁ rm with

Press the

button for more than two seconds to access the other settings to program.

Change the temperature setting (high, medium, low) by navigating the click wheel with your ﬁ nger. Press the

a few times to

button to save.

9 10

prebrewing: normal

espresso coffee

Press the

button to select the

prebrew setting.

prebrewing: normal

espresso coffee

Change the prebrew value (normal, long, off) by turning the click wheel with your ﬁ nger. Press the

button to save.

Prebrewing: the coffee is slightly dampened before brewing to bring out the full aroma of the coffee which acquires an excellent taste.

PROGRAMMING THE MACHINE

Some of the machine’s functions can be programmed to customize operations according to your individual preferences.

1 beverage settings

1 Press the 2 Navigate the click wheel with your ﬁ nger to:

- select the functions

- change the function settings.

1 beverage settings

Beverage setting

(see page 16)

2 machine settings

Machine settings

(see page 19)

3 maintenance

Maintenance

(see page 25)

To exit the programming mode:

button.

Press the

- conﬁ rm the selection;

- save the new settings.

4 energy saving

Energy saving

(see page 31)

5 special functions

Special functions

(see page 33)

button to:

exit

MACHINE SETTINGS

To change the machine’s operation settings, press the button, select “machine settings” and press the

button. Navigate the click wheel with your ﬁ nger to:

2.1 language English

set the menu

language.

2.2 water hardness 3

set the water hardness.

2.3 acoustic alarm on

set/activate the acoustic

alarms.

2.4 filter alert on

activate/deactivate the “Aqua Prima”

water ﬁ lter alarm

To exit any level of “machine settings” without saving the changes made, press the

button. For example:

2.5 rinsing on

set the coffee circuit rinse cycle.

2.6 cup-warming surface off

activate/deactivate the operation of

the cup warming surface

2.7 clock setting

To set the current time, date and hour format to display.

1 beverage settings

“LANGUAGE” MENU

> machine settings > language . To change the language of the display.

1 2 3

2 machine settings 2.1 language

English

Select the desired language. After selected, the machine displays all the messages in the language selected.

2.1 lingua italiano

PROGRAMMING THE MACHINE

“WATER HARDNESS” MENU

> machine settings > water hardness

With the “Water hardness” function you can adapt your machine to the degree of hardness of the water you use, so that the machine will request descaling at the right moment. Hardness is expressed on a scale from 1 to 4. The machine is preset at value 3.

1234

Immerse the water hardness

Check the value. tester included with the machine in water for one second.

3 4 5

2 machine settings 2.2 water hardness

“ACOUSTIC ALARM” MENU

> machine settings > acoustic alarm

The test can be used for one measurement only.

2.2 water hardness 3

Set the water hardness obtained from the test and save it.

To turn on/off a tone each time a button is pressed.

1 2

2 machine settings 2.3 acoustic alarm

Select by navigating the click wheel with your ﬁ nger. It is possible to set:

- on

- off Press the

button to save.

“FILTER ALARM” MENU

> machine settings > filter alert

To turn on/off signalling the need to change the “Aqua Prima” water ﬁ lter. The machine informs the user when the “Aqua Prima” ﬁ lter needs to be replaced.

1 2

2 machine settings 2.4 filter alert

Select by navigating the click wheel with your ﬁ nger. It is possible to set:

- on

- off Press the

button to save.

“RINSE” MENU

> machine settings > rinsing

The rinse setting cleans the internal circuits in order to guarantee that the beverages are only made with fresh water. The function is enabled as default by the manufacturer. Note: This rinse cycle is performed every time the machine is turned on after the warming phase.

31 2

2 machine settings 2.5 rinsing

Select by navigating the click wheel with your ﬁ nger. It is possible to set:

- on

- off Press the

button to save.

“CUP WARMING SURFACE” MENU

> machine settings > cup-warming surface

To turn on/off the operation of the cup warming surface located on the top of the machine.A warm cup allows you to fully savour the coffee and taste its full aroma.

31 2

2 machine settings 2.6 cup-warming surface

off

Select by navigating the click wheel with your ﬁ nger. It is possible to set:

- on

- off

Press the

button to save.

PROGRAMMING THE MACHINE

“CLOCK SETTING” MENU

> machine settings > clock setting

To set the current time, date and hour format to display.

1 2

2 machine settings 2.7 clock setting

In this menu you can set:

- the current time (hour and minutes)

- the hour format (24 hours - AM/PM)

- the current date (day - month - year

- day of the week)

- the date format (American international).

Time setting

> machine settings > clock setting > time setting

To set the current time on the machine

1 2 3

2.7 clock setting 2.7.1 time setting

2.7.1 time setting 16:54

16:54

Set the time by navigating the click wheel with your ﬁ nger. Save using the

button.

Set the minutes by navigating the click wheel with your ﬁ nger. Save using the

button.

Time format

> machine settings > clock setting > time format

To set the time view mode. This setting adjusts all clock functions to either “am/pm” or “24 hour” formats.

1 2 3

2.7 clock setting

2.7.2 time format 24h

The machine also allows

displaying the time in the

American format (am/pm).

Date setting

> machine settings > clock setting > date setting

To set the date (day, month, year, day of the week).

1 2 3

2.7 clock setting 2.7.3 date setting

tuesday 18/04/06

Select the day and press the button to conﬁ rm.

2.7.3 date setting tuesday 18/04/06

PROGRAMMING THE MACHINE

4 5

2.7.3 date setting tuesday 18/04/06

The day of the week is automatically set according to the set date.

Select the month and press the button to conﬁ rm.

Select the year and press the button to conﬁ rm.

Date format

> machine settings > clock setting > date format

To set the date view mode. The modiﬁ cation of this setting adjusts all the parameters that require viewing/ setting the date.

1 2 3

2.7 clock setting 2.7.4 time format DD/MM/YYYY

2.7.4 time format

DD/MM/YYYY

The machine also allows

displaying the date in the

American format

(MM/DD/YYYY).

2.7.4 time format DD/MM/YYYY

+ 60 hidden pages
