Philips RC4370 User Manual
User manual
Remote control RC4370
RemoteControls_MCP9350i_English.qxd 20-10-2005 16:47 Pagina 1
2
Online help: www.P4C.philips.com
For interactive help, downloads and frequently asked questions
RemoteControls_MCP9350i_English.qxd 20-10-2005 16:47 Pagina 2
EN
33
Contents Page
Functional overview................................................................4
Introduction.............................................................................6
Installing the remote control ................................................6
Inserting the batteries in the remote control........................................................................6
Testing the remote control ........................................................................................................6
Setting the remote control for operating other devices.....................................................7
Extra possibilities ....................................................................9
Copy key .........................................................................................................................................9
Assigning the volume control to another mode (Punch through volume)...................10
Restoring all original functions (Factory reset)....................................................................11
Troubleshooting....................................................................12
Need help? .............................................................................13
Code list of all brands / equipment................................14-18
Information to the consumer..............................................19
RemoteControls_MCP9350i_English.qxd 20-10-2005 16:47 Pagina 3
EN
4
Note: When a key or key combination is pressed for longer than 30 seconds, the remote
control will stop transmitting IR signals.
1yyStandby
Switches the Media Center ON or to standby.
2 SELECT
Selects the device you wish to operate via the remote control:
PC (Media Center), TV, AMP(amplifier), SAT (cable/satellite set-top box), DVD.
Notes:
– After switching on the Media Center, the remote control will automatically go to Media
Center mode.
– When selecting devices, the SELECT key must be pressed within 10 seconds each time
3 Teletext ( )
TV: text.
DVD: system menu, OSD (On Screen Display).
AMP: sleep.
SAT: text, text on / off.
4 Guide ( )
TV / DVD: guide.
SAT: guide. EPG (Electronic Program Guide).
5 AV (Audio / Video)
TV: selects external audio / video source.
DVD: return, exit menu.
SAT: return, exit menu, back up.
6 1 2 3 4
Cursor left, right, up and down keys. Menu navigation keys.
7 MENU
TV: menu.
DVD: disc menu.
AMP / SAT: menu (On Screen Display).
8
Opens Microsoft Windows®XP Media Center edition home menu.
9 – Volume +
Adjusts the volume down (–) and up (+) of your Philips TV.
For adjusting the volume of other TV brands, see CHAPTER ‘Installing the remote
control’.
10 Mute (s)
Mutes speaker and headphones output.
11 0 (Record)
DVD / SAT: record.
9 (Stop)
DVD / SAT: stop.
; (Pause)
DVD / SAT: pause.
5 6 (Search)
DVD / SAT: fast backward (5) / fast forward (6).
AMP: center speaker volume down (5) / up (6).
2 (Play)
DVD / SAT: play.
¡ ™ (Skip)
DVD / SAT: previous (¡) / next (™).
AMP: rear speaker volume down (¡) / up (™).
Functional overview
3
1
2
5
4
6
10
9
7
8
12
13
14
17
18
21
20
22
23
16
15
19
11
24
RemoteControls_MCP9350i_English.qxd 20-10-2005 16:47 Pagina 4
EN
5
12 0 - 9 digit keys
TV / SAT: direct channel selection.
DVD: direct track selection.
AMP: TV input (1), DVD input (2), VCR input (3), tuner input (4), CD input (5),
AUX / SAT /MD input (6), tape input (7)
13 P1 P *
TV / SAT: previous program, alternate channel.
14 CLEAR
DVD: clear.
SAT: help.
15 ENTER
Confirms text input.
16 – / – – #
Selects between one- and two digit program / channel numbers.
17 – Program +
Program / channel down (–) and up (+).
18 Recorded TV ( )
TV: Text hold.
19 OK
TV / DVD / AMP: confirms actions in the menu.
SAT: confirms actions in the menu, select.
SAT: favorite.
20 i (info)
TV: info, display .
DVD: info.
SAT: info, index.
21 Live TV ( )
TV: wide, 16:9.
DVD: live TV.
SAT: live TV.
22 SHOWVIEW / Red
TV: Red.
DVD: chapter.
AMP: DSP (Digital Signal Processor) on / off.
SAT: red, A.
ANGLE / Green
TV: green.
DVD: angle.
AMP: DSP (Digital Signal Processor) mode.
SAT: green, B.
AUDIO / Yellow
TV: yellow.
DVD: audio.
AMP: Surround on / off.
SAT: yellow, C.
ZOOM / Blue
TV: blue.
DVD: zoom.
AMP: Surround scroll / surround mode.
SAT: blue, D.
23 LIKE MUSIC
TV: text off, text cancel.
24 Selector window
Indicates which device is selected.
3
1
2
5
4
6
10
9
7
8
12
13
14
17
18
21
20
22
23
16
15
19
11
24
RemoteControls_MCP9350i_English.qxd 20-10-2005 16:47 Pagina 5
The Philips RC4370 is a universal remote control that is primarily meant for
operating the MCP9350i Media Center. However after installing the remote control
you can also operate up to four other types of devices with it: TV, amplifier/receiver,
satellite tuner/cable decoder and DVD/VCR.
After switching on the remote control, it will automatically go to Media Center mode
(PC).
You can find information about how to prepare the remote control for operating
other types devices in the chapter ‘Installing the remote control’.
Introduction
6
EN
Installing the remote control
Inserting the batteries in the remote control
1 Remove the battery compartment cover and insert two AA (1.5 V) batteries
(supplied), noting the + and – position in the battery compartment.
2 Replace the cover.
Note: When replacing batteries, all user settings will be retained in the remote control
memory for 5 minutes. When a key is pressed during battery replacement the
memory may be erased and all user settings will be set to the factory default settings
again.
Testing the remote control
Testing the remote control for use with the Media Center
After switching on the Media Center, the remote control will automatically go to
Media Center mode (PC).

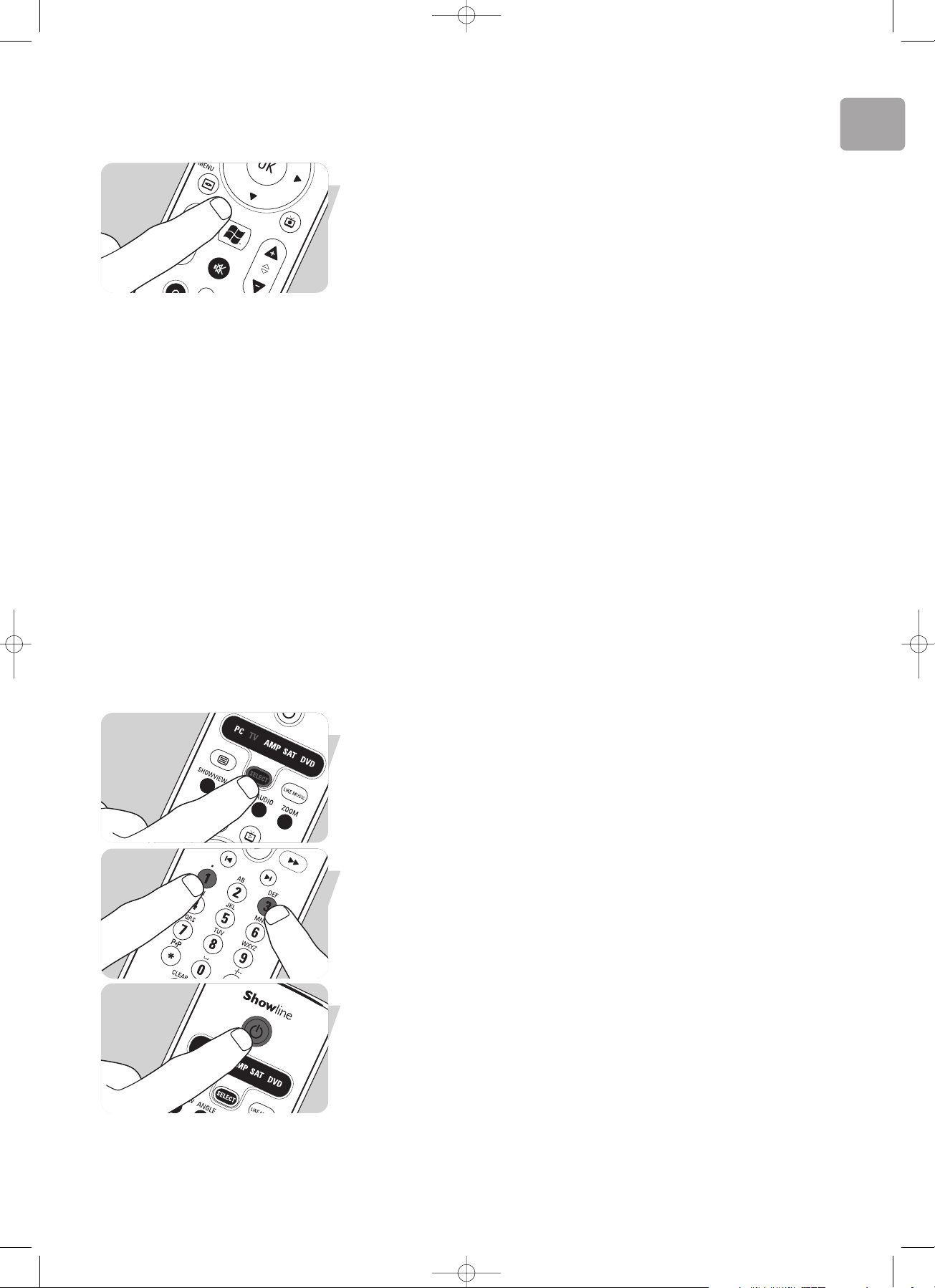

1 Press the key (8) on the remote control.
> The Media Center Start menu should appear.
2 Check whether all keys are working. For an overview of the keys and their
functions in PC mode, see ‘Functional overview - Remote control’ in the Quick
Install Guide.
> If the Media Center responds as it should to all of the key commands the remote
control is ready for use with the Media Center.
• If the Start menu does not appear or if the Media Center does not respond
at all or not to all of the key commands go to: www.P4C.philips.com or call
our helpline. You will find our contact details after the code list at the back
of this manual.
Testing the remote control for use with other types of devices
The remote control has been programmed to operate most Philips devices. Because
the remote control may use different signals for each brand and even for different
models of the same brand, it is advisable to test whether your device responds to the
remote control. The example below (TV) instructs you how to do this. You can
repeat the same steps for other devices (DVD player/recorder, amplifier/receiver,
etc.) which you want to operate using the remote control.
Example TV:
1 Switch on your TV manually or use the original remote control.
Tune to channel 1.

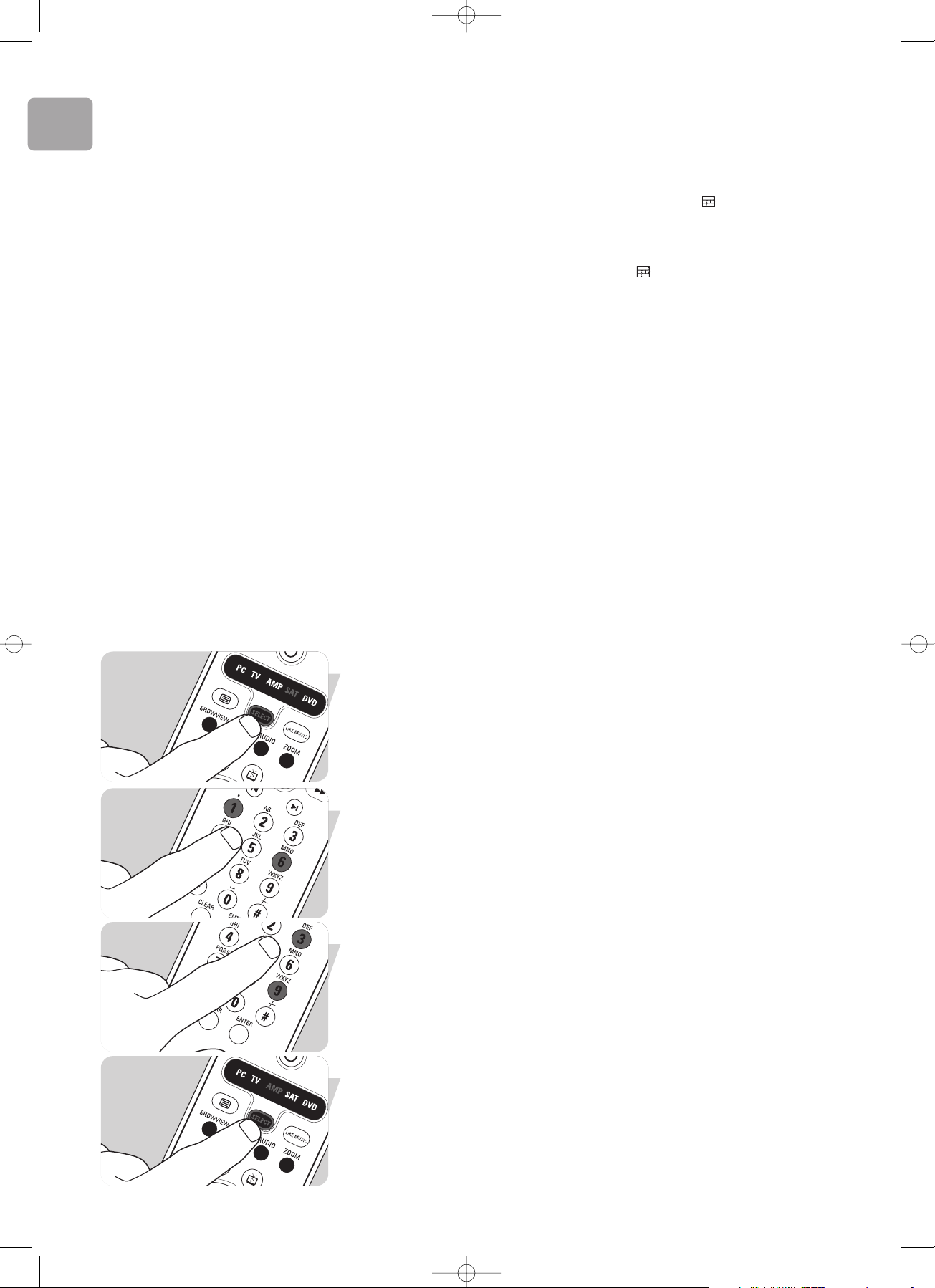

2 Press the SELECT key (2) to select TV.
Press the key until TV lights up in the selector window.
3 If TV does not light up, check whether the batteries are properly inserted
(see ‘Inserting the batteries in the remote control’).
RemoteControls_MCP9350i_English.qxd 20-10-2005 16:47 Pagina 6
