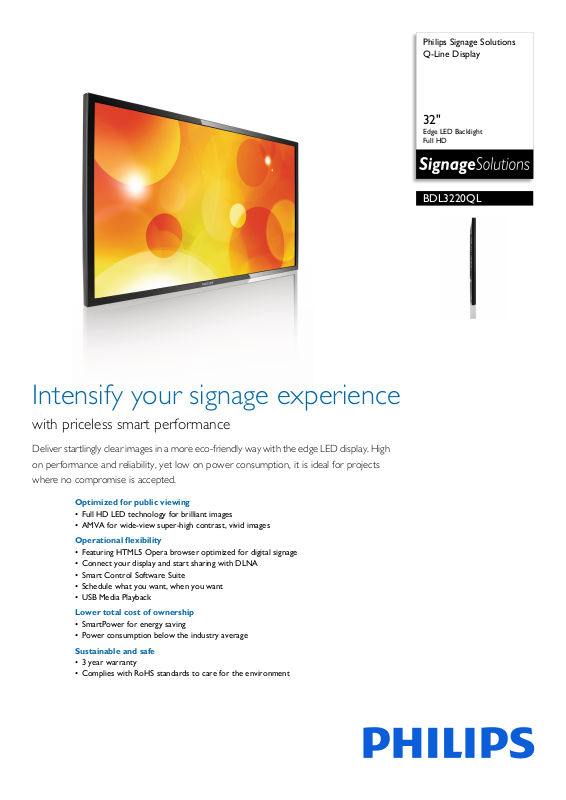

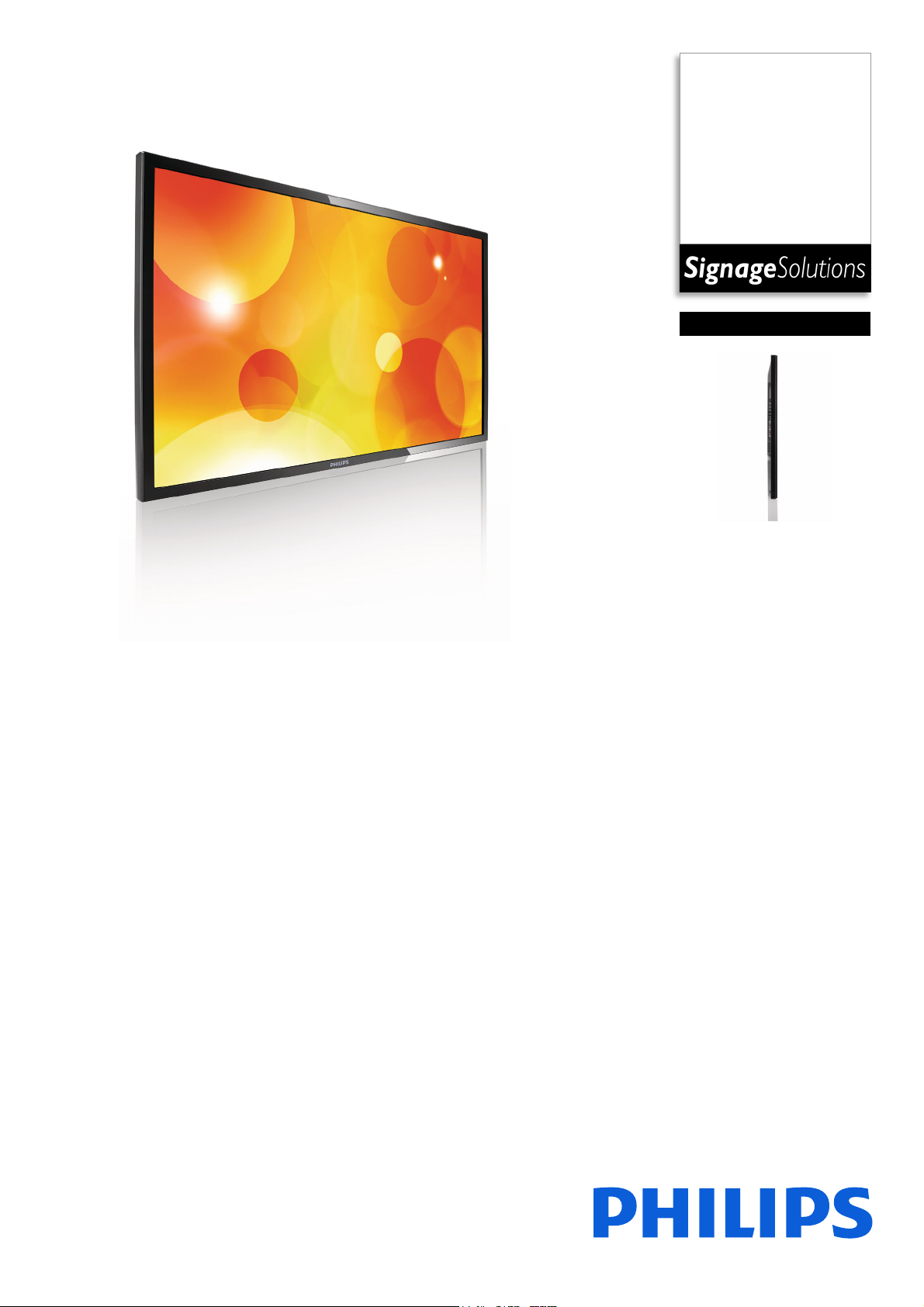

Philips Signage Solutions Q-Line Display

32"

Edge LED Backlight Full HD

BDL3220QL

Intensify your signage experience

with priceless smart performance

Deliver startlingly clear images in a more eco-friendly way with the edge LED display. High on performance and reliability, yet low on power consumption, it is ideal for projects where no compromise is accepted.

Optimized for public viewing

• Full HD LED technology for brilliant images

• AMVA for wide-view super-high contrast, vivid images

Operational flexibility

• Featuring HTML5 Opera browser optimized for digital signage

• Connect your display and start sharing with DLNA

• Smart Control Software Suite

• Schedule what you want, when you want

• USB Media Playback

Lower total cost of ownership

• SmartPower for energy saving

• Power consumption below the industry average

Sustainable and safe

• 3 year warranty

• Complies with RoHS standards to care for the environment

Page 2

Q-Line Display

32" Edge LED Backlight, Full HD

Highlights

BDL3220QL/00

AMVA Display Technology

Philips AMVA LED display uses an advanced m

ulti-domain vertical alignment technology which gives you super-high static contrast ratios for extra vivid and bright images. While standard applications are handled with ease, it is especially suitable for graphical demanding applications. It's optimized pixel management technology gives you 178/178 degree extra wide viewing angle, resulting in crisp images.

Smart Control

Control and manage all of the signage displays o

n your network with this powerful software tool which allows you to change the settings of your display centrally via an RJ45 or RS232 connection. Smart Control allows you to set the video input, modify the color settings, set the display's ID when creating video walls and even diagnose each display's status, giving you all the power you need to manage your displays from one central location.

Share & Stream with DLNA

Simply share & stream content from your mobil

e device or media player to your display with all DLNA compliant media devices. Connect each display with an ethernet cable and manage your content real time within your local network. Simply connect your display and start sharing.

USB Playback

Enjoy your own media playback via the USB po

rt. Simply plug in a USB drive, and create your own signage content to convey the marketing messages you want, when you want them. With a wide range of media formats supported, this powerful media player offers an excellent picture and true flexibility.

24 hour scheduling function

You can freely schedule the right content at th

e right time to satisfy your customer

information needs. Mix and manage your content over multiple video input signals as USB, VGA, DVI and HDMI. Simply create one or more play lists with the scheduling function to be in control of your content 24 hours a day, 7 days a week.

SmartPower

The backlight intensity can be controlled and p

re-set by the system to reduce the power consumption by up to 50%, which saves substantially on energy costs.

Compliant with RoHS standards

Philips designs and produces display products i

n compliance with strict Restriction of Hazardous Substances (RoHS) standards that restrict lead and other toxic substances that can harm the environment.

Page 3

Q-Line Display

32" Edge LED Backlight, Full HD

Specifications

BDL3220QL/00

Picture/Display

• Diagonal screen size: 31.5 inch / 80 cm

• Panel resolution: 1920x1080p

• Optimum resolution: 1920 x 1080 @ 60 Hz

• Brightness: 350 cd/m²

• Contrast ratio (typical): 3000:1

• Response time (ty

• Aspect ratio: 16:9

• Viewing angle (H / V): 178 / 178 degree

• Pixel pitch: 0.12125 x 0.36375 mm

• Display colors: 16.7 Million

• Surface treatment: Anti-Glare coating

• Picture enhancement: 3/2 - 2/2 motion pull down, mbfi

3D Co Progressive scan, 3D MA deinterlacing, Dynamic contrast enhancement

ical): 6.5 ms

lter, Motion compens. deinterlacing,

Supported Display Resolution

• Computer formats

Resolution Refresh rate 640 x 480 60, 67, 72, 75Hz 800 x 600 56, 60, 72, 75Hz 1024 x 768 60Hz 1280 x 768 60Hz 1280 x 800 60Hz 1360 x 768 60Hz 1366 x 768 60 1440 x 900 60Hz 1600 x 1200 60Hz 1920 x 1080 60Hz 1920 x 1200 60Hz

deo formats

• Vi

Res

olution Refresh rate 480i 60Hz 480p 60Hz 576p 50Hz 576i 50Hz 720p 50, 60Hz 1080i 50, 60Hz 1080p 50, 60Hz

Connectivity

• Video input: DVI-D, HDMI, VGA (Analog D-Sub), USB, Component (RCA), Composite (RCA)

• Audio input: 3.5 mm jack, Audio Left/Right (RCA)

• Audio output: SPDIF, Audio Left/Right (RCA)

• External control: RJ45, RS232C (in/out) 2.5 mm

k, IR (in/out) 3.5 mm jack

Convenience

• Screen saving functions: Pixel Shift, Low Brightness

• Keyboard control: Hidden

• Network controllable: RS232

• Signal Loop Through: RS232

Dimensions

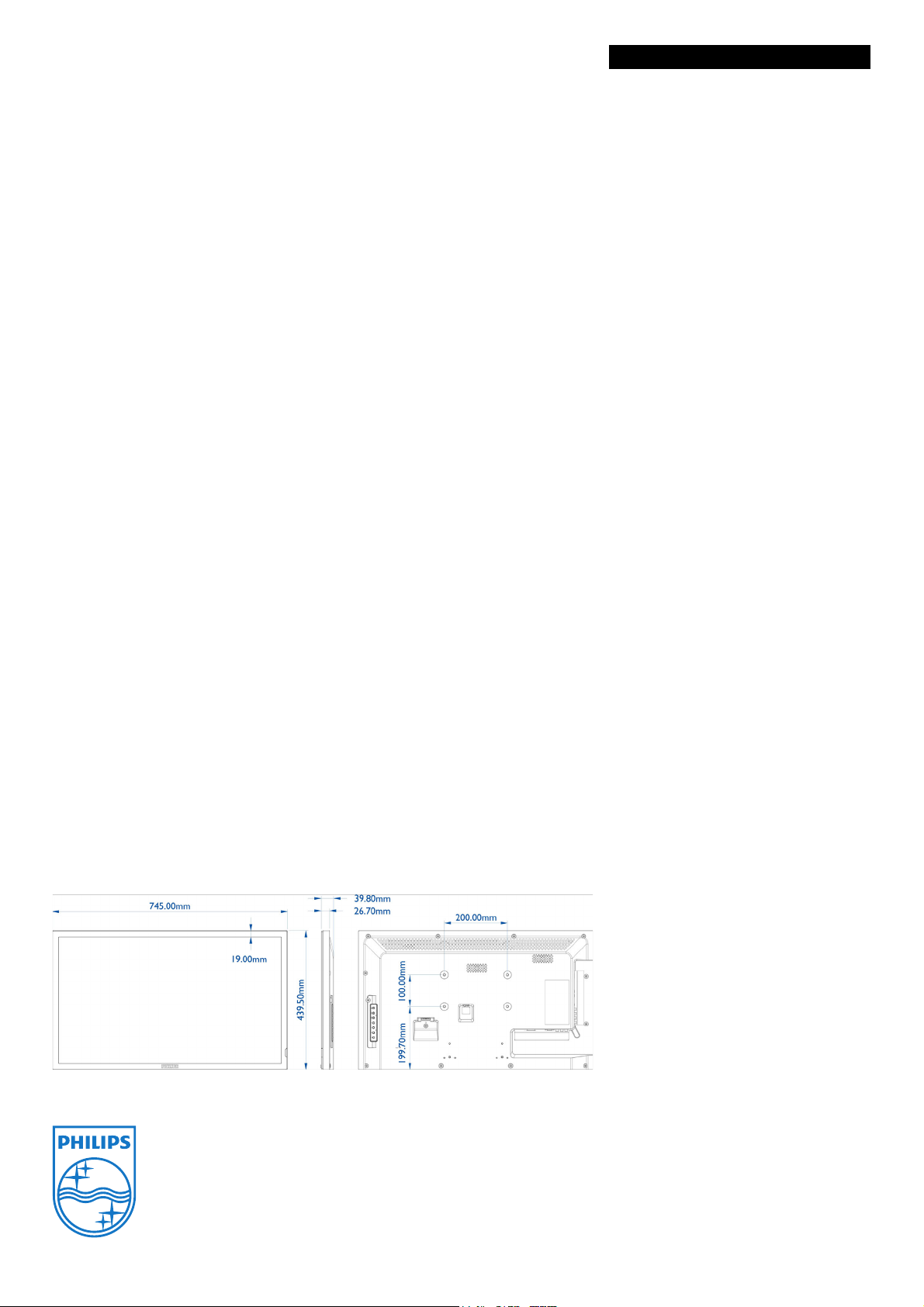

•Set dimensions (W x H x D):

745.0 x 439.5 x 39.8 mm

• Bezel width: 19 mm

• Product weight: 6.5 kg

• VESA Mount: 200 x 100 mm

•Box dimensions (W x H x D):

1.0

x 557.0 x 119.0 mm

• Weight incl. Packaging: 9.0 kg

Operating conditions

• Temperature range (operation): 0 ~ 40 °C

• Relative humidity: 5 ~ 90 %

• MTBF: 60,000 hour(s)

Power

• Consumption (On mode): 36 W (EnergyStar 6.0 test method)

• Standby power consumption: <0.5 W

Sound

• Built-in speakers: 2 x 10W RMS

Accessories

• Included accessories: AC Power Cord, RS232 cable, VGA cable, Remote Control, Batteries for remote control, User manual on CD-ROM, Quick start guide

Multimedia Applications

• USB Playback Video: 3G2, 3GP, ASF, ASX, AVI, DAT, DivX, F4V, FLV, M2TS, M4V, MK3D, MKV, MOV, MP4, MPE, MPEG, MPG, MTS, QT, TRP, TS, TTS, VOB, WEBM, WMV, Xvid

• USB Playback Picture: BMP, GIF, JPEG, JPG

• USB Playback Audio: AAC, AC3, AIF EC3, M4A, MP3, OGA, OGG, WAV, WMA

AIFF, AMR,

Miscellaneous

• Warranty: 3 year warranty

• On-Screen Display Languages: English, French,

erman, Italian, Polish, Turkish, Russian, Simplified

G Chinese, Spanish, Traditional Chinese

• Regulatory approvals: CE, FCC, Class B, CCC,

HS, UL/cUL, C-Tick, BSMI, CB, GOST

•

Issue date 2013-11-21

Version: 2.0.1

12 NC: 8670 000 95108 EAN: 87 12581 65983 7

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.

www.philips.com
