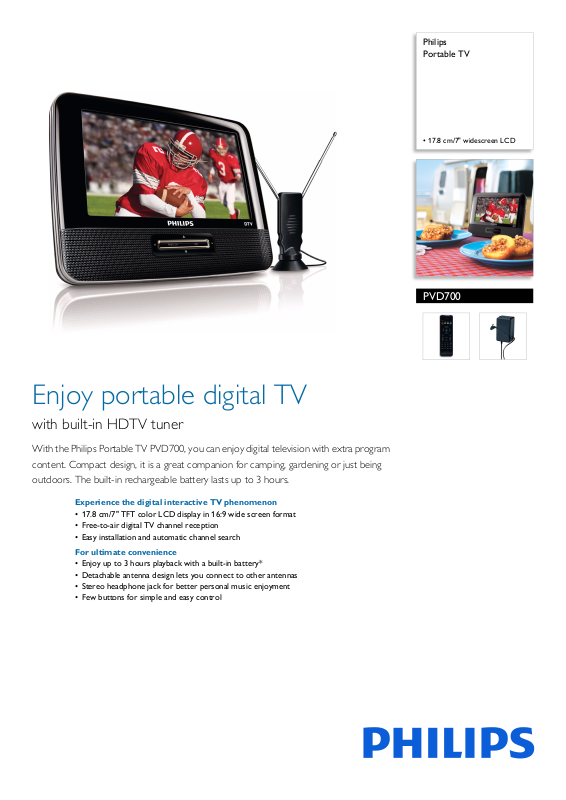

Page 1
Philips
Portable TV
• 17.8 cm/7" widescreen LCD
PVD700
Enjoy portable digital TV
with built-in HDTV tuner
With the Philips Portable TV PVD700, you can enjoy digital television with extra program
content. Compact design, it is a great companion for camping, gardening or just being
outdoors. The built-in rechargeable battery lasts up to 3 hours.
Experience the digital interactive TV phenomenon
• 17.8 cm/7" TFT color LCD display in 16:9 wide screen format
• Free-to-air digital TV channel reception
• Easy installation and automatic channel search
For ultimate convenience
• Enjoy up to 3 hours playback with a built-in battery*
• Detachable antenna design lets you connect to other antennas
• Stereo headphone jack for better personal music enjoyment
• Few buttons for simple and easy control
Page 2
Portable TV
17.8 cm/7" widescreen LCD
PVD700/37
Specifications
Picture/Display
• Display screen type: LCD TFT
• Diagonal screen size (inch): 7 inch
• Resolution: 480(w)x234(H)x3(RGB)
Tuner/Reception/Transmission
• Cable: Unscrambled Digital Cable QAM
• Terrestrial: ATSC (8VSB)
•TV system: ATSC
Sound
• Output Power: 250mW RMS(built-in speakers)
• Output power (RMS): 10mW RMS(earphone)
• Signal to noise ratio: >80dB(earphone),
dB(built-in speakers)
>62
Convenience
• Battery charging indication
• Favorite list TV programs
• User Interface: On Screen Dis
subtitles supported
Video Decoding
• Aspect Ratio: 16:9, 4:3
play on TV, Multiple
Connectivity
• DC in: 9V ~ 12V
• Headphone jack: 3.5mm headphone jack x 1
• TV connection: F-type connector
Accessories
• AC/DC Adaptor: DC 9V, 1A, 110-240v, 50/60Hz
• Remote control: AY5524 slim remote
• User Manual: Multi lanaguage
• Included accessories: Aerial antenna
Power
• Battery Type: Built-in battery
• Battery lifetime: Up to 3 hrs*
• Rechargeable
Dimensions
• Product dimensions (WxDxH): 200 x 27 x 155
(mm)
• Product weight: 0.5 kg
• Packaging type: D-box
• Packaging dimensions (WxHxD): 255 x 260 x 60
(mm)
• Master carton dimensions: 195 x 270 x 265 mm
• Master carton quantity: 3
• Master carton weight: 3.8 kg
•
Highlights
3 hours built-in battery*
This Philips player comes with a compact built-in
rechargeable battery for long-lasting power. Up to 3
hours of continuous movie, photo and music
playback enjoyment can be achieved on a single
charge. Just plug in the power cable to recharge the
player - it's that simple.
Easy installation and search
Installation and setup is simple and quick. The easyto-follow user menu will guide you on how to set up
the TV. The player automatically searches for all the
TV channels available in your area, so you can enjoy
your favorite TV programs right away.
Detachable antenna design
The antenna on the Philips portable TV is completely
detachable, allowing you to easily connect the TV up
to an alternate (e.g., indoor or rooftop) antenna as
needed. By doing so, you can be sure of reaching the
best TV signal available wherever you are.
Free-to-air digital TV
Expand your entertainment experience and enjoy
digital channel programs - for free. With digital TV
broadcasting, you can receive free digital TV
programs in your country. The signal is kept digital
without any analog steps in between, to preserve the
highest quality.
Issue date 2013-06-22
Version: 2.0.2
12 NC: 8670 000 56475
UPC: 6 09585 17647 8
© 2013 Koninklijke Philips N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips N.V.
or their respective owners.
www.philips.com
* Battery life of playtime is approximate and may vary depending on
application condition. To optimize battery life, user should turn LCD
backlight to minimum, connect to headphones (not built-in speakers)
and listen at medium volume level, and use the product at room
temperature.
* Battery life varies by use and settings.
* Rechargeable batteries have a limited number of charge cycles and
may eventually need to be replaced. Battery life and number of
charge cycles vary by use and settings.
