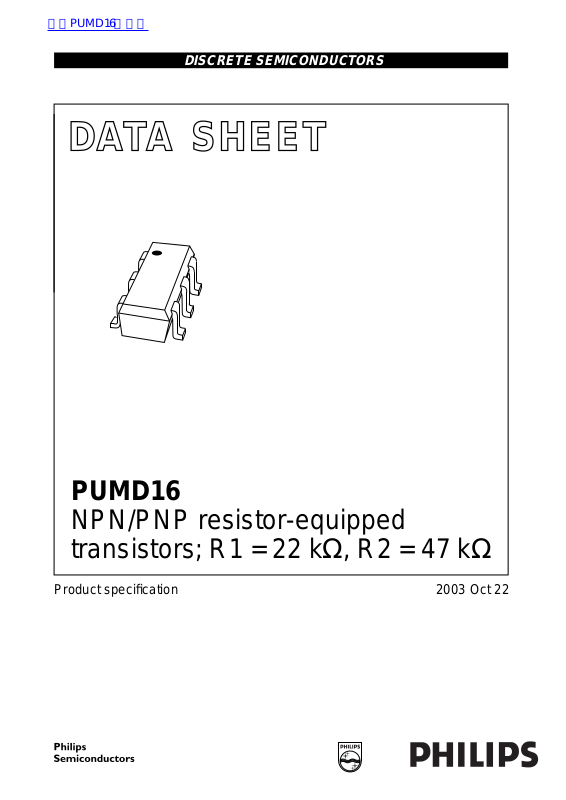

DISCRETE SEMICONDUCTORS

DATA SH EET

ook, halfpage

MBD128

PUMD16

NPN/PNP resistor-equipped
transistors; R1 = 22 kΩ,R2=47kΩ

Product specification 2003 Oct 22

Philips Semiconductors Product specification

NPN/PNP resistor-equipped transistors;
R1 = 22 kΩ, R2 = 47 kΩ

FEATURES

• Built-in bias resistors

• Simplified circuit design

• Reduction of component count

• Reduced pick and place costs.

APPLICATIONS

• Low current peripheral driver

• Replacement of general purpose transistors in digital

applications

• Control of IC inputs.

DESCRIPTION

NPN/PNP resistor-equipped transistors (see “Simplified
outline, symbol and pinning” for package details).

PUMD16

QUICK REFERENCE DATA

SYMBOL PARAMETER TYP. MAX. UNIT

V

CEO

collector-emitter
voltage

I

O

output current (DC) − 100 mA
TR1 NPN −−−
TR2 PNP −−−
R1 bias resistor 22 − kΩ
R2 bias resistor 47 − kΩ

− 50 V

PRODUCT OVERVIEW

TYPE

NUMBER

PHILIPS EIAJ

PUMD16 SOT363 SC-88 D1*

PACKAGE

MARKING CODE

(1)

PNP/PNP

COMPLEMENT

NPN/NPN

COMPLEMENT

PUMB16 PUMH16

Note

1. * = p: Made in Hong Kong.
* = t: Made in Malaysia.
* = W: Made in China.

SIMPLIFIED OUTLINE, SYMBOL AND PINNING

PINNING

TYPE NUMBER SIMPLIFIED OUTLINE AND SYMBOL

PIN DESCRIPTION

PUMD16 1 emitter TR1

5

46

123

Top view

654

R1 R2

TR1

R2

123

TR2

R1

MAM468

2 base TR1
3 collector TR2
4 emitter TR2
5 base TR2
6 collector TR1

2003 Oct 22 2

Philips Semiconductors Product specification

NPN/PNP resistor-equipped transistors;

PUMD16

R1 = 22 kΩ, R2 = 47 kΩ

ORDERING INFORMATION

TYPE NUMBER

NAME DESCRIPTION VERSION

PUMD16 − plastic surface mounted package; 6 leads SOT363

LIMITING VALUES

In accordance with the Absolute Maximum Rating System (IEC 60134).

SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT

Per transistor; for the PNP transistor with negative polarity

V

CBO

V

CEO

V

EBO

V

I

collector-base voltage open emitter − 50 V
collector-emitter voltage open base − 50 V
emitter-base voltage open collector − 6V
input voltage TR1

positive − +40 V
negative −−7V

V

I

input voltage TR2

positive − +7 V

negative −−40 V
I
I
P
T
T
T

O
CM

tot
stg
j
amb

output current (DC) − 100 mA
peak collector current − 100 mA
total power dissipation T

≤ 25 °C; note 1 − 200 mW

amb

storage temperature −65 +150 °C
junction temperature − 150 °C
operating ambient temperature −65 +150 °C

Per device

P

tot

total power dissipation T

≤ 25 °C; note 1 − 300 mW

amb

PACKAGE

Note

1. Device mounted on an FR4 printed-circuit board, single-sided copper, standard footprint.

THERMAL CHARACTERISTICS

SYMBOL PARAMETER CONDITIONS VALUE UNIT

Per transistor

R

th j-a

thermal resistance from junction to ambient T

≤ 25 °C; note 1 625 K/W

amb

Per device

R

th j-a

thermal resistance from junction to ambient T

≤ 25 °C; note 1 416 K/W

amb

Note

1. Device mounted on an FR4 printed-circuit board, single-sided copper, standard footprint.

2003 Oct 22 3

Philips Semiconductors Product specification

NPN/PNP resistor-equipped transistors;

PUMD16

R1 = 22 kΩ, R2 = 47 kΩ

CHARACTERISTICS

T

=25°C unless otherwise specified.

amb

SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
Per transistor; for the PNP transistor with negative polarity

I

CBO

I

CEO

I

EBO

h

FE

V

CEsat

V

i(off)

V

i(on)

R1 input resistor 15.4 22 28.6 kΩ

R2

------- ­R1

C

c

collector-base cut-off current VCB=50V; IE=0 −−100 nA
collector-emitter cut-off current VCE=30V; IB=0 −−1µA

V

=30V; IB= 0; Tj= 150 °C −−50 µA

CE

emitter-base cut-off current VEB=5V; IC=0 −−120 µA
DC current gain VCE=5V; IC= 5 mA 80 −−
collector-emitter saturation voltage IC= 10 mA; IB= 0.5 mA −−150 mV
input-off voltage IC= 100 µA; VCE=5V − 0.8 0.5 V
input-on voltage IC= 2 mA; VCE= 0.3 V 2 1.1 − V

resistor ratio 1.7 2.1 2.6
collector capacitance IE=ie= 0; VCB= 10 V; f = 1 MHz

TR1 (NPN) −−2.5 pF
TR2 (PNP) −−3pF

2003 Oct 22 4

Philips Semiconductors Product specification

NPN/PNP resistor-equipped transistors;

PUMD16

R1 = 22 kΩ, R2 = 47 kΩ

PACKAGE OUTLINES

Plastic surface mounted package; 6 leads SOT363

D

y

56

4

E

H

E

AB

X

v M

A

pin 1
index

132

e

1

DIMENSIONS (mm are the original dimensions)

A

UNIT

mm

A

1.1

0.8

max

0.1

1

b

p

0.30

0.25

0.20

0.10

b

p

e

cD

2.2

1.8

A

wBM

0 1 2 mm

scale

E

1.35

1.15

e

1.3

e

1

0.65

H

E

2.2

2.0

0.45

0.15

A

1

detail X

L

Qywv

p

0.25

0.15

Q

c

L

p

0.2 0.10.2

OUTLINE
VERSION

SOT363 SC-88

IEC JEDEC EIAJ

REFERENCES

2003 Oct 22 5

EUROPEAN

PROJECTION

ISSUE DATE

97-02-28

Philips Semiconductors Product specification

NPN/PNP resistor-equipped transistors;

PUMD16

R1 = 22 kΩ, R2 = 47 kΩ

DATA SHEET STATUS

LEVEL

I Objective data Development This data sheet contains data from the objective specification for product

II Preliminary data Qualification This data sheet contains data from the preliminary specification.

III Product data Production This data sheet contains data from the product specification. Philips

Notes

1. Please consult the most recently issued data sheet before initiating or completing a design.

2. The product status of the device(s) described in this data sheet may have changed since this data sheet was

3. For datasheets describing multiple type numbers, the highest-level product status determines the data sheet status.

DATA SHEET

STATUS

published. The latest information is available on the Internet at URL http://www.semiconductors.philips.com.

(1)

PRODUCT

STATUS

(2)(3)

development. Philips Semiconductors reserves the right to change the
specification in any manner without notice.

Supplementary data will be published at a later date. Philips
Semiconductors reserves the right to change the specification without
notice, in order to improve the design and supply the best possible
product.

Semiconductors reserves the right to make changes at any time in order
to improve the design, manufacturing and supply. Relevant changes will
be communicated via a Customer Product/Process Change Notification
(CPCN).

DEFINITION

DEFINITIONS
Short-form specification  The data in a short-form

specification is extracted from a full data sheet with the
same type number and title. For detailed information see
the relevant data sheet or data handbook.

Limiting values definition  Limiting values given are in
accordance with the Absolute Maximum Rating System
(IEC 60134). Stress above one or more of the limiting
values may cause permanent damage to the device.
These are stress ratings only and operation of the device
atthese or atanyother conditions above thosegivenin the
Characteristics sections of the specification is not implied.
Exposure to limiting values for extended periods may
affect device reliability.

Application information  Applications that are
described herein for any of these products are for
illustrative purposes only. Philips Semiconductors make
norepresentationor warranty that suchapplicationswillbe
suitable for the specified use without further testing or
modification.

DISCLAIMERS
Life support applications  These products are not

designed for use in life support appliances, devices, or
systems where malfunction of these products can
reasonably be expectedto result in personal injury.Philips
Semiconductorscustomersusing or selling theseproducts
for use in such applications do so at their own risk and
agree to fully indemnify Philips Semiconductors for any
damages resulting from such application.

Right to make changes  Philips Semiconductors
reserves the right to make changes in the products ­including circuits, standard cells, and/or software ­described or contained herein in order to improve design
and/or performance. When the productis infull production
(status ‘Production’), relevant changes will be
communicated via a Customer Product/Process Change
Notification (CPCN). Philips Semiconductors assumes no
responsibility or liability for the use of any of these
products, conveys no licence or title under any patent,
copyright, or mask work right to these products, and
makes no representations or warranties that these
products are free from patent, copyright, or mask work
right infringement, unless otherwise specified.

2003 Oct 22 6
