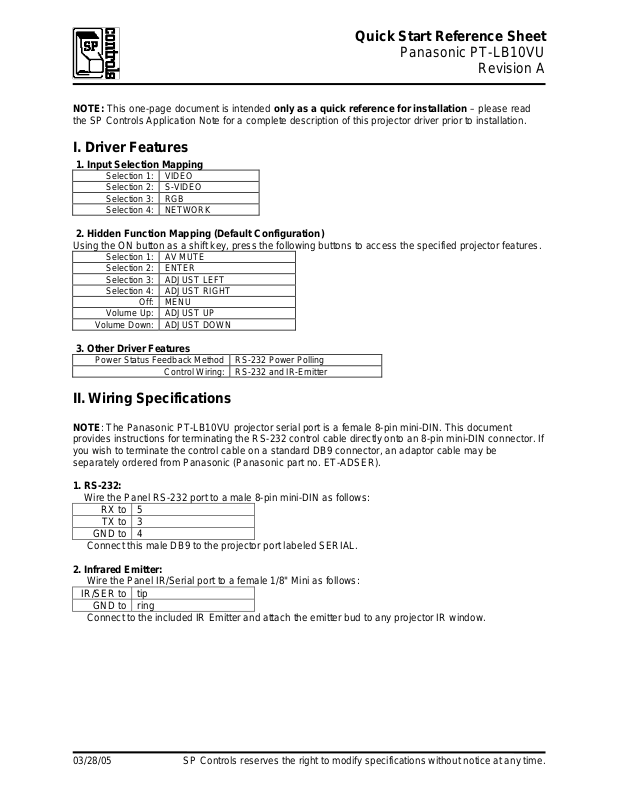

Philips PT-LB10VU User Manual
Quick Start Reference Sheet
Panasonic PT-LB10VU
NOTE: This one-page document is intended only as a quick reference for installation – please read
the SP Controls Application Note for a complete description of this projector driver prior to installation.
Revision A
I. Driver Features
1. Input Selection Mapping
Selection 1: VIDEO
Selection 2: S-VIDEO
Selection 3: RGB
Selection 4: NETWORK
2. Hidden Function Mapping (Default Configuration)
Using the ON button as a shift key, press the following buttons to access the specified projector features.
Selection 1: AV MUTE
Selection 2: ENTER
Selection 3: ADJUST LEFT
Selection 4: ADJUST RIGHT
Off: MENU
Volume Up: ADJUST UP
Volume Down: ADJUST DOWN
3. Other Driver Features
Power Status Feedback Method RS-232 Power Polling
Control Wiring: RS-232 and IR-Emitter
II. Wiring Specifications
NOTE: The Panasonic PT-LB10VU projector serial port is a female 8-pin mini-DIN. This document
provides instructions for terminating the RS-232 control cable directly onto an 8-pin mini-DIN connector. If
you wish to terminate the control cable on a standard DB9 connector, an adaptor cable may be
separately ordered from Panasonic (Panasonic part no. ET-ADSER).

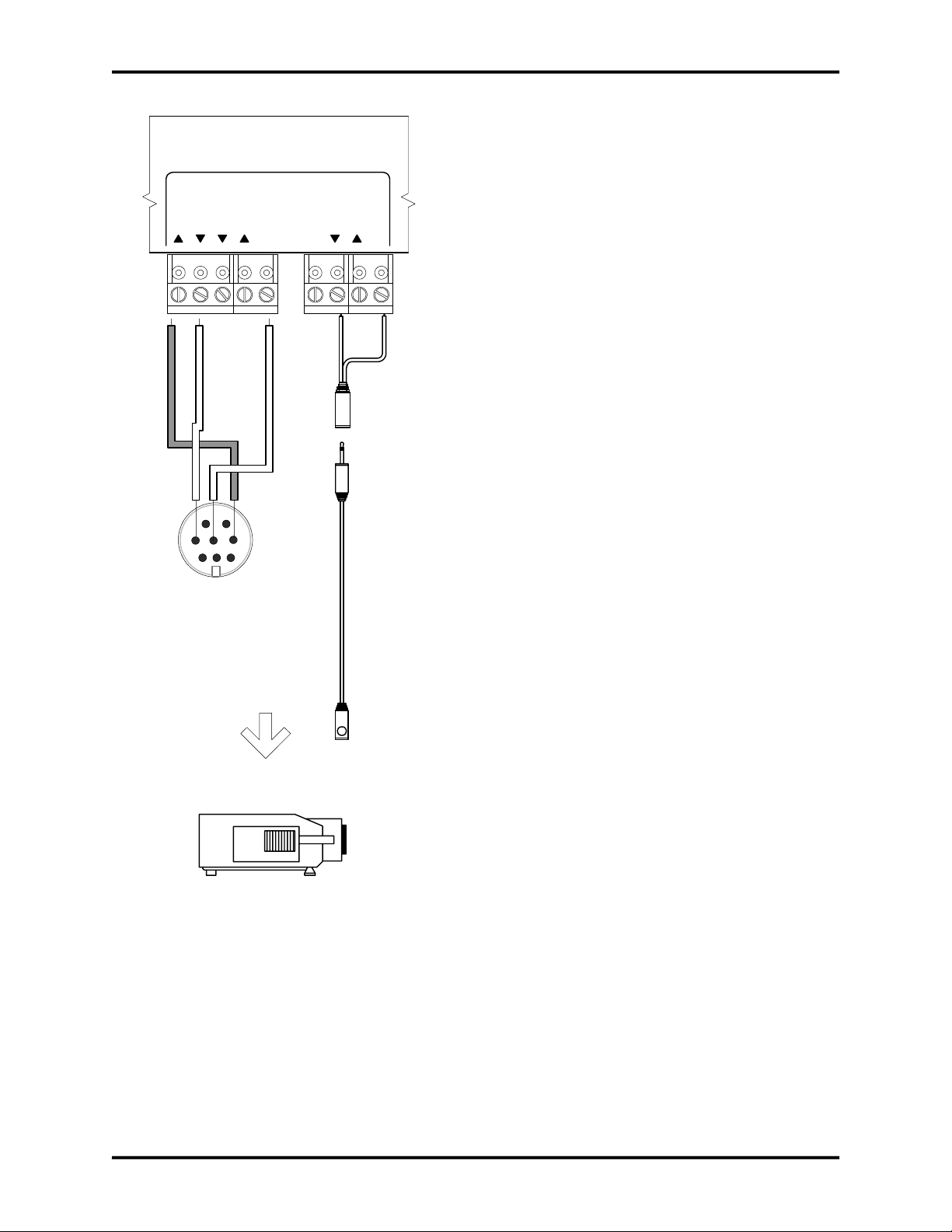

1. RS-232:
Wire the Panel RS-232 port to a male 8-pin mini-DIN as follows:
RX to 5
TX to 3
GND to 4
Connect this male DB9 to the projector port labeled SERIAL.
2. Infrared Emitter:
Wire the Panel IR/Serial port to a female 1/8" Mini as follows:
IR/SER to tip
GND to ring
Connect to the included IR Emitter and attach the emitter bud to any projector IR window.
03/28/05 SP Controls reserves the right to modify specifications without notice at any time.
Projector Driver Application Note
Panasonic PT-LB10VU
This document describes the SmartPanel Projector Driver for the Panasonic PT-LB10VU projector. This
driver is also appropriate for use with the Panasonic PT-LB10VU projector. For more information on
configuring and using the Panel see the SmartPanel Configuration and Installation Manual.
Revision A
I. PROJECTOR CONTROL
A. Volume and Power Control Volume control on the Panasonic is absolute. B. Input Selection Mapping
The following table specifies the factory-preset input mapping for this Driver. The Configuration Utility
can be used to customize these settings your installation.
Selection 1: VIDEO
Selection 2: S-VIDEO
Selection 3: RGB
Selection 4: NETWORK
VIDEO
Input choices available for the Panasonic with this
Driver are VIDEO, S-VIDEO, RGB and
NETWORK.
C. Hidden Function Mapping
The following table specifies the factory preset hidden function mapping for this Driver. The
Configuration Utility can be used to customize these settings your installation.
Selection 1: AV MUTE
Selection 2: ENTER
Selection 3: ADJUST LEFT
Selection 4: ADJUST RIGHT
MUTE
Off: MENU
Volume Up: ADJUST UP
Volume Down: ADJUST DOWN
Hidden functions names are based on the Panasonic remote and controls on top of the projector. Adjust
controls navigate through onscreen menus. Hidden functions are accessed by pressing the indicated key
while the holding the On key down.
AV MUTE is a toggling A/V mute. AUTO SETUP only works when RGB input is selected.
RGB NETWORK
S-VIDEO
ENTER
ADJUST
LEFT
ADJUST
RIGHT
MENU
Projector
ON
OFF
ADJUST
UP
Projector
ON
OFF
ADJUST
DOWN
Volume
Ready
Warm-u p
Volume
Ready
Warm-u p
