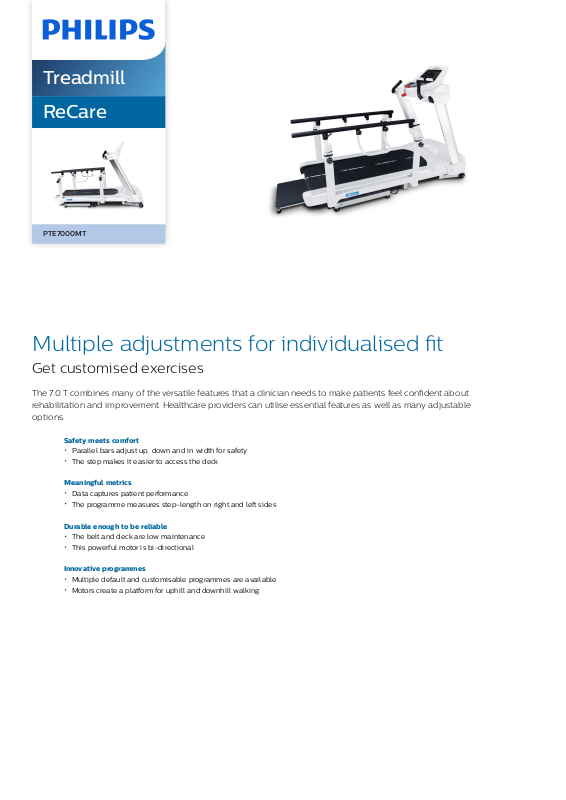

Page 1
Treadmill
ReCare
PTE7000MT
Multiple adjustments for individualised fit
Get customised exercises
The 7.0 T combines many of the versatile features that a clinician needs to make patients feel confident about
rehabilitation and improvement. Healthcare providers can utilise essential features as well as many adjustable
options.
Safety meets comfort
Parallel bars adjust up, down and in width for safety
The step makes it easier to access the deck
Meaningful metrics
Data captures patient performance
The programme measures step-length on right and left si des
Durable enough to be reliable
The belt and deck are low maintenance
This powerful motor is bi-directional
Innovative programmes
Multiple default and customisable programmes are available
Motors create a platform for uphill and downhill walking
Page 2
Treadmill
PTE7000MT/37
Highlights Specifications
Adjustable parallel bars
The removable parallel bars offer handrail
support for added patient safety. Adjustments
can also accommodate users of various
heights and fitness abilities. Bars adjust 25 to
35 i nches in height, 20 to 31 inches in width
and the length extends to the full length of the
deck.
Console
With many features, this easy-to-use console
displays and downloads important workout
data. Feedback windows display METs,
symmetry, cadence, stride lengths, steps and
pace. You can easily select either preset or
programmable modes for diverse, versatile
routines. Programmes can interactively adapt
to patients' characteristics, usi ng input info
such as weight and gender as the basis to
maximise their rehabili tation.
Downloadable data
Workout data can be downloaded directly to a
computer via USB connection.
Motors for incline and decline
With two lift motors—one i n front and the other
at the back—clinicians can create uphill and
downhill walking for patients. An overhead
harness can be used for patients for less
strenuous unweighted exercises. This type of
exercise allows improved lower-body
movement training without the patient bearing
his or her whole body weight on the treadmill.
The deck can be elevated to accommodate
unweighted exercises.
Removable step
The removable step provides a lower step-up
height for people who need a bit more stability
getting on and off the treadmill. This is ideal
for individuals who cannot make a big step —
such as i ndividuals with balance limitations,
smaller range of motion or older adults.
Self-lubricating deck
A wide, ample space of 22" x 60" stride surface
features a self-lubricating deck for low-
maintenance operation.
Speed motor
The 3.0 horsepower continuous duty speed
motor goes forwards from 0 to 10 mph and
reverse up to 3 mph. Reverse walking is helpful
to train muscles not normally exercised during
forward walking alone. Small speed increments
can be easi ly adjusted for patients of all
conditions and ages.
Symmetry programme
For clinicians whose patients suffer from gait
imbalances, both left and right side step
lengths can be measured to document
progress. Clinicians can refer to both graphical
and numerical measurements provided on the
display for precise reference.
Compliance
Certifications: CAN/CSA-C22.2 N o. 60601-
1:14, AN SI/AAMI, ES60601-1:2005+A2 (R2012)
+A1, IEC 60601-1-2:2014, EN 60601-1-2:2015,
IEC 60601-1:2015+A1:2012, EN 60601-1:2006,
+A1:2013, +A12:2014, EN ISO 20957:2013,
MDD 93/42/E EC Class IIa,, N B: 0123
Max. user weight
lbs: 440
kg: 200
Net weight
kg: 174 (A), 51 (B)
lbs: 112.9 (B), 384 (A)
Overall dimensions
inches: 83.7 x 56.7 x 55
cm: 213 x 144 x 140
Stride surface
inches: 2 2 x 60
cm: 152.5 x 56
Step-up height
inches: 4.5'' to step, 9.5'' to deck
cm: 11.5 cm to step, 24.13 cm to deck
Power AC
Volts: 115 volt AC, 60 Hz, 20 amps, N EMA 5-
20P
Grade range
percentage: -10% to 15%
Speed range
km/h: -5 to 16 in 0.1 increments
mph: -3 to 10 in 0.1 increments
Motor spec
HP: 3
CSAFE
Yes: -
Fan
Yes: -
Programmes
include: Custom, HR, Interval, Manual,
Plateau, Symmetry, VO2
Start speed
Yes: -
© 20 20 Koninklijke Philips N.V.
All Right s reserved.
Specifications are subject to change
without notice. Trademarks are the
property of Koninklijke Philips N.V. or
their respective owners.
Issue date 2020 ‑07‑12
Version: 16.4.1
12 NC: 8670 001 57736
EAN: 87 12581 7565 9 8
