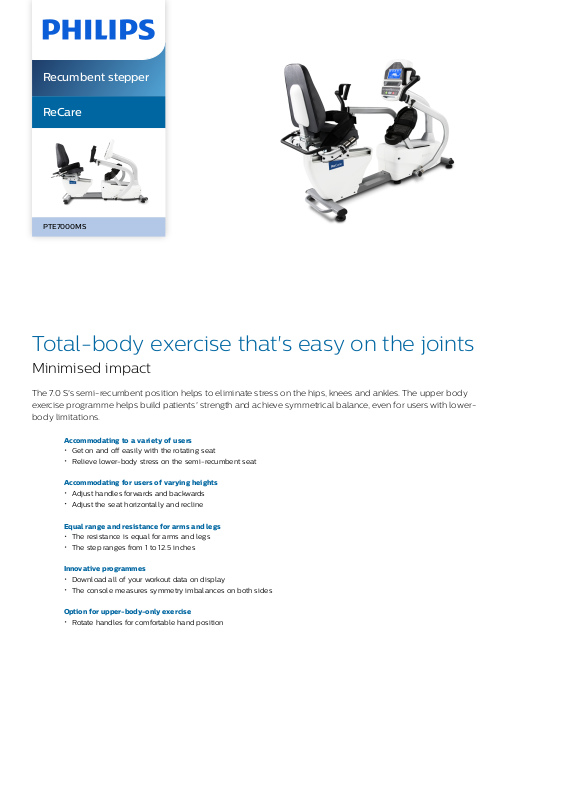

Page 1
Recumbent stepper
ReCare
PTE7000MS
Total-body exercise that's easy on the joints
Minimised impact
The 7.0 S's semi-recumbent position helps to eliminate stress on the hips, knees and ankles. The upper body
exercise programme helps build patients' strength and achieve symmetrical balance, even for users with lowerbody limitations.
Accommodating to a variety of users
Get on and off easi ly with the rotating seat
Relieve lower-body stress on the semi-recumbent seat
Accommodating for users of varying heights
Adjust handles forwards and backwards
Adjust the seat horizontally and recline
Equal range and resistance for arms and legs
The resistance is equal for arms and legs
The step ranges from 1 to 12.5 inches
Innovative programmes
Download all of your workout data on display
The console measures symmetry imbalances on both sides
Option for upper-body-only exercise
Rotate handles for comfortable hand position
Page 2
Recumbent stepper
PTE7000MS/37
Highlights
1:1 Linear resistance
This stepper offers 1:1 resistance, which allows
a stronger arm or leg to help train another arm
or leg. Equal resistance is beneficial for a
variety of users, including those with a wide
range of motion or those with imbalance
between the left and right legs or arms.
Accommodating handgrips
In addition to adjustable length, the handles
also swivel in accordance with natural wrist
movement. Soft, textured coating offers a
secure grip.
Adjustable handgrips
The accommodating handles are adjustable in
length to fit a variety of users. Handle
positioning is easily secured for legs-only,
arms-only or total-body workout.
Adjustable seat
For the best body positioning and workout
comfort, the padded seat adjusts forwards and
backwards and also reclines.
Console
The console displays essential, real-time
performance feedback, while streaming
patients' workout data to a PC. Windows
display time, speed, step length, step count,
watts, calories, METs, heart rate, resistance
level, symmetry and power. Programmes
include manual, hill, plateau, i nterval, facility,
HR and symmetry.
Rotatable seat
Clini cians can comfortably place patients on
the stepper by rotating the seat for the best
positioning. The seat swivels 360 degrees.
Combined with a low step-over height, people
with limited lower-body range of motion can
safely and independently get on and off the
stepper.
Semi-recumbent design
Highly versatile, the semi-recumbent design
relieves stress on joints while providing a
challenging workout. The seat fits nearly any
patient from the elderly with mobili ty issues to
the recreational athlete recovering from an
injury.
Step range
The step depth ranges from 1 to 12.5 inches,
which allows for shallower steps as well as far-
reaching steps. If one foot pushes i ts pedal
forwards, the other pedal will come towards the
user for the same distance that it is pushed
forwards.
Symmetry programme
With the Symmetry programme, clinicians can
gauge a patient's progress i n building both left
and right body strength. Users will gai n
confidence as they see their progress indicated
by the programme, whether they want to
rehabili tate an injury or simply train for better
strength.
Page 3
Recumbent stepper
PTE7000MS/37
Specifications
Compliance
Certifications: CAN/CSA-C22.2 No. 60601-
1:14, AN SI/AAMI, ES60601-1:2005+A2 (R2012)
+A1, IEC 60601-1-2:2014, EN 60601-1-2:2015,
IEC 60601-1:2015+A1:2012, EN 60601-1:2006,
+A1:2013, +A12:2014, EN ISO 20957:2013,
MDD 93/42/EEC Class Im,, NB: 0123
Max. user weight
lbs: 440
kg: 200
Net weight
lbs: 258
kg: 117
Overall dimensions
inches: 67 x 35 x 48
cm: 170 x 89 x 122
Power AC
Volts: AC 100-240 V
CSAFE
Yes: -
Drive train
Heavy-duty: 8-groove poly-V belt, with
spring-loaded idlers
Fan
Yes: -
Hand pulse
Yes: -
Programmes
include: Custom, Hill, H R, Interval, Manual,
Plateau, Symmetry
Resistance
level: 1 to 20
type: Magnetic resistance system
Start resistance
watts: 5
Work range
watts: 5 to 750
Speed range
steps/minute: 10 to 210
© 20 20 Koninklijke Philips N.V.
All Right s reser ved.
Specifications are subject to change
without notice. Trademarks are the
property of Koninklijke Philips N.V. or
their respective owners.
Issue date 202 0‑ 07‑2 2
Version: 11.7.1
12 NC: 8670 001 57739
EAN: 87 12581 75664 2
www.phili ps.com
