Philips PSC 605, PSC 604 User Manual

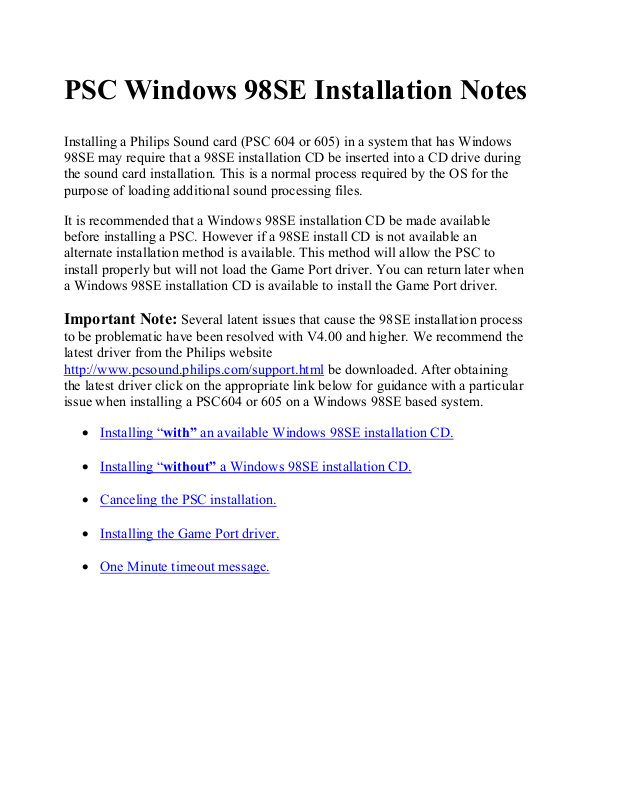

PSC Windows 98SE Installation Notes

Installing a Philips Sound card (PSC 604 or 605) in a system that has Windows
98SE may require that a 98SE installation CD be inserted into a CD drive during
the sound card installation. This is a normal process required by the OS for the
purpose of loading additional sound processing files.

It is recommended that a Windows 98SE installation CD be made available
before installing a PSC. However if a 98SE install CD is not available an
alternate installation method is available. This method will allow the PSC to
install properly but will not load the Game Port driver. You can return later when
a Windows 98SE installation CD is available to install the Game Port driver.

Important Note: Several latent issues that cause the 98SE installation process

to be problematic have been resolved with V4.00 and higher. We recommend the
latest driver from the Philips website

http://www.pcsound.philips.com/support.html

the latest driver click on the appropriate link below for guidance with a particular
issue when installing a PSC604 or 605 on a Windows 98SE based system.

• Installing “with” an available Windows 98SE installation CD.

be downloaded. After obtaining

• Installing “without” a Windows 98SE installation CD.

• Canceling the PSC installation.

• Installing the Game Port driver.

• One Minute timeout message.

Installing “with” an available Windows 98SE

installation CD.

1. Upon boot up, after installing the PSC hardware, cancel the “Found New
Hardware Wizard” when it appears.

2. Insert the Philips installation CD. Note: If using a driver from the web double
click the Web Driver .exe file and skip to step 4.

3. Select “Install Philips Sound Card Drivers” from the autolauncher panel when
it appears.

4. Proceed with the installation normally until the following panel appears.

5. Insert the Windows 98SE CD into a CD drive.

6. Click OK.

7. The following “Copying Files” panel will appear:

8. Use the Browse button to set the appropriate “Copy files from:” location.

9. The following “Open” panel will appear after clicking the Browse button.

10. Select the appropriate CD drive, the drive that contains the Windows CD.

11. Select the “win98” folder.

12. The required file when located by the OS will be displayed as in the example
base5.cab file above.

13. Click the OK button. The following “Copying files” panel will appear.

14. The “Copy files from:” location is now properly set. Click the OK button.

15. The installation will now proceed normally, follow on-screen instructions to
complete the PSC installation process.
