Philips Harmonic Edge™ 2-Channel PCI Sound Card PSC602

____________________________

Philips Consumer Electronics Company

602_harmonic_usermanual_v14.qxd 10/9/01 5:45 PM Page 2

Philips Harmonic Edge™ 2-Channel PCI Sound Card

marks of Sensaura Technology EAX and Environmental Audio Extensions are trademarks of Creative

Technology Ltd. in the United States and other countries. Microsoft and Windows are registered trademarks of Microsoft Corporation.

DirectX and DirectSound are trademarks of Microsoft Corporation. All other trademarks are the property of their respective owners.

2 3

SOFTWARE END USER LICENSE AGREEMENT

PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY. If you (end user, either an entity or an individual) do not agree with these terms and conditions do not install the software. This End User License Agreement is a contract between you and Philips Consumer Electronics B.V, including its suppliers and licensors (“Philips”) for this software program (“Licensed Software”). By installing the Licensed Software or using the Licensed Software you agree to and accept the terms and conditions of this End User License Agreement. YOU AGREE THAT YOUR USE OF THE LICENSED SOFTWARE ACKNOWLEDGES THAT YOU HAVE READ THIS END USER LICENSE AGREEMENT, UNDERSTAND IT, AND AGREE TO BE BOUND BY ITS TERMS AND CONDITIONS:

1. Copyright The Licensed Software is a proprietary product of Philips, and is protected by copyright laws. Title, ownership rights and intellectual property rights in and to the Licensed Software shall remain with Philips.

2. Right to use Philips hereby grants you the personal, non-exclusive license to use the Licensed Software only on and in conjunction with one (1) computer at one time. You may not sell, rent, redistribute, sublicense or lease the Licensed Software, or otherwise transfer or assign the right to use it. You may not decompile, disassemble, reverse engineer, or in any way modify program code, except where this restriction is expressly prohibited by applicable law. Except for one (1) copy which may be made for backup purposes only, you may not copy the Licensed Software. You are not allowed to alter or remove any proprietary notices, including copyright notices, in the Licensed Software.

3. Disclaimer of Warranty THE LICENSED SOFTWARE IS PROVIDED AS IS WITHOUT WARRANTY OF ANY KIND. THE ENTIRE RISK OF USE OF THE LICENSED SOFTWARE REMAINS WITH YOU. TO THE MAXIMUM EXTENT PERMITTED BY LAW, PHILIPS MAKES NO FURTHER REPRESENTATIONS OR WARRANTIES EXPRESSLY OR IMPLIED SUCH AS BY WAY OF EXAMPLE BUT NOT OF LIMITATION REGARDING MERCHANTABILITY OR FITNESS FOR ANY PARTICULAR PURPOSE, OR THAT LICENSED SOFTWARE IS ERROR FREE, OR THAT THE USE OF THE LICENSED SOFTWARE OR ANY COPIES THEREOF WILL NOT INFRINGE ANY PATENT, COPYRIGHT, TRADEMARK OR OTHER RIGHT OF THIRD PARTIES.

4. Updated This license does not grant you the right to any upgrades or updates of the Licensed Software. However, Philips will be entitled to offer updates and/or modifications to the Licensed Software at its discretion.

5. Changes of the agreement No changes of this Agreement are valid unless with Philips’ and your written approval. Any terms and conditions provided by you are inapplicable, whether or not contained in order forms or otherwise, unless specifically accepted by Philips in writing by means of a duly signed addition to this Agreement.

6. Limitations of liability PHILIPS ACCEPTS NO LIABILITY FOR ANY DAMAGES, INCLUDING ANY LOSS OF PROFIT, LOSS SAVINGS, LOSS OF DATA, BUSINESS INTERRUPTIONS, OR ANY DIRECT, INDIRECT, INCIDENTAL, CONSEQUENTIAL, SPECIAL OR PUNITIVE DAMAGES ARISING OUT OF YOUR USE OR INABILITY TO USE THE LICENSED SOFTWARE, EVEN IF PHILIPS OR ITS REPRESENTATIVES HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES, OR FOR ANY CLAIM BY ANY OTHER PARTY. SINCE SOME JURISDICTIONS DO NOT ALLOW THIS LIMITATION OF LIABILITY, THIS LIMITATION OF LIABILITY MAY NOT APPLY TO YOU.

7. Validity and Termination The license granted hereunder shall terminate automatically and without notice if you do not comply with all the terms and conditions of this End User License Agreement. In the event of termination, you shall immediately stop any use of the Licensed Software and destroy all copies thereof. In addition, in the event of termination because of your failure to comply with your obligations, Philips reserves the right to invoke any and all other remedies available to it in law or contract including the right to claim damages.

8. Applicable Law This contract shall exclusively be governed by the laws of the Kingdom of The Netherlands without regard to its conflict of law provisions.

9. Competent Court The competent court for any dispute between you and Philips pursuant to this End User License Agreement is the court of ‘s-Hertogenbosch, the Netherlands.

602_harmonic_usermanual_v14.qxd 10/9/01 5:45 PM Page 4

Table of Contents

Introduction

Key Features ..................................................................................5

Minimum System Requirements ....................................................5

What’s Included ..............................................................................6

What you need for Installation.........................................................6

Hardware Installation

Before Installing Soundcard ...........................................................7

Soundcard Installation.....................................................................8

Soundcard Cable Connections .....................................................10

Driver Installation

Windows®95/98/2000 Installation . . . . . . . . . . . . . . . . . . . . . . .11

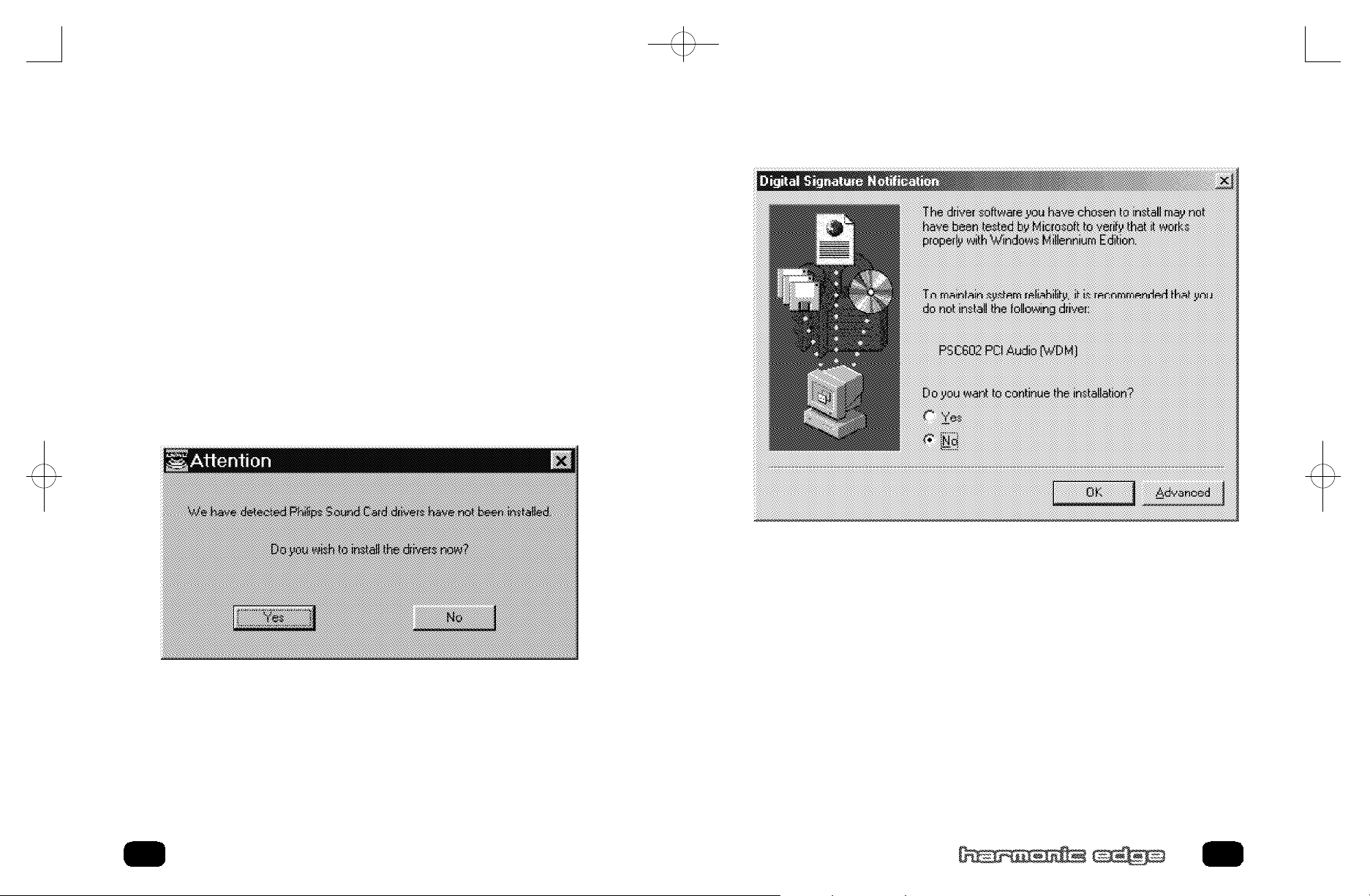

Windows® ME/XP Installation . . . . . . . . . . . . . . . . . . . . . . . . . .14

Yamaha SoftSynthesizer Installation . . . . . . . . . . . . . . . . . . . . .17

About Sensaura Technology...........................................................18

About Siren XPress..........................................................................19

About Acid XPress...........................................................................19

About AudioPix.................................................................................20

Microsoft DirectX Installation..........................................................20

Recording Source Configuration....................................................21

Uninstalling Software Drivers .........................................................21

Windows®95/98 Uninstall.............................................................21

Windows®98SE/ME/2000/XP Uninstall........................................21

Technical Support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Introduction

CONGRATULATIONS ON YOUR PURCHASE OF THE PHILIPS HARMONIC EDGE™ SOUND CARD!

Thank you for enhancing your computer with the Philips Harmonic Edge™.

PSC 602 is the stereo card for you! You have never heard your computer sound this good! You’ll hear full, rich bass, and clear, crisp trebles from all your favorite games, music or websites. Experience your computer like never before!

The heart of your sound card is the powerful Allegro™ audio accelerator which combines advanced audio and Codec functionality in a highly integrated PCI solution for the multimedia PC. Plus!! PSC602 is compatible with all current Windows operating systems and supports the latest gaming standards, including EAX™ 1.0 & 2.0. Endulge yourself in full rich 16 bit CD quality sound with up to 512 voices.

KEY FEATURES

• Full-duplex, 48khz digital recording and playback

• Hardware DSP accelerated algorithms

• 512 Voice professional quality soft-synth with XG and GM compatibility

• DirectSound™, DirectSound3D™

• Stereo, 2 channel speaker or headphone output

• Multi-stream DirectSound and DirectSound 3D Acceleration

• Sensaura CRL Positional 3D

• High-quality sample rate conversion and digital mixing

• Direct Music support

• Realtime effects processing

• Full legacy DOS game support using PC/PCI, DDMA or TDMA hardware

implementation methods

MINIMUM SYSTEM REQUIREMENTS

Installation of your Philips Harmonic Edge™ requires the following minimum hardware and operating system:

• One available PCI 2.1 compliant slot

• Intel Pentium®class or 100% compatible 133MHz or faster processor

4 5

602_harmonic_usermanual_v14.qxd 10/9/01 5:45 PM Page 6

Introduction

• Intel®or 100% compatible motherboard chip set

• 16MB system RAM

• CD ROM for driver installation

• Stereo, 2 channel powered speakers or headphones

• MS-DOS, Windows®95, Windows®98, Windows NT®4.0 (SP3)*, Windows®2000, Windows®Me, Windows® XP

WHAT’S INCLUDED

You will find the following items in your Harmonic Edge™ package: 1 – Harmonic Edge™ sound card in a anti-static pouch

1 – Harmonic Edge™ installation CD 1 – Harmonic Edge™ user’s manual 1 – Yamaha XG Certificate 1 – Warranty Card * Bundled applications are included in the installation CD driver

* Please retain the Yamaha Certificate of Authenticity. The included serial number will be needed during software installation.

WHAT YOU NEED FOR INSTALLATION

Computers come in different shapes and sizes. The installation procedures in this manual apply generally and you should compare the illustrations here with your computer before you start your sound card installation.

• Sound card

• Installation CD

• A Phillips screwdriver

Have your Windows®installation CD available as it may be needed to complete installation of common software components.

Before Installing Soundcard

Its essential to wipe out every trace of any existing soundcard soft-

ware prior to installing the Harmonic Edge. Go to Start/Settings/Control Panel and choose Add/Remove Programs . Highlight the entry for the existing sound card software (if any) and click Add/Remove. Most sound card software will uninstall all files, drivers, and applications that relate to the sound card, but you might need to uninstall several different software components from the Add/Remove list. If you can't find anything that relates to the sound card in the Add/Remove Program list, check for un-install options in the sound card software. An alternate method is to go to the Device

Manager and remove sound card entries under the Sound, video and game controllers tab.

If the PC has sound support built into the motherboard, you'll need to disable that sound support before the PSC can be installed. This is usually done through the PC's setup program (BIOS) and/or by setting a jumper on the motherboard. There might be as many as 3 setting in BIOS that may need to be disabled, check the motherboard user's guide for these settings.

STATIC ELECTRICITY CAN CAUSE PERMANENT DAMAGE

TO YOUR SOUND CARD

To prevent damage please:

1. Always hold your sound card by its edges. Avoid touching any electronic components on your sound card.

2. Use a grounding strap or touch any non -painted surface of your computer chassis before you begin installation to discharge static electricity.

6 7
