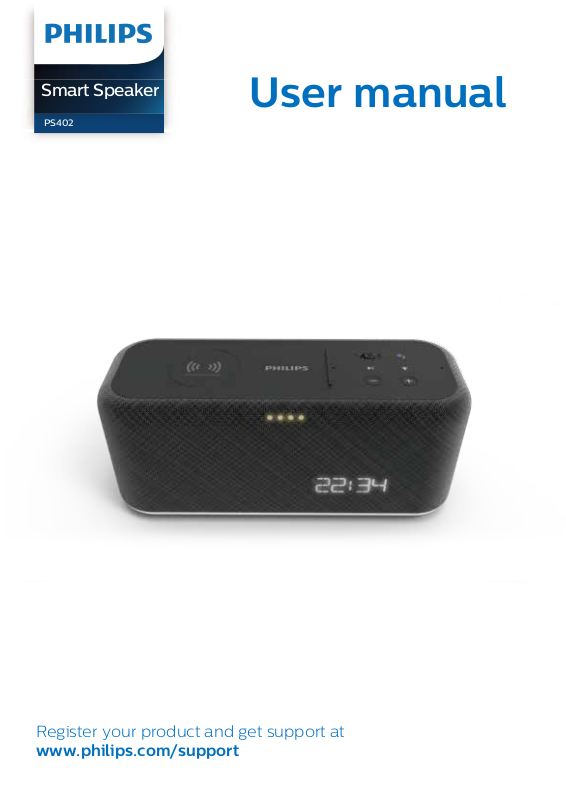

Page 1
Smart Speaker
PS402
User manual
Register your product and get support at
www.philips.com/support
Page 2
Contents
1 Important 1
Safety 1
Notice 1
2 Your Wireless speaker 3
Introduction 3
What's in the box 3
Overview of the speaker 4
3 Get started 5
5Connect power
6Google home APP
4 You can also use a
BLUETOOTH speaker
Connect a Bluetooth device 7
Play from a connected
Bluetooth device
Disconnect a device 8
Reconnect a device 8
Set clock 8
Set alarm time 8
Wireless charging 9
Standby mode 9
5 Other features 10
Adjust volume 10
6 10
7 Troubleshooting 11
General 11
7
8
Page 3
1 Important
Notice
Safety
Warning
Never remove the casing of this speaker.
•
Never place this speaker on other electrical
•
equipment.
Keep this speaker away from direct
•
•
Only use attachments or
manufacturer.
Do not place any sources of
•
danger on the speaker (e.g. lighted
candles).
If your speaker gets wet, clean with
•
a soft dry cloth and then let it dry
completely in a well-ventilated
place before use next time.
Note
• The type plate is located on the left side
of the speaker.
to this device that are not expressly
approved by MMD Hong Kong Holding
Limited may void the user’s authority to
operate the equipment.
Compliance
Hereby, MMD Hong Kong Holding
Limited declares that this product is in
compliance with the essential
requirements and other relevant
provisions of Directive 2014/30/EU.
Conformity on
www.philips.com/support.
Care of the environment
Disposal of your old product
EN
Your product is designed and
our pr
manufactured with high quality
materials and components, which can
be recycled and reused.
This symbol on a product means that the
product is covered by European Directive
2012/19/EU.
1
Page 4
2013/56/EU which cannot be disposed
of with normal household waste. We
strongly advise you to take your product
service centre to have a professional
remove the rechargeable battery.
Inform yourself about the local separate
collection system for electrical and
electronic products and rechargeable
batteries. Follow local rules and
never dispose of the product and
rechargeable batteries with normal
household waste. Correct disposal of
old products and rechargeable batteries
helps prevent negative consequences
for the environment and human health.
Caution
Environmental information
All unnecessary packaging has been
omitted. We have tried to make the
packaging easy to separate into three
materials: cardboard (box), polystyrene
regarding the disposal of packaging
protective foam sheet.)
Your system consists of materials
which can be recycled and reused if
disassembled by a specialized company.
Please observe the local regulations
materials, exhausted batteries and old
equipment.
EN
2
Page 5
2 Your
wireless
speaker
Congratulations on your purchase, and
your product at www.philips.com/
welcome.
Introduction
With this speaker, you can enjoy audio
from Bluetooth-enabled devices or
play network audio resources.
What's in the box
Check and identify the contents of your
package:
• Speaker
• Adapter
• Printed materials
EN
3
Page 6
Overview of the speaker
USB DC IN
Wireless charging/
Wireless charging
Mute/
Push to talk/
Push to talk(Short press)
standby
(Long press 3s)
Play/Pause/
Play/Pause/Exit standy mode/
stop timer/alarm(Short press)
Open the bluetooth after successful
authentication (Long press 3s)
Enter standy mode (Long press 10s)
Mode/
Clock light brightness adjust
(Short press)
Bottom light brightness adjust
(Double press)
Switch time display format
(Long press 3s)
Vol-/
1 step down (Short press)
continous steps down
(Long press 3s or 3s+)
Vol+/
1 step down (Short press)
continous steps up
(Long press 3s or 3s+)
USB charging port
Charge your mobile devices
Max output 5V 1A current
Power adapter jack
DC IN 15V 2.5A
Clock / Display panel
10
Show current time
Automatically setup and
display after networking
[ ]+[ ]Factory data reset.
11
(Long press 12s )
EN
4
Page 7
3 Get started
Always follow the instructions in this
chapter in sequence.
Connect power
Caution
Risk of product damage! Make sure that the
power voltage corresponds to the voltage
printed on the back or underside of the clock
radio.
Risk of electric shock! When you unplug the
AC plug, always pull the plug from the socket.
Never pull the cord.
Connect the power adaptor to the wall
outlet.
EN
5
Page 8
“Google Home”APP
Place the unit as close as possible
1
to a wireless LAN router.
Establish a wireless connection
from your smartphone/iPhone to
the wireless LAN router.
Take a note of the SSID and the
password(encryption key) of the
connected wireless LAN router.
some of the wireless LAN routers
have multiple SSIDs.for details,
refer to the operating instructions
supplied with the wireless LAN
router.
On the iPhone,activate the
BLUETOOTH funtion.
“Google Home” uses the
BLUETOOTH funtion to identify
the unit.
Set up Wi-Fi®with app.
2
Turn on the unit.
Tap to start “Google Home.”
Follow the directions in the app
to set up your unit for Wi-Fi. Set
the unit to the smartphone/
iPhone’s same Wi-Fi connection.
“Google Home”APP
https://www.google.com/cast/setup/
Google Home
How to use
Talk to your Google Assistant.
You can start conversation simply
by saying “Ok Google” or short
press .
Ok Google,
Play some music
Sure, here's some
music on
Google Play Music
EN
6
Page 9
4 You can also use as a
BLUETOOTH speaker
With this speaker, you can listen to
audio from Bluetooth-enabled devices
and play music through Bluetooth.
Connect a Bluetooth
device
Note
Make sure that Bluetooth function is
•
enabled on your device, and your device is
set as visible to all other Bluetooth devices.
Any obstacle between this speaker
•
and a Bluetooth device can reduce the
operational range.
Keep away from any other electronic
•
device that may cause interference.
The operational range between this
•
speaker and a Bluetooth device is
approximately 3 meters.
•
can open BTpairing by voice,“Ok,
google open the bluetooth”/
“Ok，google bluetooth pairing”.
speaker will be waiting status,for
pairing other Bluetooth device.
Form your smartphone or other
device’ s BLUETOOTH seting,
unit you setup for Wi-Fi.
If pairing procedure has succeed,
•
waiting status for pairing will be
released.Speaker will change into
BT connection status.
For BT pairing operation, if can
•
minutes, speaker will go out.But it
may be changed by Google control.
When Bluetooth is connected or
•
disconnected, there will be a tone
output.
EN
7
Page 10
Play from a connected
Bluetooth device
After successful Bluetooth connection,
play audio on the connected device.
» Audio streams from your Bluetooth
device to the speaker.
• To pause or resume play, press .
Tip
You can also use your Bluetooth device to
•
control play.
Disconnect a device
• Disable Bluetooth on your device;
Move the device beyond the
•
communication range.
Set clock
Automatically setup and display after
networking.
Clock
1
AM/PM
2
•
Long press 3 seconds to
set 12/24 hour format.
Set alarm timer
Reconnect a device
•
When you turn on the speaker,
If not successful, select your
•
Bluetooth device name on your
Bluetooth menuto start reconnection.
You can setup alarm/timer by Google
Assistant.
•
Input Key: Short press
Press key during Alarm ringing,
then Stop Alarm.
EN
8
Page 11
Wireless charging Standby mode
•
Network standby
Module Description
GVA lighting Bottom lighting clock
OFF OFF(No wireless charging) On After authentication
OFF OFF(No wireless charging) Reset state
- On(wireless charging) - Keep on
Triggering conditions
•
1. Google authentication succeeded.
Color warm white: normal /charging
•
complete.
Color orange: charging.
•
Color orange blink: charging error.
•
2. No operation(including key and
hotword use) for 15 minutes and
automatically enters the network
standby mode.
Exit condition
•
1. Any user operation (including voice
wake up, button operation or APP
control).
2. Speaker power is controlled within
2W.
--|--
（blink)
Suspend mode
•
Precondition:Power On
•
Operation:
1. Suspend in: Keep press for 10s+
2.Suspend out: press
•
Description:
1.USB charge out stop;
Wireless charge out still run,
2.Speaker power is controlled within
0.5W.
9EN
Page 12
5 Other features
6
Adjust volume
During music playback,press to
increase or decrease volume.
Tip
You can press and hold to increase or
•
decrease volume continuously.
When the volume reaches the maximum,
•
the speaker beeps twice.
-/+
-/+
Note
Product information is subject to change
•
without prior notice.
Rated output
Acousic
frequency
response
Speaker driver 2 x 1.5” full range, 8Ω
Bass 1 x passive
enhancement radiator
Bluetooth version V4.2
Bluetooth AVRCP V1.5, A2DP1.2
Bluetooth 2.402GHz~
frequency band 2.480GHz ISM Band
/ Output power /BDR:7±2dBm
EDR:4±2dBm
USB output 5V, 1A
charging
Power 100-240v~
50-60Hz(AC Input)
DC output 15V 2.5A
Support wireless Max power about
charge 10W
WIFI standby <2W
power
consumption
Standby <0.5W
2 x 8 W
60-20000 Hz
consumption
Dimensions
- Main unit 223 x 87 x 94 mm
(W x H x D)
Weight
- Main unit 1.01 kg
10
EN
Page 13
GENERAL DESCRIPTION OF EUT:
Max.e.i.r.p.:IEEE 802.11a:17.97dBm
•
IEEE 802.11n(HT20):16.94dBm
IEEE 802.11n(HT40):15.86dBm
IEEE 802.11ac(VHT20):17.93dBm
IEEE 802.11ac(VHT40):16.96dBm
IEEE 802.11ac(VHT80):16.92dBm
BT（2402-2480MHz）:8.07dBm
•
BT LE（2402-2480MHz）: 9.00dBm
WIFI 2.4GHz(2412-2472MHz):19.94dBm
WIFI 5GHz(5150- 5250MHz): 17.93dBm
WIFI 5GHz(5250- 5350MHz): 17.97dBm
WIFI 5GHz(5470 -5725MHz): 17.92dBm
WIFI 5GHz(5725-5850MHz):13.84dBm
In all EU member states, operation of
•
5150-5350MHz is restrictedto indoor use
only.
7 Trouble-
shooting
Warning
Never remove the casing of this device.
•
To keep the warranty valid, never try to
repair the system yourself.
If you encounter problems when using
this device, check the following points
before requesting service. If the problem
remains unsolved, go to the Philips Web
page (www.philips.com/support). When
you contact Philips, make sure that the
device is nearby and the model number
and serial number are available.
General
No power
· Recharge the speaker.
No sound
· Adjust volume on this product.
· Adjust volume on the connected
device.
· Make sure that your Bluetooth
EN
operational range.
No response from the speaker when
pressing any key.
·
back on.
11
Page 14
2019 © MMD Hong Kong Holding Limited.All rights reserved.
This product has been manufactured by,and is sold under the responsibility of MMD
Hong Kong Holding Limited,and MMD Hong Kong Holding Limited.is the warrantor in
relation to this product. Philips and the Philips Shield Emblem are registered
trademarks of Koninklijke Philips N.V.and are used under license.
TAPS402_00 _UM_V 1.0
Loading...
