User Guide
PS27FHDER
27” FHD Color LCD Monitor
Barco NV
President Kennedypark 35, 8500 Kortrijk, Belgium
Phone: +32 56.23.32.11
Fax: +32 56.26.22.62
Support: www.barco.com/en/support
Visit us at the web: www.barco.com
Printed in Italy
Table of contents
TABLE OF CONTENTS
1. Welcome! ........................ ............................................................ ...... 3
1.1 What’s in the box.............................................................................................. 3
1.2 Product overview.............................................................................................. 3
2. Monitor installation ......................................................... ..................... 5
2.1 Installation procedure............ ................ ................ ................ ................ ............. 5
3. Daily operation ....................................... ............................................ 9
3.1 On/Off switching................ ................ ................ ................ ................ ............... 9
3.2 Status LED...................... ................ ................ .................. ................ ............. 9
3.3 OSD menu use... ................ ................ ................ ................ ................ ............. 9
3.4 Brightness adjustment........................................................................................10
4. Advanced operation ......................................... .................................... 11
4.1 Monitor info ........... .................. ................ ................ ................ ................ .......11
4.2 Image source selection.......................................................................................12
4.3 Aspect ratio ....................................................................................................12
4.4 Color temperature.............................................................................................13
4.5 Display function .............. ................ ................ ................ ................ ................ .14
4.6 OSD menu position ...........................................................................................14
4.7 OSD menu time-out...................... ................ ................ ................ ................ .....15
4.8 OSD lock.................. ................ ................ ................ ................ .................. ...15
4.9 Factory reset...................................................................................................16
4.10 Power over DVI .......... ................ ................ ................ ................ ................ .....17
4.11 +5 VDC power output.........................................................................................18
5. Cleaning your display ........................ ................................................... 19
5.1 Cleaning instructions .........................................................................................19
6. Important information ........................ ................................................... 21
6.1 Safety information............ ................ ................ ................ .................. ............... 21
6.2 Environmental information ...................................................................................23
6.3 Biological hazard and returns............. ................ ................ ................ ................ ...24
6.4 Regulatory information ............ ................ ................ ................ ................ ...........25
6.5 EMC notice ......... ................ ................ ................ ................ ................ ...........25

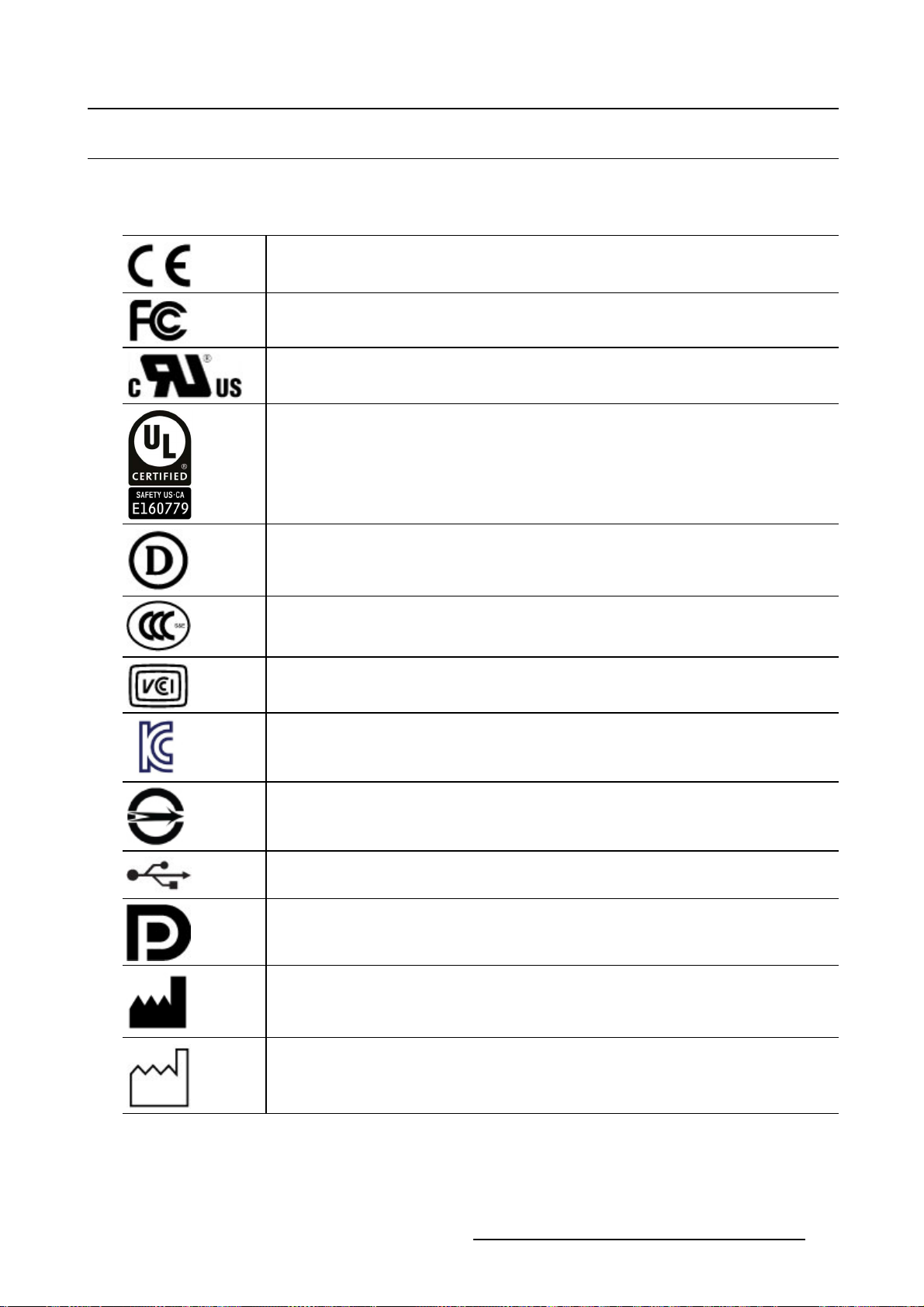

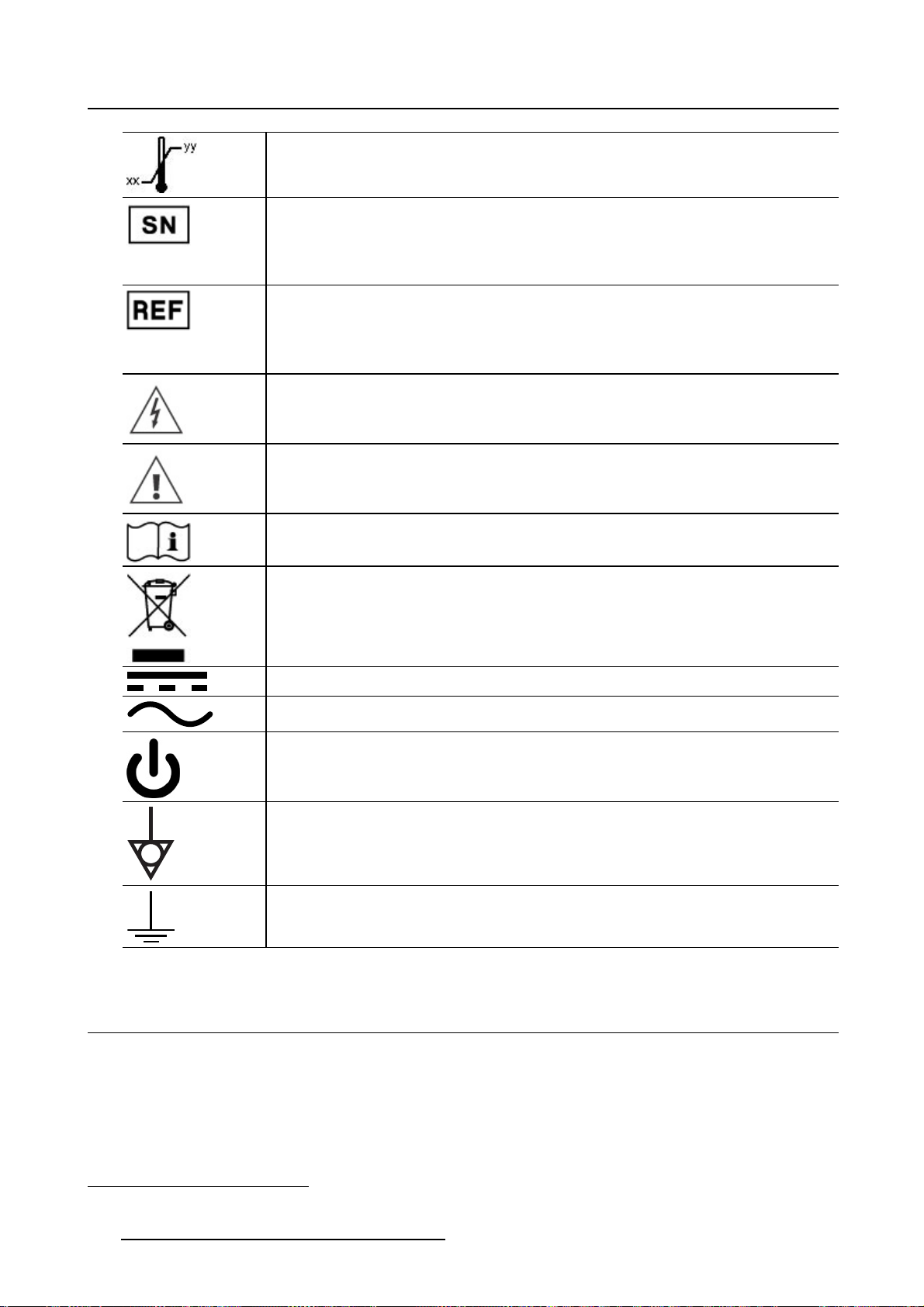

6.6 Explanation of symbols ................ ................ ................ ................ ................ .......29
6.7 Legal disclaimer...............................................................................................30
6.8 Technical specifications ......................................................................................31
K5902101 (451920611531) PS27FHDER 21/05/2015
1
Table of contents
2 K5902101 (451920611531) PS27FHDER 21/05/2015
1. Welcome!
1. WELCOME!
Introduction
The PS27FHDER monitor is a 27” color LCD monitor to be used in a system for diagnostic and interventional X-ray applications.
Type of equipment: stationary (on a stable mechanical array structure)
Intended location: inside of patient area
The monitor has not applied parts, but the front side of the LCD panel and the plastic enclosure have been
treated as applied part because considered accidentally touchable by the patient for a time <1 minute. The
maximum temperature of these parts don’t exceed 55 °C when the ambient temperature is 40 °C.
CAUTION: Read all the important safety information before installing and operating your
monitor. Please refer to the dedicated chapter in this user guide.
1.1 What’s in the box
Overview
The monitor comes with:
• this user guide
Keep your original packaging. It is d esigned for this monitor and is the ideal protection
during transport and storage.

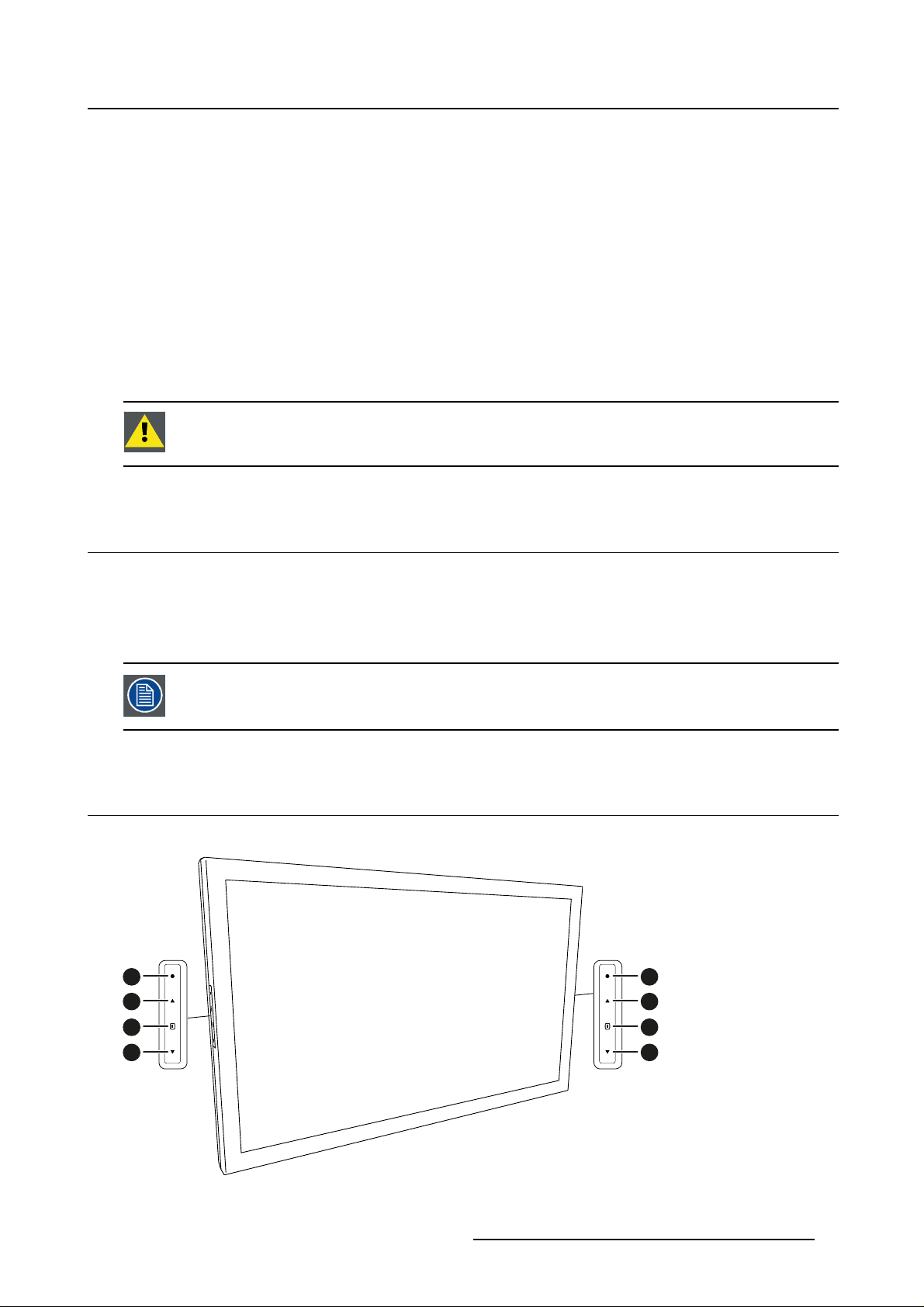

1.2 Product overview
Front
1
2
3
4
1
2
3
4
Image 1-1
K5902101 (451920611531) PS27FHDER 21/05/2015 3
1. Welcome!
1
Status LED
3
Menu / Enter key

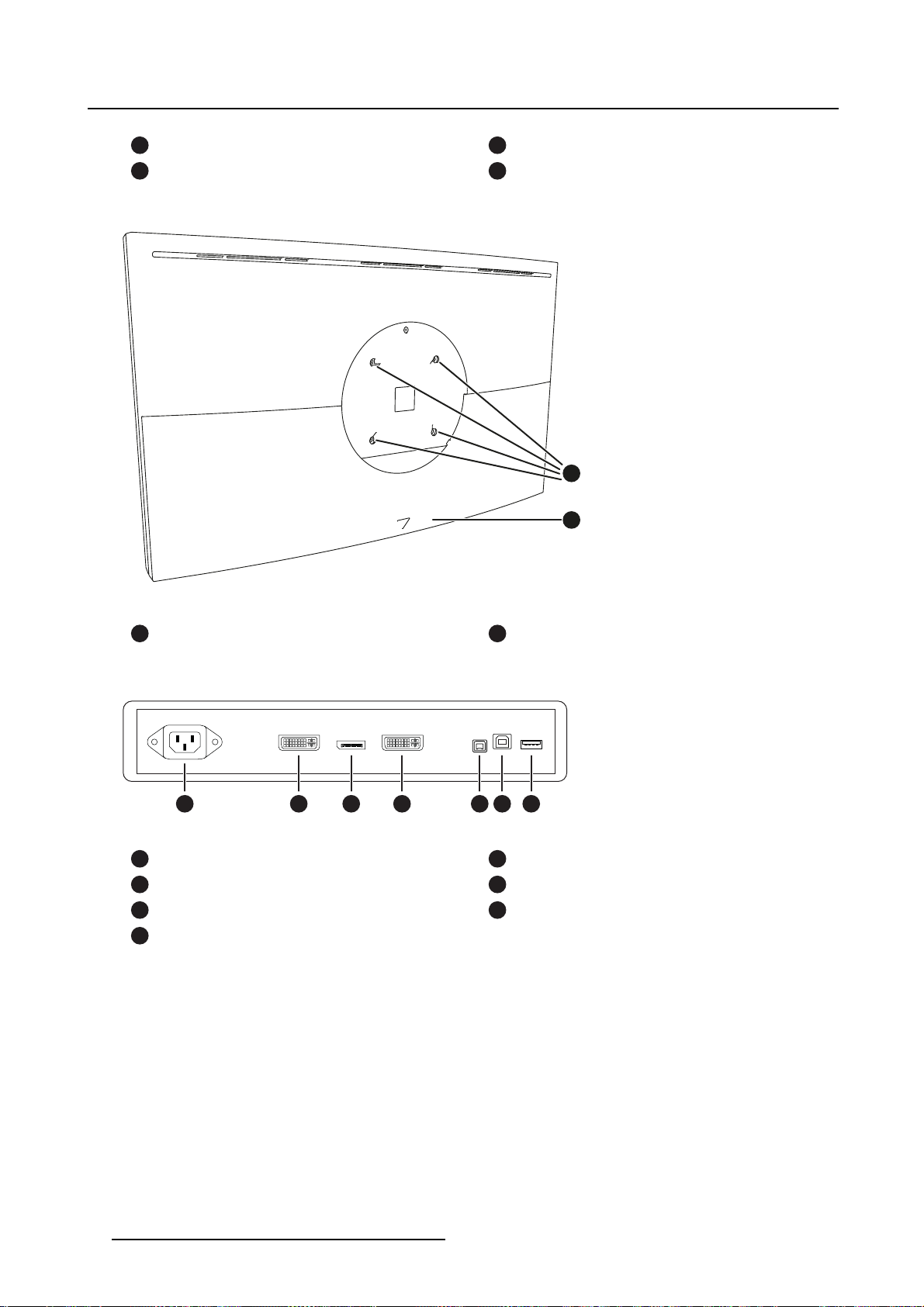

Rear
Image 1-2
2
Up / Brightness increase key
4
Down / Brightness decrease key
1
2
VESA mounting fixation points (VESA 100
1
mm)
Connections
21 4 5 6 73
Image 1-3
1
100 - 240 VAC mains power input (IEC C14)
3
DisplayPort 1.1 input
5
+5 VDC, 500 mA power output
7
USB-A 2.0 downstream connector
2
Cable cover
2
DVI 1 Single Link input
4
DVI 2 Single Link input
6
USB-B 2.0 upstream connector
4
K5902101 (451920611531) PS27FHDER 21/05/2015
2. MONITOR INSTALLATION
WARNING: Sufficient expertise is required to install this equipment. All devices and
complete setup must be tested before taking into operation.

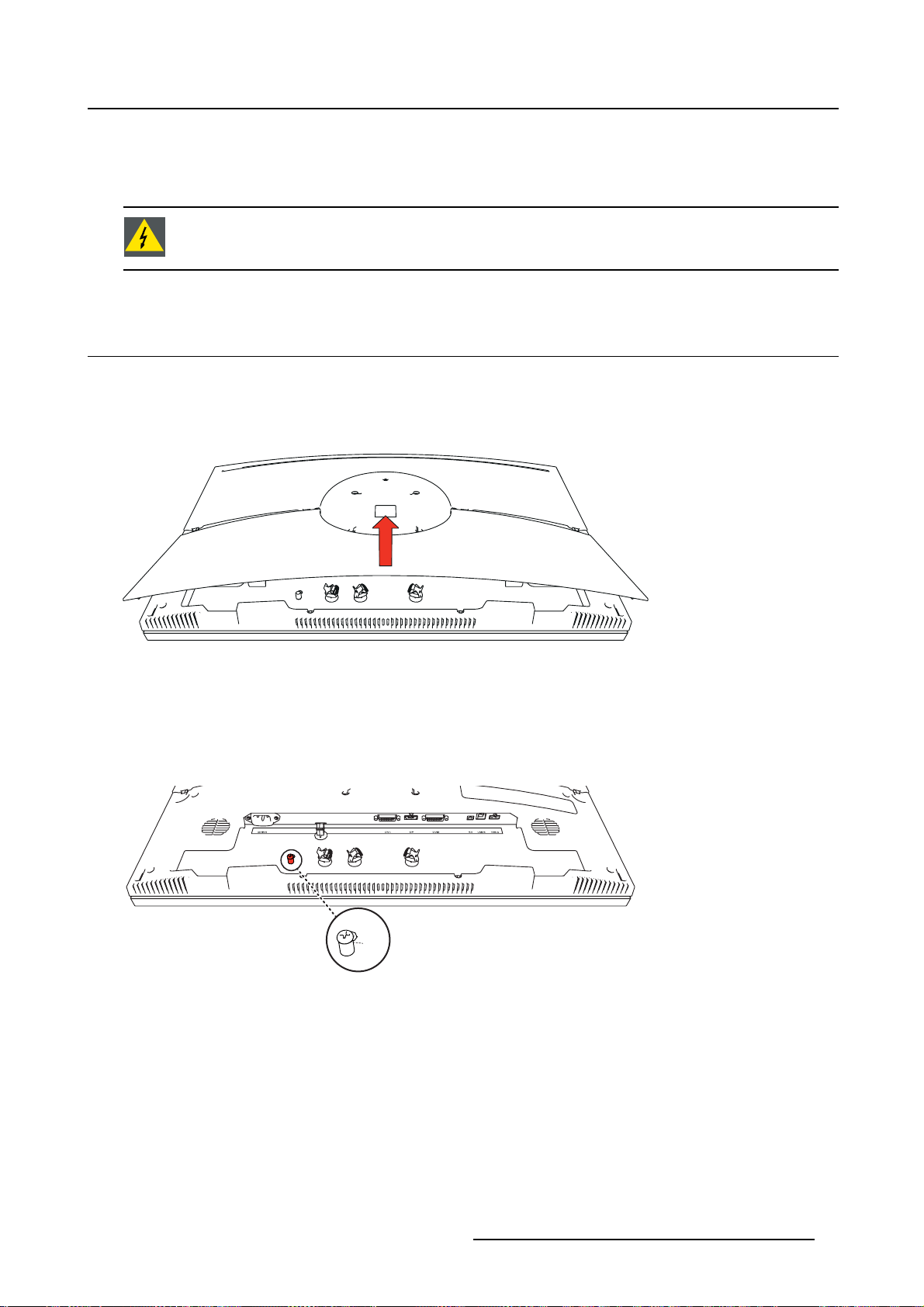

2.1 Installation proced ure
Remove cable cover
To get access to the connectors, the cable cover should be removed.
1. Grab the middle bottom of the cable cover and pull it away from the monitor.
2. Monitor installation
Image 2-1
Earth monitor
1. Optionally: For additional grounding, earth the monitor by connecting the protective earth pin to a
grounded outlet by means of a wire with at minimum AWG18 size (according to national Regulation requirements regarding maximum admitted cable length). Use the included M4 screw to attach the wire
to the protective earth pin.
M4
Image 2-2

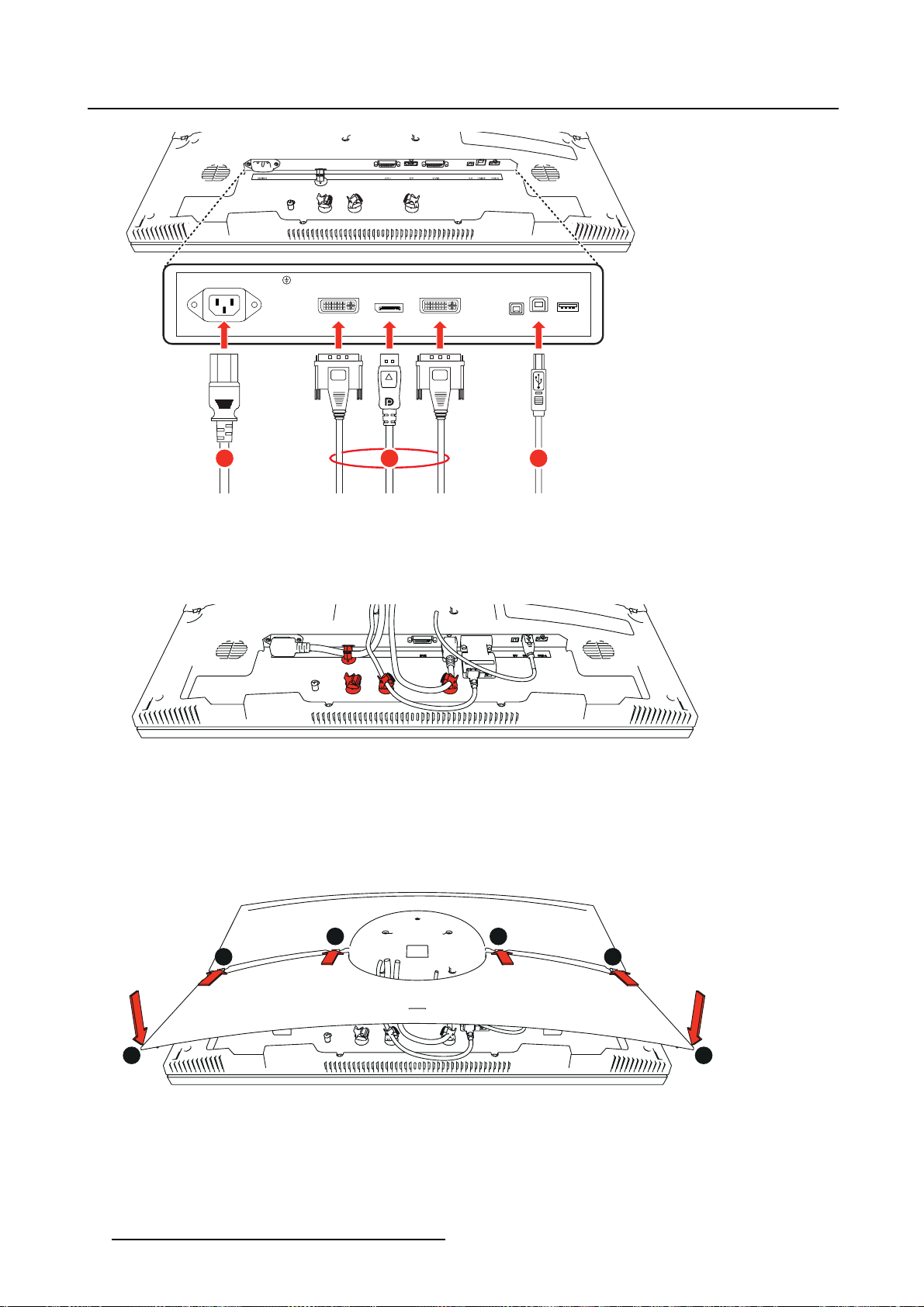

Connect signal and po wer cables
1. Connect one or more video source(s) to the corresponding video inputs of the monitor. Use the appropriate video cable(s) to do t
2. Connect the USB upstream connector to a USB host if you want to make use of any of the monitor USB
downstream connectors (e.g. to connect a keyboard, mouse or other peripheral).
his.
3. Connect the mains power input to a grounded power outlet.
K5902101 (451920611531) PS27FHDER 21/05/2015
5
2. Monitor installation
MAIN INPUT DVI2DVI1 5V USB-B USB-ADP
3 2
Image 2-3
1
Route cables
1. Route all cables trough the provided cable routing channel at the back of the monitor. Use the cable
straps at the inside of the connector compartment to fix the cables.
Image 2-4
Reattach cable cover
1. Slide the 4 position clips on top of the cable cover in the matching fixation holes at the back of the
monitor.
2. Attach the cable cover by pushing the bottom into the monitor until you hear a “click” sound at both
ends of the cover.
1 1
1
“Click!”
Image 2-5
1
“Click!”
22
6 K5902101 (451920611531) PS27FHDER 21/05/2015
2. Monitor installation

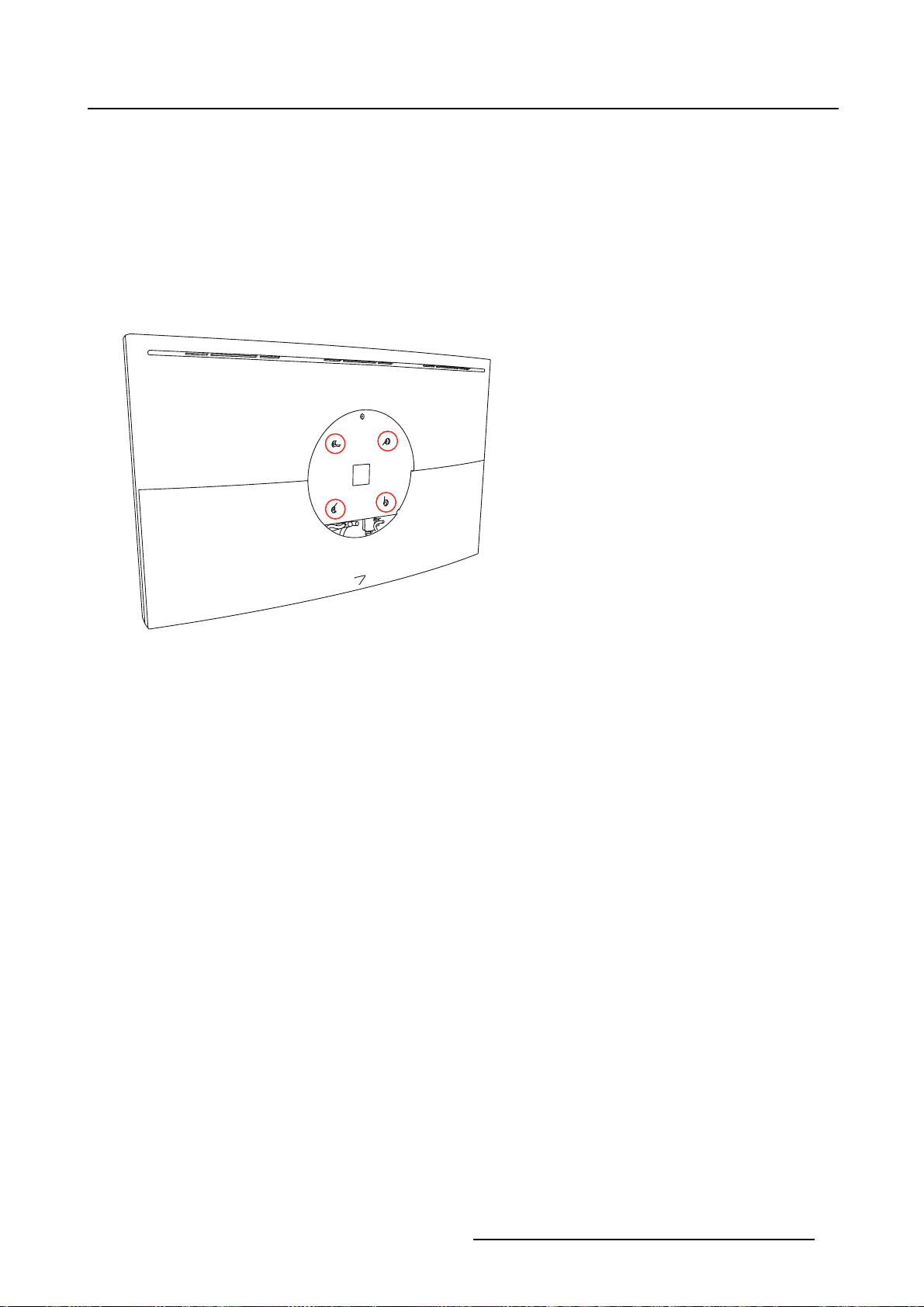

VESA mount installation
1. Attach the monitor in landscape position to a 100 mm VESA mounting bracket by making use of 4 M4
screws. Mounting in portrait position is not supported.
Caution: The 4 screws should be selected according to the thickness of the VESA plate. Please con-
sider that the maximum length of the available thread for the screws inside the monitor is 6
mm and that the unthreaded distance to the outer surface of the plastic back cover is 7.8 mm.
Caution: Use an arm that is approved by VESA.
Caution: Use an arm according to clause 9.8 of IEC 60601-1, considering that the product weight is
8.9 kg.
Image 2-6
K5902101 (451920611531) PS27FHDER 21/05/2015 7
2. Monitor installation
8 K5902101 (451920611531) PS27FHDER 21/05/2015
3. Daily operation
3. DAILY OPERATION
3.1 On/Off switching
About
The PS27FHDER monitor automatically turns on as soon as the power cord is connected to the mains
plug.
The monitor requires at maximum 30 seconds to power-up.
3.2 Status LED
About
During start-up, the monitor performs a self-test and sync-test before going into normal operation mode.
Depending on the test results, the status LED at the left side of the monitor will have a different color and
lighting duration. Below is an overview of the possible status LED modes:
Status Color
ON ORANGE, static Monitor ON, powering on
ON ORANGE, blinking Monitor ON, powering on, self-test
ON RED, static Monitor ON, MAX brightness ON
ON RED, blinking Monitor ON, self-test FAILED
ON GREEN, static Monitor ON, Video sync OK,
ON GREEN, blinking Monitor ON, No video sync
Description
Monitor OFFOFF N/A
Monitor ON, Video sync OK,
default OSD settings
ON
settings different from default
brightness
3.3 OSD menu use
To open the OSD menu
• If the OSD is locked (default setting), first press and hold both the and keys for approximately
3 seconds, until a pop up warns you that the OSD has been unlocked for about 20 sec. Afterwards,
press the
Or,
• If the OSD is not locked, press the
As a result, the OSD main menu comes up in the right bottom part of the screen. If no further actions are
taken within the following 15 seconds, the OSD menu will disappear and lock again if enabled.
K5902101 (451920611531) PS27FHDER 21/05/2015
key to enter the O
SD main menu.
key during normal operation.
9
3. Daily operation
The OSD menu time-out v alue can be adjusted in the OSD menu (OSD menu time-out).
The OSD lock function can be enabled or disabled in the OSD menu (OSD lock).
The OSD menu position can be adjusted in the OSD menu (OSD menu position).
To navigate through the OSD menus
•Usetheor key to scroll up or down through the different menu pages, change values or make
selections.
• Togointoasubmenuorconfirm adjustments and selections, use the
• To exit a menu or return to the previous menu level, scroll the top level item of the current menu, then
press the
key.
key.
3.4 Brightness adjustment
To adjust the brightness
• If the OSD is locked (default setting), first press and hold both the and keys for approximately
3 seconds, until a pop up warns you that the OSD has been unlocked for about 20 sec. Afterwards,
press the brightness increase (
Or,
If the OSD is not locked, press the brightness increase (
brightness as desired.
The OSD lock function can be enabled or disabled in the OSD menu (OSD lock).
To force MAX brightness ON
When brightness is at 100%, by keeping the Up / Brightness increase key ( ) pressed for at least 3
seconds, the brightness is forced to the MAX brightness mode, which adds up 20 cd/m² to the default
stabilized brightness value. Press the Menu / Enter key (
)orbrightnessdecrease( ) keys to adjust the brightness as desired.
) or brightness decrease ( ) keys to adjust the
) to exit the MAX brightness mode.
10
K5902101 (451920611531) PS27FHDER 21/05/2015
4. Advanced operation
4. ADVANCED OPERATION
OSD menu structure
Below is an overview of the PS27FHDER OSD menu structure. Detailed info about the different menus
and settings is available in the next sections.
Info
Model: PS2XXHDXR
Serial Number
Firmware Version
Timing
Total operating hours
Backlight operating hours
Status
12NC
Source
DisplayPort
DVI1
DVI2
Aspect Ratio
Native
Settings
OSD Position
Bottom right
Bottom left
Up right
Up left
Center
OSD Timeout
15 sec.
30 sec.
60 sec.
120 sec.
240 sec.
OSD Lock
On
Off
Factory Reset
Aspect
Full Screen
Color Temperature
Native
Calibrated
Display Function
Native
DICOM
CAL.DICOM
TG3-PMS
Image 4-1
4.1 Monitor info
About monitor info
The monitor seria
the OSD menu.
lnumber,firmware version, operating hours, etc. are available in a dedicated section of
DVI1 5V
PIN 14 ON
PIN 16 ON
Off
DVI2 5V
PIN 14 ON
PIN 16 ON
Off
5V Output
On
Off
K5902101 (451920611531) PS27FHDER 21/05/2015
11
4. Advanced operation

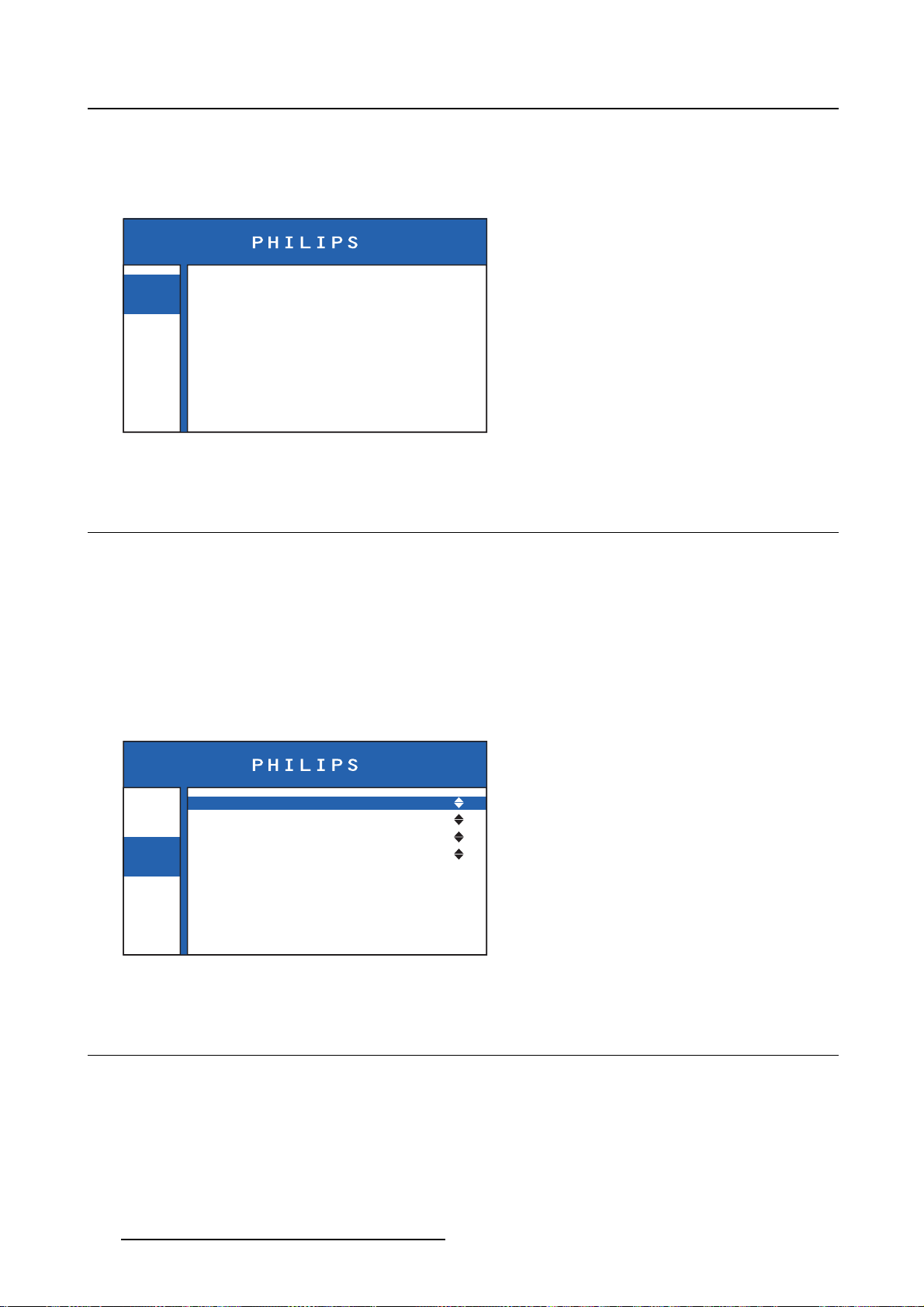

To retrieve info about your monitor
1. Bring up the OSD main menu.
2. Navigate to the Info menu.
Info
Settings
Image 4-2
Model
Serial Number
Firmware Version XXXXXXXXXXXXX
Timing
Total operating hours
Backlight operating hours
Status
9919 322 XXXXX
PSXXXHDXR
XXXXXXXXXXXXX
1920x1080@60 Hz
0
0
Valid signal
4.2 Image source selection
About image source selection
The monitor can have multiple video inputs connected. Switching between the different inputs can be
done easily in the OSD menu.

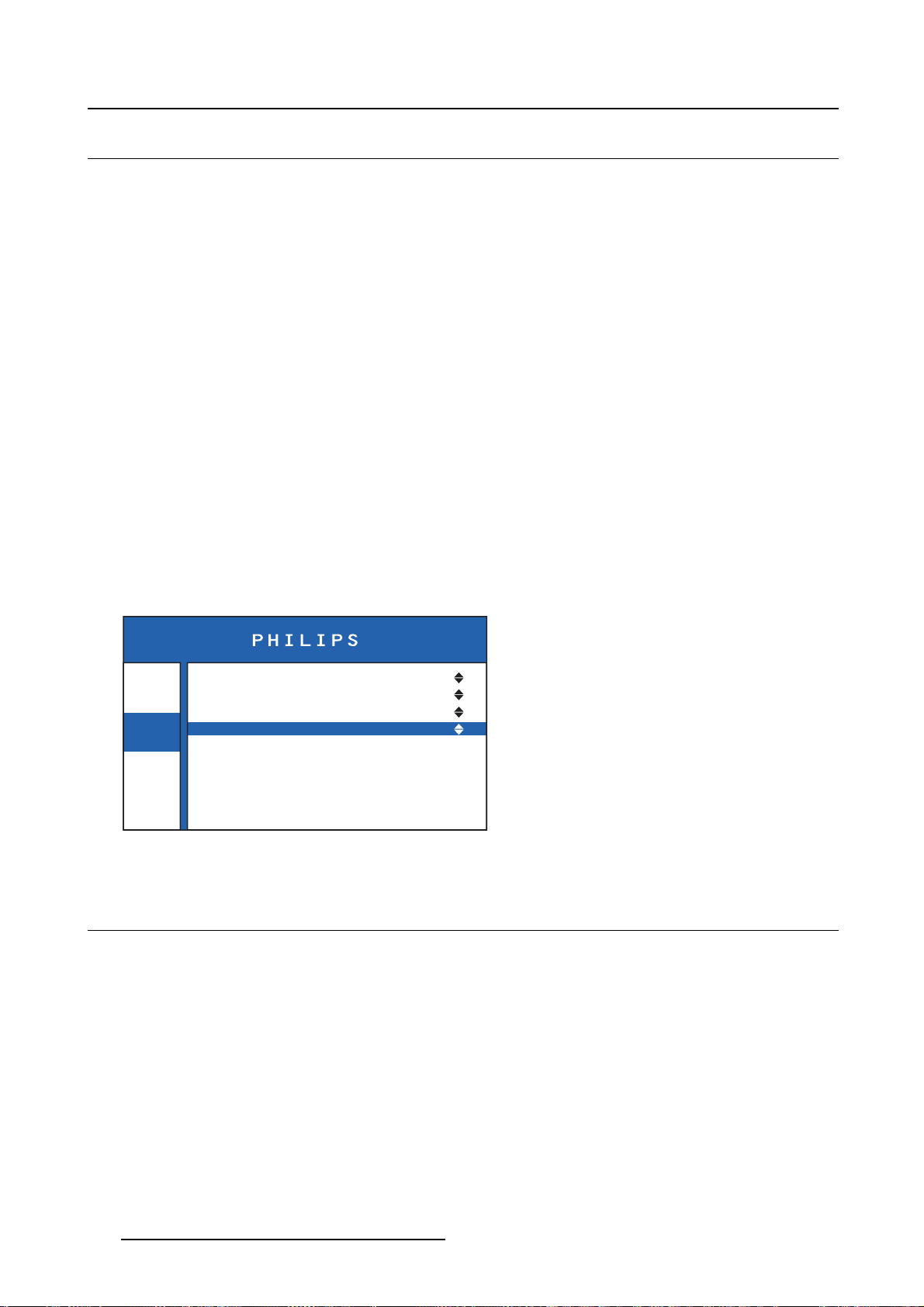

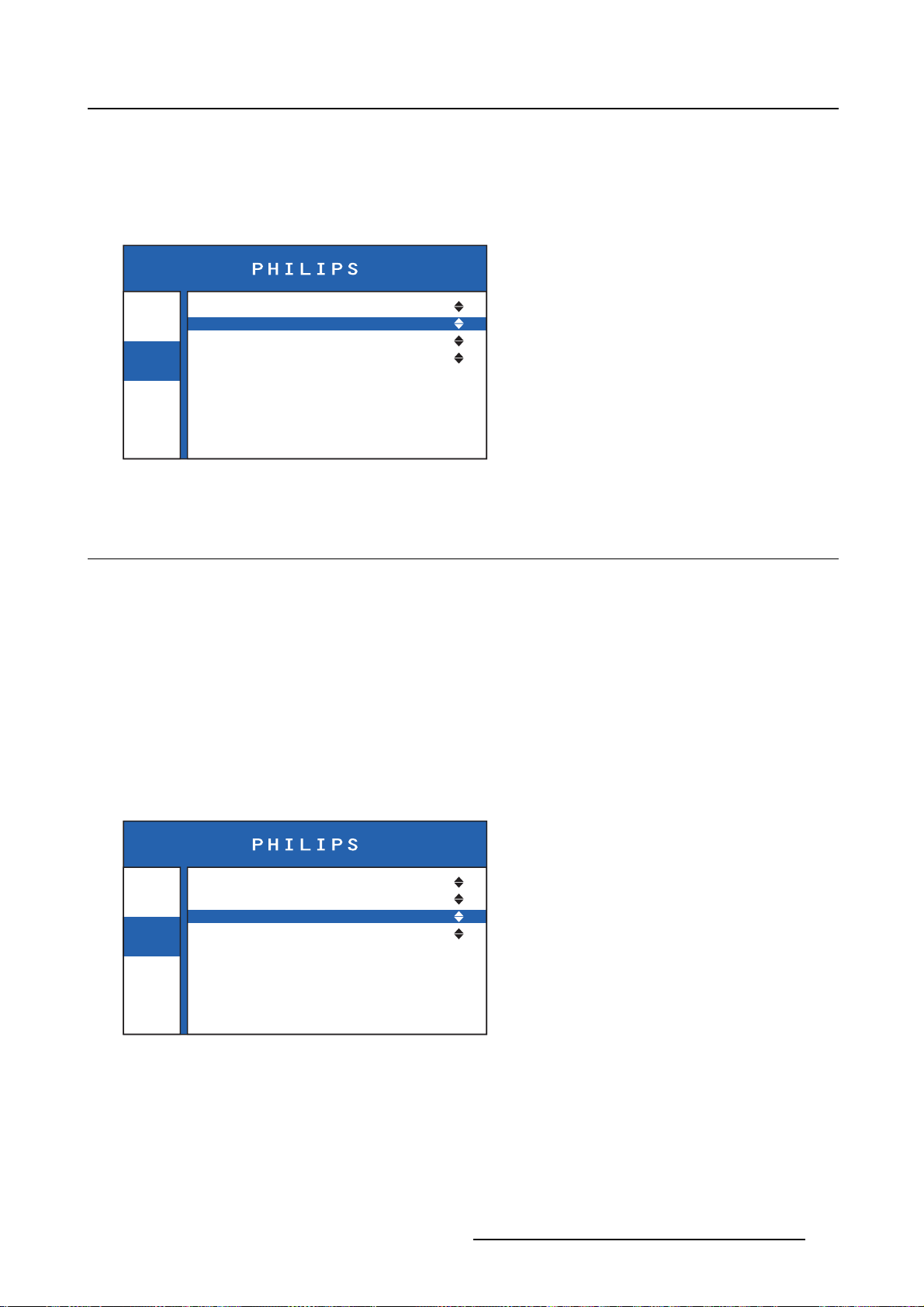

To select the image source
1. Bring up the OSD main menu.
2. Navigate to the Image > Source menu.
3. Select one of the available input image sources.
Info
Source
Aspect Ratio
Color Temperature
Display Function
DVI2
Full Screen
Calibrated
Native
Settings
Image 4-3
4.3 Aspect ratio
About aspect ratio
Following settings are available:
• Native: Input pixel to LCD pixel mapping, no scaling, aligned to the screen center.
• Aspect: Fill the screen on largest dimension, no modification in image aspect-ratio
• Full Screen: Fill the screen, image aspect-ratio can be altered
12
K5902101 (451920611531) PS27FHDER 21/05/2015
To adjust the aspect ratio
1. Bring up the OSD main menu.
2. Navigate to the Image > Aspect ratio menu.
3. Select one of the available aspect ratios.
4. Advanced operation
Info
Source
Aspect Ratio
Color Temperature
Display Function
DVI2
Full Screen
Calibrated
Native
Settings
Image 4-4
4.4 Color temperature
About color temperature
This setting allows you to modify the monitor white point, used as reference for all other colors to be
displayed. The available color temperature settings for your
• Native: The native, unmodified color temperature of the LCD pa
• Calibrated: Corresponds to a color temperature of 6800 Kelvin (D68).
To select a color temperature
1. Bring up the OSD main menu.
monitor are:
nel.
2. Navigate to the Image > Color Temperature menu.
3. Select one of the available color temperature settings.
Info
Settings
Image 4-5
Source
Aspect Ratio
Color Temperature
Display Function
DVI2
Full Screen
Calibrated
Native
K5902101 (451920611531) PS27FHDER 21/05/2015 13
4. Advanced operation
4.5 Display fu nction
About display functions
Native, uncorrected panels will display all grayscale/color levels with equal luminance increments. Studies
have shown however, that in medical images certain grayscale/color parts contain more relevant information than others. To respond to these conclusions, display functions have been defined. These functions
emphasize on these parts containing crucial information by correcting the native panel behavior.
The available display functions for your monitor are:
• Native: The native panel behavior will not be corrected
• DICOM: DICOM (Digital Imaging and Communications in Medicine) is an international standard that
was developed to improve the quality and communication of digital images in radiology. In short, the
DICOM gamma function results in more visible grayscales in the images. It is recommended to select
the DICOM gamma function for most medical viewing applications.
• CAL.DICOM: This DICOM gamma function allows the comparison with displays having different char-
acteristics by applying the same identical transfer curve in the range of 2:200 cd/m².
• TG3-PMS: This special gamma correction of the native grayscale of the monitor is used for compati-
bility with LCD and CRT medical monitors.
To select a display function
1. Bring up the OSD main menu.
2. Navigate to the Image > Display function menu.
3. Select one of the available display functions.
Info
Settings
Image 4-6
Source
Aspect Ratio
Color Temperature
Display Function
DVI2
Full Screen
Calibrated
Native
4.6 OSD menu position
About the OSD menu position
By default, the OSD menu comes up in the right bottom part of the screen. This position can be modified
however. There’s choice from a number of predefined positions.
To change the position of t he OSD menu
1. Bring up the OSD main menu.
2. Navigate to the Settings > OSD Position menu.
3. Select one of the available OSD menu posi
14
tions.
K5902101 (451920611531) PS27FHDER 21/05/2015
4. Advanced operation
Info
Settings
Image 4-7
OSD Position
OSD Timeout
OSD Lock
Factory Reset
DVI1 5V
DVI2 5V
5V Output
Center
240 sec.
Off
Off
Off
Off
4.7 OSD men u time-out
About the OSD menu time-out
By default, the OSD menu will disappear automatically after approximately 15 seconds of inactivity. This
time-out value can be adjusted to a maximum of approximately 4 minutes (240 sec.)
To adjust the OSD menu time-out value
1. Bring up the OSD main menu.
2. Navigate to the Settings > OSD Timeout menu.
3. Select one of the available time-out values.
Info
Settings
Image 4-8
OSD Position
OSD Timeout
OSD Lock
Factory Reset
DVI1 5V
DVI2 5V
5V Output
Center
240 sec.
Off
Off
Off
Off
4.8 OSD lock
About the OSD lock
This setting allows you to prevent the access to the OSD and to the brightness control when enabled.
To fully lock/unlock the OSD
1. Bring up the OSD main menu.
2. Navigate to the Settings > OSD Lock menu.
3. Select On to enable or Off to disable the OSD lock.
K5902101 (451920611531) PS27FHDER 21/05/2015
15
4. Advanced operation
Info
Settings
Image 4-9
OSD Position
OSD Timeout
OSD Lock
Factory Reset
DVI1 5V
DVI2 5V
5V Output
Center
240 sec.
Off
Off
Off
Off
To temporarily unlock and enter the OSD
Press and hold both the and keys for approximately 3 seconds, until a pop up warns you that the
OSD has been unlocked for about 20 sec.
4.9 Factory reset
About the factory reset
The factory reset option allows to reset all OSD menu settings to its default settings. The default settings
are described below.
Image menu:
• Image source: DVI1
• Aspect ratio: Aspect
• Color temperature: Calibrated
• Display function: CAL. DICOM
Settings menu:
• OSD menu position: Bottom right
• OSD menu time-out: 15 sec.
• OSD lock: On
• Power (5V) over DVI1: PIN 14 ON
• Power (5V) over DVI2: PIN 14 ON
• +5 VDC power output: On
Brightness setting: 100%
To reset the OSD menu settings
1. Bring up the OSD main menu.
2. Navigate to the Settings menu.
3. Select Factory reset.
16
K5902101 (451920611531) PS27FHDER 21/05/2015
4. Advanced operation
Info
Settings
Image 4-10
OSD Position
OSD Timeout
OSD Lock
Factory Reset
DVI1 5V
DVI2 5V
5V Output
Bottom right
15 sec.
On
Off
PIN 14 ON
On
4.10 Power over DVI
About p ower on DVI
This setting allows you to select on which pin of the DVI connector(s) that the +5 VDC supply is applied,
or to completely disable the +5 VDC over DVI.
To adjust the power on DVI
1. Bring up the OSD main menu.
2. Navigate to the Settings > DVI1 5V or DVI2 5V menu.
3. Select one of the available options.
Info
Settings
Image 4-11
Info
Settings
Image 4-12
OSD Position
OSD Timeout
OSD Lock
Factory Reset
DVI1 5V
DVI2 5V
5V Output
OSD Position
OSD Timeout
OSD Lock
Factory Reset
DVI1 5V
DVI2 5V
5V Output
Center
240 sec.
Off
Off
Off
Off
Center
240 sec.
Off
Off
Off
Off
K5902101 (451920611531) PS27FHDER 21/05/2015 17
4. Advanced operation

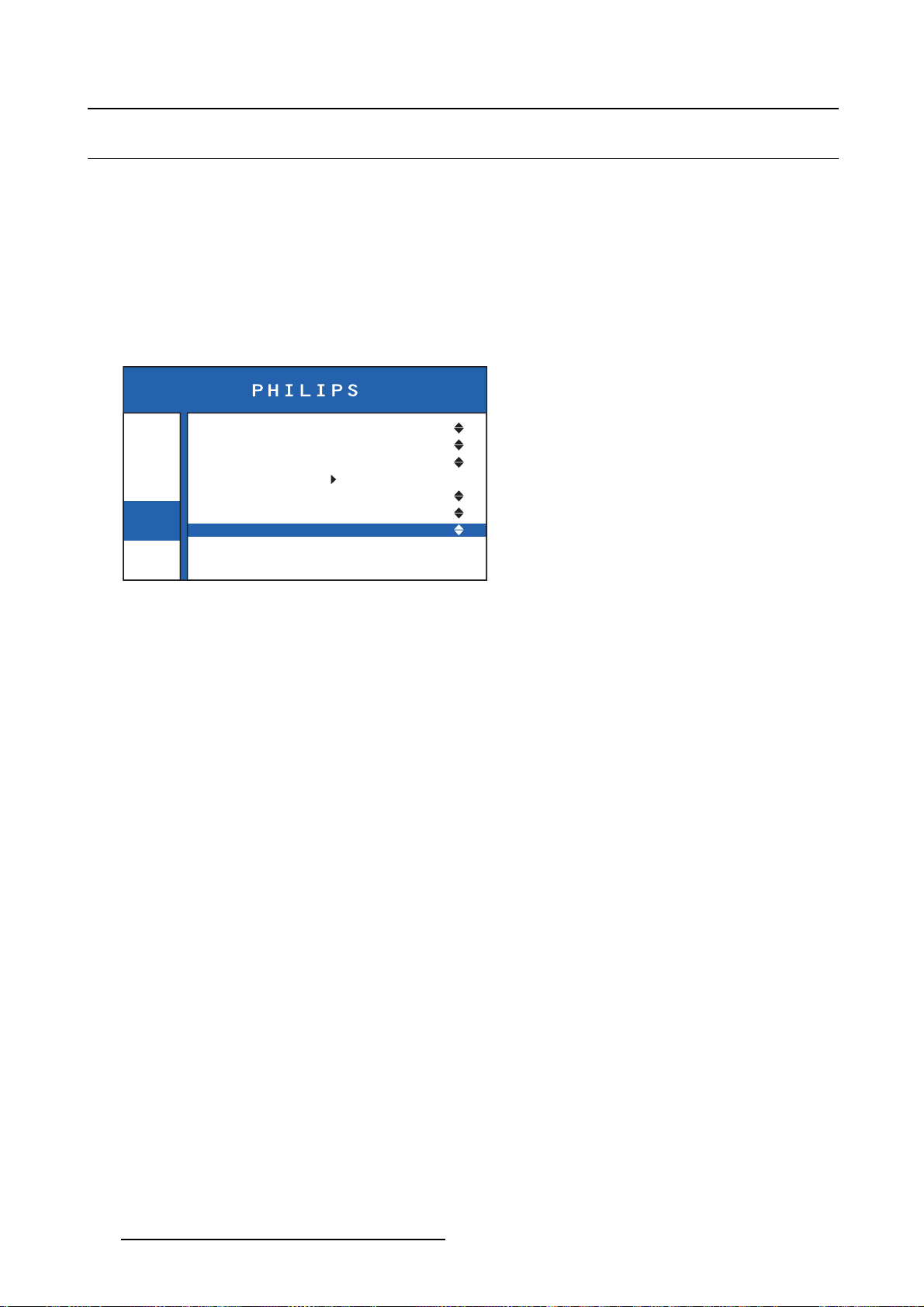

4.11 +5 VDC power output
About the +5 VDC power output
The monitor features a +5 VDC power output connector that can be used to connect miscellaneous peripherals. The power on this connector can be enabled or disabled in the OSD menu.
To enable/disable the +5 VDC power output power connector
1. Bring up the OSD main menu.
2. Navigate to the Settings > 5V Output menu.
3. Select On to enable or Off to disable the +5 VDC power output connector.
Info
Settings
Image 4-13
OSD Position
OSD Timeout
OSD Lock
Factory Reset
DVI1 5V
DVI2 5V
5V Output
Center
240 sec.
Off
Off
Off
Off
18 K5902101 (451920611531) PS27FHDER 21/05/2015
5. Cleaning your display
5. CLEANING YOUR DISPLAY
5.1 Cleaning instructions
To clean the display
Clean the display using a sponge, cleaning cloth or soft tissue, lightly moistened with a recognized cleaning product for medical equipment. Read and follow all label instructions on the cleaning product. In case
of doubt about a certain cleaning product, use plain water.
Possible cleaning solutions:
• 70% isopropyl alcohol
• 1.6% aqueous ammonia
• Cidex® (2.4% glutaraldehyde solution)
• Sodium hypochlorite (bleach) 10%
• “Green soap” (USP)
• 0.5% Chiorhexidine in 70% isopropyl alcohol
• Like Cleansafe® optical cleaning liquid
Do not use following products:
• Alcohol/solvents at higher concentration > 70%
• Strong alkalis lye, strong solvents
•Acid
• Detergents with fluoride
• Detergents with ammonia at higher concentration > 1.6%
• Detergents with abrasives
• Steel wool
• Sponge with abrasives
• Steel blades
• Cloth with steel thread
CAUTION: Take care not to damage or scratch the front glass or LCD. Be careful with
rings or other jewelry and do not apply excessive pressure on the front glass or LCD.
CAUTION: Do not apply or spray liquid directly to the display as excess liquid may cause
damage to internal electronics. Instead, apply the liquid to a cleaning cloth.
K5902101 (451920611531) PS27FHDER 21/05/2015 19
5. Cleaning your display
20 K5902101 (451920611531) PS27FHDER 21/05/2015
6. IMPORTANT INFORMATION
6.1 Safety information
General recommendations
Read the safety and operating instructions before operating the device.
Retain safety and operating instructions for future reference.
Adhere to all warnings on the device and in the operating instructions manual.
Follow all instructions for operation and use.
Electrical Shock or Fire Hazard
To prevent electric shock or fire hazard, do not remove cover.
No serviceable parts inside. Refer servicing to qualified personnel.
Do not expose this apparatus to rain or moisture.
6. Important information
Modifications to the unit:
Do not modify this equipment without authorization of the manufacturer.
Type of protection (electrical):
Monitor w ith internal power supply: Class I equipment.
Degree of safety (flammable anesthetic mixture):
Equipment not suitable for use in the presence of a flammable anesthetic mixture
or nitrous oxide.
with air or with oxygen
Non-patient care equipment
• Equipment primarily for use in a health care facility that is i
• The equipment may not be used with life support equipment.
• The user should not touch the equipment, nor its signal input ports (SIP)/signal output ports (SOP)
and the patient at the same time.
ntended for use outside the patient area.
Mission critical applications
We strongly recommend there is a replacement monitor immediately available in mission critical applications.
Power connection – Equipment w ith internal power supply
• This equipment must be earthed.
• Power requirements: The equipment must be powered by
• The equipment is intended for continuous operation.
the AC mains voltage.
Transient over-voltage
To fully disengage the power to the device, please disc
K5902101 (451920611531) PS27FHDER 21/05/2015
onnect the power cord from the AC inlet.
21
6. Important information
Power cords:
• Europe: H05VV-F or H05VVH2-F PVC cord with appropriate EU plug.
US and Canada: “hospital grade” cord-set has to be used, provided with instructions to indicate that
grounding reliability can be achieved only when the equipment is connected to an equivalent receptacle marked hospital only or hospital grade. These instructions need to be marked either on the equip.
or on a tag on the power cord
• Do not overload wall outlets and extension cords as this may result in fire or electric shock.
• Mains lead protection: Power cords should be routed so that they are not likely to be walked upon
or pinched by items placed upon or against them, paying particular attention to cords at plugs and
receptacles.
• The power supply cord should be replaced by the designated operator only at all time.
• Use a power cord that matches the voltage of the power outlet, which has been approved and complies
with the safety standard of your particular country.
Grounding reliability
Grounding reliability can only be achieved when the equipment is connected to an equivalent receptacle.
Liquids and moisture
Never expose the monitor to liquids or moisture.
Never use the monitor near water - e.g. near a bathtub, washbasin, swimming pool, kitchen sink, laundry
tuborinawetbasement.
The equipment is IP20 compliant.
Ventilation
Do not cover or block any ventilation openings in the cover of the set. When installing the device in a
cupboard or another closed location, heed the necessary space between the set and the sides of the
cupboard.
Installation
Place the device on a flat, solid and stable surface that can support the weight of at least 3 devices. If you
use an unstable cart or stand, the device may fall, causing seri
damage to the device.
ous injury to a child or adult, and serious
This apparatus conforms to:
EN 60601-1:2006 +A11:2011 +A1:2013 +A12:2014
IEC 60601-1(ed.3), IEC 60601-1(ed.3);am1
ANSI/AAMI ES60601-1:2005/(R)2012
CSA CAN/CSA-C22.2 NO. 60601-1:14
IEC 60529:1991 + A1: 2000 (Degrees of protection IP code)
IEC 62471: 2006; EN 62471: 2008 (Photobiological Safety Of Lamps And Lamp System)
FCC class B
ICES-001 Level B
RoHS (2011/65/EC)
National Scandinavian Deviations for CL. 1.7.2:
Finland: "Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan"
Norway: "Apparatet må tilkoples jordet stikkontakt"
Sweden: "Apparaten skall anslutas till jordat uttag"
22
K5902101 (451920611531) PS27FHDER 21/05/2015
6. Important information
6.2 Environmenta l information
Disposal Information
Waste Electrical and Electronic Equipment
This symbol on the product indicates that, under the European Directive 2012/19/EU governing
waste from electrical and electronic equipment, this product must not be disposed of with other municipal
waste. Please dispose of your waste equipment by handing it over to a designated collection point for the
recycling of waste electrical and electronic equipment. To prevent possible harm to the envir
human health from uncontrolled waste disposal, please separate these items from other types of waste
and recycle them responsibly to promote the sustainable reuse of material resources.
For more information about recycling of this product, please contact your local city office or your municipal
waste disposal service.
onment or
For details, please visit the Barco website at: h
ttp://www.barco.com/en/AboutBarco/we
ee
Tu rkey RoHS compliance
Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur.
[Republic of Turkey: In conformity with the WEEE Regulation]
中国大陆 RoHS
Chinese Mainland RoHS
根据中国大陆《电子信息产品污染控制管理办法》（也称为中国大陆RoHS）， 以下部分列出了Barco 产品
中可能包含的有毒和/或有害物质的名称和含量。中国大陆RoHS 指令包含在中国信息产业部MCV标准：
“电子信息产品中有毒物质的限量要求”中。
According to the “China Administration on Control of Pollution Caused by Electronic Information Products”
(Also called RoHS of Chinese Mainland), the table below lists the names and contents of toxic and/or
hazardous substances that Barco’s product may contain. The RoHS of Chinese Mainland is included in
the MCV standard of the Ministry of Information Industry of China, in the section “Limit Requirements of
toxic substances in Electronic Information Products”.
零件项目(名称)
Component name
印制电路配件
有毒有害物质或元素
Hazardous substances and elements
铅
Pb
xooo oo
汞
Hg
镉
Cd
六价铬
Cr6+
多溴联苯
PBB
多溴二苯
醚
PBDE
Printed Circuit Assemblies
液晶面板
LCD panel
外接电(线)缆
External Cables
內部 线路
Internal wiring
金属外壳
Metal enclosure
K5902101 (451920611531) PS27FHDER 21/05/2015 23
xooo oo
xooo oo
oo o o oo
oo o o oo
6. Important information
零件项目(名称)
Component name
塑胶外壳
Plastic enclosure
散热片(器)
Heatsinks
电源供应器
Power Supply Unit
风扇
Fan
文件说明书
Paper Manuals
光盘说明书
CD manual
O: 表示该有毒有害物质在该部件所有均质材料中的含量均在 SJ/T 11363-2006 标准规定的限量要求以下.
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for
this part is below the limit requirement in SJ/T11363-2006.
X: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 SJ/T 11363-2006 标准规定的
限量要求.
有毒有害物质或元素
Hazardous substances and elements
铅
Pb
oo o o oo
oo o o oo
xooo oo
oo o o oo
oo o o oo
oo o o oo
汞
Hg
镉
Cd
六价铬
Cr6+
多溴联苯
PBB
多溴二苯
醚
PBDE
X: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous
materials used for this part is above the limit requirement in SJ/T11363-2006
在中国大陆销售的相应电子信息产品（EIP）都必须遵照中国大陆《电子信息产品污染控制标识要求》标准
贴上环保使用期限（EFUP）标签。Barco 产品所采用的EFUP标签（请参阅实例，徽标内部的编号使用于制
定产品）基于中国大陆的《电子信息产品环保使用期限通则》标准。
All Electronic Information Products (EIP) that are sold within Chinese Mainland must comply with the
“Electronic Information Products Pollution Control Labeling Standard” of Chinese Mainland, marked with
the Environmental Friendly Use Period (EFUP) logo. The number inside the EFUP logo that Barco uses
(please refer to the photo) is based on the “Standard of Electronic Information Products Environmental
Friendly Use Period” of Chinese Mainland.
10
6.3 Biological hazard and returns
Overview
The structure and the specifications of this device as well as the materials used for manufacturing makes
it easy to wipe and clean and therefore suitable to be used for various applications in hospitals and other
medical environments, where procedures for frequent cleaning are specified.
However, normal use shall exclude biological contaminated environments, to prevent spreading of infections.
24
K5902101 (451920611531) PS27FHDER 21/05/2015
6. Important information
Therefore use of this device in such environments is at the exclusive risk of Customer. In case this device
is used where potential biological contamination cannot be excluded.
Customer shall implement the decontamination process as defined in the latest edition of the ANSI/AAMI
ST35 standard on each single failed Product that is returned for servicing, repair, reworking or failure
investigation to Seller (or to the Authorized Service Provider). At least one adhesive yellow label shall be
attached on the top site of the package of returned Product and accompanied by a declaration statement
proving the Product has been successfully decontaminated.
Returned Products that are not provided with such external decontamination label, and/or whenever
declaration is missing, can be rejected by Seller (or by the Authorized Service Provider) and shipped back
at Customer expenses.
6.4 Regulatory information
Indications for use
The PS27FHDER is intended to be used as a tool in displaying and viewing digital images (excluding
digital mammography) for review and analysis by trained medical practitioners. Caution (USA): Federal
law restricts this device to sale by or on the order of a physician. (Details & exemptions are in the Code
of Federal Regulations Title 21, 801 Part D).
FCC class B
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this d
ceived, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This device generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television reception, which can be
determined by turning the device off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
evice must accept any interference re-
such
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Changes or modifications not expressly approved by the party responsible for compliance could void the
user’s authority to operate the equipment.
Canadian notice
This ISM device complies with Canadian ICES-001.
Cet appareil ISM est conforme à la norme NMB-001 du Canada.
6.5 EMC notice
Electromagnetic emissions
The PS27FHDER is intended for use in the electromagnetic environment specified below. The customer
or the user of the PS27FHDER should assure that it is used in such an environment.
K5902101 (451920611531) PS27FHDER 21/05/2015
25
6. Important information
Emissions test
RF emissions
CISPR 11
RF emissions
CISPR 11
Harmonic emissions
IEC 61000-3-2
Voltage fluctuations/ flicker
emissions
IEC 61000-3-3
This PS27FHDER complies with appropriate medical EMC standards on emissions to, and interference
from surrounding equipment. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Interference can be determined by turning the equipment off and on.
If this equipment does cause harmful interference to, or suffer from harmful interference of, surrounding
equipment, the user is encouraged to try to correct the interference by one or more of the following measures:
Compliance
Group 1 The PS27FHDER uses RF energy
Class B
Class D
Complies
Electromagnetic environment –
Guidance
only for its internal function.
Therefore, its RF emissions are
very low and are not likely to
cause any interference in nearby
electronic equipment.
The PS27FHDER is suitable
for use in all establishments,
including domestic establishments
and those directly connected to
the public low-voltage power
supply network that supplies
buildings used for domestic
purposes.
• Reorient or relocate the receiving antenna or equipment.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.
Electromagnetic immunity
The PS27FHDER is intended for use in the electromagnetic environment specified below. The customer
or the user of the PS27FHDER should assure that it is used in such an environment.
Immunity test
Electrostatic discharge
(ESD)
IEC 61000-4-2
Electrical fast
transient/burst
IEC 61000-4-4
Surge
IEC 61000-4-5
IEC 60601-1-2
Test levels
± 6kV contact
±8kVair
± 2kV for power supply
lines
± 1kV for input/ output
lines
± 1 kV line(s) to line(s)
± 2 kV line(s) to earth
Compliance level
± 6kV contact
±8kVair
± 2kV for power supply
lines
± 1kV for input/ output
lines
± 1 kV line(s) to line(s)
±2kVline(s)toearth
Electromagnetic
environment –
guidance
Floors should be wood,
concrete or ceramic tile.
If floors are covered with
synthetic material, the
relative humidity should
be at least 30%
Mains power quality
should be that of a typical
commercial or hospital
environment
Mains power quality
should be that of a typical
commercial or hospital
environment
26 K5902101 (451920611531) PS27FHDER 21/05/2015
6. Important information
Immunity test
Voltage dips, short
interruptions and voltage
variations on power
supply input lines
IEC 61000-4-11
Power frequency (50/60
Hz) magnetic field
IEC 61000-4-8
Conducted RF
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
IEC 60601-1-2
Test levels
<5%U
U
T
40% U
1
(> 95% dip in
T
) for 0.5 cycle
(60%dipinUT)
T
for 5 cycles
70% U
(30%dipinUT)
T
for 25 cycles
<5%U
U
) for 5s
T
(>95% dip in
T
Compliance level
<5%U
U
) for 0.5 cycle
T
40% U
(> 95% dip in
T
(60% dip in UT)
T
for 5 cycles
70% U
(30% dip in UT)
T
for 25 cycles
<5%U
U
)for5s
T
(>95% dip in
T
Electromagnetic
environment –
guidance
Mains power quality
should by that of a typical
commercial or hospital
environment. If the user
of the PS27FHDER
requires continued
operation during power
mains interruptions, it is
recommended that the
PS27FHDER be powered
from an uninterruptible
power supply or a battery.
3 A/m 3 A/m Power frequency
magnetic fields should
be at levels characteristic
of a typical location in
a typical commercial or
hospital environment.
3Vrms
150 kHz to 80 MHz
3V/m
80 MHz to 2.5 GHz
3V
3V/m
Portable and mobile
RF communications
equipment should be
used no closer to any
part of the PS27FHDER,
including cables, than
the recommended
separation distance
calculated from the
equation applicable
to the frequency
of the transmitter.
Recommended
separation distance
1. is the a.c. mains voltage prior to application of the test level.
d=1.2√P
d=1.2√P 80 MHz to 800
MHz
d=2.3√P 800 MHz to 2.5
Ghz
Where P is the maximum
output power rating
of the transmitter in
watts (W) according
to the transmitter
manufacturer and d
is the recommended
separation distance in
meters (m).
Field strengths from
fixed RF transmitters,
as determined by an
electromagnetic site
survey,
2
should be less
than the compliance
K5902101 (451920611531) PS27FHDER 21/05/2015 27
6. Important information
Immunity test
IEC 60601-1-2
Test levels
Compliance level
Electromagnetic
environment –
guidance
level in each frequency
3
range.
Interference may occur in
the vicinity of equipment
marked with symbol:
At 80 MHz and 800 MHz, the higher frequency range applies.
These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, obje cts and people.
Recommended separation distance
The PS27FHDER is intended for use in an electromagnetic environment in which radiated RF disturbances
are controlled. The customer of the user of the PS27FHDER can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment
(transmitters) and the PS27FHDER as recommended below, according to the maximum output power of
the communications equipment.
Rated maximum output
power of transmitter
W
Separation distance according to frequency of transmitter
4
150kHz to 80MHz
d=1.2√P
80MHz to 800MHz
d=1.2√P
800MHz to 2.5GHz
d=2.3√P
0.01 0.12 0.12 0.23
0.1 0.38 0.38 0.73
1 1.2 1.2 2.3
10 3.8 3.8 7.3
100121223
At 80 MHz and 800 MHz, the separation distance f or the higher frequency range applies.
These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection form structures, object and people.
2. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur
radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic
environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the
location in which the PS27FHDER is used exceeds the applicable RF compliance level above, the PS27FHDER should be observed
to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or
relocating the PS27FHDER.
3. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than3V/m.
4. For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be
estimated using the equation applicable to the frequency of the transmitter. Where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter manufacturer.
28 K5902101 (451920611531) PS27FHDER 21/05/2015
6.6 Explanation of symbols
Symbols on the device
On the device or power supply, you may find the following symbols (nonrestrictive list):
Indicates the device meets the requirements of the applicable EC directives.
Indicates compliance with Part 15 of the FCC rules (Class A or Class B)
Indicates the device is approved according to the UL Recognition regulations
Indicates the device is approved according to the UL regulations for Canada
and US
Indicates the device is approved according to the UL Demko regulations
6. Important information
Indicates the device is approved according to the CCC re
Indicates the device is approved according to the VCCI regulations
Indicates the device is approved according to the KC regulations
Indicates the device is approved according to the BSMI regulations
Indicates the USB connectors on the device
Indicates the DisplayPort connectors on the device
Indicates the legal manufacturer
Indicates the manufacturing date
gulations
K5902101 (451920611531) PS27FHDER 21/05/2015 29
6. Important information
Indicates the temperature limitations5for the device to safely operate within specs.
Indicates the device serial number
Indicates the device part number or catalogue number
Warning: dangerous voltage
Caution
Consult the operating instructions
Indicates this device must not be thrown in the trash but must be recycled,
according to the European WEEE (Waste Electrical and Electronic Equipment)
directive
Indicates Direct Current (DC)
Indicates Alternating Current (AC)
Stand-by
Equipotentiality
Protective earth (ground)
6.7 Legal disc laimer
Disclaimer notice
Although every attempt has been made to achieve technical accuracy in this document, we assume no
responsibility for errors that may be found. Our goal is to provide you with the most accurate and usable
documentation possible; if you discover errors, please let us know.
5. Values for xx and yy can be found in the technical specifications paragraph.
30 K5902101 (451920611531) PS27FHDER 21/05/2015
6. Important information
Barco software products are the property of Barco. They are distributed under copyright by Barco NV or
Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or
Barco Inc. and the licensee. No other use, duplication, or disclosure of a Barco software product, in any
form, is authorized.
The specifications of Barco products are subject to change without notice.
Trademarks
All trademarks and registered trademarks are property of their respective owners.
Copyright notice
This document is copyrighted. All rights are reserved. Neither this document, nor any part of it, may
be reproduced or copied in any form or by any means - graphical, electronic, or mechanical including
photocopying, taping or information storage and retrieval systems - without written permission of Barco.
© 2015 Barco NV all rights reserved.
6.8 Techn ical sp ecifications
Overview
Product acronym
Screen technology FHD LCD, LED backlight
Active screen size (diagonal) 686 mm (27.0”)
Active screen size (H x V) 597.9 mm x 336.3 mm (23.5” x 13.2”)
Aspect ratio (H:V)
Resolution
Pixel pitch 0.3114
Color support 16.7 million (8 bit)
Viewing angle (H, V) 89°
MMEC-2127
16:9
2MP (1920 x 1080)
Maximum luminance
DICOM calibrated luminance 400 cd/m²
Contrast ratio
Response time (Tr + Tf)
Housing color
Video input signals
USB ports 1 x upstream, 1 x downstream (USB 2.0)
Power requirements (nominal) 100-240V (50-60 Hz)
Power consumption
(maximum)
Power consumption (stand-by)
OSD languages
Dimensions(WxHxD)
Dimensions packaged (W x H
xD)
Net weight 8.9 ± 0.5 kg
Net weight packaged 10.6 ± 0.5 kg
650 cd/m² typical
1000:1 typical
600:1 minimum
<25ms
Black / White
2xDVISingleLink
1xDisplayPort1.1
<70W
<20W
English
648.5 x 387 x 86.4 mm
730 x 200 x 560 mm
K5902101 (451920611531) PS27FHDER 21/05/2015 31
6. Important information
Mounting standard
Recommended modalities iXR
Certifications
Supplied accessories
Optional accessories
Warranty 36 months
Operating temperature 10°C to 40°C (10°C to 35°C within specs)
Storage temperature -20°C to 60°C
Operating humidity 20% - 80% (non-condensing)
Storage humidity 10% - 90% (non-condensing)
VESA (100 mm)
EN 60601-1:2006 +A1:2013
IEC 60601-1:2005 +CORR.1(2006) +CORR.2(2007) +A1:2012
ANSI AAMI ES60601-1/(R)2012 and A1:2012, C1:2009 /(R)2012
CAN/CSA ES60601-1 (2014)
IEC 60529:1991 + A1: 2000 (Degrees of protection IP code)
IEC 62471: 2006; EN 62471: 2008 (Photobiological Safety Of Lamps
And Lamp System)
FCC class B
ICES-001 Level B
RoHS (2011/65/EC)
User guide
None
Operation altitude
Storage altitude
0 - 3000 m
0 - 3000 m
32 K5902101 (451920611531) PS27FHDER 21/05/2015

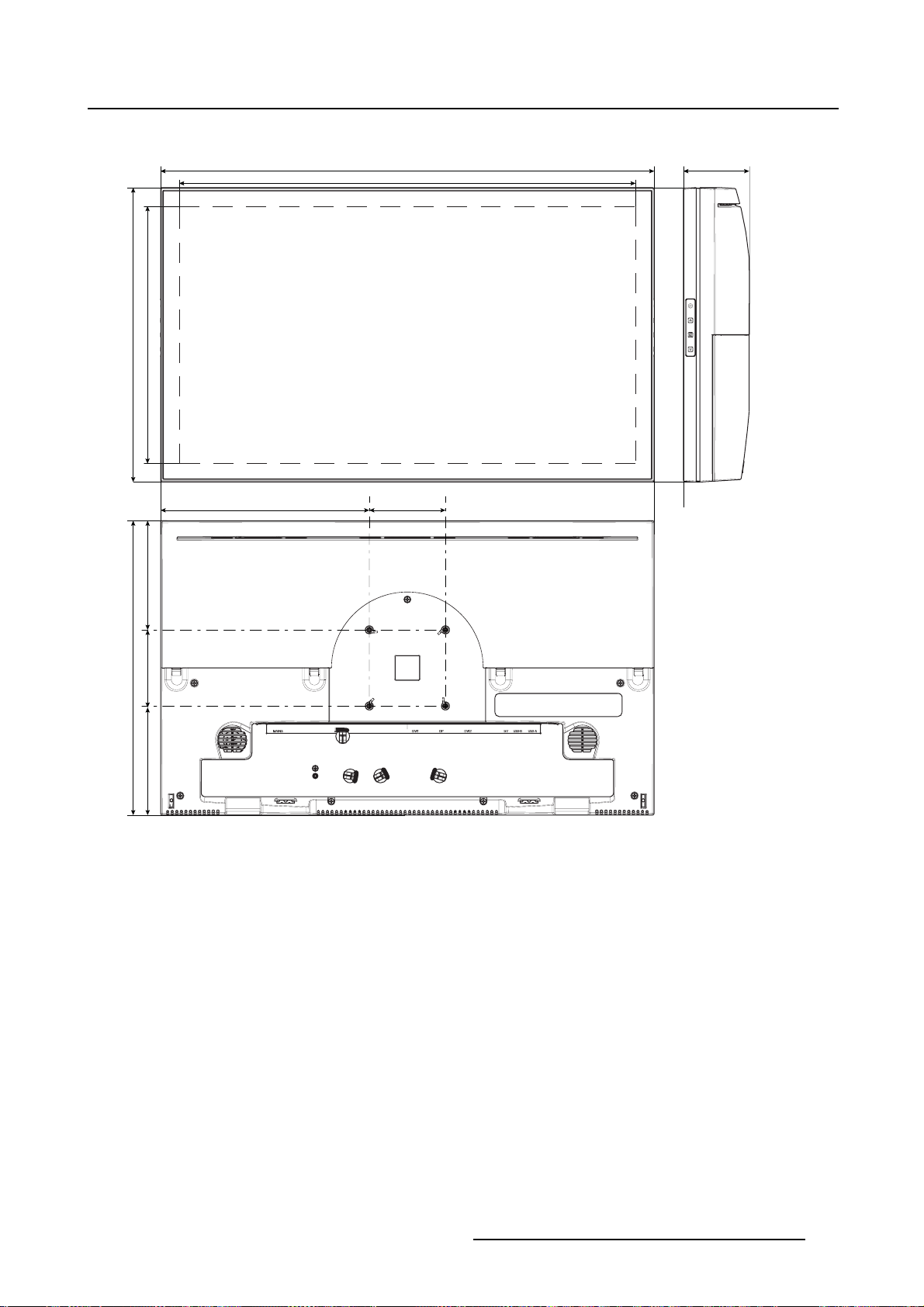

Dimensions
336.3 mm
387.0 mm
648.5 mm 86.4 mm
597.9 mm
274.3 mm 100.0 mm
6. Important information
387.0 mm
100.0 mm143.5 mm 143.5 mm
Image 6-1

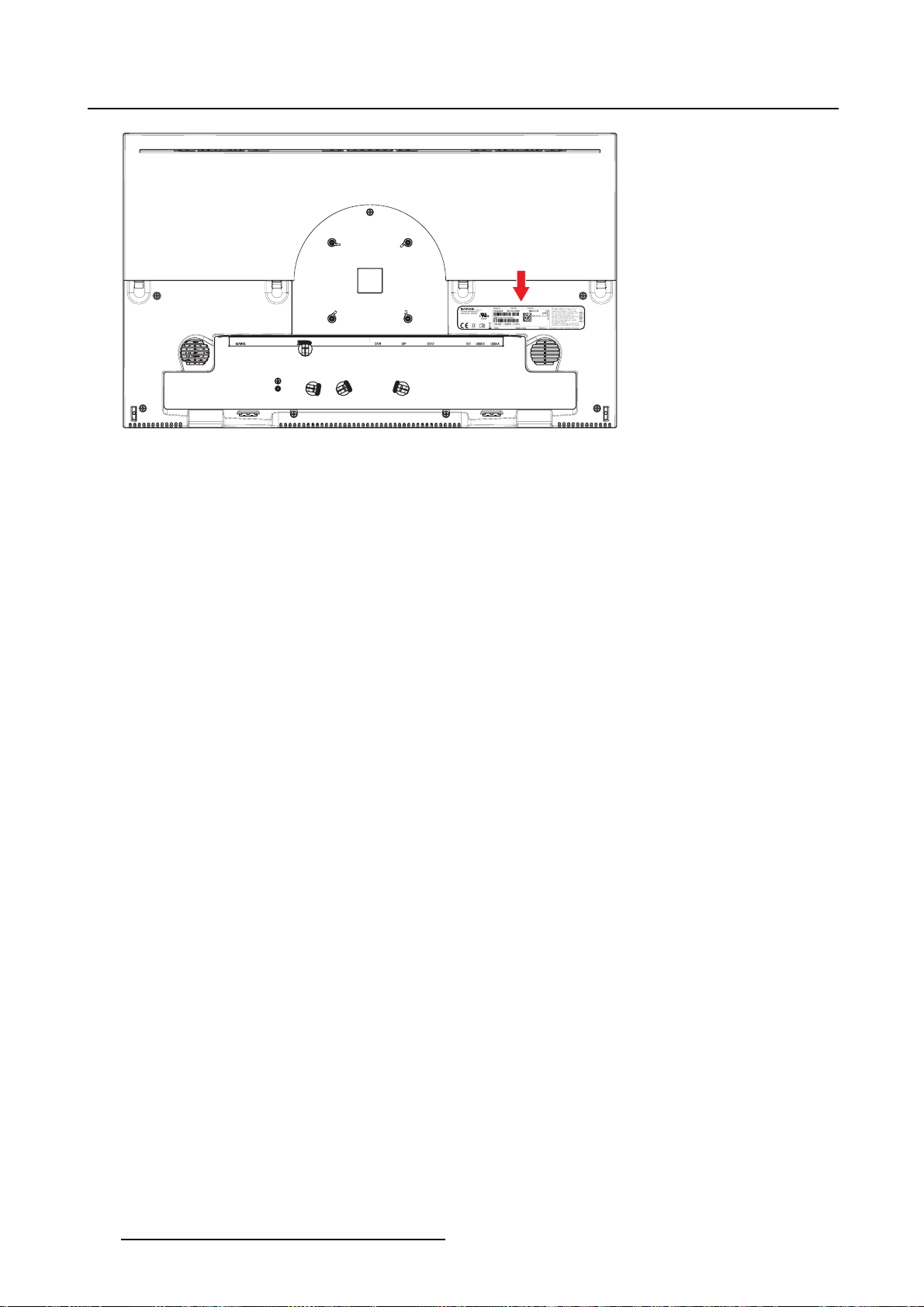

Identification label position
The product identification label is located at the back of the monitor under the cable cover as illustrated
below.
K5902101 (451920611531) PS27FHDER 21/05/2015
33
6. Important information
Image 6-2
34 K5902101 (451920611531) PS27FHDER 21/05/2015
FIMI S.r.l. Saronno - Italy
K5902101-00
(451920611531)
May 2015
Barco n.v.
President Kennedypark 35
8500 Kortrijk
Belgium
www.barco.com
Loading...
