1. Welcome!
1. WELCOME!
Introduction
The PS24FHDCR monitor is a 24” color LCD monitor to be used in a system for diagnostic and interventional X-ray applications.
Type of equipment: movable (on a table)
Intended location: outside of patient area (e.g. Control Rooms)
CAUTION: Read all the important safety information before installing and operating your
monitor. Please refer to the dedicated chapter in this user guide.
1.1 What’s in the box
Overview
The monitor comes with:
• an accessory bag containing 4 plastic tag inserts
• a 3/32" Allen key with ball point
• this user guide
Keep your original packaging. It is designed for this monitor and is the ideal protection
during transport and storage.
K5902096 (451920611523) PS24FHDCR 08/03/2018 3
1. Welcome!

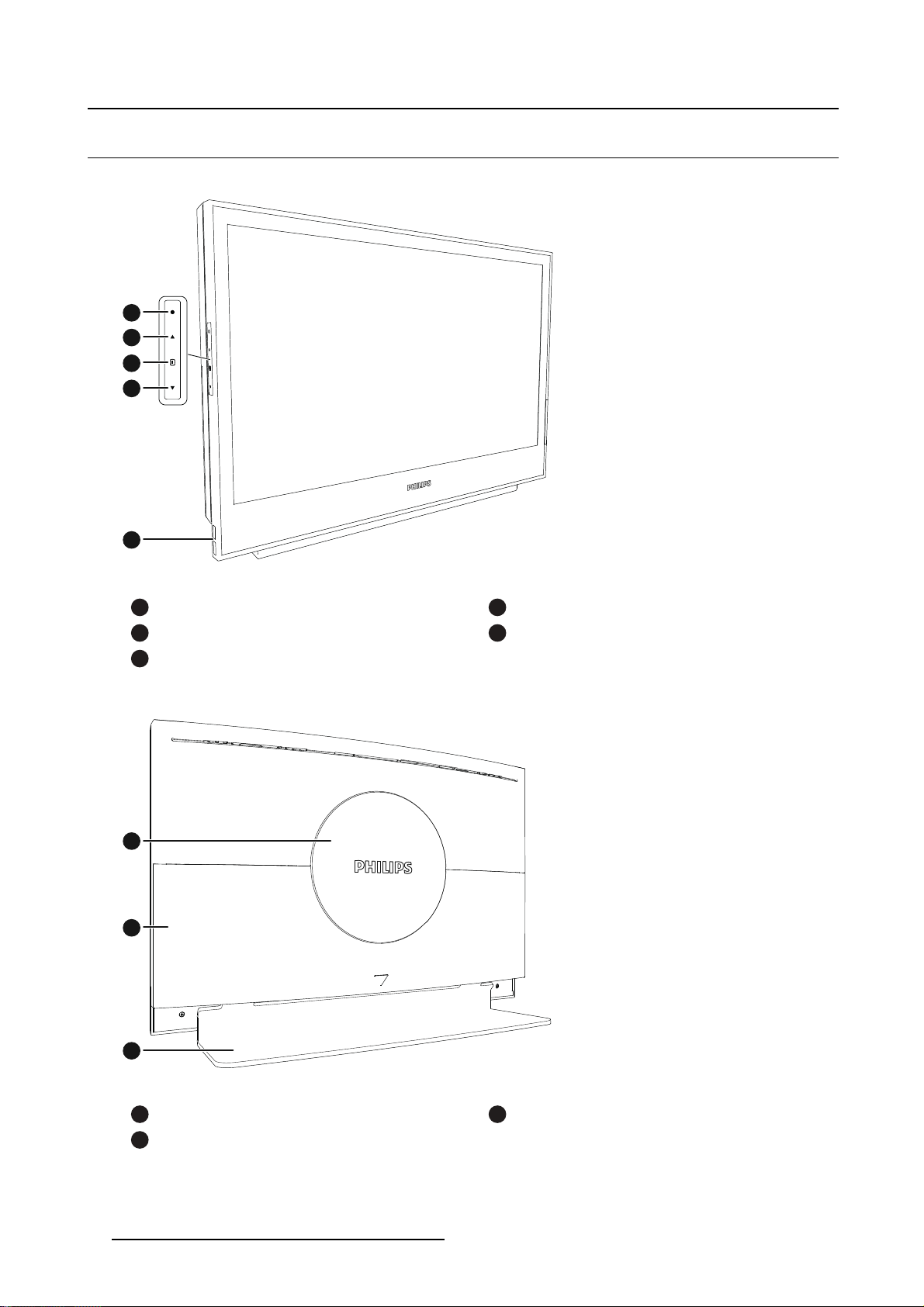

1.2 Product overview
Front
1
2
3
4
5
Image 1-1
1
Status LED
3
Menu / Enter key
5
USB-A 2.0 downstream connectors (2x)
Rear
1
2
2
Up / Brightness increase key
4
Down / Brightness decrease key
4
3
Image 1-2
1
Illuminating circle disc
3
Monitor stand
2
Cable cover
K5902096 (451920611523) PS24FHDCR 08/03/2018

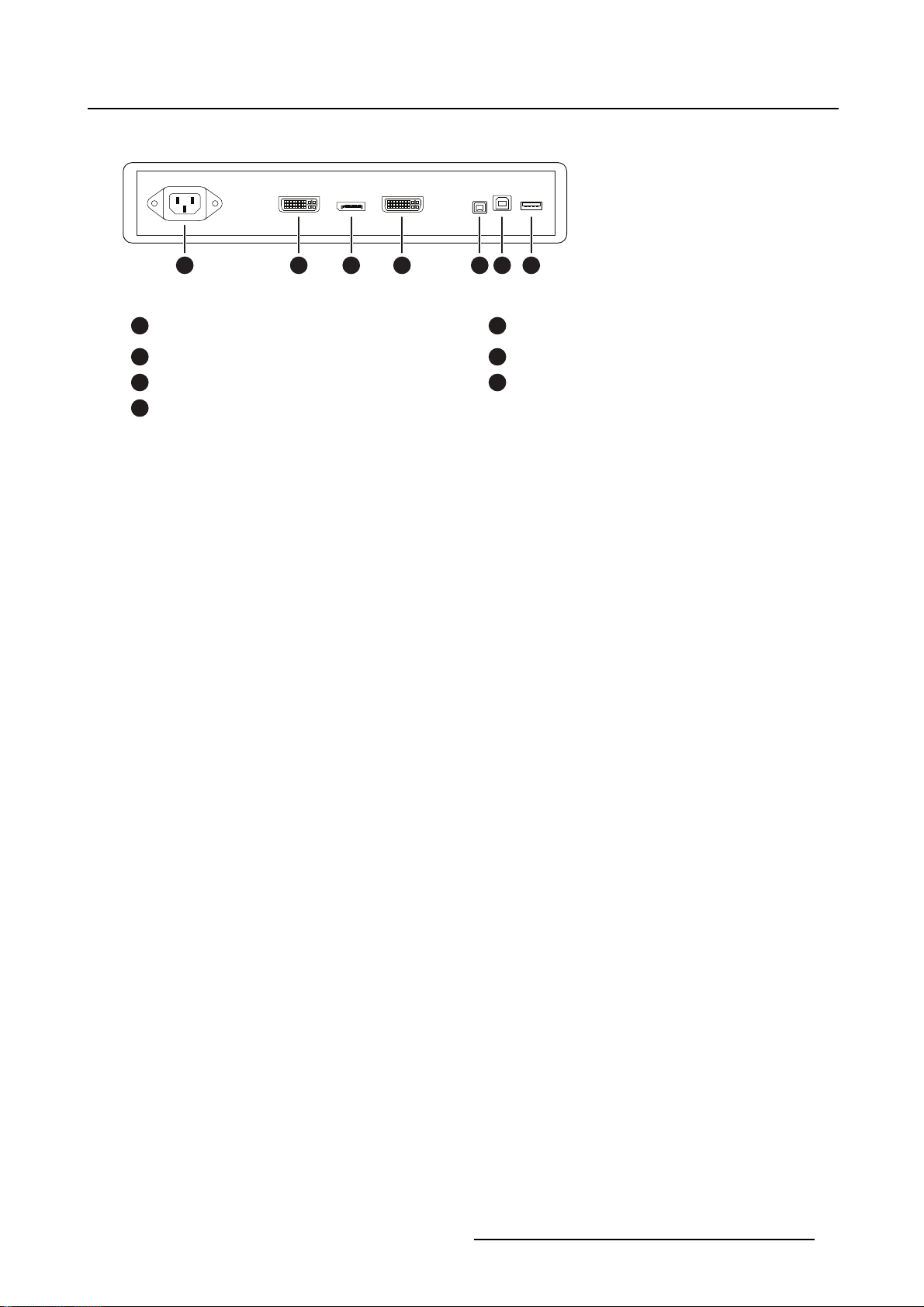

Connections
Image 1-3
1. Welcome!
21 4 5 6 73
1
100 - 240 VAC mains power input (IEC C14)
3
DisplayPort 1.1 input
5
+5 VDC, 500 mA power output
7
USB-A 2.0 downstream connector
DVI 1 Single Link input (Not used, covered by
2
plastic dust protection)
4
DVI 2 Single Link input
6
USB-B 2.0 upstream connector
K5902096 (451920611523) PS24FHDCR 08/03/2018
5
1. Welcome!
6 K5902096 (451920611523) PS24FHDCR 08/03/2018
2. MONITOR INSTALLAT ION
WARNING: Sufficient expertise is required to install this equipment. All devices and
complete setup must be tested before taking into o peration.
2.1 Installation proced ure

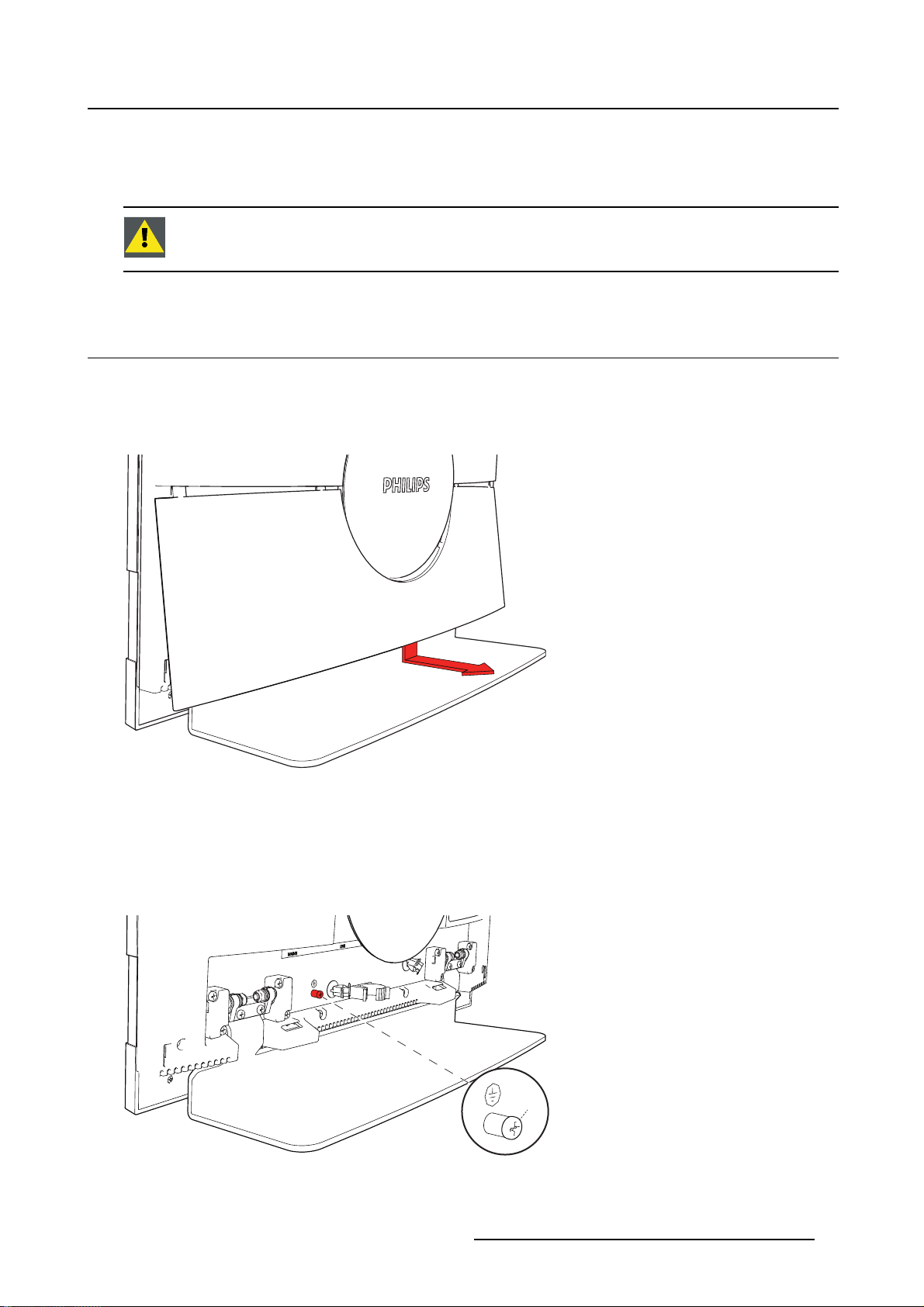

Remove cable cover
To get access to the connectors, the cable cover should be removed.
1. Grab the middle bottom of the cable cover and pull it away from the monitor.
2. Monitor installation
Image 2-1
Earth monitor
1. Optionally: For additional grounding, earth the monitor by connecting the protective earth pin to a
grounded outlet by means of a wire with at minimum AWG18 size (according to national Regulation requirements regarding maximum admitted cable length). Use the included M4 screw to attach the wire
to the protective earth pin.
M4
Image 2-2
K5902096 (451920611523) PS24FHDCR 08/03/2018 7
2. Monitor installation

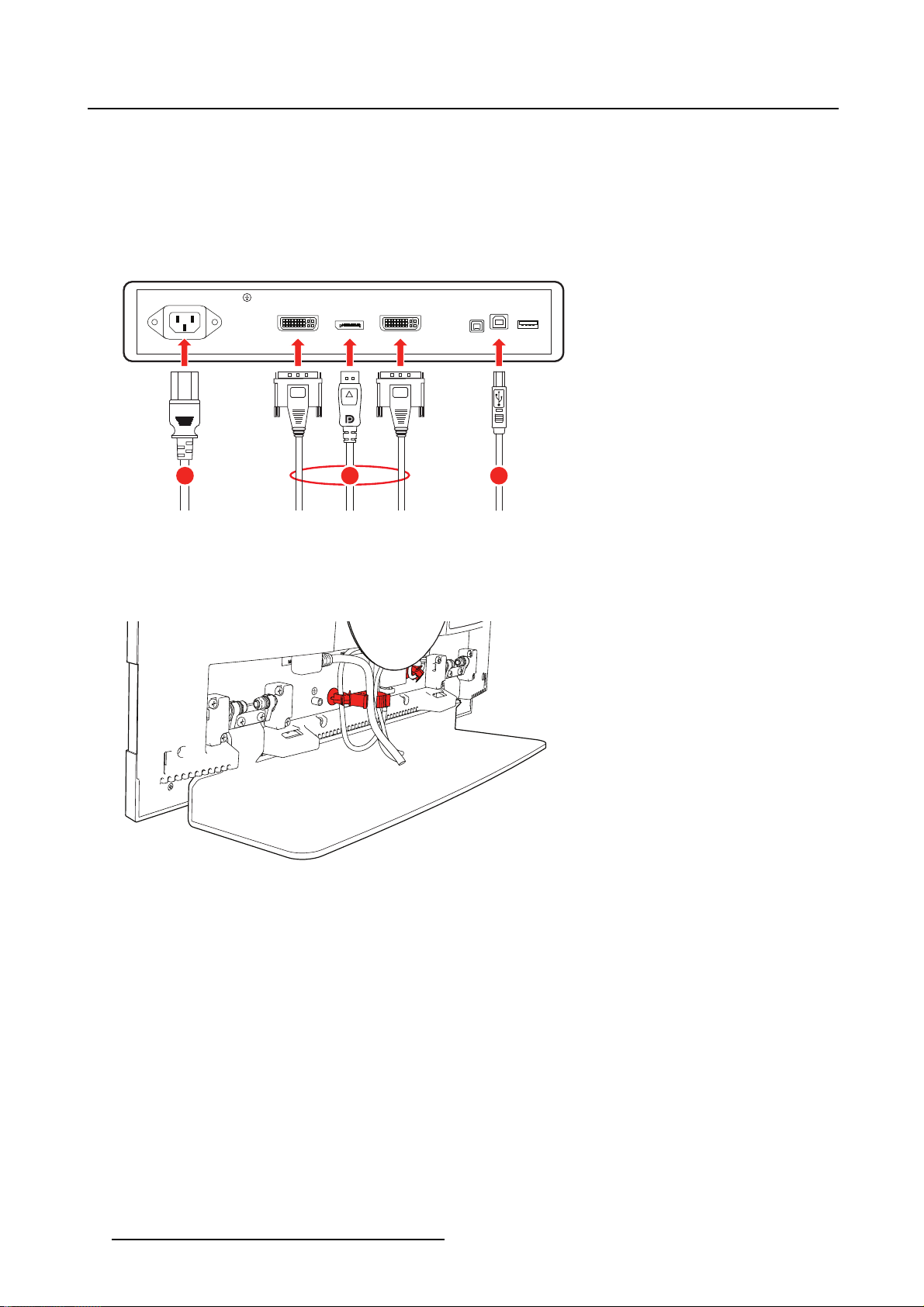

Connect signal and power cables
1. Connect one or more video source(s) to the corresponding video inputs of the monitor. Use the appropriate video cable(s) to do this.
2. Connect the USB upstream connector to a USB host if you want to make use of any of the monitor USB
downstream connectors (e.g. to connect a keyboard, mouse or other peripheral).
3. Connect the mains power input to a grounded power outlet.
DVI1MAIN INPUT DVI2 5V USB-B USB-ADP
13 2
Image 2-3

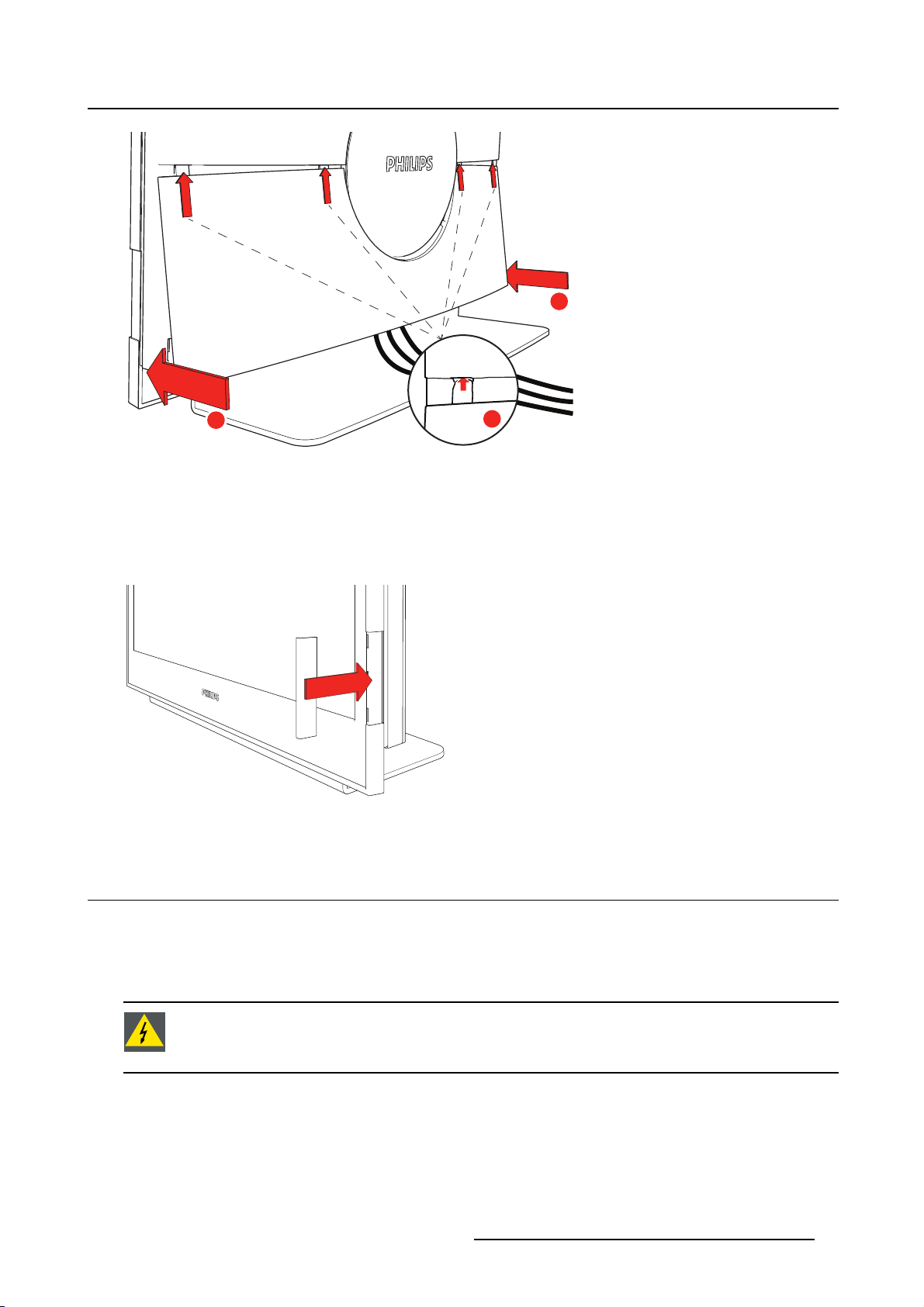

Route cables and reattach cable cover
1. Route all cables trough the provided cable routing channel at the back of the monitor. Use the cable
straps at the inside of the connector compartment to fix the cable
Image 2-4
s.
Reattach cable cover
1. Slide the 4 position clips on top of the cable cover in the matching fixation holes at the back of the
monitor.
2. Attach the cable cover by pushing the bottom into the monitor until you hear a “click” sound at both
ends of the cover.
8
K5902096 (451920611523) PS24FHDCR 08/03/2018
2. Monitor installation
2
”Click!”
Image 2-5
”Click!”
4 x
2
1
Insert color tag
1. Remove the protective foil from the front screen.
2. Attach the plastic color tag by sliding it onto the monitor.
Depending on the configuration being installed, a different color is available.
Image 2-6

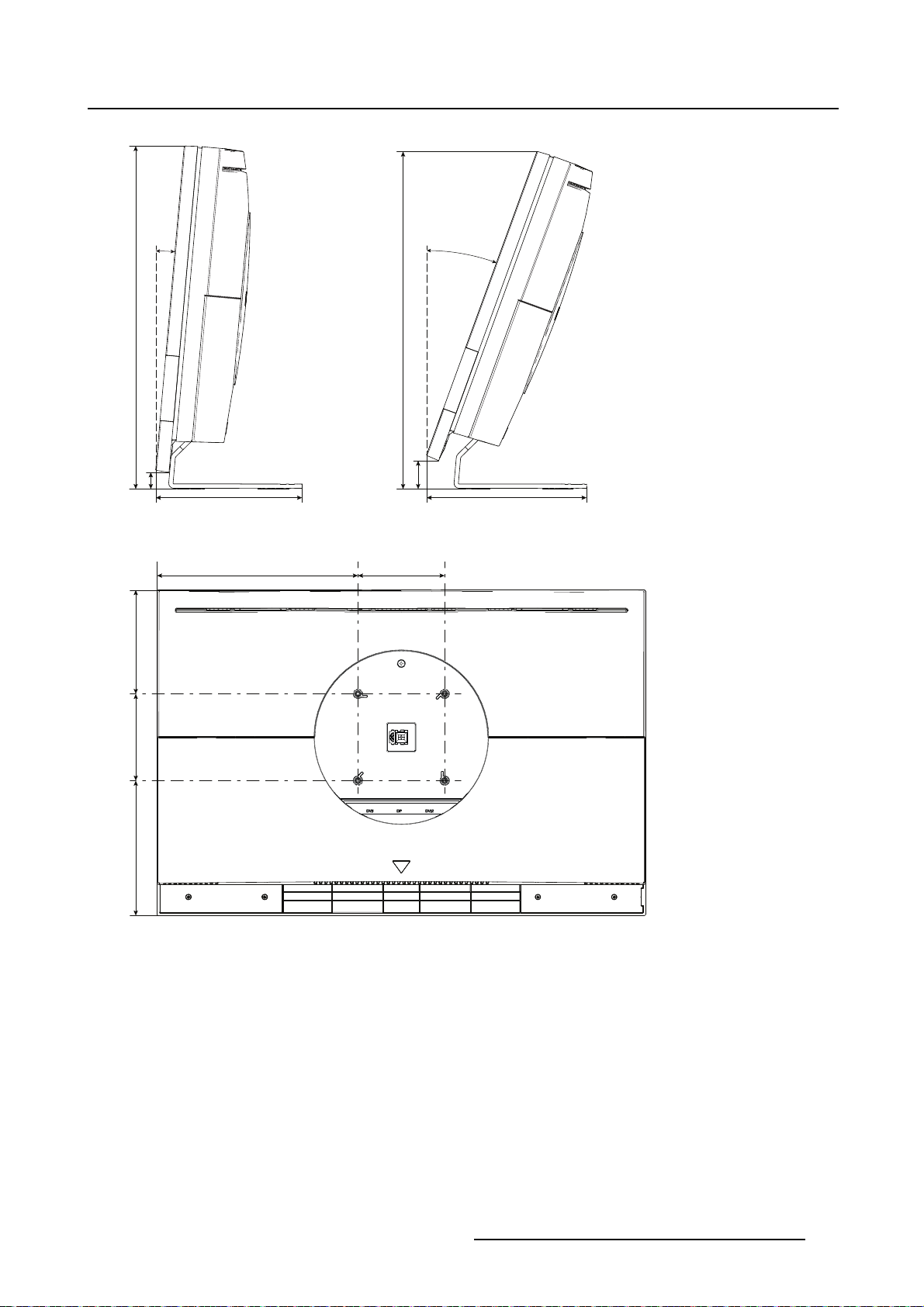

2.2 Stand installation by VESA interface
About
The PS24FHDCR monitor is provided with a validated stand. If a different stand is needed in the final
application, the monitor VESA interface (VESA 100 mm standard) could be used.
WARNING: If a different stand will be used, it has to be validated in the final application.
The monitor has been designed to be u sed in landscape position with a maximum tilt of
5° to 20° backward.
To install your monitor on a di
1. Place the monitor (with the cable cover removed) face down on a flat, solid and stable surface.
Caution: Use a protective cloth or cushion to prevent the monitor and LCD from any damage or
scratches.
K5902096 (451920611523) PS24FHDCR 08/03/2018
fferent V ESA compatible stand
9
2. Monitor installation
2. Unscrew the 8 fixation screws fixing the stand to the panel, then remove the stand from the panel.
Tip: Store the fixation screws at a known place for possible future use.

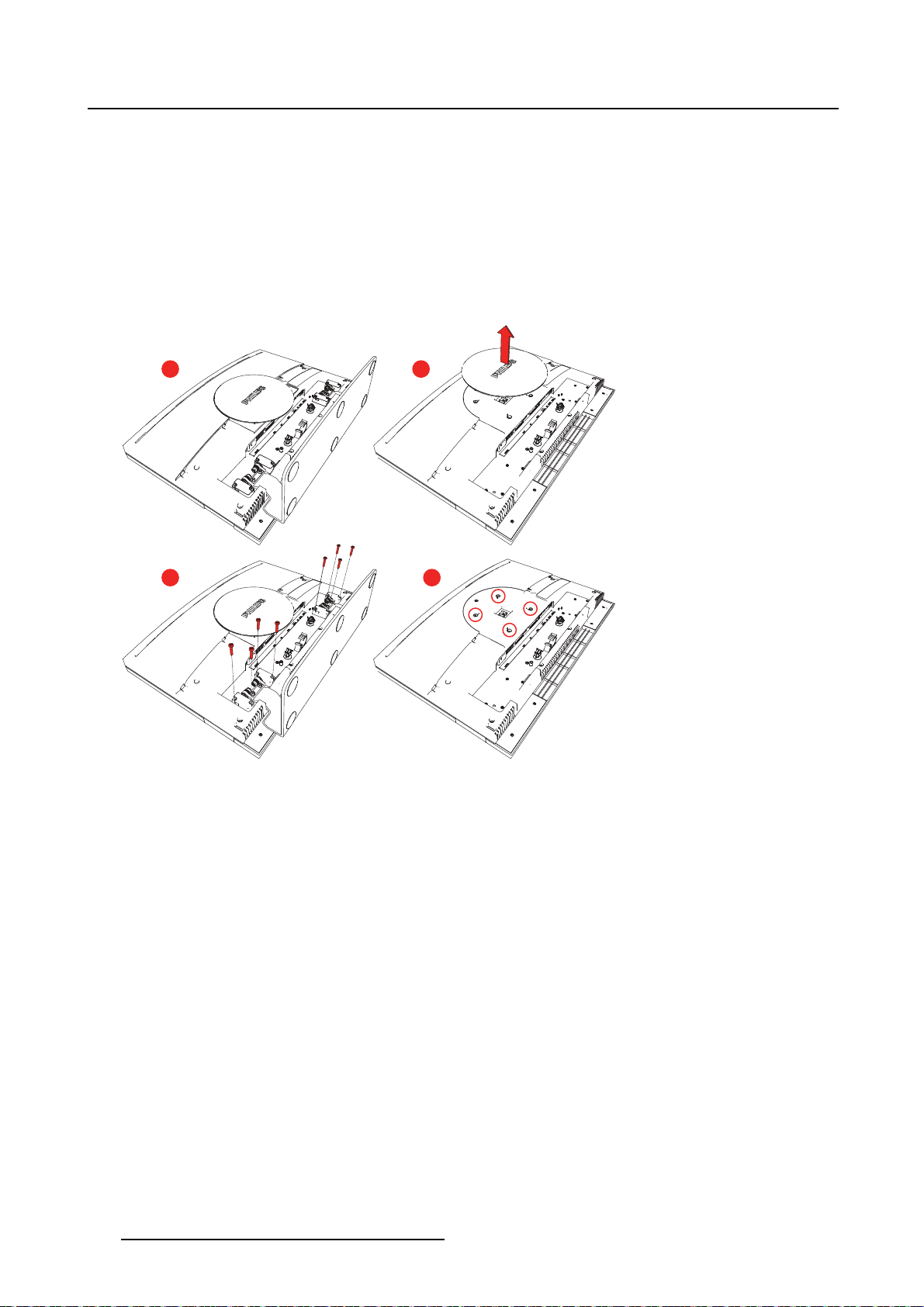

3. Pull off the illuminating circle disc from the panel to get access to the VESA mounting holes.
Tip: Store the disc at a known place for possible future use.
4. Attach the monitor in landscape position to a 100 mm VESA mounting bracket. Mounting in portrait
position is not supported.
Caution: The 4 screws should be selected according to the thickness of the VESA plate. Please con-
sider that the maximum length of the available thread for the screws inside the monitor is 6
mm and that the unthreaded distance to the outer surface of the plastic back cover is 7.8 mm.
1
2
Image 2-7
3
4
10 K5902096 (451920611523) PS24FHDCR 08/03/2018
3. Daily operation
3. DAILY OPERATION
3.1 On/Off switching
About
The PS24FHDCR monitor automatically turns on as soon as the power cord is connected to t he mains
plug.
The monitor requires at maximum 30 seconds to power-up.
3.2 Status LED
About
During start-up, the monitor performs a self-test and sync-test before going into normal operation mode.
Depending on the test results, the status LED at the left side of the monitor will have a different color and
lighting duration. Below is an overview of the possible status LED modes:
Status Color
ON ORANGE, static Monitor ON, powering on
ON ORANGE, blinking Monitor ON, powering on, self-test
ON RED, static Monitor ON, MAX brightness ON
ON RED, blinking Monitor ON, self-test FAILED
ON GREEN, static Monitor ON, Video sync OK,
ON GREEN, blinking Monitor ON, No video sync
Description
Monitor OFFOFF N/A
Monitor ON, Video sync OK,
default OSD settings
ON
settings different from default
brightness
3.3 OSD menu use
To open the OSD menu
• If the OSD is locked (default setting), first press and hold both the and keys for approximately
3 seconds, until a pop up warns you that the OSD has been unlocked for about 20 sec. Afterwards,
press the
Or,
• If the OSD is not locked, press the
As a result, the OSD main menu comes up in the right bottom part of the screen. If no further actions are
taken within the following 15 seconds, the OSD menu will disappear and lock again if enabled.
K5902096 (451920611523) PS24FHDCR 08/03/2018
key to enter the O
SD main menu.
key during normal operation.
11
3. Daily operation
The OSD menu time-out value can be adjusted in the OSD menu (OSD menu time-out).
The OSD lock function c an be enabled or disa bled in the OSD me nu (OSD lock).
The OSD menu position can be adjusted in the OSD menu (OSD menu position).
To navigate t hrough the OSD menus
•Usetheor key to scroll up or down through the different menu pages, change values or make
selections.
• Togointoasubmenuorconfirm adjustments and selections, use the
• To exit a menu or return to the previous menu level, scroll the top level item of the current menu, then
press the
key.
key.
3.4 Brightness adjustment
To adjust the brightness
• If the OSD is locked (default setting), first press and hold both the and keys for approximately
3 seconds, until a pop up warns you that the OSD has been unlocked for about 20 sec. Afterwards,
press the brightness increase (
Or,
If the OSD is not locked, press the brightness increase (
brightness as desired.
The OSD lock function c an be enabled or disa bled in the OSD me nu (OSD lock).
To force MAX brightness ON
When brightness is at 100%, by keeping the Up / Brightness increase key ( ) pressed for at least 3
seconds, the brightness is forced to the MAX brightness mode, which adds up 20 cd/m² to the default
stabilized brightness value. Press the Menu / Enter key (
)orbrightnessdecrease( ) keys to adjust the brightness as desired.
) or brightness decrease ( ) keys to adjust the
) to exit the MAX brightness mode.
12
K5902096 (451920611523) PS24FHDCR 08/03/2018
4. Advanced operation
4. ADVANCED OPERATION

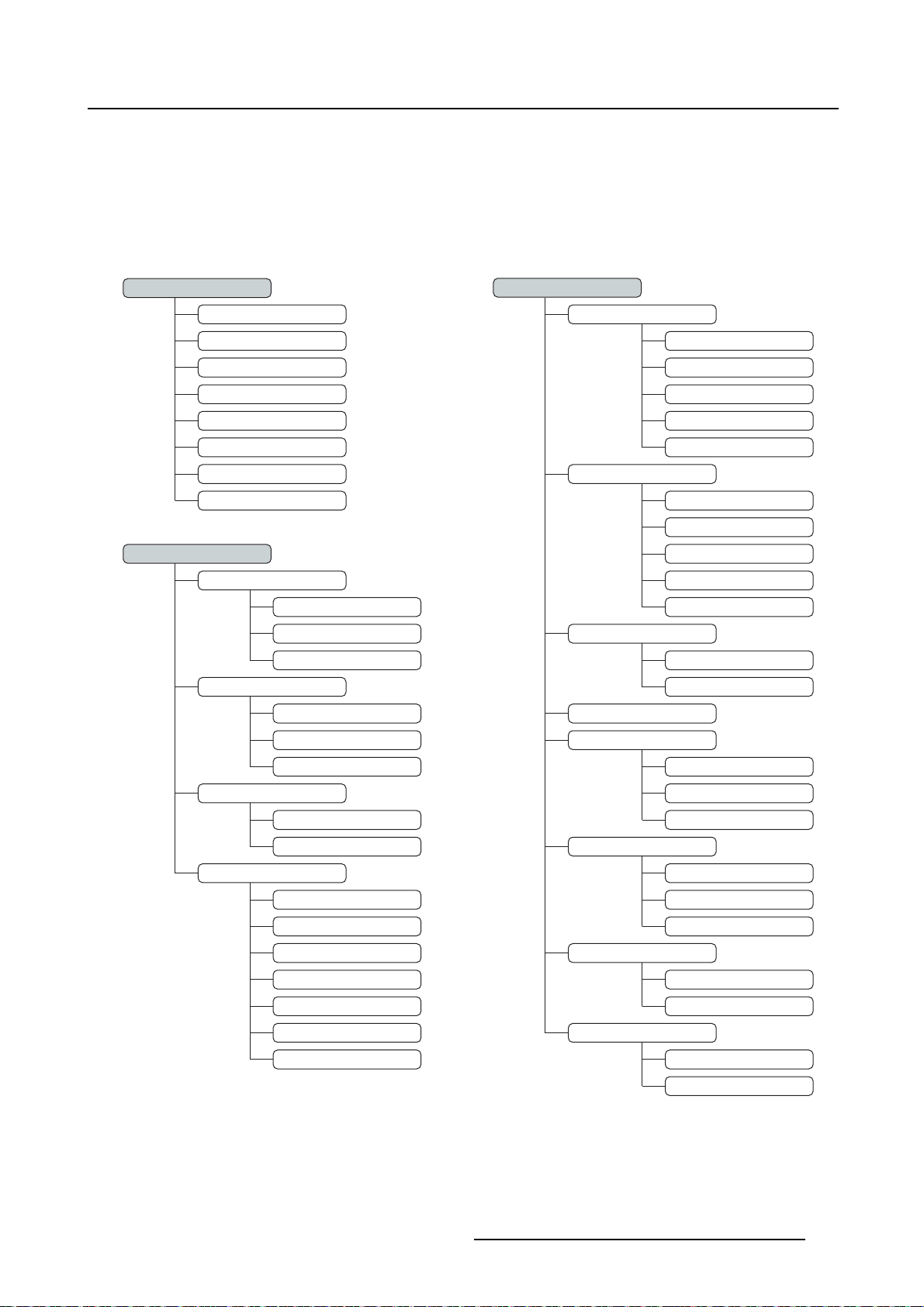

OSD menu structure
Below is an overview of the PS24FHDCR OSD menu structure. Detailed info about the different menus
and settings is available in the next sections.
Info
Model: PSXXXHDXR
Serial Number
Firmware Version
Timing
Total operating hours
Backlight operating hours
Status
12NC
Source
DisplayPort
DVI1
DVI2
Aspect Ratio
Native
Settings
OSD Position
Bottom right
Bottom left
Up right
Up left
Center
OSD Timeout
15 sec.
30 sec.
60 sec.
120 sec.
240 sec.
OSD Lock
On
Off
Factory Reset
Image 4-1
Aspect
Full Screen
Color Temperature
Native
Calibrated
Display Function
Native
DICOM 1
DICOM 2
DICOM 3
DICOM 4
CAL.DICOM
TG3-PMS
DVI1 5V
PIN 14 ON
PIN 16 ON
Off
DVI2 5V
PIN 14 ON
PIN 16 ON
Off
5V Output
On
Off
Back Illumination
On
Off
K5902096 (451920611523) PS24FHDCR 08/03/2018 13
4. Advanced operation
4.1 Monitor info
About monitor info
The monitor serial number, firmware version, operating hours, etc. are available in a dedicated section of
the OSD menu.
To retrieve inf o about your monitor
1. Bring up the OSD main menu.
2. Navigate to the Info menu.
Info
Settings
Image 4-2
Model
Serial Number
Firmware Version XXXXXXXXXXXXX
Timing
Total operating hours
Backlight operating hours
Status
9919 322 XXXXX
PSXXXHDXR
XXXXXXXXXXXXX
1920x1080@60 Hz
0
0
Valid signal
4.2 Image source selection
About image source selection
The monitor can have multiple video inputs connected. Switching between the different inputs can be
done easily in the OSD menu.
To select the image source
1. Bring up the OSD main menu.
2. Navigate to the Image > Source menu.
3. Select one of the available input image sources.
Info
Source
Aspect Ratio
Color Temperature
Display Function
DVI2
Full Screen
Calibrated
Native
Settings
Image 4-3
14 K5902096 (451920611523) PS24FHDCR 08/03/2018
4.3 Aspect ratio
About aspect ratio
Following settings are available:
• Native: Input pixel to LCD pixel mapping, no scaling, aligned to the screen center.
• Aspect: Fill the screen on largest dimension, no modification in image aspect-ratio
• Full Screen: Fill the screen, image aspect-ratio can be altered
To adjust the aspect ratio
1. Bring up the OSD main menu.
2. Navigate to the Image > Aspect ratio menu.
3. Select one of the available aspect ratios.
4. Advanced operation
Info
Settings

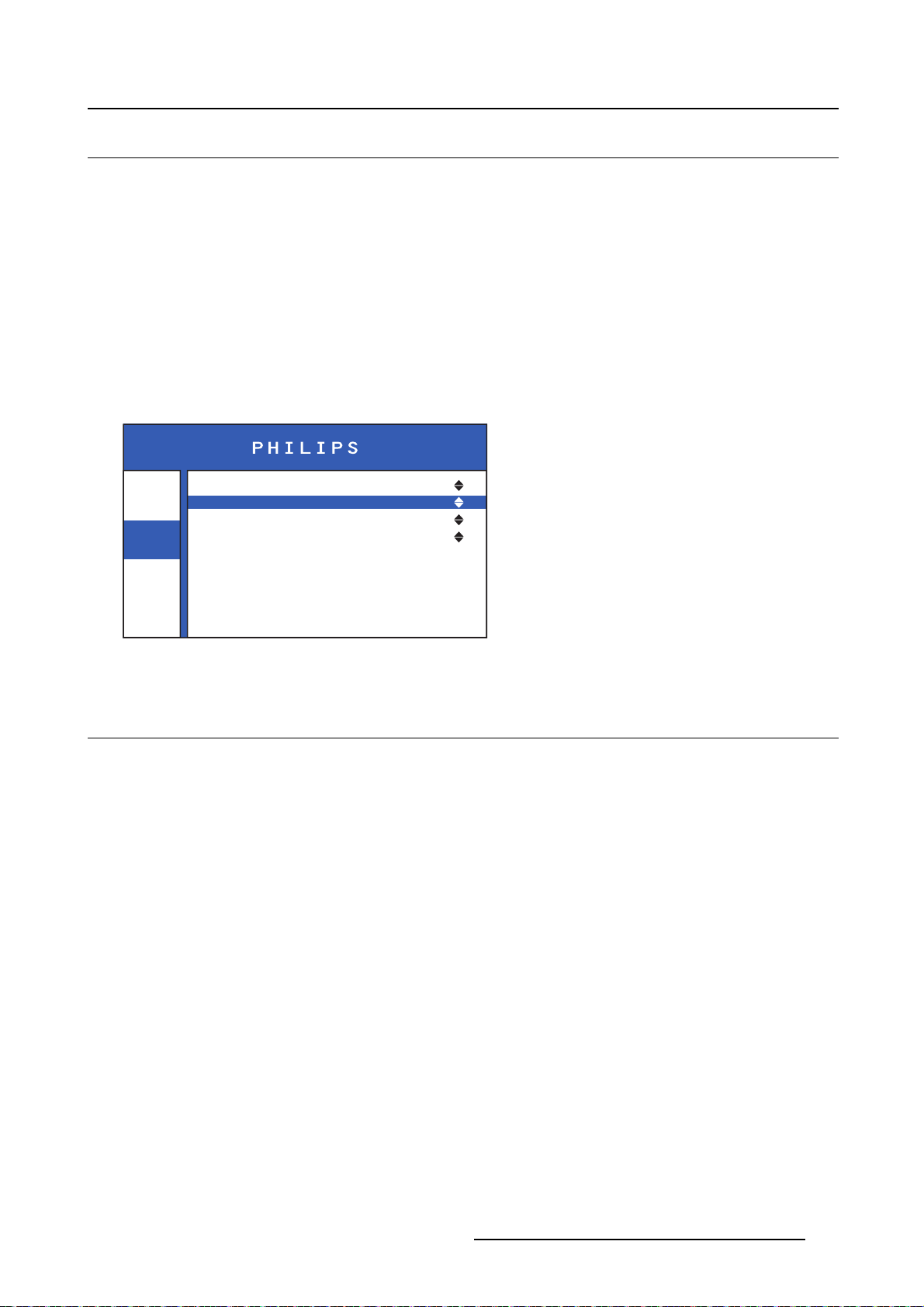

Image 4-4
Source
Aspect Ratio
Color Temperature
Display Function
DVI2
Full Screen
Calibrated
Native
4.4 Color temperature
About color temperature
This setting allows you to modify the monitor white point, used as reference for all other colors to be
displayed. The available color temperature settings for your monitor are:
• Native: The native, unmodified color temperature of the LCD panel.
• Calibrated: Corresponds to a color temperature of 6800 Kelvin (D68).
To select a color temperature
1. Bring up the OSD main menu.
2. Navigate to the Image > Color Temperature menu.
3. Select one of the available color temperature settings.
K5902096 (451920611523) PS24FHDCR 08/03/2018
15
4. Advanced operation
Info
Settings
Image 4-5
Source
Aspect Ratio
Color Temperature
Display Function
DVI2
Full Screen
Calibrated
Native
4.5 Display fu nction
About display functions
Native, uncorrected panels will display all grayscale/color levels with equal luminance increments. Studies
have shown however, that in medical images certain grayscale/color parts contain more relevant information than others. To respond to these conclusions, display functions have been defined. These functions
emphasize on these parts containing crucial information by correcting the native panel behavior.
The available display functions for your monitor are:
• Native: The native panel behavior will not be corrected
• DICOM: DICOM (Digital Imaging and Communications in Medicine) is an international standard that
was developed to improve the quality and communication of digital images in radiology. In short,
the DICOM gamma function results in more visible grayscales in the images. It is recommended to
select the DICOM gamma function for most medical viewing applications. There are 4 different DICOM
curves:
- DICOM 1: DICOM output curve suitable for an ambient light level of approximately 20 Lux.
- DICOM 2: DICOM output curve suitable for an ambient light level of approximately 80 Lux.
- DICOM 3: DICOM output curve suitable for an ambient
- DICOM 4: DICOM output curve suitable for an ambient light level of approximately 350 Lux.
• CAL.DICOM: This DICOM gamma function allows the comparison with displays having different char-
acteristics by applying the same identical transfer
curve in the range of 2:200 cd/m².
• TG3-PMS: This special gamma correction of the native grayscale of the monitor is used for compati-
bility with LCD and CRT medical monitors.
light level of approximately 180 Lux.
To select a display function
1. Bring up the OSD main menu.
2. Navigate to the Image > Display function menu.
3. Select one of the available display functions.
16
K5902096 (451920611523) PS24FHDCR 08/03/2018
4. Advanced operation
Info
Source
Aspect Ratio
Color Temperature
Display Function
DVI2
Full Screen
Calibrated
Native
Settings
Image 4-6
4.6 OSD menu position
About the OSD menu position
By default, the OSD menu comes up in the right bottom part of the screen. This position can be modified
however. There’s choice from a number of predefined positions.
To change the position of the OSD menu
1. Bring up the OSD main menu.
2. Navigate to the Settings > OSD Position menu.
3. Select one of the available OSD menu positions.
Info
Settings
Image 4-7
OSD Position
OSD Timeout
OSD Lock
Factory Reset
DVI1 5V
DVI2 5V
5V Output
Back Illumination
Center
240 sec.
Off
Off
Off
Off
Off
4.7 OSD men u time-out
About the OSD menu time-out
By default, the OSD menu will disappear automatically after approximately 15 seconds of inactivity. This
time-out value can be adjusted to a maximum of approximately 4 minutes (240 sec.)
To adjust the OSD menu time-out value
1. Bring up the OSD main menu.
2. Navigate to the Settings > OSD Timeout menu.
3. Select one of the available time-out values.
K5902096 (451920611523) PS24FHDCR 08/03/2018
17
4. Advanced operation
Info
Settings
Image 4-8
OSD Position
OSD Timeout
OSD Lock
Factory Reset
DVI1 5V
DVI2 5V
5V Output
Back Illumination
Center
240 sec.
Off
Off
Off
Off
Off
4.8 OSD lock
About the OSD lock
This setting allows you to prevent the access to the OSD and to the brightness control when enabled.
To fully lock/unlock the OSD
1. Bring up the OSD main menu.
2. Navigate to the Settings > OSD Lock menu.
3. Select On to enable or Off to disable the OSD lock.
Info
Settings
Image 4-9
OSD Position
OSD Timeout
OSD Lock
Factory Reset
DVI1 5V
DVI2 5V
5V Output
Back Illumination
Center
240 sec.
Off
Off
Off
Off
Off
To temporarily unlock and enter the OSD
Press and hold both the and keys for approximately 3 seconds, until a pop up warns you that the
OSD has been unlocked for about 20 sec.
4.9 Factory reset
About the factory reset
The factory reset option allows to reset all OSD menu settings to its default settings. The default settings
are described below.
Image menu:
18
K5902096 (451920611523) PS24FHDCR 08/03/2018
• Image source: DVI2
• Aspect ratio: Aspect
• Color temperature: Calibrated
• Display function: CAL. DICOM
Settings m enu:
• OSD menu position: Bottom right
• OSD menu time-out: 15 sec.
• OSD lock: On
• Power (5V) over DVI1: Off
• Power (5V) over DVI2: PIN 14 ON
• +5 VDC power output: On
• Back illumination: On
Brightness setting: 100%
To reset the OSD menu settings
1. Bring up the OSD main menu.
2. Navigate to the Settings menu.
4. Advanced operation
3. Select Factory reset.
Info
Settings
Image 4-10
OSD Position
OSD Timeout
OSD Lock
Factory Reset
DVI1 5V
DVI2 5V
5V Output
Back Illumination
Bottom right
15 sec.
On
Off
PIN 14 ON
On
On
4.10 Power over DVI
About p ower on DVI
This setting allows you to select on which pin of the DVI connector(s) that the +5 VDC supply is applied,
or to completely disable the +5 VDC over DVI.
To adjust the power on DVI
1. Bring up the OSD main menu.
2. Navigate to the Settings > DVI1 5V or DVI2 5V menu.
3. Select one of the available options.
K5902096 (451920611523) PS24FHDCR 08/03/2018
19
4. Advanced operation
Info
Settings
Image 4-11
Info
Settings
Image 4-12
OSD Position
OSD Timeout
OSD Lock
Factory Reset
DVI1 5V
DVI2 5V
5V Output
Back Illumination
OSD Position
OSD Timeout
OSD Lock
Factory Reset
DVI1 5V
DVI2 5V
5V Output
Back Illumination
Center
240 sec.
Off
Off
Off
Off
Off
Center
240 sec.
Off
Off
Off
Off
Off
4.11 +5 VDC power output
About the +5 VDC power output
The monitor features a +5 VDC power output connector that can be used to connect miscellaneous peripherals. The power on this connector can be enabled or disabled in the OSD menu.
To enable/disable the +5 VDC power output power connector
1. Bring up the OSD main menu.
2. Navigate to the Settings > 5V Output menu.
3. Select On to enable or Off to disable the +5 VDC power output connector.
Info
Settings
Image 4-13
OSD Position
OSD Timeout
OSD Lock
Factory Reset
DVI1 5V
DVI2 5V
5V Output
Back Illumination
Center
240 sec.
Off
Off
Off
Off
Off
20 K5902096 (451920611523) PS24FHDCR 08/03/2018
4. Advanced operation
4.12 Back illumination
About the back illumination
By default, when the monitor is powered, the circle disc on the back of the monitor will illuminate. This
illumination can be disabled in the OSD menu.
To enable/disable the back illumination
1. Bring up the OSD main menu.
2. Navigate to the Settings > Back illumination menu.
3. Select On to enable or Off to disable the back illumination.

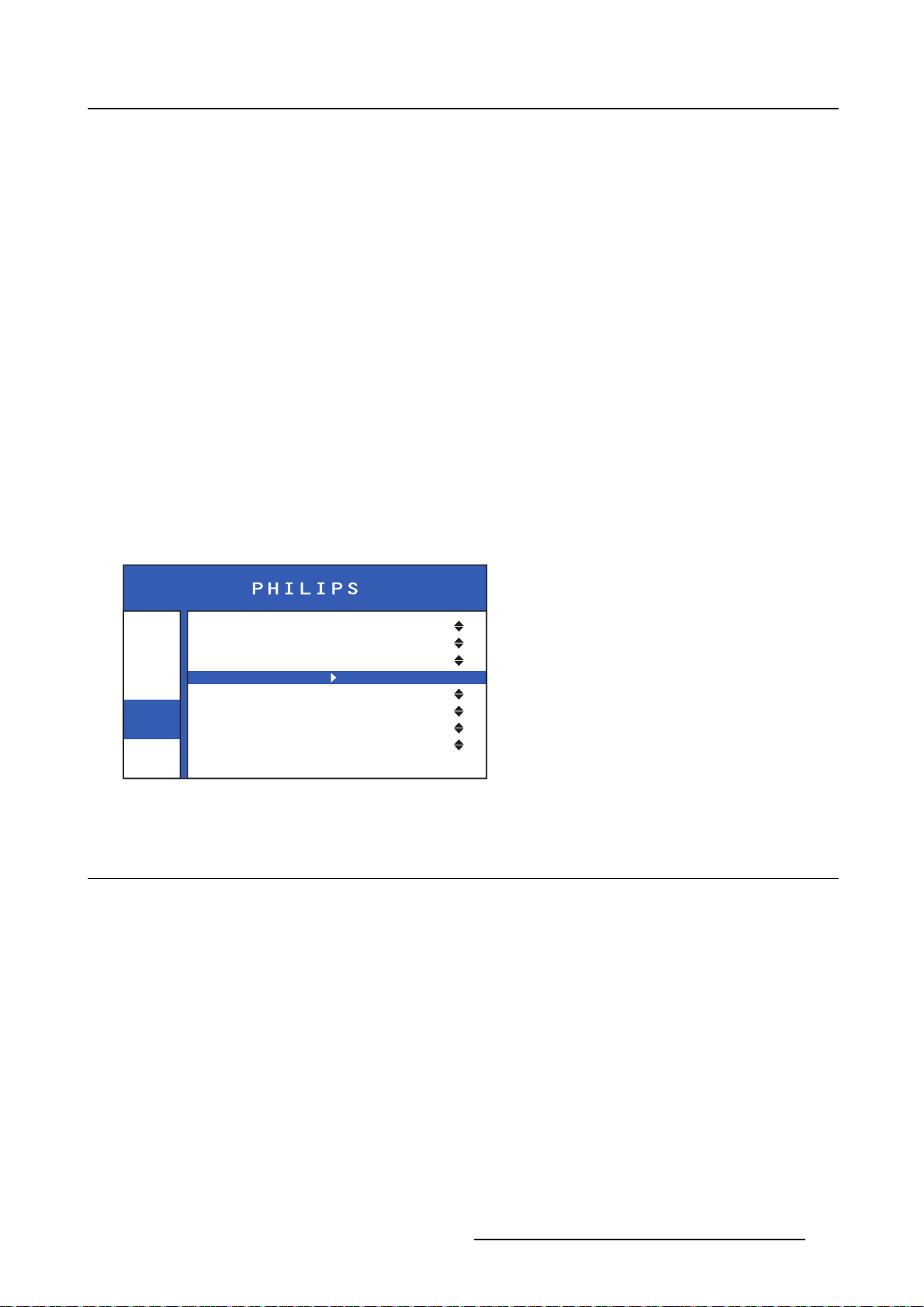

Info
Settings

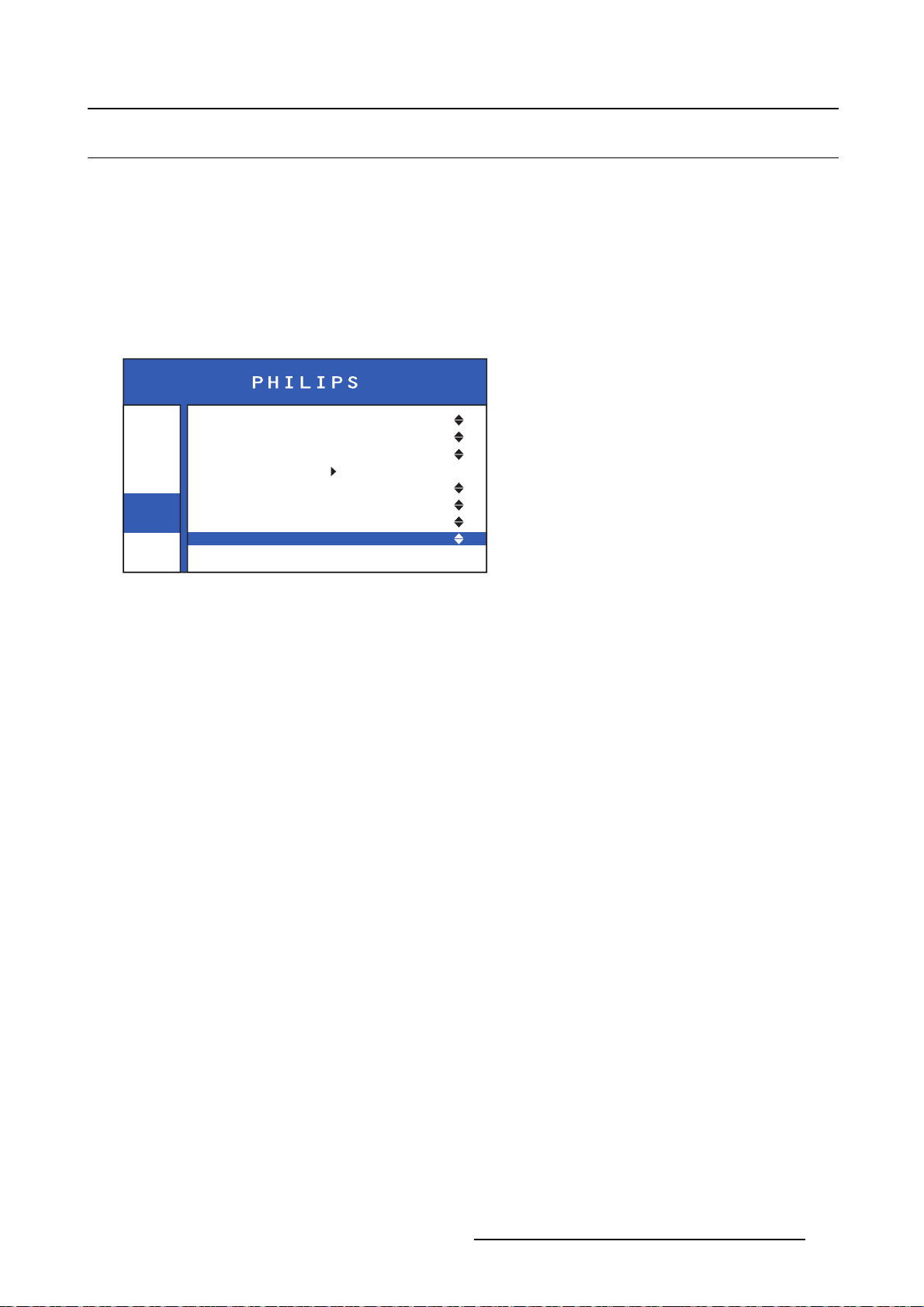

Image 4-14
OSD Position
OSD Timeout
OSD Lock
Factory Reset
DVI1 5V
DVI2 5V
5V Output
Back Illumination
Center
240 sec.
Off
Off
Off
Off
Off
K5902096 (451920611523) PS24FHDCR 08/03/2018 21
4. Advanced operation
22 K5902096 (451920611523) PS24FHDCR 08/03/2018
5. Cleaning your display
5. CLEANING YOUR DISPLAY
5.1 Cleaning instructions
To clean the display
Clean the display using a sponge, cleaning cloth or soft tissue, lightly moistened with a recognized cleaning product for medical equipment. Read and follow all label instructions on the cleaning product. In case
of doubt about a certain cleaning product, use plain water.
Possible cleaning solutions:
• 70% isopropyl alcohol
• 1.6% aqueous ammonia
• Cidex® (2.4% glutaraldehyde solution)
• Sodium hypochlorite (bleach) 10%
• “Green soap” (USP)
• 0.5% Chlorehexidine in 70% isopropyl alcohol
• Like Cleansafe® optical cleaning liquid
Do not use following products:
• Alcohol/solvents at higher concentration > 70%
• Strong alkalis lye, strong solvents
•Acid
• Detergents with fluoride
• Detergents with ammonia at higher concentration > 1.6%
• Detergents with abrasives
• Steel wool
• Sponge with abrasives
• Steel blades
• Cloth with steel thread
CAUTION: Take care not to damage or scratch the front glass or LCD. Be careful with
rings or other jewelry and do not apply excessive pressure on the front glass or LCD.
CAUTION: Do not apply or spray liquid directly to the display as excess liquid may cause
damage to internal electronics. Instead, apply the liquid to a cleaning cloth.
K5902096 (451920611523) PS24FHDCR 08/03/2018 23
5. Cleaning your display
24 K5902096 (451920611523) PS24FHDCR 08/03/2018
6. IMPORTANT INFORMATION
6.1 Safety information
General recommendations
Read the safety and operating instructions before operating the device.
Retain safety and operating instructions for future reference.
Adhere to all warnings on the device and in the operating instructions manual.
Follow all instructions for operation and use.
Electrical Shock or Fire Hazard
To prevent electric shock or fire hazard, do not remove cover.
No serviceable parts inside. Refer servicing to qualified personnel.
Do not expose this apparatus to rain or moisture.
6. Important information
Modifications to the unit
Do not modify this equipment without authorization of the manufacturer.
Type of protection (electrical):
Monitor w ith internal power supply: Class I equipment.
Degree of safety (flammable anesthetic mixture)
Equipment not suitable for use in the presence of a flammable anesthetic mixture
or nitrous oxide.
with air or with oxygen
Non-patient care equipment
• Equipment primarily for use in a health care facility that is i
is unlikely (no applied part).
• The equipment shall not be used with life support equipment.
• The user should not touch the equipment, nor its signal input por
and the patient at the same time.
ntended for use where contact with a patient
ts (SIP)/signal output ports (SOP)
Mission critical applications
We strongly recommend there is a replacement monitor immediately available in mission critical applications.
Power connection – Equipment w ith internal power supply
• This equipment must be earthed.
• Power requirements: The equipment must be powered by the AC mains voltage.
• The equipment is intended for continuous operation.
Transient over-voltage
To fully disengage the power to the device, please disconnect the power cord from the AC inlet.
K5902096 (451920611523) PS24FHDCR 08/03/2018
25
6. Important information
Power cords:
• Utilize a UL-listed detachable power cord, 3-wire, type SJ or equivalent, 18 AWG min., rated 250 V
min., provided with a plug 5-15P configuration for 120V application, or 6-15P for 240V application.
• Do not overload wall outlets and extension cords as this may result in fire or electric shock.
• Mains lead protection (U.S.: Power cord): Power cords should be routed so that they are not likely to
be walked upon or pinched by items placed upon or against them, paying particular attention to cords
at plugs and receptacles.
• The power supply cord should be replaced by the designated operator only at all time.
• Use a power cord that matches the voltage of the power outlet, which has been approved and complies
with the safety standard of your particular country.
Grounding reliability
Grounding reliability can only be achieved when the equipment is connected to an equivalent receptacle.
Liquids and moisture
Never expose the monitor to liquids or moisture.
Never use the monitor near water - e.g. near a bathtub, washbasin, swimming pool, kitchen sink, laundry
tuborinawetbasement.
The equipment is IP20 compliant.
Ventilation
Do not cover or block any ventilation openings in the cover of the set. When installing the device in a
cupboard or another enclosed location, heed the necessary space between the set and the sides of the
cupboard.
Installation
Place the device on a flat, solid and stable surface that can support the weight of at least 3 devices. If you
use an unstable cart or stand, the device may fall, causing serious injury to a child or adult, and serious
damage to the device.
This apparatus conforms to:
CE - EN 60950-1:2006 +A11:2009 +A12:2011 +A1:2010 +A2:2013, EN 60601-1-2: 2007
DEMKO - EN 60950-1:2006 +A11:2009 +A12:2011 +A1:2010 +A2:2013
UR - UL 60950-1 2nd Ed. Revised 2011-12-19
c-UR - CSA C22.2 No. 60950-1-07 + A1:2011, EN 60950-1:2006 + A1:2010 + A11:2009 + A12:2011
IEC 60529:1991 + A1: 2000 (Degrees of protection IP code)
IEC 62471: 2006; EN 62471: 2008 (Photobiological Safety Of Lamps An
FCC class B
ICES-001 Level B
RoHS (2011/65/EC)
d Lamp System)
National Scandinavian Deviations for CL. 1.7.2
Finland: "Laite on liitettävä suojamaadoituskoskettimilla varustettuun pistorasiaan"
Norway: "Apparatet må tilkoples jordet stikkontakt"
Sweden: "Apparaten skall anslutas till jordat uttag"
26
K5902096 (451920611523) PS24FHDCR 08/03/2018
6. Important information
6.2 Environmenta l information
Disposal Information
Waste Electrical and Electronic Equipment
This symbol on the product indicates that, under the European Directive 2012/19/EU governing
waste from electrical and electronic equipment, this product must not be disposed of with other municipal
waste. Please dispose of your waste equipment by handing it over to a designated collection point for the
recycling of waste electrical and electronic equipment. To prevent possible harm to the envir
human health from uncontrolled waste disposal, please separate these items from other types of waste
and recycle them responsibly to promote the sustainable reuse of material resources.
For more information about recycling of this product, please contact your local city office or your municipal
waste disposal service.
onment or
For details, please visit the Barco website at: h
ttp://www.barco.com/en/AboutBarco/we
ee
Tu rkey RoHS compliance
Türkiye Cumhuriyeti: AEEE Yönetmeliğine Uygundur.
[Republic of Turkey: In conformity with the WEEE Regulation]
中国大陆 RoHS
Chinese Mainland RoHS
根据中国大陆《电器电子产品有害物质限制使用管理办法》（也称为中国大陆RoHS）， 以下部分列出了
Barco产品中可能包含的有毒和/或有害物质的名称和含量。中国大陆RoHS指令包含在中国信息产业部
MCV标准：“电子信息产品中有毒物质的限量要求”中。
According to the “Management Methods for the Restriction of the Use of Hazardous Substances in Electrical and Electronic Products ” (Also called RoHS of Chinese Mainland), the table below lists the names and
contents of toxic and/or hazardous substances that Barco’s product may contain. The RoHS of Chinese
Mainland is included in the MCV standard of the Ministry of Information Industry of China, in the section
“Limit Requirements of toxic substances in Electronic Information Products”.
零件项目(名称)
Component name
印制电路配件
有毒有害物质或元素
Hazardous substances and elements
铅
Pb
xooo oo
汞
Hg
镉
Cd
六价铬
Cr6+
多溴联苯
PBB
多溴二苯
醚
PBDE
Printed Circuit Assemblies
液晶面板
LCD panel
外接电(线)缆
External Cables
內部 线路
Internal wiring
金属外壳
Metal enclosure
K5902096 (451920611523) PS24FHDCR 08/03/2018 27
xooo oo
xooo oo
oo o o oo
oo o o oo
6. Important information
零件项目(名称)
Component name
塑胶外壳
Plastic enclosure
散热片(器)
Heatsinks
电源供应器
Power S upply Unit
风扇
Fan
文件说明书
Paper Manuals
光盘说明书
CD manual
本表格依据SJ/T 11364的规定编制
This table is prepared in accordance with the provisions of SJ/T 11364.
o: 表示该有毒有害物质在该部件所有均质材料中的含量均在 GB/T 26572 标准规定的限量要求以下.
有毒有害物质或元素
Hazardous substances and elements
铅
Pb
oo o o oo
oo o o oo
xooo oo
oo o o oo
oo o o oo
oo o o oo
汞
Hg
镉
Cd
六价铬
Cr6+
多溴联苯
PBB
多溴二苯
醚
PBDE
o: Indicates that this toxic or hazardous substance contained in all of the homogeneous materials for
this part is below the limit requirement in GB/T 26572.
x: 表示该有毒有害物质至少在该部件的某一均质材料中的含量超出 GB/T 26572 标准规定的限量要求.
x: Indicates that this toxic or hazardous substance contained in at least one of the homogeneous
materials used for this part is above the limit requirement in GB/T 26572.
在中国大陆销售的相应电子信息产品（EIP）都必须遵照中国大陆《电子电气产品有害物质限制使用标识
要求》标准贴上环保使用期限（EFUP）标签。Barco产品所采用的EFUP标签（请参阅实例，徽标内部的编
号使用于指定产品）基于中国大陆的《电子信息产品环保使用期限通则》标准。
All Electronic Information Products (EIP) that are sold within Chinese Mainland must comply with the
“Marking for the restriction of the use of hazardous substances in electrical and electronic product” of Chinese Mainland, marked with the Environmental Friendly Use Period (EFUP) logo. The number inside the
EFUP logo that Barco uses (please refer to the photo) is based on the “General guidelines of environment-friendly use period of electronic information products” of Chinese Mainland.
10
6.3 Regulatory information
Indications for use
The PS24FHDCR is intended to be used as a tool in displaying and viewing digital images (excluding
digital mammography) for review and analysis by trained medical practitioners. Caution (USA): Federal
law restricts this device to sale by or on the order of a physician. (Details & exemptions are in the Code
of Federal Regulations Title 21, 801 Part D).
28
K5902096 (451920611523) PS24FHDCR 08/03/2018
6. Important information
Manufacturing country
The manufacturing country of the product is indicated on the product label (“Made in …”).
Importers contact information
To find your local importer, contact one of Barco’s regional offices via the contact information provided on
our website (w
FCC class B
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This device generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television reception, which can be
determined by turning the device off and on, the user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
ww.barco.com).
Changes or modifications not expressly approved by the party responsible fo
user’s authority to operate the equipment.
r compliance could void the
Canadian notice
CAN ICES-1/NMB-1
6.4 EMC notice
Electromagnetic emissions
The PS24FHDCR is intended for use in the electromagnetic environment specified below. The customer
or the user of the PS24FHDCR should assure that it is used i
Emissions test
RF emissions
CISPR 11
RF emissions
CISPR 11
Harmonic emissions
IEC 61000-3-2
Voltage fluctuations/ flicker
emissions
IEC 61000-3-3
Compliance
Group 1 The PS24FHDCR uses RF energy
Class B
N/A (power consumption less than
75W)
Complies
n such an environment.
Electromagnetic environment –
Guidance
only for its internal function.
Therefore, its RF emissions are
very low and are not likely to
cause any interference in nearby
electronic equipment.
The PS24FHDCR is suitable
for use in all establishments,
including domestic establishments
and those directly connected to
the public low-voltage power
supply network that supplies
buildings used for domestic
purposes.
K5902096 (451920611523) PS24FHDCR 08/03/2018 29
6. Important information
This PS24FHDCR complies with appropriate medical EMC standards on emissions to, and interference
from surrounding equipment. Operation is subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
Interference can be determined by turning the equipment off and on.
If this equipment does cause harmful interference to, or suffer from harmful interference of, surrounding
equipment, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna or equipment.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced technician for help.
Electromagnetic immunity
The PS24FHDCR is intended for use in the electromagnetic environment specified below. The customer
or the user of the PS24FHDCR should assure that it is used in such an environment.
Immunity test
Electrostatic discharge
(ESD)
IEC 61000-4-2
IEC 60601
Test levels
± 6kV contact
±8kVair
Compliance level
± 6kV contact
±8kVair
Electromagnetic
environment –
guidance
Floors should be wood,
concrete or ceramic tile.
If floors are covered with
synthetic material, the
relative humidity should
be at least 30%
Electrical fast
transient/burst
IEC 61000-4-4
Surge
IEC61000-4-5
Voltage dips, short
interruptions and voltage
variations on power
supply input lines
IEC 61000-4-11
± 2kV for power supply
lines
± 1kV for input/ output
lines
± 1 kV line(s) to line(s)
± 2 kV line(s) to earth
<5%U
U
T
40% U
1
(> 95% dip in
T
) for 0.5 cycle
(60%dipinUT)
T
for 5 cycles
70% U
(30%dipinUT)
T
for 25 cycles
<5%U
U
) for 5s
T
(>95% dip in
T
± 2kV for power supply
lines
± 1kV for input/ output
lines
± 1 kV line(s) to line(s)
±2kVline(s)toearth
<5%U
U
) for 0.5 cycle
T
40% U
(> 95% dip in
T
(60% dip in UT)
T
for 5 cycles
70% U
(30% dip in UT)
T
for 25 cycles
<5%U
U
)for5s
T
(>95% dip in
T
Mains power quality
should be that of a typical
commercial or hospital
environment
Mains power quality
should be that of a typical
commercial or hospital
environment
Mains power quality
should by that of a typical
commercial or hospital
environment. If the user
of the PS24FHDCR
requires continued
operation during power
mains interruptions,
it is recommended
that the PS24FHDCR
be powered from an
uninterruptible power
supply or a battery.
Power frequency (50/60
Hz) magnetic field
IEC 61000-4-8
3A/m
Not applicable
2
Power frequency
magnetic fields should
be at levels characteristic
of a typical location in
a typical commercial or
hospital environment.
Conducted RF
3 Vrms 3 V Portable and mobile
RF communications
1. is the a.c. mains voltage prior to application of the test level.
2. PS24FHDCR doesn’t contain susceptible components to magnetic fields. Nevertheless, the PS24FHDCR has been tested up to 30
A/m.
30 K5902096 (451920611523) PS24FHDCR 08/03/2018
6. Important information
Immunity test
IEC 61000-4-6
Radiated RF
IEC 61000-4-3
IEC 60601
Test levels
150 kHz to 80 MHz
3
3V/m
80 MHz to 2.5 GHz
Compliance level
3V/m
Electromagnetic
environment –
guidance
equipment should be
used no closer to any
part of the PS24FHDCR,
including cables, than
the recommended
separation distance
calculated from the
equation applicable
to the frequency
of the transmitter.
Recommended
separation distance
d=1.2√P
d=1.2√P 80 MHz to 800
MHz
d=2.3√P 800 MHz to 2.5
Ghz
Where P is the maximum
output power rating
of the transmitter in
watts (W) according
to the transmitter
manufacturer and d
is the recommended
separation distance in
meters (m).
Field strengths from
fixed RF transmitters,
as determined by an
electromagnetic site
survey,
4
should be less
than the compliance
level in each frequency
5
range.
Interference may occur in
the vicinity of equipment
marked with symbol:
At 80 MHz and 800 MHz, the higher frequency range applies.
3. The PS24FHDCR has been tested at 10 V/m
4. Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur
radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic
environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the measured field strength in the
location in which the PS24FHDCR is used exceeds the applicable RF compliance level above, the PS24FHDCR should be observed
to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as re-orienting or
relocating the PS24FHDCR.
5. Over the frequency range 150 kHz to 80 MHz, field strengths should be less than3V/m.
K5902096 (451920611523) PS24FHDCR 08/03/2018 31
6. Important information
These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.
Recommended separation distance
The PS24FHDCR is intended for use in an electromagnetic environment in which radiated RF disturbances
are controlled. The customer of the user of the PS24FHDCR can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment
(transmitters) and the PS24FHDCR as recommended below, according to the maximum output power of
the communications equipment.
Rated maximum output
power of transmitter
W
0.01 0.12 0.12 0.23
0.1 0.38 0.38 0.73
1 1.2 1.2 2.3
10 3.8 3.8 7.3
100121223
At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection form structures, object and people.
Separation distance according to frequency of transmitter
6
150kHz to 80MHz
d=1.2√P
80MHz to 800MHz
d=1.2√P
800MHz to 2.5GHz
d=2.3√P
6.5 Explanation of symbols
Symbols on the device
On the device or power supply, you may find the following symbols (nonrestrictive list):
Indicates the device meets the requirements of the applicable EC directives.
Indicates compliance with Part 15 of the FCC rules (Class A or Class B)
Indicates the device is approved according to the UL Recognition regulations
6. For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be
estimated using the equation applicable to the frequency of the transmitter. Where P is the maximum output power rating of the
transmitter in watts (W) according to the transmitter manufacturer.
32 K5902096 (451920611523) PS24FHDCR 08/03/2018
6. Important information

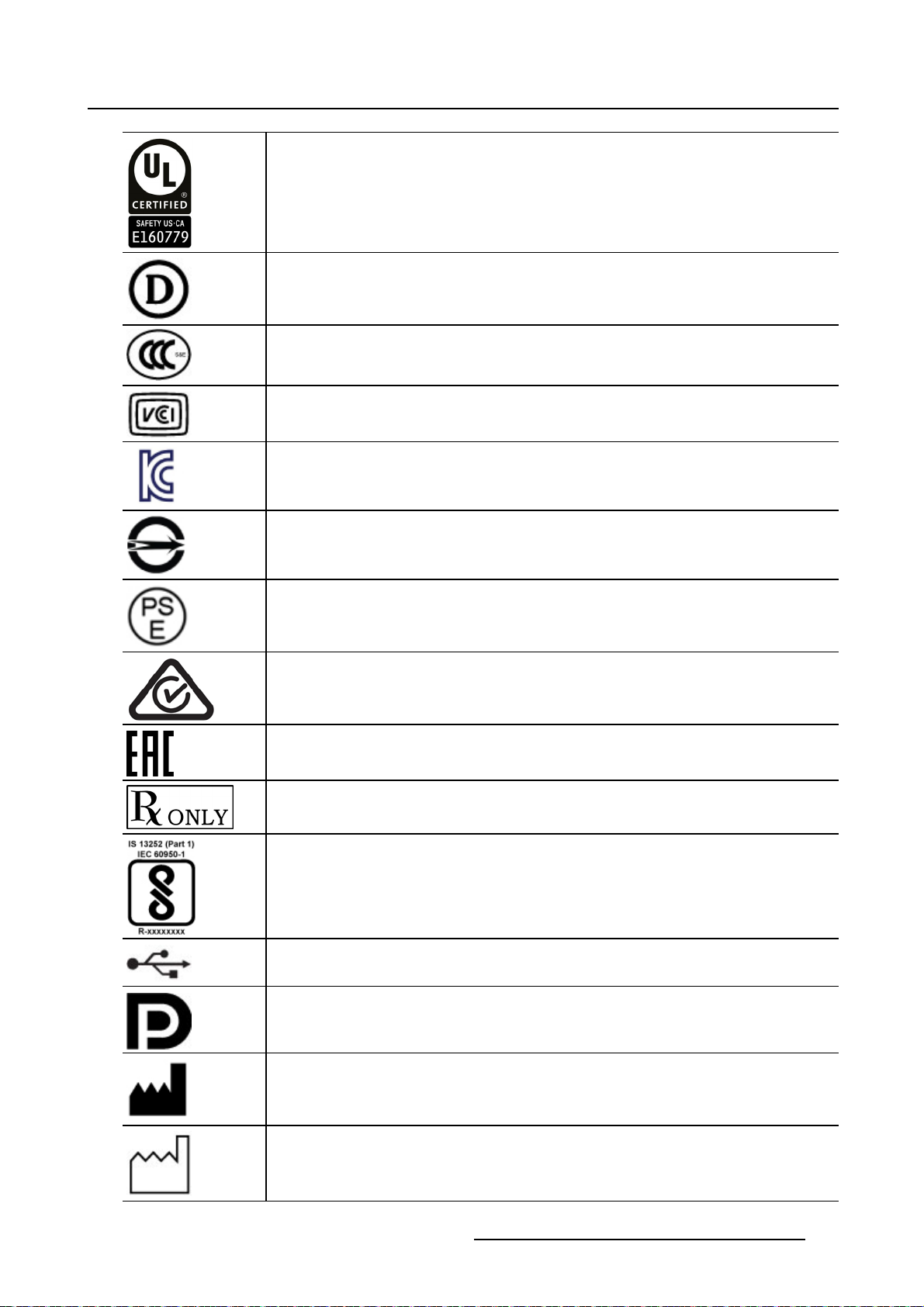

Indicates the device is approved according to the UL regulations for Canada
and US
Indicates the device is approved according to the UL Demko regulations
Indicates the device is approved according to the CCC regulations
Indicates the device is approved according to the VCCI regulations
Indicates the device is approved according to the KC regulations
Indicates the device is approved according to the BSMI regulations
Indicates the device is approved according to the PSE regulations
Indicates the device is approved according to the RCM regulations
Indicates the device is approved according to the EAC regulations
Caution: Federal law (United Stated of America) restricts this device to sale by
or on the order of a licensed healthcare practitioner.
Indicates the device is approved according to the BIS regulations
Indicates the USB connectors on the device
Indicates the DisplayPort connectors on the device
Indicates the legal manufacturer
Indicates the manufacturing date
K5902096 (451920611523) PS24FHDCR 08/03/2018 33
6. Important information

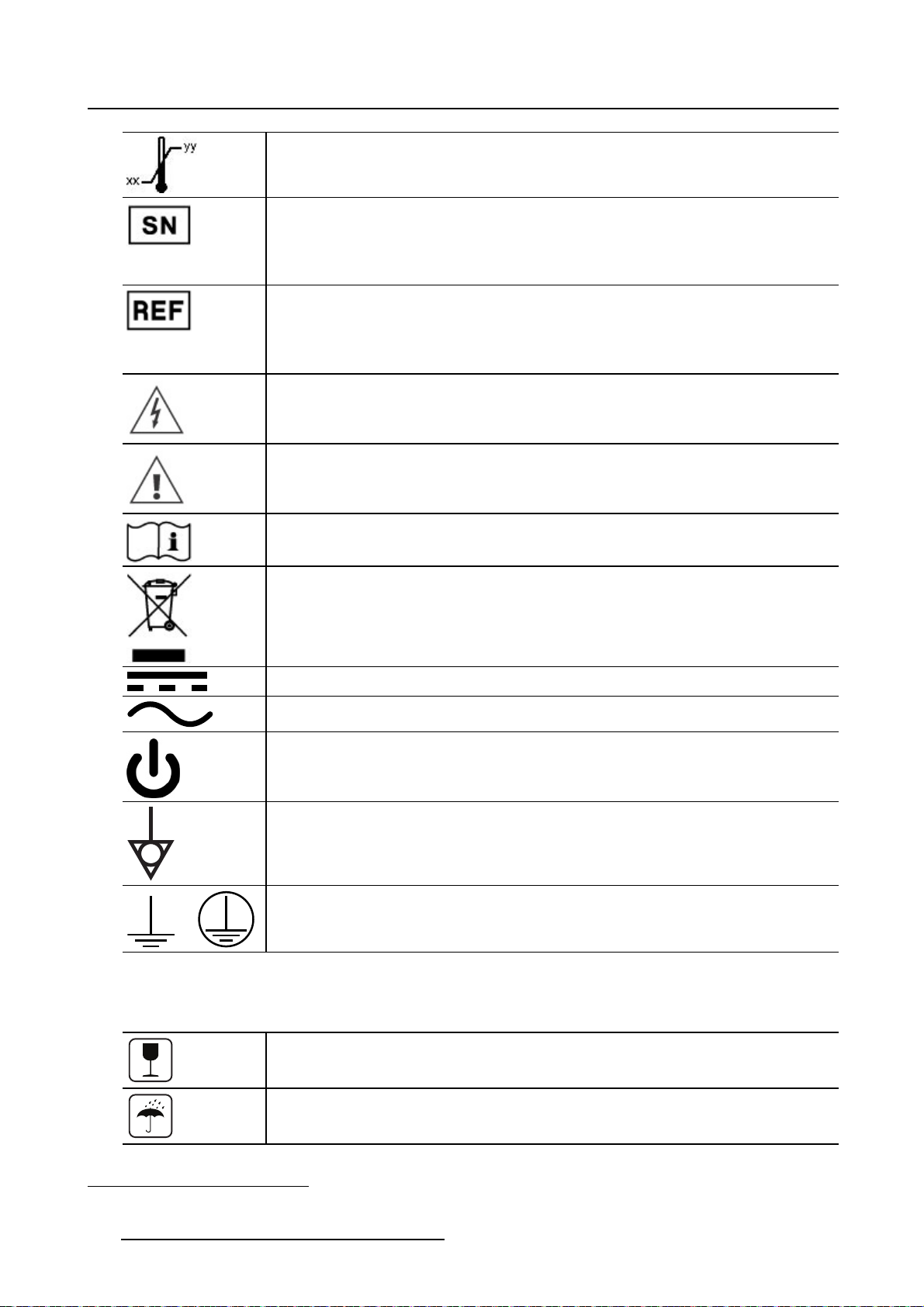

Indicates the temperature limitations7for the device to safely operate within specs.
Indicates the device serial number
Indicates the device part number or catalogue number
Warning: dangerous voltage
Caution
Consult the operating instructions
Indicates this device must not be thrown in the trash but must be recycled,
according to the European WEEE (Waste Electrical and Electronic Equipment)
directive
Indicates Direct Current (DC)
Indicates Alternating Current (AC)
Stand-by
Equipotentiality
Protective earth (ground)
or
Symbols on the box
On the box of the device, you may find the following symbols (nonrestrictive list):
Indicates a device that can be broken or damaged if not handled carefully when
being stored.
Indicates a device tha
7. Values for xx and yy can be found in the technical specifications paragraph.
34 K5902096 (451920611523) PS24FHDCR 08/03/2018
t needs to be protected from moisture when being stored.
6. Important information

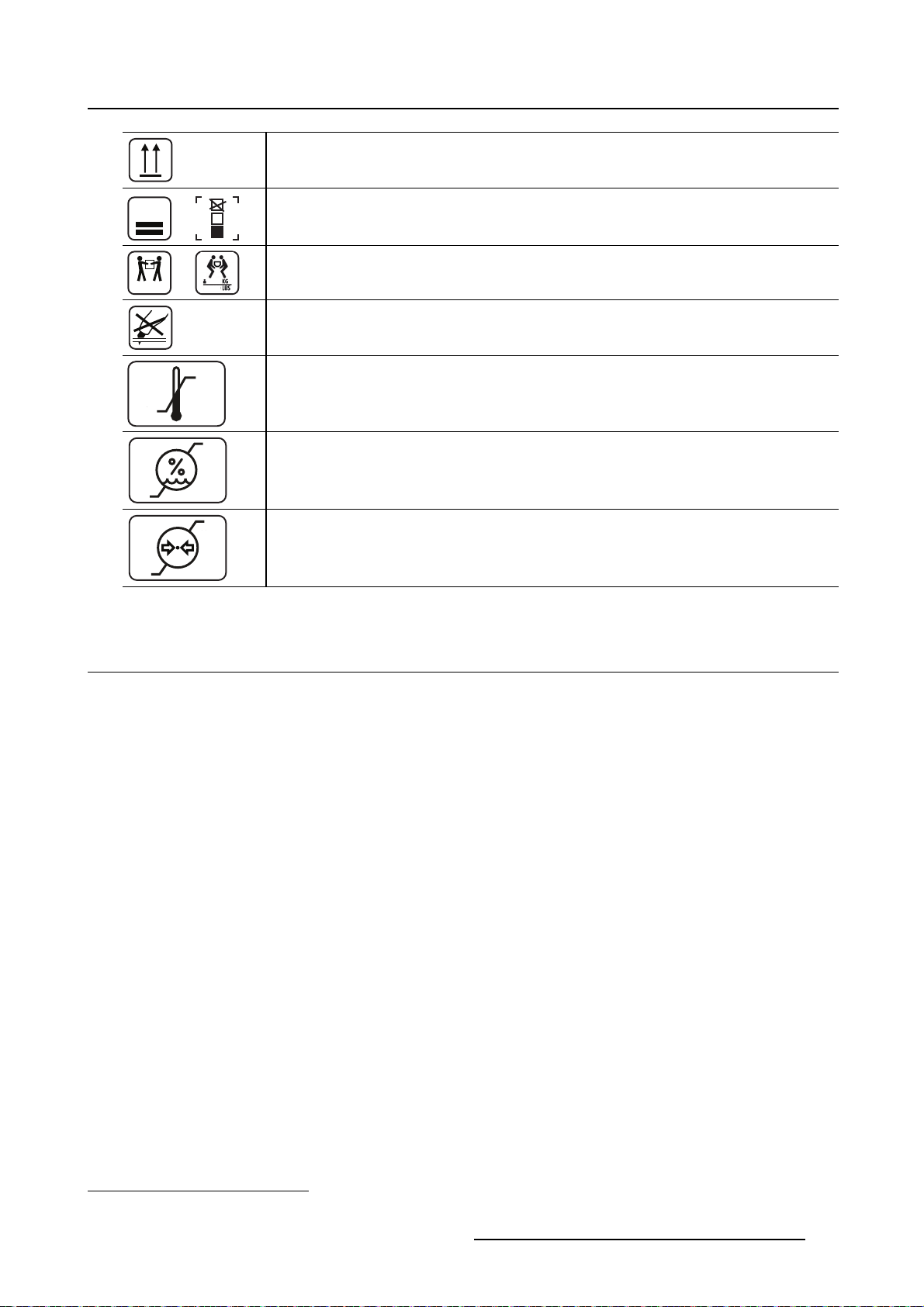

Indicates the storage direction of the box. The box must be transported, handled
and stored in such a way that the arrows always point upwards.
15
n
xx-yy Kg
-20 °C
5 %
xx
50 kPa
Indicates the maximum number of identical boxes which may be stacked on each
n
other, where “n” is the limiting number.
or
Indicates the weight of the box and that it should be carried with two persons.
xx-yy
xx-yy
or
Indicates that the box should not be cut with a knife, a cutter or any other sharp
object.
Indicates the temperature limits8to which the device can be safely exposed when
yy
+60 °C
xx
yy
85 %
being stored.
Indicates the range8of humidity to which the device can be safely exposed when
being stored.
x
yyy
106 kPa
Indicates the range8of atmospheric pressure to which the device can be safely
exposed when being stored.
6.6 Legal disc laimer
Disclaimer notice
Although every attempt has been made to achieve technical accuracy in this document, we assume no
responsibility for errors that may be found. Our goal is to provide you with the most accurate and usable
documentation possible; if you discover errors, please let us know.
Barco software products are the property of Barco. They are distributed under copyright by Barco NV or
Barco Inc., for use only under the specific terms of a software license agreement between Barco NV or
Barco Inc. and the licensee. No other u
form, is authorized.
The specifications of Barco products are subject to change without notice.
Trademarks
All trademarks and registered trademarks are property of their respective owners.
Copyright notice
This document is copyrighted. All rights are reserved. Neither this document, nor any part of it, may
be reproduced or copied in any form or by any means - graphical, electronic, or mechanical including
photocopying, taping or information storage and retrieval systems - without written permission of Barco.
© 2018 Barco NV all rights reserved.
se, duplication, or disclosure of a Barco software product, in any
8. Values for xx and yy can be found in the technical specifications paragraph.
K5902096 (451920611523) PS24FHDCR 08/03/2018 35
6. Important information
6.7 Techn ical sp ecifications
Overview
Product acronym
Screen technology TFT-LCD using S-IPS technology, LED backlight
Active screen size (diagonal) 598.6 mm (23.6”)
Active screen size (H x V) 521.3 mm x 293.2 mm (20.5” x 11.5”)
Aspect ratio (H:V)
Resolution
Pixel pitch 0.2715
Color support 16.7 million (8 bit)
Viewing angle (H, V) 89°
MMCC-2124
16:9
2MP (1920 x 1080)
Maximum luminance
DICOM calibrated luminance 350 cd/m², with DICOM 1 to 4 output curves suitable for an ambient light
Contrast ratio
Response time (Tr + Tf) < 40 ms
Housing color Black / White
Video input signals 2 x DVI Single Link
USB ports 1 x upstream, 3 x downstream (USB 2.0)
Power requirements (nominal) 100-240V (50-60 Hz)
Power consumption
(maximum)
Power consumption (stand-by)
OSD languages
Dimensions with stand in
upright position -5° tilt (W x H
xD)
Dimensions with stand in
inclined position -20° tilt (W x
HxD)
Dimensions w/o stand (W x H
xD)
Dimensions packaged (W x H
xD)
Net weight with stand 9.57 ± 0.5 kg
Net weight w/o stand
Net weight packaged with
stand
Tilt
Mounting standard
400 cd/m² typical
level of approximately 20 Lux, 80 Lux, 180 Lux or 350 Lux
1000:1 typical
700:1 minimum
1xDisplayPort1.1
<55W
< 10.5W
English
563.5 x 393.6 x 168.0 mm
563.5 x 388.4 x 187.9 mm
563.5 x 375.5 x 86.3 mm
645 x 255 x 555 mm
5.69 ± 0.5 kg
11. 50 ± 0. 5 kg
+5° / +20°
VESA (100 mm)
Recommended modalities
36 K5902096 (451920611523) PS24FHDCR 08/03/2018
IGT
6. Important information
Certifications CE - EN 60950-1:2006 +A11:2009 +A12:2011 +A1:2010 +A2:2013,
EN 60601-1-2: 2007
DEMKO - EN 60950-1:2006 +A11:2009 +A12:2011 +A1:2010 +A2:2013
UR - UL 60950-1 2nd Ed. Revised 2011-12-19
c-UR - CSA C22.2 No. 60950-1-07 + A1:2011, EN 60950-1:2006 +
A1:2010 + A11:2009 + A12:2011
IEC 60529:1991 + A1: 2000 (Degrees of protection IP code)
IEC 62471: 2006; EN 62471: 2008 (Photobiological Safety Of Lamps
And Lamp System)
FCC class B
ICES-001 Level B
RoHS (2011/65/EC)
Supplied accessories
Optional accessories None
Warranty 36 months
Operating temperature 10°C to 40°C (10°C to 35°C within specs)
Storage temperature -20°C to 60°C
User guide
Accessory bag containing 4 plastic tag inserts
3/32" Allen key with ball point
Operating humidity 20% - 80% (non-condensing)
Storage humidity 10% - 90% (non-condensing)
Operation altitude
Storage altitude
Up to 3000 m
Up to 3000 m
K5902096 (451920611523) PS24FHDCR 08/03/2018 37
6. Important information

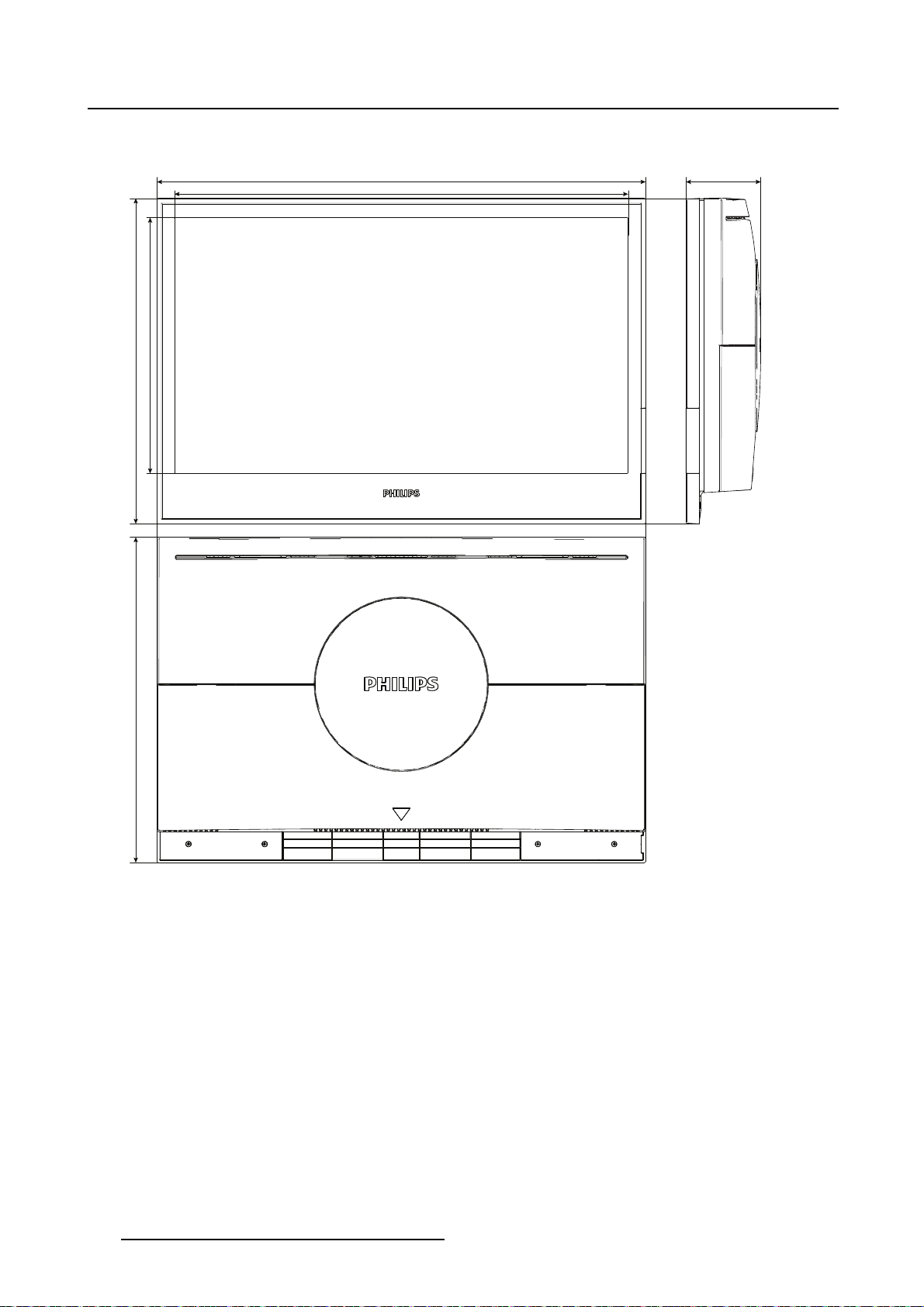

Dimensions
297.2 mm
375.5 mm
563.5 mm 86.3 mm
525.2 mm
375.5 mm
Image 6-1
38 K5902096 (451920611523) PS24FHDCR 08/03/2018
6. Important information
5°
393.6 mm
19.2
Image 6-2
168.0 mm
231.8 mm 100.0 mm
20°
388.4 mm
31.1
187.9 mm
100.0 mm
155.8 mm 119.7 mm
Image 6-3

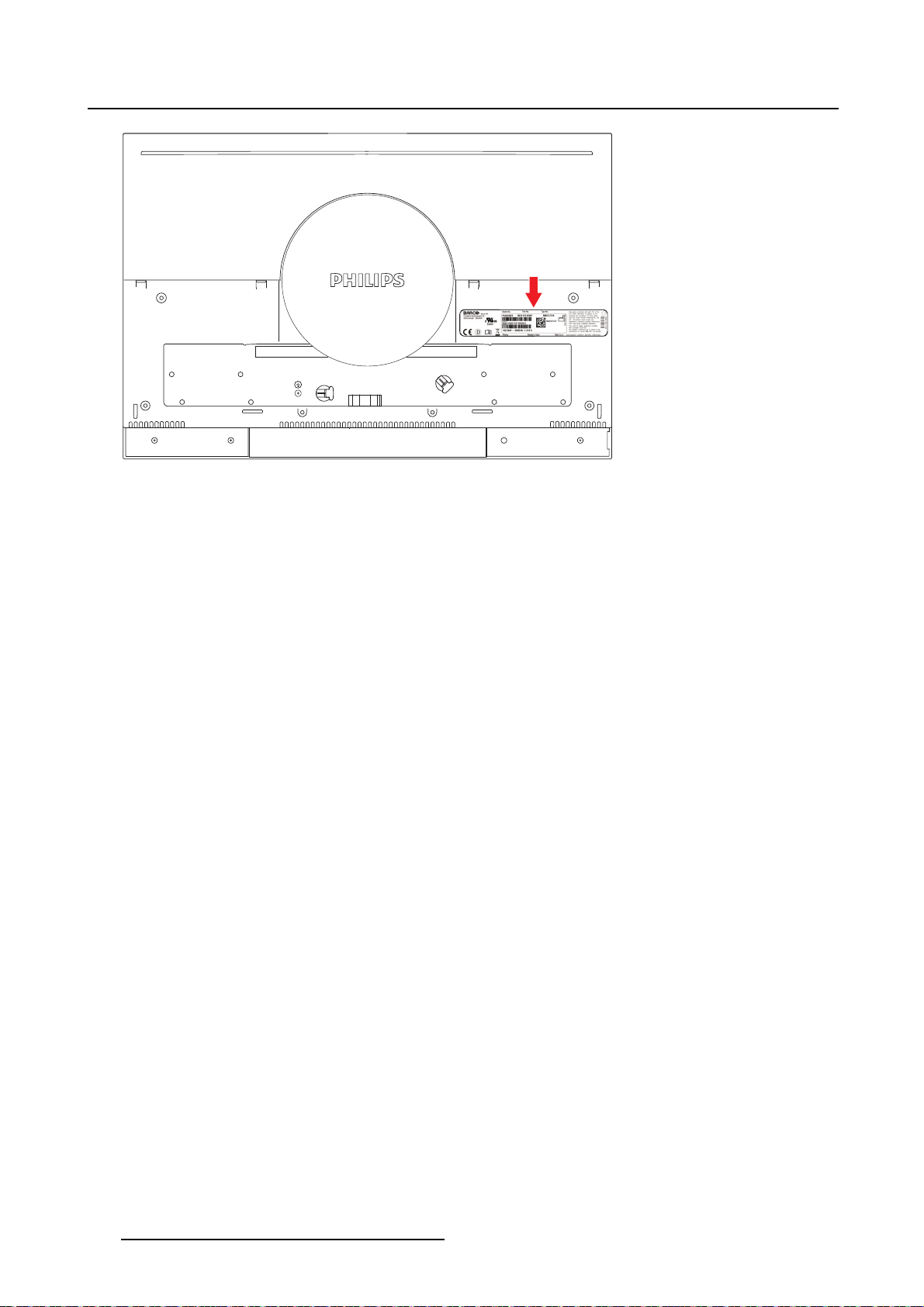

Identification label position
The product identification label is located at the back of the monitor under the cable cover as illustrated
below.
K5902096 (451920611523) PS24FHDCR 08/03/2018
39
6. Important information
Image 6-4
MAINS
5V USB-B USB-A
40 K5902096 (451920611523) PS24FHDCR 08/03/2018
FIMI S.r.l. Saronno - Italy
K5902096-02
(451920611523)
March 2018
Barco NV
Beneluxpark 21
8500 Kortrijk
Belgium
Registered address:
President Kennedypark 35
8500 Kortrijk
Belgium
Loading...
