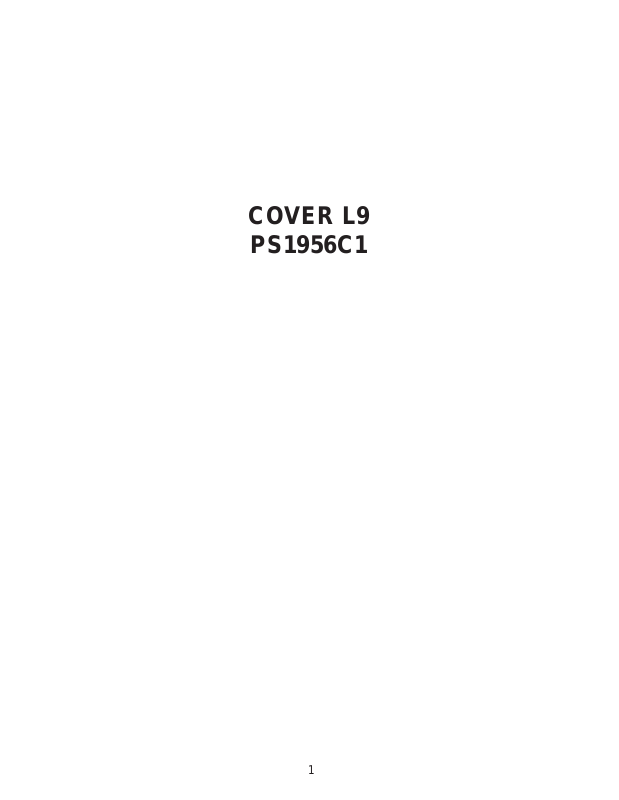

COVER L9

PS1956C1

Once your PHILIPS MAGNAVOX purchase is registered, you’re eligible to receive all the privileges of

owning a PHILIPS MAGNAVOX product. So complete and return the Warranty Registration Card

enclosed with your purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to ensure you

receive all the benefits you’re entitled to.

Congratulations

on your

purchase,

and welcome to the

“family!”

Dear PHILIPS MAGNAVOX product owner:

Thank you for your confidence in PHILIPS MAGNAVOX. You’ve selected one of the best-built, bestbacked products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS MAGNAVOX “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome–and thanks for investing in a PHILIPS MAGNAVOX product.

Sincerely,

Robert Minkhorst President and Chief Executive Officer

Know these

safety

symbols

t This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical

shock. For the safety of everyone in your household, please do not remove product covering.

s The “exclamation point” calls attention to features for which you should read the enclosed lit-

erature closely to prevent operating and maintenance problems. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT

TO RAIN OR MOISTURE. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert. ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la

borne correspondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warranty

Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS MAGNAVOX warranty.

Owner

Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model

Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

P.S. Remember, to get the most from your PHILIPS

MAGNAVOX product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!

Hurry!

Visit our World Wide Web Site at http://www.philipsmagnavox.com

SAFETY INSTRUCTIONS - Read before operating equipment

This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation precautions which you should be particularly aware of.

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions - The safety and operating instructions should be retained for future reference.

3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions - All operating and use instructions should be followed.

5. Water and Moisture - The appliance should not be used near water

- for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.

6. Carts and Stands - The appliance should be used only with a cart or stand that is recommended by the manufacturer.

6A. An appliance and cart combination should be moved

with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

6B. Tilt/Stability - All televisions must comply with recommended inter-

national global safety standards for tilt and stability properties of its cabinet design.

• Do not compromise these design standards by applying exces-

sive pull force to the front, or top, of the cabinet which could ultimately overturn the product.

• Also, do not endanger yourself, or children, by placing elec-

tronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.

7. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

8. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a builtin installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.

9. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

10 . Power Sources - The appliance should be connected to a power sup-

ply only of the type described in the operating instructions or as marked on the appliance.

11. Power-Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit from the appliance.

12. Cleaning - The appliance should be cleaned only as recommended by the manufacturer.

13. Power Lines - An outdoor antenna should be located away from power lines.

14. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to provide some protection against voltage surges and built up static charges.

Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an antenna discharge unit, size of grounding connectors, location of antennadischarge unit, connection to grounding electrodes and requirements for the grounding electrode. See Fig. below.

15. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

16 . Object and Liquid Entry - Care should be taken so that objects do not

fall and liquids are not spilled into the enclosure through openings.

17. Damage Requiring Ser vice - The appliance should be serviced by qualified service personnel when:

A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appliance;

C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a

marked change in performance; or

E. The appliance has been dropped, or the enclosure damaged.

18. Ser vicing - The user should not attempt to service the appliance

beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

ANTENNA LEAD IN WIRE

ANTENNA DISCHARGE UNIT

(NEC SECTION 810-20)

GROUNDING CONDUCTORS

(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING ELECTRODE SYSTEM

(NEC ART 250, PART H)

GROUND CLAMP

ELECTRIC SERVICE EQUIPMENT

Example of Antenna Grounding as per NEC - National Electric Code

Introduction

Welcome/Registration of Your TV............................2

Safety/Precautions .....................................................3

Table of Contents.......................................................4

Features......................................................................4

Basic Cable TV Hookups ..........................................5

Basic Antenna Hookups.............................................6

Basic TV to VCR Hookup.........................................7

Basic TV and Remote Operations .............................8

TV Remote Buttons ...................................................9

Onscreen MENU

✧ Setting the Language Control.................10

✧ Using the Tuner Control...................................11

✧ Using the Auto Program Control.....................12

✧ How to Add and Delete Channels....................13

✧ Using the External (Input Naming) Control....14

✧ Adjusting the TV Picture .................................15

✧ Activating Contrast Plus (Black Stretch) Control 1 6 ✧Activating Noise Reduction (Picture) Control.17

✧ Setting the TV’s Clock......................................18

✧ Activating the Timer Control............................18

✧ Activating the Start-Up Channel ......................19

✧ Setting the TV’s Start Time Control.................19

✧ Setting the TV for Closed Caption...................20

✧ Using the Sleep Timer Control.........................21

✧ Using the Volume Bar Control .........................22

SmartLock™

✧ Understanding the SmartLock Feature .......23

✧ Setting the SmartLock Access Code ................24

✧ Setting the SmartLock to Block Channels.......25

✧ Setting SmartLock’s Blocking Options...........26

✧ Blocking Using the Movie/TV Ratings .....27-28

✧Using the SmartLock Review Screen...............29

Sound

✧ Setting the Treble Boost and

Bass Boost Controls.........................................30

✧ Setting the TV for Stereo Programs ................31

✧ Using the Input control with the Audio/Video

Input Jacks .......................................................32

Remote Control Operation

Using the SmartPicture™ Control ...............33

Using the SmartSound™ (AVL) Control.....34

Using SmartSurf™ (Alternate Channel) .................35

General Information

Tips if Something Isn’t Working ................36

Glossary of TV Terms..............................................37

Index ........................................................................37

Factory Service Locations..................................38-39

Warranty...................................................................40

TABLE OF CONTENTS

NOTE: This owner's manual is used with several different television models. Not all features (and drawings) discussed in this manual will necessarily match those found with your television system. This is normal and does not require you contacting your dealer or requesting service.

Here are a few of the special features built into this new Color Television:

SmartLock™ feature allows you to block the viewing of certain channel or external audio/video connections were you might not want your children viewing inappropriate material.

Infrared Remote Control works your TV set. Standard broadcast (VHF/UHF) or Cable TV

(CATV) channel capability. Stereo TV with built-in audio amplifier and twin

speaker system for receiving TV programs broadcast in stereo sound. This TV can actually detect if the signal being received is Stereo and adjust for it.

Closed Captioning allows the viewer to read TV program dialogue or voice conversations as onscreen text.

Automatic Programming of Channels for quick and easy selection of favorite stations available in your area.

Onscreen Features (in either English, French, or Spanish) show helpful messages for setting of TV controls.

Audio/Video Jackpanel for direct connections with VCRs (or other video accessories) providing quality TV picture and sound playback.

On Timer automatically turns the TV ON at a preset time, and channel.

Sleep Timer automatically turns the TV OFF at preset times.

SmartPicture™ allows you to set the picture color, tint, contrast, etc. for various types of programming such as Personal (picture controls the way you set them), Sports, Movies, or Weak Signals with the push of one button.

SmartSound™ controls allow you to set the sound controls for various types of listening programs such as Personal (sound controls the way you set them), Theater, Music, or Voice with the push of one button.

SmartPicture™, SmartSound™, SmartSurf™, and SmartLock™ are all

registered trademarks of Philips Consumer Electronics Company.

75 V

VIDEO

L/MONO

AUDIO

OUT

75 V

VIDEO

L/MONO AUDIO R

our Cable TV input into your

home may be a single (75 ohm) cable, or a Converter Box installation. In either case the connection to the TV is very easy. Just put the threaded end of the cable signal to the TV's antenna plug and screw it down tight.

If your Cable TV signal is a sin-

gle round cable (75 ohm) then

you're ready to connect to the TV.

If you have a Cable Converter Box:

Connect the Cable TV signal to the Cable Signal IN(put) plug on the Converter..

Connect the Cable TV cable to the

75Ω plug on the TV.

If you have a Cable Converter Box:

Connect the OUT(put) plug from the Converter to the 75Ωplug on the TV.

HOOKING UP YOUR TV (BASIC CABLE TV CONNECTIONS)

BEGIN

CABLE TV

Cable TV Company

Cable TV Signal Input

Cable TV Converter

Box Connection

Round Cable

75Ω Ohm

Back of TV

Remember: Set the TV for the type signal you've just connected (see the “Tuner” section on page 11 of this manual.)

To select only the channel numbers on your Cable system see “Auto Program" (page 12). If you use a Cable Converter box, set the TV to the same channel as the converter's CH 3/4 switch (on the rear of the converter.)

SMART

HELP

combination antenna receives

normal broadcast channels

(VHF 2-13 and UHF 14-69). Your connection is easy since there is only one 75Ω (ohm) antenna plug on the back of your TV - and that’s where the antenna goes.

If your antenna has a round

cable (75 ohm) on the end, then

you're ready to connect it to the TV.

If your antenna has flat twin-lead wire (300 ohm), you first need to

attach the antenna wires to the screws on a 300 to 75 ohm adapter.

Push the round end of the

adapter (or antenna) onto the 75Ω plug on the rear of the TV. If the round end of the antenna wire is threaded, screw it down tight.

HOOKING UP YOUR TV (BASIC ANTENNA TV CONNECTIONS)

BEGIN

ANTENNA

Remember: Be sure to set the TV for the type signal you've connected (see the “Tuner” section on page 11 of this manual.)

To set the TV to select only the channel numbers in your area see how to “Program" or "Add" channels in the TV’s memory on page 12 (Auto Program section).

To order any optional accessory contact your dealer or the Philips Parts Center at 1-800-851-8885.

SMART

HELP

300 to 75Ω

Adapter

Combination VHF/UHF

Antenna

(Outdoor or Indoor)

Twin Lead

Wire

Round Cable

75Ω

Back of TV

Note: For homes with separate UHF and VHF antennas you will need an optional combiner to connect to the TV.

U/V

Combiner

75-300 Ohm Adapter

Back of TV

75 V

VIDEO

L/MONO AUDIO R

75 V

VIDEO

L/MONO AUDIO R

VIDEO

L/MONO

AUDIO

he basic Antenna, or Cable

TV, to VCR to TV connection is shown to the right. For more information on other hookups (possible when Cable Converter/Descrambler boxes are included) refer to your accessory VCR and Cable Converter Owner's Manual for details.

Connect your Antenna or Cable TV signal to the IN FROM ANT(enna) plug on the VCR.

Connect the OUT TO TV plug on the VCR to the 75Ω plug on the

TV (connecting cable supplied with the VCR.)

HOOKING UP YOUR TV (BASIC TV TO VCR CONNECTIONS)

BEGIN

TV TO VCR

Round Cable

75Ω Supplied with VCR

Outdoor

VHF/UHF

Antenna

300 to 75Ω

Ohm Adapter

Cable TV signal

Back of TV

VCR

IN FROM ANT.

OUT TO TV

75 V

VIDEO

L/MONO AUDIO R

75 V

VIDEO

L/MONO

AUDIO

Press the POWER button to

turn the TV ON.

Press the VOLUME + button to increase the sound level or the VOLUME – button to lower the sound level.

Pressing both buttons at the same time will display the onscreen menu.

Once in the menu, use these button to make adjustments or selections.

Press the CHANNEL UP ▲ or

DOWN ▼ button to select TV chan-

nels.

BASIC TV/REMOTE OPERATIONS

BEGIN

TELEVISION

Remote Sensor Window

Front Audio/Video Inputs (Stereo)

The Front Audio/Video Input Jacks make it real easy to watch the playback of a video tape using a camcorder (or any accessory device) with Audio/Video Output Jacks.

INSTALL /

– VOLUME + CHANNEL

VIDEO

L AUDIO R

POWER

– VOLUME + CHANNEL

VIDEO

L AUDIO R

POWER

o load the supplied batteries

into the remote:

1. Remove the battery compartment lid on the back of the remote.

2. Place the batteries (2-AA) in the remote. Be sure the (+) and (-)

ends of the batteries line up correctly (inside of case is marked.)

3. Reattach the battery lid.

BATTERY INSTALLATION

REMOTE

SMART HELP

Remember,

You can press any button on the front of the TV to turn the TV ON.

The tuned channel number will always briefly appear when the TV is first turned ON (and with channel changes.)

You can also press the STATUS/EXIT button (on the remote) to see what channel the TV is ON.

Point the remote control toward the remote sensor window on the TV when operating the TV with the remote.

POWER

SLEEP

CLOCK

SURF

STATUS

EXIT

MUTE

VOL CH

SMART

SOUND

SMART


A/CH

POWER

SLEEPCLOCKCC

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

TV REMOTE BUTTONS

Power Button

Press to turn the TV ON and OFF.

Sleep Button

Press to set the TV to automatically turn itself OFF.

CC Button

Press to select Closed Caption options within the menu.

Clock Button

Press for direct entry of the TIMER (Clock) features were you can set the TV’s clock, the Start Time, and the Start Channel Controls.

Number Buttons

Press the number buttons to select TV channels. For single digit entries, press the number of the channel you desire. The TV will pause for a few seconds, then change to the selected channel. For channels 100 and above, press "1" then the next two numbers. (Example, Press "1", then "2", then "5" for channel 125.)

A/CH Button

Press to toggle between the currently viewed channel and the previously viewed channel.

Surf Button

Press to select previously viewed channels. You can place up to 8 channels in memory. Then by pressing the SURF button you can quickly view the select channels. See the “Surf" section to see how to select a series of channels using the Surf button.

Menu Button

Press for the onscreen menu to appear. Pressing the menu button after menu selections are made will eliminate the menu from the display.

Status/Exit Button

Press to see the current channel number on the TV screen. Also press to clear the TV screen after control adjustments.

Cursor Buttons

Use these button to select and adjust the TV's onscreen menu.

Volume (+), (–) Buttons

Press to adjust the TV sound level.

Mute Button

Press to turn the sound OFF on the TV. Press again to return the sound to its previous level.

Smart Sound Button

Press to select from a list of Smart Sound controls. (Factory preset sound control levels set for different types of listening sources and programs.)

Smart Picture Button

Press to select from a list of Smart Picture controls. (Factory preset picture control levels set for different types of viewing sources and programs.)

Channel (+), (–) Buttons

Press to change the tuned channel.

CLOCK

CC OFF SETUP

SmartLock REVIEW

BRIGHTNESS 30

LANGUAGE ENGLISH TUNER CABLE AUTO PROGRAM

LANGUAGE FRANCAIS or LANGUAGE ESPANOL

POWER

SLEEPCLOCKCC

3 65

4 7

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

or our Spanish and French speak-

ing TV owners an onscreen LANGUAGE option is present. With the LANGUAGE control you can set the TV’s onscreen menu to be shown in either English, Spanish, or French.

Press the MENU button on the

remote to show the onscreen menu.

Press the CURSOR UP ▲ or

DOWN ▼ buttons to scroll through

the onscreen menu until the word

SETUP is highlighted.

Press the CURSOR RIGHT ©

button to display the SETUP menu

features.

Press CURSOR UP ▲ or

DOWN ▼ buttons to scroll the Setup features until the word LANGUAGE is highlighted.

Press the CURSOR RIGHT © button repeatedly to select ENGLISH, ESPANOL (Spanish), or FRANCAIS (French).

USING THE LANGUAGE CONTROL

BEGIN

Remember: The Language

control only makes the TV’s onscreen MENU items appear in English, Spanish, or French text.

It does not change the other onscreen text features such as Closed Caption (CC) TV shows.

The onscreen menu will time out and disappear from the screen when you finish, or you can press the STATUS/EXIT button to clear the menu from the screen.

SMART HELP

CLOCK

CC OFF SETUP

SmartLock REVIEW

BRIGHTNESS 30

LANGUAGE ENGLISH TUNER CABLE AUTO PROGRAM

CHANNEL EDIT

TUNER AUTO

POWER

SLEEPCLOCKCC

3 65

4 7

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

TUNER ANTENNA

he TUNER feature allows you to

change the TV’s signal input to either CABLE, AUTO or ANTENNA mode. It’s important for the TV to know what type of signal to look for. (From a Cable TV signal or a normal Antenna signal.) In the AUTO mode, when the AUTO PROGRAM feature is activated, the TV will automatically choose the correct mode.

Press the MENU button on the

remote to show the onscreen menu.

Press the CURSOR UP ▲ or

DOWN ▼ buttons to scroll through

the onscreen menu until the word

SETUP is highlighted.

Press the CURSOR RIGHT ©

button to display the SETUP menu

features.

Press CURSOR UP ▲ or

DOWN ▼ buttons to scroll the

Setup features until the word

TUNER is highlighted.

Press the CURSOR RIGHT ©

button to select either CABLE,

AUTO or ANTENNA mode.

USING THE TUNER CONTROL

BEGIN

When CABLE is selected,

channels 1-125 are available.

When ANTENNAis selected, channels 2-69 are available.

When AUTO is selected, the TV will automatically set itself to the correct mode based on the type of signal it detects when the AUTO PROGRAM feature is activated.

The onscreen menu will time out and disappear from the screen when you finish, or you can press the STATUS/EXIT button to clear the menu from the screen.

SMART HELP

CLOCK

CC OFF SETUP

SmartLock REVIEW

BRIGHTNESS 30

LANGUAGE ENGLISH TUNER CABLE AUTO PROGRAM

CHANNEL EDIT

EXTERNAL

AUTO PROG 33

POWER

SLEEPCLOCKCC

3 65

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

our TV can automatically set itself

for local area (or Cable TV) channels. This makes it easy for you to select only the TV stations in your area when the CHANNEL (+), (–) buttons are pressed.

Note: Make sure the antenna or cable signal connection has been completed before AUTO PROGRAM is activated.

Press the MENU button on the remote to show the onscreen menu.

Press the CURSOR UP ▲ or DOWN ▼ buttons to scroll through

the onscreen menu until the word

SETUP is highlighted.

Press the CURSOR RIGHT ©

button to display the SETUP menu

features.

Press CURSOR UP ▲ or DOWN ▼ buttons to scroll the Setup features until the words AUTO PROGRAM are highlighted.

Press the CURSOR RIGHT © button to start the Auto Program

scanning of channels.

USING THE AUTO PROGRAM CONTROL

BEGIN

Try it out. Press the CHAN-

NEL (+), (–) buttons and see which channels have been added to the TV’s memory.

If you want to delete any unwanted channels from the TV’s memory, see the CHANNEL EDIT section on page 13.

The onscreen menu will time out and disappear from the screen when you finish, or you can press the STATUS/EXIT button to clear the menu from the screen.

SMART HELP

Auto Program will scan for all available channels within the Antenna/Cable signal. When finished, the TV will go back to the SETUP menu.

CLOCK

CC OFF SETUP

SmartLock REVIEW

BRIGHTNESS 30

TUNER CABLE AUTO PROGRAM

CHANNEL EDIT

EXTERNAL

POWER

SLEEPCLOCKCC

3 65

4 7

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

CHANNEL 2 SAVED YES CHANNEL ADDED

CHANNEL 2 SAVED NO CHANNEL DELETED

hannel Edit makes it easy for you

to ADD or DELETE channels from the list of channels stored in the TV’s memory.

Press the MENU button on the

remote to show the onscreen menu.

Press the CURSOR UP ▲ or

DOWN ▼ buttons to scroll through

the onscreen menu until the word

SETUP is highlighted.

Press the CURSOR RIGHT ©

button to display the SETUP menu

features.

Press the CURSOR UP ▲ or

DOWN ▼ buttons to scroll the

Setup features until the words

CHANNEL EDIT are highlighted.

Press the CURSOR RIGHT ©

button to display the CHANNEL

EDIT options.

With the CHANNEL EDIT

options displayed, and the word CHANNEL highlighted; enter the channel number (with the NUMBERED or the CH + or – buttons)

you wish to ADD to, or DELETE from the TV’s memory.

Scroll down (using the CUR-

SOR UP ▲ or DOWN ▼ buttons)

to highlight the word SAVED. Now use the CURSOR RIGHT © button to toggle between YES or NO. If YES is selected the menu reads “CHANNELADDED” and the

channel is added to the TV’s memory. If NO is selected the menu reads “CHANNEL DELETED” and the channel is deleted from the TV’s memory.

HOW TO ADD AND DELETE CHANNELS

BEGIN

CLOCK

CC OFF SETUP

SmartLock REVIEW

BRIGHTNESS 30

AUTO PROGRAM

CHANNEL EDIT

EXTERNAL

EXT 1 EXT

EXT 1 GAM

EXT 1 DVD

EXT 1 VCD

EXT 1 VCR EXT 1 LD EXT 1 SA T

POWER

SLEEPCLOCKCC

3 65

4 7

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

he External feature allows you to

rename your input source selections. When the Input feature (refer to Owner’s Manual for details) is accessed to change audio/video jacks, your source selection will be called by the name you choose. This name will also appear onscreen when using the audio/video inputs.

Press the MENU button on the

remote to show the onscreen menu.

Press the CURSOR UP ▲ or

DOWN ▼ buttons to scroll through

the onscreen menu until the word

SETUP is highlighted.

Press the CURSOR RIGHT © button to display the SETUP menu

features.

Press the CURSOR UP ▲ or

DOWN ▼ buttons to scroll the

Setup features until the word

EXTERNAL is highlighted.

Press the CURSOR RIGHT ©

button to activate the External fea-

ture.

With the External options menu

displayed, press the CURSOR RIGHT © button to select a name from the list: EXT, GAM, DVD,

VCD, VCR, LD, or SAT.

USING THE EXTERNAL CONTROL

BEGIN

Remember: This feature will

rename your external signal source and appear onscreen with the new name but does not limit you to the type of accessory device that you may use.

The onscreen menu will time out and disappear from the screen when you finish, or you can press the STATUS/EXIT button to clear the menu from the screen.

SMART HELP

SETUP

SmartLock REVIEW

BRIGHTNESS 30 COLOR 30 PICTURE 30

SmartLock REVIEW

BRIGHTNESS 30 COLOR 30 PICTURE 30 SHARPNESS 30

BRIGHTNESS 30 COLOR 30 PICTURE 30 SHARPNESS 30 TINT 0

COLOR 30 PICTURE 30 SHARPNESS 30 TINT 0 COL TEMP NORMAL

PICTURE 30 SHARPNESS 30 TINT 0 COL TEMP NORMAL CONTRAST PLUS ON

POWER

SLEEPCLOCKCC

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

SHARPNESS 30 TINT 0 COL TEMP NORMAL CONTRAST PLUS ON NOISE REDUCTION ON

COL TEMP W ARM COL TEMP COOL

o adjust your TV picture con-

trols, select a channel and follow

the steps shown below:

Press the MENU button on the

remote to display the onscreen menu.

Press the CURSOR UP ▲ or

DOWN ▼ buttons until the

word BRIGHTNESS is highlighted. (Or, COLOR, PICTURE, SHARPNESS, TINT, COL. TEMP depending on the adjustment you want to make.)

Press the CURSOR RIGHT ©

or the CURSOR LEFT § buttons

to increase or decrease the brightness of the picture.

HOW TO ADJUST THE TV PICTURE

BRIGHTNESS Press the ©

or § buttons until darkest parts of

the picture are as bright as you prefer.

COLOR

Press the © or § buttons to

add or eliminate color.


Press the © or § buttons

until lightest parts of the picture show good detail.

SHARPNESS

Press the © or § buttons

to improve detail in the picture.

TINT

Press the © or § buttons to

obtain natural skin tones.

COLOR

TEMP Press the © or § but-

tons to select NORMAL, COOL, or WARM picture preferences. (NORMAL will keep the whites, white; COOL will make the whites, bluish; and WARM will make the whites, reddish.)

The onscreen menu will time out and disappear from the screen when you finish, or you can press the STATUS/EXIT button to clear the menu from the screen.

SMART HELP

BEGIN

TINT 0 COL TEMP NORMAL CONTRAST PLUS 0FF NOISE REDUCTION ON VOLUME 15

POWER

SLEEPCLOCKCC

3 65

4 7

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

TINT 0 COL TEMP NORMAL CONTRAST PLUS 0N NOISE REDUCTION ON VOLUME 15

he Contrast Plus (Black Stretch)

feature helps to “sharpen” the picture quality. The black portions of the picture become richer in darkness and the whites become brighter.

Press the MENU button on the

remote to display the onscreen menu.

Press the CURSOR UP▲or

CURSOR DOWN ▼ buttons until

the words CONTRAST PLUS are highlighted.

Press the CURSOR RIGHT © or CURSOR LEFT § buttons to activate or deactivate the Contrast Plus feature.

ACTIVATING THE CONTRAST PLUS (BLACK STRETCH) CONTROL

BEGIN

Remember: The onscreen

menu will disappear in a few seconds after you have finished your adjustment.

SMART HELP

COL TEMP NORMAL CONTRAST PLUS ON NOISE REDUCTION OFF VOLUME 15 TREBLE BOOST OFF

COL TEMP NORMAL CONTRAST PLUS ON NOISE REDUCTION ON VOLUME 15 TREBLE BOOST OFF

POWER

SLEEPCLOCKCC

3 65

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

or reasons such as poor cable

reception, the picture can sometime appear slightly “speckled” (or signal noise shown in the picture). The NOISE REDUCTION control can help eliminate this type of interference and improve the quality of the picture.

Press the MENU button on the

remote to display the onscreen menu.

Press the CURSOR UP ▲ or

CURSOR DOWN ▼ button until

the words NOISE REDUCTION are highlighted.

Press the CURSOR RIGHT ©

or CURSOR LEFT § buttons to

activate or deactivate the Noise Reduction Feature.

ACTIVATING THE NOISE REDUCTION (PICTURE) CONTROL

BEGIN

Remember: The onscreen

menu will disappear in a few seconds after you have finished your adjustment.

“Noise” Reduction is a video adjustment feature that affects the picture quality of the TV not the sound.

SMART HELP

SET CLOCK 10:00 AM TIMER ACTIVE OFF CHANNEL 12 START TIME - - : - - AM

POWER

SLEEPCLOCKCC

3 65

4 7

A/CH

SURF

STATUS

EXIT

MUTE

VOL

SET CLOCK 10:00 AM TIMER ACTIVE ON CHANNEL 12 START TIME - - : - - AM

ust like an alarm clock you can set the TV to turn itself on at the

same time everyday.

Press the CLOCK button to

display the Clock onscreen menu.

Press the CURSOR UP ▲ or

CURSOR DOWN ▼ button until

the words TIMER ACTIVE are highlighted..

Press the CURSOR RIGHT

to select ON (if activating) or OFF (if deactivating) the Timer control.

ACTIVATING THE TV’S ON TIMER CONTROL

SMART HELP

Remember: Be sure to set the clock to the current time, then set the time you want the television to turn on using the STARTTIME control as described on the next page.

The onscreen menu will time out and disappear from the screen when you finish, or you can press the STATUS/EXIT button to clear the menu from the screen.

BEGIN

SET CLOCK - - :- - AM TIMER ACTIVE ON CHANNEL 12

SET CLOCK 10:00 AM TIMER ACTIVE ON CHANNEL 12

POWER

SLEEPCLOCKCC

3 65

4 7

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

our television comes with an

onscreen clock. During normal operation the clock appears on the screen when the STATUS/EXIT button is pressed or when channel changes occur.

Press the CLOCK button on the

remote to display the onscreen

CLOCK menu.

Press the CURSOR UP▲ OR

CURSOR DOWN ▼ buttons until

the words SET CLOCK are highlighted.

Enter the current time using the

NUMBERED buttons. If the first

number is a single digit first enter a zero then the digit (i.e., press “0”, then press “8”).

Press the CURSOR RIGHT ©

or CURSOR LEFT § buttons to set

either AM or PM time.

SETTING THE TV’S CLOCK

SMART HELP

Remember: Be sure to press “0” first and then the hour number for single digit entries.

To clear the onscreen menu press the STATUS/EXIT button or wait a few seconds after you have finished your adjustment and the menu will automatically disappear from the screen.

BEGIN

Note: The CLOCK onscreen menu can also be accessed through the main menu by pressing the MENU button; then

scrolling up/down with the CURSOR UP ▲ or CURSOR DOWN ▼ buttons until the word CLOCK is highlighted. Press the CURSOR RIGHT © button

to activate the CLOCK menu and follow the steps above to set the time.

Note: If a power failure occurs, the TV's CLOCK will have to be reset.

If no time is set, the time will not appear onscreen.

SET CLOCK 10:00 AM TIMER ACTIVE ON CHANNEL 12 START TIME - - : - - AM

POWER

SLEEPCLOCKCC

3 65

4 7

A/CH

SURF

STATUS

EXIT

sed along with the Clock fea-

tures, you can select a specific channel that the television will tune to when the Timer Active control is turned ON.

Press the CLOCK button to

display the Clock onscreen menu.

Press the CURSOR UP ▲ or

CURSOR DOWN ▼ button until the word CHANNEL is highlighted.

Press the number buttons to

enter the start up channel you

would like the television to start on.

ACTIVATING THE START UP CHANNEL

BEGIN

SMART HELP

Remember: Be sure

to set the Timer Active

control to ON. The onscreen menu will time

out and disappear from the screen when you finish, or you can press the STATUS/EXIT button to clear the menu from the screen.

TIMER ACTIVE ON CHANNEL 12 START TIME - - : - - AM

TIMER ACTIVE ON CHANNEL 12 START TIME 08:30 AM

12 8:30

POWER

SLEEPCLOCKCC

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

CHANGING

TO CHANNEL 6

IN 30 SECONDS

sed along with the Clock fea-

ture, you can select a specific time the television will turn on when the Timer Active control is turned ON.

Press the CLOCK button to

display the Clock onscreen menu.

Press the CURSOR UP ▲ or

CURSOR DOWN ▼ button until

the words START TIME are high- lighted.

Enter the time to turn on the

TV using the NUMBERED but-

tons. If the first number is a single

digit first enter a zero then the digit (i.e., press “0”, then press “8”).

Press the CURSOR RIGHT ©

or CURSOR LEFT § buttons to

set either AM or PM time.

SETTING THE TV’S START UP TIME

BEGIN

SMART HELP

Remember: Be sure to set the

Timer Active to ON.

If the TV is in use when the STARTTIME control is about to be activated, the screen will display a warning stating it's going to change channels in 30 seconds. It will appear like the screen shown below and change to the selected start up channel. Pressing any button on the remote within this count down will cancel the change.

CLOCK © CC MUTE SETUP © SmartLock REVIEW ©

CLOCK © CC 2 SETUP © SmartLock REVIEW ©

SmartLock © CLOCK © CC OFF SETUP © SmartLock REVIEW ©

CC - 1

SmartLock © CLOCK © CC 1 SETUP © SmartLock REVIEW ©

POWER

SLEEPCLOCKCC

3 65

4 7

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

losed Captioning (CC) allows

you to read the voice content of television programs on the TV screen. Designed to help the hearing impaired, this feature uses onscreen “text boxes” to show dialogue and conversations while the TV program is in progress.

Press the MENU button on the

remote to display the onscreen

menu.

Press the CURSOR UP ▲ or

CURSOR DOWN ▼ button until

the word CC (Closed Caption) is highlighted.

Press the CURSOR RIGHT

to select the CLOSED

CAPTION option you want (OFF, 1, 2, or MUTE). Dialogue (and descriptions) for the action on the captioned TV program will appear onscreen.

NOTE: You can also set the

Closed Caption by pressing the CC

button on the remote. When pressed repeatedly the screen will display the options: CC-OFF, CC-1, CC-2, or

CC-MUTE.

USING THE CLOSED CAPTION CONTROL

BEGIN

JOHN: Why did they move the meeting up to this week? MARSHA: I don't know, but they are pushing to close the deal.

NOTE: Not all TV programs and product commercials are made for broadcast with Closed Caption (CC) information included. Neither are all Closed Caption modes (CC-1, or CC-2) necessarily being used by a broadcast station during the transmission of a closed caption program. Refer to your area's TV program listings for the stations and times of Closed Caption shows.

CAPTION mode Example Display

Remember: The onscreen

menu will time out and disappear from the screen when you finish, or you can press the STATUS/EXIT button to clear the menu from the screen.

SMART HELP

NOTE: The CC-MUTE option

can be used to set the TV to turn the Closed Caption mode “ON” whenever the MUTE button on the remote is pressed. This activates the CC-1 option. MUTE will appear smaller in the upper center of the screen.

15 MIN

30 MIN

45 MIN

60 MIN

90 MIN

120 MIN

180 MIN

240 MIN

50 SEC

10 SEC

GOODBYE

POWER

SLEEPCLOCKCC

3 65

4 7

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

ave you ever fallen asleep in

front of the TV only to have it wake you up at two in the morning with a test pattern screeching in your ears? Well, your TV can save you all that trouble by automatically turning itself off.

Press the SLEEP button on the

remote control and the SLEEP timer

display will appear on the screen.

Press the SLEEP button

repeatedly to pick the amount of time (In 15 minute increments up to 60 minutes; then 30 minute increments up to 120 minutes; then 60 minute increments up to 240 minutes) before the TV will turn itself off.

An onscreen count down will appear during the last minute before the TV shuts itself off.

USING THE SLEEP TIMER CONTROL

BEGIN

During the last 10 seconds of a

SLEEP timer setting, an onscreen

display will read GOOD BYE.

Remember: The SLEEP-

TIMER control can also be set

within the TV’s main menu The onscreen menu will time out

and disappear from the screen when you finish, or you can press the STATUS/EXIT button to clear the menu from the screen.

SMART HELP

During the last minute of a SLEEP

timer setting, an onscreen count

down will be displayed. Pressing

any button during the last minute

will cancel the SLEEP timer.

POWER

SLEEPCLOCKCC

3 65

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

CONTRST PLUS ON NOISE REDUCTION ON VOLUME 15 TREBLE BOOST ON BASS BOOST ON

VOLUME 15

POWER

SLEEPCLOCKCC

3 65

4 7

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

se the Volume Bar control to see

the TV’s volume level settings on the TV screen. The Volume Bar will be seen each time the VOLUME buttons (on the TV or remote) are pressed.

Press the MENU button to dis-

play the onscreen menu.

Press the CURSOR UP ▲ or

CURSOR DOWN ▼ buttons until the word VOLUME is highlighted.

Press the CURSOR RIGHT © button to increase the TV’s volume or the CURSOR LEFT § button to

decrease the sound.

USING THE TV VOLUME BAR CONTROL

BEGIN

Note: Pressing the VOL (+) or (–) buttons will also allow you to adjust the sound level of the TV. AV olume Bar adjustment will appear onscreen. Press the (+) to increase the volume and the (–) button to decrease the volume.

UNDERSTANDING THE SMARTLOCK™CONTROL

G OFF PG OFF PG-13 OFF RON NC-17 ON XON

he SmartLock feature is an inte-

grated circuit that receives and processes data sent by broadcasters, or other program providers, that contain program content advisories. When programmed by the viewer, a TV with SmartLock can respond to the content advisories and block program content that may be found objectionable (such as offensive language, violence, sexual situations, etc.). This is a great feature to censor the type of viewing children may watch.

Over the next few pages you’ll learn how to block channels and

certain rated programming. Below is a brief explanation of some terms and ratings you will find in the SmartLock feature.

SmartLock offers various BLOCKING OPTION controls from which to choose:

MASTER DISABLE: This is what might be called the "master switch" for SmartLock. When in the ON position, ALL blocking/censoring is turned off (or disabled). When in the OFF position, ALLblocking based on specifically blocked settings will take place.

BLOCK UNRATED: ALL unrated programs based on the Movie Ratings or Parental (TV) Guidelines can be blocked if this feature is set to ON and the MASTER DISABLE feature is set to OFF.

BLOCK NO RATINGS: ALL programming with NO content advisory data can be blocked if this feature is set to ON and the MASTER DISABLE feature is set to OFF.

After an access code has been programmed, you can block up to 5

individual channels. But more than just blocking channels, certain blocking options exist which will block programming based on ratings patterned by the Motion Pictures Association of America and TV broadcasters. (See description of ratings on this page.)

G: General Audience - All ages admit- ted. Most parents would find this program suitable for all ages. This type of programming contains little or no violence, no strong language, and little or no sexual dialogue or situations.

PG: Parental Guidance Suggested -

This programming contains material that parents may find unsuitable for younger children.) It may contain one or more of the following: Moderate violence, some sexual situations, infrequent coarse language, or some suggestive dialogue.

PG-13: Parents Strongly Cautioned - This programming contains material that parents may find unsuitable for children under the age of 13. It contains one or more of the following: violence, sexual situations, coarse language, or suggestive dialogue.

R: Restricted -This is programming is specifically designed for adults. Anyone under the age of 17 should only view this programming with an accompanying parent or adult guardian. It contains one or more of the following: intense violence, intense sexual situations, strong coarse language, or intensely suggestive dialogue.

NC-17: No one under the age of 17 will be admitted. - This type of programming

should be viewed by adults only. It contains graphic violence, explicit sex, or crude indecent language.

X: Adults Only - This type of programming contains one or more of the following: very graphic violence, very graphic and explicit or indecent sexual acts, very coarse and intensely suggestive language.

MOVIE RATINGS

OTIONPICTUREASSOCIATION OFAMERICA

)

TV-Y - (All children -- This program is designed to be appropriate for all children.) Designed for a very young

audience, including children ages 2-6. This type of programming is not expected to frighten younger children.

TV-Y7 - (Directed to Older Children -- This program is designed

for children age 7 and above.) It may be more appropriate for children who have acquired the development skills needed to distinguish between make-believe and reality. This programming may include mild fantasy and comic violence (FV).

TV-G - (General Audience -- Most parents would find this program suitable for all ages.) This type of pro-

gramming contains little or no violence, no strong language, and little or no sexual dialogue or situations.

TV-PG - (Parental Guidance Suggested -- This program contains

material that parents may find unsuit-

able for younger children.) This type of pro-

gramming contains one or more of the following: Moderate violence (V), some sexual situations (S), infrequent coarse language (L), or some suggestive dialogue (D).

TV-14 - (Parents Strongly Cautioned -- This program contains

some material that many parents would find unsuitable for children under 14 years of age.) This type of programming

contains one or more of the following: intense violence (V), intense sexual situations (S), strong coarse language (L), or intensely suggestive dialogue (D).

TV-MA - (Mature Audience Only --

This program is specifically designed

to be viewed by adults and therefore may be unsuitable for children under 17.)

This type of programming contains one or more of the following: graphic violence (V), explicit sexual situations (S), or crude indecent language (L).

TV PARENTAL GUIDELINES

(TV BROADCASTERS)

GTVPG

TV-Y OFF TV-Y7

TV-G OFF TV-PG

TV-14

TV-MA

POWER

SLEEPCLOCKCC

3 65

4 7

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

INPUT © SLEEPTIMER OFF SmartLock © CLOCK © CC OFF

SmartLock

ACCESS CODE

_ _ _ _

SmartLock

ACCESS CODE

X X X X

SmartLock

ACCESS CODE

_ _ _ _

INCORRECT CODE

BLOCK © CHANGE CODE ©

CHANGE CODE X X X X

CONFIRM CODE X X X X

UNDERSTANDING THE SMARTLOCK™CONTROL (ACCESS CODE)

Parents - it isn’t possible for your child to unblock a channel without knowing your access code or changing it to a new one. If your code changes, and you didn’t change it, then you know it’s been altered by someone else and blocked channels have been viewed.

ver the next few pages you’ll

learn how to block channels and get a better understanding of the rating terms for certain programming.

First, let’s start by learning how to set a personal access code:

Press the MENU button on the

remote to display the onscreen

menu.

Press the CURSOR UP ▲ or

CURSOR DOWN ▼ buttons until

the words SmartLock are highlighted.

Press the CURSOR RIGHT

SmartLock Access Code screen.

Using the NUMBERED but-

tons, enter 0, 7, 1, 1. “XXXX”

appears on the Access Code screen as you press the numbered buttons.

“INCORRECT CODE” will appear on the screen, and you will

need to enter 0, 7, 1, 1 again.

Press the CURSOR DOWN ▼

button until the words CHANGE

CODE are highlighted.

Press the CURSOR RIGHT ©

button to change your personal

Access Code.

“Next enter a “new” 4 digit

code using the NUMBERED but-

tons. The screen will then ask you

to confirm the code you just entered. Enter your new code again. “XXXX” will appear when you enter your new code.

Press the STATUS/EXIT but-

ton to save the new code in the

TV's memory.

BEGIN

NOTE: The 0,7,1,1 access code shown on this page is the default code or a way to reset the code when the current access code is not known.

POWER

SLEEPCLOCKCC

4 7

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

INPUT © SLEEPTIMER OFF SmartLock © CLOCK © CC OFF

SmartLock

ACCESS CODE

_ _ _ _

SmartLock

ACCESS CODE

X X X X

BLOCK © CHANGE CODE ©

CHANNEL 5 BLOCKED

BY CHANNEL BLOCKING

ENTER CODE TO VIEW

_ _ _ _

CHANNEL 5 LOCK NO CLEAR ALL ©

CHANNEL 5 LOCK YES CLEAR ALL ©

BLOCKING OPTIONS © CHANNELS BLOCKED © MOVIE RATINGS © PARENTAL GUIDELINE

UNDERSTANDING THE SMARTLOCK™CONTROL (BLOCK CHANNEL)

fter your personal access code

has been set (see previous page), you are now ready to select the channels you want to block out or censor.

Press the MENU button on the

remote to show the onscreen menu.

Press the CURSOR UP ▲ or

CURSOR DOWN ▼ button until

the words SmartLock are highlighted.

Press the CURSOR RIGHT

SmartLock Access screen.

Enter the correct access code

number. “XXXX” shows on the Access Code display as you press the NUMBERED buttons.

Press the CURSOR UP▲ or

DOWN ▼ buttons until the word BLOCK is highlighted. Press the CURSOR RIGHT © button then highlight CHANNELS BLOCKED.

Press the CURSOR RIGHT ©

button. Three options will be dis- played; CHANNEL, LOCK or CLEAR ALL.

With CHANNELhighlighted,

use the NUMBERED buttons to

enter the channel number you wish to block.

Use the CURSOR DOWN ▼

button to highlight the word LOCK, then press the CURSOR RIGHT © button to select YES

(block) or NO (do not block). The channel chosen is now blocked from viewing.

Repeat steps 7 and 8 for any other channels you wish to block from viewing.

To clear blocked channels

follow the steps below:

Press the CURSOR DOWN ▼ button until the words CLEAR ALL are highlighted, then press the CURSOR RIGHT © button.

The screen will read “ALL UNBLOCKED” for a moment. At

this point ALL the previously blocked channels will be unblocked.

BEGIN

CHANNEL 5 LOCK YES CLEAR ALL ©

CHANNEL ALL LOCK NO ALL UNBLOCKED

When a blocked channel is viewed, this is what the screen will display. To view the blocked channel, simply enter the current access code. Note: Once the access code is entered ALLblocked channels will be viewable until the TV is powered off. Once the set is turned off and then back on the previously blocked channels will again be blocked.

Note: When the CLEAR ALL option is selected, the CHANNEL option will display ALL. If at this point if you change the LOCK option to YES, ALL channels will be blocked from viewing.

UNDERSTANDING THE SMARTLOCK™CONTROL (BLOCKING OPTIONS)

POWER

SLEEPCLOCKCC

3 65

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

INPUT © SLEEPTIMER OFF SmartLock © CLOCK © CC OFF

SmartLock

ACCESS CODE

_ _ _ _

SmartLock

ACCESS CODE

X X X X

BLOCK © CHANGE CODE ©

BLOCKING OPTIONS © CHANNELS BLOCKED © MOVIE RATINGS ©

MASTER DISABLE ON BLOCK UNRATED ON BLOCK NO RATING ON

MASTER DISABLE OFF BLOCK UNRATED OFF BLOCK NO RATING OFF

martLock offers the viewer other

blocking features as well. With these Blocking Option features, the censoring can be turned ON or OFF.

Press the MENU button on the

remote to display the onscreen

menu.

Press the CURSOR UP ▲ or

CURSOR DOWN ▼ buttons until

the words SMART LOCK are highlighted.

Press the CURSOR RIGHT

Access Code screen.

Using the NUMBERED but-

tons on the remote, enter your per-

sonal Access Code.

With the word BLOCK high-

lighted, Press the CURSOR

RIGHT © button.

Scroll the menu using the

CURSOR UP ▲ or CURSOR DOWN ▼ buttons until the words BLOCKING OPTIONS are high-

lighted.

Press the CURSOR RIGHT © button to display the Blocking Options (MASTER DISABLE, BLOCK UNRATED, or BLOCK NO RATING). When highlighted, each feature can be turned ON or OFF using the CURSOR RIGHT

on the remote.

BEGIN

BLOCKING OPTIONS: MASTER DISABLE: This is what might be called the “master switch” for SmartLock. When in the ON position, ALL block-

ing/censoring is turned off (or disabled). When in the OFF position, ALL blocking based on specifically blocked settings will take place.

BLOCK UNRATED:ALL unrated programs based on the Movie Ratings or Parental (TV) Guidelines can be blocked if this feature is set to ON and the MASTER DISABLE feature is set to OFF.

BLOCK NO RATINGS:ALL programming with NO content advisory data can be blocked if this feature is set to ON and the MASTER DISABLE feature is set to OFF.

CHANNEL 20 BLOCKED BY CONTENT ADVISORY

CANNOT DECODE RATING

ENTER CODE TO VIEW

– – – –

If the BLOCK UNRATED or BLOCK NO RATINGS controls are turned ON, all unrated programs and programs containing NO content advisory data will display the screen shown to the left. To watch the channel enter your access code, or change the BLOCK UNRATED and BLOCK NO RATINGS back to off.

UNDERSTANDING THE SMARTLOCK™CONTROL (MOVIE RATINGS)

INPUT

SLEEPTIMER OFF SmartLock

CLOCK

CC OFF

SmartLock

ACCESS CODE

_ _ _ _

SmartLock

ACCESS CODE

X X X X

BLOCK © CHANGE CODE ©

CHANNEL 5 BLOCKED

BY CONTENT ADVISORY

MOVIE RATING R

ENTER CODE TO VIEW

_ _ _ _

BLOCKING OPTIONS

CHANNELS BLOCKED

MOVIE RATINGS

PARENT AL GUIDELINE

PG OFF PG-13 OFF RON NC-17 ON XON

POWER

SLEEPCLOCKCC

3 65

4 7

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

here are two types of program

ratings within the SmartLock feature. One is based on the Movie Industry ratings while the other is based on the TV Industry ratings. Both can be used to block or censor programming that has been rated in either manner.

Let’s first look at the Movie Rating options of SmartLock:

Press the MENU button on the

remote to display the onscreen

menu.

Press the CURSOR UP ▲ or CURSOR DOWN ▼ buttons until

the words SMART LOCK are highlighted.

Press the CURSOR RIGHT

Access Code screen.

Using the NUMBERED but-

tons on the remote, enter your

Personal Access Code.

With the word BLOCK high-

lighted, Press the CURSOR

RIGHT © button.

Scroll the menu using the

CURSOR UP ▲ or CURSOR

DOWN ▼ buttons until the words MOVIE RATINGS are highlight-

ed.

Press the CURSOR RIGHT ©

button to display the MOVIE RATINGS (G, PG, PG-13, R, NC17, or X).

When highlighted, all these options can be turned ON (which will allow

blocking) or OFF (which will allow viewing).

Use the CURSOR RIGHT © or CURSOR LEFT § buttons on the

remote to turn the rating option ON or OFF.

BEGIN

Remember: Selecting to block any rating will cause all the higher ratings to also be blocked automatically.

SMART HELP

Screen will display a message when programming is blocked by the Movie Rating feature. To unblock, turn the Movie Rating OFF, or enter your personal access code. Entering the code will unblock ALLblocked Movie Ratings until the TV is turn off. Then the blocked ratings will be reset to ON.

NOTE: When a rating is turned ON, all higher ratings will automatically be turned ON. To turn them OFF, each will have to be set individually. (i.e., R blocked manually, NC-17 and X will be blocked automatically.)

UNDERSTANDING THE SMAR TLOCK™CONTROL (PARENTAL GUIDELINE)

BLOCK © CHANGE CODE ©

CHANNELS BLOCKED

MOVIE RATINGS

PARENT AL GUIDELINE

TV-Y7

TV-G OFF TV-PG

TV-14

TV-MA

TV-Y OFF TV-Y7

TV-G OFF TV-PG

Y7 ON FV ON

TV-Y7

TV-G OFF TV-PG

TV-14

TV-MA

PG ON DON LON SON VON

TV-G OFF TV-PG

TV-14

TV-MA

14 ON DON LON SON VON

TV-PG

TV-14

TV-MA

MA ON LON SON VON

POWER

SLEEPCLOCKCC

3 65

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

his portion of the SmartLock

features cover program ratings based on the TV Industry rating system. This is know as Parental Guideline within SmartLock.

After selecting the SmartLock feature and entering your personal access code, the BLOCK/CHANGE CODE screen appears;

With the word BLOCK high-

lighted, Press the CURSOR

Scroll the menu using the

CURSOR UP ▲ or CURSOR

DOWN ▼ buttons until the words PARENTALGUIDELINE are

highlighted.

button to display the Parental (TV) Guidelines (TV-Y, TV-Y7, TV-G, TV-PG, TV-14, orTV-MA).

When highlighted, the TV-Y and TV-G can be turned ON (which will

allow blocking) or OFF (which will allow viewing), of these rated pro-

grams.

The ratings of TV-Y7, TV-PG,

TV-14, TV-MA can be customized to block V (violence), FV (fantasy violence), S (sexual situations), L (coarse language), or D (suggestive dialogue).

remote to turn the rating option ON or OFF.

BEGIN

TV-Y- (All children -- This program is designed to be appropriate for all children.) Designed for a very young audience, including children ages 2-6. This type of programming is not expected to frighten younger children.

TV-Y7- (Directed to Older Children -- This program is designed for children age 7 and above.) It may be more appropriate for children who have acquired the develop-

ment skills needed to distinguish between make-believe and reality. This programming may include mild fantasy and comic violence (FV).

TV-G - (General Audience -- Most parents would find this program suitable for all ages.) This type of programming contains little or no violence, no strong language

and little or no sexual dialogue or situations.

TV-PG- (Parental Guidance Suggested -- This program contains material that par- ents may find unsuitable for younger children.)This type of programming contains

one or more of the following: some suggestive dialogue (D), infrequent coarse language (L), some sexual situations (S), or moderate violence (V).

TV-14- (Parents Strongly Cautioned -- This program contains some material that many parents would find unsuitable for children under 14 years of age.) This type of

programming contains one or more of the following: intensely suggestive dialogue (D), strong coarse language (L), intense sexual situations (S), or intense violence (V).

TV-MA- (Mature Audience Only -- This program is specifically designed to be viewed by adults and therefore may be unsuitable for children under 17.) This type of

programming contains one or more of the following: crude indecent language (L), explicit sexual situations (S), or graphic violence (V).

Remember: Selecting to block any rating will cause all the higher ratings to also be blocked automatically.

SMART HELP

TV RATING SUB MENUS:

UNDERSTANDING THE SMARTLOCK™CONTROL (REVIEW SCREEN)

POWER

SLEEPCLOCKCC

3 65

4 7

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

CC OFF SETUP

SmartLock REVIEW

BRIGHTNESS 30 COLOR 30

CHANNELS BLOCKED

-- -- -- -- -MOVIE RATINGS

-- -- -- -- -PARENTAL GUIDELINE

-- -- -- -- -BLOCK UNRATED OFF BLOCK NO RATING OFF

SmartLock DISABLED

ow that you’ve learn how to

block channels or censor your viewing using the Movie Ratings or Parental (TV) Guidelines let’s review what you’ve done. The SmartLock Review feature allows you to see what has been blocked. Whenever the Menu button is pressed the onscreen menu will be displayed with the SmartLock Review highlighted.

Press the MENU button on the

remote to show the onscreen menu.

SmartLock REVIEW will be highlighted.

Press the CURSOR RIGHT

Review Menu will appear. This menu will display what chan-

nels have been blocked; what Movie Ratings have been blocked; what Parental (TV Ratings) Guidelines have been blocked. This review screen will also display that status of Unrated and No Rating settings. If the Master Disable feature has been turned ON, the SmartLock Review screen will display “SmartLock DISABLED”.

BEGIN

CHANNELS BLOCKED 5 10 12 32 45 MOVIE RATINGS

-- -- -- R X PARENTAL GUIDELINE

-- -- -- 14 MA BLOCK UNRATED ON BLOCK NO RATING ON

CHANNELS BLOCKED - Shows all blocked channels that where set within the CHANNELS BLOCKED feature. Up to 5 channels may be blocked at one time.

MOVIE RATINGS - Shows all blocked Movie Ratings that were set within the MOVIE RATINGS feature. All or some may be blocked at one time. Note: If a lower rating is blocked; this will automatically cause the higher ratings to be blocked also. (ie.; if R is set to be blocked, X will automatically be blocked also.)

PARENTAL GUIDELINE - Shows all blocked TV Ratings that were set within the PARENTAL GUIDELINES feature. All or some may be blocked at one time. Note: If a lower rating is blocked; this will automatically cause the higher ratings to be blocked also. (ie.; if TV-14 is set to be blocked, TVMA will automatically be blocked.) Parental Guidelines also have sub ratings for Violence (V), Fantasy Violence (FV), Sexual Situations (S), Coarse Language (L), and Suggestive Language (D). If the main rating is turned off but the sub rating is turned ON, the program will be blocked but the rating will not appear within the SmartLock Review menu.

BLOCK UNRATED - Shows ON or OFF depending on the status of the BLOCK UNRATED feature. Based on the Movie Ratings or Parental (TV) Guidelines.

BLOCK NO RATING- Shows ON or OFF depending on the status of the BLOCK NO RATING feature. Based on programming with NO content advisory data.

SmartLock DISABLED will appear in the SmartLock Review screen if the SmartLock Disable feature is set to ON.

NOISE REDUCTION ON VOLUME 15 TREBLE BOOST OFF BASS BOOST ON SOUND STEREO

POWER

SLEEPCLOCKCC

3 65

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

NOISE REDUCTION ON VOLUME 15 TREBLE BOOST ON BASS BOOST ON SOUND STEREO

VOLUME 15 TREBLE BOOST ON BASS BOOST OFF SOUND STEREO AVL ON

VOLUME 15 TREBLE BOOST ON BASS BOOST ON SOUND STEREO AVL ON

esides the normal volume level

control, your TV also has Bass and Treble Boost sound adjustment controls. The TREBLE Boost effects only the high frequency sound coming from the TV enhancing the highs; while the BASS Boost effects only the low frequency sound coming from the TV enhancing the lows.

Press the MENU button on the

remote to show the onscreen

menu.

Press the CURSOR UP ▲ or

CURSOR DOWN ▼ buttons to

select and highlight the name of the control you wish to change (TRE-

BLE BOOST, or BASS BOOST).

Use the CURSOR LEFT § or

selected control ON or OFF.

SETTING THE BASS AND TREBLE BOOST CONTROLS

BEGIN

POWER

SLEEPCLOCKCC

4 7

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

HOW TO SET THE TV FOR STEREO PROGRAMS

our TV can detect a stereo sig-

nal and will set itself automatically so the stereo sound can be heard. However, there may be occasions when you might want to set the TV to mono. The following steps describe how to change the SOUND control:

Press the MENU button on

the remote to show the onscreen

menu.

Press the CURSOR UP ▲ or

CURSOR DOWN ▼ button

until the word SOUND is highlighted.

Press the CURSOR RIGHT

tons to choose between STEREO or MONO.

With STEREO selected, the television will reproduce any stereo broadcast signal it receives. Please note that you can force a stereo broadcast signal to MONO, but you cannot force a mono broadcast signal to stereo.

SMART HELP

Remember: If stereo is

not present on a selected show and the TV is placed in the STEREO mode, the sound coming from the set will remain monaural (mono).

BEGIN

The TV’s Audio/Video Input jacks are for direct picture and sound connections between the TV and a VCR (or similar device) that has Audio/Video Output jacks.

Connect the VIDEO (yellow)

CABLE to the VIDEO IN jack

on the back of the TV. Then connect the AUDIO (red and white) CABLES to the AUDIO (left and right) IN jacks on the rear of the TV.

Connect the VIDEO (yellow)

CABLE to the VIDEO OUT jack

on the back of the VCR. Then connect the AUDIO (red and white) CABLES to the AUDIO (left and right) OUT jacks on the rear of the VCR.

Turn the VCR and the TV

ON.

Press the MENU button on

the remote to display the onscreen menu.

Press the CURSOR UP ▲ or

CURSOR DOWN ▼ buttons

until the word INPUT is highlighted.

Press the CURSOR RIGHT

to display the picture/sound menu (ANTENNA, EXT 1). Use the CURSOR UP ▲ or DOWN ▼ buttons to select.

AUDIO IN

(RED/WHITE)

VCR

(EQUIPPED WITH

VIDEO AND AUDIO

OUTPUT JACKS)

VIDEO IN

(YELLOW)

HOW TO USE THE INPUT CONTROL (A/V INPUTS)

BEGIN

BACK OF VCR

IF YOU ARE USING A

MONO DEVICE, USE

ONL YTHE AUDIO

L/MONO JACK. IF A

DUMMY JACK IS

PLUGGED INTO THE

AUDIO R, NO SOUND

WILL BE HEARD.

AUDIO/VIDEO INPUTS

BACK OF TV

75 V

VIDEO

L/MONO AUDIO R

75 V

VIDEO

L/MONO AUDIO R

ANTENNA

OUTOUT

VIDEO

AUDIO

ANTENNA

OUT

SOUND STEREO AVL ON INPUT SLEEPTIMER OFF SmartLock

POWER

SLEEPCLOCKCC

1 4 7

A/CH

VOL

SMART SMART

SOUND PICTURE

MUTE

3 65

SURF

STATUS

EXIT

ANTENNA EXT 1

POWER

SLEEPCLOCKCC

3 65

4 7

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

WEAK SIGNAL

SPORTS

PERSONAL

MOVIES

hether you’re watching a

movie or a video game, your TV has automatic video control settings matched for your current program source or content. The SmartPicture feature quickly resets your TV’s video controls for a number of different types of programs and viewing conditions you may have in your home. Each SmartPicture setting is preset at the factory to automatically adjust the TV’s Brightness, Color, Picture, Sharpness, Tint, and Color Temperature levels.

Press the SMARTPICTURE

button on the remote control. The

current SmartPicture setting will appear in the middle of the screen.

Press the SmartPicture button

repeatedly to select either PER-

SONAL, MOVIES, SPORTS, or WEAK SIGNAL picture settings.

Note: The PERSONAL setting is the setting that you setup using the PICTURE options within the onscreen menu. This is the only SmartPicture setting that can be changed. All other settings are setup at the factory during the time of production.

USING THE SMARTPICTURE™CONTROL

BEGIN

USING THE SMARTSOUND™CONTROL

POWER

SLEEPCLOCKCC

3 65

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

VOICE

MUSIC

PERSONAL

THEATER

he SmartSound feature allows

the listener to select between four different factory set sound options. Personal (which can be set by the user), Theater (for movie viewing), Music (for musical type programming) and Voice (when the program is mainly dialogue). To select any of the options follow the directions below.

Press the SMARTSOUND but-

ton on the remote control. The cur-

rent SmartSound setting will appear in the middle of the screen.

Press the SMART SOUND button repeatedly to toggle

between the four settings.

Remember, only the PERSONAL control can be changed by the viewer. This changes the settings in the main onscreen menu's sound controls.

BEGIN

SMART HELP

Remember, SmartSound

works only with the pro-

grams coming through the 75Ω input on the rear of the TV (RF audio). It will not control the sound levels for the External connections.

BASS BOOST ON SOUND STEREO AVL OFF INPUT EXT 1 SLEEPTIMER OFF

BASS BOOST ON SOUND STEREO AVL ON INPUT EXT 1 SLEEPTIMER OFF

In most cases the volume levels coming from broadcast programming or commercials are never the same. With the AVL control turned ON, you can have the TV level out the sound being heard. This makes for a more consistent sound by reducing the peaks and valleys that occur during program changes or commercial breaks.

AVL CONTROL

NOTE: When the VOICE mode of

SmartSound is selected the AVL feature will be automatically turned ON.

POWER

SLEEPCLOCKCC

3 65

A/CH

SURF

STATUS

EXIT

MUTE

SMART SMART

SOUND PICTURE

VOL

5 ADDED

8 ADDED

10 ADDED

5 SURF

8 SURF

10 SURF

“list” or series of previously

viewed channels can be selected with the SURF button on your remote control. With this feature you can easily switch between different TV programs that currently interest you. The SmartSurf control allows you set up to eight channels in its quick viewing“list”.

Press the CHANNEL (+) or (–)

buttons (or the NUMBER buttons)

to select a channel to add to the SURF list.

Press the SURF button on the

remote while the channel number is still displayed to ADD the channel to the SURF list.

Repeat steps 1 through 2 to add additional channels (up to 8) to the SURF list.

To remove a channel for the SURF list, simply choose the channel with the numbered buttons and press the SURF button while the channel number is still displayed and the screen will read DELETED.

USING THE TV’S SMARTSURF™CONTROL

A/CH BUTTON

Your remote also has an A/CH (Alternate Channel) button. Pressing this button will toggle between the Current and one previously selected channel.

BEGIN

3 65

4 7

A/CH

SURF

STATUS

EXIT

Press the SURF button repeatedly to cycle or "loop" through the channels saved in the SURF channel list.

TIPS IF SOMETHING ISN'T WORKING

• Check the TV power cord. Unplug the TV, wait 10 seconds, then reinsert plug into outlet and push POWER button again.

• Check that outlet is not on a wall switch. Be sure fuse is not blown on AC Power strip.

• Check antenna connections. Are they properly secured to the TV's 75Ω plug?

• Check the TUNER control for CABLE or ANTENNA setting.

• Check Audio/Video Input jack connections if using a VCR or other external device.

• Check batteries. Replace with AA Heavy Duty (Zinc Chloride) or Alkaline batteries

if necessary.

• Clean the remote and the remote sensor window on the TV.

• Check the TV power cord. Unplug the TV, wait 10 seconds, then reinsert plug into

outlet and push POWER button again. Be sure fuse is not blown on AC Power strip.

• Check to be sure TV outlet is not on a wall switch.

• Check the VOLUME buttons.

• Check the MUTE button on the remote control.

• Check Audio/Video Input jack connections if using a VCR or other external device.

• Repeat channel selection.

• Add desired channel numbers (CHANNEL control) into TV memory.

• Check to be sure the TUNER control is set to the CABLE option.

lease make these simple

checks before calling for service. These tips can save you time and money since charges for TV installation and adjustment of customer controls are not covered under your warranty.

Cleaning and Care

• To avoid possible shock hazard be sure the TV is unplugged from the electrical outlet before cleaning.

• When cleaning the TV screen take care not to scratch or damage the screen surface (avoid wearing jewelry or using anything abrasive). Wipe the front screen with a clean cloth dampened with water. Use even, easy, vertical strokes when cleaning.

• Gently wipe the cabinet surfaces with a clean cloth or sponge dampened in a solution of cool clear water. Use a clean dry cloth to dry the wiped surfaces.

• Never use thinners, insecticide sprays, or other chemicals on or near the cabinet, as they might cause permanent marring of the cabinet finish.

CAUTION: Avideo source (such as a video game, Compact Disc Interactive - CDI, or TV information channel) which shows a constant non-moving pattern on the TV screen, can cause picture tube damage. When your TV is continuously used with such a source the pattern of the non-moving portion of the game (CDI, etc.) could leave an image permanently on the picture tube. When not in use, turn the video source OFF. Regularly alternate the use of such video sources with normal TV viewing.

No Power

No Picture

No Sound

Remote Does Not

Work

TV Displays Wrong

Channel or No

Channels Above 13

GLOSSARY TO TELEVISION TERMS

Coaxial Cable • A single solid antenna wire normally matched

with a metal plug (F-type) end connector that screws (or pushes) directly onto a 75 Ohm input found on the Television or VCR.

Closed Caption • Broadcast standard which allows you to read the voice content of television programs on the TV screen. Designed to help the hearing impaired this feature uses onscreen "text boxes" to show dialogue and conversations while the TV program is in progress.

Direct Audio/Video Inputs • Located on the rear of the TV these connectors (RCA phono type plug) are used for the input of audio and video signals. Designed for use with VCRs (or other accessories) in order to receive higher picture resolution and offer sound connection options.

Identify • Method by which a remote control searches and finds an operating code for another product (such as a VCR or Cable Converter). Once the code has been "identified" then the TV remote can operate and send commands to the other product.

On Screen Displays (OSD) • Refers to the wording or messages generated by the television (or VCR) to help the user with specific feature controls (color adjustment, programming, etc.).

Menu • An onscreen listing of feature controls shown on the Television screen that are made available for user adjustments.

Multichannel Television Sound (MTS) • The broadcast standard that allows for stereo sound to be transmitted with the TV picture.

Programming • The procedure of adding or deleting channel numbers into the Television’s memory circuits. In this way the Television “remembers’’only the locally available or desired channel numbers and skips over any unwanted channel numbers.

Remote Sensor Window • A window or opening found on the Television control panel through which infrared remote control command signals are received.

Setup Mode • Automatic feature control settings made by the TV. Designed for first time setup and use. Settings for signal connections (antenna or cable TV), plus channel program memory are held in the TV's memory (even if the set is unplugged and moved to a new location.)

Status • Allows the user to quickly confirm what channel number is currently being viewed. Status can also be used to clear the Television of on screen displays or information (rather than waiting for the displays to “time out” or automatically disappear from the screen).

Twin Lead Wire • The more commonly used name for the two strand 300 Ohm antenna wire used with many indoor and outdoor antenna systems. In many cases this type of antenna wire requires an additional adapter (or balun) in order to connect to the 75 Ohm Input terminals designed into the more recent Televisions and VCRs.

INDEX

Accessories/Optional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7

Adapter Connector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6-7

Add/Delete Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Alternate Channel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Audio/Video Input Jacks . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Cable TV Connections/Settings . . . . . . . . . . . . . . . . . . . . .5, 11

Channel Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12, 13

Clock Set Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Closed Captioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Contrast Plus (Black Stretch) . . . . . . . . . . . . . . . . . . . . . . . . .16

Controls/TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Controls/Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8, 9

External Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Glossary TV Terms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Input Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Language Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Memory/Program Channels . . . . . . . . . . . . . . . . . . . . . . 12, 13

Menu Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Minus(-)/Plus (+) Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Picture Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Picture Noise Reduction . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Precautions/Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . .3, 36, 40

Programming Channels . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Remote Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-9

Requesting Service . . . . . . . . . . . . . . . . . . . . . . . . . . .38-39, 40

RF Coaxial Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-7

Safety/Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . .3, 36, 40

Sensor Remote . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Set Up/First Time Use . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-13

Sleep Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

SmartLock Access Code Feature . . . . . . . . . . . . . . . . . . . . . .24

SmartLock Block Channel Feature . . . . . . . . . . . . . . . . . . . .25

SmartLock Blocking Options . . . . . . . . . . . . . . . . . . . . . . . .26

SmartLock Blocking using the Movie/TV Ratings . . . . . .27-28

SmartLock Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .29

SmartPicture Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

SmartSound Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

SmartSurf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Start-up Channel Control . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Start-up Time Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Status Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Timer Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Tips for Service . . . . . . . . . . . . . . . . . . . . . . . . . .36, 38-39, 40

VCR/TV Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Volume Bar Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

EL4482-3 Rev. AA

3135 015 07541

•

★ Miami/SE Florida

•

Chicago

Cleveland/

N Ohio

•

Tampa/W Florida

★ Ft. Myers/SW Florida

•

San Francisco/Metro Area

•

Detroit/Toledo

★ Pittsburgh/WV Area

•

Philadelphia/S New Jersey

•

Atlanta/N Georgia

Houston/Galveston

Beaumont/Austin

San Antonio

Knoxville/E Tennessee

Charlotte

Los Angeles★

• Dallas

★ Columbus

★ Wash/Balt

★ Orlando

★ Indicates In-Home Service Only

1-800-242-9225

• Indicates In-Home/Carry-In Service

★

MAC2929 1/99

NOTE: If you reside in one of our Philips Factory Service Branch areas (see director y on back), you can contact the nearest Ser vice Branch to obtain efficient and expedient repair for your product. If your product is In-Warranty, you should have proof-of-purchase to ensure No Charge Service. For Out-of-Warranty service, call the location nearest you.

NOTA: Si vous résidez dans une des régions desservies par une succursale de ser vice après vente du fabricant Philips (voir liste ci-dessous), vous pourrez contacter la branche de service après vente la plus près de chez vous pour obtenir un service après vente rapide et efficace. Si le produit est sous garantie, il suffira de présenter une preuve d`achat pour bénéficier d'un service sans frais. Pour les produits non couverts par la garantie, contactez le centre le plus près de chez vous.

NOTA: Si Ud. reside en una de nuestras zonas para sucursales Philips de servicio al de fábrica (ver directorio más abajo), Ud. puede comunicarse con la sucursal de servicio más cercana para obtener una reparación oportuna y eficaz de su producto. Si su producto está todavía bajo garantía, Ud. debe presentar comprobante de compra para no ocasionar ningunos cargos por servicio. Para servicio después del vencimiento de la garantía, llame al lugar más cercano de los abajo indicados.

Philips Consumer Electronics Company

Factory Service Center Locations

In Canada

How you can obtain efficient and expedient carry-in, mail-in, or in-home service for your product Please contact Philips at 1-800-661-6162 (French speaking)

1-800-363-7278 (English speaking)

Au Canada

Comment obtenir le service après-vente pour les produits apportés ou envoyés par la poste à notre centre de service ou le service à domicile Veuillez contacter philips á: 1-800-661-6162 (Francophone)

1-800-363-7278

En el Canadá

Cómo recibir servicio efficiente para su producto, en persona, por correo o a domicillo Favor de comunicarse con Philips al: 1-800-661-6162 (francófono)

1-800-363-7278 (anglófono)

MAC2929 1/99

QUALITY SERVICE IS AS CLOSE AS YOUR TELEPHONE! SIMPLY LOOK OVER THE LIST BELOW FOR THE NUMBER OF A FACTORY SERVICE C ENTER

NEAR YOU

. YOUR PRODUCT WILL RECEIVE EFFICIENT AND EXPEDIENT CARRY-IN, MAIL-IN, OR IN-HOME SERVICE, AND YOU WILL RECEIVE PEACE OF MIND,

KNOWING YOUR PRODUCT IS BEING GIVEN THE EXPERT ATTENTION OF PHILIPS’ FACTORY SERVICE. AND, IF THE PHONE NUMBER LISTED FOR YOUR AREA

IS LONG DISTANCE

, CALL 1-800-242-9225 FOR FACTORY SERVICE.

COMMENT OBTENIR NOTRE SERVICE APRÈS VENTE RAPIDE ET EFFICACE SOIT PAR COURRIER, À DOMICILE, OU EN SE PRÉSENTANT À UN CENTRE DE SERVICE PHILIPS. PLUS DE 600 CENTRES

DE RÉCEPTION DE PRODUITS À RÉPARER À TRAVERS LE PAYS: CONTACTER LE CENTRE DE SERVICE AUX CONSOMMATEURS LE PLUS PROCHE POUR SAVOIR L’EMPLACEMENT DE CES DÉPÔTS

DANS UN RAYON DE 50 À 75 MILES (80 KM À 120 KM) DU CENTRE DE SERVICE LOCAL.

CÓMO OBTENER UN SERVICIO OPORTUNO Y EFICIENTE POR CORREO, EN CASA O EN PERSONA PARA SU PRODUCTO A TRAVÉS DE UN CENTRO PHILIPS DE SERVICIO. MAS DE 600 SITIOS POR

TODO EL PAIS PARA LA RECEPCION DE PRODUCTOS NECESITADOS DE REPARACIONES: COMUNICARSE CON EL CENTRO DE SERVICIO DE FABRICA MAS CERCANO PARA ESTOS LUGARES DENTRO

DE UN RADIO DE 80 A 120 KM (50 A 75 MILLAS) DEL CENTRO DE SERVICIO LOCAL.

GEORGIA

Philips Factory Service of Georgia 200 N. Cobb Pkwy., Suite 120 Marietta, GA 30062 (770) 795-0085

FLORIDA

Philips Factory Service of Florida 1911 US Highway 301 North Tampa, FL 33619 (813) 621-8181

WESTERN U.S.A.

Philips Factory Service Western Region 681 East Brokaw Rd. San Jose, CA 95112 (408) 436-8566

TEXAS

Philips Factory Service of Texas 1110 N. Post Oak Rd., Suite 100 Houston, TX 77055 (713) 682-3990

CENTRAL U.S.A.

Philips Factory Service Central US 950 Keynote Circle Brooklyn Heights, OH 44131 (216) 741-3334

MICHIGAN

Philips Factory Service of Michigan 25173 Dequindre Madison Heights, MI 48071 (248) 544-2110

DALLAS AREA

Philips Factory Service of Dallas 415 N. Main Street, #107 Euless, TX 76040 (713) 682-3990

ILLINOIS

Philips Factory Service of Illinois 1279 W. Hamilton Pkwy. Itasca, IL 60143 (630) 775-0990

TENNESSEE

Philips Factory Service of East Tennessee 6700 D Papermill Rd. Knoxville, TN 37919 (423) 584-6614

MID-ATLANTIC

Philips Factory Service Mid-Atlantic 352 Dunks Ferry Rd. Bensalem, PA 19020 (215) 638-7500

COLOR TELEVISION

90 Days Free Labor

One Year Free Replacement of Parts (Two Years Free Replacement on Color Picture Tube)

This product can be repaired in-home.

LIMITED WARRANTY

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For 90 days thereafter, all parts will be repaired or replaced free, and labor is free.

From 90 days to one year from the day of purchase, all parts will be repaired or replaced free, but you pay for all labor charges. From one to two years from the day of purchase, you pay for the replacement or repair of all parts except the picture tube, and for all labor charges. After two years from the day of purchase, you pay for the replacement or repair of all parts, and for all labor charges.

All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because of misuse, accident, unauthorized repair or other cause not within the control of Philips Consumer Electronics Company.

• reception problems caused by signal conditions or cable or antenna systems outside the unit.

• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)

• a product used for commercial or institutional purposes.

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of purchase. Attach it to this owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner’s manual before requesting service. Adjustments of the controls discussed there may save you a service call.

TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO OR U.S. VIRGIN ISLANDS...

Contact a Philips factory service center (see enclosed list) or authorized service center to arrange repair.

(In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

1-800-894-5463 1-800-363-7278

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

REMEMBER...

Please record the model and serial numbers found on the product below. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL # ________________________________________________ SERIAL # ________________________________________________

This warranty gives you specific legal rights. You may have other rights which vary from state/province to state/province.

Philips Consumer Electronics Company, P.O. Box 2976, Longview, Texas 75606, (903) 242-4800

Printed in U.S.A.

Philips PS1956C User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
