Table of Contents
Introduction
Welcome/Registration of Your TV...............................2
Table of Contents
Features
.........................................................................
..........................................................
J Quick Use/Start Up Features
-O'Antenna Hookups
-V-Cable Hookups.....................................................5
❖ VCR to TV Hookups..............................................5
❖ Basic TV and Remote Operations..........................6
❖ First Time Setup
□ On-Screen fMENU) Features
❖ How to Set the TV for Closed Captioning
❖ Using the Alternate Channel Control
❖ How to Set the Sleep Timer Control
❖ Adjusting the TV Picture Controls.......................10
❖ Using the TV’s Volume Control
❖ How to Set the TV’s Sound Control....................11
General Information
Tips if Something Isn’t Working
Glossary of TV Terms.................................................13
Index............................................................................13
Factory Service Locations
Warranty......................................................................16
.................................................
.....................................................
..............
.....................
.....................
.........................
.................
.....................................
14-15
11
12
Features
Infrared Remote Control works your TV set and all
3
3
4
7
8
9
9
on-screen features.
Standard broadcast (VHF/UHF) or Cable TV
(CATV) channel capability.
Closed Captioning allows the viewer to read TV
program dialogue or voice conversations as on
screen text.
Automatic Programming of Channels for quick
and easy selection of favorite stations available in
your area.
On-Screen Features (in either English, French, or
Spanish) show helpful messages for setting of TV
controls.
Sleep Timer automatically turns the TV OFF at pre
set times.
NOTE: This owner's manual is used with
several different television models. Not all
features (and drawings) discussed in this
manual will necessarily match those found
with your television set. This is normal and
does not require you contacting your dealer
or requesting service.
Copyright © 1997 Philips Consumer Electronics Company. All rights reserved.
Antenna"
Set-Up and Quick Use - Antenna Hookups
CoMiuNATioN UHF/VHF
combination antenna receives
normal broadcast channels
A
(VHF 2-13 and UHF 14-69). Your
connection is easy since there is
only one 75Q. (ohm) antenna plug
on the back of your TV - and
that’s where the antenna goes.
If your antenna has a round
4>
cable (75 ohm) on the end, then
you're ready to connect it to the TV.
If your antenna has flat twin-lead
wire (300 ohm), you first need to
attach the antenna wires to the screws
on a 300 to 75 ohm adapter.
Push the round end of the
adapter (or antenna) onto the
ANTENNA/CABLE plug on the rear
of the TV. If the round end of the
antenna wire is threaded, screw it
down tight.
o
Si;i*AKATi; UHFA^HF
Oome of you may have two sep-
LJ arate antennas. One antenna
is for VHF channels (2-13) and
the other antenna is for UHF
channels (14-69).
For homes with separate
UHF/VHF antennas, you will
need an optional "combiner"
before you can connect to the TV.
See the "Smart Help " section (to
the right on this page) for order
ing details.
(beqin)
Attach the separate UHF and
VHF antennas to the correct screws
on the combiner.
Twin Lead
Wire
300 to 750
Adapter
(483521827003)
Combination VHF/UHF Antenna
(Outdoor or Indoor)
Back of TV
Remember, g
be sure to set the
TV for the type sig
nal you've connect
ed (see page 7.)
To set the TV to
select only the chan
nel numbers in your
area see how to
“Program" or "Add"
channels in memory
on page 7.
To order any option
al accessory contact
your dealer or call
the toll-free accesso
ry ordering number
(1-800-292-6066):
• UHF/VHF
Combiner;
(SBV1133A01)
• 75-300 Ohm
Adapter:
(SBV1113A01)
• 300-75 Ohm
Adapter:
(483521827003)
• Quick “F-type”
Extender:
(M61026)
For recessed
ANT/CABLE
connections.
Push the round end of the com
biner onto the ANTENNA/CABLE
plug on the rear of the TV.
Round Cable 75Q
Set-Up and Quick Use - Cable Hookups
Cable TV
CaIU.K iNPD r/CONVKKI KK
'^our home may use a single (75
A. ohm) cable, or have a Converter
Box installation. Connect the thread
ed end of the cable signal to the TV's
antenna plug and screw it down.
(BEGIN)
If your Cable TV signal is a single
round cable (75 ohm) then you're ready
to connect to the TV.
If you have a Cable TV Converter
Box: Connect the Cable TV signal to the
Cable Signal IN(put) plug on the
Converter.
Connect the Cable TV cable to
the ANTENNA/CABLE plug on the
TV. If you have a Cable Converter
Box: Connect the Converter to the
ANTENNA/CABLE plug on the TV.
Round Cable
75n Ohm
NOTE: The connecting cable for
the Converter is supplied from
the Cable TV Company.
Remember, g
set the TV for the
type signal you've
just connected (see
page 7.)
To select only the
channel numbers on
your Cable system
see “Auto Install"
(page 7). If you use a
Cable Converter box,
set the TV to the
same channel as the
converter's CH 3/4
switch (on the rear of
the converter.)
VCR TO TV
Basic Connkction
'T^he basic Antenna, or Cable
A TV, to VCR to TV connection
is shown to the right. For more
information on other hookups
refer to your accessory VCR and
Cable Converter Owner's Manual
for details.
(BEGIN)
Connect your Antenna or Cable
TV signal to the IN FROM
ANT(enna) plug on the VCR.
Connect the OUT TO TV plug
on the VCR to the ANTENNA plug
on the TV (connecting cable supplied
with the VCR).
Refer to the Owner's Manual
included with your VCR for other
possible connections and TV/VCR
operating details.
Set-Up and Quick Use - VCR Hookup
Back of TV
Round Cable
75ii Supplied with VCR
o
Set-Up and Quick Use - TV and Remote Operation
r-U
Television
Press the POWER button to
turn the TV ON.
<l>
Press the VOLUME UP (+) or
DOWN (-) button to adjust the
sound level.
<i> Press the CHANNEL UP (A) or
DOWN (T) button to select TV chan-
m
KB
Remote
SOUND STEREO
SLEEP TIMER OFF
EXIT
BRIGHTNESS I
The SETUP on-screen
control is automatically
selected when you first
plug in your TV and press
the MENU button (on the
TV or remote.)
T CHANNEL A
oooo
ES9I9HQB'
Remember, %
you can press any
button on the front
of the TV to turn the
TV ON. The tuned
channel number will
always briefly
appear when the TV
is first turned ON
(and with channel
changes). You can
also press the STA
TUS button (on the
remote) to see what
channel the TV is
ON.
o load the supplied batteries into
r,
the remote:
1. Remove the battery compartment
lid on the back of the remote.
2. Place the batteries (2-AAA) in the
remote. Be sure the (+) and (-) ends
of the batteries line up correctly
(inside of case is marked.)
3. Reattach the battery lid.
Point the remote control toward
the remote sensor window on the front
of the TV when operating the TV with
the remote.
Channel Scan Button
Press to scan up or down through
channel numbers. (Also can be
used with the MENU button to
select on-screen controls. With the
Menu displayed, press Channel (+)
or (-) buttons to scroll through the
list of controls.)
Status/Exit Button
Press to see the current channel
number on the TV screen. Also
press this button to clear the TV
screen after control adjustments.
Menu Buttons
Press the MENU button to show
on-screen controls. Press Channel
(+) or (-) buttons to move through
the list of controls. Press the
Volume (-!■) or (-) buttons to adjust
the MENU controls.
Mute Button '
Press to turn the TV sound OFF.
Press again to return the sound to
its previous level.
CC Button — — —
Press to select the Closed
Captioning mode. Choose either
CC-MUTE, CAPTION 1 (CC-1),
CAPTION 2 (CC-2), or OFF (CC-
OFF).
Power Button
Press to turn TV ON and OFF.
Volume (“) and f-f) Buttons
Press to adjust the TV sound level.
When used with the MENU button,
press to adjust the selected on
screen (MENU) feature controls.
A/CH (Alternate Channel) Button
Press to toggle between current and
previously viewed channel.
Number Buttons
Press two number buttons to select
TV channels. For example: to select
channel 6... press "0" first; then "6".
Sleep Button
Press to set the TV to automatically
turn itself OFF. See page 11, SLEEPTIMER control for details.
Set-Up and Quick Use - First Time Set-Up Control
r-U
Setup Menu
Adiomatic Skttinììs
J^irst Time Setup takes care of some
Jl basic TV control settings for you.
Follow the steps in this section to
quickly add area channel numbers into
the TV’s memory, set the Language,
and the TV for Antenna or Cable sig
nal.

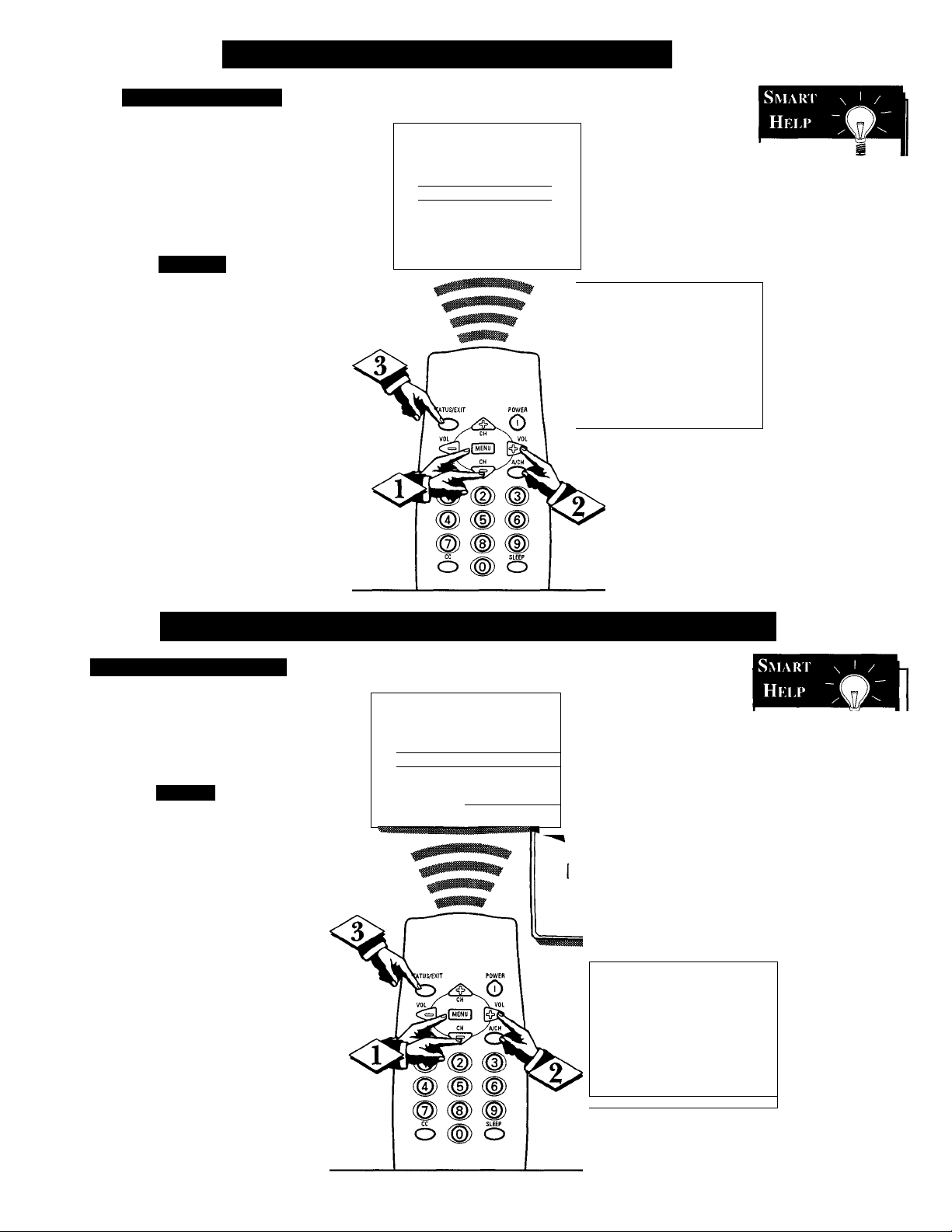

( BEGINS
Press MENU button on the
<f>
remote. An on-screen list of features
appears on the TV screen.
Press the CH (+) or (-) buttons on
the remote to scroll the on-screen menu
until the word SETUP appears within
the highlight box.
Press the VOL (+) button to select
the SETUP on-screen menu. Then
press the CH (-h) or (-) buttons to
scroll the SETUP options. Next press
the VOL (+) or (-) buttons as directed
to use the desired menu items.
MANUAL
EXIT
LANGUAGE
TUNING
AUTO INSTALL
ENG I
CABLE
Remember, SETUP is a first-use, one
time operation and will not have to be
repeated (even if the W is unplugged.)
►
'
►
►
First Time Set-Up Menu
(See control explanations
shown below.)
1+2-3
TUNING CABLE
AUTO INSTALL
¡CHANNEL EDIT
MANUAL
EXIT
►
►I
►
►
<j> Press the STATUS/EXIT button
on the remote to clear the screen
after an adjustment. You can also use
the “EXIT” option in the SETUP
screen and press the VOL (h-) button
to bring you back to the main on
screen menu.
You can also just wait and after a
minute the MENU will drop auto
matically from the screen.
LANGUAGE - The Language feature allows the user to
change the on-screen menu text to ENG (English), ESP
(Spanish), or FR (French). Note, this will not change the
text within features such as Closed Captioning.
TUNING - This feature sets the TV in the proper signal
mode. If you have a signal coming from a Cable TV com
pany or Cable Box; select CABLE from the menu. If you
are using an indoor or outdoor antenna, select ANTENNA from the
menu.
AUTO INSTALL - After correctly setting the TUNING
mode, AUTO INSTALL will read all the available channels
and store them into the TV’s memory. This will allow you
to use the CHANNEL (+) or (-) buttons to scan through
the channels you have available.
BACK TO MAIN MENU
EXIT
I CHANNEL 12|
SKIPPED NO
CHANNEL
ISKIPPED
EXIT H
L
CHANNEL EDIT - Allows you to add or delete channels
L±ll
the channel will appear within the CH (+) or (-) ring. If NO is selected,
the channel will not appear when you scan channels in the TV's
memory.)
manually. Enter the channel you want to skip. Then set
the SKIPPED feature to YES or NO. (If YES is selected,
EXIT - When the EXIT option is selected, the main menu
will return to the screen.
►
12
NO I
►
□
Closki) Captioninc:
How TO Use the Closed Caption Control
losed Captioning allows you to
read the voice content of televi
C
sion programs on the TV screen.
Designed to help the hearing
impaired, this feature uses on-screen
"text boxes" to show dialogue and
conversations while the TV program
is in progress.
Note: Broadcast stations will often
use spelling abbreviations, symbols,
dropouts and other grammatical
shortcuts in order to keep pace with
the on-screen action. These type fac
tors vary upon the source of the cap
tioned text material and do not indi
cate a need for service on the part of
the TV.
Press the CC button on the remote
<V>
control repeatedly to select the Closed
Captioning mode you desire (CAP
TION 1, CAPTION 2, CAPTION
MUTE, and CAPTION OFF).
Note; Usually “Caption 1" is the
most used mode to view captioned
material.
Press the STATUS button after
making your Caption mode selec
tion. The TV display will clear and
Captioning material (if available on
the currently selected TV program)
will appear on the TV screen.
To cancel, set the CAPTION feature
to CAPTION OFF when finished
viewing.
Smart Help
Remember, not all TV
% programs and product com
mercials are made for broadcast with
Closed Caption (CC) information
included. Neither are all Closed
Caption modes (CAPTION 1 or
CAPTION 2) necessarily being used
by a broadcast station during the
transmission of a closed caption pro
gram. Refer to your area's TV pro
gram listings for the stations and
times of Closed Caption shows.
Caption 1 or Caption 2 mode: dialogue
(and descriptions) for the action on the
captioned TV program shows on-screen.
(See Smart Help on this page.)
How TO Use the Alternate Channel Control
he Alternate Channel features
allows the user to toggle between
Z
the current channel being watched
and the previous channel.
C BEGIN)
<x>
Press the A/CH button on the
remote to switch from your current
channel to the channel your were
watching previously.
Press the A/CH (Alternate
Channel) button again to reverse the
process.
; E
V,
10
1
1
Pressing the A/CH (Alternate
Channel) button will toggle between
the current and one previous channel
To Use A/CH i
(Alternate
Channel):
Select the two
desired channels for
viewing with the
number buttons on
the remote control.
Press the A/CH but
ton on the remote to
“toggle” between
the two selected
channels.
How TO Use the Sleep Timer Control
Sl.KKPTIMKR
T T ave you ever fallen asleep in
JlA front of the TV only to have it
wake you up at two in the morning
with a test pattern screeching in your
ears? Well, your TV can save you all
that trouble by automatically turning
itself off.
Press the SLEEP button repeat
<i>
edly to pick the amount of time (15
minutes to 2 hours ahead) before the
TV will turn itself off.
The VOL (+) or (-) buttons can also
be used to set the amount of time
within the on-screen menu.
<|> Press the STATUS/EXIT button
to clear the screen after you have set
the time for the TV to turn off.
An on-screen count down will appear
during the last minute before the TV
shuts itself off.
C BEGIN)
I MENU I
muteV
O
O
m
m (®
cc
O
<®>
O
CH /A/CH
O
#
m
SLEEP
C3=
’
r
On-screen adjustment
----------------------
30 MIN
45 MIN
120 MIN ’
58
60 MIN
75 MIN
f 90 MIN
/105 MIN
Smart
Help
Remember. If
you ever want to see how
many minutes are left
before the TV shuts itself
off, press the STATUS
button on the remote.
If you want to stop a
SLEEP TIMER setting,
reset the timer back to
OFF. You could also turn
the TV off, and then back
on again, to cancel a set
ting.
Pressing any key on the
remote or TV in the last
60 seconds will cancel the
SLEEP TIMER setting.
An on-screen count down will
appear during the last minute of a
-
SLEEP TIMER setting.
o
\ I /
□I
How TO Use the Picture Adjustment Controls
^0 adjust your TV picture con
trols, select a channel and follow
7
the steps shown below:
C BEGIN)
4>
’ use the EXIT control in the Menu) to
Press the MENU button on the
remote, then press the CH (+) or (-)
to scroll the on-screen menu until the
desired control appears within the
highlight box.
Press the VOL (+) or (-) to
adjust the selected picture control
levels. (Refer to the Smart Help box
for more detail on each control.)
Press STATUS/EXIT button (or
clear the screen when picture adjust
ments are completed.
SETUP
EXIT
1 BRIGHTNESS
COLOR ■—31
PICTURE ■—31
\
-----------
►
► EXIT
■-31]
BRIGHTNESS ■—31
1 COLOR ■—31 1
PICTURE ■—31
SHARPNESS
■—31
►
Smart Hki-p
BRIGHTNESS Press VOL
§ (-) or (+) until darkest parts of
the picture are as bright as you prefer.
COLOR Press VOL (-) or (+) to add
or eliminate color.
PICTURE Press VOL (-) or (+) until
lightest parts of the picture show good
detail.
SHARPNESS Press VOL (-) or {+)
to improve detail in the picture.
TINT Press VOL (-) or (+) to obtain
natural skin tones.
AI tArtificial Intelligence) Press the
VOL (-) or (+) to turn AI ON or OFF.
When ON, AI increases the picture’s
contrast making the dark areas more
black and the light areas more white.
This is especially good for dark scenes
or programs.
SHARPNESS ■— 31
TINT 31
|AI
VOLUME
SOUND
■—15
STEREO
onI
,
10
How TO Use the Volume Controls
V()[,11MK CONTKOI.
o
T Jse the Volume control to set the
TV’s volume level on the TV
screen. The Volume level or scale
will be seen each time the VOLUME
buttons (on the TV or remote) are
pressed. (0 being the lowest, 63
being the highest.)
rr^^TT).
<3>
<|> Press STATUS/EXIT button to
Press the MENU button on the
remote, then press the CH (+) or (-)
to scroll the on-screen menu until the
word VOLUME appears within the
highlight box.
Press the VOL (+) or (-) buttons
j to adjust the volume level.
clear the screen.
1^
—
TINT 12
Al ON
¡VOLUME 1—15|
SOUND STEREO
SLEEP TIMER OFF
VOLUME
Try it out.
Press the VOL (-I-) or
(-) buttons. The
VOLUME indicator
should appear at the
bottom of the screen.
1— 15
When the Volume button is pressed
an on-screen display will appear.
How TO Use the Sound (Stereo/Mono) Control
S iKKEo/MoNo TV Sound
~\7our TV can receive broadcast
J- stereo TV programs. The TV has
both an amplifier and twin speakers
through which the stereo sound can
be heard.
Press the MENU (M) button on the remote, then the CHANNEL A or T buttons to scroll the on-screen
menu until the word SOUND appears
within the highlight box.
Press the VOLUME (-h) or (-)
buttons to set the SOUND control
to STEREO or MONO.
Press the STATUS button on the
<l>
remote control to clear the screen.
’
Al ON
VOLUME
¡SOUND STEREOI
SLEEP TIMER OFF
SETUP
-----
M
----
-
• ►
-------
i5
ON
-15
SOUND STEREO
SLEEP TIMER
SETUP
OFF
12
►
Remember, g
if the TV is set to
STEREO but the
current channel is
not broadcasted in
stereo, the sound at
the TV will remain
monaural, (mono.)
----------Jt" V
STEREO
NOTE: The TV's onscreen “STEREO” indi
cator appears whenever
the TV delects an
incoming stereo signal.
Be sure the TV’s
STEREO control is also
turned “ON” in order
for the stereo sound to
be heard through the
TV’s twin speaker sys
tem.
11
Tips If Something Isn’t Working
lease make these simple
checks before calling for ser
P
vice. These tips can save you
time and money since charges for
TV installation and adjustment of
customer controls are not cov
ered under your warranty.
No Power
No Picture
No Sound
CAUTION: A video source (such as a video game, Compact Disc Interactive - CDI, or
TV information channel) which shows a constant non-moving pattern on the TV screen,
can cause picture tube damage. When your TV is continuously used with such a source
the pattern of the non-moving portion of the game (CDI, etc.) could leave an image
permanently on the picture tube. When not in use, turn the video source OFF.
Regularly alternate the use of such video sources with normal TV viewing.
Check the TV power cord. Unplug the TV, wait 10 seconds, then reinsert plug into
outlet and push POWER button again.
Check to be sure outlet is not on a wall switch.
Check antenna connections. Are they properly secured to the TV's ANT/CABLE plug ?
Check the TUNING ANTENNA/CABLE control for correct position.
Check the VOLUME buttons.
Check the MUTE button on the remote control.
If attempting auxiliary equipment hook-ups, check audio jack connections.
Check batteries. Replace with AAA Heavy Duty (Zinc Chloride) or Alkaline batteries
Remote Does Not
Work
TV Displays Wrong
Channel or No
Channels Above 13
Cleaning and Care
• To avoid possible shock hazard be sure the TV is unplugged from the electrical outlet before cleaning.
• When cleaning the TV screen take care not to scratch or damage the screen surface (avoid wearing jewelry or using
anything abrasive). Wipe the front screen with a clean cloth dampened with water. Use even, easy, vertical strokes when
cleaning.
• Gently wipe the cabinet surfaces with a clean cloth or sponge dampened in a solution of cool clear water. Use a clean
dry cloth to dry the wiped surfaces.
• Occasionally vacuum the ventilation holes or slots in the cabinet back.
• Never use thinners, insecticide sprays, or other chemicals on or near the cabinet, as they might cause permanent marring
of the cabinet finish.
if necessary.
Clean the remote and the remote sensor window on the TV.
Check the TV power cord. Unplug the TV, wait 10 seconds, then reinsert plug into
outlet and push POWER button again.
Check to be sure TV outlet is not on a wall switch.
Repeat channel selection.
Add desired channel numbers (CHANNEL EDIT control) into TV memory.
Check TUNING ANTENNA/CABLE control for correct position.
This TV is equipped with protective circuitry that shuts the TV off in case of moderate
power surges. Should this occur turn the TV back on by pressing the POWER button
once or twice, or unplug (wait 10 seconds) and then replug the power cord at the AC
outlet. This feature is NOT designed to prevent damage due to high power surges such
as those caused by lightning, which is not covered by your warranty.
12
Glossary of Terms
Round Cable 75Q * A single solid antenna wire normally
matched with a metal plug (F-type) end connector that screws (or
pushes) directly onto a 75 Ohm input found on the Television or
VCR. (Also known as Coaxial Cable.)
Closed Caption * Broadcast standard which allows you to read
the voice content of television programs on the TV screen.
Designed to help the hearing impaired this feature uses on-screen
"text boxes" to show dialogue and conversations while the TV pro
gram is in progress.
AudioA^ideo Inputs * Located on the rear of the TV these con
nectors (RCA phono type plug) are used for the input of audio
and video signals. Designed for use with VCRs (or other acces
sories) in order to receive higher picture resolution and offer sound
connection options.
On Screen Displays (OSD) * Refers to the wording or messages
generated by the television (or VCR) to help the user with specific
feature controls (color adjustment, programming, etc.).
Menu * An on-screen listing of feature controls shown on the
Television screen that are made available for user adjustments.
Multichannel Television Sound (MTS) * The broadcast standard
that allows for stereo sound to be transmitted with the TV picture.
Programming * The procedure of adding or deleting channel
numbers into the Television’s memory circuits. In this way the
Television “remembers” only the locally available or desired
channel numbers and skips over any unwanted channel numbers.
Remote Sensor Window * A window or opening found on the
Television control panel through which infrared remote control
command signals are received.
Setup Mode * Automatic feature control settings made by the TV.
Designed for first time set-up and use. Settings for signal connec
tions (antenna or cable TV), plus channel program memory are
held in the TV's memory (even if the set is unplugged and moved
to a new location.)
Status/Exit * Allows the user to quickly confirm what channel
number is currently being viewed. Status can also be used to clear
the Television of on screen displays or information (rather than
waiting for the displays to “time out” or automatically disappear
from the screen).
Twin Lead Wire * The more commonly used name for the two
strand 300 Ohm antenna wire used with many indoor and outdoor
antenna systems. In many cases this type of antenna wire requires
an additional adapter (or balun) in order to connect to the 75 Ohm
Input terminals designed into the more recent Televisions and
VCRs.
Accessories/Optional
Adapter Connector..........................................................................4, 5
Add/Delete Channels..........................................................................7
Alternate Channel...............................................................................9
Artificial Intelligence (AI)................................................................10
Battery Installation..............................................................................6
Cable TV Connections
Channel Memory
Closed Captioning
Controls/TV........................................................................................ 6
Controls/Remote.................................................................................6
Features...............................................................................................3
Glossary TV Terms
Language Option.................................................................................7
Memory/Program Channels................................................................7
Menu Button....................................................................................... 6
......................................................................
.......................................................................
................................................................................
..............................................................................
..........................................................................
4, 5
13
Index
Minus(-)/Plus (+) Buttons...................................................................6
Picture Controls.................................................................................10
Precautions/Safety
Programming Channels.......................................................................7
Remote Control...................................................................................6
Requesting Service..........................................................12, 14-15, 16
5
Round Cable 75Q.............................................................................4, 5
7
Safety/Precautions....................................................................2, 12,16
8
Set Up/First Time Use.....................................................................4-7
Sleep Timer.........................................................................................9
Status Button.......................................................................................6
Tips for Service
VCR/TV Connections.........................................................................5
Volume Control
Warranty............................................................................................16
...................................................................
...............................................................
................................................................................
2, 12, 16
12, 14-15, 16
11
* Information contained in Quick-Use (Q/U) Guide-page listed.
13
Philips Consumer Electronics Company
Factory Service Center Locations
NOTE;
If you reside in one of our Philips Factory Service Branch areas (see directory on back), you can contact the nearest Service Branch to
obtain efficient and expedient repair for your product. If your product is In-Warranty, you should have proof-of-purchase to ensure No Charge
Service. For Out-of-Warranty service, call the location nearest you.
NOTA;
Si vous résidez dans une des régions desservies par une succursale de service après vente du fabricant Philips (voir liste ci-dessous),
vous pourrez contacter la branche de service après vente la plus près de chez vous pour obtenir un service après vente rapide et efficace. Si le
produit est sous garantie, il suffira de présenter une preuve d'achat pour bénéficier d'un service sans frais. Pour les produits non couverts par la
garantie, contactez le centre le plus près de chez vous.
NOTA;
Si Ud. reside en una de nuestras zonas para sucursales Philips de servicio al de fábrica (ver directorio más abajo), Ud. puede comunicarse
con la sucursal de servicio más cercana para obtener una reparación oportuna y eficaz de su producto. Si su producto está todavía bajo garan
tía, Ud. debe presentar comprobante de compra para no ocasionar ningunos cargos por servicio. Para servicio después del vencimiento de la
garantía, llame al lugar más cercano de los abajo indicados.
In Canada
How you can obtain efficient and expedient carry-in, mail-in, or in-home service for your product
Please contact Philips at 1-800-661-6162 (French speaking)
1-800-363-7278 (English speaking)
Au Canada
Comment obtenir le service après-vente pour les produits apportés ou envoyés par la poste à notre centre de service ou le service à domicile
Veuillez contacter philips á; 1-800-661-6162 (Francophone)
1-800-363-7278
En el Canada
Cómo recibir servicio efficiente para su producto, en persona, por correo o a domicilio
Favor de comunicarse con Philips al: 1-800-661-6162 (francófono)
1-800-363-7278 (anglòfono)
14
Quality service is as close as your telephone! Simply look over the list below for the number of a Factory Service Center
NEAR YOU. Your product will receive efficient and expedient carry-in, mail-in, or in-home service, and you will receive peace of mind,
knowing your product is being given the expert ahention df Philips’ Factory Service. And, if the phone number listed for your area
IS LONG distance, CALL 1-800-242-9225 for Factory Service.
COMMENT OBTENIR NOTRE SERVICE APRÈS VENTE RAPIDE ET EFFICACE SOIT PAR COURRIER, A DOMICILE, OU EN SE PRÉSENTANT À UN CENTRE DE SERVICE PHILIPS. PLUS DE 600 CENTRES
DE RÉCEPTION DE PRODUITS À RÉPARER À TRAVERS LE PAYS: CONTACTER LE CENTRE DE SERVICE AUX CONSOMMATEURS LE PLUS PROCHE POUR SAVOIR L’EMPLACEMENT DE CES DÉPÔTS
CÓMO OBTENER UN SERVICIO OPORTUNO Y EFICIENTE POR CORREO, EN CASA O EN PERSONA PARA SU PRODUCTO A TRAVÉS DE UN CENTRO PHILIPS DE SERVICIO. MAS DE 600 SITIOS POR
TODO EL PAIS PARA LA RECEPCION DE PRODUCTOS NECESITADOS DE REPARACIONES: COMUNICARSE CON EL CENTRO DE SERVICIO DE FABRICA MAS CERCANO PARA ESTOS LUGARES DENTRO
DANS UN RAYON DE 50 À 75 MILES (00 KM À 120 KM) DU CENTRE DE SERVICE LOCAL.
DE UN RADIO DE 80 A120 KM (50 A 75 MILLAS) DEL CENTRO DE SERVICIO LOCAL.
Atlanta-Athens-Macon-Chattanooga,
TN-North Georgia Area
200 North Cobb Parkway
Building 100, Suite 120
Marietta, GA 30062
(770) 795-0085
Charlotte-Winston SalemGreensboro
520-G Clanton Road
Charlotte, NC 28217
(704) 529-6330
Chicago-Gary Area
1360 W. Hamilton Parkway
Itasca, IL 60143
(630) 775-0990
Cleveland-Akron-Youngstown Area
950 Keynote Circle
Brooklyn Heights, OH 44131
(216) 741-3334
Detroit/Toledo Area
25173 Dequindre
Madison Heights, Ml 48071
(810) 544-2110
Knoxville-GreenevilleTri Cities-East Tennessee Area
6700 D. Papermill Road
Papermill Plaza
Knoxville, TN 37919
(423) 584-6614
Ft. Myers-NaplesSouthwest Florida Area
11601 Cleveland Ave., Suite 15
Ft. Myers, FL 33907
(941) 278-4242
Houston-Galveston-Beaumont-AustinSan Antonio Area
1110 North Post Oak Road
Suite 100
Houston, TX 77055
(713) 682-3990
Miami-Southeast Florida Area
2099 W. Atlantic Blvd.
Pompano Beach, FL 33069
(954) 978-0467
New York Metro Area
116 Charlotte Avenue
Hicksville, NY 11801
(516) 933-1780 Nassau County
Philadelphia/S. New Jersey Area
352 Dunks Ferry Road
Bensalem, PA 19020
(215) 638-7500
Pittsburgh, PA-Steubenville, OHWheeling/Morgantown, WV Area
2891 Banksville Road
Pittsburgh, PA 15216
(412) 563-8020
San Francisco-Oakland-San Jose Area
681 East Brokaw Rd.
San Jose, CA 95131
(408) 436-8566
Seattle-Tacoma/Olympia Area
1055 Andover Park East
Tukwila,WA 98188
(206) 575-6288
Tampa-St.Petersburg-Sarasota Area
Center Point Business Park, Building B-1,
Suite 100
1911 U.S. Hwy. 301 North
Tampa, FL 33619
(813) 621-8181
15
LIMITED WARRANTY
COLOR TELEVISION
90 Days Free Labor
One Year Free Replacement of Parts (Two Years Free Replacement on Color Picture Tube)
This product must be carried in for service.
WHO IS COVERED?
You must have proof of purchase to receive warranty service. A sales
receipt or other document showing that you purchased the product is
considered proof of purchase.
WHAT IS COVERED?
Warranty coverage begins the day you buy your product. For 90 days
thereafter, all parts will be repaired or replaced free, and labor is free.
From 90 days to one year from the day of purchase, all parts will be
repaired or replaced free, but you pay for all labor charges. From one
to two years from the day of purchase, you pay for the replacement or
repair of all parts except the picture tube, and for all labor charges.
After two years from the day of purchase, you pay for the replacement
or repair of all parts, and for all labor charges.
All parts, including repaired and replaced parts, are covered only for
the original warranty period. When the warranty on the product
expires, the warranty on all replaced and repaired parts also expires.
WHAT IS EXCLUDED?
Your warranty does not cover;
• labor charges for installation or setup of the product, adjustment of
customer controls on the product, and installation or repair of
antenna systems outside of the product.
• product repair and/or part replacement because of misuse, acci
dent, unauthorized repair or other cause not within the control of
Philips Consumer Electronics Company.
• reception problems caused by signal conditions or cable or antenna
systems outside the unit.
• a product that requires modification or adaptation to enable it to
operate in any country other than the country for which it was
designed, manufactured, approved and/or authorized, or repair of
products damaged by these modifications.
• incidental or consequential damages resulting from the product.
(Some states do not allow the exclusion of incidental or consequen
tial damages, so the above exclusion may not apply to you. This
includes, but is not limited to, prerecorded material, whether copy
righted or not copyrighted.)
• a product used for commercial or institutional purposes.
WHERE IS SERVICE AVAILABLE?
Warranty service is available in all countries where the product is offi
cially distributed by Philips Consumer Electronics Company. In coun
tries where Philips Consumer Electronics Company does not distribute
the product, the local Philips service organization will attempt to pro
vide service (although there may be a delay if the appropriate spare
parts and technical manual(s) are not readily available).
MAKE SURE YOU KEEP...
Please keep your sales receipt or other document showing proof of
purchase. Attach it to this owner’s manual and keep both nearby.
Also keep the original box and packing material in case you need to
return your product.
BEFORE REQUESTING SERVICE...
Please check your owner’s manual before requesting service.
Adjustments of the controls discussed there may save you a service
call.
TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO OR U.S. VIRGIN ISLANDS...
Contact a Philips factory service center (see enclosed list) or autho
rized service center to arrange repair.
(In U.S.A., Puerto Rico and U.S. Virgin Islands, all implied warranties,
including implied warranties of merchantability and fitness for a partic
ular purpose, are limited in duration to the duration of this express
warranty. But, because some states do not allow limitations on how
long an implied warranty may last, this limitation may not apply to
you.)
TO GET WARRANTY SERVICE IN CANADA...
Please contact Philips at:
I -800-661-6162 (French Speaking)
1-800-363-7278 (English Speaking)
(In Canada, this warranty is given in lieu of all other warranties. No
other warranties are expressed or implied, including any implied war
ranties of merchantability or fitness for a particular purpose. Philips is
not liable under any circumstances for any direct, indirect, special, inci
dental or consequential damages, howsoever incurred, even if notified
of the possibility of such damages.)
REMEMBER...
Please record the model and serial numbers found on the product
below. Also, please fill out and mail your warranty registration card
promptly. It will be easier for us to notify you if necessary.
MODEL#
SERIAL#
_______________________________________________
_______________________________________________
This warranty gives you speafic kgat rights. You may have other rights which vary from suite/province to state/province.
Philips Service Company, P.O. Box 555, Jefferson City, Tennessee 37760, (423) 475-8869
IB7818-E001
16
Loading...
