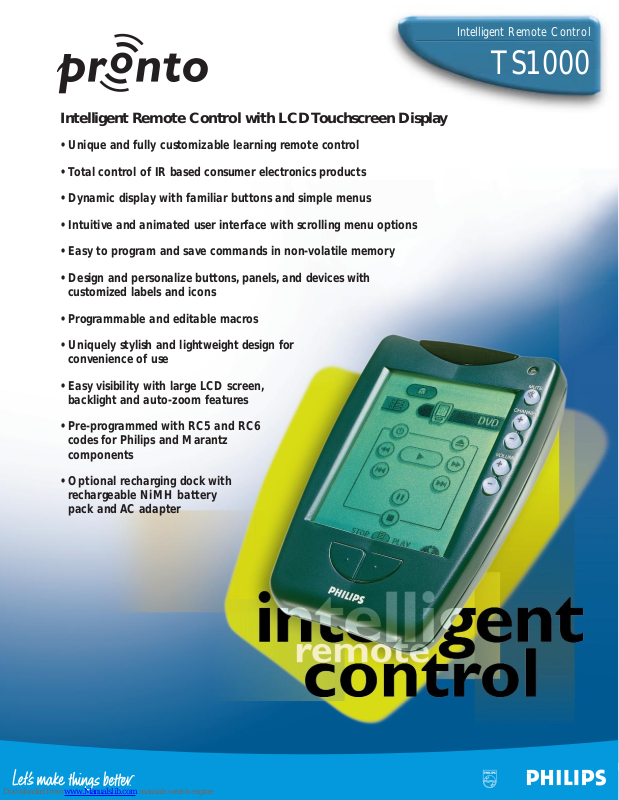

Intelligent Remote Control with LCD Touchscreen Display
• Unique and fully customizable learning remote control
• Total control of IR based consumer electronics products
• Dynamic display with familiar buttons and simple menus
• Intuitive and animated user interface with scrolling menu options
• Easy to program and save commands in non-volatile memory
• Design and personalize buttons, panels, and devices with
customized labels and icons
• Programmable and editable macros
• Uniquely stylish and lightweight design for
convenience of use
• Easy visibility with large LCD screen,
backlight and auto-zoom features
• Pre-programmed with RC5 and RC6
codes for Philips and Marantz
components
• Optional recharging dock with
rechargeable NiMH battery
pack and AC adapter
Intelligent Remote Control
TS1000
Page 2
Intelligent Remote Control
Pronto is a universal learning remote control that combines elegance ,
flexibility and ease of use. It combines a large touchscreen display with an
intuitive user interface and direct-access buttons to conveniently provide
home entertainment control.
Customization (Pronto is as unique as you are!)
Remote controls are typically limited to a certain number of components
and/or functions - not this one. Pronto’s unparalleled design combines
the benefits of a dynamic, digital user interface with direct access buttons.
It’s easy to add, delete, and label new buttons or menus. This allows maximum customization according to individual needs and tastes. A special
feature prevents tampering with stored commands.It’s easy to personalize Pronto - set up and change the user interface with any number of
components. Pronto is as unique as you are.
Total Control (Learning universal and expandable)
Pronto can control almost all infrared (IR) receiving devices. It comes
preprogrammed with RC5 and RC6 commands for Philips and Marantz
components. It can learn new codes - any brand - and even grow in
functionality as your system changes to accommodate new components.
Pronto gives you the ability to add buttons,devices and macro functions
as desired. The non-volatile flash memory secures the programming even
if the batteries are removed.
Interactive User Interface - (Simplicity and flexibility)
The intuitive graphical user interface is easy to understand.The dynamic
display uses familiar icons and sliding menus which allow for quick and
easy execution of commands. Pronto allows for maximum flexibility for
even the most sophisticated home entertainment systems.
Unique and Elegant Design
The stylish design makes it not only attractive;but practical for daily use.
The product is designed to accommodate one or two handed,cradled in
the recharging dock,or tabletop operation.Automatic light sensors and
backlighting make it convenient to use Pronto in the dark.
Expandable and Upgradeable
Pronto’s built in two-way IR input/output, coupled with its two-way
RS232 communication serial port ensures that it’s a wise investment.
These standard external ports guarantee compatibility and make it easy
to upgrade with future components and applications.
Pronto Intelligent Remote Control (TS1000)
• Direct-Access Buttons Mute
Channel Up/Down
Volume Up/Down
Right/Left Configuration Buttons
Backlight Button
• Light Sensing Photocell
• Send/Learning IR Eyes
• Hardware
Built-in IR Codes RC-5,RC-6
IR Operating Distance < 33 ft (70 m W/SR, 0 degrees) or
< 10 m (70 m W/SR, 0 degrees) or
IR Operating Angle +/- 30 degrees (@16ft or 5 m)
IR Learning Distance 1 inch or 2.5cm minimum @ +/- 40
degrees 1ft or 30 cm maximum @ up to
40 degrees
IR Learning Frequencies Up to 56 kHZ
Automatic Power Mngmt Auto power up/down (no on/off switch)
Battery Type Four (4) AA 1.5V batteries included
Battery Life 6 months typical usage based on 50%
battery life after 21 hours of continuous
use and active use of back lighting
Standby Current 65uA
• LCD
Dynamic LCD Input Finger or capped pen
Resolution 320 x 240,0.24 mm pitch
Refresh Rate 70 Hz
Color Scales 4 gray levels
Dimensions 3 x 2.3 inches or 77 x 58 mm
DFSTN
• Memory (unlimited devices & macros within memory)
SRAM 512 KB (0.5 MB)
Flash 1024 KB (1 MB)
• EL Back-Light Luminance Output 1.3Cd/m2
• Audio: Piezo Speaker Speakers with adjustable volume (4 KHz)
• Processor Motorola DragonBall MC68328
• Ports 3 wire connector (RS232 serial port)
• Weight 8.8 oz or 250 g with batteries
• Dimensions 5.4 x 3.6 x 1.5 inches or
138 x 92 x 38 mm
(length x width x height)
• Warranty 1 year warranty
• Package Contents Pronto remote control,instructional
manual,warranty and registration cards,
and four (4) AA batteries
Pronto Recharge Package (DS1000)
Optional Accessor y – Sold Separately
• Rechargeable Battery Pack 4.8V NiMH,2.2 x 2.245 x .6 inches, .25 lbs
• Recharge Docking Station
with LED Indicator 5.9 x 3.554 x 1.12 inches,.41 lbs
• AC Transformer 110/220V to 12V, 700mA,
3.65 x 2.88 x 2.17 inches,.8 lbs
More information,web site: www.mmhometheater.com or
www.pronto.philips.com
TS1000
Specifications subject to change without notice.
©1998 Philips Digital Electronics Group
A Division of Philips Electronics North America Corporation
UPC Codes:TS1000 - 037849876664 and DS1000 - 037849876671
Doc. ID # SSTS1000 Printed in the USA
