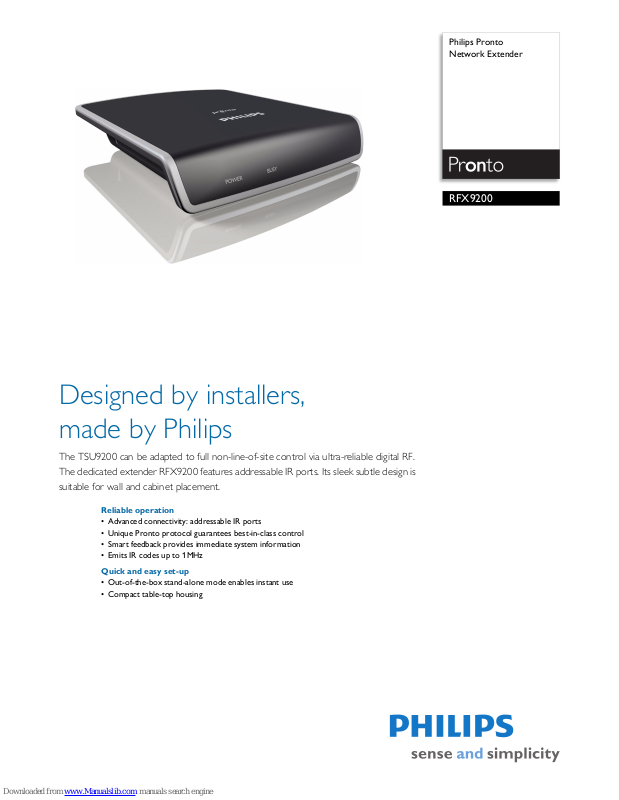

Page 1
Philips Pronto
Network Extender
RFX9200
Designed by installers,
made by Philips
The TSU9200 can be adapted to full non-line-of-site control via ultra-reliable digital RF.
The dedicated extender RFX9200 features addressable IR ports. Its sleek subtle design is
suitable for wall and cabinet placement.
Reliable operation
• Advanced connectivity: addressable IR ports
• Unique Pronto protocol guarantees best-in-class control
• Smart feedback provides immediate system information
• Emits IR codes up to 1MHz
Quick and easy set-up
• Out-of-the-box stand-alone mode enables instant use
• Compact table-top housing
Page 2
Issue date 2009-11-06
Version: 3.0.13
12 NC: 8670 000 33067
UPC: 6 09585 14098 1
© 2009 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
Specifications
RFX9200/37
Network Extender
Highlights
Adressable IR ports
Addressable IR ports enable control of the same
type of devices in a rack independently (by the same
extender). Typically this is the case with multiple settop boxes to distribute content throughout the
house. Every device is asigned its own dedicated IR
port. As a result the device will only receive the IR
codes that are intended for this device and not for
any other. Without addressable IR codes, every
device will always receive all sent-out IR codes.
Smart feedback
The smart 2-way Pronto protocol regulates the
commands that are sent from the Pronto control
panel to the extenders. Each extender will
acknowledge the execution and the user will be
informed in case a command cannot be executed.
IR code range
The powerful IR-circuit is capable of transmitting
virtually any IR code. Where many remote control
systems are limited to 125 kHz, the Pronto
extenders can send IR-frequencies to up to 1 MHz.
Connectivity
• IR emitter connectors: 4
Accessories
•AC/DC Adaptor
• Printed User Guide
• Single IR emitter wires: 4
• Warranty Card
Infrared Capabilities
• Addressable IR output: Adjustable IR output level
• Carrier frequency range: 30k - 100kHz + 455kHz
RF Capabilities
• Adresses (ID's): 16
• Frequency (GHz): 2.4
•
