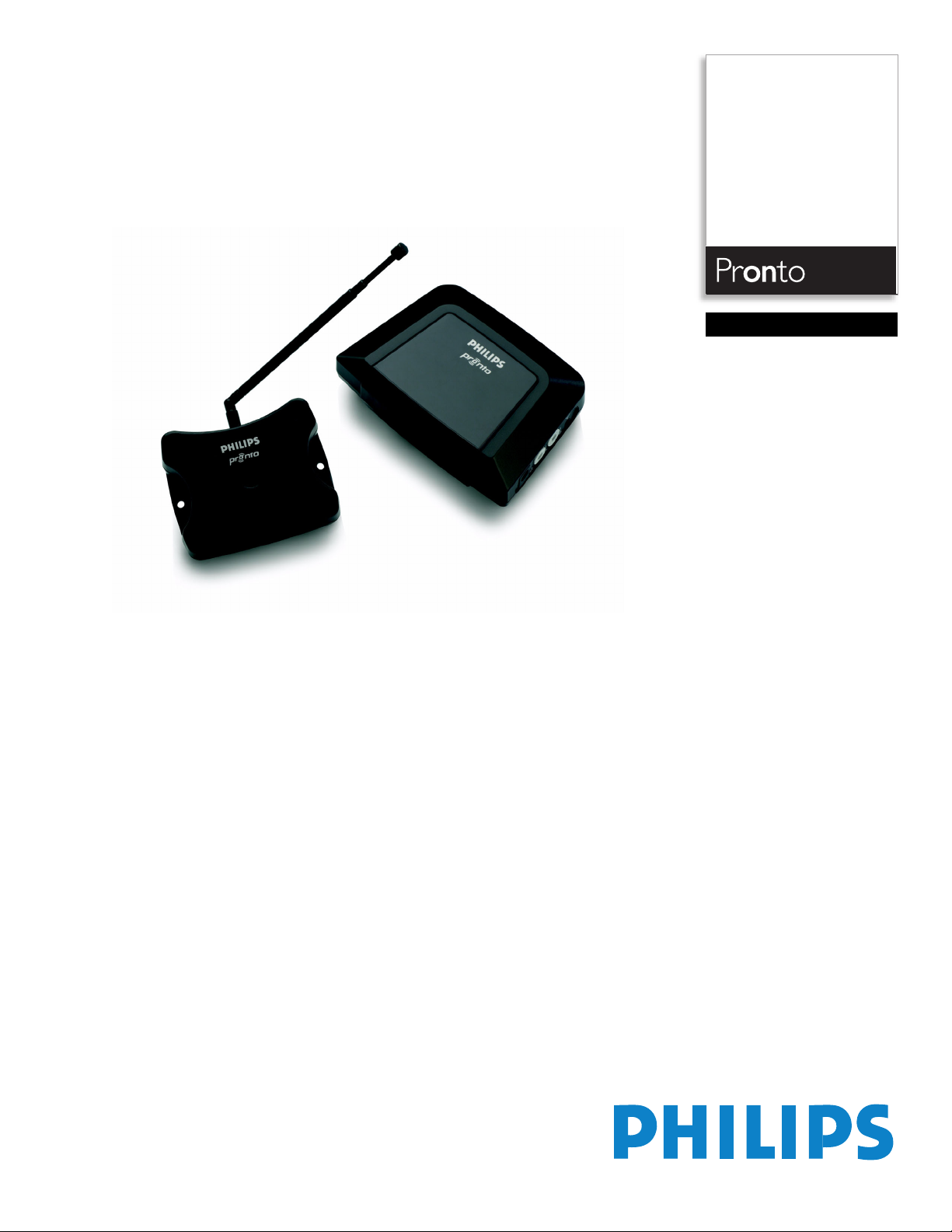

Philips Pronto
RF extender
RFX6500
Extended range, reliable control
Easy to install RF extender for Pronto and ProntoPro guarantees virtually interferencefree operation in multi-room configurations or non-line-of-sight environments.
Single control solution for any device, any brand
• Optional IR extension module controls hidden equipment
• Radio frequency works through walls and from other rooms
Quick and easy set-up
• Adjustable antenna to reliably position RF extender
• Indicator detecting interference sources to an RF signal
Page 2
For preview purpose only
RF extender
Technical specifications Product highlights
Connectivity
• IR emitter connectors: 4
• Connector: 2.5 mm Blaster- Receiver
connector
Infrared Capabilities
• IR emitter connectors: 4
• Transmitting LEDs: 4
RF Capabilities
• Adresses (ID's): 16
• Channels: 4
• Communication: 1-way
• Frequency (MHz): 418
Convenience
• Error indication
Power
• Mains power: 120V (+/-10/-15%)/60Hz
Dimensions
• Master carton quantity: 1
• Master carton weight: 0.84 kg
• Product dimension (WxDxH) inch: 4.5" x
3.2" x 1.2"
• Product weight (lb): 0.132
• Temperature range (operation): 32°F to
122°F
Accessories
• AC/DC Adaptor: 12V DC 400mA
• Dual IR emitter wires: 4
•Printed User Guide
•
RFX6500/17
IR extension module
An infrared extension module allows you to control
traditional infrared equipment over a radio frequency
network.
Radio frequency
A radio technology that allows you to control components
not in direct line-of-sight, such as through walls or other
obstacles. There are two types of RF used in remote
controls: RF to component, and RF to infrared.
Adjustable antenna
A separate adjustable antenna determines the most
reliable position of an RF extender and therefore ena bles
virtually interference-free operation of multi-room
systems or devices in concealed environments. The
antenna has a built-in interference indicator that blinks
when detecting an other RF device or other interference
source (e.g. microwave oven). The harder the indicator
blinks, the less reliable the position of the antenna.
RF interference indicator
An interference indicator is a red blinking light that
indicates the presence of interference sources in the
home, that can interfere with the operation of an RF
extender. The indicator is built into an antenna, and starts
blinking as soon as the antenna picks up interference
fro m RF de vice s, bes ide s th e R F e xte nde r, o r o th er s our ces
e.g microwave oven. The harder the light blinks, the less
reliable the antenna is positioned, therefore, the less
reliable the RF extender will work.
Date of issue 2006-07-03
Version: 1.0
12 NC: 9082 100 80125
UPC: 0 37849 96655 6
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
© 2006 Koninklijke Philips Electronics N.V.
All Rights reserved.
