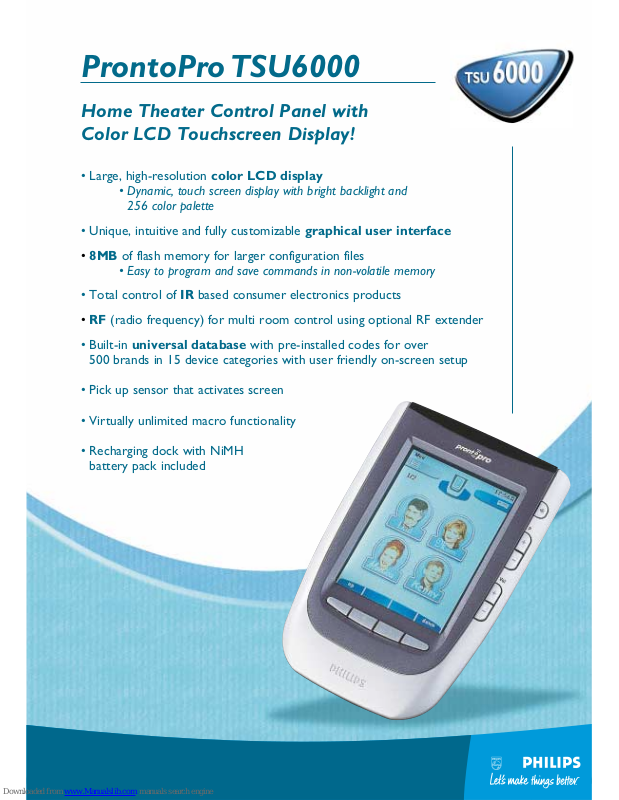

ProntoPro TSU6000
Home Theater Control Panel with
Color LCD Touchscreen Display!
• Large, high-resolution color LCD display
• Dynamic, touch screen display with bright backlight and
256 color palette
• Unique, intuitive and fully customizable graphical user interface
• 8MB of flash memory for larger configuration files
• Easy to program and save commands in non-volatile memory
• Total control of IR based consumer electronics products
• RF (radio frequency) for multi room control using optional RF extender
• Built-in universal database with pre-installed codes for over
500 brands in 15 device categories with user friendly on-screen setup
• Pick up sensor that activates screen
• Virtually unlimited macro functionality
• Recharging dock with NiMH
battery pack included
Page 2
Specifications
• Direct access buttons mute
channel up/down
volume up/down
page up/down
2 free programmable buttons
backlight button
• Send/learning IR eyes
• Hardware
Built-in IR codes 549 brands
IR operating distance up to 33 ft (10 m)
IR operating angle ± 30 degrees (@16ft or 5 m)
IR learning frequencies up to 56 kHz and 455 kHz
Automatic power mgmt auto power up/down
Battery type rechargeable AAA battery pack
(included)
• LCD
Display type FSTN
Dynamic LCD input finger or capped pen
Resolution 320 x 240, 0.24 mm pitch
Position portrait
Number of colors 256
Dimensions 3 x 2.3 inches (77 x 58 mm)
• Environment
Operating temperature 40°f-113°f (5°c-45°c)
Storage temperature -13°f-158°f (-25°c-70°c)
• Memory
SRAM 512 KB
Flash 8 MB
• Backlight luminance output 45 Cd/m2
• Audio Piezo with adjustable volume
• Processor Motorola DragonBall mc68328
• PC link RS232 serial port
• Weight 8.8 oz or 250 g with batteries
• Dimensions 5.6 x 3.7 x 1.3 inches
(141 x 94 x 32 mm)
(length x width x height)
• Warranty 1 year
• Package contents ProntoPro remote control,
docking station, serial cable,
instructional manual, warranty
and registration cards,
rechargeable battery pack and
ProntoProEdit software
package on CD rom
Home Theater Control Panel
The cutting-edge design reflects the elegance,
flexibility and customization of the ProntoPro even
more than the original Pronto. Its elegance is accentuated by the sleek silver casing, combined with a
bright 256-color LCD display. Additionally, a pick-up
sensor activates the LCD display upon lifting the
device.
The interactive user interface allows maximum
flexibility for even the most sophisticated home
entertainment systems. The dynamic, user friendly
graphical set up is supplemented with programmable
direct access buttons to enhance its flexibility as well
as its customization.
8MB of memory enables the creation of larger custom configuration files, thereby meeting the need of
every home theater owner to create a user-friendly
remote that allows them to operate their devices
with one button press.
The built-in universal database contains IR codes
for over 500 brands, as well as the option of RF
transmission for multi-room control. The capability
to send RF signals to an optional RF module expands
your customization even further by allowing you to
address components in other rooms or in cabinets.
Compatibility is guaranteed by the standard external ports, a two-way IR input/output coupled with a
two-way RS232 communication serial port. These
also make it easy to upgrade with future components
and applications.
ProntoProEdit software to further customize
the ProntoPro is included on CD-Rom and freely
available on the Internet.
For more information, take a look at our website :
www.pronto.philips.com
TSU6000 - 12 NC 3104 207 12091
ProntoPro TSU6000
Specifications subject to change without notice.
©
2001 Philips Remote Control Systems.
