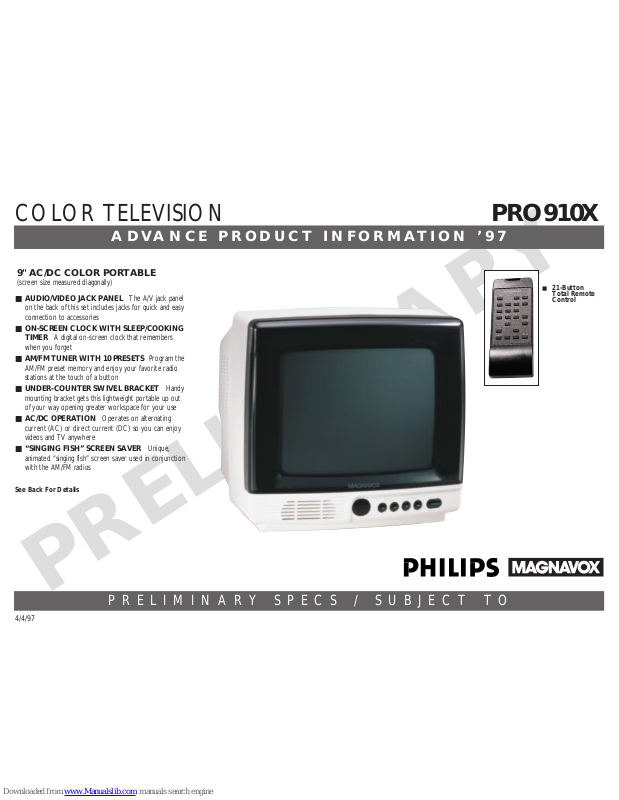

Page 1
PRELIMINARY
ADVANCE PRODUCT INFORMATION ’97
■
AUDIO/VIDEO JACK PANEL The A/V jack panel
on the back of this set includes jacks for quick and easy
connection to accessories
■
ON-SCREEN CLOCK WITH SLEEP/COOKING
TIMER A digital on-screen clock that remembers
when you forget
■
AM/FM TUNER WITH 10 PRESETS Program the
AM/FM preset memory and enjoy your favorite radio
stations at the touch of a button
■
UNDER-COUNTER SWIVEL BRACKET Handy
mounting bracket gets this lightweight portable up out
of your way opening greater workspace for your use
■
AC/DC OPERATION Operates on alternating
current (AC) or direct current (DC) so you can enjoy
videos and TV anywhere
■
“SINGING FISH” SCREEN SAVER Unique,
animated “singing fish” screen saver used in conjunction
with the AM/FM radios
See Back For Details
COLOR TELEVISION PRO910X
4/4/97
9" AC/DC COLOR PORTABLE
(screen size measured diagonally)
PRELIMINARY SPECS / SUBJECT TO
■ 21-Button
Total Remote
Control
Page 2
9" AC/DC COLOR PORTABLE
(screen size measured diagonally)
REMOTE CONTROL
24-Button Total Remote Controls:
Alternate Channel
Menu display
4-Way cursor control
Random channel access
Programmable scan tuning
10 FM radio presets
Volume control
Volume mute
Sleep/cooking timer
Status/Exit
Power on/off
CONVENIENCE
AC/DC Operation By using cables supplied with the unit,
this model operates on AC (alternating current) accessible via
any 110-volt wall outlet, or DC (direct current) available from
the cigarette lighter of any car, boat, or RV.
AM/FM Radio A convenient AM/FM radio is built into this
under-counter portable providing your favorite radio
broadcasts at the touch of a button.
Earphone Jack Plug in a personal earphone and enjoy
your favorite movie, music video, video game, or surf the net
without disturbing other family members in the room. This
unique feature allows people in your household to use different
electronic entertainment media while in the same room.
Alternate Channel Keep close tabs on 2 different
channels with one button convenience. Simply select 2
channels using the channel scan (Channel Up/Channel Down)
method or the Direct Access method. Then using the A/CH
button on the remote control, toggle between the
programmed channels.
On-Screen Clock with Sleep/Cooking Timer The
correct time appears on screen for a few seconds whenever
channels are changed or when the status/exit button on the
remote control is pressed. The Sleep Timer automatically
turns off the TV at a preset time of up to 120 minutes from
the time the feature is activated. Sleep timer settings are
programmed in 15-minute increments. The cooking timer
reminds you when that roast is done with a flashing, bright
green visual on-screen prompt.
Trilingual On-Screen Display On-screen displays assist
in selecting preferred picture performance levels, choice of
regular or cable viewing source, and indicate the activation of
special features. Displays may be put on screen in the viewer’s
choice of English, Spanish or French.
Auto Programming
When activated, this feature automatically scans all available
channels–from regular antenna or cable–and programs only
active broadcast stations into memory. Channel up or down
buttons, on the remote or at the set, will then sequence
through only those pre-programmed channels.
On-Screen Volume Bar When activated, this feature
displays an on-screen volume bar providing a visual indication
of the volume setting.
Screen Saver This feature automatically blanks the video
circuitry and generates a unique, animated “singing fish”screen
saver while the AM or FM radio is in use.
Sunshield Enjoy those special telecasts without the
annoying glare caused by bright sunshine or fluorescent lighting.
Under Counter Swivel Bracket Open up your work
area thanks to this handy swivel bracket that mounts under
any cupboard or cabinet.
A/V JACK PANEL
Audio/Video Jack Panel The A/V jack panel on the
back of this set includes audio/video inputs for connection
of a VCR, DVD Video player, web browser or other
accessory equipment.
Additional Features Include:
■ 120-Minute sleep timer
■ Channel edit
■ Total remote menu format tuning with multi-color
on-screen graphics
■ 181 channel capability
■ Random channel access
■ Programmable scan tuning
■ Status/exit
■ Cable/Normal select
■ 2.75" oval full-range speaker
■ 12 Volt DC external power supply jack
COLOR TELEVISION PRO910X
UPC: 037849810965
Product Dimensions: "W x "H x "D
Product Weight: lbs.
Carton Dimensions: "W x "H x "D
Carton Weight: lbs.
Master Pack: 1
Carton Contains: 9" Color Portable TV, Telescopic Antenna,
Under-Counter Swivel Bracket, Sunshield, 24PB Infrared
Remote Control w/Batteries, AC Adaptor, 12 Volt DC Car
Cord, Operating Instructions, Warranty Information
Printed in U.S.A.
©1997 Philips Consumer Electronics Co.
A Division of Philips Electronics North America Corp.
Specifications subject to change without notice.
Visual Communications, Philips Consumer Electronics Co.
