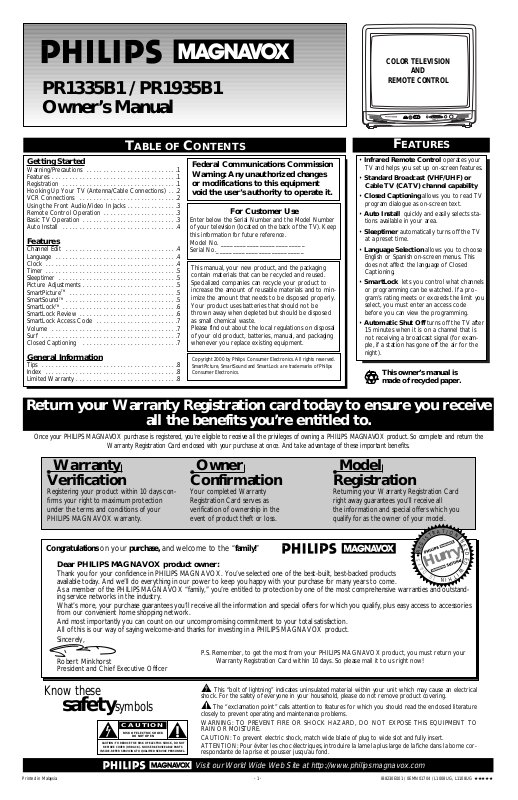

Page 1

TABLE OF CONTENTS

COLOR TELEVISION

AND

REMOTE CONTROL

PR1335B1 / PR1935B1 Owner’s Manual

FEATURES

• Infrared Remote Control operates your TV and helps you set up on-screen features.

• Standard Broadcast (VHF/UHF) or

Cable TV (CATV) channel capability

• Closed Captioning allows you to read TV program dialogue as on-screen text.

• Auto Install quickly and easily selects stations available in your area.

• Sleeptimer automatically turns off the TV at a preset time.

• Language Selection allows you to choose English or Spanish on-screen menus. This does not affect the language of Closed Captioning.

• SmartLock lets you control what channels or programming can be watched. If a program’s rating meets or exceeds the limit you select, you must enter an access code before you can view the programming.

• Automatic Shut Off turns off the TV after 15 minutes when it is on a channel that is not receiving a broadcast signal (for example, if a station has gone off the air for the night).

Getting Started

Warning/Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Hooking Up Your TV (Antenna/Cable Connections) . . .2

VCR Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Using the Front Audio/Video In Jacks . . . . . . . . . . . . . . .3

Remote Control Operation . . . . . . . . . . . . . . . . . . . . . .3

Basic TV Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Auto Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Features

Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Timer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Sleeptimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Picture Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

SmartPictureTM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

SmartSoundTM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

SmartLockTM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

SmartLock Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

SmartLock Access Code . . . . . . . . . . . . . . . . . . . . . . . .7

Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Surf . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Closed Captioning . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

General Information

Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

For Customer Use

Enter below the Serial Number and the Model Number of your television (located on the back of the TV). Keep this information for future reference. Model No. __________________________ Serial No.___________________________

Printed in Malaysia - 1 - IB8230E001 / 0EMN01704 / L1008UG, L1108UG ★★★★★

Federal Communications Commission Warning: Any unauthorized changes or modifications to this equipment void the user’s authority to operate it.

Once your PHILIPS MAGNAVOX purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS MAGNAVOX product. So complete and return the

Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to ensure you receive

all the benefits you’re entitled to.

Congratulations

on your

purchase,

and welcome to the

“family!”

Dear PHILIPS MAGNAVOX product owner:

Thank you for your confidence in PHILIPS MAGNAVOX. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS MAGNAVOX “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome–and thanks for investing in a PHILIPS MAGNAVOX product.

Sincerely,

Robert Minkhorst

President and Chief Executive Officer

Know these

safetysymbols

t This “bolt of lightning” indicates uninsulated material within your unit which may cause an electrical

shock. For the safety of everyone in your household, please do not remove product covering.

s The “exclamation point” calls attention to features for which you should read the enclosed literature

closely to prevent operating and maintenance problems. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO

RAIN OR MOISTURE. CAUTION: To prevent electric shock, match wide blade of plug to wide slot and fully insert. ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne cor-

respondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warranty

Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS MAGNAVOX warranty.

Owner

Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

Model

Registration

Returning your Warranty Registration Card right away guarantees you’ll receive all the information and special offers which you qualify for as the owner of your model.

P.S. Remember, to get the most from your PHILIPS MAGNAVOX product, you must return your

Warranty Registration Card within 10 days. So please mail it to us right now!

Hurry!

This manual, your new product, and the packaging contain materials that can be recycled and reused. Specialized companies can recycle your product to increase the amount of reusable materials and to minimize the amount that needs to be disposed properly. Your product uses batteries that should not be thrown away when depleted but should be disposed as small chemical waste. Please find out about the local regulations on disposal of your old product, batteries, manual, and packaging whenever you replace existing equipment.

This owner’s manual is made of recycled paper.

AUDIO VIDEO

VOLUME CHANNEL

Smart

POWER

SERIES

EARPHONE

Visit our World Wide Web Site at http://www.philipsmagnavox.com

Page 2

HOOKING UP YOUR TV (ANTENNA/CABLE CONNECTIONS)

combination antenna

receives normal broadcast channels (VHF 2-13 and UHF 14-69). Your connection is easy since there is only one 75Ω (ohm) antenna jack on the back of your TV - and that’s where the antenna goes.

COMBINATION

UHF/VHF

NTENNA

To set the TV to select only the channel numbers in your area, see Auto Install on page 4.

SMART HELP

If your antenna has a

round connector (75Ω),

then you're ready to connect it to the TV.

If your antenna has flat twin-lead wire (300Ω), you

first need to attach the antenna wires to the screws on a 300 to 75Ω adaptor.

Push the round end of the adaptor (or cable) onto the ANT(enna) IN jack on the back of the TV. If the

round end of the adaptor or cable is threaded, screw it down tight.

ou may have two separate

antennas. One antenna is for VHF channels (2-13) and the other antenna is for UHF channels (14-69). For homes with separate UHF/VHF antennas, you will need an optional combiner before you can connect the antennas to the TV.

SEPARATE UHF/VHF

300 to 75Ω

Adaptor

Combination

VHF/UHF

Antenna

(Outdoor or

Indoor)

Twin-lead

Wire

Round Cable

75Ω

Back of TV

U/V

Combiner

75-300Ω Adaptor

Outdoor UHF Antenna

(Twin-lead 300Ω)

Outdoor VHF

Antenna

(Twin-lead 300Ω)

Twin-lead

Wire

Push the round end of the combiner onto the ANT(enna) IN jack on the back of the TV.

Attach the separate UHF and VHF antennas to the correct screws on the combiner.

Round

End

Outdoor VHF

Antenna

(Round cable 75Ω)

- 2 -

To order any optional accessory, contact your dealer. Or, call 1-800-851-8885 and refer to the following part numbers to order.

• UHF/VHF Combiner: 4835 466 97016

• 75-300Ω Adaptor: M61009

• 300-75Ω Adaptor: 4835 218 27003

SMART HELP

he basic Antenna/Cable to

VCR to TV connection is shown here. If you have a Cable Box, refer to the VCR owner’s manual for details.

VCR CONNECTIONS

Connect your Antenna or Cable signal to the IN FROM ANT(enna) jack on the VCR.

Connect a coaxial cable to the OUT TO TV jack on the VCR and to the ANT(enna) IN jack on the TV.

The coaxial cable may be supplied with the VCR.

Coaxial cable

Outdoor

VHF/UHF

Antenna

300 to 75Ω Adaptor

Cable TV signal

Back of TV

Refer to the VCR

owner's manual for other

possible connections and for operating details.

VCR

our Cable TV signal may be

a single (75Ω) cable or a Cable Box installation. In either case, the connection to the TV is very easy.

CABLE TV

If you do not have a

Cable Box, then you're ready

to connect your Cable TV signal to the TV.

If you have a Cable Box:

Connect the Cable TV signal to the INjack on the Cable Box.

If you do not have a Cable Box, connect the Cable TV signal directly to the ANT(enna) IN jack on the TV.

If you have a Cable Box:

Use a coaxial cable to connect the OUT jack of the Cable Box to the ANT(enna) IN jack on the TV. NOTE: The coaxial cable might be supplied by the Cable TV company.

Back of TV

Coaxial cable

Cable Box

To select only the channels on your Cable system, see Auto Install (page 4).

If you use a Cable Box, set the TV to the same channel as the CH 3/4 switch on the back of the Cable Box and select channels at the Cable Box.

SMART HELP

Cable TV

Company

Cable TV Signal (75Ω)

Note to the Cable TV System Installer:

This reminder is provided to call the Cable TV system installer’s attention to Article 820-40 of the National Electrical Code, which provides guidelines for proper grounding - in particular, specifying that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible.

75-300 ‰ ADAPTOR

UHF

300‰

VHF

ANT.IN

OUT

IN FROM ANT.

OUT TO TV

ANT.IN

Page 3

HOOKING UP YOUR TV (ANTENNA/CABLE CONNECTIONS) (CONT’D)

- 3 -

or more convenient tape

playback from a camcorder or VCR, use the AUDIO and VIDEO In jacks on the front of the TV. These easily accessible jacks allow quick connections between the TV and the VCR or camcorder.

USING THE FRONT AUDIO/VIDEO IN JACKS

UDIO/VIDEOINJACKS

Connect a video cable (not supplied) to the VIDEO OUT jack of the camcorder/VCR and to the VIDEO In jack on the front of the TV.

When you are finished watching the tape, press the TV/AUX button on the TV remote control to return to viewing normal TV channels.

If the VCR or camcorder has Right and Left AUDIO OUT jacks, you will need a “Y” connector cable in order to connect the camcorder/VCR to the TV. Or, check the owner’s manual of the camcorder or VCR to see how to connect to a TV that has a single AUDIO In jack.

MART

HELP

When you play a tape,

select A/V IN at the TV.

Press the TV/AUX button to select A/V IN. A/V IN will

appear on the screen.

Connect an audio cable (not supplied) to the AUDIO OUT jack of the camcorder/VCR and to the AUDIO In jack on the front of the TV.

Turn on the camcorder/VCR and press the PLAY button on the camcorder/VCR. When you are finished watching the tape, press the STOP button on the camcorder/VCR.

SETTING UP AND USING YOUR TV

REMOTE

o load the batteries into the

remote control:

Slide off the battery compartment lid on the

bottom of the remote control.

Insert two AA batteries (supplied) into the battery compartment

as indicated inside the compartment. Batteries installed incorrectly may damage the remote control.

Replace the lid.

Point the remote control toward

the remote sensor on the TV when operating the TV with the remote control.

MENU Button

Press to access the on-screen menu or to remove the menu. Press the CH(annel) ▲/▼ buttons to select an item in the menu. Press the VOL(ume) B/{ buttons to adjust an item in the menu or to advance to the next menu.

Number Buttons

Press to select channels.

• Cable Users

Enter channel numbers as a two-digit number for the quickest results. For example, to select channel 6, press 0,6. If you only press the Number 6 button, channel 6 will be selected after a brief delay. (There also may be a brief delay when you select channels 10, 11, and 12.) If you want to select channels 100 and above, enter channel numbers as a three-digit number. For example, to select channel 117, press 1, 1, 7.

• Antenna Users

Enter channel numbers as a two-digit number for the quickest results. You may only select channels 2-69. For example, to select channel 5, press 0,5. If you only press the Number 5 button, channel 5 will be selected after a brief delay.

MUTE

Button

Press to turn OFF the sound on the TV. Press again to restore the sound.

CH(annel)

▲/▼ Buttons

Press to scan through available channel numbers. Press to select an item in the on-screen menu.

STATUS/EXIT

Button

Press to see the current channel number on the TV screen for five seconds. The time also will appear if the clock is set. Details are on page 4. Press to remove the on-screen menu. You also may remove the menu by pressing the CH(annel) ▲/▼ buttons to select EXIT, then pressing the VOL(ume) B/{ buttons. (You may need to select EXIT repeatedly to completely remove all of the menus.)

SLEEP

Button

Press to set the TV to turn itself OFF automatically.

Details are on page 5.

POWER

Button

Press to turn the TV ON and OFF.

SURF

Button

Press to go through your memorized SURF channels or press to return to the channel you were viewing immediately before switching to your current channel.

Details are on page 7.

Battery Compartment Lid

Battery Compartment

VOL(ume) B/{ Buttons

Press to adjust the TV sound level. Press to adjust an item in the on-screen menu or to advance to the next menu.

CC (Closed Caption) Button

Press repeatedly to select a Closed Caption mode. Details are on page 7.

TV/AUX Button

Press to select A/V IN mode (for viewing tape playback at the TV from a VCR or camcorder). See Using the Front Audio/Video In Jacks above for details. Press again to return to another TV channel.

CLOCK Button

Press to set the TV’s clock or timer. To set the clock, see page 4. To set the timer, see page 5.

SMART SOUND

Button

Press to set SmartSound to ON or OFF.

Details are on page 5.

SMART PICTURE

Button

Press to select a SmartPicture setting.

Details are on page 5.

Press the POWER

button to turn ON the TV.

Be sure to connect the TV power cord to a standard AC outlet.

Press the VOLUME

▲/▼ buttons to adjust the sound level.

Press the CHAN-

NEL

▲/▼

buttons to select available TV channels.

TELEVISION

The current channel number will appear briefly when the TV is first turned ON and with channel changes. To display the channel number for five seconds, press the STATUS/EXIT button.

You can turn on the TV by pressing the CHANNEL ▲/▼ buttons on the front of the TV. The CH(annel) ▲/▼ buttons of the remote control will not turn on the TV power.

SMART HELP

Note:

•

You can connect earphones (not supplied) to the EARPHONE jack on the front of the TV for private, personal listening.

Press the MENU button

to display the TV’s on-screen menu.

Press the CHANNEL

▲/▼

but-

tons to select an item in the menu. Press the VOLUME ▲/▼ buttons to adjust an item in the menu

or to advance to the next menu. Note: To remove the menu, press

the CHANNEL ▲/▼ buttons to select EXIT. Then, press the VOLUME ▲ or ▼ button. (You may need to select EXIT repeatedly to completely remove all of the menus.)

Or, press the MENU button, repeatedly if necessary, to remove the on-screen menus.

Remote Sensor

VIDEO

AUDIO

OUT

AUDIO OUT to AUDIO In

Video Cable (yellow) from

Audio Cable (white) from

VIDEO OUT to VIDEO In

EARPHONE

AUDIO VIDEO

VOLUME CHANNEL

Smart

POWER

SERIES

POWER

STATUS/EXIT

SMART


CH.

SURF

CLOCK

SMART

SOUND

SLEEPTV/AUX

VOL.VOL.

MUTE

321 654 987

VOLUME CHANNEL

EARPHONE

AUDIO VIDEO

POWER

SERIES

Smart

VOLUME CHANNEL

POWER

Page 4

- 4 -

SETTING UP AND USING YOUR TV (CONT’D)

FEATURES

HANNEL EDIT makes it

easy for you to add other channels or drop unwanted channels from the TV’s memory.

HANNEL EDIT

Press the MENU but-

ton, then press the CH(annel) ▲/▼ buttons to select SETUP.

Press the VOL(ume) B or { button to continue to the SETUP menu.

Press the CH(annel)

▲/▼ buttons to select CHANNEL EDIT.

Press the VOL(ume) B or { button to continue to the CHANNEL EDIT menu.

CHANNEL will be selected.

While CHANNEL is selected, press the VOL(ume) B or { button or the Number buttons to select the channel you want to add or skip.

Press the CH(annel)

▲/▼ buttons to select SKIPPED. Then,

press the VOL(ume)

B or { button to set SKIPPED to YES (if you

want to skip past the channel when using the CH(annel)

▲/▼

buttons) or NO (if you want the channel to be available when you are using the CH(annel)

▲/▼ buttons

Press the STATUS/EXIT button when you are finished.

SmartLock B SmartLock REVIEW B SETUP B EXIT B BRIGHTNESS 24

AUTO INSTALL B CHANNEL EDIT B EXIT B LANGUAGE ENG

EXIT B CHANNEL 10 SKIPPED YES

EXIT B CHANNEL 18 SKIPPED YES

321 654 987

STATUS/EXIT

SURF

MUTE

VOL.VOL.

CH.

AUTO INSTALL

ollow these steps to quickly add area channels into the

TV’s memory.

Press the CH(annel)

▲/▼ buttons to select SETUP. Then, press the VOL(ume) B or { button

to continue.

Press the CH(annel) ▲/▼ buttons to select AUTO

INSTALL.

Then, press the

VOL(ume) B or { button

to enter

AUTO INSTALL, which will set up the channels.

When setup is complete, the SETUP menu will appear for a moment, then the lowest stored channel will be selected. Now, when you press the CH(annel)

▲/▼

buttons, you will only scan

through channels that have been memorized and are available.

Press the POWER

button to turn ON the TV.

Press the MENU

button. The main menu

appears on the TV screen.

AUTO STORE 1

SETUP B EXIT B BRIGHTNESS 24 COLOR 31 PICTURE 31

LANGUAGE ENG AUTO INSTALL B CHANNEL EDIT B EXIT B

ollow these steps to change the language of

the on-screen menus.

Press the MENU but-

ton.

Press the CH(annel)

▲/▼ buttons to select SETUP, then press the VOL(ume) B or { button to continue. LANGUAGE

will be selected.

LANGUAGE

Press the VOL(ume) B or { button to select ENG for English menus or ESP for Spanish menus.

Press the STATUS/EXIT button.

If you accidentally chose Spanish and need English:

1) Press the MENU button.

2) Press the CH(annel) ▲/▼ buttons to select INSTALACION, then press the VOL(ume) B or { button to continue.

3) IDIOMA will be selected. Press the VOL(ume) B or { button to have ENG appear beside LANGUAGE.

4) Press the

STATUS/EXIT button.

SMART HELP

SETUP B EXIT B BRIGHTNESS 33 COLOR 29 PICTURE 36

EXIT B LANGUAGE ENG AUTO INSTALL B CHANNEL EDIT B

SALIDA B IDIOMA ESP AUTOPROGRAMACION B REVISAR CANAL B

EXIT B LANGUAGE ENG AUTO INSTALL B CHANNEL EDIT B

ollow these steps to set the clock on the TV.

Press the CLOCK

button. SET CLOCK will be

selected.

Press two Number buttons to enter the hour and two Number buttons to enter the minute. Then, press the VOL(ume) B or { button to select AM or PM.

For example, to set the clock to 8:05 PM, press 0, 8, 0, 5, then press the VOL(ume) B or { button to choose PM.

CLOCK

Press the

STATUS/EXIT button.

You can enter the CLOCK menu by pressing the MENU button, then pressing the CH(annel) ▲/▼ buttons to select CLOCK. Then, press the VOL(ume) s or B button and continue with step 2 at left.

To see the current time on the TV screen for five seconds, press the STATUS/EXIT button.

The time will be erased if the power fails.

SMART HELP

SET TIMER - - : - - AM EXIT B SET CLOCK - - : - - AM TIMER OFF CHANNEL 2

SET TIMER - - : - - AM EXIT B SET CLOCK 8 : 05 PM TIMER OFF CHANNEL 1

POWER

CH.

STATUS/EXIT

SLEEPTV/AUX

VOL.VOL.

MUTE

321

POWER

STATUS/EXIT

SLEEPTV/AUX

CH.

VOL.VOL.

CH.

MUTE

321 654

CH.

STATUS/EXIT

VOL.VOL.

MUTE

321 654 987

SURF

CLOCK

Page 5

- 5 -

FEATURES (CONT’D)

ave you ever fallen asleep

in front of the TV, only to have it wake you up at 2 a.m. with a test pattern screeching in your ears? Well, your TV can save you all that trouble by automatically turning itself off. Set the Sleeptimer simply by pressing the SLEEP button, or you may use the on-screen menu.

Press the SLEEP button repeatedly to pick the amount of time (15 minutes to 120 minutes) before the TV turns itself off. The selected length of time will appear on the screen for five seconds. One minute before the TV shuts itself off, the seconds will count down on the screen.

To see how many minutes remain before the TV shuts itself off, press the SLEEP button once or press the STATUS/EXIT button.

To cancel a SLEEPTIMER setting, press the SLEEP button twice so that OFF appears on the screen.

The Sleeptimer will be cancelled if the power fails.

SMART HELP

SLEEPTIMER

Press the CH(annel) ▲/▼

buttons to select SLEEPTIMER.

Press the VOL(ume) B /{ buttons repeatedly to select the amount of time or OFF.

Press the STATUS/EXIT

button to remove the menu.

Press the MENU button.

ollow these steps to set

the Timer. The Timer turns on the TV automatically at a specified time within the next 24 hours. Before you begin, make sure the clock is set. Details are on page 4.

Press the CLOCK button,

then press the CH(annel) ▲/▼ buttons to select TIMER.

TIMER

Press the STATUS/EXIT

button. Turn off the TV. It will turn

on at the time you set. When the TV turns on, Timer information will appear on the screen briefly.

Press the VOL(ume) B or

{ button to set TIMER to ON.

EXIT B SET CLOCK 8 : 05 PM TIMER OFF CHANNEL 2 SET TIMER - - : - - AM

EXIT B SET CLOCK 8 : 05 PM TIMER ON CHANNEL 2 SET TIMER - - : - - AM

Press the CH(annel) ▲/▼

buttons to select CHANNEL. Use the Number buttons or the VOL(ume) B or { buttons to

select the channel to which you want the TV to tune when it turns on.

SET CLOCK 8 : 05 PM TIMER ON CHANNEL 12 SET TIMER - - : - - AM EXIT B

Press the CH(annel) ▲/▼

buttons to select SET TIMER. Press two Number buttons to enter the hour and two Number buttons to enter the minute. Then, press the VOL(ume) B or

{ button to select AM or PM.

TIMER ON CHANNEL 2 SET TIMER 10 : 30 AM EXIT B SET CLOCK 8 : 05 PM

ollow these steps to

select a picture quality that suits the programming you are watching.

Press the SMART PICTURE button repeatedly until the desired SmartPicture setting appears on the screen.

You may choose PERSONAL, MOVIES, SPORTS, WEAK SIGNAL, or VIDEO GAMES.

SMARTPICTURE

PERSONAL

o you sometimes notice

that parts of TV programs are louder than others? Or do you wish commercials wouldn’t be louder than the TV program? SmartSound allows you to minimize the volume differences in programming.

SMARTSOUND

SMART PICTURE SETTINGS

PERSONAL: Normal picture quality. MOVIES: Higher COLOR setting and lower PIC-

TURE setting than PERSONAL, resulting in a more colorful picture. SPORTS: Higher PICTURE setting than PERSONAL, resulting in a brighter picture. WEAK SIGNAL: Lower settings for COLOR, PICTURE, and SHARPNESS. Use when channel reception is poor due to a weak antenna or cable signal. VIDEO GAMES: Lower PICTURE settings than PERSONAL, resulting in a dimmer picture. Use when playing video games.

Press the SMART SOUND button repeatedly

to set Smart Sound to ON or OFF.

When Smart Sound is ON, the TV adjusts the sound automatically, decreasing the volume of loud sounds and increasing the volume of quiet sounds.

Smart Sound ON

321 654 987

STATUS/EXIT

CLOCK

SMART


SMART

SOUND

SURF

MUTE

VOL.VOL.

CH.

You can also set this feature at AVL (Auto Volume Level) in the main menu. Press the MENU button, then press the CH(annel) K/L buttons to select AVL. Then, press the VOL(ume) { or B button to select ON or OFF. Press the STATUS/EXIT button.

SMART HELP

To cancel the Timer, select OFF at step 2.

To check your Timer setting, press the STATUS/EXIT button.

The Timer will be erased if the power fails.

SMART HELP

o adjust your TV picture

controls, select a channel

and follow these steps.


ADJUSTMENTS

Press the MENU but-

ton, then press the CH(annel) ▲/▼ buttons to select a control.

Press the VOL(ume)

B/{ buttons to adjust the selected picture control.

BRIGHTNESS Press the VOL(ume) B/{ buttons until the darkest parts of the picture are as bright as you prefer. COLOR Press the VOL(ume) B/{ buttons to add or reduce color. PICTURE Press the VOL(ume) B/{ buttons until the lightest parts of the picture show good detail. SHARPNESS Press the VOL(ume) B/{ buttons to improve detail in the picture. TINT Press the VOL(ume) B/{ buttons to obtain natural skin tones.

Press the

STATUS/EXIT button.

SETUP B EXIT B BRIGHTNESS 24 COLOR 31 PICTURE 31

CH.

VOL.VOL.

CH.

SMART


STATUS/EXIT

SURF

CLOCK

SMART

SOUND

MUTE

321 654 987

POWER

CH.

STATUS/EXIT

SLEEPTV/AUX

VOL.VOL.

MUTE

321

CH.

VOL.VOL.

CH.

STATUS/EXIT

321 654

MUTE

SMART


STATUS/EXIT

SURF

CLOCK

SMART

SOUND

MUTE

321 654 987

Page 6

FEATURES (CONT’D)

martLock enables parents to

prevent their children from watching inappropriate material on TV. SmartLock reads the ratings for programming (except for news and sports programs, unedited movies on premium cable channels, and Emergency Broadcast System signals), then denies access to programming if the program’s rating meets or exceeds the limitations you select. To block specific ratings or channels, follow these steps.

Press the MENU

button, then press the CH(annel) ▲/▼ buttons to select SmartLock. Then, press the VOL(ume)

{

button to continue.

SMARTLOCK

Use the Number but-

tons to enter your 4-digit access code. The default code

is 0711. If you have not set up your personal access code, you should use 0711.

The SmartLock menu will appear, and BLOCK will be selected. Press the

VOL(ume) B

or {

button to continue to the BLOCK menu.

SmartLock

Enter Your Access Code

– – – –

SmartLock

B BLOCK

CHANGE CODE

Press the

CH(annel) ▲/▼ buttons to select Blocking Options, Channels Blocked, Movie Ratings or Parental Guidelines. Then, press the VOL(ume) B

or {

but-

ton to continue.

If you selected Blocking Options at step 4:

Press the CH(annel) ▲/▼ buttons to select Master Disable, Block Unrated or Block No Rating. Then, press the VOL(ume) B

or {

button to select ON or OFF. To return

to the main BLOCK menu, press the MENU button. Details of the Blocking Options are given at right.

If you selected Channels Blocked at step 4:

Channel will be selected. Press the VOL(ume) B

or {

button or use the Number buttons to select the channel you want to block. Press the CH(annel) ▲/▼ buttons to select Blocked, then press the VOL(ume) B

or {

button

to select ON or OFF. If Blocked is ON, the channel can not be

watched until the viewer enters the access code. To reset all channels for viewing, press the CH(annel) ▲/▼ buttons to select Clear All, then press the VOL(ume) B

or {

button. (Channel will be selected again.) Remember, viewing could still be blocked by another SmartLock setting (such as Movie Ratings). To return to the main BLOCK menu, press the MENU button.

If you selected Movie Ratings or Parental Guidelines at step 4:

Press the CH(annel) ▲/▼ buttons to select the rating you want to block. Then, press the VOL(ume) B

or {

button

so that ON appears beside the rating.

For example, if you set PG to ON, you may not view PG programming because the block is on. Programs with a PG or higher rating will be blocked.

• More specific sub-ratings are available for TV-Y7, TV-PG, TV-14,

and TV-MA. When you press the VOL(ume) B/{buttons to select TV-Y7, TV-PG, TV-14 or TV-MA, additional sub-ratings will appear. Press the VOL(ume) B or s button to set

the main rating to ON. Then, press the CH(annel) ▲/▼ buttons to select a specific sub-rating. Then, press the VOL(ume) B/{buttons so that ON appears beside the sub-rating. If you select the main rating and turn it on or off,

the sub-ratings will turn on or off automatically. But, you can always turn sub-ratings on or off by selecting them individually. You can only turn on a sub-rating (for example, D) if the main rating (such as TV-PG) is set to ON.

BLOCK

Blocking Options Channels Blocked Movie Ratings Parental Guidelines

MOVIE RATINGS

G [OFF]

B PG [ON]

PG-13 [ON] R [ON] NC-17 [ON] X [ON]

PARENTAL GUIDELINES

B TV-Y [OFF]

TV-Y7 >

- - - - - - - - - - - - - - - - - - - - TV-G [OFF] TV-PG > TV-14 > TV-MA >

• V-Violence

• S-Sexual situations

• L-Language

• D-Inappropriate dialogue

• FV-Fantasy Violence may frighten children under seven; TV-Y7 category only. Some cartoons may have this rating.

• TV-Y - Appropriate for all children.

• TV-Y7 - Appropriate for children seven and older.

• TV-G - General Audience

• TV-PG - Parental Guidance suggested.

• TV-14 - Unsuitable for children under 14.

• TV-MA - Mature audience only.

Press the

STATUS/EXIT button.

PARENTAL GUIDELINES RATING EXPLANATIONS

• Master Disable When Master Disable is ON, all settings of Channels Blocked, Movie Ratings, Parental Guidelines, Block Unrated, and Block No Rating are ineffective. SmartLock DISABLED will appear when you look at SmartLock Review. All programming may be viewed.

• Block Unrated When Block Unrated is ON, TV programs are blocked when the show is broadcast as Unrated.

• Block No Rating When Block No Rating is ON, TV programs are blocked when the show is broadcast without rating information.

BLOCKING OPTIONS

B Master Disable [OFF]

Block Unrated [OFF] Block No Rating [OFF]

CHANNELS BLOCKED

B Channel 2

Blocked [OFF] Clear All

CLOCK B SURF A/CH SmartLock B SmartLock REVIEW B SETUP B

To set a new access code, see SmartLock Access Code on page 7.

If the “Incorrect Access Code...” message appears after step 2, enter the correct access code. In order to protect the privacy of the access code, an X will appear on the screen instead of the number you enter.

A “CHANNEL XX BLOCKED...” message will appear when someone tries to access the blocked programming. If you want to view this programming, enter your access code. The channel will remain blocked until you enter the correct code. If you do not know the code, you will have to select another channel using the CH(annel) o/p buttons. When you turn off the TV once, the programming is blocked again.

SMART HELP

o check your SmartLock

settings, follow these steps. You will know what types of programming and which channels are blocked from viewing.

SMARTLOCK REVIEW

Press the VOL(ume)

or {

button so that the SmartLock settings for Movie Ratings and Parental Guidelines appear.

Ratings that are blocked will appear on the screen. An “X” will appear if a specific sub-rating is blocked, such as V for Violence in the TV-14 category.

Press the VOL(ume)

or {

button to

advance to the Channels Blocked screen. All current-

ly blocked channels will appear.

Press the VOL(ume)

or {

button to advance to the Block Unrated and Block No Rating screen, which shows if these options are set to On or Off.

After 10 seconds, the main menu will reappear. Repeat steps 2-4 as often as necessary in order to review all the settings.

When you are finished, press the STATUS/EXIT button.

TV-PG

B TV-PG [ON]

D [ON] L [OFF] S [OFF] V [OFF]

- 6 -

Press the MENU but-

ton, then press the CH(annel) ▲/▼ buttons to select SmartLock REVIEW.

SURF A/CH SmartLock B SmartLock REVIEW B SETUP B EXIT B

Movie Ratings

R NC-17 X

Parental Guidelines

- - - - - - - - - - - - - - - - - - - - TV-G

D L S V

TV-PG x x x TV-14 x x x TV-MA - x x x

NEXT=B

If you do not use the VOL(ume) B or s button to advance through the SmartLock REVIEW screens, the screens will advance automatically within 10 seconds.

SMART HELP

Channels Blocked 07 18 32

NEXT=B

Block Unrated On Block No Rating Off

POWER

STATUS/EXIT

SMART SMART

SLEEPTV/AUX

CH.

VOL.VOL.

CH.

MUTE

321 654 987

SURF

CLOCK

Page 7

losed Captioning allows you

to read the voice content of television programs on the TV screen. Designed to help the hearing impaired, this feature uses on-screen text boxes to show dialogue and conversations while the TV program is in progress. Note: Broadcast stations will often use spelling abbreviations, symbols, dropouts and other grammatical shortcuts in order to keep pace with the on-screen action. These factors vary with the source of the captioned text material and do not indicate a need for TV service.

Closed Captions will be delayed briefly when you mute or adjust the volume, change channels, or press the STATUS/EXIT button.

SMART HELP

FEATURES (CONT’D)

CLOSED CAPTIONING

- 7 -

Notes:

• Usually CAPTION 1 is the preferred Closed Caption mode. CAPTION 1 or 2: Dialogue (and descriptions) for the action on the captioned TV program will appear on the screen. TEXT 1 or 2: A black box appears on the TV screen. If the TEXT mode is available with the current TV program, text or information will appear. CAPTION MUTE: Closed Captions will appear only when you mute the volume. CAPTION OFF: Closed Captions will be completely off.

• Captions and texts may not match the TV voice broadcast exactly.

• Interference or a weak antenna/cable signal may cause the Closed Captioning system to function improperly.

• The caption or text characters will not appear if the menu is on the screen.

• Remember, not all TV programs and commercials are broadcast with Closed Captioning. Neither are all Closed Caption modes necessarily being used by a broadcast station during the transmission of a program. Refer to your area's TV program listings for the stations and times of shows with Closed Captioning.

• If a black box appears on the screen, you have selected TEXT 1 or TEXT 2. To remove the black box, select CAPTION 1, CAPTION 2, CAPTION MUTE or CAPTION OFF.

Press the CC button repeatedly until the desired Closed Caption mode appears on the screen.

You may choose CAPTION 1, CAPTION 2, TEXT 1, TEXT 2, CAPTION MUTE or CAPTION OFF.

Press the MENU but-

ton, then press the CH(annel) ▲/▼ buttons to select SmartLock.

Press the VOL(ume)

{

button to continue. The SmartLock Access Code screen will appear.

Press the Number buttons to enter your old access code.

If you have never set up your personal access code, use

0711.

Use the Number buttons to enter your desired access code in the New Code space. Then, enter the same code in the Confirm Code space.

Your new access code should be recorded. You will return to the SmartLock menu.

New Code Confirm Code

– – – – – – – –

Press the STATUS/EXIT

button.

You cannot use the default code after you set up your personal access code.

To restore 0711 as your personal access code, unplug the TV’s power cord for 10 seconds, then plug it in again.This is helpful when you forget your personal access code.

SMART HELP

o change the access code, follow these steps.

SMARTLOCK

ACCESS CODE

Press the CH(annel) ▲/▼

buttons to select CHANGE CODE. Then, press the VOL(ume)

or {

button to

continue.

SmartLock

BLOCK

B CHANGE CODE

CLOCK B SURF A/CH SmartLock B SmartLock REVIEW B SETUP B

SmartLock

Enter Your Access Code

– – – –

here are two ways to adjust

the TV’s volume. Follow these steps to adjust the volume using the on-screen menu. Or, you can adjust the volume using the VOL(ume) B/s buttons on the remote control or the VOLUME o/p buttons on the TV.

Press the MENU button.

Press the CH(annel)

▲/▼ buttons to select VOLUME. Then, press the VOL(ume) B/{ buttons to adjust the volume level.

Press the STATUS/EXIT button to remove the menu.

The Volume indicator should appear on the screen briefly when you adjust the volume.

The simplest way to adjust the volume is by pressing the VOL(ume) B/s buttons.

SMART HELP

VOLUME

SHARPNESS 34 TINT -5 VOLUME 13 AVL OFF SLEEPTIMER OFF

f you have a few favorite chan-

nels, you can set them as Surf channels. Then, using the SURF button on the remote control, you can flip through only the Surf channels. Follow these steps to set up the Surf channels.

Press the

STATUS/EXIT button.

Press the MENU but-

ton. Then, press the CH(annel) ▲/▼ buttons to select SURF.

Press the VOL(ume) B/{ buttons to set SURF to SURF.

If you set SURF to A/CH (alternate channel), pressing the SURF button will allow you to switch between the current channel and the one you chose just before choosing the current channel.

Use the Number buttons to select a channel. Then, press the SURF button. The channel will become a

SURF channel.

You can memorize eight channels as Surf channels. If you try to memorize nine, one of the other Surf channels will be erased.

Surf channels will be lost if the power fails or if you set SURF to A/CH in the menu.

SMART HELP

SURF

SLEEPTIMER OFF CLOCK B SURF A/CH SmartLock B SmartLock REVIEW B

321 654 987

POWER

STATUS/EXIT

SURF

SLEEPTV/AUX

MUTE

VOL.VOL.

CH.

SLEEPTIMER OFF CLOCK B SURF SURF SmartLock B SmartLock REVIEW B

CH.

VOL.VOL.

CH.

STATUS/EXIT

MUTE

321

POWER

STATUS/EXIT

SMART


SLEEPTV/AUX

CH.

VOL.VOL.

CH.

MUTE

321 654 987

SURF

CLOCK

SMART

SOUND

Page 8

lease make these simple

checks before calling for service. These tips can save you time and money since charges for TV installation and adjustment of customer controls are not covered under your warranty.

No Power

• Check the TV power cord.

• Make sure the power outlet is not on a wall switch.

No Picture

• Check antenna/cable connections. Is the antenna or cable properly secured to the ANT(enna) IN jack on the TV?

GENERAL INFORMATION

No Sound

• Check the VOL(ume) B/{ buttons.

• Check the MUTE button.

Wrong Channel

• Repeat channel selection. See Number Buttons on page 3 for details.

• Add desired channel numbers into the TV memory. See CHANNEL EDIT on page

4 for details.

TIPS

Philips Service Solutions Group, P.O. Box 2976, Longview, Texas 75606

(903) 242-4800

Cleaning and Care

• Unplug the TV before cleaning.

• Avoid using anything abrasive that could scratch the screen.

• Wipe the TV screen with a clean cloth dampened with water.

• Gently wipe cabinet surfaces with a clean cloth or sponge dampened with cool clear water. Use a clean dry cloth to dry the wiped surfaces.

• Occasionally vacuum the ventilation holes or slots in the cabinet back.

• Never use thinners, insecticide sprays, or other chemicals on or near the cabinet.

Access Code . . . . . . . . . . .7

Antenna Connections . . . .2

Auto Install . . . . . . . . . . . .4

Batteries . . . . . . . . . . . . . .3

Cable TV Connections . . . .2

Channel Edit . . . . . . . . . . .4

Channel Setup . . . . . . . . . .4

CH(annel) ▲/▼ Buttons . .3

Clock . . . . . . . . . . . . . . . . .4

Closed Captioning . . . . . . .7

Coaxial Cable . . . . . . . . . . .2

Controls/Remote . . . . . . . .3

Controls/TV . . . . . . . . . . . .3

Earphone jack . . . . . . . . . .3

Features . . . . . . . . . . . . . . .1

Language . . . . . . . . . . . . . .4

MENU Button . . . . . . . . . .3

MUTE Button . . . . . . . . .3, 7

Number Buttons . . . . . . . .3

Picture Adjustments . . . . . .5

POWER Button . . . . . . . . .3

Precautions . . . . . . . . . .1, 8

Remote Control . . . . . . . .3

Remote Sensor . . . . . . . . .3

Review (SmartLock) . . . . . .6

Safety Notes . . . . . . . . . . .1

Service . . . . . . . . . . . . . . . .8

SLEEP Button . . . . . . . . .3, 5

Sleeptimer . . . . . . . . . . . . .5

SmartLock . . . . . . . . . . . .6-7

SmartPicture . . . . . . . . . . .5

SmartSound . . . . . . . . . . . .5

STATUS/EXIT Button . . . .3

SURF Button . . . . . . . . .3, 7

Timer . . . . . . . . . . . . . . . . .5

Tips . . . . . . . . . . . . . . . . . .8

TV/AUX Button . . . . . . . . .3

VCR Connections . . . . . . .2

Volume . . . . . . . . . . . . . . .7

VOL(ume) B/{ Buttons3, 7

Warranty . . . . . . . . . . . . . .8

INDEX

LIMITED WARRANTY

COLOR TELEVISION

90 Days Free Labor

One Year Free Replacement of Parts (Two Years Free Replacement on Color Picture Tube)

This product must be carried in for repair.

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other document showing that you purchased the product is considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For 90 days thereafter, all parts will be repaired or replaced free, and labor is free. From 90 days to one year from the day of purchase, all parts will be repaired or replaced free, but you pay for all labor charges. From one to two years from the day of purchase, you pay for the replacement or repair of all parts except the picture tube, and for all labor charges. After two years from the day of purchase, you pay for the replacement or repair of all parts, and for all labor charges.

All parts, including repaired and replaced parts, are covered only for the original warranty period. When the warranty on the product expires, the warranty on all replaced and repaired parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because of misuse, accident, unauthorized repair, or other cause not within the control of Philips Consumer Electronics Company.

• reception problems caused by signal conditions or cable or antenna systems outside the unit.

• a product that requires modification or adaptation to enable it to operate in any country other than the country for which it was designed, manufactured, approved, and/or authorized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting from the product. (Some states do not allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you. This includes, but is not limited to, prerecorded material, whether copyrighted or not copyrighted.)

• a product used for commercial or institutional purposes.

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by Philips Consumer Electronics Company. In countries where Philips Consumer Electronics Company does not distribute the product, the local Philips service organization will attempt to provide service (although there may be a delay if the appropriate spare parts and technical manual(s) are not readily available).

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of purchase. Attach it to this owner’s manual and keep both nearby. Also keep the original box and packing material in case you need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner’s manual before requesting service. Adjustments of the controls discussed there may save you a service call.

TO GET WARRANTY SERVICE IN U.S.A., PUERTO RICO, OR U.S. VIRGIN ISLANDS...

Contact a Philips factory service center (see enclosed list) or authorized service center to arrange repair.

(In U.S.A., Puerto Rico, and U.S. Virgin Islands, all implied warranties, including implied warranties of merchantability and fitness for a particular purpose, are limited in duration to the duration of this express warranty. But, because some states do not allow limitations on how long an implied warranty may last, this limitation may not apply to you.)

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking) 1-800-363-7278 (English Speaking)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are expressed or implied, including any implied warranties of merchantability or fitness for a particular purpose. Philips is not liable under any circumstances for any direct, indirect, special, incidental, or consequential damages, howsoever incurred, even if notified of the possibility of such damages.)

REMEMBER...

Please record below the model and serial numbers found on the product. Also, please fill out and mail your warranty registration card promptly. It will be easier for us to notify you if necessary.

MODEL # ________________________________________________ SERIAL # ________________________________________________

- 8 -

Remote Doesn't Work

• Check batteries. Replace with AA Heavy Duty (Zinc Chloride) or Alkaline batteries if necessary.

• Clean the remote and the remote sensor on the TV.

• Check the TV power cord.

SmartLock

• Programming may be rated by the Motion Picture Association of America (MPAA) or according to the Television Parental Guidelines. In order to block any inappropriate programming, set your limits in both places (Movie Ratings and Parental Guidelines).

• Ratings will remain blocked even after a power failure.

• You cannot access the menu when the “CHANNEL XX BLOCKED...” message appears.

• If you enter the access code once, you may change channels without seeing the “CHANNEL XX BLOCKED” message again. If you turn off the TV power, you will be asked for the access code again when you tune to a blocked channel.

• If a power failure occurs, the default code, 0711, will be the active access code again.

• If you connect the power cord to an AC outlet that is controlled by a wall switch, your personal access code will be erased every time you turn off the power at the wall switch. The default code, 0711, will be the active code again.

• To restore 0711 as your personal access code, unplug the TV’s power cord for 10 seconds, then plug it in again.

As an ENERGY STAR

Partner, Philips

Consumer Electronics Company has determined that this product meets the ENERGY STAR

guidelines for energy efficiency. ENERGY STAR®is a U.S. registered mark. Using products with the ENERGY STAR®label can save energy. Saving energy reduces air pollution and lowers utility bills.
