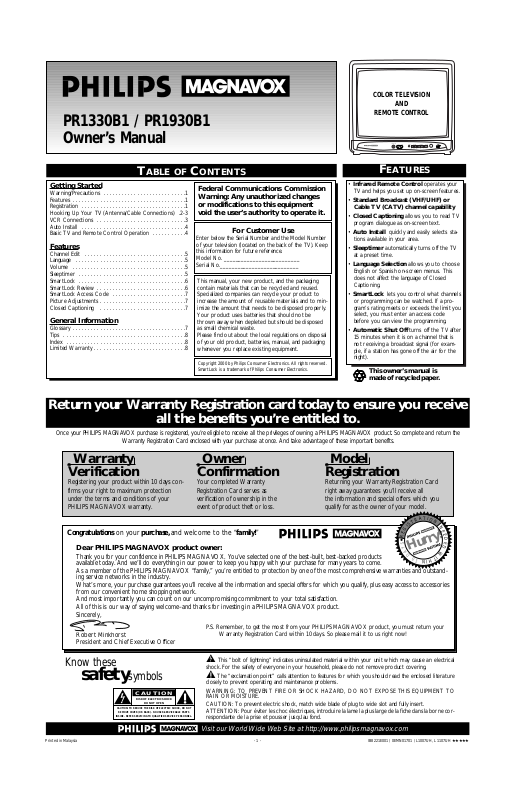

Philips PR1330B User Manual

TABLE OF CONTENTS

COLOR TELEVISION

AND

REMOTE CONTROL

PR1330B1 / PR1930B1
Owner’s Manual

FEATURES

• Infrared Remote Control operates your
TV and helps you set up on-screen features.

• Standard Broadcast (VHF/UHF) or

Cable TV (CATV) channel capability

• Closed Captioning allows you to read TV
program dialogue as on-screen text.

• Auto Install quickly and easily selects sta­tions available in your area.

• Sleeptimer automatically turns off the TV
at a preset time.

• Language Selection allows you to choose
English or Spanish on-screen menus. This
does not affect the language of Closed
Captioning.

• SmartLock lets you control what channels
or programming can be watched. If a pro­gram’s rating meets or exceeds the limit you
select, you must enter an access code
before you can view the programming.

• Automatic Shut Off turns off the TV after
15 minutes when it is on a channel that is
not receiving a broadcast signal (for exam­ple, if a station has gone off the air for the
night).

Getting Started

Warning/Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Registration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

Hooking Up Your TV (Antenna/Cable Connections) .2-3

VCR Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Auto Install . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Basic TV and Remote Control Operation . . . . . . . . . . .4

Features

Channel Edit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Sleeptimer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

SmartLock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

SmartLock Review . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

SmartLock Access Code . . . . . . . . . . . . . . . . . . . . . . . .7

Picture Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Closed Captioning . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

General Information

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Tips . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

For Customer Use

Enter below the Serial Number and the Model Number
of your television (located on the back of the TV). Keep
this information for future reference.
Model No. __________________________
Serial No.___________________________

Printed in Malaysia - 1 - IB8221E001 / 0EMN01701 / L1007UH, L1107UH ★★★★★

Federal Communications Commission
Warning: Any unauthorized changes
or modifications to this equipment
void the user’s authority to operate it.

Once your PHILIPS MAGNAVOX purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS MAGNAVOX product. So complete and return the

Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to ensure you receive

all the benefits you’re entitled to.

Congratulations

on your

purchase,

and welcome to the

“family!”

Dear PHILIPS MAGNAVOX product owner:

Thank you for your confidence in PHILIPS MAGNAVOX. You’ve selected one of the best-built, best-backed products
available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS MAGNAVOX “family,” you’re entitled to protection by one of the most comprehensive warranties and outstand­ing service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories
from our convenient home shopping network.

And most importantly you can count on our uncompromising commitment to your total satisfaction.
All of this is our way of saying welcome–and thanks for investing in a PHILIPS MAGNAVOX product.
Sincerely,

Robert Minkhorst

President and Chief Executive Officer

Know these

safetysymbols

t This “bolt of lightning” indicates uninsulated material within your unit which may cause an electrical

shock. For the safety of everyone in your household, please do not remove product covering.

s The “exclamation point” calls attention to features for which you should read the enclosed literature

closely to prevent operating and maintenance problems.
WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT TO

RAIN OR MOISTURE.
CAUTION: To prevent electric shock, match wide blade of plug to wide slot and fully insert.
ATTENTION: Pour éviter les choc électriques, introduire la lame la plus large de la fiche dans la borne cor-

respondante de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warranty

Verification

Registering your product within 10 days con­firms your right to maximum protection
under the terms and conditions of your
PHILIPS MAGNAVOX warranty.

Owner

Confirmation

Your completed Warranty
Registration Card serves as
verification of ownership in the
event of product theft or loss.

Model

Registration

Returning your Warranty Registration Card
right away guarantees you’ll receive all
the information and special offers which you
qualify for as the owner of your model.

P.S. Remember, to get the most from your PHILIPS MAGNAVOX product, you must return your

Warranty Registration Card within 10 days. So please mail it to us right now!

R

E

G

I

S

T

R

A

T

I

O

N

N

E

E

D

E

D

W

I

T

H

I

N

1

0

D

A

Y

S

Hurry!

This manual, your new product, and the packaging
contain materials that can be recycled and reused.
Specialized companies can recycle your product to
increase the amount of reusable materials and to min­imize the amount that needs to be disposed properly.
Your product uses batteries that should not be
thrown away when depleted but should be disposed
as small chemical waste.
Please find out about the local regulations on disposal
of your old product, batteries, manual, and packaging
whenever you replace existing equipment.

This owner’s manual is
made of recycled paper.

Copyright 2000 by Philips Consumer Electronics. All rights reserved.
SmartLock is a trademark of Philips Consumer Electronics.

12

1

11

2

10

3

9

4

8

5

7

6

EARPHONE

MENUAUDIO VIDEO VOLUME CHANNEL POWER

Visit our World Wide Web Site at http://www.philipsmagnavox.com

HOOKING UP YOUR TV (ANTENNA/CABLE CONNECTIONS)

A

combination antenna

receives normal broadcast
channels (VHF 2-13 and UHF
14-69). Your connection is easy
since there is only one 75Ω
(ohm) antenna jack on the
back of your TV - and that’s
where the antenna goes.

ANTENNA

COMBINATION UHF/VHF

To set the
TV to select only
the channel num­bers in your area,
see Auto Install on
page 4.

SMART
HELP

If your antenna has a

round connector (75Ω),

then you're ready to connect it
to the TV.

If your antenna has flat
twin-lead wire (300Ω), you

first need to attach the antenna
wires to the screws on a 300
to 75Ω adaptor.

Push the round end of
the adaptor (or cable) onto
the ANT(enna) IN jack on
the back of the TV. If the

round end of the adaptor or
cable is threaded, screw it
down tight.

Y

ou may have two separate

antennas. One antenna is
for VHF channels (2-13) and
the other antenna is for UHF
channels (14-69).
For homes with separate
UHF/VHF antennas, you will
need an optional combiner
before you can connect the
antennas to the TV.

SEPARATE UHF/VHF

300 to 75Ω

Adaptor

Combination

VHF/UHF

Antenna

(Outdoor or

Indoor)

Twin-lead

Wire

Round Cable

75Ω

Back of TV

Back of TV

U/V Combiner

75-300Ω Adaptor

Outdoor UHF Antenna

(Twin-lead 300Ω)

Outdoor VHF

Antenna

(Twin-lead 300Ω)

Twin-lead

Wire

Push the round end of the
combiner onto the ANT(enna)
IN jack on the back of the TV.

Attach the separate
UHF and VHF antennas to
the correct screws on the
combiner.

Round

End

Outdoor VHF

Antenna

(Round cable 75Ω)

- 2 -

To order
any optional
accessory, contact
your dealer. Or,
call 1-800-851-8885
and refer to the fol­lowing part num­bers to order.

• UHF/VHF
Combiner:
4835 466 97016

• 75-300Ω
Adaptor:
M61009

• 300-75Ω
Adaptor:
4835 218 27003

SMART
HELP

OR

ANT.IN

ANT.IN

UHF

VHF

300

Ω

OR

75-300 Ω ADAPTOR

ANT.IN

ANT.IN

Y

our Cable TV signal may be

a single (75Ω) cable or a
Cable Box installation. In either
case, the connection to the TV
is very easy.

CABLE TV

If you do not have a

Cable Box, then you're ready

to connect your Cable TV sig­nal to the TV.

If you have a Cable Box:

Connect the Cable TV signal
to the IN jack on the Cable
Box.

If you do not have a

Cable Box, connect the Cable

TV signal directly to the
ANT(enna) IN jack on the TV.

If you have a Cable Box:

Use a coaxial cable to connect
the OUT jack of the Cable Box
to the ANT(enna) IN jack on
the TV.
NOTE: The coaxial cable
might be supplied by the Cable
TV company.

Back of TV

Coaxial cable

Cable Box

To select
only the channels on
your Cable system,
see Auto Install
(page 4).

If you use a Cable
Box, set the TV to
the same channel as
the CH 3/4 switch
on the back of the
Cable Box and
select channels at
the Cable Box.

SMART
HELP

Cable TV Company

Cable TV Signal (75Ω)

Note to the Cable TV System Installer: This reminder is provided to
call the Cable TV system installer’s attention to Article 820-40 of the
National Electrical Code, which provides guidelines for proper grounding - in
particular, specifying that the cable ground shall be connected to the ground­ing system of the building, as close to the point of cable entry as possible.

HOOKING UP YOUR TV (ANTENNA/CABLE CONNECTIONS) (CONT’D)

T

he basic Antenna/Cable to

VCR to TV connection is
shown here. If you have a Cable
Box, refer to the VCR owner’s
manual for details.

VCR CONNECTIONS

Connect your
Antenna or Cable signal to
the IN FROM ANT(enna)
jack on the VCR.

Connect a coaxial
cable to the OUT TO
TV jack on the VCR
and to the ANT(enna)
IN jack on the TV.

The coaxial cable may be
supplied with the VCR.

Coaxial cable

Outdoor

VHF/UHF

Antenna

300 to 75Ω

Adaptor

Cable TV signal

Back of TV

Refer to the VCR

owner's manual for other

possible connections and for
operating details.

VCR

- 3 -

F

or more convenient tape

playback from a camcorder
or VCR, use the AUDIO and
VIDEO In jacks on the front of
the TV. These easily accessible
jacks allow quick connections
between the TV and the VCR
or camcorder.

USING THE FRONT AUDIO/VIDEO IN JACKS

A

UDIO/VIDEOINJACKS

Connect a video
cable (not supplied) to the
VIDEO OUT jack of the
camcorder/VCR and to the
VIDEO In jack on the front
of the TV.

When you are
finished watching
the tape, press the
TV/AUX button on
the TV remote con­trol to return to
viewing normal TV
channels.

If the VCR or cam­corder has Right
and Left AUDIO
OUT jacks, you will
need a “Y” connec­tor cable in order
to connect the cam­corder/VCR to the
TV. Or, check the
owner’s manual of
the camcorder or
VCR. It may explain
how to connect to
a TV that has a sin­gle AUDIO In jack.

SMART
HELP

When you play a tape,

select A/V IN at the TV.

Press the TV/AUX button
to select A/V IN. A/V IN will

appear on the screen.

Connect an audio cable
(not supplied) to the
AUDIO OUT jack of the
camcorder/VCR and to the
AUDIO In jack on the
front of the TV.

Turn on the cam­corder/VCR and press the
PLAY button on the cam­corder/VCR.
When you are finished
watching the tape, press
the STOP button on the
camcorder/VCR.

IN FROM ANT.

OUT TO TV

ANT.IN

OUT

IN

OR

ANT.IN

VIDEO

AUDIO

OUT

Audio Cable (white) from

AUDIO OUT to AUDIO In

Video Cable (yellow) from

VIDEO OUT to VIDEO In

EARPHONE

MENUAUDIO VIDEO VOLUME CHANNEL POWER

- 4 -

SETTING UP AND USING YOUR TV

Press the POWER

button to turn ON the TV.

Be sure to connect the TV
power cord to a standard
AC outlet.

Press the VOLUME

▲/▼ buttons to adjust
the sound level.

Press the CHAN-

NEL

▲/▼

buttons to
select available TV chan­nels.

TELEVISION

The current
channel number
will appear briefly
when the TV is first
turned ON and with
channel changes. To
display the channel
number for five sec­onds, press the STA­TUS/EXIT button.

You can turn on the
TV by pressing the
CHANNEL ▲/▼
buttons on the front
of the TV. The
CH(annel) ▲/▼ but­tons of the remote
control will not turn
on the TV power.

SMART
HELP

AUTO INSTALL

REMOTE

T

o load the batteries into the

remote:

1.

Slide off the battery
compartment lid on the

bottom of the remote
control.

2.

Insert two AA batter­ies (supplied) into the
battery compartment

as indicated inside the
compartment. Batteries
installed incorrectly may
damage the remote con­trol.

3.

Replace the lid.

Point the remote control

toward the remote sensor on the TV
when operating the TV with the
remote.

MENU Button

Press to access the on-screen menu.
Press the CH(annel) ▲/▼ buttons to
select an item in the menu. Press the
VOL(ume) B/{ buttons to adjust an
item in the menu or to advance to the
next menu.

Number Buttons

Press to select channels.

• Cable Users

Enter channel numbers as a two-digit
number for the quickest results. For
example, to select channel 6, press 0,6.
If you only press the Number 6 button,
channel 6 will be selected after a brief
delay. (There also may be a brief delay
when you select channels 10, 11, and

12.) If you want to select channels 100
and above, enter channel numbers as a
three-digit number. For example, to
select channel 117, press 1, 1, 7.

• Antenna Users

Enter channel numbers as a two-digit
number for the quickest results. You
may only select channels 2-69. For
example, to select channel 5, press 0,5.
If you only press the Number 5 button,
channel 5 will be selected after a brief
delay.

MUTE

Button

Press to turn OFF the sound on the TV.
Press again to restore the sound.

CH(annel)

▲/▼ Buttons

Press to scan through available channel
numbers. Press to select an item in the
on-screen menu.

STATUS/EXIT

Button

Press to see the current channel number
on the TV screen.
Press to remove the on-screen menu.
You also may remove the menu by press­ing the CH(annel) ▲/▼ buttons to select
EXIT, then pressing the VOL(ume) B/{
buttons. (You may need to select EXIT
repeatedly to completely remove all of
the menus.)

SLEEP

Button

Press to set the TV to turn itself OFF
automatically. Details are on page 5.

POWER

Button

Press to turn the TV ON and OFF.

ALT. CH (Alternate Channel)
Button

Press to return to the TV channel you
were viewing immediately before switch­ing to your current channel.

Battery
Compartment
Lid

Battery
Compartment

F

ollow these steps to quickly
add area channels into the

TV’s memory.

Note:

•

You can connect earphones (not supplied) to the EARPHONE jack on the front of the TV for pri­vate, personal listening.

•

You can connect the AUDIO/VIDEO In jacks on the front of the TV to the AUDIO/VIDEO OUT
jacks of a camcorder or a VCR. Details are on page 3.

Press the CH(annel)

▲/▼ buttons to select
SETUP. Then, press the
VOL(ume) B or { button
to continue.

Press the CH(annel) ▲/▼

buttons to select AUTO
INSTALL.

Then, press the

VOL(ume) B

or { button

to enter AUTO

INSTALL, which will set up the

channels.

When setup is complete, the
SETUP menu will appear for a
moment, then the lowest stored
channel will be selected. Now,
when you press the CH(annel)

▲/▼

buttons, you will only scan
through channels that have been
memorized and are available.

Press the MENU button

to display the TV’s on-screen
menu.

Press the CHANNEL

▲/▼

buttons to select an item in the

menu.

Press the VOLUME ▲/▼ but­tons to adjust an item in the

menu or to advance to the next
menu.

Note: To remove the menu,
press the CHANNEL ▲/▼ but­tons to select EXIT. Then, press
the VOLUME ▲ or ▼ button.
(You may need to select EXIT
repeatedly to completely remove
all of the menus.)

Or, press the MENU button,
repeatedly if necessary, to
remove the on-screen menus.

Press the POWER

button to turn ON the TV.

Press the MENU but-

ton. The main menu appears

on the TV screen.

Remote
Sensor

VOL(ume) B/{ Buttons

Press to adjust the TV sound level. Press
to adjust an item in the on-screen menu
or to advance to the next menu.

AUTO STORE 1

CC (Closed Caption) Button

Press repeatedly to select a Closed
Caption mode. Details are on page 7.

SETUP B
EXIT B
BRIGHTNESS 24
COLOR 31
PICTURE 31

TV/AUX Button

Press to select A/V IN (for viewing tape playback
at the TV from a VCR or camcorder). Press
again to return to another TV channel.

EXIT B
LANGUAGE ENG
AUTO INSTALL B
CHANNEL EDIT B

POWER

MENU

STATUS/EXIT

0

CC

SLEEPTV/AUX

CH.

VOL.VOL.

CH.

MUTE

321
654
987

ALT. CH

MENU

POWER

CH.

CH.

STATUS/EXIT

0

CC

321
654
987

ALT. CH

SLEEPTV/AUX

VOL.VOL.

MUTE

EARPHONE

MENUAUDIO VIDEO VOLUME CHANNEL POWER

MENU

VOLUME CHANNEL POWER

- 5 -

FEATURES

C

HANNEL EDIT makes it

easy for you to add other
channels or drop unwanted
channels from the TV’s memory.

CHANNEL EDIT

Press the MENU but-

ton, then press the
CH(annel) ▲/▼ buttons to
select SETUP.

Press the VOL(ume)
B or { button to continue
to the SETUP menu.

Press the CH(annel)

▲/▼ buttons to select
CHANNEL EDIT.

Press the VOL(ume)
B or { button to continue
to the CHANNEL EDIT
menu.

CHANNEL will be selected.

While CHANNEL is
selected, press the
VOL(ume) B or { button
or the Number buttons to
select the channel you
want to add or skip.

Press the CH(annel)

▲/▼ buttons to select
SKIPPED.
Then,

press the VOL(ume)

B or { button to set
SKIPPED to YES (if you

want to skip past the channel
when using the CH(annel)

▲/▼

buttons) or NO (if you
want the channel to be avail­able when you are using the
CH(annel)

▲/▼ buttons

).

Press the
STATUS/EXIT button
when you are finished.

H

ave you ever fallen asleep

in front of the TV, only to
have it wake you up at 2 a.m.
with a test pattern screeching
in your ears? Well, your TV
can save you all that trouble by
automatically turning itself off.
Set the Sleeptimer simply by
pressing the SLEEP button, or
you may use the on-screen
menu.

Press the SLEEP button

repeatedly to pick the

amount of time (15 minutes to
120 minutes) before the TV
turns itself off. The length of
time will appear on the screen.
One minute before the TV
shuts itself off, the seconds will
count down on the screen.

To see how
many minutes remain
before the TV shuts
itself off, press the
SLEEP button once or
press the
STATUS/EXIT button.

To cancel a
SLEEPTIMER setting,
press the SLEEP but­ton twice so that OFF
appears on the screen.

SMART
HELP

SLEEPTIMER

T

here are two ways to adjust

the TV’s volume. Follow
these steps to adjust the volume
using the on-screen menu.
Or, you can adjust the volume
using the VOL(ume) B/s but­tons on the remote control or
the VOLUME o/p buttons on
the TV.

Press the MENU but-

ton.

Press the CH(annel)

▲/▼ buttons to select
VOLUME. Then, press the
VOL(ume) B/{ buttons to
adjust the volume level.

Press the
STATUS/EXIT button to
remove the menu.

The Volume
indicator should appear
on the screen when
you adjust the volume.

The simplest way to
adjust the volume is by
pressing the VOL(ume)
B/s buttons.

SMART
HELP

VOLUME

SmartLock B
SmartLock REVIEW B
SETUP B
EXIT B
BRIGHTNESS 24

AUTO INSTALL B
CHANNEL EDIT B
EXIT B
LANGUAGE ENG

EXIT B
CHANNEL 10
SKIPPED YES

SHARPNESS 34
TINT -05
VOLUME 13
SLEEPTIMER OFF
SmartLock B

EXIT B

CHANNEL 18

SKIPPED YES

321
654
987

0

POWER

STATUS/EXIT

ALT. CH

SLEEPTV/AUX

MENU

MUTE

VOL.VOL.

CH.

CH.

F

ollow these steps to
change the language of

the on-screen menus.

Press the MENU but-

ton.

Press the CH(annel)

▲/▼ buttons to select
SETUP, then press the
VOL(ume) B or { button
to continue. LANGUAGE

will be selected.

LANGUAGE

Press the VOL(ume)
B or { button to select
ENG for English menus or
ESP for Spanish menus.

Press the
STATUS/EXIT button.

If you accidentally
chose Spanish and need
English:

1) Press the MENU but­ton.

2) Press the CH(annel)
▲/▼ buttons to select
INSTALACION, then
press the VOL(ume) B
or { button to continue.

3) IDIOMA will be select­ed. Press the VOL(ume)
B or { button to have
ENG appear beside LAN­GUAGE.

4) Press the

STATUS/EXIT button.

SMART
HELP

SETUP B
EXIT B
BRIGHTNESS 33
COLOR 29
PICTURE 36

EXIT B
LANGUAGE ENG
AUTO INSTALL B
CHANNEL EDIT B

SALIDA B
IDIOMA ESP
AUTOPROGRAMACION B
REVISAR CANAL B

EXIT B

LANGUAGE ENG

AUTO INSTALL B

CHANNEL EDIT B

Press the CH(annel)
▲/▼ buttons to select SLEEP­TIMER.

Press the VOL(ume)
B/{ buttons repeatedly to set
the amount of time or to select
OFF.

Press the STATUS/EXIT

button to remove the menu.

Press the MENU button.

_

POWER

MENU

CH.

CH.

STATUS/EXIT

SLEEPTV/AUX

VOL.VOL.

MUTE

321
654
987

MENU

POWER

CH.

CH.

STATUS/EXIT

SLEEPTV/AUX

VOL.VOL.

321
654

MUTE

OR

POWER

CH.

CH.

MENU

STATUS/EXIT

321
654

SLEEPTV/AUX

VOL.VOL.

MUTE

FEATURES (CONT’D)

S

martLock enables parents to

prevent their children from
watching inappropriate material
on TV. SmartLock reads the
ratings for programming
(except for news and sports
programs, unedited movies on
premium cable channels, and
Emergency Broadcast System
signals), then denies access to
programming if the program’s
rating meets or exceeds the
limitations you select. To block
specific ratings or channels,
follow these steps.

Press the MENU

button, then press the
CH(annel) ▲/▼ buttons to
select SmartLock. Then,
press the VOL(ume)

B

or

{

button to continue.

SMARTLOCK

Use the Number but-

tons to enter your 4-digit
access code. The default code

is 0711. If you have not set up
your personal access code, you
should use 0711.

The SmartLock menu
will appear, and BLOCK will
be selected. Press the

VOL(ume) B

or {

button
to continue to the BLOCK
menu.

SmartLock

Enter Your Access Code

– – – –

SmartLock

B BLOCK

CHANGE CODE

Press the

CH(annel) ▲/▼ buttons
to select Blocking
Options, Channels
Blocked, Movie Ratings
or Parental Guidelines.
Then, press the
VOL(ume) B

or {

but-

ton to continue.

If you selected Blocking Options at step 4:

Press the CH(annel) ▲/▼ buttons to select Master Disable,
Block Unrated or Block No Rating. Then, press the
VOL(ume) B

or {

button to select ON or OFF. To return

to the main BLOCK menu, press the MENU button. Details of the
Blocking Options are given at right.

If you selected Channels Blocked at step 4:

Channel will be selected. Press the VOL(ume) B

or {

button or use the Number buttons to select the channel
you want to block. Press the CH(annel) ▲/▼ buttons to
select Blocked, then press the VOL(ume) B

or {

button

to select ON or OFF. If Blocked is ON, the channel can not be

watched until the viewer enters the access code.
To reset all channels for viewing, press the CH(annel) ▲/▼ buttons
to select Clear All, then press the VOL(ume) B

or {

button.
(Channel will be selected again.)
Remember, viewing could still be blocked by another SmartLock
setting (such as Movie Ratings).
To return to the main BLOCK menu, press the MENU button.

If you selected Movie Ratings or Parental Guidelines at step 4:

Press the CH(annel) ▲/▼ buttons to select the rating you
want to block. Then, press the VOL(ume) B

or {

button

so that ON appears beside the rating.

For example, if you set PG to ON, you may not view PG program­ming because the block is on. Programs with a PG or higher rating
will be blocked.

• More specific sub-ratings are available for TV-Y7, TV-PG, TV-14,

and TV-MA. When you press the VOL(ume) B/{buttons to
select TV-Y7, TV-PG, TV-14 or TV-MA, additional sub-ratings
will appear. Press the VOL(ume) B or s button to set

the main rating to ON. Then, press the CH(annel) ▲/▼
buttons to select a specific sub-rating. Then, press the
VOL(ume) B/{buttons so that ON appears beside the
sub-rating. If you select the main rating and turn it on or off,

the sub-ratings will turn on or off automatically. But, you can
always turn sub-ratings on or off by selecting them individually.
You can only turn on a sub-rating (for example, D) if the main
rating (such as TV-PG) is set to ON.

BLOCK

B

Blocking Options
Channels Blocked
Movie Ratings
Parental Guidelines

MOVIE RATINGS

G [OFF]
PG [ON]
PG-13 [ON]

B R [ON]

NC-17 [ON]
X [ON]

PARENTAL GUIDELINES

B TV-Y [OFF]

TV-Y7 >

- - - - - - - - - - - - - - - - - - - - ­TV-G [OFF]
TV-PG >
TV-14 >
TV-MA >

• V-Violence

• S-Sexual situations

• L-Language

• D-Inappropriate dialogue

• FV-Fantasy Violence may
frighten children under
seven; TV-Y7 category only.
Some cartoons may have
this rating.

• TV-Y - Appropriate for all
children.

• TV-Y7 - Appropriate for
children seven and older.

• TV-G - General Audience

• TV-PG - Parental Guidance
suggested.

• TV-14 - Unsuitable for chil­dren under 14.

• TV-MA - Mature audience
only.

Press the

STATUS/EXIT button.

PARENTAL GUIDELINES RATING EXPLANATIONS

• Master Disable
When Master Disable is ON, all settings of Channel Blocked,

Movie Ratings, Parental Guidelines, Block Unrated, and Block
No Rating are ineffective. SmartLock DISABLED will appear
when you look at SmartLock Review. All programming may be
viewed.

• Block Unrated
When Block Unrated is ON, TV programs are blocked when

the show is broadcast as Unrated.

• Block No Rating
When Block No Rating is ON, TV programs are blocked

when the show is broadcast without rating information.

BLOCKING OPTIONS

BLOCKING OPTIONS

B Master Disable [OFF]

Block Unrated [OFF]
Block No Rating [OFF]

CHANNELS BLOCKED

B Channel 1

Blocked [OFF]
Clear All

VOLUME 4
SLEEPTIMER OFF
SmartLock B
SmartLock REVIEW B
SETUP B

To set a new
access code, see
SmartLock Access
Code on page 7.

If the “Incorrect
Access Code...” mes­sage appears after
step 2, enter the cor­rect access code. In
order to protect the
privacy of the access
code, an X will
appear on the screen
instead of the
number you enter.

A “CHANNEL XX
BLOCKED...” mes­sage will appear
when someone tries
to access the blocked
programming. If you
want to view this
programming, enter
your access code.
The channel will
remain blocked until
you enter the cor­rect code. If you do
not know the code,
you will have to
select another chan­nel using the
CH(annel) o/p
buttons.
When you turn off
the TV once, the
programming is
blocked again.

SMART
HELP

T

o check your SmartLock

settings, follow these steps.
You will know what types of
programming and which chan­nels are blocked from viewing.

SMARTLOCK
REVIEW

Press the VOL(ume)

B

or {

button so that
the SmartLock settings for
Movie Ratings and Parental
Guidelines appear.

Ratings that are blocked will
appear on the screen. An “X”
will appear if a specific sub-rat­ing is blocked, such as V for
Violence in the TV-14 category.

Press the VOL(ume)

B

or {

button to

advance to the Channels
Blocked screen. All current-

ly blocked channels will
appear.

Press the VOL(ume)

B

or {

button to
advance to the Block
Unrated and Block No
Rating screen, which
shows if these options are
set to On or Off.

After 10 seconds, the main
menu will reappear. Repeat
steps 2-4 as often as neces­sary in order to review all
the settings.

When you are fin­ished, press the STA­TUS/EXIT button.

TV-PG

B TV-PG [ON]

D [OFF]
L [ON]
S [OFF]
V [ON]

- 6 -

Press the MENU but-

ton, then press the
CH(annel) ▲/▼ buttons to
select SmartLock
REVIEW.

SLEEPTIMER OFF
SmartLock B
SmartLock REVIEW B
SETUP B
EXIT B

Movie Ratings

R NC-17 X

Parental Guidelines

- - - - - - - - - - - - - - - - - - - - ­TV-G

D L S V

TV-PG x x x
TV-14 x x x
TV-MA - x x x

NEXT=B

If you do not use the
VOL(ume) B or s
button to advance through
the SmartLock REVIEW
screens, the screens will
advance automatically within
10 seconds.

SMART
HELP

Channels Blocked
07 18 32

NEXT=B

Block Unrated On
Block No Rating Off

MENU

POWER

0

CC

CH.

CH.

STATUS/EXIT

SLEEPTV/AUX

VOL.VOL.

MUTE

321
654
987

ALT. CH

C

losed Captioning allows

you to read the voice con­tent of television programs on
the TV screen. Designed to
help the hearing impaired, this
feature uses on-screen text
boxes to show dialogue and
conversations while the TV
program is in progress.
Note: Broadcast stations will
often use spelling abbrevia­tions, symbols, dropouts and
other grammatical shortcuts in
order to keep pace with the
on-screen action. These factors
vary with the source of the
captioned text material and do
not indicate a need for TV ser­vice.

Closed
Captions will be
delayed briefly when
you mute or adjust
the volume, change
channels, or press
the STATUS/EXIT
button to see the
current channel
number.

SMART
HELP

FEATURES (CONT’D)

CLOSED
CAPTIONING

Coaxial Cable - A single cable with a metal connector that screws (or pushes) direct-

ly onto a 75Ω jack (ANT(enna) In jack) on the Television or VCR.
Display - Allows the user to quickly confirm what channel number is being viewed

currently.

Jack Panel - The area on the back of the TV.
Menu - An on-screen listing of features that are available for adjustments.
On-screen Displays (OSD) - The wording or messages that help you set up features

(color adjustment, channel setup, etc.).

Programming - Adding or deleting channels in the television’s memory. The televi­sion “remembers’’ only the locally available or desired channel numbers and skips over
any unwanted channel numbers.

Remote Sensor - An area on the front of the TV through which remote control sig­nals are received.

Twin Lead Wire - The two-strand 300Ω antenna wire used with many indoor and
outdoor antenna systems. In many cases, this type of antenna wire requires an addition­al adaptor (or balun) in order to connect to the ANT(enna) In jack on the TV.

Volume Indicator - Appears on the TV screen when you adjust the volume.

GLOSSARY

- 7 -

Notes:

• Usually CAPTION 1 is the preferred Closed Caption mode.
CAPTION 1 or 2: Dialogue (and descriptions) for the
action on the captioned TV program shows on the screen.
TEXT 1 or 2: A black box appears on the TV screen. If the
TEXT mode is available with the current TV program, text or
information will appear.
CAPTION OFF: Select to turn off Closed Captions com­pletely.

• Captions and texts may not match the TV voice broadcast
exactly.

• Interference or a weak antenna/cable signal may cause the
Closed Captioning system to function improperly.

• The caption or text characters will not appear if the menu is
on the screen.

• Remember, not all TV programs and commercials are broad­cast with Closed Captioning. Neither are all Closed Caption
modes necessarily being used by a broadcast station during
the transmission of a program. Refer to your area's TV pro­gram listings for the stations and times of shows with Closed
Captioning.

• If a black box appears on the screen, you have selected TEXT
1 or TEXT 2. To remove the black box, select CAPTION 1,
CAPTION 2, or CAPTION OFF.

Press the CC button
repeatedly until the desired
Closed Caption mode
appears on the screen.

You may choose CAPTION 1,
CAPTION 2, TEXT 1, TEXT 2,
or CAPTION OFF.

T

o adjust your TV picture

controls, select a channel

and follow these steps.


ADJUSTMENTS

Press the MENU

button, then press the
CH(annel) ▲/▼ buttons to
select a control.

Press the VOL(ume)

B/{ buttons to adjust the
selected picture control.

BRIGHTNESS Press the VOL(ume) B/{ buttons
until the darkest parts of the picture are as bright as
you prefer.

COLOR Press the VOL(ume) B/{ buttons to add
or reduce color.

PICTURE Press the VOL(ume) B/{ buttons until
the lightest parts of the picture show good detail.

SHARPNESS Press the VOL(ume) B/{ buttons
to improve detail in the picture.

TINT Press the VOL(ume) B/{ buttons to obtain
natural skin tones.

Press the

STATUS/EXIT button.

SETUP B
EXIT B
BRIGHTNESS 24
COLOR 31
PICTURE 31

Press the MENU but-

ton, then press the
CH(annel) ▲/▼ buttons to
select SmartLock.

Press the VOL(ume)

B

or

{

button to continue. The
SmartLock Access Code screen
will appear.

Press the Number but­tons to enter your old access
code.

If you have never set up
your personal access code, use

0711.

Use the Number buttons to
enter your desired access code in
the New Code space. Then, enter
the same code in the Confirm
Code space.

Your new access code should be
recorded. You will return to the
SmartLock menu.

New Code
Confirm Code

– – – –
– – – –

Press the STATUS/EXIT

button.

You cannot
use the default code
after you set up
your personal access
code.

To restore 0711 as
your personal access
code, unplug the
TV’s power cord for
10 seconds, then
plug it in again.This
is helpful when you
forget your personal
access code.

SMART
HELP

T

o change the access code,
follow these steps.

SMARTLOCK

ACCESS CODE

Press the CH(annel) ▲/▼

buttons to select CHANGE
CODE. Then, press the
VOL(ume)

B

or {

button to

continue.

SmartLock

BLOCK

B CHANGE CODE

VOLUME 4
SLEEPTIMER OFF
SmartLock B
SmartLock REVIEW B
SETUP B

SmartLock

Enter Your Access Code

– – – –

GENERAL INFORMATION

POWER

CH.

CH.

MENU

STATUS/EXIT

SLEEPTV/AUX

VOL.VOL.

MUTE

321
654
987

POWER

CH.

CH.

MENU

STATUS/EXIT

0

CC

321
654
987

ALT. CH

SLEEPTV/AUX

VOL.VOL.

MUTE

P

lease make these simple

checks before calling for
service. These tips can save
you time and money since
charges for TV installation and
adjustment of customer con­trols are not covered under
your warranty.

No Power

• Check the TV power cord.

• Make sure the power outlet is not on a
wall switch.

No Picture

• Check antenna/cable connections. Is the
antenna or cable properly secured to the
ANT(enna) IN jack on the TV?

GENERAL INFORMATION

No Sound

• Check the VOL(ume) B/{ buttons.

• Check the MUTE button.

Wrong Channel

• Repeat channel selection.

• Add desired channel numbers into the
TV memory. See CHANNEL EDIT on
page 5 for details.

TIPS

Philips Service Solutions Group, P.O. Box 2976, Longview, Texas 75606

[phone]

Cleaning and Care

• Unplug the TV before cleaning.

• Avoid using anything abrasive that could scratch the screen.

• Wipe the TV screen with a clean cloth dampened with water.

• Gently wipe cabinet surfaces with a clean cloth or sponge dampened with
cool clear water. Use a clean dry cloth to dry the wiped surfaces.

• Occasionally vacuum the ventilation holes or slots in the cabinet back.

• Never use thinners, insecticide sprays, or other chemicals on or near the
cabinet.

Access Code . . . . . . . . . . .7

ALT. CH Button . . . . . . . .4

Antenna Connections . . .2-3

Auto Install . . . . . . . . . . . .4

Batteries . . . . . . . . . . . . . .4

Cable TV Connections . . . .3

Channel Edit . . . . . . . . . . .5

Channel Setup . . . . . . . . . .4

CH(annel) ▲/▼ Buttons . .4

Closed Captioning . . . . . . .7

Coaxial Cable . . . . . . . . . . .3

Controls/Remote . . . . . . . .4

Controls/TV . . . . . . . . . . . .4

Earphone jack . . . . . . . . . .4

Features . . . . . . . . . . . . . . .1

Glossary . . . . . . . . . . . . . .7

Language . . . . . . . . . . . . . .5

MENU Button . . . . . . . . . .4

MUTE Button . . . . . . . . . . .4

Number Buttons . . . . . . . .4

Picture Adjustments . . . . . .7

POWER Button . . . . . . . . .4

Precautions . . . . . . . . . .1, 8

Remote Control . . . . . . . .4

Remote Sensor . . . . . . . . .4

Review (SmartLock) . . . . . .6

Safety Notes . . . . . . . . . . .1

Service . . . . . . . . . . . . . . . .8

SLEEP Button . . . . . . . . .4, 5

Sleeptimer . . . . . . . . . . . . .5

SmartLock . . . . . . . . . . . .6-7

STATUS/EXIT button . . . .4

Tips . . . . . . . . . . . . . . . . . .8

TV/AUX Button . . . . . . . . .4

VCR Connections . . . . . . .3

Volume . . . . . . . . . . . . . . .5

VOL(ume) B/{ Buttons 4-5

Warranty . . . . . . . . . . . . . .8

INDEX

LIMITED WARRANTY

COLOR TELEVISION

90 Days Free Labor

One Year Free Replacement of Parts (Two Years Free Replacement on Color Picture Tube)

This product must be carried in for repair.

WHO IS COVERED?

You must have proof of purchase to receive warranty service. A sales receipt or other docu-

ment showing that you purchased the product is considered proof of purchase.

WHAT IS COVERED?

Warranty coverage begins the day you buy your product. For 90 days thereafter, all parts will

be repaired or replaced free, and labor is free. From 90 days to one year from the day of

purchase, all parts will be repaired or replaced free, but you pay for all labor charges. From

one to two years from the day of purchase, you pay for the replacement or repair of all parts

except the picture tube, and for all labor charges. After two years from the day of purchase,

you pay for the replacement or repair of all parts, and for all labor charges.

All parts, including repaired and replaced parts, are covered only for the original warranty

period. When the warranty on the product expires, the warranty on all replaced and

repaired parts also expires.

WHAT IS EXCLUDED?

Your warranty does not cover:

• labor charges for installation or setup of the product, adjustment of customer controls on
the product, and installation or repair of antenna systems outside of the product.

• product repair and/or part replacement because of misuse, accident, unauthorized repair,
or other cause not within the control of Philips Consumer Electronics Company.

• reception problems caused by signal conditions or cable or antenna systems outside the
unit.

• a product that requires modification or adaptation to enable it to operate in any country
other than the country for which it was designed, manufactured, approved, and/or autho­rized, or repair of products damaged by these modifications.

• incidental or consequential damages resulting from the product. (Some states do not
allow the exclusion of incidental or consequential damages, so the above exclusion may
not apply to you. This includes, but is not limited to, prerecorded material, whether
copyrighted or not copyrighted.)

• a product used for commercial or institutional purposes.

WHERE IS SERVICE AVAILABLE?

Warranty service is available in all countries where the product is officially distributed by
Philips Consumer Electronics Company. In countries where Philips Consumer Electronics
Company does not distribute the product, the local Philips service organization will attempt
to provide service (although there may be a delay if the appropriate spare parts and technical
manual(s) are not readily available).

MAKE SURE YOU KEEP...

Please keep your sales receipt or other document showing proof of purchase. Attach it to
this owner’s manual and keep both nearby. Also keep the original box and packing material
in case you need to return your product.

BEFORE REQUESTING SERVICE...

Please check your owner’s manual before requesting service. Adjustments of the controls dis­cussed there may save you a service call.

TO GET WARRANTY SERVICE IN U.S.A.,
PUERTO RICO, OR U.S. VIRGIN ISLANDS...

Contact a Philips factory service center (see enclosed list) or authorized service center to
arrange repair.

(In U.S.A., Puerto Rico, and U.S. Virgin Islands, all implied warranties, including implied war­ranties of merchantability and fitness for a particular purpose, are limited in duration to the
duration of this express warranty. But, because some states do not allow limitations on how
long an implied warranty may last, this limitation may not apply to you.)

TO GET WARRANTY SERVICE IN CANADA...

Please contact Philips at:

1-800-661-6162 (French Speaking)
1-800-363-7278 (English Speaking)

(In Canada, this warranty is given in lieu of all other warranties. No other warranties are
expressed or implied, including any implied warranties of merchantability or fitness for a par­ticular purpose. Philips is not liable under any circumstances for any direct, indirect, special,
incidental, or consequential damages, howsoever incurred, even if notified of the possibility of
such damages.)

REMEMBER...

Please record below the model and serial numbers found on the product. Also, please fill out
and mail your warranty registration card promptly. It will be easier for us to notify you if
necessary.

MODEL # ________________________________________________
SERIAL # ________________________________________________

- 8 -

Power Failure

• When you disconnect the power
cord from the AC outlet, or if you
have a power failure, the
Sleeptimer will be cancelled. You
may reset the Sleeptimer.

Remote Doesn't Work

• Check batteries. Replace with AA Heavy
Duty (Zinc Chloride) or Alkaline
batteries if necessary.

• Clean the remote and the remote sensor
on the TV.

• Check the TV power cord.

SmartLock

• Programming may be rated by the Motion Picture Association of America
(MPAA) or according to the Television Parental Guidelines. In order to
block any inappropriate programming, set your limits in both places (Movie
Ratings and Parental Guidelines).

• Ratings will remain blocked even after a power failure.

• You cannot access the menu when the “CHANNEL XX BLOCKED...”
message appears.

• If you enter the access code once, you may change channels without see­ing the “CHANNEL XX BLOCKED” message again. If you turn off the TV
power, you will be asked for the access code again when you tune to a
blocked channel.

• If a power failure occurs, the default code, 0711, will be the active access
code again.

• If you connect the power cord to an AC outlet that is controlled by a wall
switch, your personal access code will be erased every time you turn off
the power at the wall switch. The default code will be the active code
again.

• To restore 0711 as your personal access code, unplug the TV’s power
cord for 10 seconds, then plug it in again.

As an ENERGY STAR

®

Partner, Philips

Consumer Electronics
Company has determined that this
product meets the ENERGY STAR

®

guidelines for energy efficiency.
ENERGY STAR®is a U.S. registered
mark.
Using products with the ENERGY
STAR®label can save energy. Saving
energy reduces air pollution and
lowers utility bills.
