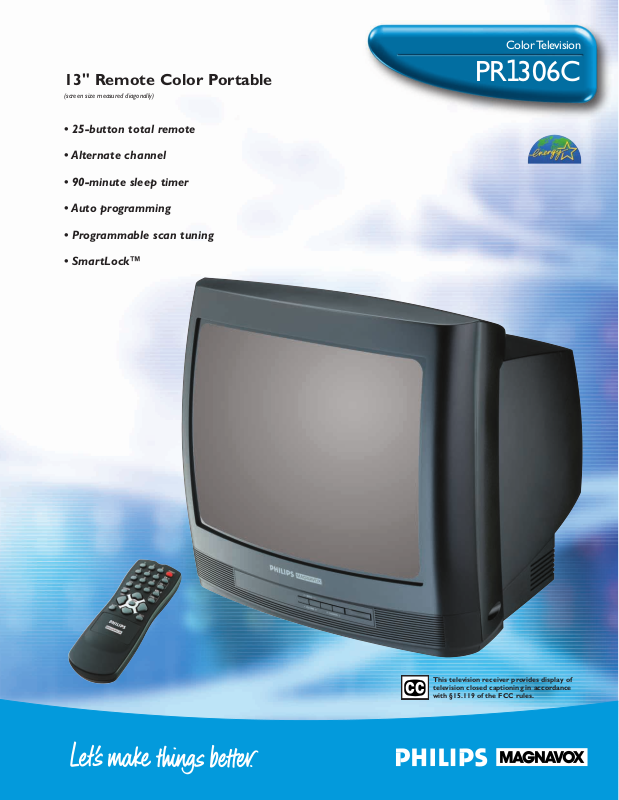

Philips PR1306C User Manual

13" Remote Color Portable

(screen size measured diagonally)

• 25-button total remote

• Alternate channel

• 90-minute sleep timer

• Auto programming

• Programmable scan tuning

• SmartLock™

Color Television

PR1306C

This television receiver provides display of
television closed captioning in accordance
with §15.119 of the FCC rules.

Specifications subject to change without notice.

Color Television

PR1306C

Audio/Video Jack Panel JP9000

Additional Features Include:

• Channel edit

• Total remote menu format tuning with multicolor onscreen graphics

• 181-channel capability

• 4-way cursor control

• Direct channel access

• Programmable scan tuning

• Status recall

• Cable/normal select

• 3" round, full-range speaker

UPC: 0 3784989007 3
Product Dimensions: 14.3"W x 13"H x 14.8"D
Product Weight: 22 lbs.
Carton Dimensions: 18.4"W x 16.6"H x 17.5"D
Carton Weight: 24.3 lbs.
Master Pack: 1

Carton Contains: 13" Remote Color Portable TV, 25-Button Remote Control with Batteries,
Operating Instructions,Warranty Information

Printed in USA
©2000 Philips Consumer Electronics Co.
A Division of Philips Electronics North America Corp.
KID Design 99342,Philips Consumer Electronics Co.

By using environmentally-friendly materials, Philips Consumer Electronics Company continues to demonstrate
our commitment to a cleaner environment.This paper is made from at least 10% post-recycled stock, and the
ink is vegetable based.

INTERNET ADDRESS: http://www.philipsusa.com

Remote Controls

25-Button Total Remote controls:

• Alternate channel • Menu display

• 4-way cursor control • Direct channel access

• Programmable scan tuning • Closed caption

• Volume mute • Volume control

• Status/exit • 90-minute sleep timer
(Remote # RC1112501/04) • Power on/off

SmartLock™

Protect young children from harmful programming with V-chip technology
based on the Motion Picture Association of America (MPAA) and the
network television rating systems.

SmartMute™

Automatically activates closed-captioning when the MUTE button is pressed.

Alternate Channel

Keep close tabs on 2 different channels with one-button convenience.

Sleep Timer

Activate this feature and the TV automatically turns off at a preset time
of up to 90 minutes, programmed in 15-minute increments.

Auto Programming

Automatically scans all available channels–from regular antenna or
cable–and programs only active broadcast stations into memory.

Closed Caption

Allows the hearing impaired to read dialogue and narratives (on Closed
Caption telecasts) without the use of an external decoding device.
Excellent for development of language skills and private viewing
without disturbing others.

Onscreen Volume Bar

When activated, this feature displays an onscreen volume bar for a
visual indication of the volume setting.

Bilingual Onscreen Display

Control various television features with easy onscreen displays in
your choice of English or Spanish.

SmartLock and SmartMute are trademarks of Philips Consumer Electronics Company.
As an ENERGY STAR®Partner,Philips has determined that this product meets the

ENERGY STAR

®

guidelines for energy efficiency.
