Philips PR1305C User Manual

Instructions for use
Color Television
PR1305C1
3135 015 10391
Once your PHILIPS MAGNAVOX purchase is registered, you’re eligible to receive all the privileges of
owning a PHILIPS MAGNAVOX product. So complete and return the Warranty Registration Card
enclosed with your purchase at once. And take advantage of these important benefits.
receive all the benefits you’re entitled to.
Congratulations
on your
purchase,
and welcome to the
“family!”
Dear PHILIPS MAGNAVOX product owner:
Thank you for your confidence in PHILIPS MAGNAVOX. You’ve selected one of the best-built, best­backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.
As a member of the PHILIPS MAGNAVOX “family,” you’re entitled to protection by one of the most comprehensive warranties and outstanding service networks in the industry.
What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.
And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome–and thanks for investing in a PHILIPS MAGNAVOX product.
Sincerely,
Robert Minkhorst President and Chief Executive Officer
Know these
safety
symbols
t This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical
shock. For the safety of everyone in your household, please do not remove product covering.
s The “exclamation point” calls attention to features for which you should read the enclosed lit-
erature closely to prevent operating and maintenance problems. WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS EQUIPMENT
TO RAIN OR MOISTURE. CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert. ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la
borne correspondante de la prise et pousser jusqu’au fond.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS
INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Warranty
Verification
Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS MAGNAVOX warranty.
Owner
Confirmation
Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.
Model
Registration
Returning your Warranty Registration Card right away guar­antees you’ll receive all the infor­mation and special offers which you qualify for as the owner of your model.
P.S. Remember, to get the most from your PHILIPS
MAGNAVOX product, you must return your Warranty Registration Card within 10 days. So please mail it to us right now!
R
E
G
I
S
T
R
A
T
I
O
N
N
E
E
D
E
D
W
I
T
H
I
N
1
0
D
A
Y
S
Hurry!
Visit our World Wide Web Site at http://www.philipsmagnavox.com
3
SAFETY INSTRUCTIONS - Read before operating equipment
This product was designed and manufactured to meet strict quality and safety standards. There are, however, some installation and operation pre­cautions which you should be particularly aware of.
1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Follow Instructions - All operating and use instructions should be followed.
5. Water and Moisture - The appliance should not be used near water
- for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool, etc.
6. Carts and Stands - The appliance should be used only with a cart or stand that is recommended by the manufacturer.
6A. An appliance and cart combination should be moved
with care. Quick stops, excessive force, and uneven sur­faces may cause the appliance and cart combination to overturn.
6B. Tilt/Stability - All televisions must comply with recommended inter-
national global safety standards for tilt and stability properties of its cabinet design.
Do not compromise these design standards by applying exces-
sive pull force to the front, or top, of the cabinet which could ultimately overturn the product.
Also, do not endanger yourself, or children, by placing elec-
tronic equipment/toys on the top of the cabinet. Such items could unsuspectingly fall from the top of the set and cause product damage and/or personal injury.
7. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
8. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built­in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings.
9. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (includ­ing amplifiers) that produce heat.
10 . Power Sources - The appliance should be connected to a power sup-
ply only of the type described in the operating instructions or as marked on the appliance.
11. Power-Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords and plugs, convenience receptacles, and the point where they exit from the appliance.
12. Cleaning - The appliance should be cleaned only as recommended by the manufacturer.
13. Power Lines - An outdoor antenna should be located away from power lines.
14. Outdoor Antenna Grounding - If an outside antenna is connected to the receiver, be sure the antenna system is grounded so as to pro­vide some protection against voltage surges and built up static charges.
Section 810 of the National Electric Code, ANSI/NFPA No. 70-1984, provides information with respect to proper grounding of the mats and supporting structure grounding of the lead-in wire to an anten­na discharge unit, size of grounding connectors, location of antenna­discharge unit, connection to grounding electrodes and require­ments for the grounding electrode. See Fig. below.
15. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
16 . Object and Liquid Entry - Care should be taken so that objects do not
fall and liquids are not spilled into the enclosure through openings.
17. Damage Requiring Ser vice - The appliance should be serviced by qualified service personnel when:
A. The power supply cord or the plug has been damaged; or B. Objects have fallen, or liquid has been spilled into the appliance;
or
C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally or exhibits a
marked change in performance; or
E. The appliance has been dropped, or the enclosure damaged.
18. Ser vicing - The user should not attempt to service the appliance
beyond that described in the operating instructions. All other servic­ing should be referred to qualified service personnel.
Note to the CATV system installer: This reminder is provided to call the CATV system installer's attention to Article 820-40 of the NEC that pro­vides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.
ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE UNIT
(NEC SECTION 810-20)
GROUNDING CONDUCTORS
(NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM
(NEC ART 250, PART H)
GROUND CLAMP
ELECTRIC SERVICE EQUIPMENT
Example of Antenna Grounding as per NEC - National Electric Code
4
Introduction
Welcome/Registration of Your TV............................2
Safety/Precautions .....................................................3
Table of Contents.......................................................4
Features......................................................................4
Basic Cable TV Hookups ..........................................5
Basic Antenna Hookups.............................................6
Basic TV to VCR Hookup.........................................7
Basic TV and Remote Operations .............................8
TV Remote Buttons ...................................................9
Onscreen MENU
Setting the Language Control.................10
Using the Tuner Control...................................11
Using the Auto Program Control.....................12
How to Add and Delete Channels....................13
Adjusting the TV Picture .................................14
Activating Noise Reduction (Picture) Control .15
Setting the TV for Closed Caption...................16
Using the Sleep Timer Control.........................17
Using the Volume Bar Control .........................18
Using the Alternate Channel............................19
SmartLock™
Understanding the SmartLock Feature ......20
Setting the SmartLock Access Code ................21
Setting the SmartLock to Block Channels.......22
Setting SmartLock’s Blocking Options...........23
Blocking Using the Movie/TV Ratings .....24-25
Using the SmartLock Review Screen...............26
General Information
Tips if Something Isn’t Working................27
Glossary of TV Terms..............................................28
Index ........................................................................29
Factory Service Locations..................................30-31
Warranty...................................................................32
TABLE OF CONTENTS
SmartLock™ is a registered trademark of the Philips Consumer Electronics Company.
Copyright © 1999 Philips Consumer Electronics Company. All rights reserved.
NOTE: This owner's manual is used with sev­eral different television models. Not all fea­tures (and drawings) discussed in this manual will necessarily match those found with your television system. This is normal and does not require you contacting your dealer or request­ing service.
Here are a few of the special features built into this new Color Television:
SmartLock™ feature allows you to block the view­ing of certain channel or external audio/video con­nections where you might not want your children viewing inappropriate material.
Infrared Remote Control works your TV set. Standard broadcast (VHF/UHF) or Cable TV
(CATV) channel capability. Closed Captioning allows the viewer to read TV
program dialogue or voice conversations as onscreen text.
Automatic Programming of Channels for quick and easy selection of favorite stations available in your area.
Onscreen Features (in either English, French, or Spanish) show helpful messages for setting of TV controls.
Sleep Timer automatically turns the TV OFF at pre­set times.
5
75 V
IN
OUT
75 V
2
1
Y
our Cable TV input into your
home may be a single (75 ohm) cable, or a Converter Box installation. In either case the connection to the TV is very easy. Just put the threaded end of the cable signal to the TV's antenna plug and screw it down tight.
If your Cable TV signal is a sin-
gle round cable (75 ohm) then
you're ready to connect to the TV.
If you have a Cable Converter Box:
Connect the Cable TV signal to the Cable Signal IN(put) plug on the Converter..
Connect the Cable TV cable to the
75 V plug on the TV.
If you have a Cable Converter Box:
Connect the OUT(put) plug from the Converter to the 75 V plug on the TV.
HOOKING UP YOUR TV (BASIC CABLE TV CONNECTIONS)
BEGIN
CABLE TV
Cable TV Company
Cable TV Signal Input
Cable TV Converter
Box Connection
Round Cable
75Ohm
OR
Back of TV
Remember: Set the TV for the type signal you've just connected (see the “Tuner” section on page 11 of this manual.)
To select only the channel numbers on your Cable system see “Auto Program" (page 12). If you use a Cable Converter box, set the TV to the same channel as the converter's CH 3/4 switch (on the rear of the converter.)
SMART
HELP
6
A
combination antenna receives
normal broadcast channels
(VHF 2-13 and UHF 14-69). Your connection is easy since there is only one 75(ohm) antenna plug on the back of your TV - and that’s where the antenna goes.
If your antenna has a round
cable (75 ohm) on the end, then
you're ready to connect it to the TV.
If your antenna has flat twin-lead wire (300 ohm), you first need to
attach the antenna wires to the screws on a 300 to 75 ohm adapter.
Push the round end of the
adapter (or antenna) onto the 75 V plug on the rear of the TV. If the round end of the antenna wire is threaded, screw it down tight.
HOOKING UP YOUR TV (BASIC ANTENNA TV CONNECTIONS)
BEGIN
ANTENNA
Remember: Be sure to set the TV for the type sig­nal you've connect­ed (see the “Tuner” section on page 11 of this manual.)
To set the TV to select only the chan­nel numbers in your area see how to “Program" channels in the TV’s memory on page 12 (Auto Program section).
To order any option­al accessory contact your dealer or the Philips Parts Center at 1-800-851-8885.
SMART
HELP
300 to 75
Adapter
Combination VHF/UHF
Antenna
(Outdoor or Indoor)
Twin Lead
Wire
Round Cable
75
Back of TV
OR
Note: For homes with separate UHF and VHF antennas you will need an optional combiner to connect to the TV.
U/V
Combiner
75-300 Ohm Adapter
Back of TV
1
75 V
2
75 V
7
T
he basic Antenna, or Cable
TV, to VCR to TV connection is shown to the right. For more information on other hookups (possible when Cable Converter/Descrambler boxes are included) refer to your accessory VCR and Cable Converter Owner's Manual for details.
Connect your Antenna or Cable TV signal to the IN FROM ANT(enna) plug on the VCR.
Connect the OUT TO TV plug on the VCR to the 75 V plug on the
TV (connecting cable supplied with the VCR.)
HOOKING UP YOUR TV (BASIC TV TO VCR CONNECTIONS)
BEGIN
VCR TO TV
Round Cable
75Supplied with VCR
Outdoor
VHF/UHF
Antenna
300 to 75
Ohm Adapter
Cable TV signal
Back of TV
VCR
75 V
OR
IN FROM ANT.
1
2
OUT TO TV
75 V
8
Press the POWER button to
turn the TV ON.
Press the VOLUME + button to increase the sound level or the VOLUME – button to lower the sound level.
Pressing both buttons at the same time will display the onscreen menu.
Once in the menu, use these button to make adjustments or selections.
Press the CHANNEL UP or
DOWN button to select TV chan-
nels.
BASIC TV/REMOTE OPERATIONS
BEGIN
TELEVISION
MENU
– VOLUME + CHANNEL
POWER
6
1
2
3
REMOTE SENSOR WINDOW
INSTALL/MENU
– VOLUME + CHANNEL
POWER
T
o load the supplied batteries
into the remote:
1. Remove the battery compart­ment lid on the back of the remote.
2. Place the batteries (2-AAA) in the remote. Be sure the (+) and (-)
ends of the batteries line up correctly (inside of case is marked.)
3. Reattach the battery lid.
BATTERY INSTALLATION
REMOTE
SMART HELP
Remember,
You can press any button on the front of the TV to turn the TV ON.
The tuned channel number will always appear briefly when the TV is first turned ON (and with channel changes.)
You can also press the STATUS/EXIT button (on the remote) to see what channel the TV is ON.
Point the remote control toward the remote sensor window on the TV when operating the TV with the remote.
3
9
MUTE
CC
A/CH
SLEEP
VOL
VOL
CH
CH
MENU
123 456
789
0
STATUS/EXIT
POWER
TV REMOTE BUTTONS
Power Button
Press to turn the TV ON and OFF.
Channel (+), (–) Buttons
Press to change the tuned channel.
Status/Exit Button
Press to see the current channel number on the TV screen. Also press to clear the TV screen after control adjustments.
Cursor Buttons
Use these buttons to select and adjust the TV's onscreen menu.
Volume (+), (–) Buttons
Press to adjust the TV sound level.
Mute Button
Press to turn the sound OFF on the TV. Press again to return the sound to its previous level.
Menu Button
Press for the onscreen menu to appear. Pressing the menu button after menu selections are made will return you to the previous menu screen or eliminate the menu from the display.
A/CH Button
Press to toggle between the currently viewed channel and the previously viewed channel.
Number Buttons
Press the number buttons to select TV channels. For single channel entries, press the numbered button of the channel you desire. The TV will pause for a few seconds before changing to the selected channel. For channels 100 and above, press "1" first, then the next two numbered buttons.
CC Button
Press to select Closed Caption options within the menu.
Sleep Button
Press to set the TV to automatically turn itself OFF.
10
SmartLock
©
CC OFF SETUP
©
SmartLock REVIEW
©
BRIGHTNESS 30
LANGUAGE ENGLISH TUNER CABLE AUTO PROGRAM
©
LANGUAGE FRANCAIS or LANGUAGE ESPANOL
MUTE
CC
A/CH
SLEEP
VOL
VOL
CH
CH
MENU
123 456 789
0
STATUS/EXIT
POWER
1
2
4
3
5
F
or our Spanish and French speak-
ing TV owners an onscreen LAN­GUAGE option is present. With the LANGUAGE control you can set the TV’s onscreen menu to be shown in either English, Spanish, or French.

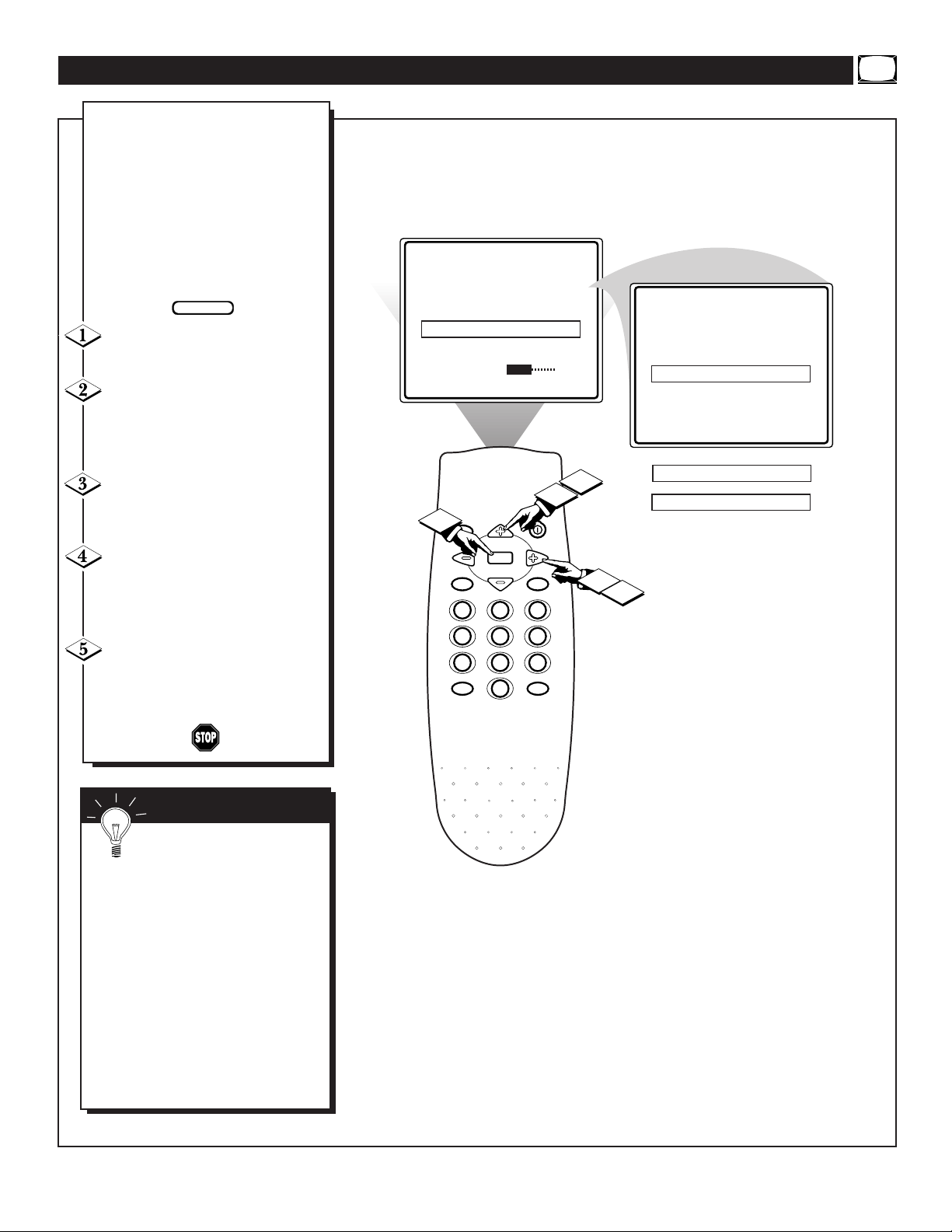

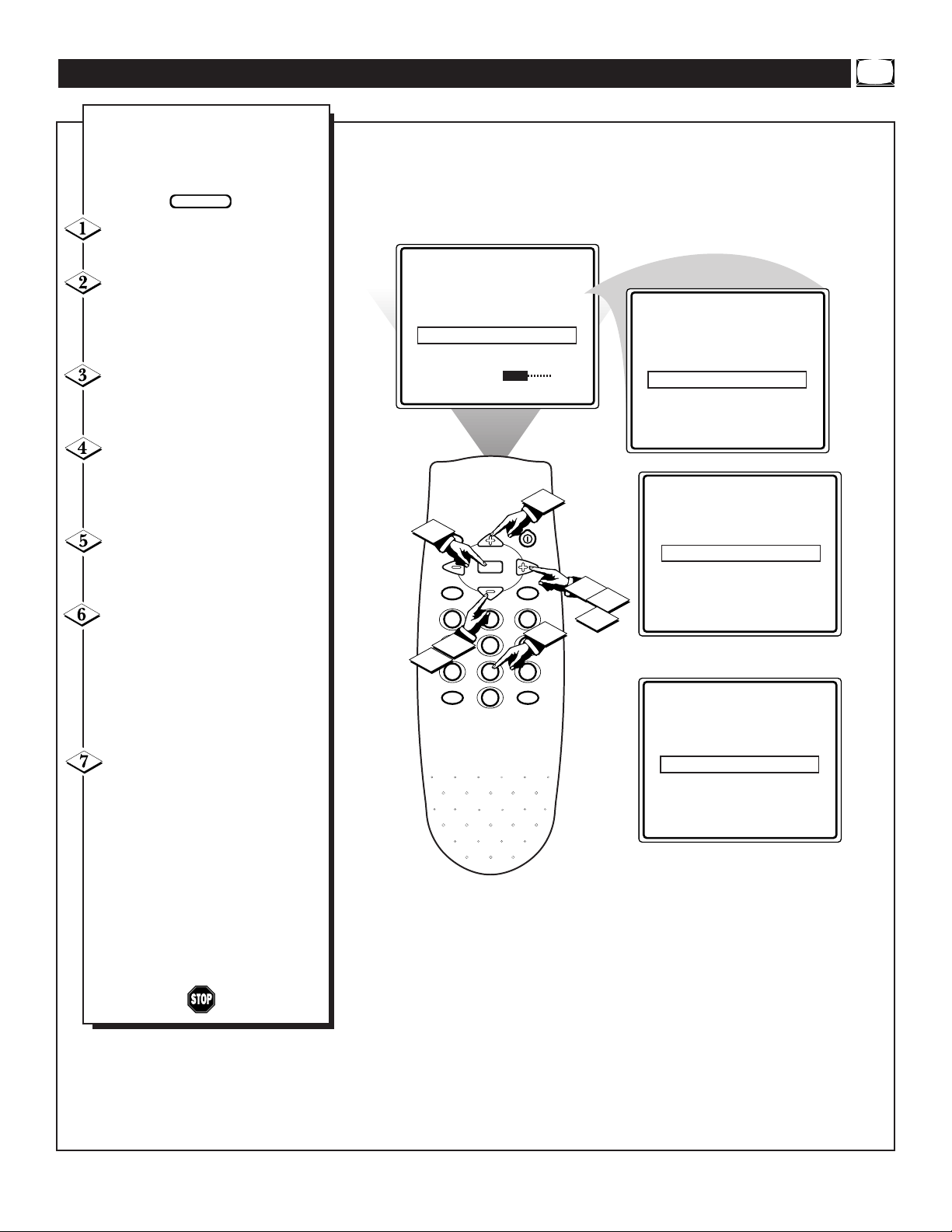

Press the MENU button on the
remote to show the onscreen menu.
Press the CURSOR UP ▲ or
DOWN buttons to scroll through
the onscreen menu until the word
SETUP is highlighted.
Press the CURSOR RIGHT ©
button to display the SETUP menu
features.
Press CURSOR UP or
DOWN buttons to scroll the Setup features until the word LAN­GUAGE is highlighted.
Press the CURSOR RIGHT © button repeatedly to select ENG­LISH, ESPANOL (Spanish), or FRANCAIS (French).
USING THE LANGUAGE CONTROL
BEGIN
Remember: The Language
control only makes the TV’s onscreen MENU items appear in English, Spanish, or French text.
It does not change the other onscreen text features such as Closed Caption (CC) TV shows.
The onscreen menu will time out and disappear from the screen when you finish, or you can press the STA­TUS/EXIT button to clear the menu from the screen.
SMART HELP
Loading...
+ 22 hidden pages
