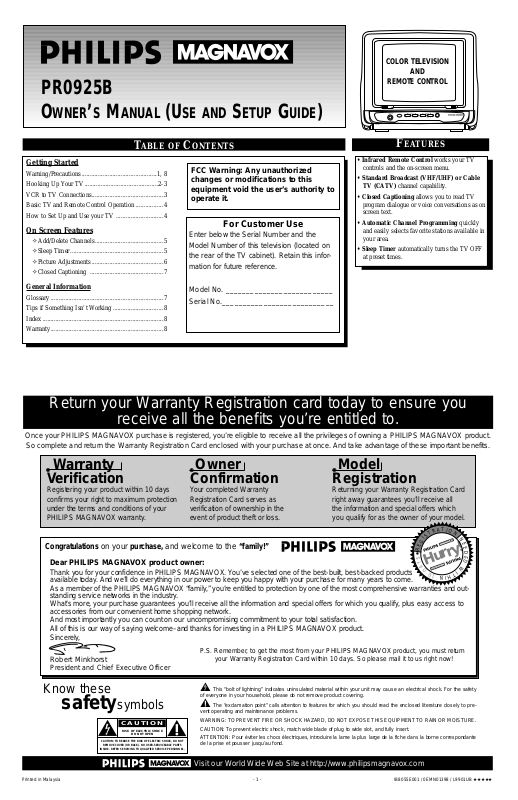

Philips PR0925B User Manual

T

ABLE OF CONTENTS

COLOR TELEVISION

AND

REMOTE CONTROL

PR0925B
OWNER’S MANUAL (USE AND SETUP GUIDE)

FEATURES

• Infrared Remote Control works your TV

controls and the on-screen menu.

• Standard Broadcast (VHF/UHF) or Cable
TV (CATV) channel capability.

• Closed Captioning allows you to read TV

program dialogue or voice conversations as on
screen text.

• Automatic Channel Programming quickly
and easily selects favorite stations available in
your area.

• Sleep Timer automatically turns the TV OFF
at preset times.

Getting Started

Warning/Precautions..............................................1, 8

Hooking Up Your TV .............................................2-3

VCR to TV Connections............................................3

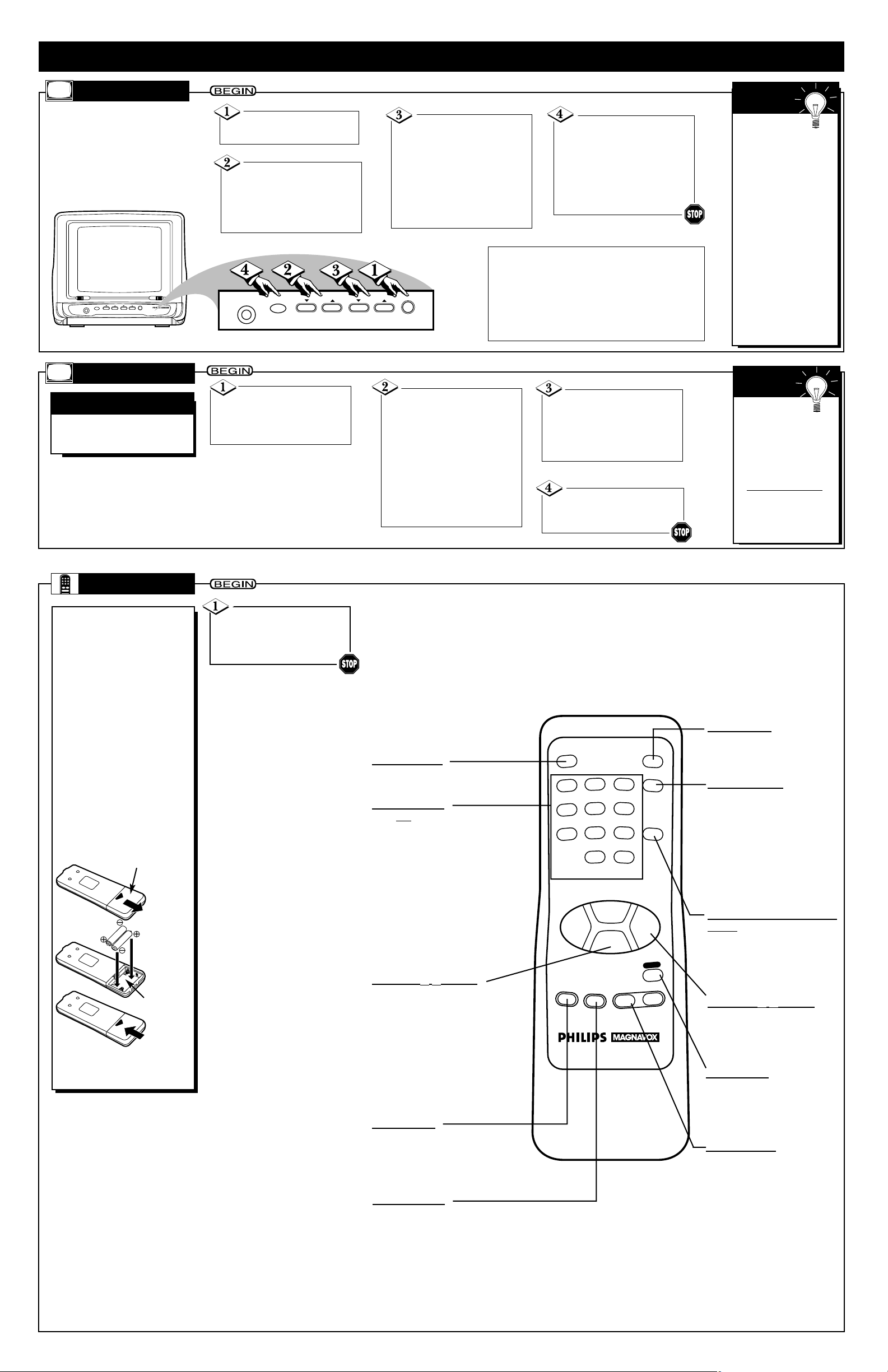

Basic TV and Remote Control Operation .................4

How to Set Up and Use your TV .............................4

On Screen Features

✧Add/Delete Channels..........................................5

✧Sleep Timer.........................................................5

✧Picture Adjustments............................................6

✧Closed Captioning .............................................7

General Information

Glossary .....................................................................7

Tips if Something Isn’t Working...............................8

Index ..........................................................................8

Warranty.....................................................................8

For Customer Use

Enter below the Serial Number and the
Model Number of this television (located on
the rear of the TV cabinet). Retain this infor­mation for future reference.

Model No. __________________________
Serial No.___________________________

Printed in Malaysia - 1 - IB8055E001 / 0EMN01398 / L9901UB ★★★★★

FCC Warning: Any unauthorized
changes or modifications to this
equipment void the user’s authority to
operate it.

Once your PHILIPS MAGNAVOX purchase is registered, you’re eligible to receive all the privileges of owning a PHILIPS MAGNAVOX product.

So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

Return your Warranty Registration card today to ensure you

receive all the benefits you’re entitled to.

Congratulations

on your

purchase,

and welcome to the

“family!”

Dear PHILIPS MAGNAVOX product owner:

Thank you for your confidence in PHILIPS MAGNAVOX. You’ve selected one of the best-built, best-backed products
available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS MAGNAVOX “family,” you’re entitled to protection by one of the most comprehensive warranties and out­standing service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to
accessories from our convenient home shopping network.

And most importantly you can count on our uncompromising commitment to your total satisfaction.
All of this is our way of saying welcome–and thanks for investing in a PHILIPS MAGNAVOX product.

Sincerely ,

Robert Minkhorst

President and Chief Executive Officer

Know these

safetysymbols

t This “bolt of lightning” indicates uninsulated material within your unit may cause an electrical shock. For the safety

of everyone in your household, please do not remove product covering.

s The “exclamation point” calls attention to features for which you should read the enclosed literature closely to pre-

vent operating and maintenance problems.
WARNING: TO PREVENTFIRE OR SHOCK HAZARD, DO NOTEXPOSE THIS EQUIPMENT TO RAIN OR MOISTURE.

CAUTION: To prevent electric shock, match wide blade of plug to wide slot, and fully insert.
ATTENTION: Pour éviter les chocs électriques, introduire la lame la plus large de la fiche dans la borne correspondante

de la prise et pousser jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Warranty

Verification

Registering your product within 10 days
confirms your right to maximum protection
under the terms and conditions of your
PHILIPS MAGNAVOX warranty.

Owner

Confirmation

Your completed Warranty
Registration Card serves as
verification of ownership in the
event of product theft or loss.

Model

Registration

Returning your Warranty Registration Card
right away guarantees you’ll receive all
the information and special offers which
you qualify for as the owner of your model.

P.S. Remember, to get the most from your PHILIPS MAGNAVOX product, you must return

your Warranty Registration Card within 10 days. So please mail it to us right now!

R

E

G

I

S

T

R

A

T

I

O

N

N

E

E

D

E

D

W

I

T

H

I

N

1

0

D

A

Y

S

Hurry!

POWER

CHANNEL

EARPHONE

VOLUME

SET

+–

SELECT

MENU

2

1

1

1

1

2

0

1

3

9

4

8

5

7

6

Visit our World Wide Web Site at http://www.philipsmagnavox.com

HOOKING UP YOUR TV (ANTENNA/CABLE CONNECTIONS)

A

combination antenna

or a rod antenna (sup­plied) receives normal
broadcast channels (VHF
2-13 and UHF 14-69).
Your connection is easy
since there is only one
75Ω (ohm) ANT(enna)
plug on the back of your
TV - and that’s where the
antenna goes.

A

NTENNA

COMBINATION UHF/VHF

Remember,
be sure to set the
TV for the type sig­nal you've connect­ed (see Channel
Auto Memo, page

4).

To set the TV to
select only the
channel numbers in
your area, see
Channel Auto
Memo on page 4.

SMART

HELP

If you install a rod
antenna (supplied), push the
stem of the antenna into the
antenna hole on the right of
the rear of the TV.
If your antenna has a round
cable (75Ω), then you're
ready to connect it to the TV.

If your antenna has flat twin­lead wire (300Ω), you first
need to attach the antenna
wires to the screws on a 300
to 75Ω adaptor.

Push the round end of the
rod antenna, adaptor, or cable
onto the ANT(enna) plug on
the rear of the TV. If the round

end of the adaptor or cable is
threaded, screw it down tight.

Y

ou may have two sepa-

rate antennas. One
antenna is for VHF chan­nels (2-13) and the other
antenna is for UHF chan­nels (14-69).

For homes with separate
UHF/VHF antennas, you
will need an optional com­biner before you can con­nect the antenna signal to
the TV.

S

EPARATE

UHF/VHF

300 to 75Ω

Adaptor

Combination

VHF/UHF

Antenna

(Outdoor or

Indoor)

Twin
Lead
Wire

Round Cable

75Ω

Back of TV

Back of TV

U/V Combiner

75-300Ω

Adaptor

Outdoor UHF Antenna

(Twin-lead 300Ω)

Outdoor VHF

Antenna

(Twin-lead 300Ω)

Twin
Lead
Wire

Round

Cable

75Ω

Push the round end of the combin­er onto the ANT(enna) plug on the
rear of the TV.

Attach the separate
UHF and VHF antennas to
the correct screws on the
combiner.

Round

End

Outdoor VHF Antenna

(Round 75Ω cable)

- 2 -

To order
any optional acces­sory, contact your
dealer or call the
toll-free accessory
ordering number
(1-800-292-6066).

• UHF/VHF
Combiner:
(SBV1133AO1)

• 75-300Ω
Adaptor:
(SBV1113AO1)

• 300-75Ω
Adaptor:
(4835 218 27003)

SMART

HELP

If you installed a rod
antenna, extend the antenna
and adjust its length, direc­tion, and angle for the clearest
picture.

Rod Antenna

(supplied)

Antenna Hole

Round Cable of

the Rod Antenna

OR

OR

DC 13.2V

AC 120V

UHF

ANT.

OR

75-300

Ω ADAPTOR

VHFV

VHF

300Ω

ANT.

AC 120V

Y

our Cable TV signal
may be a single (75Ω)

cable or it may use a
Cable Converter Box. In
either case, the connection
to the TV is easy.

CABLE TV

CABLE INPUT/CONVERTER

If your Cable TV sig-

nal is a single round cable
(75Ω) then you're ready to
connect to the TV.
If you have a Cable
Converter Box:
Connect the Cable TV signal
to the Cable Signal IN plug
on the Cable Converter Box.

Connect the Cable TV cable to the ANT(enna) plug on the TV.
If you have a Cable Converter Box:
Connect the OUT plug of the Cable Converter Box to the
ANT(enna) plug on the TV using an RF coaxial cable. The cable
may be supplied by the Cable TV company.

Back of TV

Round Cable

75Ω

Cable Converter Box

Remember,
set the TV for the
type signal you’ve
just connected (see
Channel Auto
Memo, page 4).

To select only the
channels on your
Cable system, see
Channel Auto
Memo, page 4. If
you use a Cable
Converter Box, set
the TV to the same
channel as the CH
3/4 switch on the
rear of the Cable
Converter Box.

SMART

HELP

Cable TV Signal

Note to the Cable TV System Installer:

This reminder is provided to call the Cable
TV system installer ’s attention to Article
820-40 of the National Electrical Code,
which provides guidelines for proper
grounding - in particular, specifying that the
cable ground shall be connected to the
grounding system of the building, as close
to the point of cable entry as possible.

HOOKING UP YOUR TV (ANTENNA/CABLE CONNECTIONS) (CONT’D)

T

he basic Antenna /

Cable to VCR to TV
connection is shown here.
For more information on
other hookups (with Cable
Converter Boxes or
Descrambler Boxes), refer
to your VCR or Cable
Converter Box Owner's
Manual.

VCR TO TV

BASIC CONNECTION

Connect your
Antenna or Cable signal to
the IN FROM ANT(enna)
plug on the VCR.

Connect the OUT TO TV
plug on the VCR to the
ANT(enna) plug on the TV
using the RF coaxial cable
supplied with the VCR.

Round Cable

75Ω Supplied

with VCR

Outdoor

VHF/UHF

Antenna

300 to 75Ω

Adaptor

Cable TV signal

Back of TV

Refer to the VCR Owner's
Manual for other connections
and for TV/VCR operating
details.

VCR

F

ollow these instruc­tions to connect the

TV to an AC wall outlet.

POWER CORD CONNECTION

Connect the AC cord
to the AC 120V jack on the
back of the TV.

- 3 -

Plug in the power cord

at the wall outlet.

AC CORD CONNECTION

U

sually, the supplied

indoor rod antenna
provides adequate recep­tion. But when you want
to watch TV outdoors or in
a vehicle, use a mobile
antenna (not supplied) or
an indoor dipole antenna
(not supplied) and a car
battery cord (supplied) to
get good reception. Before
beginning, read the tips on
page 8.

Refer to the Owner's

Manual included with your

mobile antenna to make a con­nection similar to this one.

MOBILE CONNECTION

Remember,
use only the sup­plied car battery
cord.

Make sure the ciga­rette lighter jack is
free of ashes and
other debris.

Make sure you push
the car battery
cord’s plug com­pletely into the cig­arette lighter jack.

SMART

H

ELP

If both the
car battery cord and
the AC cord are
connected, standard
electrical power
may be unavailable.
Disconnect the car
battery cord and the
AC cord from the
TV and leave the
TV alone for at
least 10 minutes.
Reconnect only the
AC power cord,
then turn on the TV.

SMART

H

ELP

ANT.

AC 120V

ANT.

Mobile Antenna

(not supplied)

To the
Vehicle’s
Cigarette

Lighter jack

Car battery cord

(supplied)

Back of TV

Make sure your vehicle
has a 13.2-volt, negative
ground electrical system.
Connect one end of the car
battery cord to the DC 13.2V
jack on the back of the TV.
Then connect the other end of
the car battery cord to the
cigarette lighter jack in your
vehicle.

IN FROM ANT.

OUT TO TV

OR

IN

OUT

DC 13.2V

ANT.

AC 120V

DC 13.2V

ANT.

AC 120V

AC 120V

ANT.

AC 120V

2

1
