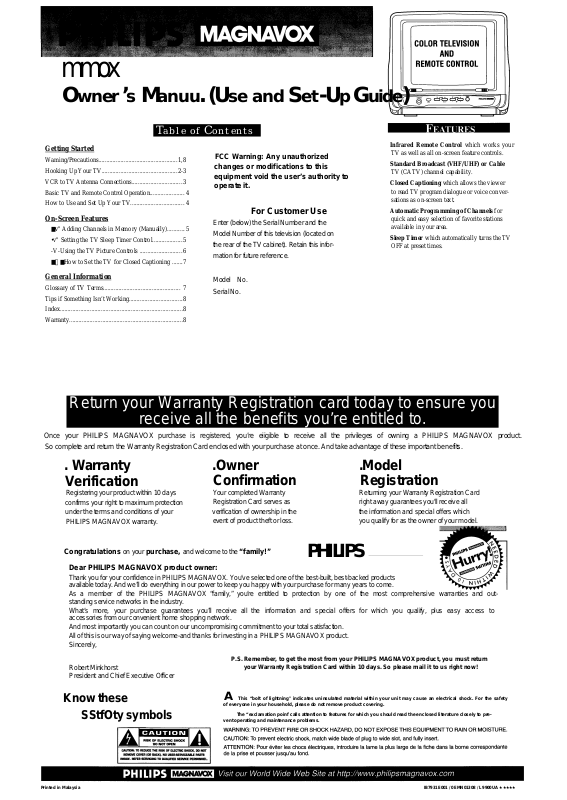

Philips PR 0920X User Manual

mmox

Owner’s Manuu. (Use and Set-Up Guide)

Table of Contents

Getting Started

Waming/Precautions..................................................1,8

Hooking Up Your TV................................................2-3

VCR to TV Antenna Connections Basic TV and Remote Control Operation How to Use and Set Up Your TV

On-Screen Features

■v" Adding Channels in Memory (Manually)

•v" Setting the TV Sleep Timer Control

-V-Using the TV Picture Controls

■❖ ■How to Set the TV for Closed Captioning .......7

General Information

Glossary of TV Terms Tips if Something Isn’t Working

Index..............................................................................8

Warranty........................................................................8

.................................................

................................

......................

..................................

...........

...................

...........................

..................................

Infrared Remote Control which works your

FCC Warning: Any unauthorized changes or modifications to this

4 4

equipment void the user’s authority to operate it.

For Customer Use

5 5 6

Enter (below) the Serial Number and the Model Number of this television (located on

the rear of the TV cabinet). Retain this infor

mation for future reference.

Model No.

Serial No.

TV as well as all on-screen feature controls.

Standard Broadcast (VHF/UHF) or Cable

TV (CATV) channel capability.

Closed Captioning which allows the viewer

to read TV program dialogue or voice conver sations as on-screen text.

Automatic Programming of Channels for

quick and easy selection of favorite stations available in your area.

Sleep Timer which automatically turns the TV

OFF at preset times.

Return your Warranty Registration card today to ensure you

receive all the benefits you’re entitled to.

Once your PHILIPS MAGNAVOX purchase is registered, you’re eiigible to receive all the privileges of owning a PHILIPS MAGNAVOX product.

So complete and return the Warranty Registration Card enclosed with your purchase at once. And take advantage of these important benefits.

. Warranty

Verification

Registering your product within 10 days confirms your right to maximum protection under the terms and conditions of your PHILIPS MAGNAVOX warranty.

Congratulations on your purchase, and welcome to the “family!”

Dear PHILIPS MAGNAVOX product owner:

Thank you for your confidence in PHILIPS MAGNAVOX. You’ve selected one of the best-built, best-backed products available today. And we’ll do everything in our power to keep you happy with your purchase for many years to come.

As a member of the PHILIPS MAGNAVOX “family,” you’re entitled to protection by one of the most comprehensive warranties and out standing service networks in the industry.

What’s more, your purchase guarantees you’ll receive all the information and special offers for which you qualify, plus easy access to accessories from our convenient home shopping network.

And most importantly you can count on our uncompromising commitment to your total satisfaction. All of this is our way of saying welcome-and thanks for investing in a PHILIPS MAGNAVOX product. Sincerely,

.Owner Confirmation

Your completed Warranty Registration Card serves as verification of ownership in the event of product theft or loss.

PHILIPS

.Model

Registration

Returning your Warranty Registration Card

right away guarantees you'll receive all the information and special offers which you qualify for as the owner of your model.

MAGNAVOX

P.S. Remember, to get the most from your PHILIPS MAGNAVOX product, you must return

Robert Minkhorst President and Chief Executive Officer

Know these

SStfOty symbols

Printed in Malaysia IB7931E001 / 0EMN01308 / L9900UA ★ ★ ★ ★ ★

your Warranty Registration Card within 10 days. So please mail it to us right now!

This “bolt of lightning" indicates uninsulated material within your unit may cause an electrical shock. For the safety

of everyone in your household, please do not remove product covering.

The “exclamation poinf calls attention to features for which you should read the enclosed literature closely to pre

vent operating and maintenance problems.

Hooking Up Your TV (Antenna/Cable Connections)

Antenna

CoMBiN V I ION I HFA HF

combination antenna

or a rod antenna (sup

plied) receives normal

broadcast channels (VHF 2-13 and UHF 14-69).

Your connection is easy

since there is only one

75Q (ohm) ANT(enna)

plug on the back of your

TV - and that’s where the

antenna goes.

|—CBEGIN>

■<i>

If you install a rod

antenna (supplied), push the

stem of the antenna into the antenna hole on either the right or the bottom of the TV.

If your antenna has a round cable (75 ohm) on the end,

then you’re ready to connect it to the TV.

K your antenna has flat twinlead wire (300 ohm), you first

need to attach the antenna wires to the screws on a 300 to 75 ohm adapter.

<l>

Push the round end of the

round cable of the rod antenna, adapter, or cable onto the ANT(enna) plug on the rear of the TV. If the round end of the adapter or cable is threaded, screw it down tight.

<l>

If you installed a rod

antenna, extend the antenna

and adjust its length, direction, and angle for the clearest pic ture.

BDHQb

' Remember, g *

be sure to set the TV for the type sig nal you've connect ed (see page 4).

To set the TV to select only the channel numbers in your area, see “Channel Auto Memo” on page 4.

If you install the TV beneath a kitchen cabinet, you may push a rod

antenna into the antenna hole on the

bottom of the TV

(see page 3).

Combination

VHF/UHF

Antenna

(Outdoor or

Indoor)

Round Cable

75Q

■2 -

Hooking Up Your TV (Antenna/Cable Connections) (Cont’d)

VCR TO TV

Basic Conneci ion

'he basic Antenna /

Cable to VCR to TV

connection is shown here. For more information on other hookups (with Cable

Converter Boxes or Descrambler Boxes), refer to your VCR or Cable Converter Box Owner's Manual.

Cable TV

Cahee Inpi t/Converi er

'our Cable TV signal

into your home may be a single (75 ohm) cable or a Cable Converter Box installation. In either case, the connection to the TV is very easy.

Note to the Cable TV System Installer: This reminder is provided to call the Cable TV system installer’s attention to Article 820-40 of the National Electrical Code, which provides guidelines for proper grounding - in particular, specifying that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as possible.

I—

Connect your Antenna or Cable signal to the IN FROM ANT(enna)

plug on the VCR.

Outdoor VHF/UHF

Antenna

-- - --

CBEGINI-

your Cable TV sig

nal is a single round cable (75

ohm) then you're ready to con nect to the TV.

If you have a Cable Converter Box:

Connect the Cable TV signal to the Cable Signal IN(put) plug on the Cable Converter Box.

<l>,

300 to 750 Adapter

Cable TV Signal

Connect the OUT TO TV plug on the VCR to the ANT(enna) plug on the TV

(connecting cable supplied with the VCR).

<l>

Connect the Cable TV

cable to the ANT(enna) plug on the TV.

If you have a Cable Converter Box:

Connect the OUT(put) plug of the Cable Converter Box to the ANT(enna) plug on the TV.

---------------------------------------------------------^

Cable Converter Box

Round Cable 75S2

(Supplied by

Company)

Cable TV

Refer to the Ovmer's

Manual included with your

VCR for other possible con nections and TVA^CR operat ing details.

Back of TV

Round Cable

750 Supplied with

VCR

NOTE: The connecting cable for the Cable Converter Box is sup plied by the Cable TV company.

Back of TV

Remember, _ set the TV for the type signal you've

just connected (see

page 4).

To select only the channels on your Cable system, see “Channel Auto Memo" (page 4). If you use a Cable Converter Box, set the TV to the same channel as the con verter's CH 3/4 switch (on the rear of the Cable

Converter Box).

Cabinet Installation / Installation sur un Meuble

CaRIM T InSTAEEATION

InSTAEI, AflON SER I N Mi l BEE

Tfhllow the instructions M below to install the TV beneath a kitchen cabinet. But, before beginning, review the tips on page 8.

Çtuivre les instructions kJ ci-dessous pour installer

le téléviseur en-dessous d’un meuble de cuisine. Mais avant de commencer, revoir

les conseils de la page 8.

5 mm X 40 mm

(^pçiiN)

Drill six 1/4-inch holes through the underside of the cabinet using the six cir

cles on the swivel base (sup plied) as guides.

Percer six trous de 1/4 de pouce dans le dessous du meuble en se guidant à l’aide

des six cercles sur la base pivotante (fournie).

CAUTION: To reduce the risk of fire, do not place any heating or cooking appliances beneath this unit.

Attach the swivel base to

tbe cabinet using six of each

of the following: screws, wash ers, and hexagonal nuts (sup plied).

Fixer la base pivotante au meuble à l’aide des six vis,

rondelles et écrous hexagonaux (fournis).

<s>

Slide the TV onto the hook on the swivel base and push it backward until the TV locks into place.

Faire glisser le téléviseur sur le crochet de la hase pivotante et le repousser jusqu’à ce que le téléviseur se verrouille en place.

Secure the TV to the

swivel base using two 4 mm

X 18 mm screws (supplied).

Fixer le téléviseur sur la base pivotante à l’aide de

deux vis de 4 mm x 18 mm (fournies).

Wire Tie (Attache-câble)

Make sure ^ the area directly beneath the TV is not used for cook ing and does not contain an appli ance that generates heat or steam.

Veiller à ce que la zone directement en-dessous du téléviseur ne soit pas utilisée pour cuire et ne contienne pas d’appareils générateurs de chaleur ou de vapeur.

ATTENTION: afin de réduire les risques d’incendie, ne placer aucun appareil chauffant ou de cuisson en-dessous de cette unité.

Note: Screws that are too short will not screw far enough into the nuts to securely hold the TV. Screws that are too long will protrude below the base of the cabinet and may scratch the TV when it is swiveled.

Remarque: des vis trop courtes ne se visseront pas suffisamment profondément dans les écrous pour maintenir le téléviseur en toute sécurité. Des vis trop longues dépasseront de la base du meuble et pourront rayer le téléviseur lorsque il pivotera.

-3-

Power Cord (Cordon d’alimentation)

Route and arrange the excess AC cord so that it will not drape where it can be pulled on or tripped over unintentionally, as illustrated.

Acheminer et arranger le cordon CA en excès de telle sorte qu’il ne puisse pas s’enrouler ou être tiré et qu’il ne présente pas d’obstacle, comme montré dans l’illustration.
