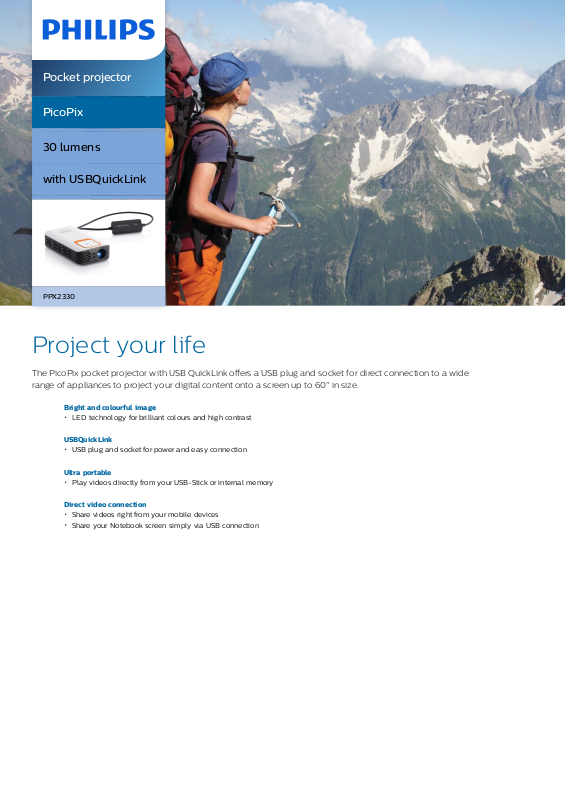

Page 1
Pocket projector
PicoPix
30 lumens
with USBQuickLink
PPX2330
Project your life
The PicoPix pocket projector with USB QuickLink offers a USB plug and socket for direct connection to a wide
range of appliances to project your digital content onto a screen up to 60" in size.
Bright and colourful image
LED technology for brilliant colours and high contrast
USBQuickLink
USB plug and socket for power and easy connection
Ultra portable
Play videos directly from your USB-Stick or internal memory
Direct video connection
Share videos right from your mobile devices
Share your Notebook screen simply via USB connection
Page 2
Pocket projector
PPX2330/EU
Specifications Highlights
Technology/optical
Display technology: DLP
Light source: RGB LED
LED light source lasts over: 30.000 hours
Brightness: up to 30 lumens
Native resolution: 640 x 360 pixels
Contrast ratio: 1500:1
Colour temperature: 6500 Kelvin
Throw ratio: 1.6:1
Screen size (diagonal): 25.4 cm–152.4 cm
Screen distance: 0.354 m–2.125 m
Focus: manual
Internal memory: 2 GB
Integrated MP4 player
Direct link to smartphone: via USB
Supported video standards
PAL
SECAM
NTSC
Sound
Internal speaker: 1 W
Connection
Output audio: 3.5 mm audio out jack for
headphones
External Memory: micro SD/SDHC
USB: slave — mass storage device (x-change
data with PC); slave — video streaming;
master — connect mass storage device;
charging
AV in: share the jack with audio out
Internal media player
Supported video formats: .avi: MPEG-4; H.264;
M-JPEG/.mov: MPEG-4; H.264/.mp4: MPEG-4;
H.264/.mkv: MPEG-4; H.264; M-
JPEG/.ts: H.264/.rm: RV3; RV4/.rmvb: RV3; RV4
Supported audio formats: MP3, WAV
Supported photo formats: JPEG, BMP
Power Supply
Battery life: Standard mode: 2 hours; Bright
mode: 1.5 hours; LE D indicator: battery charge
Internal battery: 3.7 V @ 2600 mAh
Dimensions
Packed (W x D x H): 130 x 90 x 70 mm
Unpacked: 96.7 x 54 x 22 mm
Weight
Packed: 246 g
Unpacked: 0.130 kg
Temperature range
Operation: 5–40° C
Storage packed: -25–60° C
Storage unpacked: 0–45° C
Relative humidity
Operation: 15–85% RH
Storage packed: 5–93% RH
Storage unpacked: 15–85% RH
Standard package includes
User guide: on internal memory, Internet
Warranty card
Carrying case
Quick start guide
PPX2330
Accessories
PPA6200 power adapter 5 V/2 A: optional
LED-Technology
Your pictures and videos deserve the best
quality when it comes to sharing them with
those around you. This is why the PicoPix
pocket projector uses high quality LE D
technology to project your pictures and videos
in brilliant colours and breathtaking contrast.
Direct Video connection
Connect your mobile devices and project all
your content directly with your PicoPix on a
big screen.
Integrated MP4 Media player
The integrated MP4 Media player supports all
common video and audio formats. This makes
the PicoPix pocket projector a standalone
device, retrieving i ts content from the internal
2 GB memory, USB stick or a mi cro SD card.
USBQuickLink
For those who want to share content directly
from their camera, smartphone or USB Stick,
the USBQuickLink is the easiest connection to
all these devices. When on-the-go, just stick
the USB plug and socket together and use the
USBQuickLink as a handle.
Video Streaming
Share your Notebook screen showing your
Media- or Web content, like YouTube videos or
Party pics, with those around you. Just
connect your PicoPix to the PC or Notebook
via USB and start projecting.
© 20 19 Koninklijke Philips N.V.
All Right s reserved.
Specifications are subject to change
without notice. Trademarks are the
property of Koninklijke Philips N.V. or
their respective owners.
Issue date 2019‑10 ‑24
Version: 2.1.1
12 NC: 8670 000 92396
EAN: 34 2 5160 30 801 3
