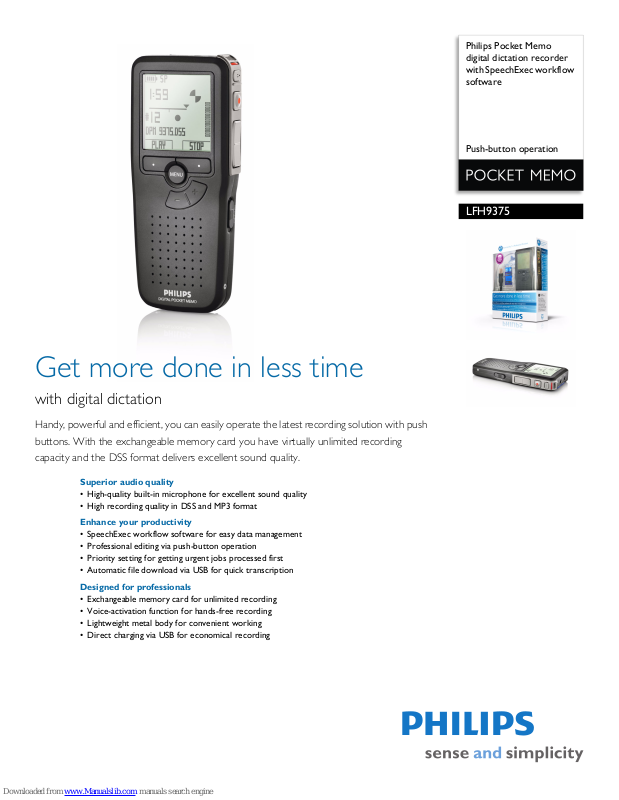

Page 1
Philips Pocket Memo
digital dictation recorder
with SpeechExec workflow
software
Push-button operation
LFH9375
Get more done in less time
with digital dictation
Handy, powerful and efficient, you can easily operate the latest recording solution with push
buttons. With the exchangeable memory card you have virtually unlimited recording
capacity and the DSS format delivers excellent sound quality.
Superior audio quality
• High-quality built-in microphone for excellent sound quality
• High recording quality in DSS and MP3 format
Enhance your productivity
• SpeechExec workflow software for easy data management
• Professional editing via push-button operation
• Priority setting for getting urgent jobs processed first
• Automatic file download via USB for quick transcription
Designed for professionals
• Exchangeable memory card for unlimited recording
• Voice-activation function for hands-free recording
• Lightweight metal body for convenient working
• Direct charging via USB for economical recording
Page 2
Digital dictation recorder with SpeechExec workflow software
Push-button operation
LFH9375/27
Specifications
Connectivity
• Headphones: 3.5 mm
• Microphone: 3.5 mm
• Line-in
• USB: High-speed USB 2.0
•Memory card slot
Display
•Type: LCD
• Diagonal screen size: 44 mm/1.7 in.
• Backlight: white
Storage media
• Exchangeable memory card
• Memory card types: Secure Digital (SD), Secure
Digital (SDHC)
• Mass storage class compliant
Audio recording
• Recording formats: Digital speech standard (DSS),
MPEG1 layer 3 (MP3)
• Built-in microphone: mono
• Recording modes: XHQ (MP3/stereo), HQ (MP3/
tereo), QP (DSS/mono), SP (DSS/mono)
s
• Bit rate: 13.5 kbps (SP), 27
128 kbps (XHQ)
• Recording time (2 GB card): 349 hours (SP), 170
urs (QP), 72 hours (HQ), 36 hours (XHQ)
ho
• Sample rate: 44.1 (XHQ), 32 kHz (HQ), 16 kHz
(QP), 12
kHz (SP)
Sound
• Speaker type: built-in round dynamic speaker
• Speaker diameter: 30 mm
• Speaker output power: 200 mW
• Frequency response: 300–8,000 (XHQ), 300–8,000
(HQ), 300
–7,000 (QP), 300–5,700 (SP) Hz
Convenience
• Professional editing functions
• Multiple language support: 5 languages (EN, FR, DE,
T)
ES, I
•2 smart buttons
• Author ID setting
• Control via push buttons
kbps (QP), 64 kbps (HQ),
• File lock
• One-thumb operation
• Priority setting
• Voice-activated recording
• Automatic software updates
Power
• Battery type: AAA/LR03 Alkaline, Philips AAA NiMH LFH9154
• Number of batteries: 2
• Rechargeable: yes, via USB
• Battery lifetime: up to 23 hours in SP recording
mode
• Batteries included: rechargeable
System requirements
• Processor: Pentium IV 1GHz recommended
• RAM memory: 1 GB (2 GB recommended)
• Hard disk space: 100 MB for SpeechExec, 850 MB for
icrosoft .NET 4
M
• Headphone output or speakers
• Operating system: Windows 7 (32/64-bit), Windows
a (32/64-bit), Windows XP (32 bit)
Vist
• Free USB port
•DVD-ROM drive
• Graphics card: DirectX-compliant graphics card
hardware acceleration recommended
with
• Sound device: Windows-c
ompatible sound device
Green specifications
• Compliant to 2002/95/EC (RoHS)
• Lead-free soldered product
Accessories
• SpeechExec Dictate software
•USB cable
• Secure Digital memory card
•Pouch
• 2 × AAA Ni-MH batteries
• Quick start guide
Design and finishing
• Color(s): black aluminum
• Material: full metal body
•
Highlights
Exchangeable memory card
Virtually unlimited recording capacity thanks to an
exchangeable memory card.
Voice-activation function
Voice-activated recording is a convenience feature for
hands-free recording. When enabled, recording will
start automatically when you start speaking. Recording
stop automatically after you stop speaking and restart
automatically when you start speaking again.
Automatic download via USB
When plugged in, the Digital Pocket Memo
automatically downloads your audio files directly onto
the computer.
DSS and MP3 recording
The DSS format was developed for use in digital voice
recorders, allowing a high compression ratio with little
loss of quality. The DSS format also allows you to
store additional information in the file header, which
facilitates the organization and the transcription of
dictation files. The MP3 format is the common audio
format for consumer audio storage, as well as a de
facto standard encoding for the transfer and playback
of music on digital audio players.
High-quality microphone
The high-quality microphone delivers increased
recording sensitivty and excellent sound quality.
Lightweight metal body
The ergonomically shaped light weigt metal body is
ideal for convenient working over longer periods of
time.
Priority setting
With the included priority setting option, urgent
recordings get processed first.
Professional editing functions
Easy and fast file editing (insert, overwrite, append) via
convenient push-button operation.
SpeechExec workflow software
SpeechExec sends your recordings to your assistant
for transcription and allows you to monitor the status
of your work.
Issue date 2011-01-06
Version: 2.0.6
12 NC: 8735 937 52711
UPC: 6 09585 19343 7
© 2011 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject t
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
o change without notice.
Direct charging via USB
Help protect the environment by simply recharging
the batteries of your device using USB instead of
buying new batteries.
