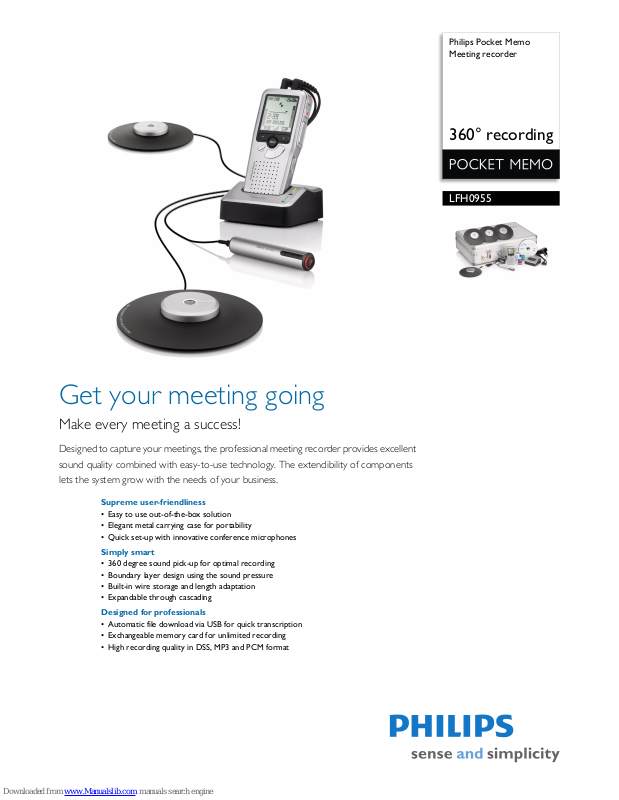

Philips Pocket Memo
Meeting recorder
360° recording
LFH0955
Get your meeting going
Make every meeting a success!
Designed to capture your meetings, the professional meeting recorder provides excellent
sound quality combined with easy-to-use technology. The extendibility of components
lets the system grow with the needs of your business.
Supreme user-friendliness
• Easy to use out-of-the-box solution
• Elegant metal carrying case for portability
• Quick set-up with innovative conference microphones
Simply smart
• 360 degree sound pick-up for optimal recording
• Boundary layer design using the sound pressure
• Built-in wire storage and length adaptation
• Expandable through cascading
Designed for professionals
• Automatic file download via USB for quick transcription
• Exchangeable memory card for unlimited recording
• High recording quality in DSS, MP3 and PCM format
Page 2
Issue date 2010-12-17
Version: 1.1.2
12 NC: 8735 095 51011
UPC: 6 05342 03330 5
© 2010 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
Specifications
LFH0955/10
Meeting recorder
360° recording
Highlights
Out-of-the-box solution
The professional meeting recorder delivers excellent
sound quality combined with easy-to-use technology
right out of the box.
Quick set-up
Quick, easy and convenient set up with the
innovative conference microphones.
DSS, PCM and MP3 recording
The DSS format was developed for use in digital
voice recorders, permitting a high compression ratio
with little loss of quality while enabling you to store
additional information in the file header. The PCM
format allows stereo recording in CD-like audio
quality and the MP3 format is the common audio
format for consumer audio storage, as well as a de
facto standard encoding for the transfer and playback
of music on digital audio players.
Exchangeable memory card
Virtually unlimited recording capacity thanks to an
exchangeable memory card.
360 degree sound pick-up
Sound pick-up from a 360 degree radius for a perfect
recording experience.
Boundary layer design
The innovative boundary layer design of the
conference microphones uses the sound pressure of
the table to provide excellent sound and recording
quality.
Expandable through cascading
Cascading allows for maximum expandability.
Built-in wire storage
The innovative conference microphone offers builtin wire storage and length adaption for a clean and
tidy conference table.
Automatic download via USB
When plugged in, the Digital Pocket Memo
automatically downloads your audio files directly
onto the computer.
Elegant metal carrying case
The elegant metal carrying case guarantees highest
mobility and safe transportation.
What is included?
• Meeting microphones: 4
• USB docking station
• Click-on interview microphone
• Pocket Memo meeting recorder
Connectivity
• Headphones: 3.5 mm
• Microphone: 3.5 mm
•USB: High-speed USB 2.0
• Docking connector
•Memory card slot
Display
•Type: LCD
• Diagonal screen size: 44 mm/1.7 in.
• Backlight: white
Storage media
• Exchangeable memory card
• Memory card types: Secure Digital (SD), Secure
Digital (SDHC)
• Mass storage class compliant
Audio recording
• Recording formats: Digital speech standard (DSS),
MPEG1 layer 3 (MP3), PCM (WAV)
• Built-in microphone: mono
• Recording modes: PCM (WAV/stereo), XHQ
(MP3/s
tereo), HQ (MP3/stereo), QP (DSS/mono),
SP (DSS/mono)
• Bit rate: 13.5, 27, 64, 128, 1411 kbps
• Recording time (2 GB card): 349 hours (SP), 170
ho
urs (QP), 72 hours (HQ), 36 hours (XHQ)
• Sample rate: 44.1 kHz (PCM/SHQ), 32 kHz (HQ),
16
kHz (QP), 12 kHz (SP)
Sound
• Speaker type: built-in round dynamic speaker
• Speaker diameter: 30 mm
• Speaker output power: 200 mW
• Frequency response: 300–8,000 / 50–20,000
(PCM/
XHQ), 300–8,000 / 50–15,500 (HQ), 300–
7,000 (QP), 300–5,700 (SP) Hz
Meeting microphone
• Design: boundary layer microphone
• Type: electret condenser microphone
• Impedance: approx. 2.2 kOhm @ 1 kHz
• Sensitivity: -38 dBV
• Frequency response: 30–18,000 Hz
• Phantom supply voltage: 1.5–5 V/0.5 mA
• Connector: 3.5 mm
• Audio jack (for cascading): 3.5 mm
• Cable length: 2 m/6.5 ft.
• Product dimensions (W x D x H): 13 × 13 × 1.8
cm
/5.1 × 5.1 × 0.7 in.
• Net weight: 0.108 kg/0.238 lb.
Clip-on interview microphone
• Connector: 3.5 mm
• Type: electret condenser microphone
• Impedance: approx. 2.2 kOhm @ 1 kHz
• Sensitivity: -42 dBV
• Frequency response: 40–18,000 Hz
• Phantom supply voltage: 1.5–5 V/0.5mA per
ch
annel
Convenience
• Expandable through cascading
• 360 degree sound pick-up
• Control via remote control
• USB powered recording
• Multiple language support: 4 languages
• Author ID setting
• File lock
• Priority setting
• Exchangeable memory card
• Voice-activated recording
• Automatic software updates
Power
• Battery type: AAA/LR03 Alkaline, Philips AAA NiMH LFH9154
• Number of batteries: 2
• Rechargeable: yes, via USB
• Battery lifetime: up to 23
hours in SP recording
mode
• Batteries included: rechargeable
System requirements
• Processor: Pentium III 500 Mhz, Pentium IV 1GHz
recommended
• RAM memory: 256 MB (1 GB recommended)
• Hard disk space: 100 MB for SpeechExec, 250MB
fo
r Microsoft .NET
• Headphone output or speakers
• Operating system: Windows 7/Vista/XP
• Free USB port
•DVD-ROM drive
•Sound card
Green specifications
• Compliant to 2002/95/EC (RoHS)
• Lead-free soldered product
Accessories
• 4 meeting microphones
• SpeechExec Dictate software
• Click-on interview microphone
•Remote control
• Metal carry case
•USB cable
• Power supply
• Splitter cable
• Secure Digital memory card
•USB dock
• 2 × AAA Ni-MH batteries
•Quick start guide
•User manual
Design and finishing
• Color(s): aluminum
• Material: full metal body
•
