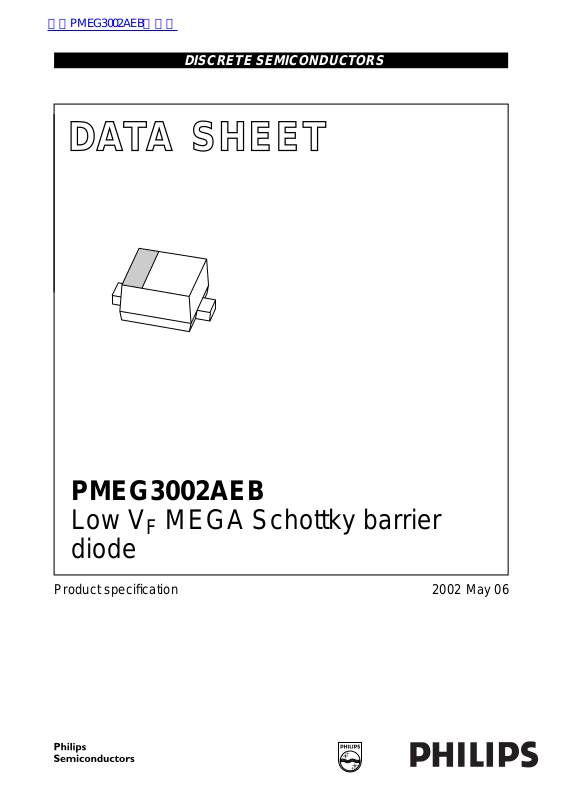

DISCRETE SEMICONDUCTORS
DATA SH EET
PMEG3002AEB
Low V
MEGA Schottky barrier
F
diode
Product specification 2002 May 06
Philips Semiconductors Product specification
Low VF MEGA Schottky barrier diode
FEATURES
Forward current: 0.2 A
Reverse voltage: 30 V
Very low forward voltage
Ultra small SMD package.
APPLICATIONS
Ultra high-speed switching
High efficiency DC/DC conversion
Voltage clamping
Inverse-polarity protection
Low voltage rectification
Low power consumption applications.
DESCRIPTION
Planar Maximum Efficiency General Application (MEGA) Schottky barrier diode with an integrated guard ring for stressprotection,encapsulatedinaSOD523(SC-79)ultra small SMD plastic package.
PMEG3002AEB
PINNING
PIN DESCRIPTION
1 cathode 2 anode
columns
Marking code: B1. The marking bar indicates the cathode.

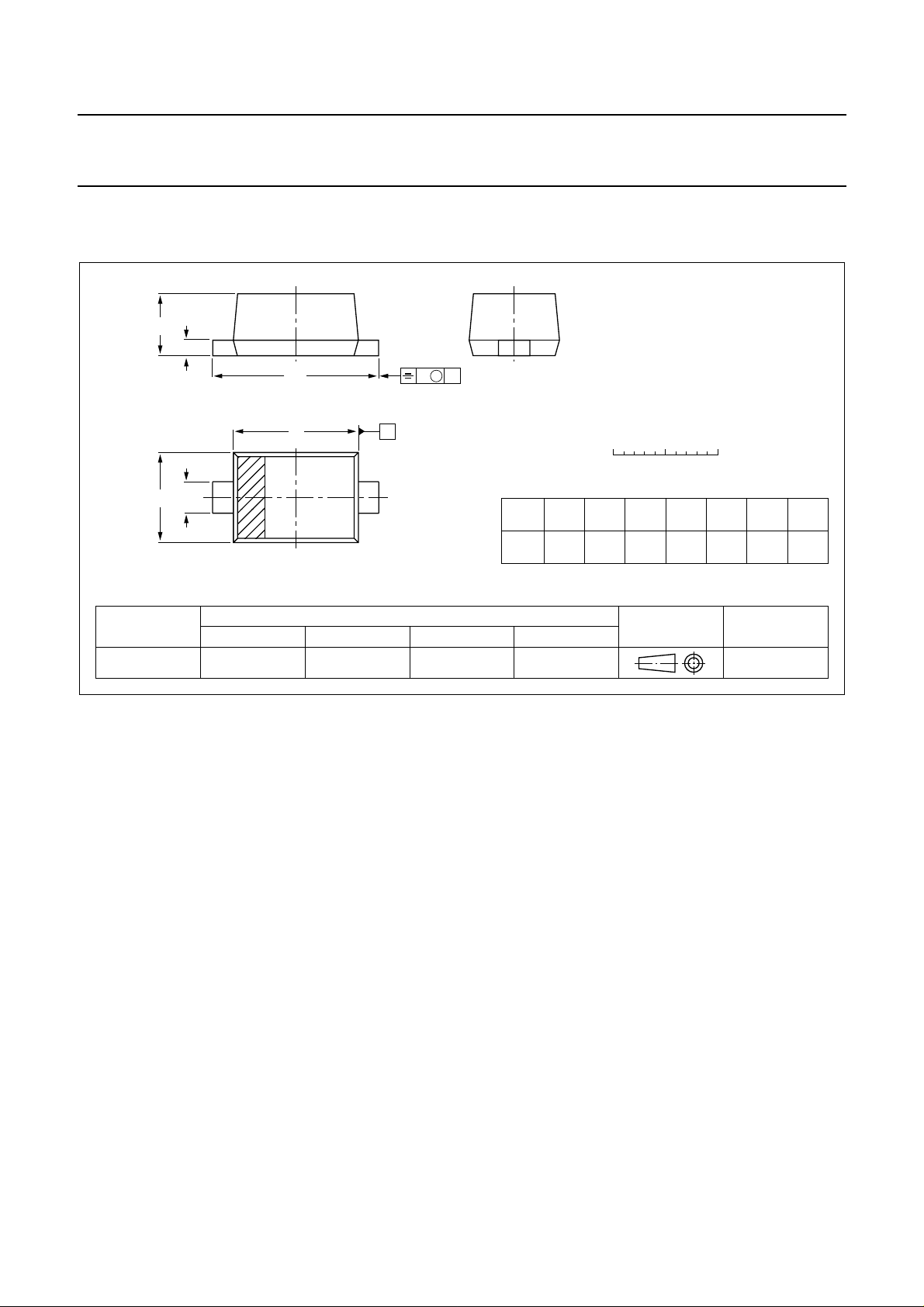

Fig.1 Simplified outline (SOD523; SC-79) and
12
MGU328
symbol.
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
V I
F
I
FRM
I
FSM
R
continuous reverse voltage 30 V continuous forward current 200 mA repetitive peak forward current tp≤ 1s;δ≤0.5 300 mA non-repetitive peak forward current tp= 8.3 ms half sinewave;
1A
JEDEC method
T
stg
T
j
T
amb
storage temperature 65 +150 °C junction temperature 125 °C operating ambient temperature 65 +125 °C
2002 May 06 2
Philips Semiconductors Product specification
Low VF MEGA Schottky barrier diode
PMEG3002AEB
ELECTRICAL CHARACTERISTICS
T
=25°C; unless otherwise specified.
amb
SYMBOL PARAMETER CONDITIONS TYP. MAX. UNIT
V
F
I
R
C
d

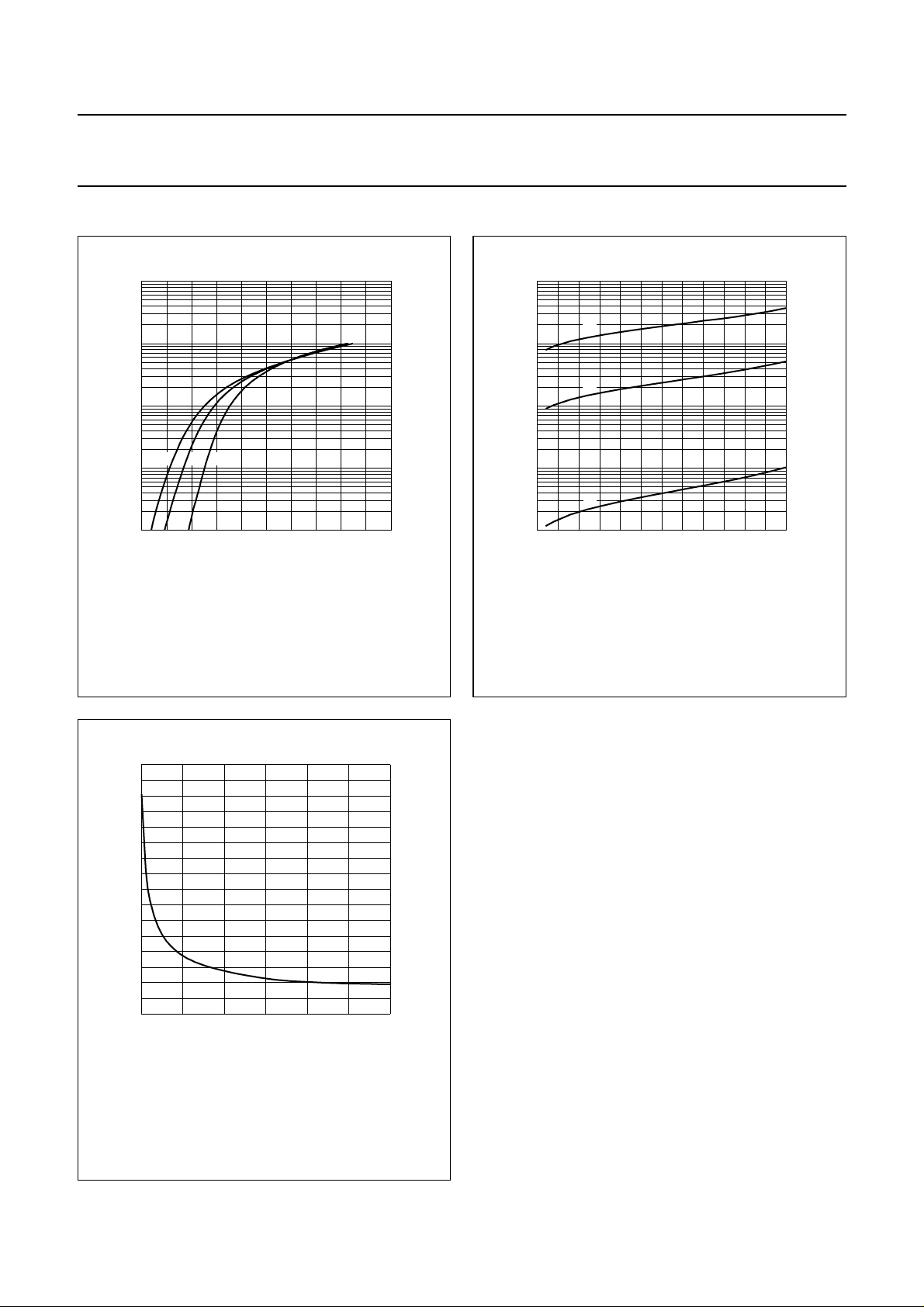

continuous forward voltage see Fig.2
I
= 0.1 mA 130 190 mV
F
I
= 1 mA 190 250 mV
F
= 10 mA 255 300 mV
I
F
I
= 100 mA 355 400 mV
F
= 200 mA 420 480 mV
I
F
continuous reverse current VR= 10 V; see Fig.3; note 1 2.5 10 µA diode capacitance VR= 1 V; f = 1 MHz; see Fig.4 20 25 pF
Note
1. Pulsed test: t
= 300 µs; δ = 0.02.
p
THERMAL CHARACTERISTICS
SYMBOL PARAMETER CONDITIONS VALUE UNIT
R
th j-a
thermal resistance from junction to
note 1 450 K/W
ambient
Note
1. Refer to SOD523 (SC-79) standard mounting conditions.
2002 May 06 3
