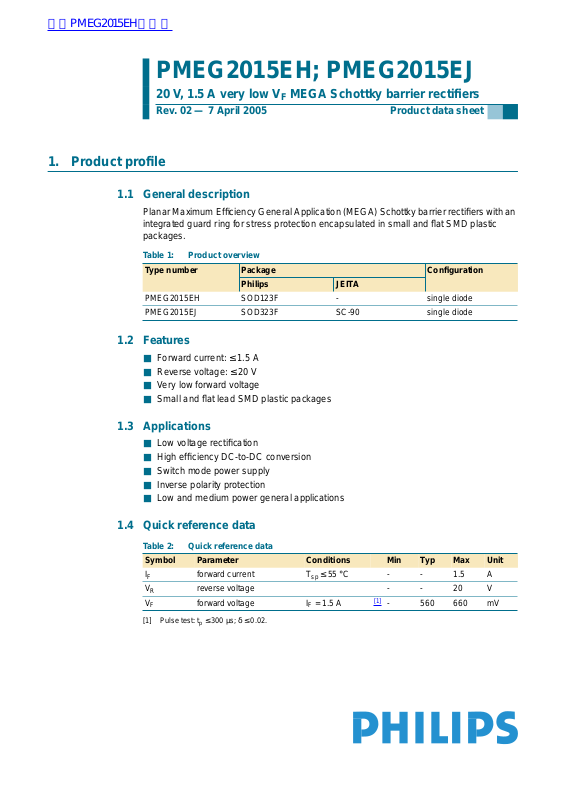

PMEG2015EH; PMEG2015EJ

20 V, 1.5 A very low VF MEGA Schottky barrier rectifiers

Rev. 02 — 7 April 2005 Product data sheet

1. Product profile

1.1 General description

Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifiers with an
integrated guard ring for stress protection encapsulated in small and flat SMD plastic
packages.

Table 1: Product overview

Type number Package Configuration

PMEG2015EH SOD123F - single diode
PMEG2015EJ SOD323F SC-90 single diode

Philips JEITA

1.2 Features

■ Forward current: ≤ 1.5 A

■ Reverse voltage: ≤ 20 V

■ Very low forward voltage

■ Small and flat lead SMD plastic packages

1.3 Applications

■ Low voltage rectification

■ High efficiency DC-to-DC conversion

■ Switch mode power supply

■ Inverse polarity protection

■ Low and medium power general applications

1.4 Quick reference data

Table 2: Quick reference data

Symbol Parameter Conditions Min Typ Max Unit

I

F

V

R

V

F

[1] Pulse test: tp≤ 300 µs; δ≤0.02.

forward current Tsp≤ 55 °C - - 1.5 A
reverse voltage - - 20 V
forward voltage IF= 1.5 A

[1]

- 560 660 mV

Philips Semiconductors

2. Pinning information

Table 3: Pinning

Pin Description Simplified outline Symbol

1 cathode
2 anode

[1] The marking bar indicates the cathode.

3. Ordering information

Table 4: Ordering information

Type number Package

PMEG2015EH - plastic surface mounted package; 2 leads SOD123F
PMEG2015EJ SC-90 plastic surface mounted package; 2 leads SOD323F

PMEG2015EH; PMEG2015EJ

20 V, 1.5 A very low VF MEGA Schottky barrier rectifiers

[1]

12

12

sym001

001aab540

Name Description Version

4. Marking

Table 5: Marking codes

Type number Marking code

PMEG2015EH AD
PMEG2015EJ EL

5. Limiting values

Table 6: Limiting values

In accordance with the Absolute Maximum Rating System (IEC 60134).

Symbol Parameter Conditions Min Max Unit

V

R

I

F

I

FRM

I

FSM

P

tot

T

j

T

amb

reverse voltage - 20 V
forward current Tsp≤ 55 °C - 1.5 A
repetitive peak forward current tp≤ 1 ms; δ≤0.25 - 5.5 A
non-repetitive peak forward

current
total power dissipation T

PMEG2015EH

PMEG2015EJ

square wave;
t

=8ms

p

≤ 25 °C

amb

[1]

-9A

[1]

- 375 mW

[2]

- 830 mW

[1]

- 360 mW

[2]

- 830 mW
junction temperature - 150 °C
ambient temperature −65 +150 °C

9397 750 14916 © Koninklijke Philips Electronics N.V. 2005. All rights reserved.

Product data sheet Rev. 02 — 7 April 2005 2 of 9

Philips Semiconductors

PMEG2015EH; PMEG2015EJ

20 V, 1.5 A very low VF MEGA Schottky barrier rectifiers

Table 6: Limiting values

In accordance with the Absolute Maximum Rating System (IEC 60134).

Symbol Parameter Conditions Min Max Unit

T

stg

[1] Device mounted on an FR4 Printed-Circuit Board (PCB), single-sided copper, tin-plated and standard

[2] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm2.

storage temperature −65 +150 °C

footprint.

6. Thermal characteristics

Table 7: Thermal characteristics

Symbol Parameter Conditions Min Typ Max Unit

R

th(j-a)

R

th(j-sp)

thermal resistance from
junction to ambient

PMEG2015EH

PMEG2015EJ

thermal resistance from
junction to solder point

PMEG2015EH - - 60 K/W
PMEG2015EJ - - 55 K/W

…continued

in free air

[1] [2]

- - 330 K/W

[2] [3]

- - 150 K/W

[1] [2]

- - 350 K/W

[2] [3]

- - 150 K/W

[1] Device mounted on an FR4 PCB, single-sided copper, tin-plated and standard footprint.
[2] For Schottky barrier diodes thermal run-away has to be considered, as in some applications the reverse

power losses PR are a significant part of the total power losses. Nomograms for determining the reverse
power losses PR and I

[3] Device mounted on an FR4 PCB, single-sided copper, tin-plated, mounting pad for cathode 1 cm2.

7. Characteristics

Table 8: Characteristics

T

amb

Symbol Parameter Conditions Min Typ Max Unit

V

F

I

R

C

d

[1] Pulse test: tp≤ 300 µs; δ≤0.02.

rating are available on request.

F(AV)

=25°C unless otherwise specified.

forward voltage IF=10mA

= 100 mA

I

F

= 500 mA

I

F

=1A

I

F

= 1.5 A

I

F

[1]

- 240 270 mV

[1]

- 300 350 mV

[1]

- 400 460 mV

[1]

- 480 550 mV

[1]

- 560 660 mV

reverse current VR=5V - 5 10 µA

=8V - 7 20 µA

V

R

=10V - 8 30 µA

V

R

=15V - 10 50 µA

V

R

=20V - 15 70 µA

V

R

diode capacitance VR=1V; f=1MHz - 40 50 pF

9397 750 14916 © Koninklijke Philips Electronics N.V. 2005. All rights reserved.

Product data sheet Rev. 02 — 7 April 2005 3 of 9

Philips Semiconductors

PMEG2015EH; PMEG2015EJ

20 V, 1.5 A very low VF MEGA Schottky barrier rectifiers

4

10

I

F

(mA)

3

10

2

10

(1) (2) (3) (4)

10

1

−1

10

−2

10

0 0.60.40.2 0.50.30.1

(1) T

amb

(2) T

amb

(3) T

amb

(4) T

amb

(5) T

amb

(5)

= 150 °C
= 125 °C
=85°C
=25°C
= −40 °C

006aaa402

VF (V)

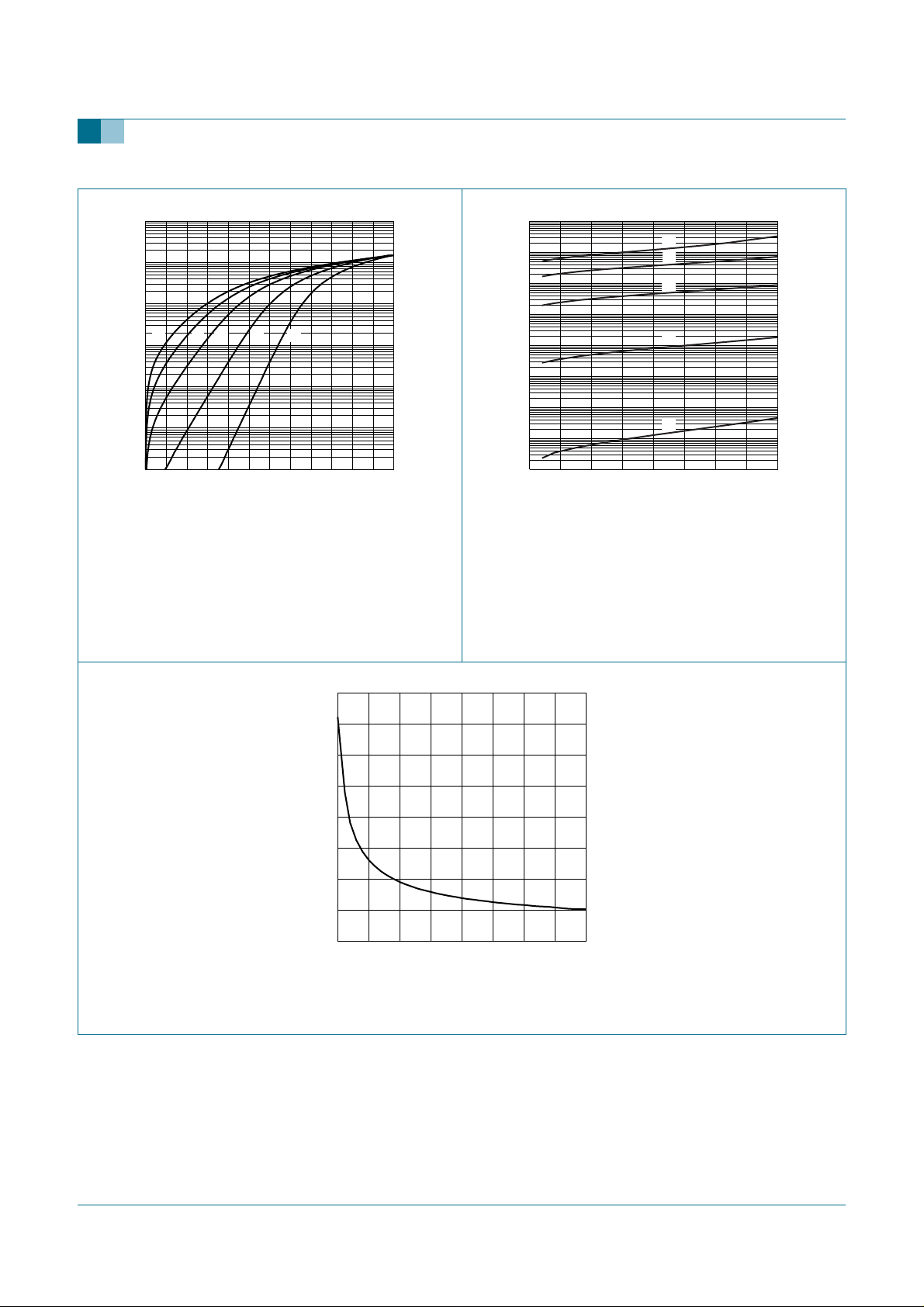

Fig 1. Forward current as a function of forward

voltage; typical values

I

(µA)

R

10

10

10

10

10

−1

10

−2

10

−3

10

(1) T
(2) T
(3) T
(4) T
(5) T

5

4

3

2

1

02010 155

= 150 °C

amb

= 125 °C

amb

=85°C

amb

=25°C

amb

= −40 °C

amb

(1)
(2)

(3)

(4)

(5)

006aaa403

VR (V)

Fig 2. Reverse current as a function of reverse

voltage; typical values

006aaa404

VR (V)

T

=25°C; f = 1 MHz

amb

80

C

d

(pF)

60

40

20

0

02015510

Fig 3. Diode capacitance as a function of reverse voltage; typical values

9397 750 14916 © Koninklijke Philips Electronics N.V. 2005. All rights reserved.

Product data sheet Rev. 02 — 7 April 2005 4 of 9

Philips Semiconductors

8. Package outline

PMEG2015EH; PMEG2015EJ

20 V, 1.5 A very low VF MEGA Schottky barrier rectifiers

1.2

1.0

0.25

0.10

1.35

1.15

1

2.7

1.8

2.3

1.6

2

0.40

0.25

04-11-29Dimensions in mm

0.5

0.3

3.6

3.4

2.7

2.5

1.7

1.5

0.70

0.55

1

0.55

0.35

2

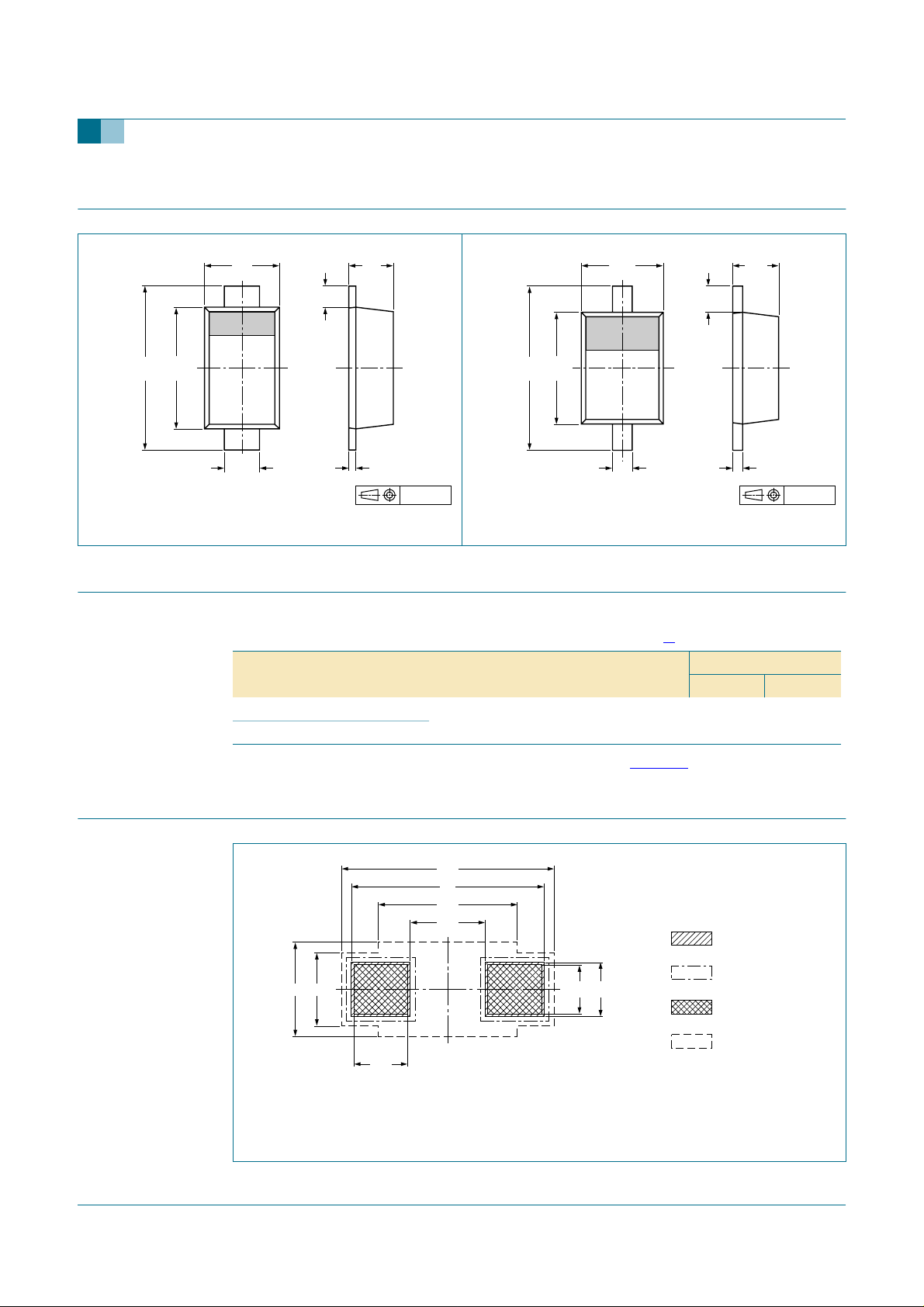

Fig 4. Package outline SOD123F Fig 5. Package outline SOD323F (SC-90)

9. Packing information

Table 9: Packing methods

The -xxx numbers are the last three digits of the 12NC ordering code.

Type number Package Description Packing quantity

PMEG2015EH SOD123F 4 mm pitch, 8 mm tape and reel -115 -135
PMEG2015EJ SOD323F

[1]

3000 10000

0.80

0.65

0.25

0.10
04-09-13Dimensions in mm

[1] For further information and the availability of packing methods, seeSection 15.

10. Soldering

4.4
4

2.9

1.6

solder lands

solder resist

1.6

1.1

(2×)

Reflow soldering is the only recommended soldering method.
Dimensions in mm

Fig 6. Reflow soldering footprint SOD123F

9397 750 14916 © Koninklijke Philips Electronics N.V. 2005. All rights reserved.

Product data sheet Rev. 02 — 7 April 2005 5 of 9

1.1 1.22.1
solder paste

occupied area

Philips Semiconductors

1.65

PMEG2015EH; PMEG2015EJ

20 V, 1.5 A very low VF MEGA Schottky barrier rectifiers

3.05

2.80

2.10

1.60

0.60

0.500.95

solder lands

solder resist

occupied area

0.50
(2×)

Reflow soldering is the only recommended soldering method.
Dimensions in mm

001aab169

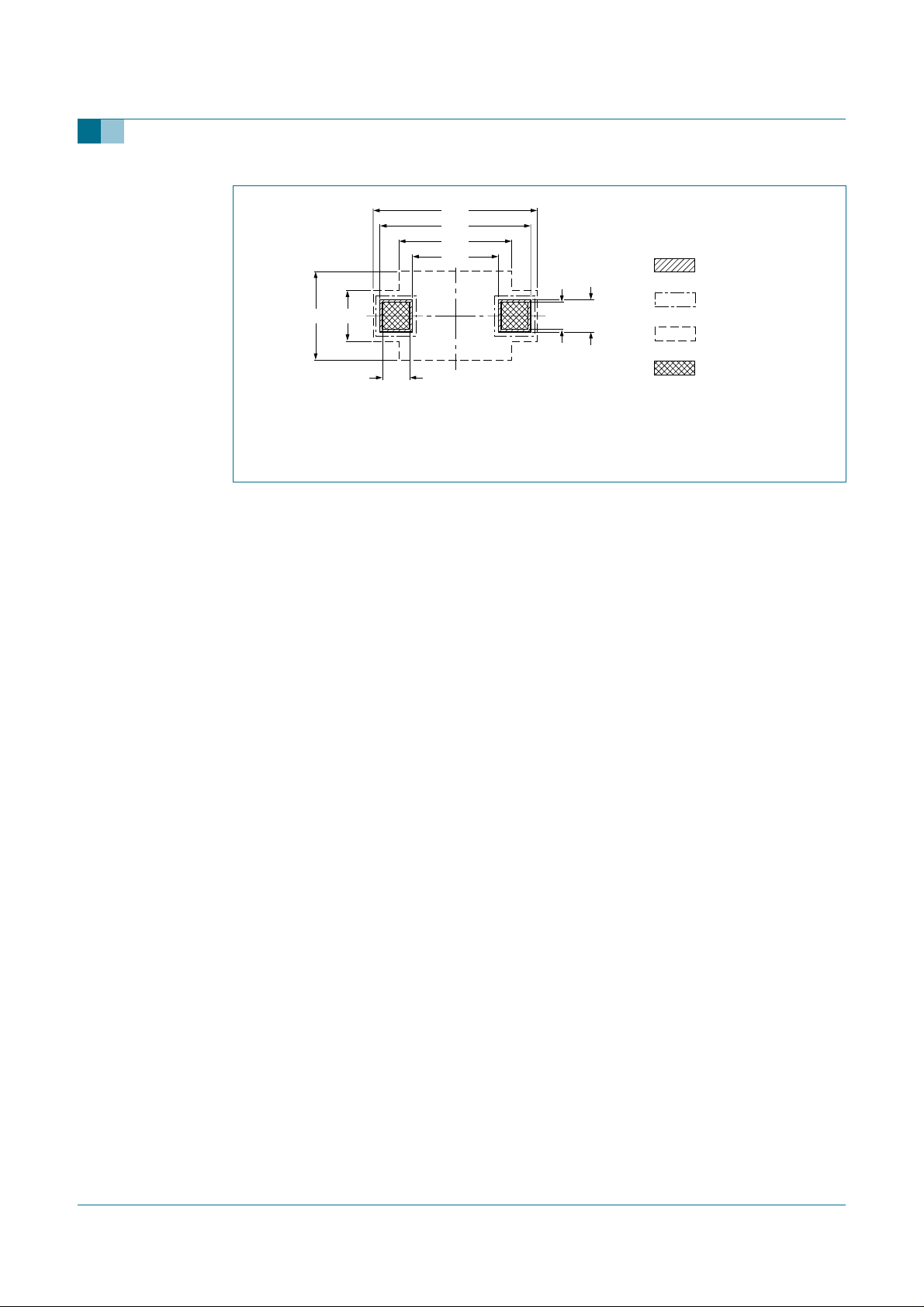

Fig 7. Reflow soldering footprint SOD323F (SC-90)

solder paste

9397 750 14916 © Koninklijke Philips Electronics N.V. 2005. All rights reserved.

Product data sheet Rev. 02 — 7 April 2005 6 of 9

Philips Semiconductors

PMEG2015EH; PMEG2015EJ

20 V, 1.5 A very low VF MEGA Schottky barrier rectifiers

11. Revision history

Table 10: Revision history

Document ID Release date Data sheet status Change notice Doc. number Supersedes

PMEG2015EH_EJ_2 20050407 Product data sheet - 9397 750 14916 PMEG2015EJ_1
Modifications:

PMEG2015EJ_1 20050302 Product data sheet - 9397 750 14594 -

• Type PMEG2015EH added

• Table 6 P

values for PMEG2015EJ amended

tot

9397 750 14916 © Koninklijke Philips Electronics N.V. 2005. All rights reserved.

Product data sheet Rev. 02 — 7 April 2005 7 of 9

Philips Semiconductors

12. Data sheet status

PMEG2015EH; PMEG2015EJ

20 V, 1.5 A very low VF MEGA Schottky barrier rectifiers

Level Data sheet status

I Objective data Development This data sheet contains data from the objective specification for product development. Philips

II Preliminary data Qualification This data sheet contains data from the preliminary specification. Supplementary data will be published

III Product data Production This data sheet contains data from the product specification. Philips Semiconductors reserves the

[1] Please consult the most recently issued data sheet before initiating or completing a design.
[2] The product status of the device(s) described in this data sheet may have changed since this data sheet was published. The latest information is available on the Internet at

URL http://www.semiconductors.philips.com.

[3] For data sheets describing multiple type numbers, the highest-level product status determines the data sheet status.

[1]

Product status

13. Definitions

Short-form specification — The data in a short-form specification is

extracted from a full data sheet with the same type number and title. For
detailed information see the relevant data sheet or data handbook.

Limiting values definition — Limiting values given are in accordance with
the Absolute Maximum Rating System (IEC 60134). Stress above one or
more of the limiting values may cause permanent damage to the device.
These are stress ratings only and operation of the device at these or at any
other conditions above those given in the Characteristics sections of the
specification is not implied. Exposure to limiting values for extended periods
may affect device reliability.

Application information — Applications that are described herein for any
of these products are for illustrative purposes only. Philips Semiconductors
make no representation or warranty that such applications will be suitable for
the specified use without further testing or modification.

[2] [3]

Definition

Semiconductors reserves the right to change the specification in any manner without notice.

at a later date. Philips Semiconductors reserves the right to change the specification without notice, in
order to improve the design and supply the best possible product.

right to make changes at any time in order to improve the design, manufacturing and supply. Relevant
changes will be communicated via a Customer Product/Process Change Notification (CPCN).

14. Disclaimers

Life support — These products are not designed for use in life support

appliances, devices, or systems where malfunction of these products can
reasonably be expected to result in personal injury. Philips Semiconductors
customers using or selling these products for use in such applications do so
at their own risk and agree to fully indemnify Philips Semiconductors for any
damages resulting from such application.

Right to make changes — Philips Semiconductors reserves the right to
make changes in the products - including circuits, standard cells, and/or
software - described or contained herein in order to improve design and/or
performance. When the product is in full production (status ‘Production’),
relevant changes will be communicated via a Customer Product/Process
Change Notification (CPCN). Philips Semiconductors assumes no
responsibility or liability for the use of any of these products, conveys no
license or title under any patent, copyright, or mask work right to these
products, and makes no representations or warranties that these products are
free from patent, copyright, or mask work right infringement, unless otherwise
specified.

15. Contact information

For additional information, please visit: http://www.semiconductors.philips.com
For sales office addresses, send an email to: [email protected]

9397 750 14916 © Koninklijke Philips Electronics N.V. 2005. All rights reserved.

Product data sheet Rev. 02 — 7 April 2005 8 of 9

Philips Semiconductors

PMEG2015EH; PMEG2015EJ

16. Contents

1 Product profile . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.1 General description. . . . . . . . . . . . . . . . . . . . . . 1

1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.3 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.4 Quick reference data. . . . . . . . . . . . . . . . . . . . . 1

2 Pinning information. . . . . . . . . . . . . . . . . . . . . . 2

3 Ordering information. . . . . . . . . . . . . . . . . . . . . 2

4 Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

5 Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . 2

6 Thermal characteristics. . . . . . . . . . . . . . . . . . . 3

7 Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . 3

8 Package outline . . . . . . . . . . . . . . . . . . . . . . . . . 5

9 Packing information. . . . . . . . . . . . . . . . . . . . . . 5

10 Soldering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

11 Revision history. . . . . . . . . . . . . . . . . . . . . . . . . 7

12 Data sheet status. . . . . . . . . . . . . . . . . . . . . . . . 8

13 Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

14 Disclaimers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

15 Contact information . . . . . . . . . . . . . . . . . . . . . 8

20 V, 1.5 A very low VF MEGA Schottky barrier rectifiers

© Koninklijke Philips Electronics N.V. 2005

All rights are reserved. Reproduction in whole or in part is prohibited without the prior
written consent of the copyright owner. The information presented in this document does
not form part of any quotation or contract, is believed to be accurate and reliable and may
be changed without notice. No liability will be accepted by the publisher for any
consequence of its use. Publication thereof does not convey nor imply any license under
patent- or other industrial or intellectual property rights.

Published in The Netherlands

Date of release: 7 April 2005

Document number: 9397 750 14916
