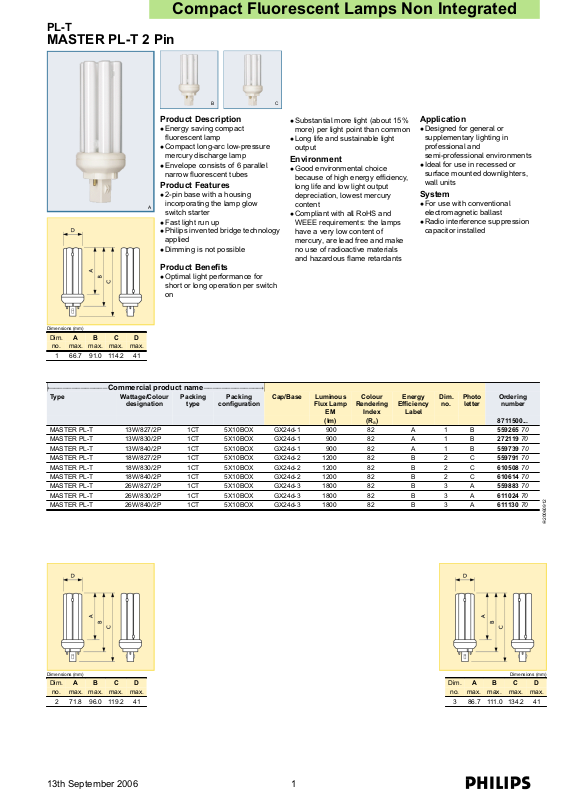

PL-T
MASTER PL-T 2 Pin
Compact Fluorescent Lamps Non Integrated
Dimensions (mm)
Dim. A B C D
no. max. max. max. max.
1 66.7 91.0 114.2 41
B
Product Description
• Energy saving compact
fluorescent lamp
• Compact long-arc low-pressure
mercury discharge lamp
• Envelope consists of 6 parallel
narrow fluorescent tubes
Product Features
• 2-pin base with a housing
incorporating the lamp glow
A
switch starter
• Fast light run up
• Philips invented bridge technology
applied
• Dimming is not possible
Product Benefits
• Optimal light performance for
short or long operation per switch
on
C
• Substantial more light (about 15%
more) per light point than common
• Long life and sustainable light
output
Environment
• Good environmental choice
because of high energy efficiency,
long life and low light output
depreciation, lowest mercury
content
• Compliant with all RoHS and
WEEE requirements: the lamps
have a very low content of
mercury, are lead free and make
no use of radioactive materials
and hazardous flame retardants
Application
• Designed for general or
supplementary lighting in
professional and
semi-professional environments
• Ideal for use in recessed or
surface mounted downlighters,
wall units
System
• For use with conventional
electromagnetic ballast
• Radio interference suppression
capacitor installed
←−−−−−−−−−−−−Commercial product name−−−−−−−−−−−−→
Type Wattage/Colour
MASTER PL-T 13W/827/2P 1CT 5X10BOX GX24d-1 900 82 A 1 B 559265 70
MASTER PL-T 13W/830/2P 1CT 5X10BOX GX24d-1 900 82 A 1 B 272119 70
MASTER PL-T 13W/840/2P 1CT 5X10BOX GX24d-1 900 82 A 1 B 559739 70
MASTER PL-T 18W/827/2P 1CT 5X10BOX GX24d-2 1200 82 B 2 C 559791 70
MASTER PL-T 18W/830/2P 1CT 5X10BOX GX24d-2 1200 82 B 2 C 610508 70
MASTER PL-T 18W/840/2P 1CT 5X10BOX GX24d-2 1200 82 B 2 C 610614 70
MASTER PL-T 26W/827/2P 1CT 5X10BOX GX24d-3 1800 82 B 3 A 559883 70
MASTER PL-T 26W/830/2P 1CT 5X10BOX GX24d-3 1800 82 B 3 A 611024 70
MASTER PL-T 26W/840/2P 1CT 5X10BOX GX24d-3 1800 82 B 3 A 611130 70
designation
Packing
type
Packing
configuration
Cap/Base Luminous
Flux Lamp
EM
(lm) (Ra) 8711500...
Colour
Rendering
Index
Energy
Efficiency
Label
Dim.
no.
letter
Ordering
number
✇20060912
Dimensions (mm)
Dim. A B C D
no. max. max. max. max.
2 71.8 96.0 119.2 41
13th September 2006 1
Dim. A B C D
Dimensions (mm)
no. max. max. max. max.
3 86.7 111.0 134.2 41
Compact Fluorescent Lamps Non Integrated
PL-T
MASTER PL-T 2 Pin
Additional technical data
Product name Colour
MASTER PL-T 13W/827/2P 2700 13 91 0.175 69 1.4
MASTER PL-T 13W/830/2P 3000 13 91 0.175 69 1.4
MASTER PL-T 13W/840/2P 4000 13 91 0.175 69 1.4
MASTER PL-T 18W/827/2P 2700 18 100 0.220 67 1.4
MASTER PL-T 18W/830/2P 3000 18 100 0.220 67 1.4
MASTER PL-T 18W/840/2P 4000 18 100 0.220 67 1.4
MASTER PL-T 26W/827/2P 2700 26 105 0.325 69 1.4
MASTER PL-T 26W/830/2P 3000 26 105 0.325 69 1.4
MASTER PL-T 26W/840/2P 4000 26 105 0.325 69 1.4
Temperature
(K) (W) (V) (A) (lm/W) (mg)
Logistic data
Product name Packing
MASTER PL-T 13W/827/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 141 86.2 58
MASTER PL-T 13W/830/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 141 86.2 58
MASTER PL-T 13W/840/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 141 86.2 58
MASTER PL-T 18W/827/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 154 87.2 59
MASTER PL-T 18W/830/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 154 87.2 59
MASTER PL-T 18W/840/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 154 87.2 59
MASTER PL-T 26W/827/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 177 96.3 66
MASTER PL-T 26W/830/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 177 96.3 66
MASTER PL-T 26W/840/2P 1CT 1 Lamp in a Folding Carton 50 5X10BOX 1 571 273 177 96.3 66
type
Lamp Wattage EM Lamp Voltage EM Lamp Current
Packing type description
Packs
per
outer
box
Packing
configura-
tion
EM
Quan-
tity per
pack
Luminous
Efficacy Lamp EM
Packing
Packing
length
(mm) (mm) (mm) (g) (g)
width
Packing
height
Mercury (Hg)
Content
Gross
weight
per
piece
Net
weight
per
piece
Spectral power distribution
Lightcolour 827 Lightcolour 830 Lightcolour 840
Cap/Base
GX24d-1 GX24d-2 GX24d-3
Additional extended technical data
Product name Chromaticity
MASTER PL-T 13W/827/2P 455 417 Incandescent White No 2P
MASTER PL-T 13W/830/2P 434 397 Warm White No 2P
MASTER PL-T 13W/840/2P 380 379 Cool White No 2P
MASTER PL-T 18W/827/2P 455 417 Incandescent White No 2P
MASTER PL-T 18W/830/2P 434 397 Warm White No 2P
MASTER PL-T 18W/840/2P 380 379 Cool White No 2P
MASTER PL-T 26W/827/2P 455 417 Incandescent White No 2P
MASTER PL-T 26W/830/2P 436 401 Warm White No 2P
MASTER PL-T 26W/840/2P 380 379 Cool White No 2P
Coordinate X
Chromaticity
Coordinate Y
Colour Designation Dimmable Cap/Base
Information
13th September 2006 2
