Philips PH5DSS User Manual

PH5DSS Trilingual Front Cover Art

IntroductionTable of Contents

Introduction ...................................................... 3

Button Functions ............................................... 4

SAT/DTV and DVD Functions..................... 6

DVR Functions ............................................ 7

TV/SAT/INPUT ...............................................7

Setup ............................................................... 8

Battery Installation ....................................... 8

Battery Saver ...............................................8

Code Saver ................................................. 8

Power-On default ........................................ 8

Code Setup ................................................. 8

Code Entry .......................................................9

Direct Code Entry ........................................9

Code Search ............................................... 9

Brand Search .............................................10

Code Identification Feature ............................. 11

Programming Combo Device Codes ............... 12

Controlling Combo Devices ............................ 12

Controlling Devices with Power On and Off .... 12

VCR/DVD/DVR Punch-Through Feature ....... 13

Volume/Mute Control Feature ......................... 13

Setting Volume/Mute Control, Punch-Through . 14 Setting any Mode to use its own Volume/Mute 14

Code Learning ................................................ 15

Tips on Learning ........................................ 15

IR Transmitter Finder Feature .....................17

Learning Commands ....................................... 18

Clearing Commands ....................................... 19

Clearing Learned commands for a mode .....19

Master Clear ............................................. 19

Macros .......................................................... 20

Macro Setup ............................................. 20

Deleting Macros ........................................ 21

Troubleshooting .............................................. 22

Instrucciones en Español ................................. 24

Manuel d’instruction ....................................... 46

Congratulations on your purchase of a Philips Universal Remote Control. Philips Universal Remotes let you replace a broken or lost remote or combine more than one remote into one. In addition, this remote is equipped with a command learning feature which lets the remote learn commands from your original equipment remote control!

This remote control operates the common features of most but not all models and brands of IR Infrared Controlled Video Equipment. This remote may provide functions that are not available on your equipment. Some functions of your particular equipment (e.g. menu functions) may not be controlled by this remote. In such cases, use the original remote control for your equipment. Please use this manual to become familiar with your Philips Universal Remote. After you are familiar with your remote the first thing you need to do is to install batteries and setup your remote for your particular product and brand.

We focused on making this remote consumer friendly. We have included Satellite functionality by adding the Controls, MENU, GUIDE, PAGE UP/DOWN/LEFT/ RIGHT, ENTER, EXIT, INFO, OK/SELECT buttons right on the remote. This remote also has dedicated DVD (labeled in blue) and DVR buttons. If there is a function on one of your original remotes that isn’t on this remote, we’ve added the easy learning feature that allows you to “learn” favorite functions from your original remote right on to this one. We’ve even taken this one step further and added two Macro functions. A Macro allows you to program a series of steps in one keystroke. For example, with one keystroke, you can program your remote to turn on all your components.

Thank you for buying a Philips remote and we hope it will give you many years of service.

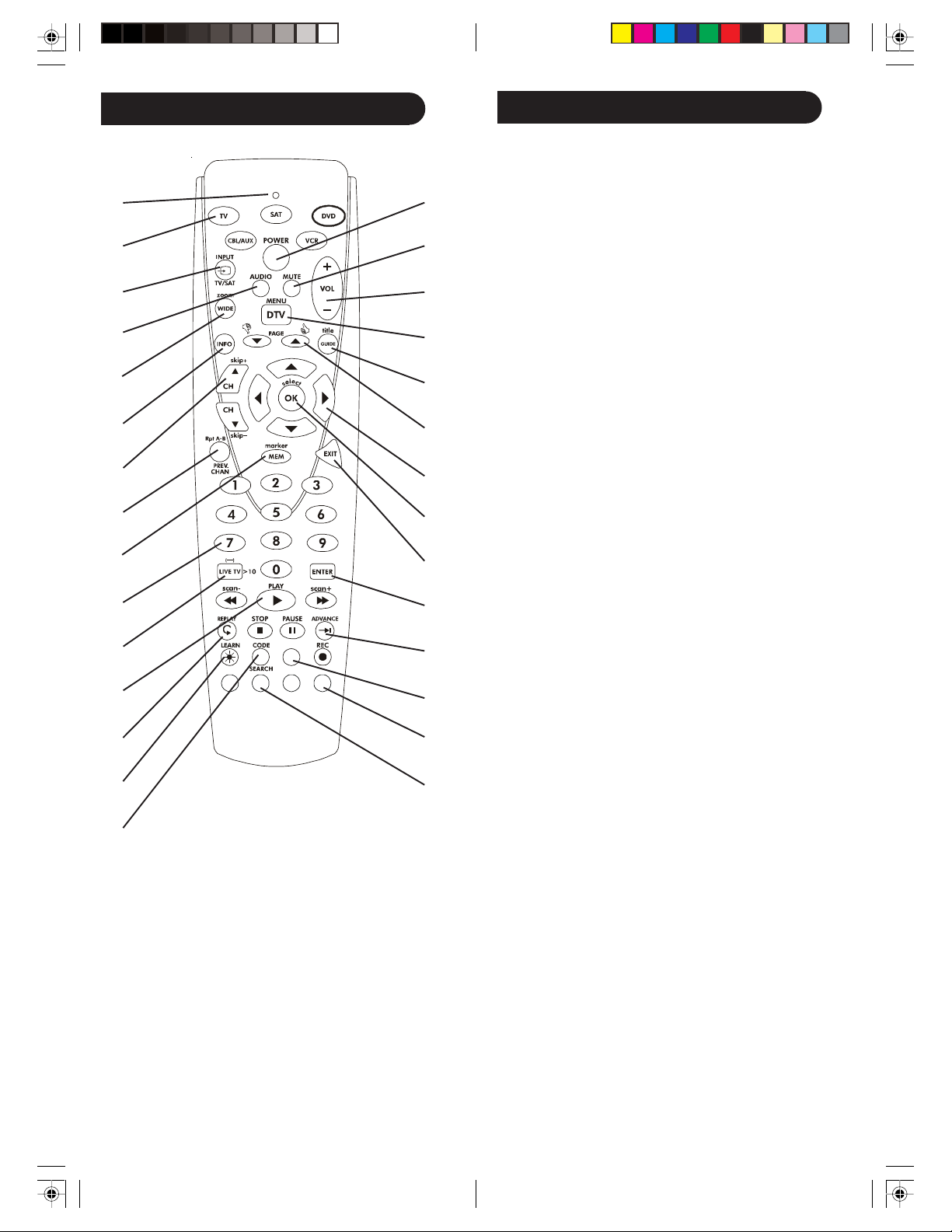

Button Functions

10.

11.

12.

13.

14.

M1 M2L1 L2

29.

28.

27.

26.

25.

24.

23.

22.

21.

20.

19.

18.

17.

16.

15.

Note: The REC button must be pressed TWICE to record from your VCR. For some brands of VCRs, you might need to press the REC button once, then press it again for three seconds.

Some buttons on the remote might have functions that are referred to by different names on the device you are controlling. E.G. PREV.CHAN may be called RECALL, or ENTER may be called DISPLAY. These differences depend on the brand and model of your product. Also, this remote can only operate features that exist on your product. E.G., your product must have PREV.CHAN ability for the PREV.CHAN button to operate this feature.

Button Functions, cont.

1. Red Indicator Lights when any button is pressed.

2. TV, SAT, DVD,CBL/AUX, VCR Selects product to be

operated.

3. INPUT/TV/SAT For some TVs, press repeatedly to select

from available viewing sources (antenna, cable box, VCR, etc.).

4. AUDIO Toggles between multilingual audio tracks (if

available) .

5. ZOOM Zooms or enlarges a specific area of the screen. WIDE Changes the picture aspect ratio e.g. Wide,

Panorama, etc.

6. INFO brings up the Channel Banner and/or shows information about the current show.

7. CHANNEL UP/DOWN Changes the channels. SKIP +/- controls DVD/CD track selection i.e. DVD/CD Track Skip Up/Down (in DVD and SAT modes). Note the VCR buttons also control DVD when in DVD Mode.

8. PREV. CHAN Returns to the previously selected channel, or DVD repeat toggle. REPEAT A-B performs DVD players “A-B Repeat” (or RPT A.B) function for repeat play of current Chapter or Track.

9. MEM/MARKER Stores and plays back favorite portions of the disc.

10. NUMBERS Enter numbers for direct channel selection. Some products require Enter to be pressed after channel selection.

11. LIVE TV goes to Live TV broadcast. >10 Use with digit keys to select tracks greater than 10. “-” (Dash) use with the 0-9 buttons to select digital video sub-channels if available e.g. 2-1, 2-2, etc. Also operates your Satellite (or Cable) +100 channel function.

12. RECORD, PLAY, STOP, REW, FF, PAUSE

VCR control buttons operate your VCR even when the remote is set to operate the TV. Also operates DVD Scan -/ +.

13. REPLAY Replays the last few seconds of a program.

14. LEARN Used to setup learning functions. Backlighting

Press to turn on or off. Turns off 5 seconds after last button press.

15. CODE SEARCH Used for setup.

16. L1, L2 Used for learning additional commands.

17 . M1, M2 Used for storing Macros.

18. MACRO Initiates stored Macros.

19. ADVANCE Catches you up to the live broadcast.

20 . ENTER Used after direct channel number entry to

immediately change to the selected channel.

21 . EXIT Used to exit menu functions.

22. OK/SELECT Selects menu items for the device you are

controlling.

23. UP, DOWN, LEFT & RIGHT navigation buttons. Also accesses TiVo Central.

24. PAGE/THUMBS UP & DOWN Moves one screen at a time up or down in TV guides and menus or sets your Thumbs ratings for TiVo players.

25. GUIDE Displays Program Guide and/or listings.

26. MENU brings up the Main Menu screen - use with the UP, DOWN, LEFT & RIGHT navigation buttons. Also

accesses TiVo Central.

27. VOLUME UP/DOWN Changes the volume level of the product, normally the TV.

28 . MUTE Turns off the TV sound while the picture remains.

29. POWER Turns product On or Off.

Button Functions, cont.

SAT/DTV Receiver Functions

CHANNEL Up/Down changes the channels. WIDE Changes the picture aspect ratio e.g. Wide,

Panorama, etc. “-” (Dash) use with the 0-9 buttons to select digital video sub-channels if available e.g. 2-1, 2-2, etc. Also operates your Satellite (or Cable) +100 channel function. PAGE Up/Down buttons scroll on-screen Guide Menus page by page.

GUIDE button displays the on-screen Channel Guide. INFO button displays on-screen current Channel and

system information. MENU/DTV brings up the Main Menu screen - use with the UP, DOWN, LEFT & RIGHT navigation buttons. OK/SELECT button is used for on-screen Menu selections. EXIT button is used to Exit or Clear on-screen Menu displays. AUDIO toggles between multilingual audio tracks (if available) .

INPUT button performs the TV/SAT function.

DVD Functions (labeled in blue/black)

SKIP+ and SKIP- buttons respectively locate the

succeeding or preceding Chapters or Tracks on a disc. MARKER/MEM Store and playback favorite portions of the disc.

ZOOM Zooms or enlarges a specific area of the screen. RPT A-B button performs DVD players “A-B Repeat”

(or RPT A.B) function for repeat play of current Chapter or Track.

>10 Use with digit keys to select tracks greater than 10. TITLE brings up the DVD Title Menu screen. INFO button brings up DVD Display or Control Menu

for Chapter/Track/Title number, Time remaining/elapsed indication, system information, etc. MENU brings up the DVD disc Menu screen - use with the UP, DOWN, LEFT & RIGHT navigation buttons. OK/SELECT button is used for on-screen Menu selection. Note some DVD players require the Play button to be used. EXIT Exit On-Screen Menus and/or Return to previous On-Screen selection. SCAN+ and SCAN- buttons control the speed of Fast Forward and Reverse Playback respectively.

PLAY button is used to start Disc playback and for Menu selection on some DVD players.

STOP button stops Disc playback. RECORD button operates with your DVD-Recorder

(press twice to Record). PAUSE button pauses Disc playback - press PLAY to resume. AUDIO selects the audio language or sound during disc playback. INPUT button activates the DVD Player’s SETUP Menu.

DVR Functions

MENU brings up the Main Menu screen - use with the UP, DOWN, LEFT & RIGHT navigation buttons. Also

accesses TiVo Central. OK/SELECT button is used for on-screen Menu and Guide selections.

GUIDE Displays Program Guide and/or listings. INFO brings up the Channel Banner and/or shows

information about the current show.

REPLAY Replays the last few seconds of a program. ADVANCE Catches you up to the live broadcast. LIVE TV goes to Live TV broadcast. PAGE/THUMBS UP & DOWN Moves one screen at a

time up or down in TV guides and menus or sets your Thumbs ratings for TiVo players.

TiVo is a registered trademark of TiVo Inc.

INPUT/TV/SAT

When in TV Mode the INPUT/TV/SAT button performs the INPUT source switch function. When in a Mode that has been programmed for Cable the INPUT/TV/SAT button performs the A.B switch function. When in a Mode that has been programmed for SAT the INPUT/TV/SAT button performs the TV/SAT switch function. When in a Mode that has been programmed for DVD the INPUT/TV/SAT button performs the DVD Setup function. When in a Mode that has been programmed for VCR the INPUT/TV/SAT button performs the TV/VCR switch function. When in a Mode that has been programmed for DVR the INPUT/TV/SAT button performs the TV/DVR switch function.

Setup

Direct Code Entry

Battery Installation

1. On the back of the remote, push down on the tab and lift the cover off.

2. Match the batteries to the + and - marks inside the battery case, then insert 2 AAA Alkaline batteries.

3. Press the battery cover back into place.

Battery Saver

Your remote automatically turns off if the buttons are depressed more than 30 seconds. This will save your batteries should your remote get stuck in a place where the buttons remain depressed (e.g., between the sofa cushions).

Code Saver

Codes are stored in permanent memory while you are changing batteries so you will not lose any codes stored in the remote while you are changing batteries.

1. Press and hold the CODE SEARCH button until the red indicator stays on, then release the CODE SEARCH button.

2. Press and release the desired mode button (TV, VCR, etc.). The red indicator blinks, then stays lit.

3. Enter the 4 digit code from the code tables (on separate sheet). Note: after a valid code entry, the red indicator turns off. For an invalid code, the red indicator flashes.

4. With your device on, press CHANNEL UP. If the device responds, no further programming is required. Note: If some buttons do not operate your equipment, try one of the other codes for your brand.

Write your codes down here for easy reference later.

Type Type stored Code

TV TV

SAT

DVD

CBL/AUX

Power-On Default

The remote powers on in TV mode.

Code Setup

The CODE SEARCH button is used to setup the remote. You can either setup the remote using the code for your brand of product, from the code tables (on separate sheet), or you can search through the library of codes until you find a code that works for your product.

Please refer to “Programming with Code Search” on page 9 for more information on using the code search feature to learn how to search through the library of codes for your products.

NOTE: You can store any kind of code under any mode (except TV). I.E. you can store a VCR code under the CBL button, or a DVD code under the VCR button, etc. However, you can only store TV codes under the TV button.

VCR

Code Search

If your product does not respond after you have tried all the codes for your brand, or if your brand is not listed, try searching for your code by following these steps.

1. Manually turn on the device (TV, VCR, etc.) to be controlled.

2. Press and hold the CODE SEARCH button until the red indicator stays on, then release the CODE SEARCH button.

3. Press and quickly release the desired mode button (TV, VCR, etc.). The red indicator blinks off once.

4. Press the CHANNEL UP button repeatedly (up to 300 times) until the device to be controlled changes channel. The red indicator blinks off with each button press. If you accidentally overshoot the code required, press the CHANNEL DOWN button to backtrack through the library until the device changes channel. Pressing CHANNEL UP changes direction to forward again.

5. Press and release MUTE to install the code.

Code Search, cont.

Code Identification Feature

Most users will store VCR codes under the VCR button, Cable codes under CABLE, etc. If (for example) you want to store a VCR code under CABLE, first follow the procedure for Direct Code Entry (previous page) and press CABLE in step 2 of Direct Code Entry, then enter ANY VCR code in step 3 of Direct Code Entry. Then follow the steps above for Code Search (or Brand Search, below). Note: If the device does not have a

CHANNEL UP button, use PLAY (VCR only) or POWER instead. Code Search starts from the currently

stored 4 digit number under that mode.

Code Search by Brand

Lets you search for a code for a specific Brand within the Code Library for a particular manufacturer.

1. Turn on the device (TV, VCR, etc.) to be controlled.

2. Press and hold the CODE SEARCH button until the red indicator remains on, then release CODE SEARCH button.

3. Press and quickly release the desired mode button (TV, VCR, etc.). The red indicator blinks off once.

4. Press and release the numeric button (0-9) corresponding to desired Manufacturer (see table on code list sheet). The red indicator blinks off once. Note, pressing “0” performs a full library search same as normal Code Search Method on previous page.

5. Press the CHANNEL UP button ((or POWER or PLAY (VCR only)) repeatedly until the device to be controlled changes channel. The red indicator blinks off with each button press. If you accidentally overshoot the code required, press the CHANNEL DOWN button to backtrack through the library until the device changes channel. Pressing CHANNEL UP changes direction to forward again.

6. Press and release MUTE to install the code.

The Code Identification Feature allows you to identify the 4 digit library code stored under your device key. For example, if you want to find out what 4 digit code is stored under your TV device key, follow the six steps below:

1. Press and hold the CODE SEARCH button until the red indicator stays on. Release the CODE SEARCH button.

2. Press and release the desired mode button (TV, VCR, etc.). The red indicator blinks, then stays lit.

3. Press and release the CODE SEARCH button. The red indicator blinks off.

4. To find the first digit for the code stored under the mode key pressed in step 2, press each numeric key from 0-9 in turn. When the red indicator blinks off the number you pressed is the first digit for the code you are searching for.

5. To find the second digit, repeat step 4, this time when the red indicator blinks off this is the second digit.

6. Repeat step 4 to find the third and fourth digits.

Brand Search Method entry is now complete. Note: When all codes under a Brand have been searched the red indicator flashes rapidly for 3 seconds.

1110

Setup, cont.

Programming Combo Device Codes

Some Combo devices (e.g. TV/VCR, TV/DVD, DVD/ VCR, etc.) will require you to set up two different Mode buttons to control both parts of the Combo device. For example, if you have a TV/DVD Combo, you might need to set up one code under the TV button to control the TV part AND a separate code (under any other Mode button) to control the DVD part.

Controlling Combo Devices

Some Combo devices (e.g. TV/VCR, TV/DVD, DVD/ VCR, etc.) have separate buttons on the original remote to select the part of the Combo device to be controlled. For example, if your Combo device is a DVD/VCR then its original remote might have separate DVD and VCR buttons for selection of the Combo part you would control. The equivalent button functions can be found on your Philips remote by using the device Mode and CODE SEARCH buttons.

Referring to “Programming with Code Search” on page 9, setup a device Mode (e.g. DVD) with the correct code for your Combo device. Assuming the DVD/VCR Combo device is the example and its code is programmed under DVD Mode, press and hold the DVD Mode button for more than one second to send the DVD button command. To send the VCR button command, quickly press and release the CODE

SEARCH button followed by pressing and releasing the DVD Mode button. This method can be applied

similarly to all Combo devices (e.g. TV/VCR, TV/DVD, DVD/VCR, etc.) and is available for all Modes. Note this feature is not supported by all codes.

Controlling Devices Requiring Separate Power On and Off Buttons

Some devices (e.g. certain RCA TVs) require separate Power On and Power Off buttons to turn the device on and off. The equivalent button functions can be found on your Philips remote by using the device Mode and POWER buttons. Referring to “Programming with Code Search” on page 9, setup a device Mode (e.g. TV) with the correct code for your device.

Controlling Devices Requiring Separate Power On and Off Buttons, cont.

To turn the TV off, press and release the POWER button to transmit the Power Off button command. This method can be applied similarly to any device and is available for all Modes. Note this feature is not supported by all codes.

VCR/DVD/DVR Punch-Through Feature

This remote allows the 6 VCR transport buttons (i.e. PLAY, PAUSE, STOP, FF, REWIND, and REC) to Punch-Through control from any Mode programmed with TV, SAT or Cable codes to the last VCR, DVD or DVR programmed Mode you used. Normally other types of remotes only punch-through (from another Mode) on the 6 VCR buttons to the device programmed under the VCR Mode button. This is not much use if you are using a DVD programmed under a Mode other than VCR. For example, if you have 2 DVD, VCR or DVR devices programmed into this remote, the last one you accessed on the remote will be the one that has control of the 6 VCR transport buttons when in any other Mode. This feature will not operate if the programmed TV, SAT or Cable code has its own VCR transport button control e.g. a TV Combo, SAT/PVR, etc.

Volume/Mute Control and Punch-Through Feature

This remote lets you select which device Mode controls your Volume/Mute buttons. The remote is initially set (factory default) for all device Modes programmed with “Visual” codes (e.g. TV, VCR, DVD, DVR, SAT & CABLE) and “Audio” codes (e.g. CD & AUDIO) to use their own Volume/Mute control if present. If the programmed “Visual” code has no Volume/Mute operation of its own then those buttons will punchthrough control to the TV Mode device without needing to change to TV Mode. Please refer to the next page for more information.

Assuming a TV device is the example and its code is programmed under TV Mode, to turn your TV on, press and hold the TV Mode button for more than one second to transmit the Power On button command.

1312

Setup, cont.

Code Learning

Any Mode chosen for Volume/Mute control MUST have its own Volume/Mute function or the Volume/Mute buttons will do nothing.

Setting ALL Volume/Mute Control to any one Mode

This routine can set all Modes to “punch-through” to any one chosen Mode for Volume/Mute button control without the needing to change to that Mode.

1. Press and hold the CODE SEARCH button until the

red indicator turns on, then release the button.

2. Press and hold the MUTE button until the red

indicator blinks off, then release the button.

3. Press and release the desired Mode button (TV, VCR, etc.) for Volume/Mute control, the red indicator blinks then stays on.

4. Press and release the MUTE button and the red indicator turns off. The red indicator will blink rapidly for three seconds if the Mode you have selected has no Volume/Mute control.

5. All other Modes will now punch-through to your chosen Mode for Volume/Mute control.

6. All “Visual” and “Audio” programmed Modes will now punch-through to the respective Modes you have chosen for Volume/Mute control.

Setting any Mode to use its own Volume/Mute Control

This routine can set any Mode to use only its own Volume/Mute control. Note - If your chosen Mode has no Volume/Mute functions of its own then the Volume/ Mute buttons will do nothing.

1. Press and hold the CODE SEARCH button until the

red indicator turns on, then release the button.

2. Press and hold the MUTE button until the red

indicator blinks off, then release the button.

3. Press and release the desired Mode button (TV,

VCR, etc.), the red indicator blinks then stays on.

4. Press and release the VOLUME- (Down) button, the

red indicator blinks then stays on.

5. Press and release the MUTE button and the red

indicator turns off.

6. All “Visual” and “Audio” programmed Modes will

now punch-through to the respective Modes you have chosen for Volume/Mute control.

The learning feature lets you “learn” functions from your original remote control. For example - you may want to use your remote to operate the RANDOM PLAY feature from your original CD remote control. This remote is equipped with an “easy learning” feature that lets you “learn” features (such as RANDOM PLAY from your original CD remote).

Tips On Learning

You can only learn one device type under any one Mode button e.g. only learn TV codes under the TV Mode, VCR codes under the VCR Mode, etc. If you are trying to learn from a “Universal” remote, it might have more than one code type stored under a Mode. Try learning from another remote to see if there’s a problem with the type or brand of remote you are trying to learn from.

a. Some functions from some types of remotes might

not be able to be learned.

b. No functions may be stored under LEARN, “M”

(Macro), M1, M2, or CODE SEARCH buttons.

c. Only one original device type can be learned per

individual Mode.

d. Use fresh batteries for both the Learning Remote

and the Original Remote.

e. Keep at least three feet away from incandescent or

low-energy lights when learning.

f. Perform a Master Clear (see page 19) before learning

and try learning 2 or 3 commands initially. Then carry out a Master Clear before completely learning your original remote’s commands.

g. Place the original remote end-to-end with the

Learning Remote so the IR transmitters on both remotes are directly in line with each other. You may need to adjust the height of either remote to achieve this. Use the IR Transmitter Finder feature to assist you.

h. Keep the distance between the two remotes to

approximately 1 inch and do not move or change the distance between the two remotes until you have learned all the required buttons for that Mode.

i. When Learning, do not release the button being

Learned until the red indicator has blinked off for half a second.

j. Avoid learning your original remote Volume/Mute

buttons unless you are sure these operate the same device e.g. some original DVD remotes include TV Volume/Mute button control and can be two different types of code.

1514

Tips On Learning, cont.

IR Transmitter Finder Feature

k. Avoid learning your original remote VCR transport

buttons unless you are sure these operate the same device e.g. some original TV remotes include VCR button control and can be two different types of code.

l. If learning the first or second buttons for a Mode

results in continuous errors then try the following:

i. End the Learn session by pressing the CODE

SEARCH key.

ii. Clear out the learned commands for that Mode. iii. Check the IR transmitters are correctly aligned

between the two remotes (use the IR Transmitter Finder facility).

iv. Adjust the distance between the two remotes to be

closer (e.g. half an inch) or a further away (e.g. 2 inches) from each other.

v. Try learning the original remote for that Mode again.

If problems reoccur with the same button check the original remote button being learned – does it transmit? Does it operate the target device? Try learning that button under a different clear Mode. If it learns okay then it is likely to be a different code type from the others and cannot be learned under the same Mode.

This feature assists you in identifying where your original remotes IR transmitter is located and is particularly useful if your original remote’s IR transmitter is hidden behind a lens.

1. Point both remotes facing each other by approximately 1 inch apart (see Tips on Learning on previous pages)

2. Press and hold the CODE SEARCH button until the red indicator turns on, then release the button.

3. Press and release the desired Mode button (TV, VCR, etc.), the red indicator blinks then stays on.

4. Press and release the LEARN button, the red indicator blinks then stays on.

5. Press and hold any Original Remote button and move the Original Remote to the left and right, and/ or, up and down in front of the Learning remote IR transmitter. The red indicator will remain on if no IR from the Original remote is found and the red indicator will blink on and off more rapidly when the IR transmitters are lining up. The point where the red indicator blinks most rapidly is where the two IR transmitters are aligned. Note some original remotes will only transmit IR on the initial button press then stop. In these cases, quickly press and release the original remote button repeatedly during this procedure.

6. You can now learn a button from your original remote by continuing from “Step 4” in the “Learning Commands” section on the next page, or, to exit at this point, press and release the CODE SEARCH button

1716

Learning Commands

Clearing Commands

The learning feature allows you to “learn” functions from your original remote control. For example - you may want to use your remote to operate the RANDOM PLAY feature from your original CD remote control. This remote is equipped with an “easy learning” feature that allows you to “learn” features (such as RANDOM PLAY from your original CD remote) by following the steps below, and on the next page:

1. Press and hold the CODE SEARCH button until the

red indicator turns on, then release the button.

2. Press and release the desired mode button (TV, VCR, etc.), the red indicator blinks then stays on.

3. Press and release the LEARN button, the red indicator blinks then stays on.

4. Press and release the Learning Remote button that you want to teach (e.g. POWER).

5. Point both remotes facing each other by approximately 1 inch apart (see tips on page 15).

6. Press and hold the Original Remote button (e.g. Power) until the red indicator blinks once and stays on. If there is a learning problem, the indicator blinks for three seconds and stays on. If this happens, repeat Steps 4 to 6.

7. Repeat Steps 4-6 for other buttons you want to learn.

8. Press and release the CODE SEARCH button when all desired remote commands are learned. Code Learning is now complete.

To Clear all Learned Commands under a mode

Clearing learned commands is helpful if, for example, you replace your CD player with another brand or model. If you had learned a feature from your old CD player’s original remote on to this remote (such as RANDOM PLAY), that feature would no longer work for your new CD player. Should you wish to remove or clear one or more “learned” commands, follow the steps below:

1. Press and hold the CODE SEARCH button until the red indicator turns on. Release the CODE SEARCH button.

2. Press and release the button for the mode you want to clear (TV, VCR, etc.). The red indicator blinks off.

3. Press and release the LEARN button TWICE. The red indicator blinks off.

4. Press and release the CODE SEARCH button. The red indicator turns off. All learned Commands under that mode are now cleared.

Master Clear - To Clear all Learned Commands under all modes

1. Press and hold the CODE SEARCH button until the red indicator turns on. Release the CODE SEARCH button.

2. Press and release the LEARN button TWICE. The red indicator blinks off.

3. Press and release the CODE SEARCH button. The red indicator turns off. All Learned commands in the remote are now cleared.

Line up your remotes (that you’re learning from) in front of the Learning remote, on a hard surface approx. 1 inch apart.

3. 1,8.

M1 M2L1 L2

1918

Macros

Macros, cont.

The “M” (Macro) button, in conjunction with buttons M1, and M2, lets you to program and store up to two sequences of IR Commands (button-presses) of your choice. One press of the respective Macro digit button results in that sequence of IR commands being sent. Any sequence of commands that you regularly perform can be reduced to two button presses (“M” button followed by M1, or M2 button). For example pressing “M” followed by a single button can turn on your TV, turn on your cable box, change to your favorite channel, turn on your VCR, and tell it to record, etc. A total of 10 button presses can be stored under each of the two Macro digits.

To Setup a Macro

1. Press and hold the CODE SEARCH button until the red indicator turns on. Release CODE SEARCH.

2. Press and release the “M” button. The red indicator blinks off.

3. Press and release the button where you want to store the Macro, i.e. button M1, M2.

4. Press and Release Mode button for the first device to be controlled in the Macro sequence. (The first button in a Macro sequence MUST be a Mode button (TV, VCR, etc.)).

5. Press and release the buttons you want to be included in the Macro, in the order you want them to be sent (maximum of 9). The red indicator blinks off with each button press.

6. To store the Macro, press and release the “M” button. The red indicator turns off. Note, if you program the maximum of 9 buttons, the Macro will be automatically stored on the 9th button press and the red indicator turns off. Macro setup is now complete.

Macro Operation

To activate the Macro press and release the “M” button followed (within 20 seconds) by the M1, or M2 button.

Macro Notes

1. You might want to add “delays” in a Macro sequence (e.g. to allow for your TV warm-up time). Delays can be added by using the PAUSE button followed by the number of seconds delay required. For example, to enter a delay of 3 seconds, press and release PAUSE followed by 3 (in step 4 of “To Setup a Macro” on the previous page). Maximum delay is 9 seconds. It is not possible to have a “0” digit entered after Pause i.e. there is no zero delay.

2. There is an automatic delay of half a second between each IR transmission in a Macro sequence.

3. The first button in a Macro sequence MUST be a Mode button (TV, VCR, etc.).

To Delete a Macro

1. Press and hold the CODE SEARCH button until the red indicator turns on. Release the CODE SEARCH button.

2. Press and release the “M” button. The red indicator blinks off.

3. Press and release button M1, M2 for the Macro you want to delete.

4. Press and hold the CODE SEARCH button. The red indicator turns off and the Macro is deleted.

1. 2, 6.

M1 M2L1 L2

1, 4. 2.

M1 M2L1 L2

2120

+ 24 hidden pages
