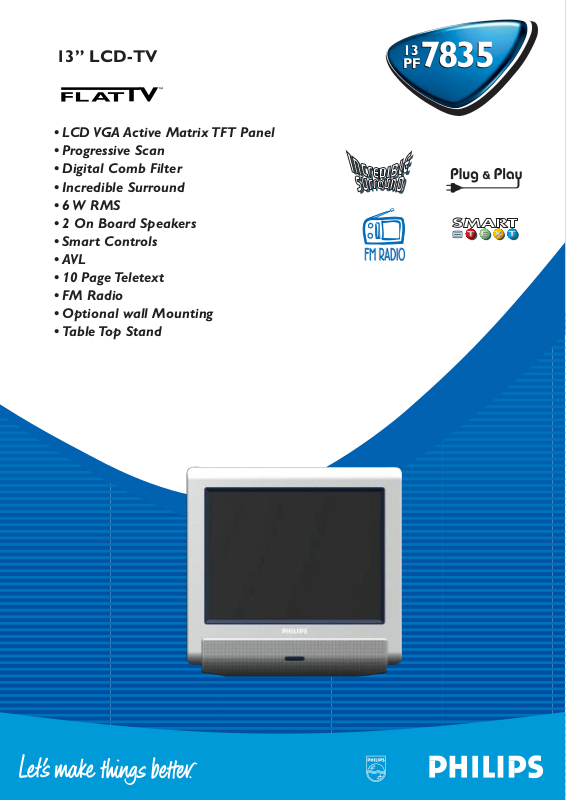

13” LCD-TV
• LCD VGA Active Matrix TFT Panel
•Progressive Scan
• Digital Comb Filter
• Incredible Surround
•6 W RMS
•2 On Board Speakers
• Smart Controls
•AVL
• 10 Page Teletext
• FM Radio
• Optional wall Mounting
•Table Top Stand
13
PF
7835
13
PF
7835
Technical specifications
• Screen Size: 13" (34 cm)
• Visible Screen Size: 34 cm
• Aspect ratio 4:3
• Display : LCD Active Matrix TFT technology
• Response time LCD :
• Resolution :VGA-640x480
• Brightness: 450 Cd/m
2
• Contrast Ratio: 400:1
• Viewing Angles : 120H/90V
• Anti Reflex Coated Screen
•Progressive Scan
• Digital Comb Filter
Sound
• Sound Power: 6 W RMS
12 W Music Power
• Incredible Surround
•2 On Board Speakers
Ease of Use Installation
• 100 preset channels
• Autostore
•ATS
Ease of Use Utilisation
•Top Controls
• Remote Control : tbc
•Program List
• Multi-language menus (7 languages)
• Smart Picture Control: Soft, Natural,Rich,
Multimedia, Personal
• Smart Sound Control: Movie, Speech
Music, Personal
• Dual I-II
• Delta Volume/AVL
•Wake up Clock
• Sleep Timer (up to 240mn)
• Child Lock
• 16.9 Compress
• 4.3 Expand
Product highlights
Flat, Slim,Wide
True Flat Multimedia TV which can be hung on the wall
like a painting.
LCD Active Matrix TFT Panel
State of the art LCD screen technology enabling brillant
flicker free picture with optimum brightness and superb
colours. A thin film transistor (TFT) is used to generate
clear and crisp colours. LCD allows screens to be
thinner, so televisions lighter and more energy efficient
then ever before.
FM Radio
A radio is included inside the TV, capable of stereo
sound
(in stereo TV's)and storage of up to 40 FM Radio
stations.
On screen naming of all these stations is also
possible for easy navigation.
13” LCD-TV
Connections
• Euro A/V Connector (RGB in, CVBS in/out)
• S-video Y/C (mini-DIN) in
• Video CVBS (cinch) in
• Audio L/R (cinch) in
• Headphones (3.5mm jack) out
Information
• 10 Page TOP/FLOF Teletex
FM Radio
• Stereo FM Radio
• 40 Preset channels
• Autostore / Manual store
• Sorting
•Preset List
Reception
•Tuning system: PLL Digital Tuning
•Tuner: VHF,UHF, S-Channel,Hyperband
• Aerial Input: 75 Ohm Coaxial (IEC 75)
• TV System : See table
• Stereo System : See table
• Video playback : NTSC 4.43/3.58
Miscellaneous
• Ambient temperature +5 --+ 40°C
• Mains: Auto Voltage AC 95V-264V, 50/60Hz
•Power consumption: tbc normal operation
tbc Stand by
• Set Weight : tbc
•Weight Incl. Packaging : tbc
• Set Dimension (WxHxD): tbc
•Box Dimension (WxHxD): tbc
• TV Colour: Silver Frost (11027)
• Optional Wall Mounting (VESA standard)
•Table top stand
Predecessor : Chassis : LC03 Special
Introduction :Year 2003
01/2002
13
PF
7835
13
PF
7835
Features and specifications subject to change without notice
13PF7835 /12
•••• •••••••
13PF7835 /58
•••• •••••••
2CS NICAM 2CS NICAM NICAM NICAM PAL PAL PAL SECAM SECAM SECAM
DK DK BG BG I LL’ BG DK I BG DK LL’
version
stereo
system
transmission
system
