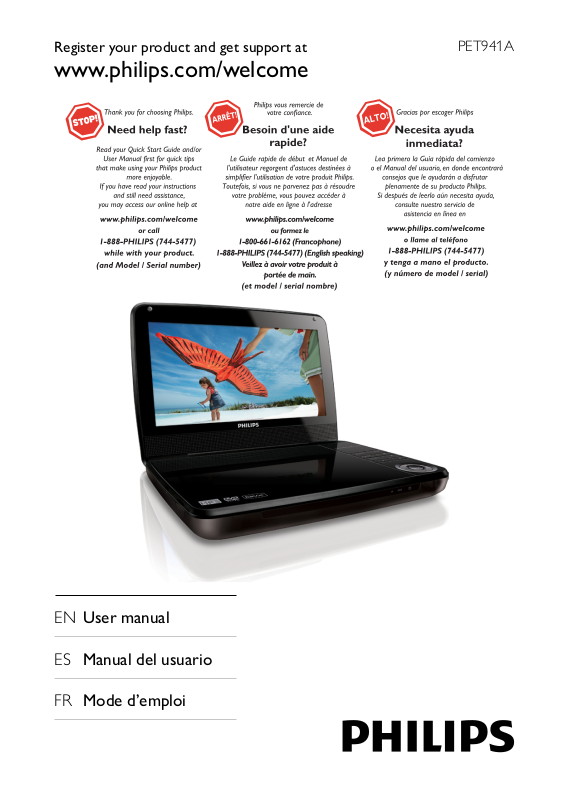

Page 1
Register your product and get support at
www.philips.com/welcome
PET941A
EN User manual
ES Manual del usuario
FR Mode d’emploi
Page 2
Canada
English:
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus as set out in the Radio Interference Regulations of the Canadian
Department of Communications.This Class B digital apparatus complies with Canadian
ICES-003.
Français:
Cet appareil numérique n’émet pas de bruits radioélectriques dépassant les limites
applicables aux appareils numériques de Classe B prescrites dans le Règlement sur le
Brouillage Radioélectrique édicté par le Ministère des Communications du Canada. Cet
appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.
The set complies with the FCC-Rules, Part 15 and with 21 CFR 1040.10. Operation is
subject to the following two conditions:
1. This device may not cause harmful interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
L’appareil est conforme à la réglementation FCC, section 15, et à la norme
21 CFR 1040.10. Son utilisation est soumise à deux conditions :
1. L’appareil ne doit pas provoquer d’interférences nuisibles, et
2. L’appareil doit supporter les interférences reçues, y compris les interférences
empêchant son fonctionnement correct.
NOTE: This equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to
radio communications.
However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Page 3
3
Page 4
m
l
abcd
e
k
j
i
f
g
h
4
Page 5
Contents
1 Important 8
Important safety instructions 8
Notice 10
2 Your portable DVD player 12
Introduction 12
What’s in the box 13
Overview of the main unit (see Page 3) 13
Overview of the remote control (see Page 4) 14
3 Get started 15
Charge the battery 16
Install remote control battery 16
Connect additional equipment 17
4 Use your player 18
English
Turn on 18
Select OSD language 18
Play discs 18
Play options 19
Adjust brightness of screen backlight 19
5 Adjust settings 20
6 Product information 21
7 Troubleshooting 22
EN
5
Page 6
6 EN
Page 7
English
EN
7
Page 8
1 Important
Important safety instructions
a
Read these instructions.
b
Keep these instructions.
c
Heed all warnings.
d
Follow all instructions.
e
Do not use this apparatus near water.
f
Clean only with dry cloth.
g
Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
h
Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifi ers) that produce heat.
i
For countries with a polarized mains, do not defeat the safety purpose
of the polarized or grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding type plug has two
blades and a third grounding prong. The wide blade or the third prong
are provided for your safety. If the provided plug does not fi t into your
outlet, consult an electrician for replacement of the obsolete outlet.
Caution: To prevent electric shock, match the wide blade of
the plug to the wide slot, fully insert.
j
Protect the power cord from being walked on or pinched, particularly
at plugs, convenience receptacles, and the point where they exit from
the apparatus.
k
Only use attachments/accessories specifi ed by the manufacturer.
l
Use only with the cart, stand, tripod, bracket, or table
specifi ed by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
m
Unplug this apparatus during lightning storms or when unused for
long periods of time.
n
Refer all servicing to qualifi ed service personnel. Servicing is required
when the apparatus has been damaged in any way, such as power-
8
EN
Page 9
supply cord or plug is damaged, liquid has been spilled or objects have
fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
o
Apparatus shall not be exposed to dripping or splashing.
p
Do not place any sources of danger on the apparatus (e.g. liquid fi lled
objects, lighted candles).
q
This product may contain lead and mercury. Disposal of these
materials may be regulated due to environmental considerations. For
disposal or recycling information, please contact your local authorities
or the Electronic Industries Alliance: www.eiae.org.
Warning
Never remove the casing of this apparatus.
•
Never lubricate any part of this apparatus.
•
Never place this apparatus on other electrical equipment.
•
Keep this apparatus away from direct sunlight, naked fl ames or heat.
•
Never look into the laser beam inside this apparatus.
•
Ensure that you always have easy access to the power cord, plug or adaptor to
•
disconnect this apparatus from the power.
English
Hearing safety
Listen at a moderate volume.
•
•
To establish a safe volume level:
•
•
Using headphones at a high volume can impair your hearing. This
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute. The
higher decibel ranges are offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’ adapts
to higher volumes of sound. So after prolonged listening, what sounds
‘normal’ can actually be loud and harmful to your hearing. To guard
against this, set your volume to a safe level before your hearing adapts
and leave it there.
Set your volume control at a low setting.
Slowly increase the sound until you can hear it comfortably and clearly,
without distortion.
EN
9
Page 10
Listen for reasonable periods of time:
•
Prolonged exposure to sound, even at normally ‘safe’ levels, can also
cause hearing loss.
•
Be sure to use your equipment reasonably and take appropriate breaks.
Be sure to observe the following guidelines when using your headphones.
•
•
•
•
Listen at reasonable volumes for reasonable periods of time.
Be careful not to adjust the volume as your hearing adapts.
Do not turn up the volume so high that you can’t hear what’s around you.
You should use caution or temporarily discontinue use in potentially
hazardous situations. Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a traffi c
hazard and is illegal in many areas.
Notice
Any changes or modifi cations made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
This product complies with the radio interference requirements of
the European Community.
This product complies with the requirements of the following directives and
guidelines: 2004/108/EC + 2006/95/EC.
Environmental information
All unnecessary packaging has been omitted. We have tried to make the
packaging easy to separate into three materials: cardboard (box), polystyrene
foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if
disassembled by a specialized company. Please observe the local regulations
regarding the disposal of packaging materials, exhausted batteries and old
equipment.
Recycling
Your product is designed and manufactured with high quality materials
and components, which can be recycled and reused.
10
EN
Page 11
When you see the crossed-out wheel bin symbol attached to a
product, it means the product is covered by the European Directive
2002/96/EC:
Never dispose of your product with other household waste. Please
inform yourself about the local rules on the separate collection of
electrical and electronic products. The correct disposal of your old product
helps prevent potentially negative consequences on the environment and
human health.
Your product contains batteries covered by the European Directive 2006/66/
EC, which cannot be disposed of with normal household waste.
When you see the crossed-out wheel bin symbol with the chemical
symbol ‘Pb’, it means that the batteries comply with the requirement
English
set by the directive for lead:
Pb
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially negative
consequences on the environment and human health.
Always bring your product to a professional to remove the built-in battery.
The making of unauthorized copies of copy-protected material, including
computer programs, fi les, broadcasts and sound
recordings, may be an infringement of copyrights and
constitute a criminal offence. This equipment should
not be used for such purposes.
Recording and playback of material might require consent. See Copyright Act
1956 and The Performer’s Protection Acts 1958 to 1972.
“DivX, DivX” Certifi ed, and associated logos are trademarks of DivX, Inc. and
are used under license.
This player includes this label:
EN
11
Page 12
2 Your portable DVD player
Congratulations on your purchase, and welcome to Philips! To fully benefi t
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
Your portable DVD player plays digital video discs that conform to the
universal DVD Video standard. With it, you can play movies with true cinema
picture quality and stereo or multi-channel sound (depending on disc and
playback set-up).
You can also select sound track, subtitle languages, and different angle of view
(again depending on DVD disc). Besides, you can restrict the play of discs that
are not suitable for children.
You can play the following discs on the DVD player (including CD-R, CD-RW,
DVD±R and DVD±RW):
DVD-Video
Video CD
Audio CD
MP3 CD
DivX
Discs with JPEG fi les
12
EN
Page 13
What’s in the box
Check and identify the contents of your package:
•
•
•
•
•
•
•
•
Portable DVD player
Remote control
AC power adaptor, AY5806 (Philips)
Car adaptor
AV cables
Protective pouch
User Manual
Quick Start Guide
Overview of the main unit (see Page 3)
a
b
SETUP
•
•
Accesses or exits the setup menu.
Adjusts brightness of the screen backlight.
English
c
d
e
f
g
•
Stops disc play.
,
•
Skips to the previous or next title, chapter, or track.
, , ,
•
Navigates through the menus.
,
•
Searches backward/forward at different speeds.
/OK
•
•
Confi rms an entry or selection.
Starts, pauses or resumes disc play.
IR/CHR/
•
Remote control sensor/Charging indicator/Power indicator.
AV MODE
h
•
Turns off the front panel display when the player is connected to
TV.
OPTION
•
Accesses options relating to the current activity or selection.
EN
13
Page 14
i
DISC MENU
j
k
l
m
n
•
•
•
For DVD, accesses or exits disc menu.
For VCD, turns on or off PBC (Playback Control) mode.
For VCD version 2.0 or SVCD with PBC turned on, returns to the
menu.
OPEN
•
Opens the disc compartment.
POWER ON /OFF
•
Turns on/off DVD player.
- VOL +
•
Increases or decreases volume.
AV OUT
•
•
Audio/video output jack.
Headphone jack.
o
DC IN
•
Power supply socket
Overview of the remote control (see Page 4)
a
b
c
d
e
SETUP
•
Accesses or exit the setup menu.
DISPLAY
•
Displays play information.
ZOOM
•
Zooms in or out.
SUB
•
Selects DVD subtitle language.
A-B REPEAT
•
Marks the section for repeat play.
f
14
REPEAT 1/ALL
•
Repeats a chapter/track/title.
DISC MENU
•
•
For DVD, accesses or exits disc menu.
For VCD, turns on or off PBC (Playback Control) mode.
EN
Page 15
g
AUDIO
h
i
j
k
l
•
•
For DVD, selects an audio language.
For VCD, selects an audio mode.
ANGLE
•
Selects a different viewing angle of a DVD.
0 - 9
•
•
•
Inputs numbers.
Stops disc play.
Adjusts brightness of the screen backlight.
, , ,
•
Moves cursor up/down/left/right.
,
•
Searches backward or forward at diffent speeds.
English
/OK
•
•
m
Confi rms an entry or selection.
Starts, pauses or resumes disc play.
,
Skips to previous/next •chapter, track or title.
3 Get started
Caution
Use the controls only as stated in this user manual.
•
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of
your player. The model number and serial number are on the bottom of your
player. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
EN
15
Page 16
Charge the battery
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the
•
voltage printed on the bottom of the player.
Use only the supplied AC adaptor to charge the battery.
•
Note
The type plate is located on the bottom of the player.
•
You can only charge the player when it is in power-off mode.
•
Slide the POWER ON/OFF switch to OFF position.
1
Connect the supplied AC adaptor to the player and to the AC outlet.
2
The charge indicator turns on. It takes about 7 hours to fully charge
»
the battery.
When the battery is fully charged, the charge indicator turns off.
»
Install remote control battery
Caution
Risk of explosion! Keep batteries away from heat, sunshine or fi re. Never discard
•
batteries in fi re.
Danger of explosion if battery is incorrectly replaced. Replace only with the same or
•
equivalent type.
Risk of product damage! When the remote control is not used for long periods, remove
•
the batteries.
Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/
•
perchlorate.
16
EN
Page 17
For fi rst-time use:
Remove the protective tab to activate the remote control battery.
1
To replace the remote control battery:
Open the battery compartment.
1
Insert 1 CR2025 battery with correct polarity (+/-) as indicated.
2
Close the battery compartment.
3
Connect additional equipment
Caution
Turn off your player before connecting to any additional equipment.
•
English
You can connect the player to a TV or an amplifi er to enjoy DVDs or
Karaoke.
Match the color of the AV cables (the AV cable connected to TV is not
supplied) with the jacks: the yellow cable is for the yellow video jack, the red/
white cable is for the red/white audio jacks.
TV
not supplied
AUDIO IN
VIDEO IN
Tip
To conserve energy, press •AV MODE to turn off the front panel display.
EN
17
Page 18
4 Use your player
Turn on
Slide the POWER ON/OFF switch to the ON position.
»
The
indicator turns on.
Select OSD language
You can choose a different language for the on-screen display text.
Press SETUP.
1
The setup menu appears.
»
Select [-- General Setup Page --] > [OSD Language].
2
Press to select an option.
3
Press /OK to confi rm.
4
Press SETUP to exit.
5
Play discs
Slide OPEN on the player.
1
Insert the disc with label side facing up.
2
Push down to close the disc compartment.
3
Play starts automatically. If not, press
»
•
•
•
•
•
If a menu appears, select an item, then press
To pause, press
To stop, press
To select the previous/next item, press
To start search within video/audio, press
/OK. Press again to resume play.
twice.
/OK.
/OK to start play.
or .
or once or more.
18
EN
Page 19
Play options
During play, press OPTION to select some play options.
1
For DVD
•
•
•
•
[Audio]
[Subtitle]
[Repeat]
[Time Disp.]
For VCD
•
•
•
[Audio]
[Repeat]
[Time Disp.]
For audio CDs
•
•
•
[Repeat One]
[Repeat Folder]
[Repeat Off]
For JPEG CDs
•
•
Follow the on-screen instructions.
2
[Repeat One]
[Repeat Folder]
English
Adjust brightness of screen backlight
Note
You can adjusts brightness of the screen backlight to match lighting conditions.
•
During play, press repeatedly to select an option.
•
•
•
To achieve the longest playtime, select •[Dim].
To achieve the best view, select
•
[Bright]
[Normal]
[Dim]
Tip
[Bright].
EN
19
Page 20
5 Adjust settings
To maximize your play experience, use SETUP to fi ne tune your settings.
Press SETUP.
1
The setup menu is displayed.
»
Press to select an option and press /OK to confi rm.
2
[-- General Setup Page --]
[OSD Language] Select on-screen display language.
[Screen Saver] Activate/deactivate screen saver.
[Resume] Select whether to start play from the
point where it was last stopped.
[Angle Mark] select angle mark display options.
[-- Display Setup Page --]
[Brightness] Adjust screen brightness.
[Contrast] Adjust screen contrast.
[Screen Display] Select display ratio.
[-- Battery Life Setup Page --]
[LCD Backlight] Adjust the default brightness level of
screen backlight.
[-- Preference Page --]
[Audio] Select audio language.
[DVD Subtitle] Select DVD subtitle language.
[DivX Subtitle] Select DivX subtitle language.
[Disc Menu] Select disc menu language.
[Parental] Select parental level.
[Password] Change password (3308 by default).
[DivX VOD] Get DivX registration code.
[Default] Restore original settings.
20
EN
Page 21
Press to go back to previous menu level.
3
Press SETUP to exit.
4
6 Product information
Note
Product information is subject to change without prior notice.
•
Dimensions 240 x 178 x 40 mm
Weight 1.1 kg
Power supply Input: 100-240V 50/60Hz 0.3A
Output: DC 9V 1A
Power consumption 9 W
Operating temperature range 0-45°C
Laser wavelength 650 nm
English
Video system NTSC & PAL
Frequency response 20Hz-20KHz ± 1dB
Signal/noise ratio
Audio distortion + noise
Channel separation
Dynamic range
Audio out (analog audio) Output level: 2V ± 10%
Load impedance 10 K
Video out Output level: 1Vp - p ± 20%
Load impedance 75
80 dB
-80 (1KHz)
80 dB
80 dB
21EN
Page 22
7 Troubleshooting
Warning
Risk of electric shock. Never remove the casing of the player.
•
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using the player, check the following points
before requesting service. If the problem remains unsolved, register your
player and get support at www.philips.com/welcome.
No power
Ensure that both plugs of the mains cord are properly connected.•
Ensure that there is power at the AC outlet.•
Check if the built-in battery is drained.•
No sound
•
Ensure that the AV cable is connected correctly.
Distorted picture
Clean the disc. With a clean, soft, lint-free cloth, wipe the disc outwards •
from the center.
Make sure that the video output format of the disc is compatible with •
the TV.
Change the video output format to match your TV or program.•
The LCD is manufactured using high precision technology. You may, •
however, see tiny black points and/or bright points(red, blue, green)
that continuously appear on the LCD. This is a normal result of the
manufacturing process and does not indicate a malfunction.
Cannot play disc
Ensure the disc label is upwards.•
Clean the disc. With a clean, soft, lint-free cloth, wipe the disc outwards •
from the center.
Check if the disc is defective by trying another disc.•
No response to the remote control
Ensure that the path between the remote control and the player is clear •
from obstacles.
From a close distance, point the remote control directly at the player.•
Replace the remote control batteries.•
The function does not work for this disc. Refer to the disc instructions.•
The player feels warm
•
22 EN
When the player is in use for a long period of time, its surface will be
heated. This is normal.
Page 23
Philips Consumer Lifestyle
A Division of Philips Electronics North America Corporation
P.O. BOX 671539, Marietta, GA. 30006-0026
Meet Philips at the Internet
http://www.philips.com/welcome
© 2009 Koninklijke Philips Electronics N.V.
All rights reserved.
PET941A_37_UM_V1.0
Loading...
