Philips PET742-58 User Manual
TV
AUDIO IN
VIDEO IN
Philips Portable DVD Player PET742
CHR

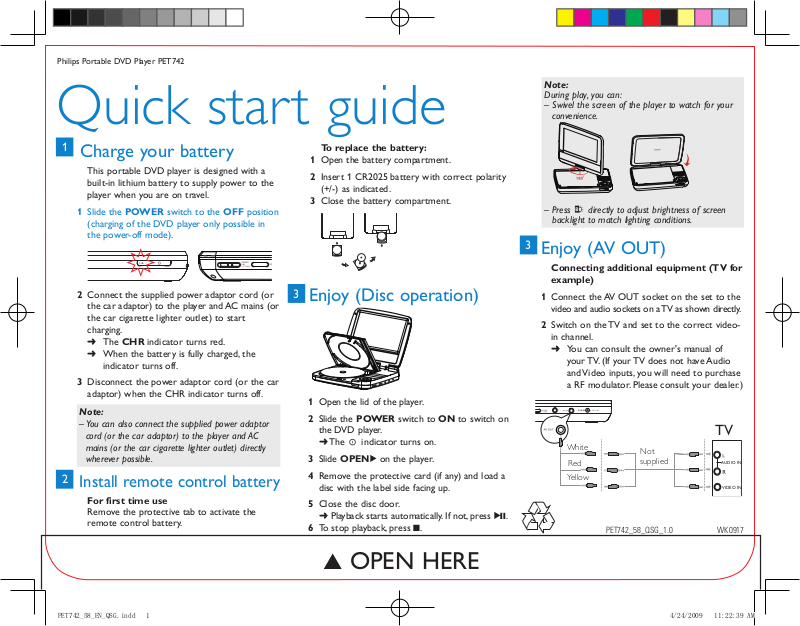

Quick start guide
Note:
During play, you can:
– Swivel the screen of the player to watch for your
convenience.
1
Charge your battery
This portable DVD player is designed with a
built-in lithium battery to supply power to the
player when you are on travel.
1 Slide the POWER switch to the OFF position
(charging of the DVD player only possible in
the power-off mode).
2 Connect the supplied power adaptor cord (or
the car adaptor) to the player and AC mains (or
the car cigarette lighter outlet) to start
charging.
➜ The CHR indicator turns red.
➜ When the battery is fully charged, the
indicator turns off.
3 Disconnect the power adaptor cord (or the car
adaptor) when the CHR indicator turns off.
Note:
– You can also connect the supplied power adaptor
cord (or the car adaptor) to the player and AC
mains (or the car cigarette lighter outlet) directly
wherever possible.
2
Install remote control battery
For first time use
Remove the protective tab to activate the
remote control battery.
To replace the battery:
1 Open the battery compartment.
2 Insert 1 CR2025 battery with correct polarity
(+/-) as indicated.
3 Close the battery compartment.
3
Enjoy (Disc operation)
1 Open the lid of the player.
2 Slide the POWER switch to ON to switch on
the DVD player.
➜ The
3 Slide OPEN2 on the player.
4 Remove the protective card (if any) and load a
disc with the label side facing up.
5 Close the disc door.
➜ Playback starts automatically. If not, press 2;.
6 To stop playback, press 9.
indicator turns on.
– Press
3
Enjoy (AV OUT)
Connecting additional equipment (TV for
1 Connect the AV OUT socket on the set to the
2 Switch on the TV and set to the correct video-
➜ You can consult the owner's manual of
PET742_58_QSG_1.0 WK0917
dir ectly to adjust brightness of screen
backlight to match lighting conditions.
example)
video and audio sockets on a TV as shown directly.
in channel.
your TV. (If your TV does not have Audio
and Video inputs, you will need to purchase
a RF modulator. Please consult your dealer.)
White
Red
Yellow
Not
supplied
