Philips PET741B, PET741B/37 Specifications

Page 1

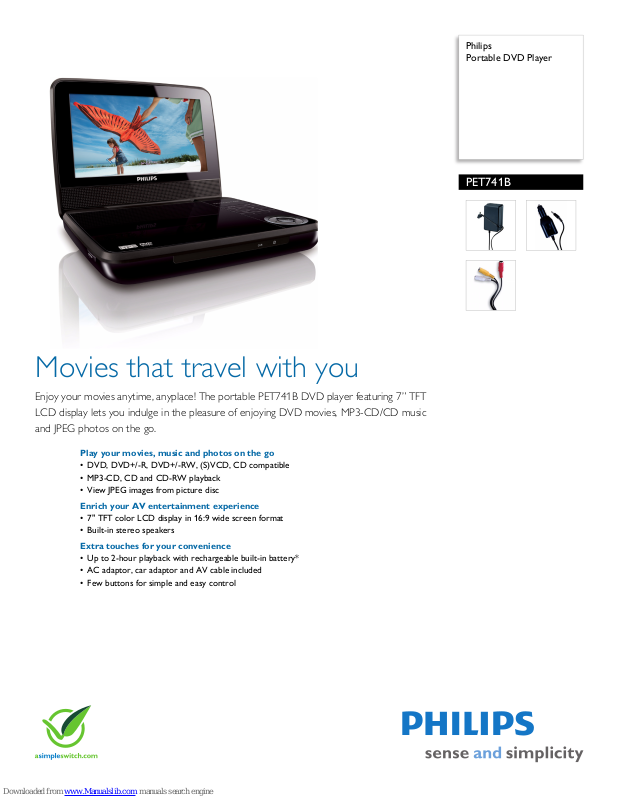

Philips Portable DVD Player

PET741B

Movies that travel with you

Enjoy your movies anytime, anyplace! The portable PET741B DVD player featuring 7” TFT LCD display lets you indulge in the pleasure of enjoying DVD movies, MP3-CD/CD music and JPEG photos on the go.

Play your movies, music and photos on the go

• DVD, DVD+/-R, DVD+/-RW, (S)VCD, CD compatible

• MP3-CD, CD and CD-RW playback

• View JPEG images from picture disc

Enrich your AV entertainment experience

• 7" TFT color LCD display in 16:9 wide screen format

• Built-in stereo speakers

Extra touches for your convenience

• Up to 2-hour playback with rechargeable built-in battery*

• AC adaptor, car adaptor and AV cable included

• Few buttons for simple and easy control

Page 2

Portable DVD Player

Specifications

PET741B/37

Picture/Display

• Diagonal screen size (inch): 7 inch

• Resolution: 480(w)x234(H)x3(RGB)

• Display screen type: LCD TFT

• Brightness: 120 cd/m²

• Contrast ratio (typical): 200:1

• LCD panel type: Anti-glare polarizer

• Effective viewing area: 154.1x86.6mm

• Response time (typical): 30 ms

Sound

• Output Power: 250mW RMS(built-in speakers)

• Output power (RMS): 5mW RMS(earphone)

• Signal to noise ratio: >80dB(line out), 76dB(earphone), >62dB(built-in speakers)

Video Playback

• Playback Media: DVD, Picture CD, SVCD, Video

CD, DVD-R/-RW, MP3-CD, CD-R/CD-RW, DVD+R/+RW, CD

• Disc Playback Modes: Disc Menu, Fast Backward,

t Forward, OSD, Repeat, Shuffle Play, Zoom

Fas

• Video disc playback system: PAL, NTSC

Audio Playback

• MP3 bit rates: 32 - 320 kbps

• Compression format: Dolby Digital, MP3

• Playback Media: CD, CD-RW, MP3-CD, CD-R

• File systems supported: ISO-9660, Jolliet

Connectivity

• DC in: 9V, 1A

• Headphone jack: 3.5mm Stereo Headphone

• AV output: Composite (CVBS) x1

Convenience

• Battery charging indication

• Shock proof

Accessories

• AC/DC Adaptor: DC 9V, 1A, 110-240v, 50/60Hz

• Cables: 1 x AV Cables

• User Manual: Multi Langauges

• Car kit: cigarette outlet adaptor, 12vDC

Power

• Battery Type: Built-in battery

• Battery lifetime: Up to 2hrs*

Dimensions

• Master carton dimensions: 225 x 270 x 240 mm

• Master carton quantity: 3

• Master carton weight: 3.6 kg

• Packaging dimensions (W x H x D): 230 x 255 x 70 mm

• Product dimensions (W x H x D): 195 x 38 x 153 mm

• Packaging type: D-box

• Product weight: 0.71 kg

•

Issue date 2010-12-21

Version: 2.1.2

12 NC: 8670 000 51896 UPC: 6 09585 16912 8

Specifications are subject t Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

o change without notice.

* Rechargeable batteries have a limited number of charge cycles and may

eventually need to be replaced. Battery life and number of charge

cycles vary by use and settings. * Battery life varies by use and settings. * Battery life of playtime is approximate and may vary depending on

appl

ication condition. To optimize battery life, user should turn LCD backlight to minimum, connect to headphones (not built-in speakers) and listen at medium volume level, and use the product at room temperature.
