Philips PET727-94 User Manual

Philips Portable DVD Player PET727

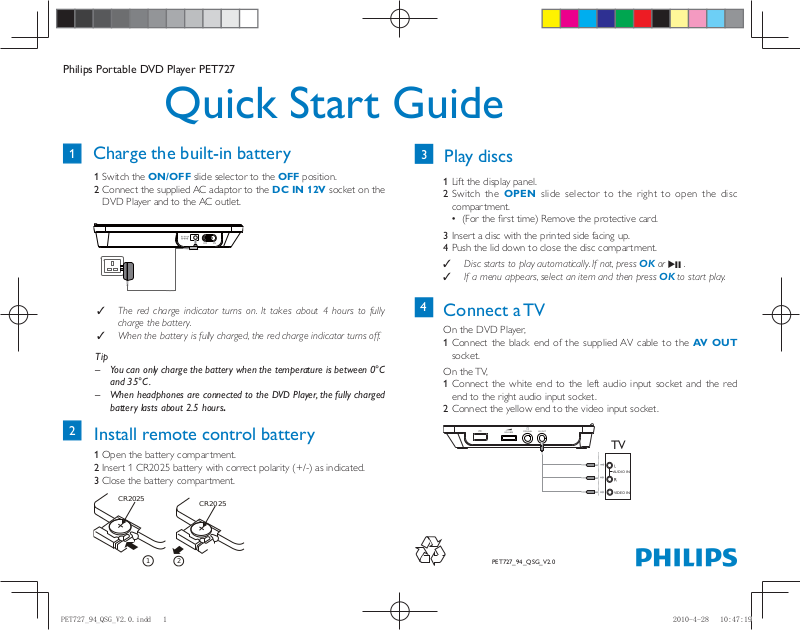

Quick Start Guide

1

Charge the built-in battery

1 Switch the ON/OFF slide selector to the OFF position.
2 Connect the supplied AC adaptor to the DC IN 12V socket on the

DVD Player and to the AC outlet.

The red charge indicator turns on. It takes about 4 hours to fully



charge the battery.
When the battery is fully charged, the red charge indicator turns off.



Tip
– You can only charge the battery when the temperature is between 0°C

and 35°C.

– When headphones are connected to the DVD Player, the fully charged

battery lasts about 2.5 hours.

2

Install remote control battery

1 Open the battery compar tment.
2 Insert 1 CR2025 batter y with correct polarity (+/-) as indicated.
3 Close the battery compar tment.

CR2025

CR2025

3

Play discs

1 Lift the display panel.
2 Switch the OPEN slide selector to the right to open the disc

compartment.

• (For the fi rst time) Remove the protective card.

3 Insert a disc with the printed side facing up.
4 Push the lid down to close the disc compartment.

Disc starts to play automatically. If not, press



If a menu appears, select an item and then press



4

Connect a TV

On the DVD Player,
1 Connect the black end of the supplied AV cable to the AV OUT

socket.

On the TV,
1 Connect the white end to the left audio input socket and the red

end to the right audio input socket.

2 Connect the yellow end to the video input socket.

OK or 2; .

OK to start play.

TV

AUDIO IN

VIDEO IN

1

2

PET727_94_QSG_V2.0
