Philips Portable DVD Player PET717





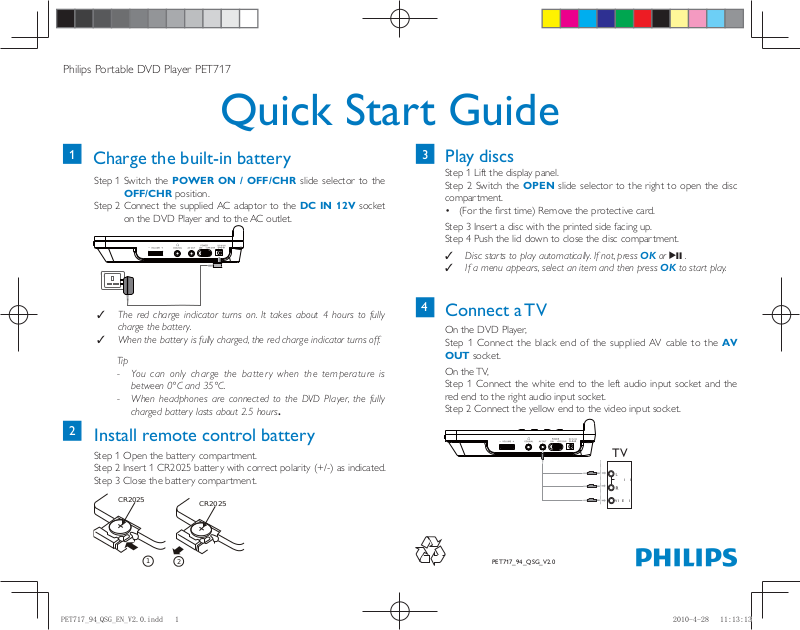

Quick Start Guide

1

Charge the built-in battery

Step 1 Switch the POWER ON / OFF/CHR slide selector to the

OFF/CHR position.

Step 2 Connect the supplied AC adaptor to the DC IN 12V socket

on the DVD Player and to the AC outlet.

The red charge indicator turns on. It takes about 4 hours to fully



charge the battery.
When the battery is fully charged, the red charge indicator turns off.



Tip

- You can only charge the battery when the temperature is
between 0°C and 35°C.

- When headphones are connected to the DVD Player, the fully
charged battery lasts about 2.5 hours.

2

Install remote control battery

Step 1 Open the battery compar tment.
Step 2 Insert 1 CR2025 batter y with correct polarity (+/-) as indicated.
Step 3 Close the battery compar tment.

CR2025

CR2025

3

Play discs

Step 1 Lift the display panel.
Step 2 Switch the OPEN slide selector to the right to open the disc
compartment.

• (For the fi rst time) Remove the protective card.

Step 3 Insert a disc with the printed side facing up.
Step 4 Push the lid down to close the disc compartment.

Disc starts to play automatically. If not, press



If a menu appears, select an item and then press



4

Connect a TV

On the DVD Player,
Step 1 Connect the black end of the supplied AV cable to the AV

OUT socket.

On the TV,
Step 1 Connect the white end to the left audio input socket and the
red end to the right audio input socket.
Step 2 Connect the yellow end to the video input socket.

OK or 2; .

OK to start play.

TV

I I

VIE I

1

2

PET717_94_QSG_V2.0
