EN User manual 4

Page 4

Contents

1 Important 6

Safety 6 Notice 14

2 Your Portable DVD player 17

Introduction 17 What’s in the box

Overview of the main unit

Overview of the displays

Overview of the remote control

3 Get started 26

Preparation 26 Connect audio/video cables

Connect power

Install remote control batteries

Connect headphones

Select display language

4 Use your player 34

Turn on 34 Play discs

Adjust volume

Adjust display

Play options

5 Adjust settings 41

Playback control options

DivX Video-on-Demand code

Restrict access

Return to default settings

Select TV display aspect ratio

Select video output format

Select audio output

Select digital audio output

6 Troubleshooting 47

7 Product information 50

Page 5

1 Important

Safety

a Read these instructions. b Keep these instructions. c Heed all warnings. d Follow all instructions. e Do not use this apparatus near water. f Clean only with dry cloth. g Do not block any ventilation openings.

Install in accordance with the manufacturer’s instructions.

h Do not install near any heat sources such

as radiators, heat registers, stoves, or

other apparatus (including ampliers) that

produce heat.

i For countries with a polarized mains, do not

defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your

safety. If the provided plug does not t

into your outlet, consult an electrician for replacement of the obsolete outlet. Caution: To prevent electric shock, match the wide blade of the plug to the wide slot, fully insert.

j Protect the power cord from being

walked on or pinched, particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

k Only use attachments/accessories specied

by the manufacturer.

l Use only with the cart, stand, tripod,

bracket, or table specied by the

Page 6

manufacturer or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

m Unplug this apparatus during lightning

storms or when unused for long periods of time.

n Refer all servicing to qualied service

personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

o Battery usage CAUTION – To prevent

battery leakage which may result in bodily injury, property damage, or damage to the unit:

Install all batteries correctly, + and - as marked on the unit. Do not mix batteries (old and new or carbon and alkaline, etc.). Remove batteries when the unit is not used for a long time.

p Apparatus shall not be exposed to dripping

or splashing.

q Do not place any sources of danger on the

apparatus (e.g. liquid lled objects, lighted candles).

r This product may contain lead and

mercury. Disposal of these materials may be regulated due to environmental considerations. For disposal or recycling information, please contact your local authorities or the Electronic Industries Alliance: www.eiae.org.

•

Page 7

Warning

Never remove the casing of this player. Never lubricate any part of this player. Never place this player on other electrical equipment.

Keep this player away from direct sunlight, naked ames

or heat. Never look into the laser beam inside the player. Ensure that you always have easy access to the power cord, plug or adaptor to disconnect the player from the power.

•

How to connect a plug

The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L). As these colours may not correspond with the colour markings identifying the terminals in your plug, proceed as follows:

Connect the blue wire to the terminal marked N or coloured black. Connect the brown wire to the terminal marked L or coloured red. Do not connect either wire to the earth terminal in the plug, marked E (or e) or coloured green (or green and yellow).

•

Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.

Mains plug

This apparatus is tted with an approved 13 Amp

plug. To change a fuse in this type of plug proceed as follows:

a Remove fuse cover and fuse. b Fix new fuse which should be a BS13625

Amp, A.S.T.A. or BSI approved type.

c Ret the fuse cover.

If the tted plug is not suitable for your socket

outlets, it should be cut off and an appropriate

plug tted in its place.

If the mains plug contains a fuse, this should have a value of 5 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 5 Amp. The severed plug must be disposed off to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.

Norge

Typeskilt nnes på apparatens bakside.

Page 8

Observer: Nettbryteren er sekundert innkoplet. Den innebygde netdelen er derfor ikke

fraktoplet nettet så lenge apparatet er tilsluttet

nettkontakten.

For å redusere faren for brann eller elektrisk støt,

skal apparatet, ikke utsettes for regn eller fuktighet.

Hearing safety

Listen at a moderate volume.

Using headphones at a high volume can impair your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss. Sound can be deceiving. Over time your hearing “comfort level” adapts to higher volumes of sound. So after prolonged listening, what sounds “normal” can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there.

•

To establish a safe volume level:

Set your volume control at a low setting. Slowly increase the sound until you can hear it comfortably and clearly, without distortion.

Listen for reasonable periods of time:

Prolonged exposure to sound, even at normally “safe” levels, can also cause hearing loss. Be sure to use your equipment reasonably and take appropriate breaks.

Be sure to observe the following guidelines when using your headphones.

Listen at reasonable volumes for reasonable periods of time. Be careful not to adjust the volume as your hearing adapts. Do not turn up the volume so high that you can’t hear what’s around you. You should use caution or temporarily discontinue use in potentially hazardous situations. Do not use headphones while operating a motorized vehicle, cycling,

skateboarding, etc.; it may create a trafc

hazard and is illegal in many areas.

•

Page 9

Notice

This product complies with the radio interference requirements of the European Community. This product complies with the requirements of the following directives and guidelines: 73/23/EEC + 89/336/EEC + 93/68/EEC

Any changes or modications made to this

device that are not expressly approved by Philips Consumer Electronics may void the user’s authority to operate the equipment.

The making of unauthorized copies of copyprotected material, including computer programs,

les, broadcasts and sound recordings, may be

an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes. Recording and playback of material may require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.

Disposal of product and packing material

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product, it means the product is covered by the European Directive 2002/96/EC. Please be informed about the local separate collection system for electrical and electronic products. Please act according to your local rules and do not dispose of your old product with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences to the environment and human health. All redundant packing material has been omitted. We have done our utmost to make the packaging easily separable into mono materials.

Page 10

Please observe the local regulations regarding the disposal of packing materials.

This player includes this label:

2 Your Portable

DVD player

Congratulations on your purchase, and welcome

to Philips! To fully benet from the support that

Philips offers, register your product at www.Philips. com/welcome.

Introduction

Your por table DVD player plays digital video discs conforming to the universal DVD Video standard. With it, you can play movies with true cinema picture quality and stereo or multi-channel sound (depending on disc and playback set-up). You can also select sound track, subtitle languages, and different angle of view (again depending on DVD disc). Besides, you can set parental control to prevent your children to see certain discs. You can play the following discs on the DVD player:

Page 11

DVD video disc

Video CDs

MP3s

Audio CDs

CD with JPEG les

What’s in the box

Check and identify the contents of your package:

Portable DVD player 7” LCD screen x 2 Remote control AC power adaptor Car adaptor (12V) AV cable x 2 Car pouch x 2 Y-type power cord

•

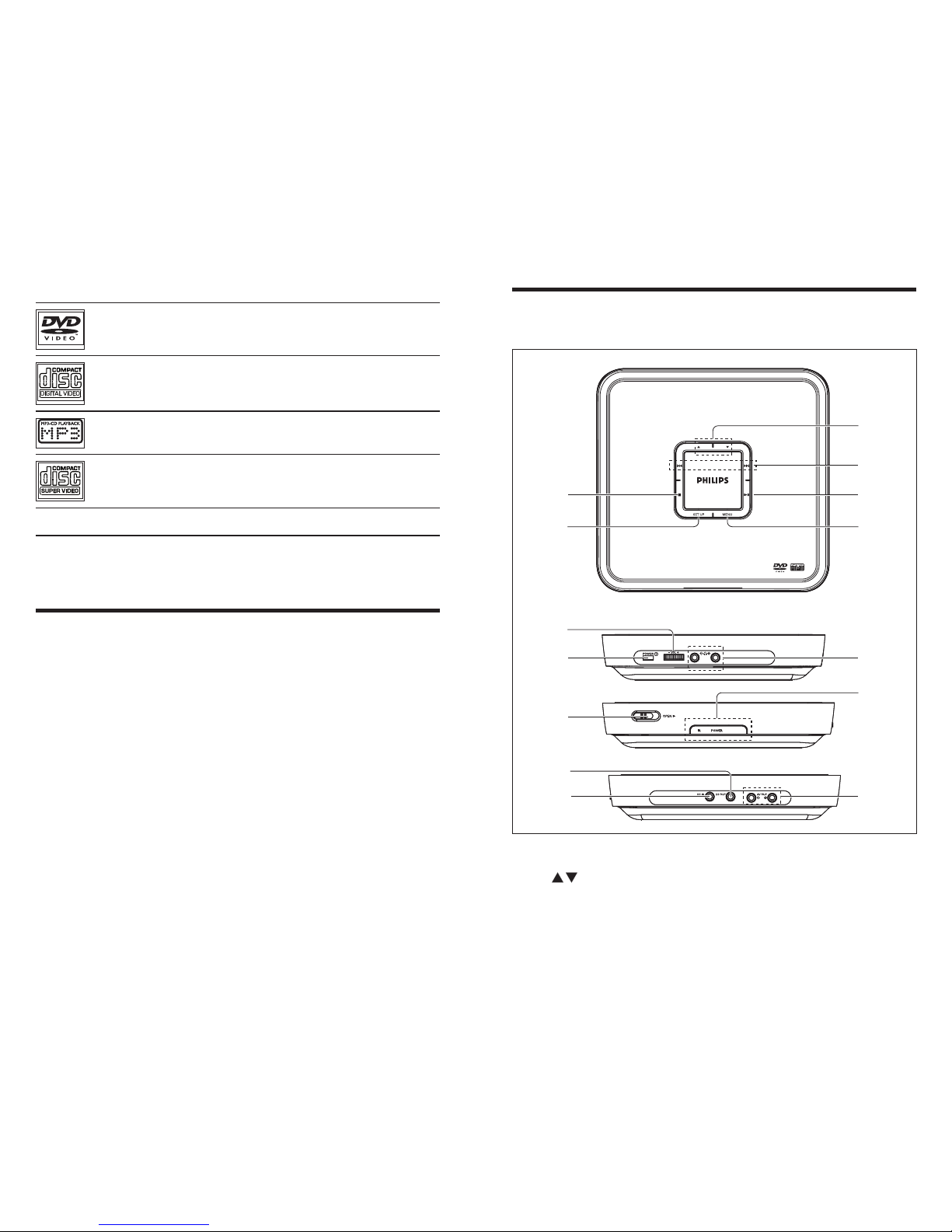

Overview of the main unit

Move cursor up / down•

b ce

h i

m n

g j

b ce

h i

m n

g j

Page 12

b /

Skip to previous/next chapter, track or title Move cursor to left/right

Start or interrupt play

d MENU

Enter or exit DVD menu

Stop play

f SETUP

Enter or exit system setup menu

Headphones jack

h – VOL +

Adjust headphone volume

i POWER

Turn DVD player on/off

j POWER/IR

Power/Remote sensor indicator

•

k OPEN

Open disc door to insert or remove disc

l AV out 1 and 2

Audio/Video output jacks

m DC OUT

DC power output to the two screens

n DC IN

Power supply socket

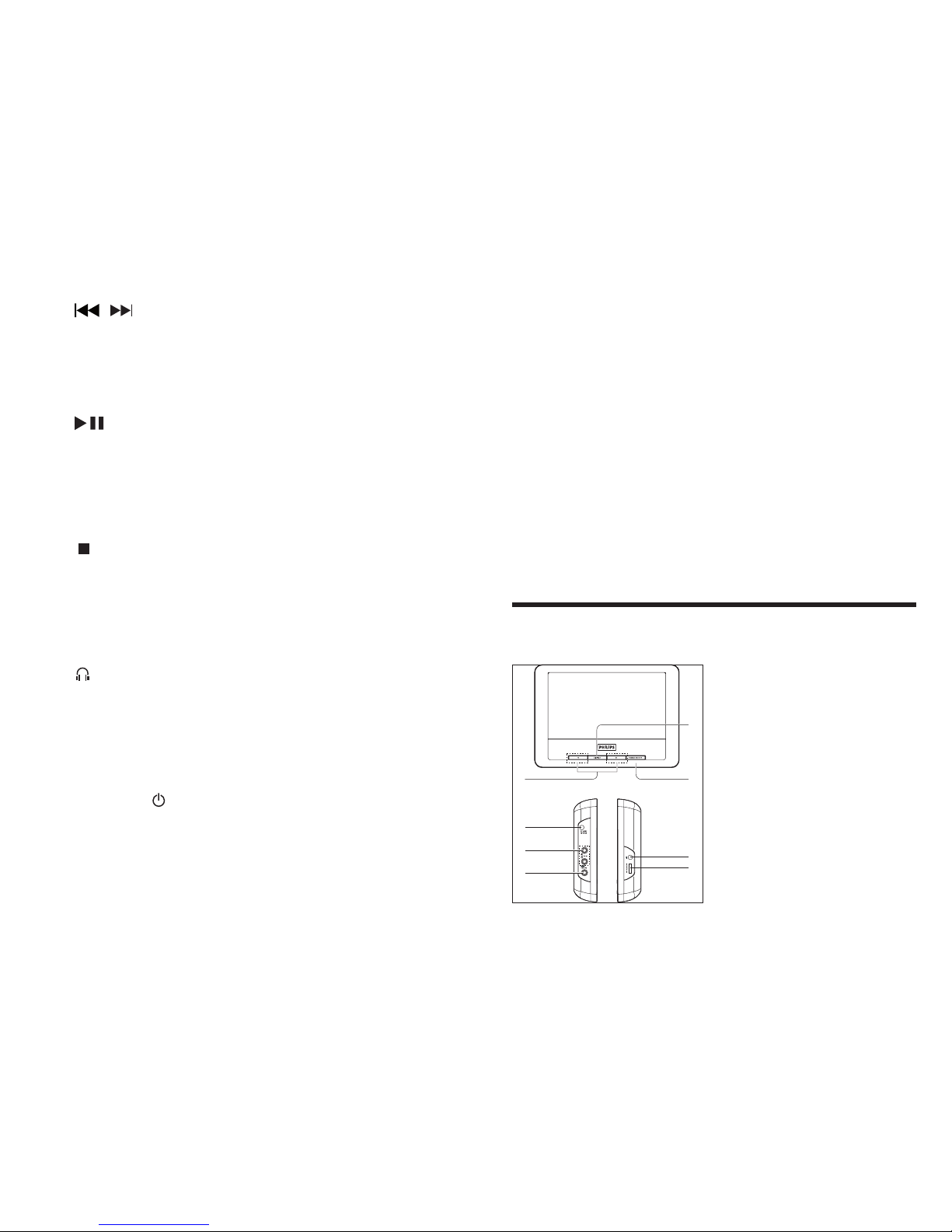

Overview of the displays

•

Page 13

a DISPLAY

Setup screen display

b POWER ON/OFF

Turn the screen on/off

Adjust display value of the screen

Headphone jack

e – VOL +

Adjust volume

f DC IN

Power supply from the DVD player

g Audio In L(left) and R(right)

Audio/Video input jacks

h VIDEO IN

Video input jack

•

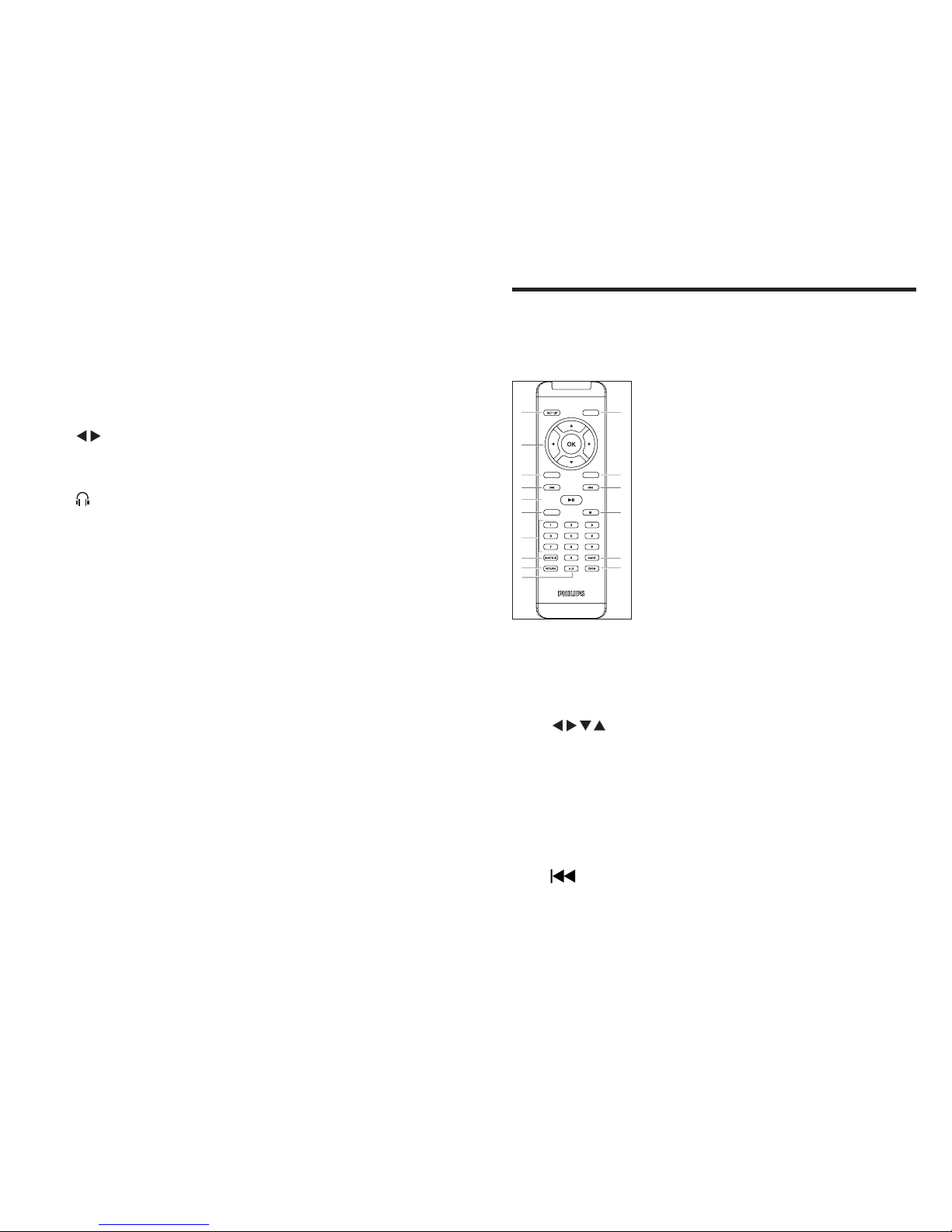

Overview of the remote control

a SETUP

Enter or exit system menu

b , OK

Move cursor up / down / left / right.

Conrms selection.

c OSD

Access available functions

Skip to previous chapter, track or title.

•

DVD MENU

OSD

MUTE

TITLE

DVD MENU

OSD

MUTE

TITLE

Page 14

e PLAY/PAUSE

Start / pause / resume play

f MUTE

Turn off sound

g Numeric Keypad 0 - 9

Input numbers.

h SUBTITLE

Select a subtitle language for DVD disc.

i RETURN

Return to the PBC (playback control) menu of VCD disc

j A-B

Setup repeated play of a specic section

k DVD MENU

Return to main menu of DVD disc

l TITLE

Return to title menu of DVD disc

Skip to the next chapter, track or title

n STOP

•

Stop play

o AUDIO

Select an audio language when playing a DVD isc or select an audio mode (Stereo, Mono-Left or Mono-Right) when playing a VCD/CD disc

p ZOOM

Enlarge or reduce picture or active image size

•

Page 15

3 Get started

Caution

Use the controls only as stated in this user manual.•

Always follow the instructions in this chapter in sequence. If you contact Philips, you will be asked for the model and serial numbers. Find the model number and serial number of this player at the back or the bottom of your player. Write these numbers here: Model No. __________________________ Serial No. ___________________________

Preparation

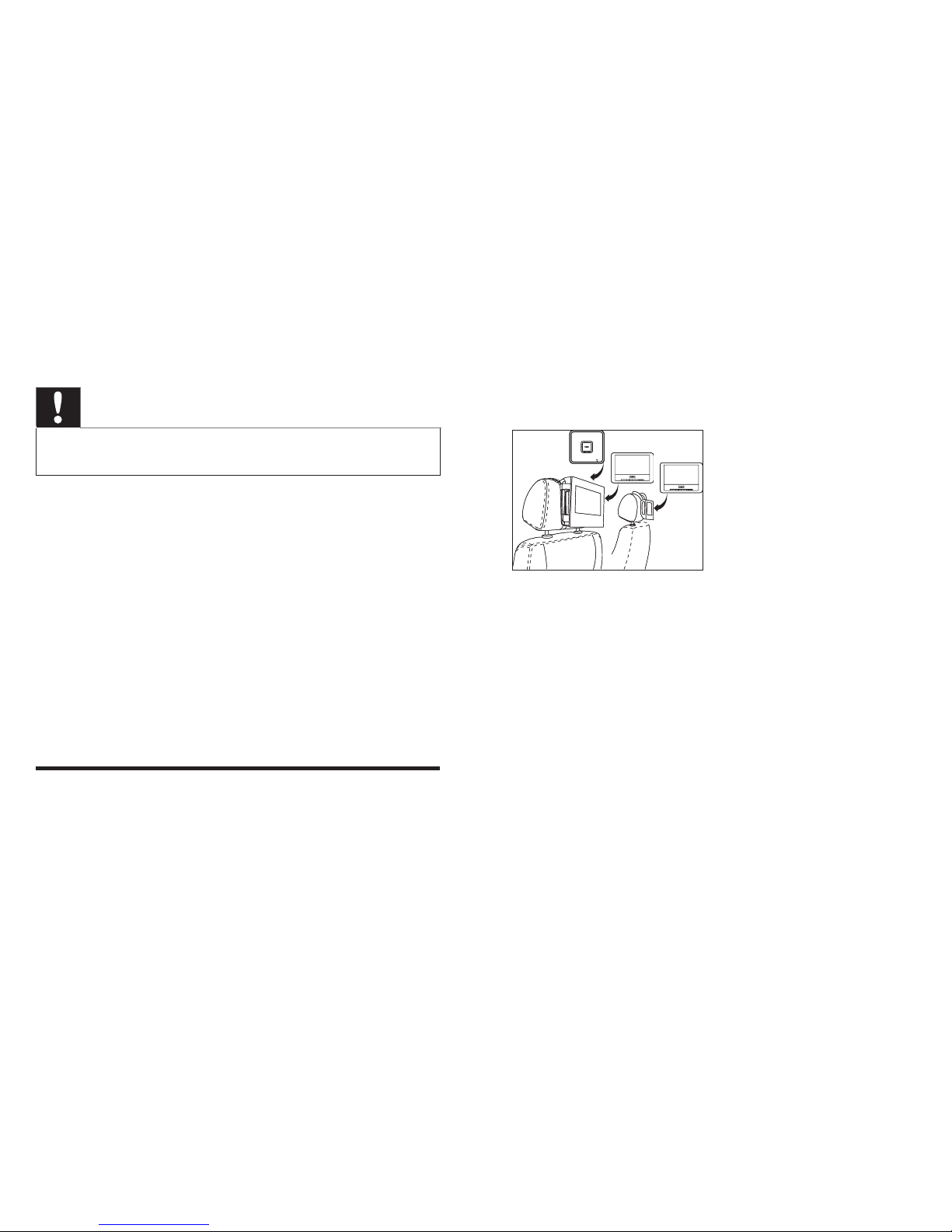

To use the player in a car, attach the player and the two screens to the back of the front seat headrests.

1 Strap the car pouches over your car seat

headrest.

2 Insert the DVD player and the two screens

into the pouches.

3 Close the buckle and adjust the belt until it

ts tightly around the headrest.

Page 16

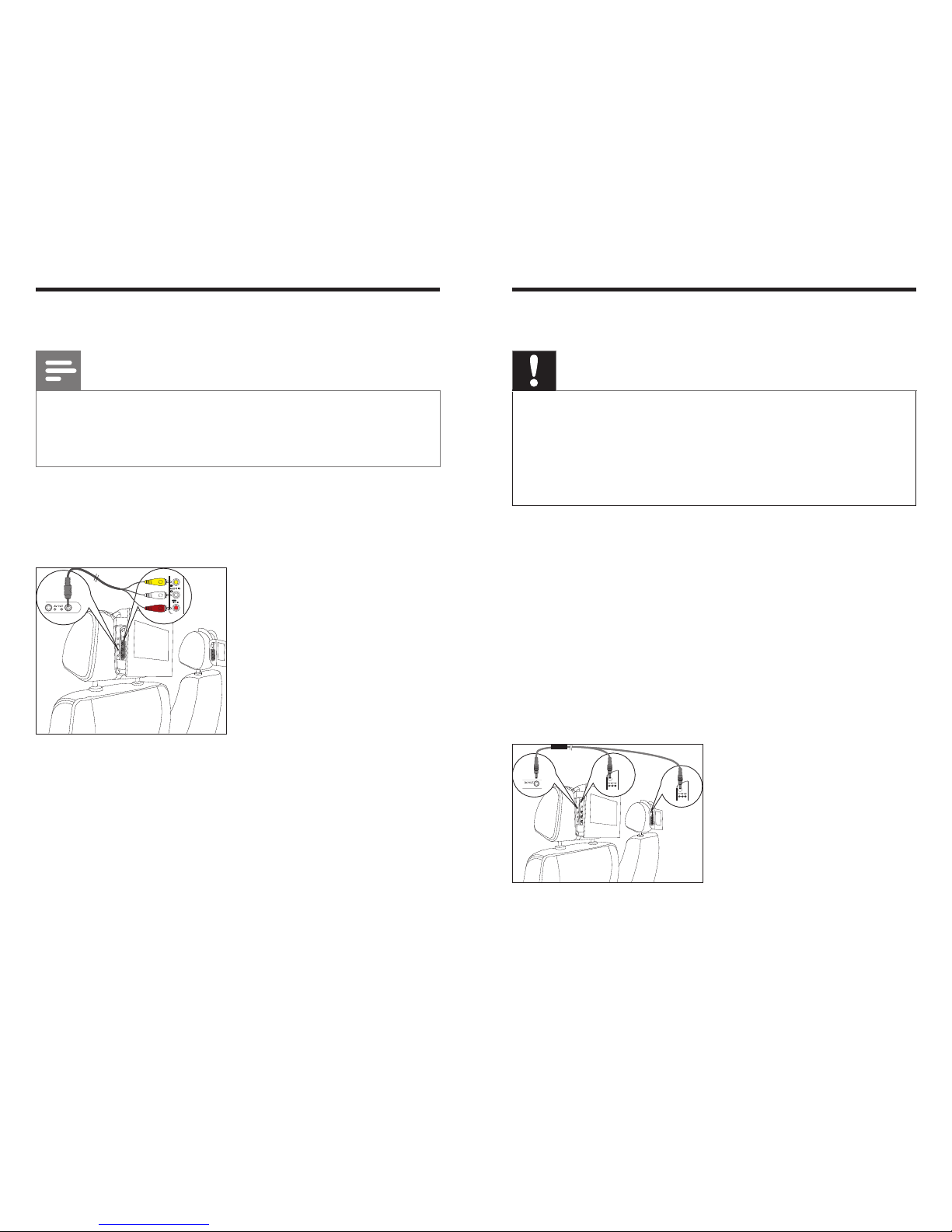

Connect audio/video cables

Note

Match the color of the AV cable with the jacks: the yellow cable is for the yellow video jack, the red/white cable is for the red/white audio jacks.

•

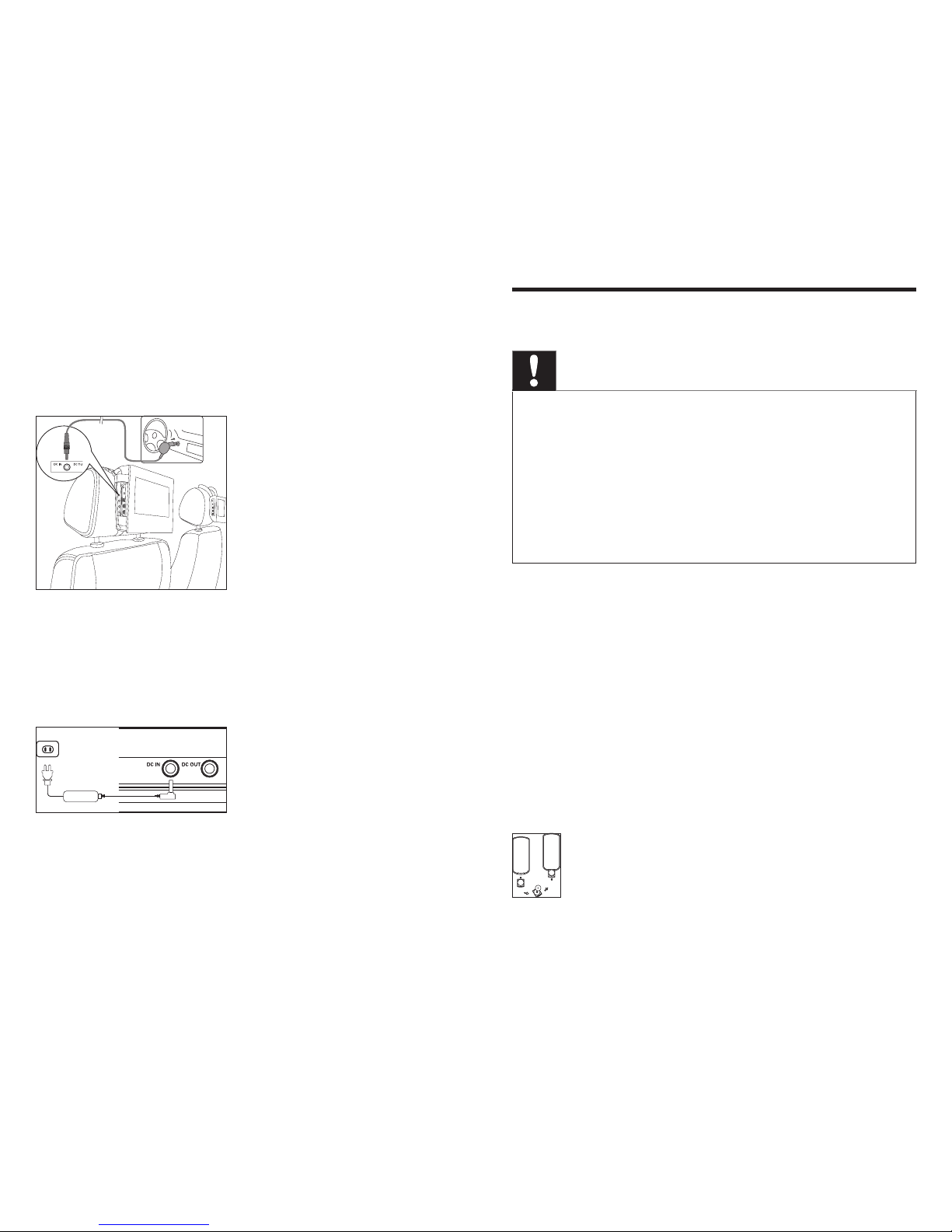

1 Connect AV cable to the main unit and to

the screen.

Connect power

Caution

Risk of product damage! Ensure that the power supply voltage corresponds to the voltage printed on the back or the underside of the player. Risk of electric shock! When you unplug the AC adaptor, always pull the plug from the socket. Never pull the cord.

•

1 Connect the single-connector end of the

power cord to the

DC OUT jack of the

main unit.

2 Connect one end of the double-connector

end of the power cord to the

DC IN jack of

one screen.

3 Repeat step 2 with the other screen.

4 Connect the power:

Page 17

To connect power from inside a car: Connect the car adaptor cable to the DC IN jack of the main unit and to the car cigarette lighter socket.

To connect power from household power sources: Connect the AC adaptor cable to the

DC IN jack of the main unit

and to the power outlet.

•

Car Cigarette Lighter SocketCar Cigarette Lighter Socket

Install remote control batteries

Caution

Risk of explosion! Keep batteries away from heat, sunshine

or re. Never discard batteries in re.

Risk of decreased battery life! Never mix different brands or types of batteries. Risk of product damage! When the remote control is not used for long periods, remove the batteries. Perchlorate Material - special handling may apply. See www.dtsc.ca.gov/hazardouswaste/perchlorate.

•

For rst-time use:

1 Remove the protective tab to activate the

remote control batteries.

To replace the remote control batteries:

1 Open the battery compartment. 2 Insert 1 CR2025 3V lithium battery batteries

with correct polarity (+/-) as indicated.

3 Close the battery compartment.

Page 18

Connect headphones

Caution

Philips guarantees compliance with the maximum sound power of its audio players as determined by relevant regulatory bodies only with the original model of provided headphones. In case this one needs replacement, we recommend that you contact your retailer to order a model identical to that of the original provided by Philips.

•

1 Plug the headphones into the jack of the

main unit or screen.

Select display language

English is the default language for screen display. You can change the display language.

1 Slide the POWER switch on the DVD player

to the

ON position.

2 Press the POWER ON/OFF button on one

of the screens.

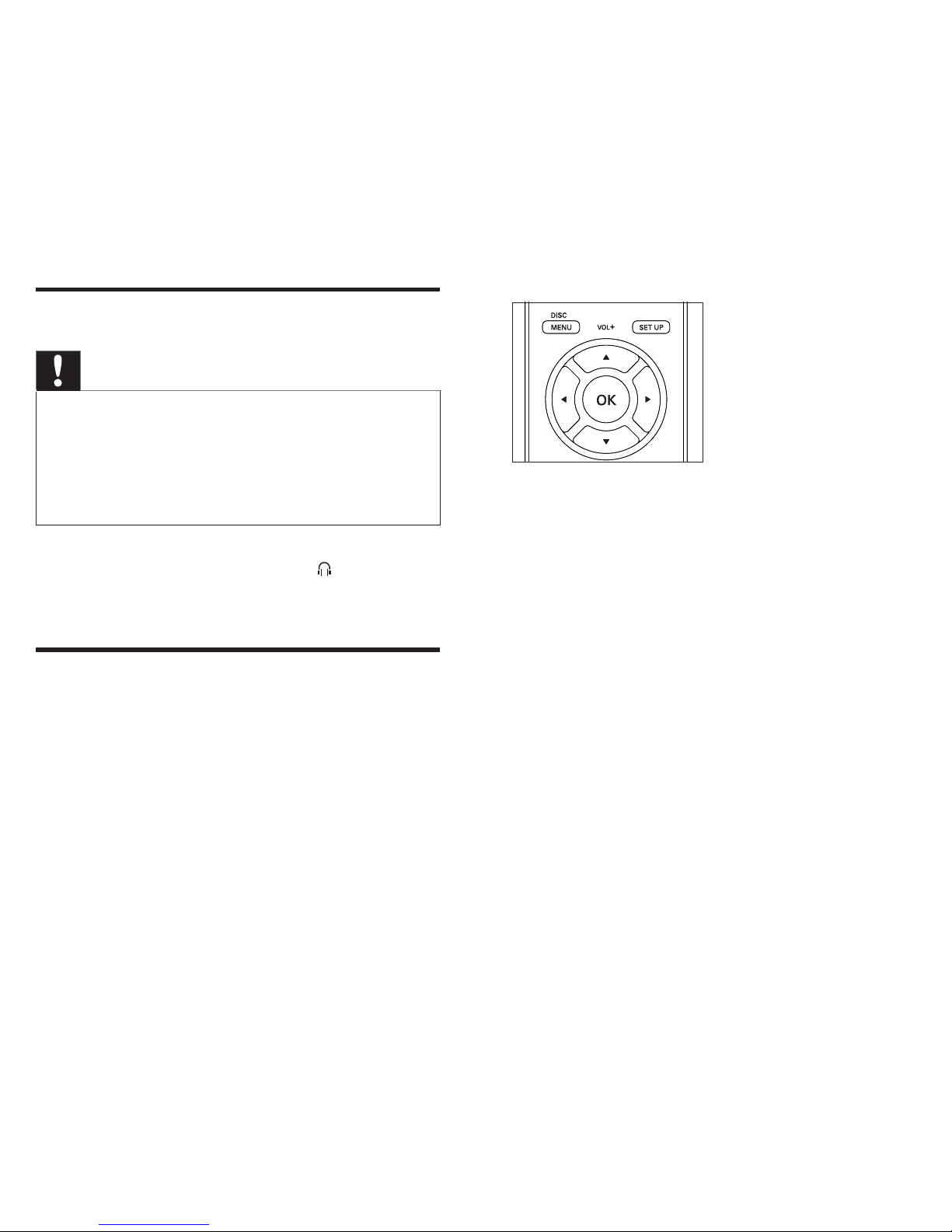

3 Press SETUP.

4 Select [General] > [Language]. 5 Select the language, then press OK.

Page 19

4 Use your player

Turn on

1 Slide the POWER switch on the DVD player

to the

ON position.

2 Press the POWER ON/OFF button on the

screens.

Play discs

1 Press OPEN on the main unit. 2 Insert the disc with label side facing up. 3 Push down to close the CD compartment.

Play starts automatically.

If a menu appears, select an item, then press

OK to start play.

To stop play, press

STOP .

To pause, press

PLAY/PAUSE . Press

again to resume play.

•

To select the previous/next item, press

or . To star t search within video/audio, press and hold

or . Briey press or

during search to adjust search speed. For Video CDs or Super Video CDs: Press

RETURN to return to the

previous menu.

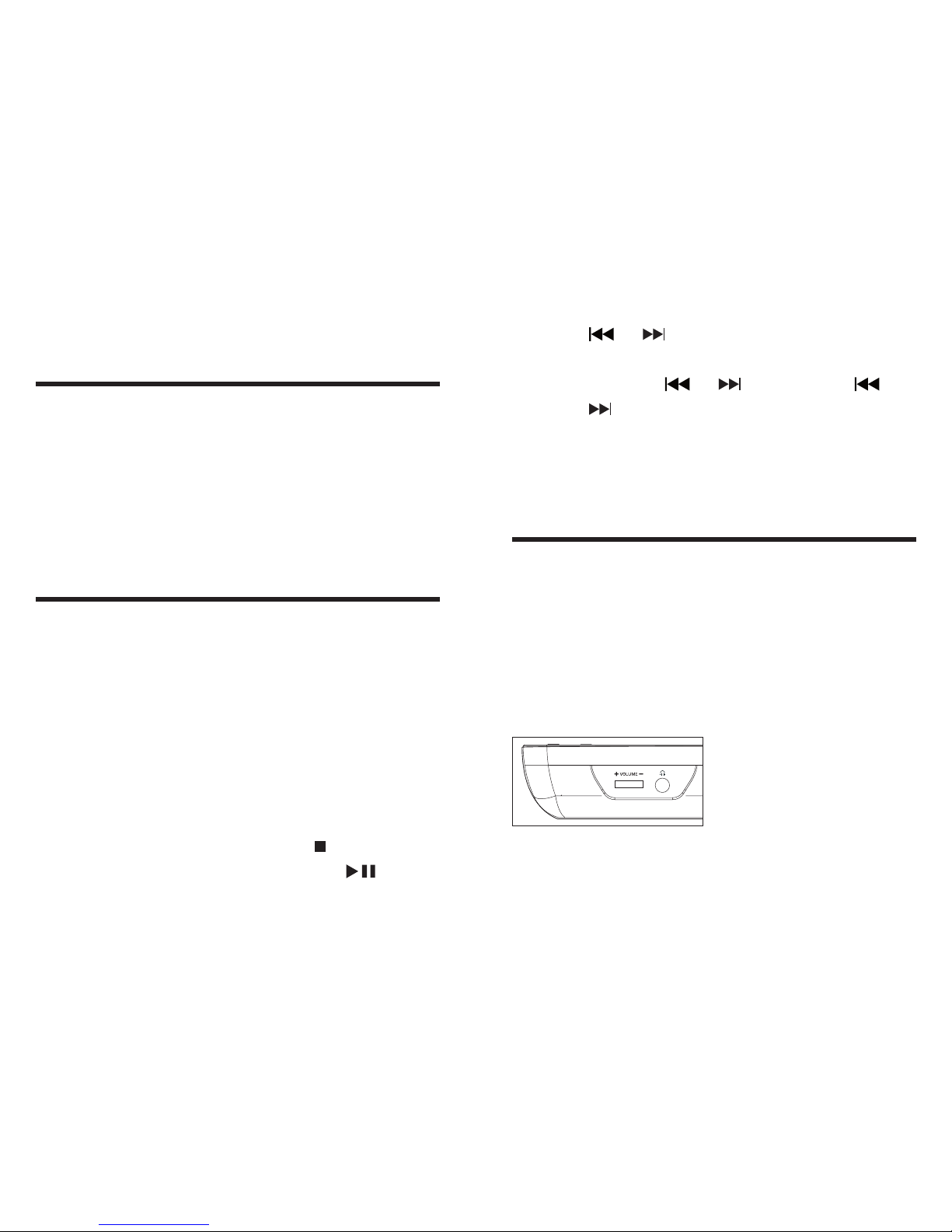

Adjust volume

For headphones connected to the player:

1 Adjust the volume control on the player.

For screen speakers:

1 Adjust the volume control on the screen.

•

Page 20

Tip

When headphones are connected, no sound emits from the screen speakers.

•

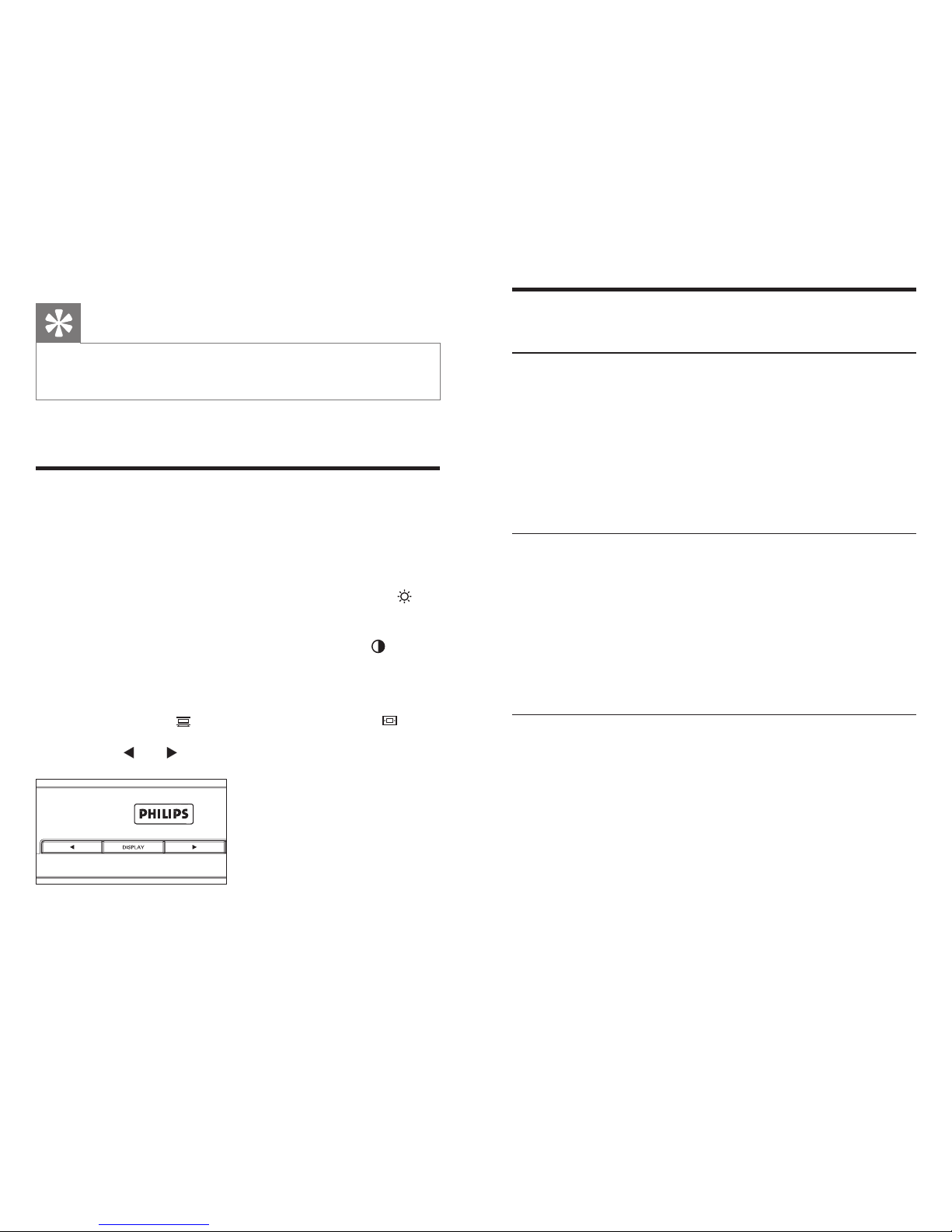

Adjust display

1 Press DISPLAY on the screen repeatedly to

select:

[Brightness]: adjust the brightness ( ) of the screen [Contrast]: adjust the contrast ( ) of the screen [Display ratio] : select 16:9 display mode (

) or 6:9 display mode ( )

2 Press or to change value.

•

Play options

Select audio language

For DVDs that contain two or more audio languages.

1 During play, press AUDIO repeatedly until

the language is selected.

Select subtitle language

For DVDs that contain two or more subtitle languages.

1 During play, press SUBTITLE repeatedly until

the language is selected.

Select DivX video subtitle

1 Press SETUP. 2 Select [Video] > [Mpeg-4 subtitles]. 3 Select an option, then press OK to conrm. 4 Press SETUP to exit.

Page 21

Select audio mode

When you play VCDs/CDs, you can select an audio mode.

1 Press AUDIO repeatedly until the audio

mode is selected.

Zoom

For DVDs, VCDs and picture CDs, you can zoom in and out for video images or pictures.

1 Press ZOOM repeatedly to zoom in and out. 2 When the video image or picture is enlarged,

press

to pan through it.

Repeat a section

You can repeat a specic section of audio/video

within a title/chapter/track (repeat A-B).

1 During play, press A-B to mark the start of

the section to repeat.

2 Press and hold or to search for the

end of the section.

3 Press A-B to mark the end of the section.

The selected section plays repeatedly.

4 Press A-B to cancel.

Repeat one/all

1 During play, press OSD. 2 Select [Repeat 1] or [Repeat all], then press

OK to conrm.

Random play

For audio CDs and MP3 CDs only.

1 Press OSD. 2 Select [Shufe], then press OK to conrm. 3 Select [On] or [Off], then press OK to

conrm.

Rotate pictures

For picture CDs only.

1 When you view the picture, press OSD. 2 Press to rotate clockwise. 3 Press to rotate counter-clockwise.

Page 22

4 Press OSD again to exit.

5 Adjust settings

Playback control options

1 Press SETUP. 2 Select [General] > [PBC settings]. 3 Select an option, then press OK to conrm. 4 Press SETUP to exit.

DivX Video-on-Demand code

DivX is a popular media technology created

by DivX, Inc.DivX media les contain highly

compressed video with high visual quality that

maintains a relatively small le size. DivX les can

also include advanced media features like menus, subtitles, and alternate audio tracks. Many DivX

media les are available for download online, and

you can rent and purchase DivX videos with the DivX VOD (Video on Demand) service. To use this service, you need the DivX VOD registration

Page 23

code of this player. For more information and instructions, visit www.divx.com/vod.

1 Press SETUP. 2 Select [General] > [DivX (VOD)].

The DivX registration code appears

3 Write down the number for future reference. 4 Press SETUP to exit.

“DivX, DivX” Certied, and associated logos

are trademarks of DivX, Inc. and are used under license.

Ofcal DivX® Certied product. Plays all versions of DivX® video (including DivX® 6) with standard playback of DivX® media les.

Restrict access

1 Press SETUP. 2 Select [General] > [Parental]. 3 Select a setting, then press OK to conrm.

4 Enter the password.

If this is the rst time you restrict access,

enter 9999 as the password.

5 Press SETUP to exit.

Set password

1 Press SETUP. 2 Select [General] > [Set password]. 3 Enter the current password.

If this is the rst time you restrict access,

enter 9999 as the password.

4 Enter the new 4-digit password, then press

OK to conrm.

5 Enter the new password again, then press

OK to conrm.

6 Press SETUP to exit.

•

Page 24

Return to default settings

Note

When you return to default settings, the access restriction password will not be reset.

•

1 Press SETUP. 2 Select [General] > [Factory settings], then

press

OK. The settings return to their default setting.

3 Press SETUP to exit.

Select TV display aspect ratio

Set the screen format according to how you want the picture to appear on your TV:

1 Press SETUP. 2 Select [Video] > [TV Display], then select an

option:

[16:9]: For widescreen TVs

•

[4:3 LB]: For normal TVs, for a widescreen picture. Black bars may appear on the top and the bottom of the screen. [4:3 PS]: For normal TVs, for a full-height picture. The sides of the picture may be trimmed.

3 Press OK to conrm. 4 Press SETUP to exit.

Select video output format

The default video output format has been chosen according to format that is broadcast in your country. If the picture looks unusual, change the video output.

1 Press SETUP. 2 Select [Video] > [TV Standard]. 3 Select an option, then press OK to conrm. 4 Press SETUP to exit.

•

Page 25

Select audio output

1 Press SETUP. 2 Select [Audio] > [Dolby]. 3 Select an option, then press OK to conrm. 4 Press SETUP to exit.

Select digital audio output

If you connect the player to a sound system that supports digital sound, select a compatible digital audio output format.

1 Press SETUP. 2 Select [Audio] > [Digital (SPDIF)]. 3 Select an option, then press OK to conrm. 4 Press SETUP to exit.

6 Troubleshooting

Warning

Never remove the casing of this player. •

To keep the warranty valid, never try to repair the system yourself. If you encounter problems when using this player, check the following points before requesting service. If the problem remains unsolved, go to the Philips web site (www.Philips.com/suppor t), or contact Philips (see Contact information). When you contact Philips, ensure that your player is nearby and the model number and serial number are availabl

e (see ‘Get started’ on page 26).

No power

Ensure that both plugs of the mains cord are properly connected. Ensure that there is power at the AC outlet. Ensure that the battery is inserted correctly. Ensure that the car adaptor is connected correctly.

•

Page 26

‘No signal’ is displayed

Ensure that the player is turned on. Ensure that the AV cable is connected.

Distorted picture

Clean the disc. With a clean, soft, lint-free cloth, wipe the disc outwards from the center. Make sure that the video output format of the disc is compatible with the TV. Change the video output format to match your TV or progra

m (see ‘Select video output

format’ on page

45). The LCD is manufactured using high precision technology. You may, however, see tiny black points and/or bright points(red, blue, green) that continuously appear on the LCD. This is a normal result of the manufacturing process and does not indicate a malfunction.

No sound

Ensure that the AV cable is connected correctly.

Cannot play disc

Ensure the disc label is upwards.

•

Clean the disc. With a clean, soft, lint-free cloth, wipe the disc outwards from the center. Check if the disc is defective by trying another disc.

No response to the remote control

Ensure that the path between the remote control and the player is clear from obstacles. From a close distance, point the remote control directly at the player. Replace the remote control batteries. The function does not work for this disc. Refer to the disc instructions.

The player feels warm

When the player is in use for a long period of time, its surface will be heated. This is normal.

•

Page 27

7 Product

information

Note

Product information is subject to change without prior notice.

•

Dimensions (player) 204 x 168 x 33 mm

(8.0 x 6.6 x 1.3 inches)

Dimensions (screen) 204 x 168 x 33 mm

(8.0 x 6.6 x 1.3 inches) Weight (player) 1.9 kg / 4.2 pounds Weight (screen) 1.9 kg / 4.2 pounds Power supply DC 12V 2.0A Power Consumption

<20W Operating temperature

range

0 - 50°C

Laser wavelength

650nm Video system NTSC / PAL / AUTO

Page 28

Page 29
