Philips PET1000/05 Specification Sheet

Download

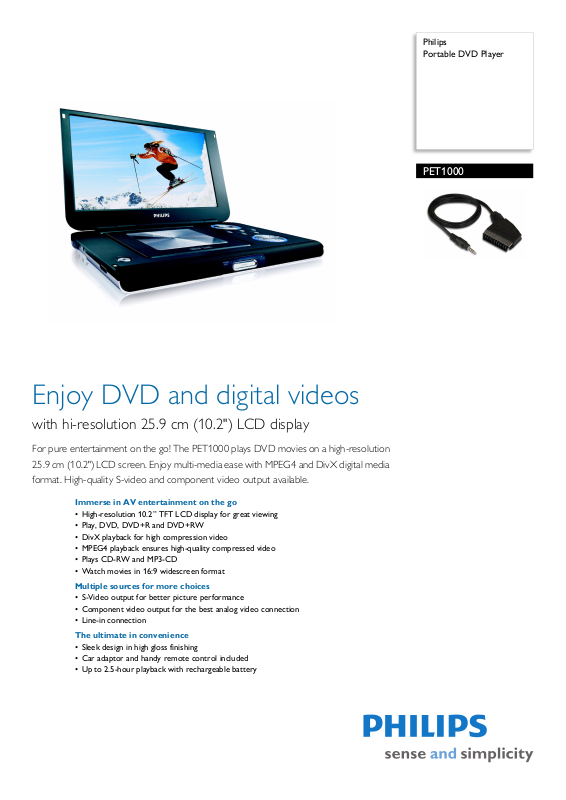

Page 1

Philips Portable DVD Player

PET1000

Enjoy DVD and digital videos

with hi-resolution 25.9 cm (10.2") LCD display

For pure entertainment on the go! The PET1000 plays DVD movies on a high-resolution

25.9 cm (10.2") LCD screen. Enjoy multi-media ease with MPEG4 and DivX digital media format. High-quality S-video and component video output available.

Immerse in AV entertainment on the go

• High-resolution 10.2” TFT LCD display for great viewing

• Play, DVD, DVD+R and DVD+RW

• DivX playback for high compression video

• MPEG4 playback ensures high-quality compressed video

• Plays CD-RW and MP3-CD

• Watch movies in 16:9 widescreen format

Multiple sources for more choices

• S-Video output for better picture performance

• Component video output for the best analog video connection

• Line-in connection

The ultimate in convenience

• Sleek design in high gloss finishing

• Car adaptor and handy remote control included

• Up to 2.5-hour playback with rechargeable battery

Page 2

Portable DVD Player

Highlights

PET1000/05

DivX playback

With DivX support, you are able to enjoy D

ivX encoded videos in the comfort of your living room. The DivX media format is an MPEG4-based video compression technology that enables you to save large files like movies, trailers and music videos on media like CD-R/ RW, memory cards and DVD-video. DivX CDs can be played back on selected DVD players, DVD Recorders and Home Theater Systems.

MPEG4 playback

MPEG4 is a compression standard allows you to

record movies at up to seven to 10 times smaller than the MPEG2 standard without compromising on the picture and sound quality. MPEG4 media can be saved on a CDRom, memory card or DVD disc and can be played back in selective DVD players, DVD recorder and Home theater systems.

S-Video output

The ideal way to connect high-resolution pi

cture sources like DVD, Digital Satellite &

Cable TV and video game consoles to TV set, for better detail than standard video outputs

Component Video Output

YPbPr Component Video is a top-quality video conne

ction ideal for connecting DVD players or recorders to high-end TV sets. It uses three separate wires for the luminance and colour difference signals to prevent interference. Because the video signal on the DVD disc is also stored in YPbPr format, no conversion steps are needed to generate the output signal.

Page 3

Portable DVD Player

Specifications

PET1000/05

Picture/Display

• Display screen type: LCD TFT

• LCD panel type: Anti

• Diagonal screen size (inch): 10.2 inch

• Resolution: 800(w)x480(H)x3(RGB)

• Brightness: 450 cd/m²

• Contrast ratio (typical): 300:1

• Effective viewing area: 222.0X133.2mm

• Pixel pitch: 0.1905(w)x0.1905(H)mm

• Response time (typical): 18 ms

-glare polarizer

Sound

• Output Power: 250mW RMS(built-in speakers)

• Output power (RMS): 10mW RMS(earphone)

• Signal to noise ratio: >80dB(earphone), dB(built-in speakers)

>62

Video Playback

• Playback Media: DVD, DVD+RW, DVD+R, Picture

CD, SVCD, Video CD

• Compression formats: DivX 3.11, DivX 4.x, DivX

5.x, MPEG

• Disc Playback Modes: OSD, A-B Repeat, Angle,

Dis Shuffle Play, Slow Backward, Slow Forward, Zoom

• Video disc playback system: NTSC, PAL

c Menu, Fast Backward, Fast Forward, Repeat,

Audio Playback

• Compression format: Dolby Digital, MP3

• Playback Media: CD, CD-R, CD-RW, MP3-CD

• File systems supported: ISO-9660, Jolliet

• MP3 bit rates: 32 - 320 kbps

Connectivity

• AV output: Composite (CVBS) x1

• AV input: Composite (CVBS) x1

• Audio Output - Digital: Coaxial (cinch)

• Connector: 2 x 3.5 mm Headphones

• DC in: 9V

• Other connections: S-Video out, Component deo out Interlaced

• Power: 30W

• Audio Output - Analog: Audio L/R (cinch)

Convenience

•Shock proof

• Battery charging indication

Accessories

• Battery pack: DV 7.4, Li-ion rechargeable batteries

• AC/DC Adaptor: ADPV18A(110-240v, 50/60Hz)

• Car kit: cigarette outlet adaptor, 12vDC

• Remote control: RC810(credi

• Cables: A/V cable x1, S-video cable x1, Component

o cable x1

vide

• User Manual: English/ French/ German/Spanish

• Included accessories: Travel pouch

t card style, 38 keys)

Dimensions

• Master carton dimensions: 446 x 260 x 255 mm

• Master carton quantity: 3

• Packaging dimensions (W x H x D):

2 x 243 x 190 mm

• Packaging type: D-box

• Product dimensions (W x H x D):

0 x 30 x 180 mm

• Product weight: 1.2 kg

•

Issue date 2012-01-20

Version: 4.0.6

12 NC: 9073 101 01932 EAN: 87 10895 88333 7

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* Rechargeable batteries have a limited number of charge cycles and

may eventually need to be replaced. Battery life and number of charge cycles vary by use and settings.

* DivX, DivX Certified, and associated logos are trademarks of

DivXNetworks, Inc. and are used under license.
