PESD5V0S1BA;PESD5V0S1BB; PESD5V0S1BL

Low capacitance bidirectional ESD protection diodes

Rev. 03 — 17 December 2004 Product data sheet

1. Product proﬁle

1.1 General description

Low capacitance ElectroStatic Discharge (ESD) protection diodes in ultra small SMD plastic packages designed to protect one signal line from the damage caused byESDand other transients.

Table 1: Product overview

Type number Package

PESD5V0S1BA SOD323 SC-76 PESD5V0S1BB SOD523 SC-79 PESD5V0S1BL SOD882 -

Philips JEITA

1.2 Features

■ Bidirectional ESD protection of one line ■ ESD protection > 30 kV

■ Max. peak pulse power: PPP = 130 W ■ IEC 61000-4-2, level 4 (ESD)

■ Low clamping voltage: V

■ Ultra low leakage current: IRM = 5 nA ■ Ultra small SMD plastic packages

= 14 V ■ IEC 61000-4-5 (surge); IPP = 12 A

(CL)R

1.3 Applications

■ Cellular handsets and accessories ■ Communication systems

■ Portable electronics ■ Audio and video equipment

■ Computers and peripherals

1.4 Quick reference data

Table 2: Quick reference data

Symbol Parameter Conditions Min Typ Max Unit

V C

RWM d

reverse stand-off voltage - - 5 V diode capacitance VR = 0 V;

f = 1 MHz

- 3545pF

Philips Semiconductors

2. Pinning information

Table 3: Pinning

Pin Description Simpliﬁed outline Symbol

SOD323, SOD523

1 cathode 1 2 cathode 2

SOD882

1 cathode 1 2 cathode 2

PESD5V0S1BA/BB/BL

Low capacitance bidirectional ESD protection diodes

001aab540

Transparent

top view

sym045

3. Ordering information

Table 4: Ordering information

Type number Package

PESD5V0S1BA SC-76 plastic surface mounted package; 2 leads SOD323 PESD5V0S1BB SC-79 plastic surface mounted package; 2 leads SOD523 PESD5V0S1BL - leadless ultra small plastic package; 2 terminals;

4. Marking

Table 5: Marking codes

Type number Marking code

PESD5V0S1BA E6 PESD5V0S1BB L7 PESD5V0S1BL F1

Name Description Version

SOD882

body 1.0 × 0.6 × 0.5 mm

Product data sheet Rev. 03 — 17 December 2004 2 of 15

Philips Semiconductors

5. Limiting values

Table 6: Limiting values

In accordance with the Absolute Maximum Rating System (IEC 60134).

Symbol Parameter Conditions Min Max Unit

Per diode

amb

stg

[1] Non-repetitive current pulse 8/20 µs exponentially decaying waveform according to IEC61000-4-5; see

Figure 1.

[2] Measured from pin 1 to pin 2.

Table 7: ESD maximum ratings

Symbol Parameter Conditions Min Max Unit

ESD electrostatic discharge

PESD5V0S1BA/BB/BL

Low capacitance bidirectional ESD protection diodes

peak pulse power 8/20 µs peak pulse current 8/20 µs junction temperature - 150 °C ambient temperature −65 +150 °C storage temperature −65 +150 °C

IEC 61000-4-2 (contact

capability

discharge) HBM MIL-Std 883 - 10 kV

[1] [2]

- 130 W

[1] [2]

-12A

[1] [2]

-30kV

[1] Measured from pin 1 to pin 2. [2] Device stressed with ten non-repetitive ElectroStatic Discharge (ESD) pulses; see Figure2.

Table 8: ESD standards compliance

ESD Standard Conditions

IEC 61000-4-2, level 4 (ESD);

Figure 2 > 15 kV (air); > 8 kV (contact)

HBM MIL-STD 883; class 3 > 4 kV

Product data sheet Rev. 03 — 17 December 2004 3 of 15

Philips Semiconductors

120

(%)

100 % Ipp; 8 µs

mle218

PESD5V0S1BA/BB/BL

Low capacitance bidirectional ESD protection diodes

001aaa191

100 %

90 %

010

−t

50 % Ipp; 20 µs

t (µs)

Fig 1. 8/20 µs pulse waveform according to

IEC 61000-4-5

10 %

tr = 0.7 to 1 ns

30 ns

60 ns

Fig 2. ElectroStatic Discharge (ESD) pulse waveform

according to IEC 61000-4-2

Product data sheet Rev. 03 — 17 December 2004 4 of 15

Philips Semiconductors

PESD5V0S1BA/BB/BL

Low capacitance bidirectional ESD protection diodes

6. Characteristics

Table 9: Characteristics

= 25°C unless otherwise speciﬁed.

amb

Symbol Parameter Conditions Min Typ Max Unit

Per diode

RWM

(CL)R

(BR)

dif

[1] Non-repetitive current pulse 8/20 µs exponentially decaying waveform according to IEC61000-4-5; see Figure 1. [2] Measures from pin 1 to pin 2.

reverse stand-off voltage - - 5 V reverse leakage current V

RWM

see

= 5 V;

Figure 6

clamping voltage IPP = 1 A

= 12 A

- 5 100 nA

[1] [2]

--10V

[1] [2]

--14V breakdown voltage IR = 1 mA 5.5 - 9.5 V differential resistance IR = 1 mA - - 50 Ω diode capacitance VR = 0 V; f = 1 MHz;

see

Figure 5

- 3545pF

Product data sheet Rev. 03 — 17 December 2004 5 of 15

Philips Semiconductors

PESD5V0S1BA/BB/BL

Low capacitance bidirectional ESD protection diodes

001aaa202

tp (µs)

(W)

110

amb

10 10

= 25 °C

Fig 3. Peak pulse power dissipation as a function of

exponential time duration t

(pF)

; typical values

001aaa203

1.2

pp(25˚C)

0.8

0.4

0 20015050 100

001aaa193

Tj (°C)

Fig 4. Relative variation of peak pulse power as a

function of junction temperature; typical values

RM(Tj)

RM(Tj=85°C)

001aaa204

054231

= 25 °C; f = 1 MHz

amb

VR (V)

Fig 5. Diode capacitance as a function of reverse

voltage; typical values

−1

75 150125100

Tj (°C)

Fig 6. Relative variation of reverse leakage current as

a function of junction temperature; typical values

Product data sheet Rev. 03 — 17 December 2004 6 of 15

Philips Semiconductors

PESD5V0S1BA/BB/BL

Low capacitance bidirectional ESD protection diodes

ESD TESTER 4 GHz DIGITAL

IEC 61000-4-2 network

= 150 pF; RZ = 330 Ω

GND

unclamped +1 kV ESD voltage waveform (IEC61000-4-2 network)

450 Ω

PESD5V0S1Bx

vertical scale = 200 V/div horizontal scale = 50 ns/div

RG 223/U 50 Ω coax

GND

clamped +1 kV ESD voltage waveform (IEC61000-4-2 network)

10×

ATTENUATOR

OSCILLOSCOPE

50 Ω

vertical scale = 10 V/div horizontal scale = 50 ns/div

GND

vertical scale = 200 V/div horizontal scale = 50 ns/div

unclamped −1 kV ESD voltage waveform (IEC61000-4-2 network)

clamped −1 kV ESD voltage waveform (IEC61000-4-2 network)

vertical scale = 10 V/div horizontal scale = 50 ns/div

006aaa056

Fig 7. ESD clamping test set-up and waveforms

Product data sheet Rev. 03 — 17 December 2004 7 of 15

Philips Semiconductors

7. Application information

PESD5V0S1Bx series is designed for the protection of one bidirectional signal line from the damage caused by ElectroStatic Discharge (ESD) and surge pulses. The devices may be used on lines where the signal polarities are above and below ground. They provide a surge capability of up to 130 W per line for a 8/20 µs waveform.

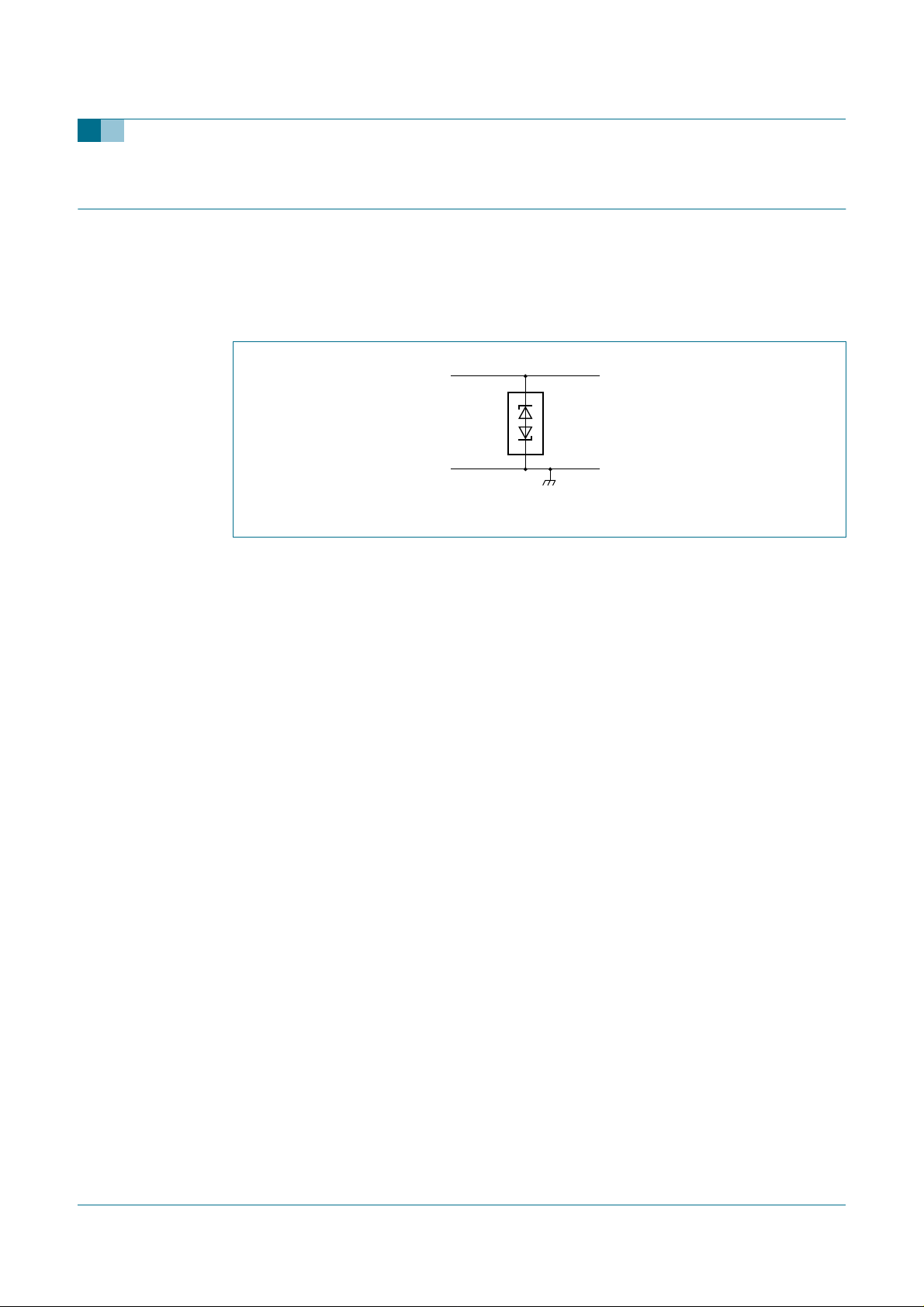

Fig 8. Bidirectional protection of one signal line.

PESD5V0S1BA/BB/BL

Low capacitance bidirectional ESD protection diodes

signal line

PESD5V0S1Bx

GND

006aaa057

Circuit board layout and protection device placement:

Circuit board layout is critical for the suppression of ESD, EFT and surge transients. The following guidelines are recommended:

1. Place the protection device as close to the input terminal or connector as possible.

2. The path length between the protection device and the protected line should be minimized.

3. Keep parallel signal paths to a minimum.

4. Avoid running protection conductors in parallel with unprotected conductor.

5. Minimize all printed-circuit board conductive loops including power and ground loops.

6. Minimize the length of the transient return path to ground.

7. Avoid using shared transient return paths to a common ground point.

8. Ground planes should be used whenever possible. For multilayer printed-circuit boards, use ground vias.

Product data sheet Rev. 03 — 17 December 2004 8 of 15

Philips Semiconductors

8. Package outline

PESD5V0S1BA/BB/BL

Low capacitance bidirectional ESD protection diodes

Plastic surface mounted package; 2 leads

SOD323

(1)

DIMENSIONS (mm are the original dimensions)

1.1

0.8

max

c D E H

0.40

0.25

1.8

0.25

0.10

IEC JEDEC JEITA

1.6

1.35

1.15

2.7

2.3

REFERENCES

UNIT

mm 0.05

Note

1. The marking bar indicates the cathode

OUTLINE VERSION

SOD323 SC-76

0.45

0.15

scale

0.25

0.15

0.2

2 mm

detail X

EUROPEAN

PROJECTION

ISSUE DATE

99-09-13 03-12-17

Fig 9. Package outline SOD323 (SC-76)

Product data sheet Rev. 03 — 17 December 2004 9 of 15

Philips Semiconductors

PESD5V0S1BA/BB/BL

Low capacitance bidirectional ESD protection diodes

Plastic surface mounted package; 2 leads SOD523

v M

(1)

OUTLINE VERSION

SOD523 SC-79

IEC JEDEC JEITA

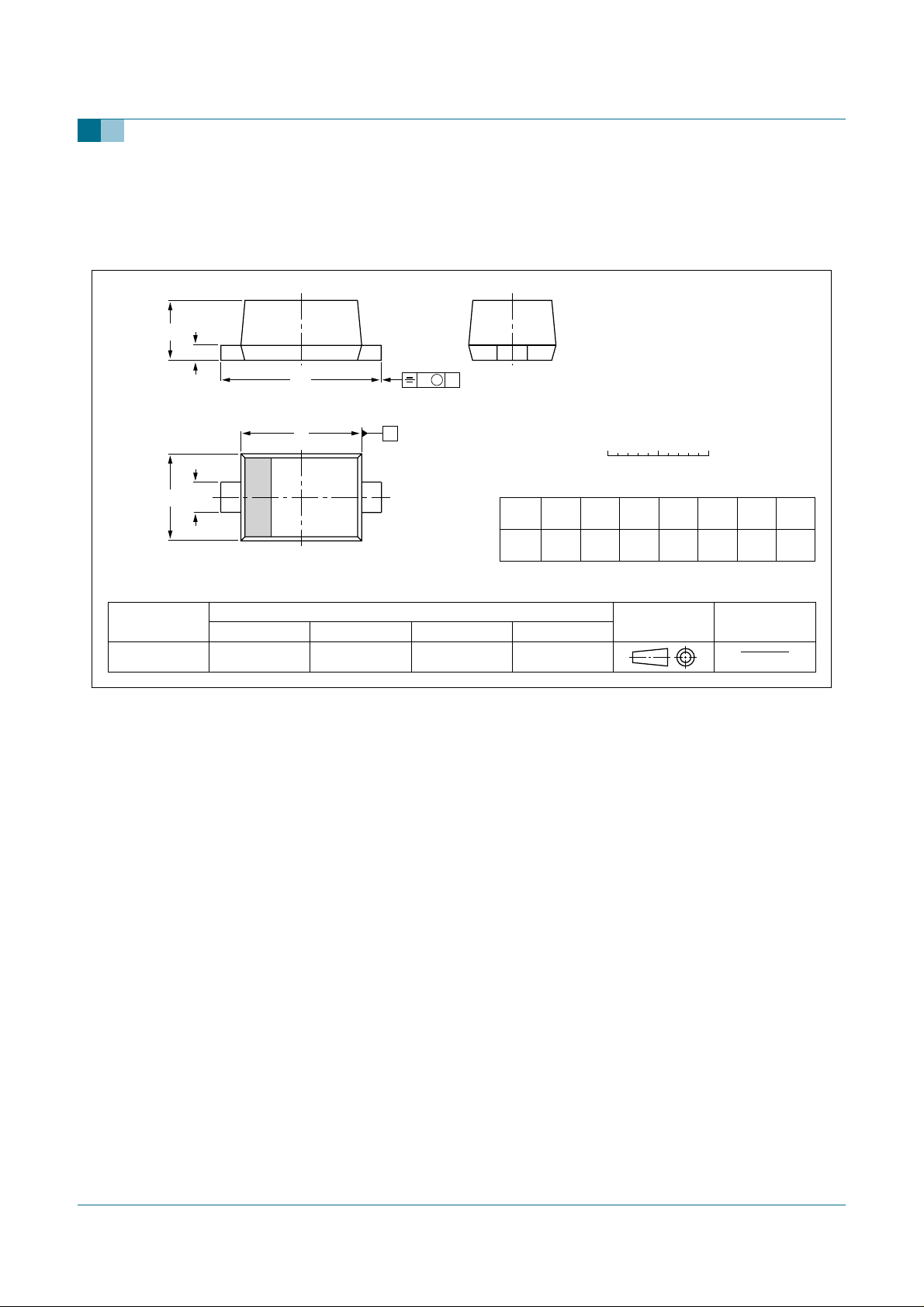

Fig 10. Package outline SOD523 (SC-79)

REFERENCES

0 0.5 1 mm

scale

DIMENSIONS (mm are the original dimensions)

UNIT b

Note

1. The marking bar indicates the cathode.

0.34

0.65

0.58

0.26

0.17

0.11

1.25

1.15

EUROPEAN

PROJECTION

0.85

0.75

1.65

1.55

ISSUE DATE

98-11-25 02-12-13

0.1

Product data sheet Rev. 03 — 17 December 2004 10 of 15

Philips Semiconductors

PESD5V0S1BA/BB/BL

Low capacitance bidirectional ESD protection diodes

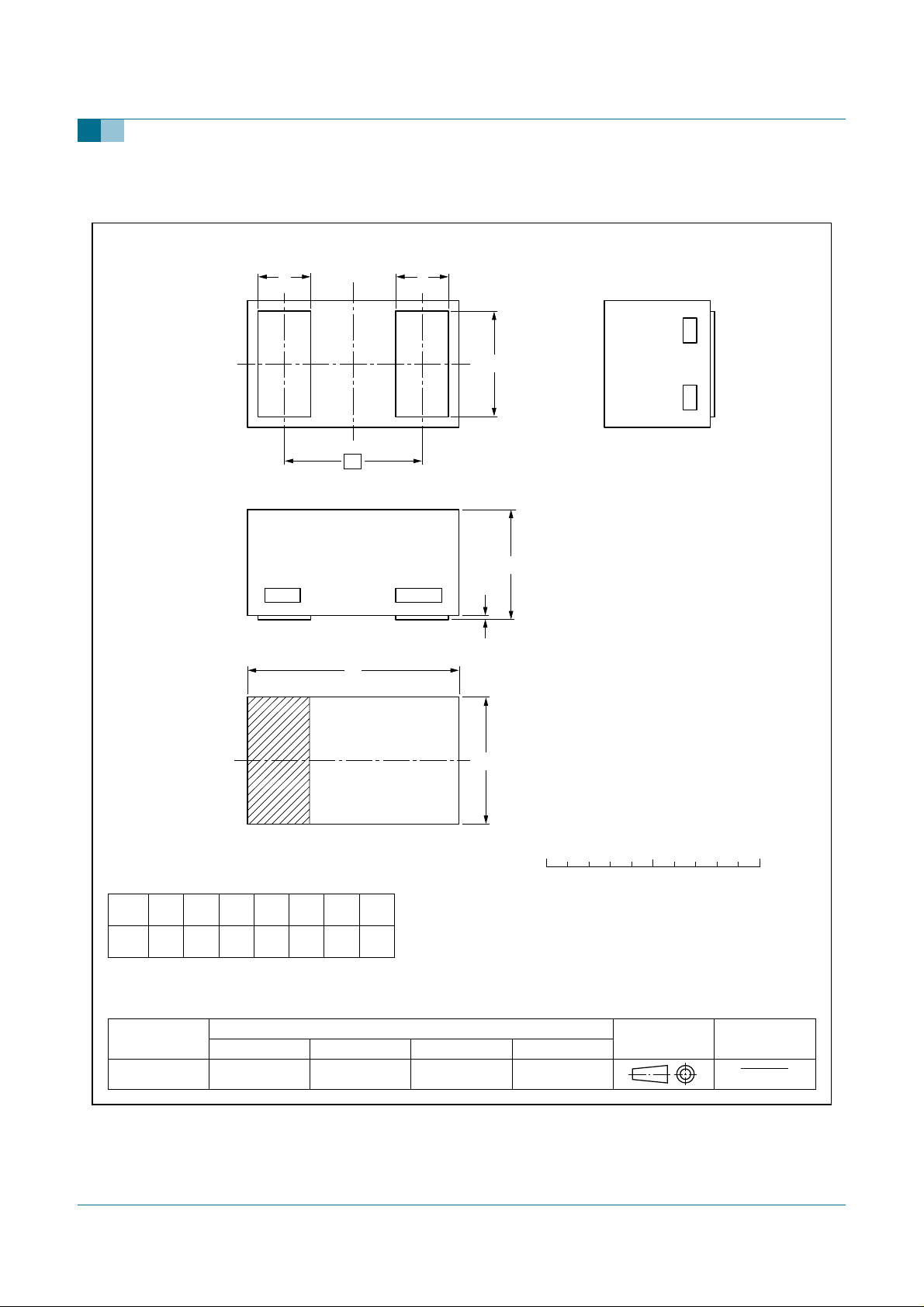

Leadless ultra small plastic package; 2 terminals; body 1.0 x 0.6 x 0.5 mm SOD882

(2)

0 0.5 1 mm

DIMENSIONS (mm are the original dimensions)

(1)

UNIT

0.50

0.46

Notes

1. Including plating thickness

2. The marking bar indicates the cathode

OUTLINE VERSION

SOD882

max.

0.03

0.55

0.62

1.02

0.47

0.55

IEC JEDEC JEITA

0.95

0.65

0.30

0.22

REFERENCES

scale

EUROPEAN

PROJECTION

ISSUE DATE

03-04-16 03-04-17

Fig 11. Package outline SOD882

Product data sheet Rev. 03 — 17 December 2004 11 of 15

Philips Semiconductors

9. Packing information

PESD5V0S1BA/BB/BL

Low capacitance bidirectional ESD protection diodes

Table 10: Packing methods

The indicated -xxx are the last three digits of the 12NC ordering code.

Type number Package Description Packing quantity

PESD5V0S1BA SOD323 4 mm pitch, 8 mm tape and reel -115 -135 PESD5V0S1BB SOD523 4 mm pitch, 8 mm tape and reel -115 -135 PESD5V0S1BL SOD882 4 mm pitch, 8 mm tape and reel - -315

[1] For further information and the availability of packing methods, seeSection 14.

[1]

3000 10000

Product data sheet Rev. 03 — 17 December 2004 12 of 15

Philips Semiconductors

PESD5V0S1BA/BB/BL

Low capacitance bidirectional ESD protection diodes

10. Revision history

Table 11: Revision history

Document ID Release date Data sheet status Change notice Doc. number Supersedes

PESD5V0S1BA_BB_BL_3 20041217 Product data sheet - 9397 750 14036 PESD5V0S1BA_BB_

BL_2

Modiﬁcations:

PESD5V0S1BA_BB_BL_2 20040802 Product data sheet - 9397 750 13514 PESD5V0S1BA_1

PESD5V0S1BA_1 20040322 Product

PESD5V0S1BB_1 20040304 Product

• Table 1 Product overview added

• Figure 1 Figure title amended

• Table 9 Symbol for differential resistance amended to r

• Figure 5 Axis description changed from V

- 9397 750 12256 -

speciﬁcation

- 9397 750 12257 -

speciﬁcation

to VR and ﬁgure title amended

dif

PESD5V0S1BB_1

Product data sheet Rev. 03 — 17 December 2004 13 of 15

Philips Semiconductors

11. Data sheet status

PESD5V0S1BA/BB/BL

Low capacitance bidirectional ESD protection diodes

Level Data sheet status

I Objective data Development This data sheet contains data from the objective speciﬁcation for product development. Philips

II Preliminary data Qualiﬁcation This data sheet contains data from the preliminary speciﬁcation. Supplementary data will be published

III Product data Production This data sheet contains data from the product speciﬁcation. Philips Semiconductors reserves the

[1] Please consult the most recently issued data sheet before initiating or completing a design. [2] The product status of the device(s) described in this data sheet may have changed since this data sheet was published. The latest information is available on the Internet at

URL http://www.semiconductors.philips.com.

[3] For data sheets describing multiple type numbers, the highest-level product status determines the data sheet status.

[1]

Product status

12. Deﬁnitions

Short-form speciﬁcation — The data in a short-form speciﬁcation is

extracted from a full data sheet with the same type number and title. For detailed information see the relevant data sheet or data handbook.

Limiting values deﬁnition — Limiting values given are in accordance with the Absolute Maximum Rating System (IEC 60134). Stress above one or more of the limiting values may cause permanent damage to the device. These are stress ratings only and operation of the device at these or at any other conditions above those given in the Characteristics sections of the speciﬁcation is not implied. Exposure to limiting values for extended periods may affect device reliability.

Application information — Applications that are described herein for any of these products are for illustrative purposes only. Philips Semiconductors make no representation or warranty that such applications will be suitable for the speciﬁed use without further testing or modiﬁcation.

[2] [3]

Deﬁnition

Semiconductors reserves the right to change the speciﬁcation in any manner without notice.

at a later date. Philips Semiconductors reserves the right to change the speciﬁcation without notice, in order to improve the design and supply the best possible product.

right to make changes at any time in order to improve the design, manufacturing and supply.Relevant changes will be communicated via a Customer Product/Process Change Notiﬁcation (CPCN).

13. Disclaimers

Life support — These products are not designed for use in life support

appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Philips Semiconductors customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Philips Semiconductors for any damages resulting from such application.

Right to make changes — Philips Semiconductors reserves the right to make changes in the products - including circuits, standard cells, and/or software - described or contained herein in order to improve design and/or performance. When the product is in full production (status ‘Production’), relevant changes will be communicated via a Customer Product/Process Change Notiﬁcation (CPCN). Philips Semiconductors assumes no responsibility or liability for the use of any of these products, conveys no license or title under any patent, copyright, or mask work right to these products, and makesno representations or warranties that these products are free from patent, copyright, or mask work right infringement, unless otherwise speciﬁed.

14. Contact information

For additional information, please visit: http://www.semiconductors.philips.com For sales ofﬁce addresses, send an email to: sales.addresses@www.semiconductors.philips.com

Product data sheet Rev. 03 — 17 December 2004 14 of 15

Philips Semiconductors

15. Contents

1 Product proﬁle . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.1 General description. . . . . . . . . . . . . . . . . . . . . . 1

1.2 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.3 Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

1.4 Quick reference data. . . . . . . . . . . . . . . . . . . . . 1

2 Pinning information. . . . . . . . . . . . . . . . . . . . . . 2

3 Ordering information. . . . . . . . . . . . . . . . . . . . . 2

4 Marking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

5 Limiting values. . . . . . . . . . . . . . . . . . . . . . . . . . 3

6 Characteristics. . . . . . . . . . . . . . . . . . . . . . . . . . 5

7 Application information. . . . . . . . . . . . . . . . . . . 8

8 Package outline . . . . . . . . . . . . . . . . . . . . . . . . . 9

9 Packing information. . . . . . . . . . . . . . . . . . . . . 12

10 Revision history. . . . . . . . . . . . . . . . . . . . . . . . 13

11 Data sheet status . . . . . . . . . . . . . . . . . . . . . . . 14

12 Deﬁnitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

13 Disclaimers. . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

14 Contact information . . . . . . . . . . . . . . . . . . . . 14

PESD5V0S1BA/BB/BL

Low capacitance bidirectional ESD protection diodes

All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner. The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license under patent- or other industrial or intellectual property rights.

Published in The Netherlands

Date of release: 17 December 2004

Document number: 9397 750 14036

Philips PESD5V0S1BA, PESD5V0S1BB, PESD5V0S1BL Technical data

Specifications and Main Features

Frequently Asked Questions

User Manual
